What are hospital curtains made of?

Most hospital curtains are woven polyester, often inherently flame-retardant so the fire performance survives repeated laundering. The top band is an open mesh to let sprinkler water through. Some areas use PVC or coated fabrics that can be wiped clean, or disposable nonwoven curtains that are replaced on a schedule instead of being laundered.

What is a cubicle curtain?

A cubicle curtain is the privacy curtain that runs on a ceiling-mounted track around a hospital bed, examination couch or treatment bay. Staff draw it to create a private space for examination, care or conversation. It usually has a solid lower section for privacy and an open mesh upper section so ceiling sprinklers and air flow are not blocked.

How often should hospital privacy curtains be changed?

There is no single international rule. Hospitals typically change curtains when they are visibly soiled, after an isolation patient is discharged, and on a routine schedule set by their infection-prevention team. Follow your facility's policy and local guidance, and keep enough spare sets so changes are never delayed waiting for laundry.

What is the difference between a hospital curtain track and a curtain rail?

The terms are often used interchangeably. Medical curtain track usually means an aluminum profile mounted to or suspended from the ceiling, with carriers or gliders running inside it. Hospital curtain rods or rails can also mean simpler round tubes. Clinical areas prefer enclosed track because carriers run smoothly, curves are possible and it is easier to clean.

When should I use a medical privacy screen instead of a curtain?

Use a medical privacy screen where no ceiling track exists, where layouts change, for temporary or overflow areas, and in outpatient rooms that need privacy only occasionally. A portable screen on castors can be moved between rooms. Curtains are better for fixed bed bays, because they are always in place and do not take up floor space.

Can hospital curtain track be used at home?

Yes, hospital curtain track can be fitted at home, for example around a care bed in a shared room. The ceiling must take fixings safely, and a straight or L-shaped track is usually enough. For occasional privacy, a folding medical screen is often simpler because it needs no installation and can be stored when not needed.

Are PVC hospital curtains better than fabric?

PVC hospital curtains can be wiped down in place with disinfectant, which suits operating, procedure and isolation areas where frequent cleaning matters more than appearance. Fabric curtains feel softer, drape better and absorb sound, so they suit wards and patient rooms. Both must meet the fire standard required for the location.

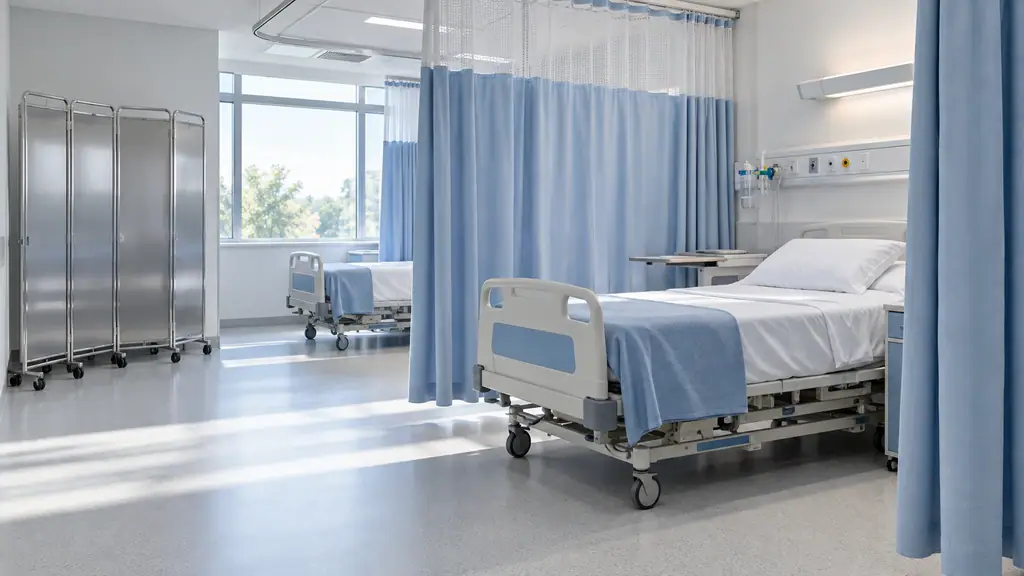

Hospital Curtains, Cubicle Tracks and Screens

Hospital curtains, also called cubicle curtains or medical curtains, hang from a ceiling-mounted track around beds and treatment bays to give patients visual privacy. A good installation combines a flame-retardant fabric, an open mesh top for sprinklers, a track layout that fully encloses the bed, and a cleaning schedule. Where no track is possible, a mobile medical privacy screen does the same job.

This guide covers curtain fabrics, fire and sprinkler requirements, track systems, infection control and when to choose screens, with a specification checklist at the end.

What are hospital cubicle curtains?

A hospital cubicle curtain is a vertical curtain with two parts:

A solid lower section, which provides privacy and stops short of the floor.
An open mesh top band between the solid fabric and the track, which lets sprinkler water, light and air pass.

The curtain hangs from carriers (gliders or hooks) that run in a ceiling track. Curtains are usually hung with extra fullness so that, when drawn, they close completely without gaps, and the hem stays clear of the floor so it does not drag through spills or catch on bed castors.

Curtains appear in multi-bed wards, emergency department bays, recovery areas, day units, examination rooms and dialysis halls. In single rooms, a curtain by the door protects privacy when staff enter.

Hospital curtain fabric and fire performance

Curtains are textiles hung in escape routes and around oxygen and electrical equipment, so fire performance is non-negotiable.

Inherently flame-retardant (IFR) polyester is the common choice: the flame resistance is in the fiber, so it does not wash out.
Topically treated fabrics can lose performance with laundering; check how many wash cycles the certificate covers.
Fire standards vary by market. In the US, curtains are typically tested to NFPA 701; in the UK, BS 5867-2 is the usual reference; other countries use EN 13773 classification or national standards. Ask for the test report that applies to your destination.

Other fabric properties to check: weight and opacity (a dark patient silhouette should not show through), colorfastness to laundering and disinfectants, shrinkage, and whether any antimicrobial finish is claimed and how it was tested. An antimicrobial treatment does not replace cleaning.

Sprinkler clearance: why curtains have a mesh top

In sprinklered buildings, a solid curtain right up to the ceiling can block the spray from a sprinkler head. Codes therefore require an open mesh section at the top.

In US practice, NFPA 13 typically calls for the solid part of the curtain to sit at least 18 in (457 mm) below the sprinkler deflector, with the band above it made of mesh of about 70% open area, or for the track to sit far enough from sprinklers to meet spacing rules. Check the edition and local amendments adopted by your authority having jurisdiction, and coordinate track positions with the sprinkler layout at design stage, not after installation.

Even where sprinklers are not installed, a mesh top improves ventilation and daylight within the bay.

Medical curtain track systems and layouts

The track determines how well the curtain closes and how easy it is to use and clean.

Layout	Shape	Typical use
Straight	Single run	Between two beds, across a doorway, exam rooms
L-shaped	Two sides with one bend	Bed against a wall, corner bays
U-shaped	Three sides around the bed	Open ward bays, ED cubicles
Oval or full loop	Encloses the bed	Island beds, ICU and recovery
Ceiling suspended	Track on drop rods	High or technical ceilings

Track features to compare:

Material: extruded aluminum is standard; anodized or powder-coated finishes resist corrosion.
Bends: factory-bent curves with a smooth radius let carriers run without snagging.
Carriers: nylon or polymer runners glide quietly; count carriers per meter for even pleating.
Mounting: surface-mounted to the ceiling, recessed flush in suspended ceilings, or hung on drop rods.
End stops and removal points: these let staff take curtains down quickly for laundering.
Breakaway or quick-release systems are used in mental-health settings to reduce ligature risk; specify these separately where needed.

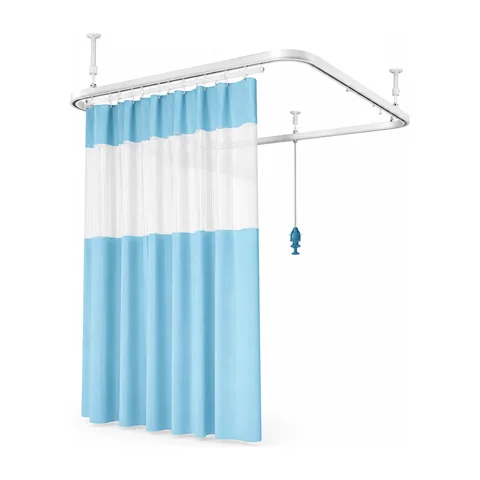

Keling's KL-CL050 Medical Curtain & Track medical curtain and track system comes in U-shaped, straight and L-shaped track configurations with custom track sizes, and curtains in blue, yellow, green, white and pink, so one supplier can match track and curtain to each bay.

Installing and maintaining curtain track

Track is installed once and used for decades, so a little planning avoids years of snagging curtains and gaps.

Survey the ceiling first. Suspended ceilings need fixings into the structure above or a support channel; plasterboard alone will not hold a loaded track.
Coordinate with other ceiling services. Keep track clear of light fittings, ceiling pendants, patient hoist rails and air diffusers, and check that a drawn curtain does not cut through an oxygen or monitor arm.
Allow full enclosure. The drawn curtain should close the bay on every open side, with an overlap where two curtains meet.
Maintain carriers. Replace worn or broken carriers during curtain changes; a missing carrier makes the curtain sag and leaves a gap.

A medical screen is a free-standing, usually folding, set of framed panels on castors or feet. Hospital screens are the right choice when:

there is no ceiling track, or the ceiling cannot take fixings;
the room layout changes often, as in multipurpose clinics or vaccination sites;
privacy is needed only occasionally, such as in outpatient rooms or corridors during surges;
you need temporary separation in overflow or field settings.

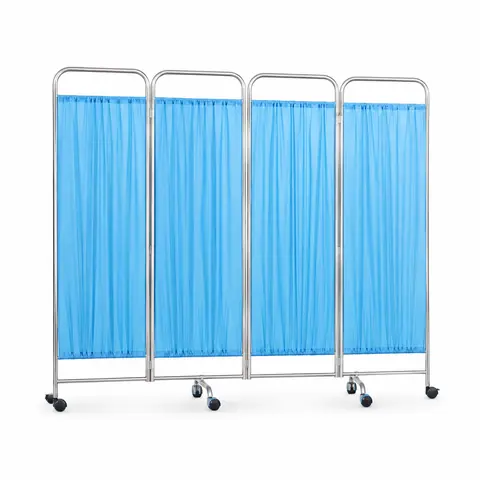

The KL-CL051 Medical Screen is a foldable four-panel medical privacy screen with a stainless steel frame, curtain panels of 1800 × 500 mm (H × W) each and 360° swivel castors, so it folds flat for storage and rolls between rooms.

When choosing a portable medical privacy screen, check stability when fully opened, the gap at the bottom, how the panels lock at the hinges, how easily the panel covers come off for cleaning, and whether the frame tolerates your disinfectants.

Curtains vs screens: which suits your area?

Factor	Cubicle curtains on track	Folding medical screen
Installation	Ceiling fixing, coordinated with sprinklers	None
Floor space	None	Takes floor space when open and stored
Privacy coverage	Full enclosure, always available	Partial; depends on panel count
Flexibility	Fixed to the bed position	Moves between rooms
Cleaning	Remove and launder, or wipe if PVC	Wipe frame, launder or wipe panels
Typical areas	Wards, ED bays, ICU, recovery	Clinics, exam rooms, temporary areas

Many hospitals use both: curtains for every fixed bed and a pool of screens for flexible use.

Infection control and cleaning

Privacy curtains are touched constantly by staff, patients and visitors, and studies have repeatedly found that freshly hung curtains become contaminated within days to a week. That makes them a recognized reservoir for pathogens in patient areas.

Practical measures:

Set a schedule. Change curtains when visibly soiled, after discharge of an isolation patient and on a routine interval set by your infection-prevention team.
Keep spare sets of each size, so changes are not delayed by laundry turnaround.
Use wipeable materials where appropriate. A PVC hospital curtain or coated fabric can be disinfected in place in procedure rooms or isolation areas.
Consider disposable curtains in high-risk units, with a date marking system to show when each was hung.
Design for quick removal, with carriers or hooks that release without ladders where possible.
Train hand hygiene around curtain contact, because staff hands move pathogens between curtains and patients.

Our guide to sterilization vs disinfection explains the levels of decontamination that apply to different surfaces.

What to specify for hospital curtain solutions

For a tender or a project order, list:

Area and quantity: number of bays by layout (straight, L, U, loop) with dimensions in mm.
Track: material, finish, mounting type, ceiling height, bend radii, end stops, carriers per meter.
Curtain size: drop, total width including fullness, mesh band depth and hem clearance from the floor.
Fabric: composition, weight, color, fire test standard and report, laundering temperature and cycles, disinfectant compatibility.
Special requirements: PVC or disposable curtains, breakaway track, antimicrobial claims with test basis.
Spares: number of spare curtains per bay, spare carriers and end stops.
Screens: number of panels, panel height and width, frame material, castor type and brakes.
Documents: factory quality certificate, installation drawings, fire test reports and care instructions.

Keling Medical supplies curtain tracks and medical screens with its hospital furniture range, made at an ISO 13485:2016-certified factory. Ask for the documents that apply to the model and your destination country.

Next steps

Coordinate curtain track positions with the bed, sprinkler and lighting layout early, choose fabric by fire standard and cleaning regime, and add screens where fixed tracks do not fit. For planning the rest of the room, see the ICU equipment list and the patient-room furniture checklist. When you have bay layouts and quantities, send a request for quotation and the export team will confirm track sizes, curtain colors and lead time.
