# X-LED Series X-Ray Film Viewer — LED Negatoscope for Medical Imaging Diagnosis

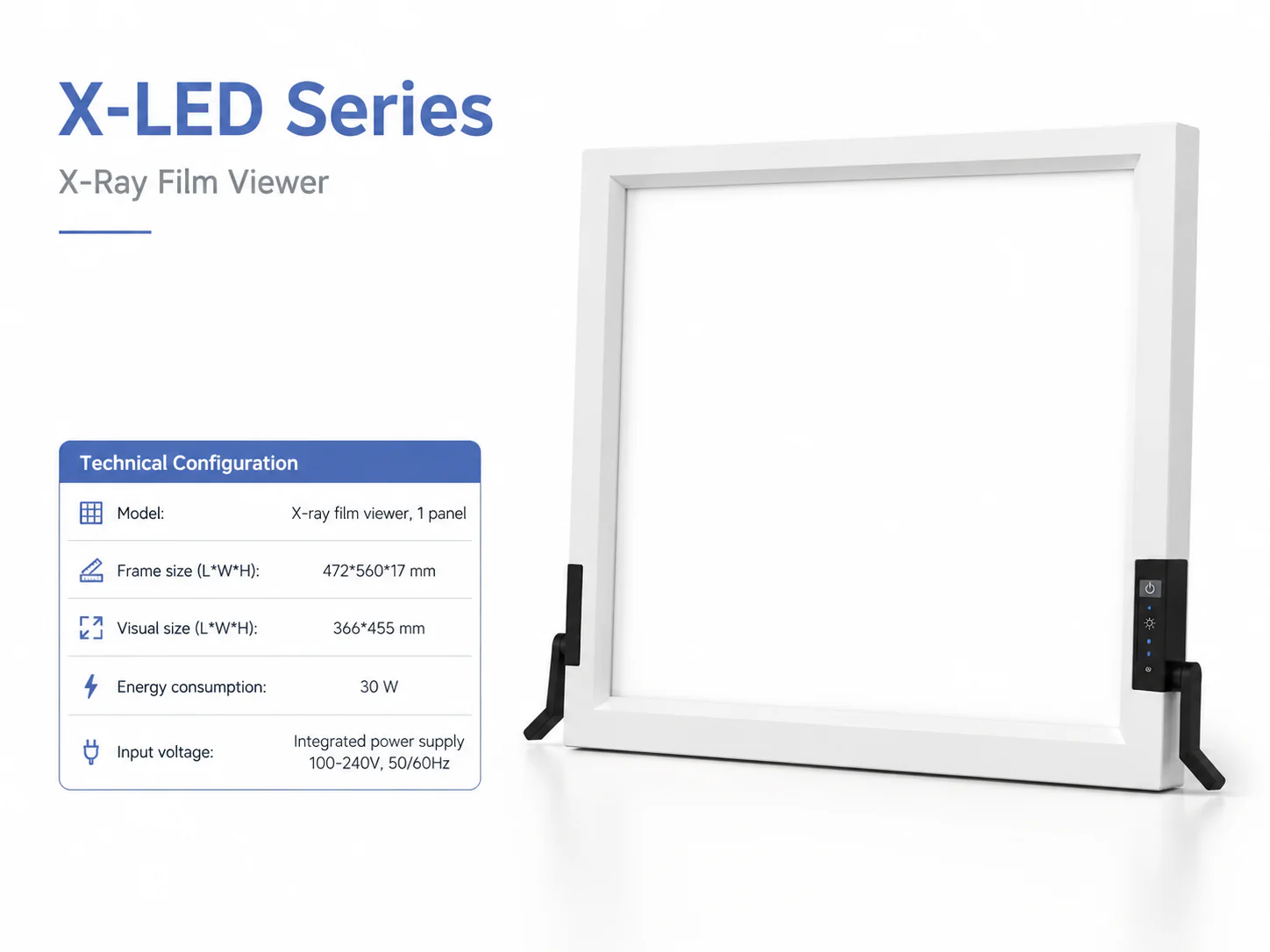

Quick answer: The Keling X-LED Series is a professional X-ray film viewer (negatoscope) with a 472 × 560 × 17 mm slim frame, a 366 × 455 mm visual area, 30 W energy consumption and an integrated power supply accepting 100–240 V at 50/60 Hz. It features a touch control panel on both sides, uniform LED illumination and an ultra-slim 17 mm profile. It is manufactured by Keling Medical (Keling Medical) for hospitals, clinics, diagnostic centers and medical schools.
Quick Facts
- The Keling X-LED Series is a professional LED X-ray film viewer designed for clear, accurate diagnostic image observation.

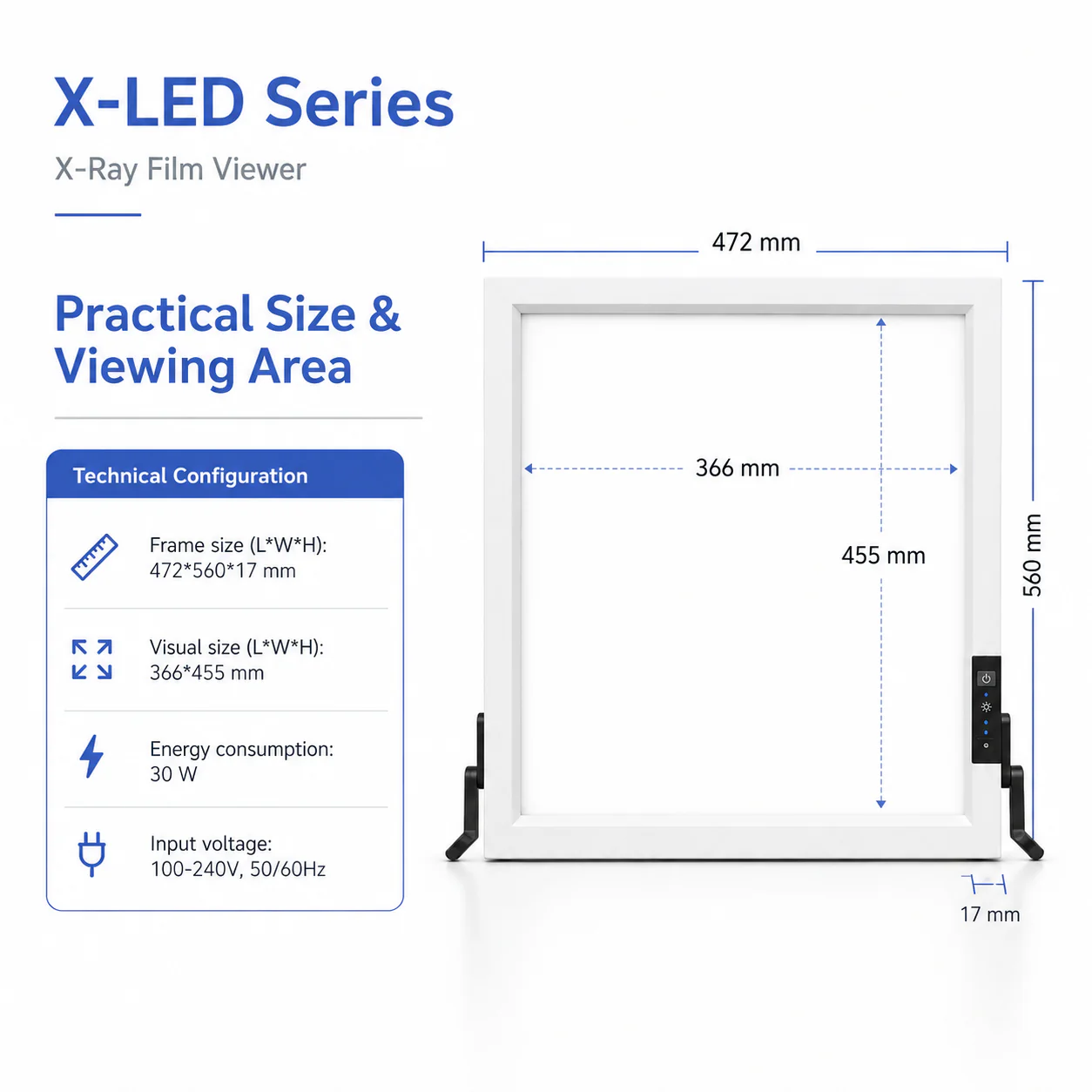

- Frame size is 472 × 560 × 17 mm; the visual area (viewing surface) is 366 × 455 mm.
- The ultra-slim 17 mm body saves workspace and integrates seamlessly into any clinical or radiology environment.
- Energy consumption is 30 W; the integrated power supply accepts 100–240 V, 50/60 Hz for worldwide compatibility.

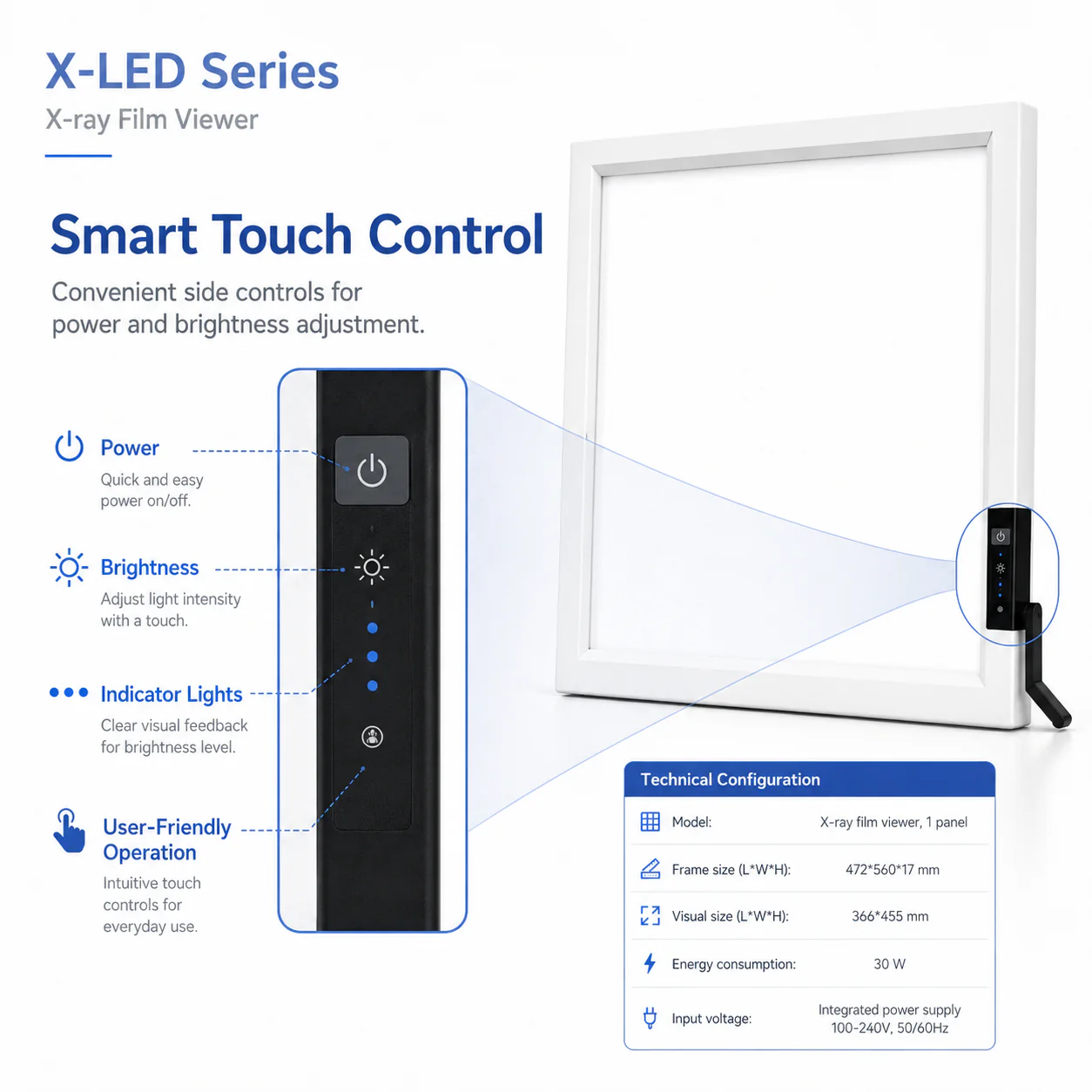

- A touch-sensitive control panel on both sides of the frame enables convenient brightness adjustment and power control from either flank.
- Advanced LED technology delivers uniform, high-brightness illumination across the full visual surface for accurate film reading.
Overview
The X-LED Series X-ray film viewer provides clinicians and radiologists with a reliable, energy-efficient platform for observing conventional X-ray films in hospital wards, outpatient departments, diagnostic imaging centers and teaching environments. As digital PACS systems continue to replace film-based imaging in high-volume centers, the X-LED Series serves the continuing need for dedicated film viewers in facilities that still process and review physical X-ray films — including trauma bays, smaller hospitals, clinics and medical education settings where reference films and teaching sets are reviewed regularly.

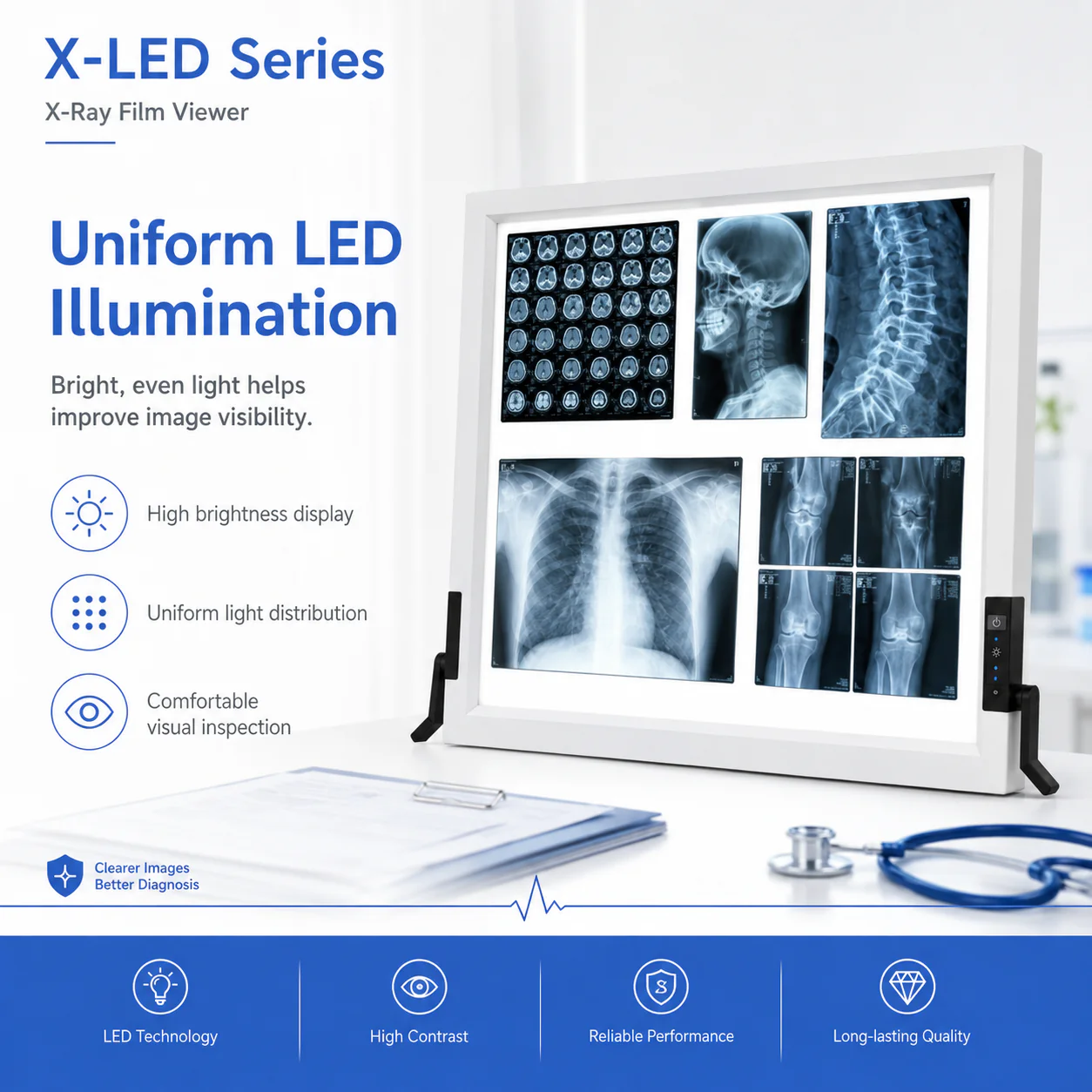

The defining engineering choice in the X-LED Series is the uniform LED backlight panel. Unlike fluorescent-tube viewers, which can develop hot spots and uneven illumination as tubes age, the LED array maintains consistent brightness and colour temperature across the 366 × 455 mm viewing surface throughout the product's service life. Even, stable illumination is the fundamental clinical requirement for accurate film diagnosis: density variations and subtle pathology can be masked by uneven light distribution, making uniformity a patient safety consideration as well as an ergonomic one.

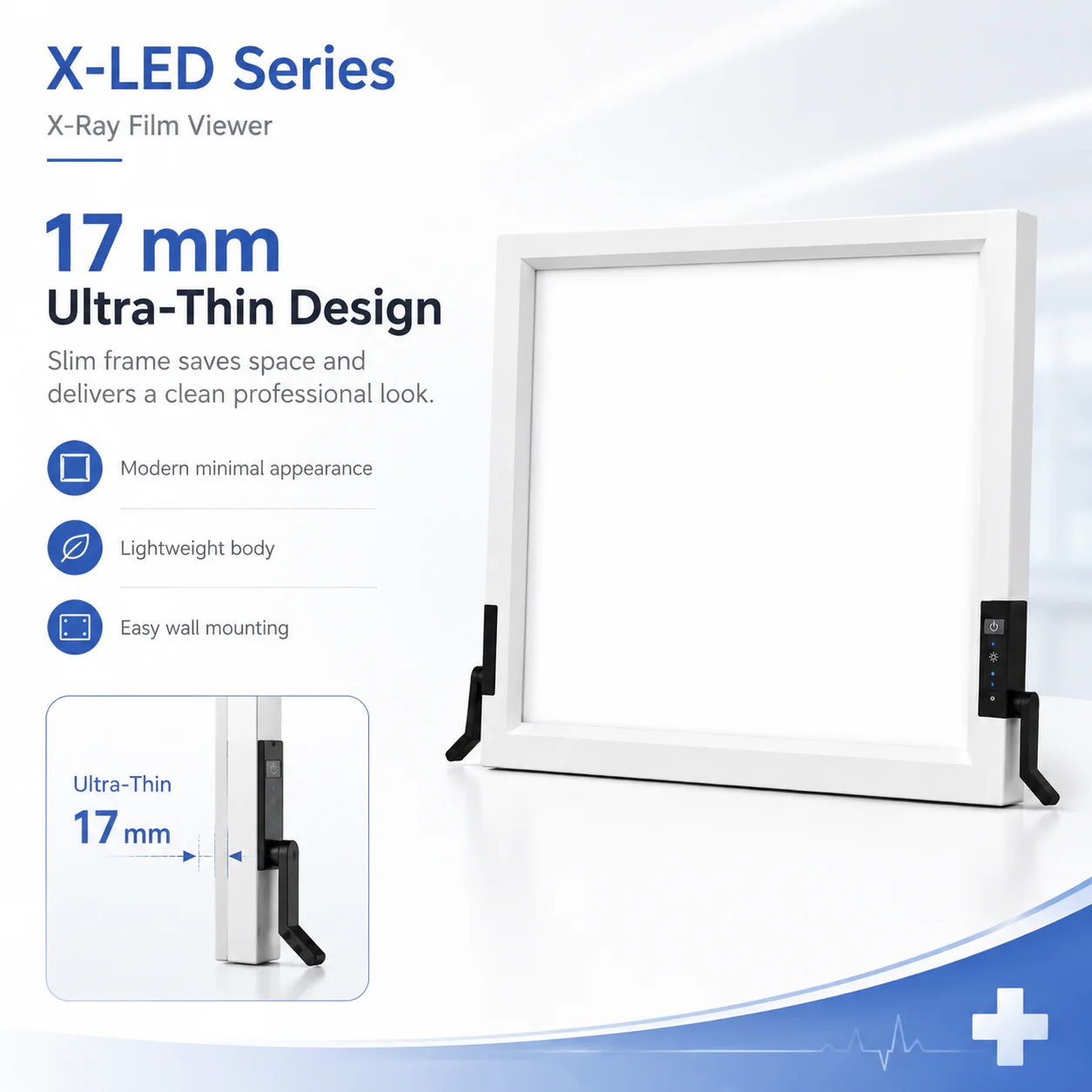

The 17 mm slim profile makes the X-LED Series one of the most space-efficient viewers in its class. It mounts against a wall or stands on any flat surface with its included support stand, taking up minimal depth in reading rooms, trauma bays and ward alcoves. The touch control panel — accessible on both the left and right sides of the frame — allows one-handed brightness adjustment and power switching regardless of the viewer's orientation or the clinician's position relative to it.
Key Features
- Uniform LED illumination — advanced LED panel delivers even, stable brightness across the full 366 × 455 mm visual area for accurate film reading and diagnosis.
- Ultra-slim 17 mm body — compact 17 mm frame depth saves space in reading rooms, trauma bays and clinical alcoves while fitting seamlessly in any setting.
- Touch control panel (both sides) — touch-sensitive controls on both flanks of the frame allow power and brightness adjustment from either side of the viewer.
- Wide voltage input — integrated power supply accepts 100–240 V, 50/60 Hz, enabling deployment in any country without additional adapters.
- 30 W low energy consumption — energy-efficient LED technology achieves high brightness at only 30 W, reducing running costs compared to fluorescent alternatives.
- Reliable optical panel — high-quality optical diffusion layer ensures clear contrast and long-lasting durability under continuous clinical use.
- Sturdy support stand — the included support stand holds the viewer securely in a freestanding position on counters, tables or radiology reading desks.
Technical Specifications
| Parameter | Value |
|---|---|
| Series | X-LED Series |
| Product type | X-ray film viewer (negatoscope), 1 panel |
| Frame size (L × W × H) | 472 × 560 × 17 mm |
| Visual size (L × W) | 366 × 455 mm |
| Energy consumption | 30 W |
| Input voltage | 100–240 V, 50/60 Hz (integrated power supply) |
| Control | Touch panel (both sides) |
| Body thickness | 17 mm |
Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.
Applications

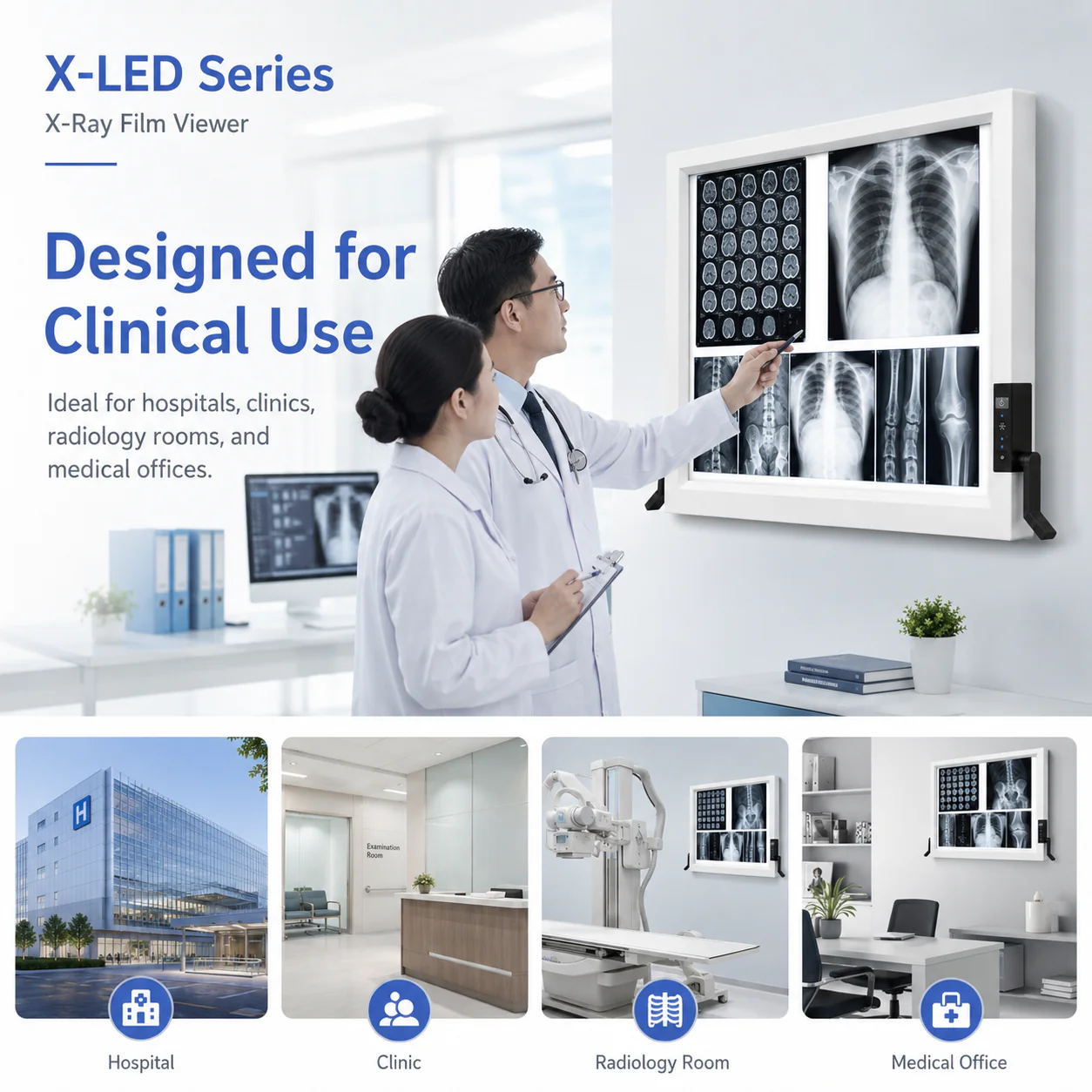

The X-LED Series is used in hospital radiology reading rooms, emergency and trauma departments, orthopaedic and surgical consultation offices, outpatient radiology reporting areas, diagnostic imaging centers, veterinary radiology facilities, medical schools and anatomy teaching suites, and any clinical setting where physical X-ray films are read and reviewed. Its compact size and worldwide voltage compatibility make it suitable for both fixed installations and mobile use in field or resource-limited environments.
