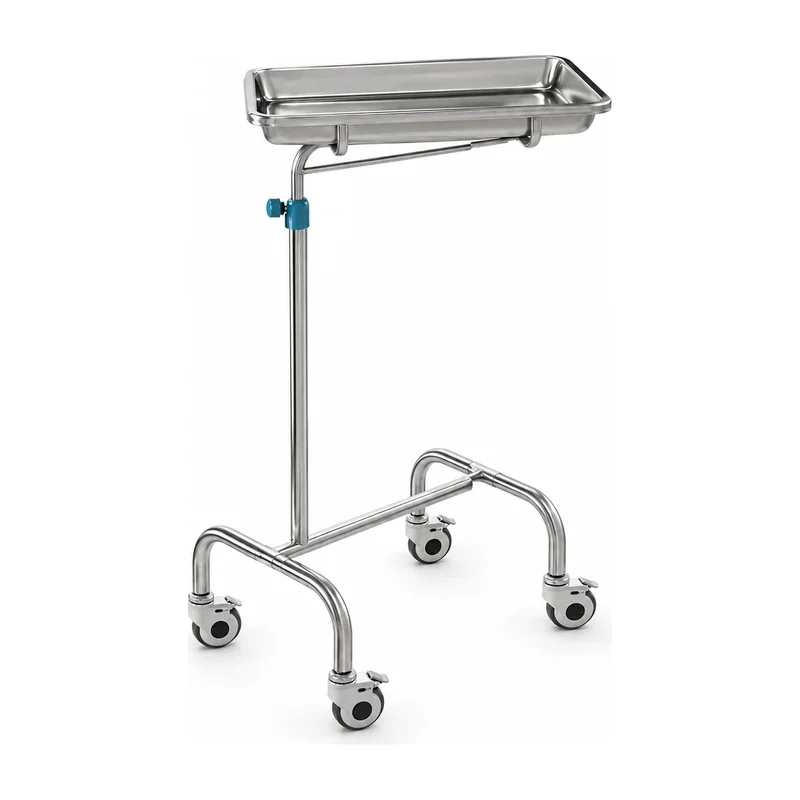

KL-TC051 Mayo Trolley — Height-Adjustable Stainless Steel Instrument Stand for Surgical and Clinical Use

Quick answer. The Keling KL-TC051 is a height-adjustable stainless steel mayo trolley with a raised-edge instrument tray measuring 500 × 350 mm, adjustable height from 870 mm to 1300 mm, and four 360° swivel casters (two with brakes). It is manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for surgical and clinical environments worldwide.

Tray size (L × W): 500 × 350 mm
Height range: 870–1300 mm
Casters: 4 × 360° swivel, 2 with brakes
Material: Stainless steel

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The KL-TC051 mayo trolley is designed to provide a stable, height-adjustable instrument platform at the point of care in operating rooms, procedure suites and clinical treatment areas. The raised-edge stainless steel tray — 500 × 350 mm — prevents instruments and supplies from sliding during positioning adjustments or when the trolley is moved, a critical safety feature in sterile environments where dropped instruments require recounting and possible replacement.

Height adjustment from 870 mm to 1300 mm is managed via a thumb-tightened knob that secures the column at the chosen setting without tools. This range allows the KL-TC051 to serve scrub nurses working at a standard OR table height at one end, or extended to reach over patient positioning frames or taller procedure tables at the other. The adjustment is quick — important when OR setup times are under time pressure.

The four-caster base uses a balanced, stable frame geometry that resists tipping even with a fully loaded tray at maximum height. Two casters with brakes hold the stand locked during procedures, preventing drift when a clinician leans into the instrument tray. Two non-braked casters enable smooth, quiet rolling between the sterile field and the scrub preparation area.

Quick facts

The Keling KL-TC051 is a mayo trolley providing height-adjustable instrument presentation for surgical and clinical procedures.
The stainless steel instrument tray measures 500 × 350 mm with raised edges to prevent items from falling.
Height is adjustable from 870 mm to 1300 mm via a quick-release adjustment knob to suit different working preferences.
Four 360° swivel casters are fitted, two with brakes, for smooth, controlled movement and stable positioning.
Material is stainless steel throughout for corrosion resistance, durability and easy hygienic cleaning.
The KL-TC051 is produced by Keling Medical, a Chinese medical equipment manufacturer with more than 20 years of industry experience.

Key features

Raised-edge stainless steel tray
500 × 350 mm tray with raised edges prevents instruments and supplies from falling during use or movement.
Height adjustable 870–1300 mm
quick-release adjustment knob sets working height for different procedures and user preferences.
4 × 360° swivel casters, 2 with brakes
smooth swivel movement in all directions; two braked casters lock the stand securely during procedures.
Stable balanced base
robust stainless steel frame with wide base geometry prevents tipping at all height settings.
Corrosion-resistant stainless steel
durable material withstands surgical-grade disinfectants and daily cleaning demands.
Easy cleaning
smooth surfaces and welded construction eliminate crevices for superior hygiene compliance.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

6 parameters for KL-TC051

KL-TC051 technical specifications
Model	KL-TC051
Product type	Mayo trolley
Tray size (L × W)	500 × 350 mm
Height range	870–1300 mm
Material	Stainless steel
Casters	4 × 360° swivel, 2 with brakes

Applications

The KL-TC051 is used in operating theatres, procedure rooms (bronchoscopy, cystoscopy, colonoscopy), minor surgery suites, dressing and wound care rooms, outpatient clinics and any clinical setting where a sterile instrument tray at an adjustable height is required. The height range also suits dental surgeries and ophthalmology procedure rooms where instrument access at precise heights is important.

Questions buyers ask

What is the Keling KL-TC051 mayo trolley used for?

The KL-TC051 is an adjustable-height stainless steel instrument stand that positions a raised-edge tray at the ideal working height for the scrub nurse or operator during surgical and clinical procedures. The tray's raised edges prevent instrument loss, and four swivel casters with two brakes allow the stand to be precisely positioned and locked next to the procedure site.

What is the height adjustment range and how is it operated?

The KL-TC051 adjusts from 870 mm to 1300 mm via a hand-tightened adjustment knob on the central column. No tools are required. The knob is loosened to reposition the tray height, then re-tightened to secure the chosen setting before beginning a procedure.

What is the size of the instrument tray on the KL-TC051?

The instrument tray is 500 × 350 mm with raised edges on all sides. This size accommodates a full standard surgical instrument set for most common procedures, while the raised edges keep all items contained on the tray surface during repositioning.

Can the KL-TC051 be supplied for hospital or export distribution?

Yes. Keling Medical exports to hospitals and distributors worldwide and supports project, wholesale and OEM orders from its Shanghai export centre. Contact Keling Medical via https://www.kelingmed.com for pricing and specifications.
