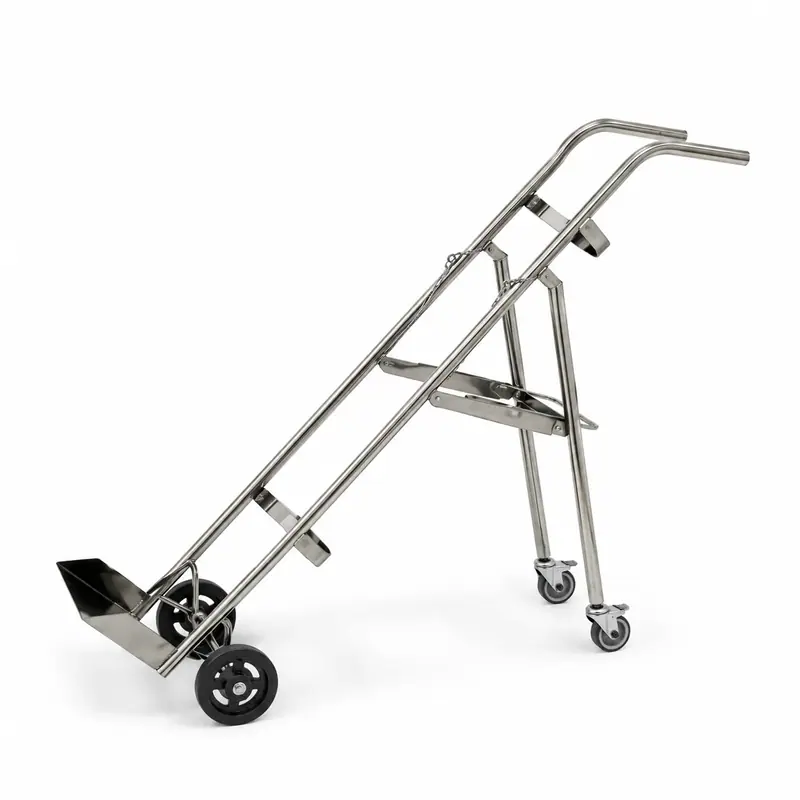

KL-TC057 Oxygen Bottle Trolley — Stainless Steel Cylinder Transport Cart for Hospitals and Clinics

Quick answer. The Keling KL-TC057 is a stainless steel oxygen bottle trolley with a secure cylinder cradle, support brackets, two front transport wheels and two rear swivel casters, measuring 1435 × 360 × 1040 mm. It is manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for safe oxygen cylinder transport in hospitals, clinics and laboratories worldwide.

Overall size (L × W × H): 1435 × 360 × 1040 mm
Wheels: 2 fixed front wheels + 2 rear swivel casters
Material: Stainless steel
Cylinder support: Cradle with support brackets

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The KL-TC057 oxygen bottle trolley addresses the practical and safety challenges of moving full oxygen cylinders in hospital environments. A full medical oxygen cylinder can weigh 15–20 kg and, if tipped without support, can cause serious injury from both the impact and from a damaged valve releasing gas under pressure. The KL-TC057 provides a dedicated transport frame that cradles the cylinder at an angle — supported front and rear by brackets — so the weight is distributed across the trolley structure rather than held by a single operator.

The stainless steel frame is built for the physical demands of daily cylinder movement: it resists the rust and surface corrosion that can occur in oxygen-rich clinical environments and withstands the knocks and contact with door frames and bed frames that occur during routine cylinder delivery. The angled tilt-and-wheel posture the trolley adopts during transport is ergonomically efficient, reducing the lifting force required from the operator to near zero.

Two rear swivel casters allow the trolley to pivot for directional changes in corridors, while the larger fixed front wheels provide the rolling surface when the trolley is tilted for transport. When the trolley is set upright for stationary use, all four contact points rest on the floor for maximum stability. This configuration suits not just oxygen cylinders but any similar gas cylinder used in clinical settings.

Quick facts

The Keling KL-TC057 is an oxygen bottle trolley designed for safe, controlled transport of oxygen cylinders in medical environments.
Overall dimensions are 1435 × 360 × 1040 mm.
A secure cylinder cradle with support brackets holds the oxygen bottle firmly in place during movement, preventing rolling or falling.
The wheel configuration — two fixed front transport wheels and two rear swivel casters — enables the trolley to be tipped back and wheeled like a hand truck for corridor transport.
Stainless steel frame construction ensures durability, corrosion resistance and long service life.
The KL-TC057 is produced by Keling Medical, a Chinese medical equipment manufacturer with more than 20 years of industry experience.

Key features

Secure cylinder cradle
dedicated support brackets hold the oxygen bottle firmly during transport, preventing accidental tipping or rolling.
Stainless steel frame
high-quality construction provides durability, corrosion resistance and long service life in oxygen-rich clinical environments.
Dual front wheels + swivel casters
two large fixed front wheels for tilt-and-wheel transport and two rear swivel casters for directional manoeuvring.
Stable support structure
secure cradle and bracket geometry keeps the cylinder contained during transit and at rest.
Suitable for hospitals, clinics and labs
designed specifically for healthcare settings where oxygen cylinder safety is a clinical priority.
Compact transport footprint
360 mm width passes standard hospital doorways and corridor clearances.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

6 parameters for KL-TC057

KL-TC057 technical specifications
Model	KL-TC057
Product type	Oxygen bottle trolley
Overall size (L × W × H)	1435 × 360 × 1040 mm
Material	Stainless steel
Cylinder support	Cradle with support brackets
Wheels	2 fixed front wheels + 2 rear swivel casters

Applications

The KL-TC057 oxygen bottle trolley is used in hospital wards for patient oxygen cylinder delivery and return, in emergency departments for mobile oxygen supply management, in operating theatres for anaesthetic gas cylinder transport, in clinical laboratories for research gas cylinders, and in ambulatory care centres for portable oxygen cylinder logistics. It also suits industrial and research facilities handling compressed gas cylinders where safe handling equipment is required.

Questions buyers ask

What is the Keling KL-TC057 oxygen bottle trolley used for?

The KL-TC057 is a dedicated transport cart for medical oxygen cylinders (and similar gas cylinders) in hospitals, clinics and laboratories. Its cradle with support brackets secures the cylinder at an angle during movement, and the tilt-and-wheel configuration allows a single operator to move a full cylinder safely through corridors.

How does the KL-TC057 keep the oxygen cylinder secure during transport?

The KL-TC057 features a cylinder cradle with front and rear support brackets that hold the bottle at a fixed angle against the trolley frame. The cylinder is supported along its body rather than at a single point, preventing it from rolling, sliding or tipping even on slightly uneven floor surfaces.

What wheel configuration does the KL-TC057 use?

The KL-TC057 has two large fixed wheels at the front (lower end of the frame) for rolling when tilted, and two smaller swivel casters at the rear (upper end). This allows the operator to tilt the frame back onto the fixed wheels — as with a hand truck — and steer with the swivel casters during turns.

Can the KL-TC057 be ordered for hospital equipment procurement?

Yes. Keling Medical exports to hospitals, healthcare distributors and medical facilities worldwide through its Shanghai sales and export centre. Wholesale and project orders are supported. Contact Keling Medical via https://www.kelingmed.com for pricing.
