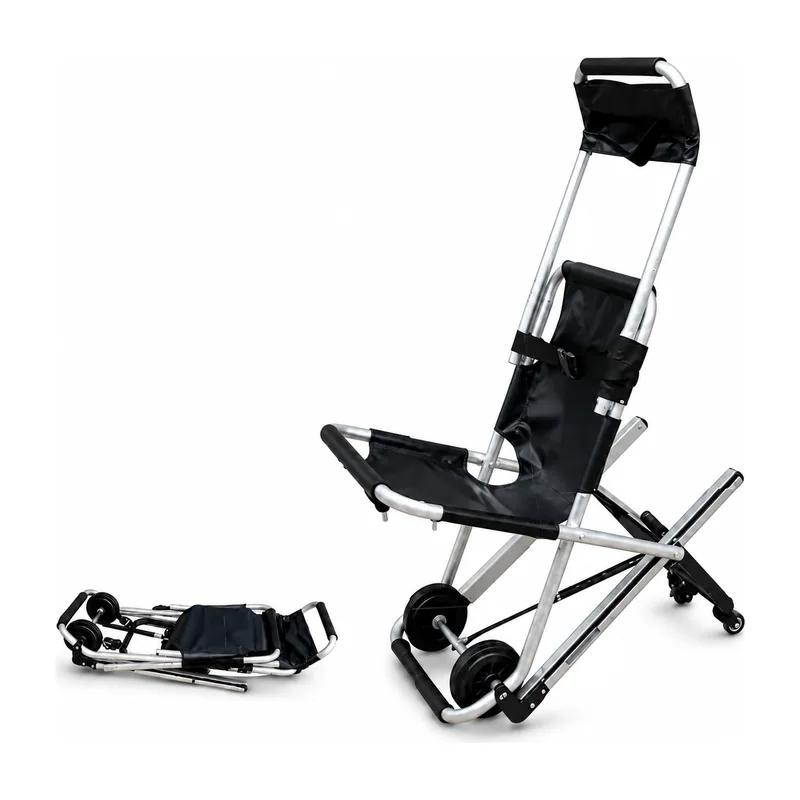

KL-MS012 Foldable Transfer Stair Stretcher — Dual-Mode Chair and Carry for Stair Evacuation

Quick answer. The Keling KL-MS012 is a foldable transfer stair stretcher measuring 900 × 540 × 1560 mm open and 1200 × 540 × 300 mm folded, with a high-strength aluminum alloy frame, adjustable safety belt, ergonomic handle, smooth rolling wheels and a comfortable seat surface, designed for patient stair transfer and flat-ground evacuation. It is manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for hospitals, ambulance services and care facilities.

Open size (L × W × H): 900 × 540 × 1560 mm
Folded size (L × W × H): 1200 × 540 × 300 mm
Frame material: High-strength aluminum alloy
Patient restraint: Adjustable safety belt

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The KL-MS012 foldable transfer stair stretcher is a practical dual-mode patient transport solution covering both stair and flat-ground transfer within a single compact unit. Unlike a standard evacuation chair, the KL-MS012 bridges the gap between a seated evacuation chair and a flat stretcher, making it suited to facilities where patients may need to be transferred between a chair-like upright position on stairs and then laid or seated flat for further transport.

The high-strength aluminum alloy frame provides the structural basis for confident patient support across both stair descent and level movement. The seat surface is made from a durable, non-slip material that holds the patient in position without the need for excessive strap tension. The adjustable safety belt adds a further security layer, particularly on stairs where lateral forces during controlled descent could otherwise shift the patient.

Smooth rolling wheels — designed to roll cleanly on both flat hospital surfaces and across stair nosings — allow one or two operators to manage the transfer without undue physical effort. When not in use, the frame folds to 1200 × 540 × 300 mm for compact storage in ambulances, storerooms and corridor recesses. The ergonomic handle gives the operator a comfortable grip during both pushing on flat ground and controlled stair descent.

Quick facts

The Keling KL-MS012 is a foldable transfer stair stretcher designed for stair patient transfer and emergency evacuation.
Open dimensions are 900 × 540 × 1560 mm; folded dimensions are 1200 × 540 × 300 mm.
The frame is constructed from high-strength aluminum alloy for enhanced durability, stability and long-term use.
An adjustable safety belt secures the patient during stair descent and flat-ground rolling.
Smooth rolling wheels deliver effortless movement on flat hospital floors and during stair transfer.
The KL-MS012 is produced by Keling Medical, a Chinese medical equipment manufacturer with more than 20 years of industry experience.

Key features

High-strength aluminum alloy frame
durable and stable construction supports confident patient transfer on stairs and flat ground.
Foldable structure
compact folding to 1200 × 540 × 300 mm for ambulance, storeroom and corridor storage.
Adjustable safety belt
secures the patient during stair descent and flat-ground rolling.
Smooth rolling wheels
rolling wheels for effortless flat-surface movement and controlled stair transfer.
Ergonomic handle
comfortable grip for easy operator pushing, guiding and stair descent control.
Comfortable seat surface
durable, non-slip seat material provides stable support for the patient.
Reinforced support frame
high-strength aluminum alloy maintains stability under patient load across varied surfaces.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

7 parameters for KL-MS012

KL-MS012 technical specifications
Model	KL-MS012
Product type	Foldable transfer stair stretcher
Open size (L × W × H)	900 × 540 × 1560 mm
Folded size (L × W × H)	1200 × 540 × 300 mm
Frame material	High-strength aluminum alloy
Patient restraint	Adjustable safety belt
Mobility	Smooth rolling wheels

Applications

The KL-MS012 is used by hospital emergency departments and wards requiring a compact stair transfer solution, ambulance and paramedic services working in multi-storey buildings, care homes and nursing facilities with staircase access routes, fire and rescue services during building evacuations, and industrial safety teams in facilities without lift access to all areas.

Questions buyers ask

What is the Keling KL-MS012 foldable transfer stair stretcher used for?

The KL-MS012 is used to transfer patients on both stairs and flat hospital floors in a single unit. It is particularly useful in buildings where patients must be moved down stairs before being transferred to an ambulance or treatment area, combining the function of a stair evacuation chair with a compact flat-ground transport stretcher.

How does the KL-MS012 differ from the KL-MS009 manual stair stretcher?

While both products manage stair and flat-ground patient transfer, the KL-MS012 folds to a different compact profile (1200 × 540 × 300 mm) and features a seat surface oriented toward combined transfer use. The KL-MS009 is specifically labelled for downstairs-only use; the KL-MS012 is positioned as a more general stair transfer unit.

What are the open and folded dimensions of the KL-MS012?

Open, the KL-MS012 measures 900 × 540 × 1560 mm. Folded, it reduces to 1200 × 540 × 300 mm — a compact profile that fits in ambulance storage compartments and corridor storage areas.

Can the KL-MS012 be supplied internationally for distributors or hospital projects?

Yes. Keling Medical exports its first aid and stretcher range to hospitals and distributors worldwide through its Shanghai export center. Contact Keling Medical via https://www.kelingmed.com for bulk pricing and project specifications.
