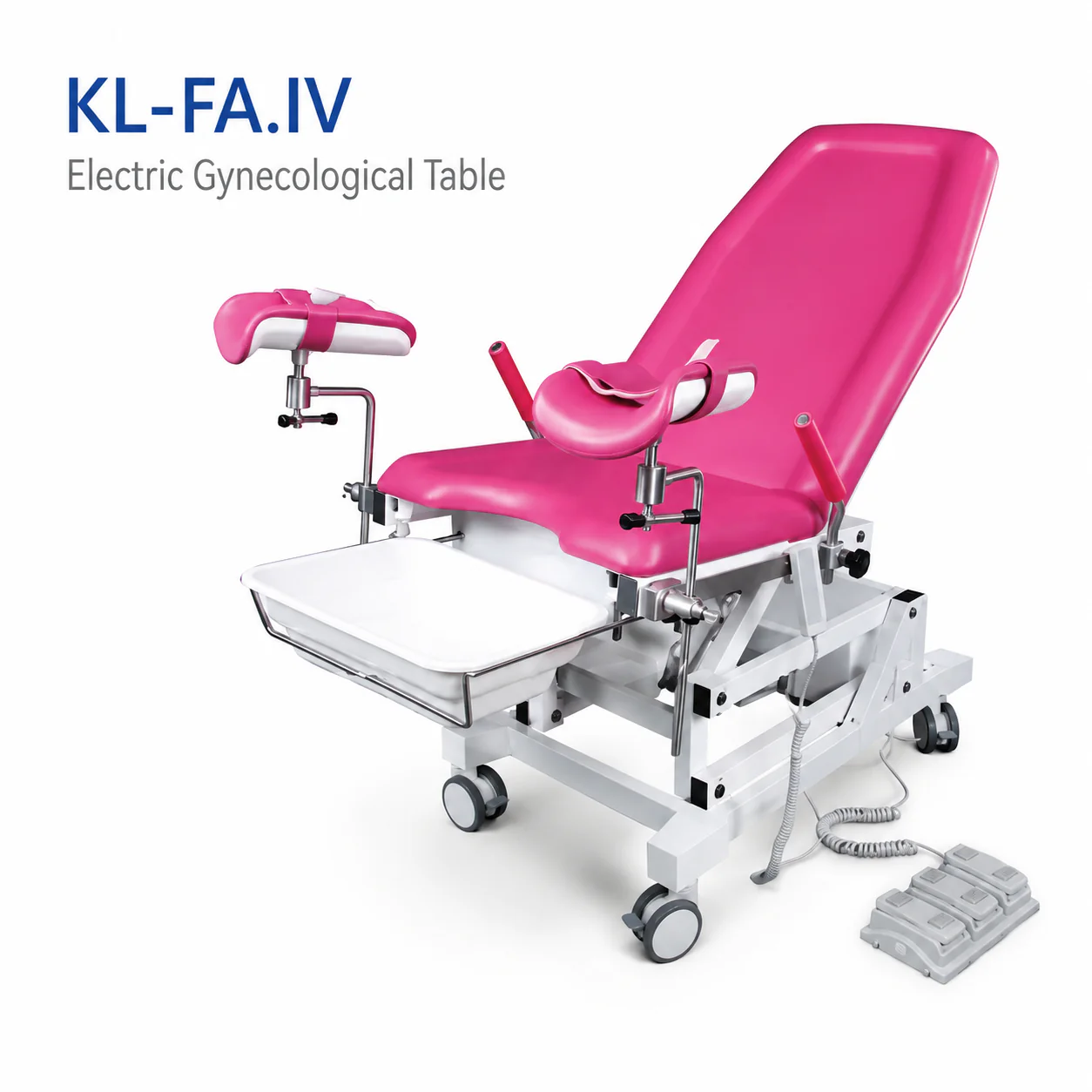

# KL-FA-IV Electric Gynecological Table — Full Electric Tilt and Height Adjustment for Gynecological Examination
Quick answer: The Keling KL-FA-IV is an electric gynecological examination table measuring 1400 × 580 mm with a height range of 970–560 mm, forward tilt ≤70°, backward tilt ≤16° and a back-to-seat angle ≤43°, operated by electric foot control with silent casters and a removable auxiliary tray. It is manufactured by Keling Medical (Keling Medical) for hospital gynecology departments and women's health clinics.
Quick Facts
- The Keling KL-FA-IV is a fully electric gynecological examination table for professional gynecological examination and treatment environments.
- External dimensions are 1400 × 580 mm; height adjusts electrically within a 970–560 mm range.
- Forward tilt reaches ≤70°, backward tilt ≤16°, and the angle between back and seat is ≤43°, providing comprehensive Trendelenburg and anti-Trendelenburg positioning.
- All adjustments are controlled by an electric foot pedal system, enabling hands-free operation during active procedures.
- Silent casters with central locking allow quiet repositioning between bays and secure stationary positioning.
- A removable auxiliary tray provides a dedicated surface for instruments and consumables at the examination position.
Overview

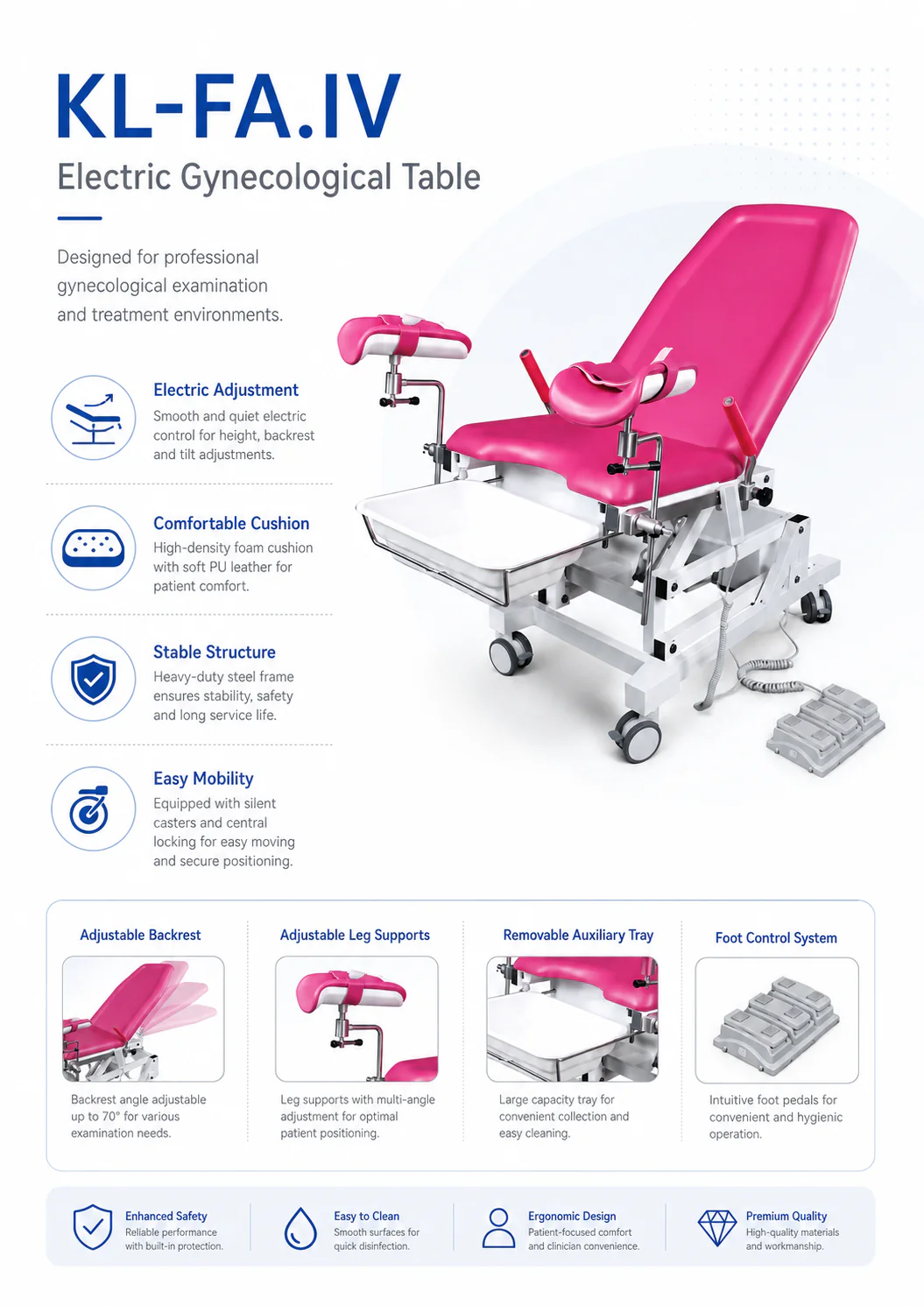

The KL-FA-IV electric gynecological table is designed for professional gynecological examination and treatment environments where full electric adjustment eliminates the manual effort and interruption associated with hydraulic or mechanical positioning systems. The foot control system is the key workflow feature: all tilt and height adjustments are performed by foot pedal, leaving the clinician's hands free to maintain patient contact, manage instruments or document findings during continuous examination.

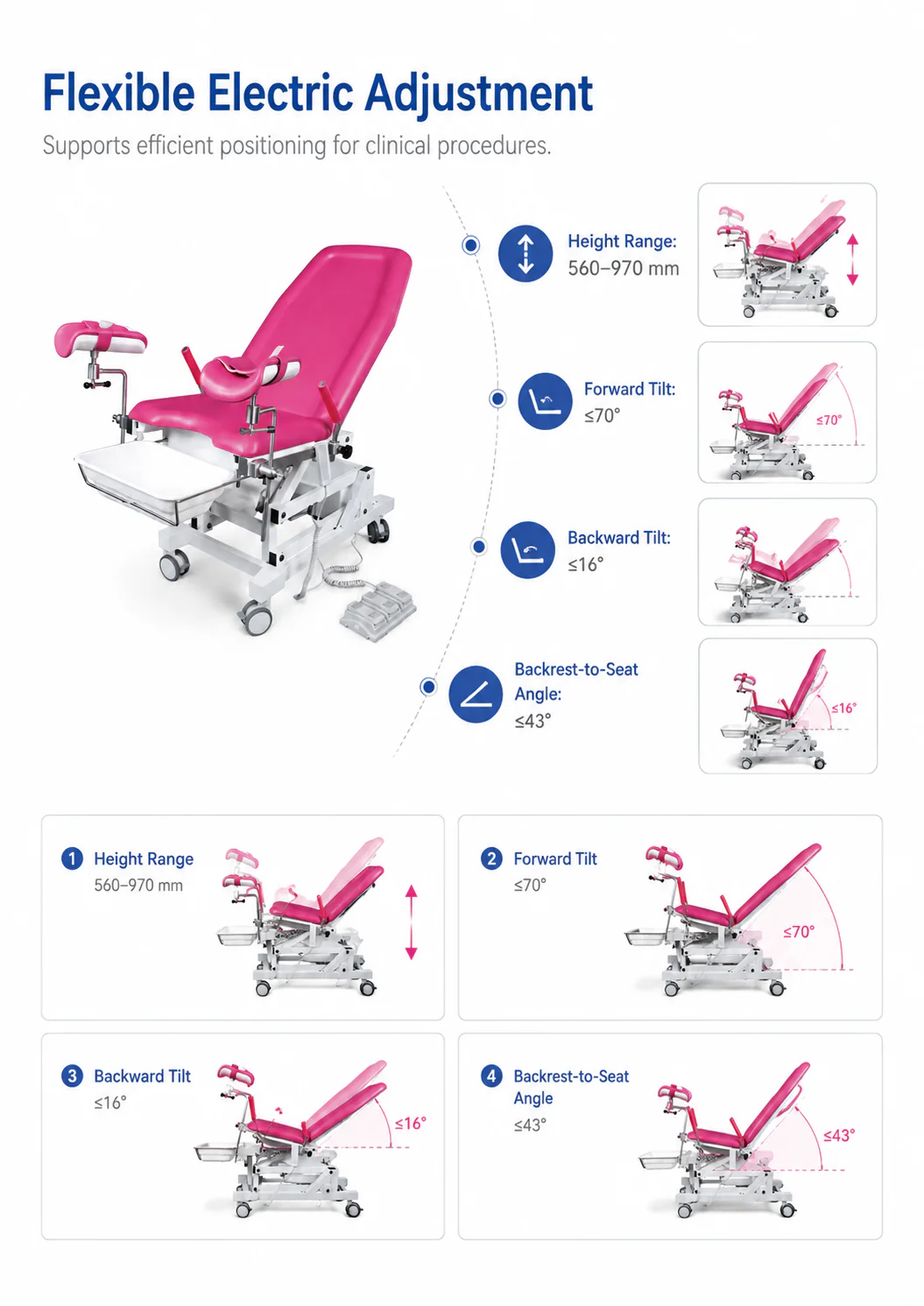

The adjustment range covers the clinical requirements of gynecological work comprehensively. A forward tilt of ≤70° places the patient in the Trendelenburg position for pelvic examination and lithotomy access; backward tilt ≤16° provides reverse Trendelenburg for procedures requiring gravitational drainage away from the pelvis. The back-to-seat angle ≤43° controls the relationship between the trunk section and the seat, enabling fine-grained positioning for procedures requiring precise anatomical access.

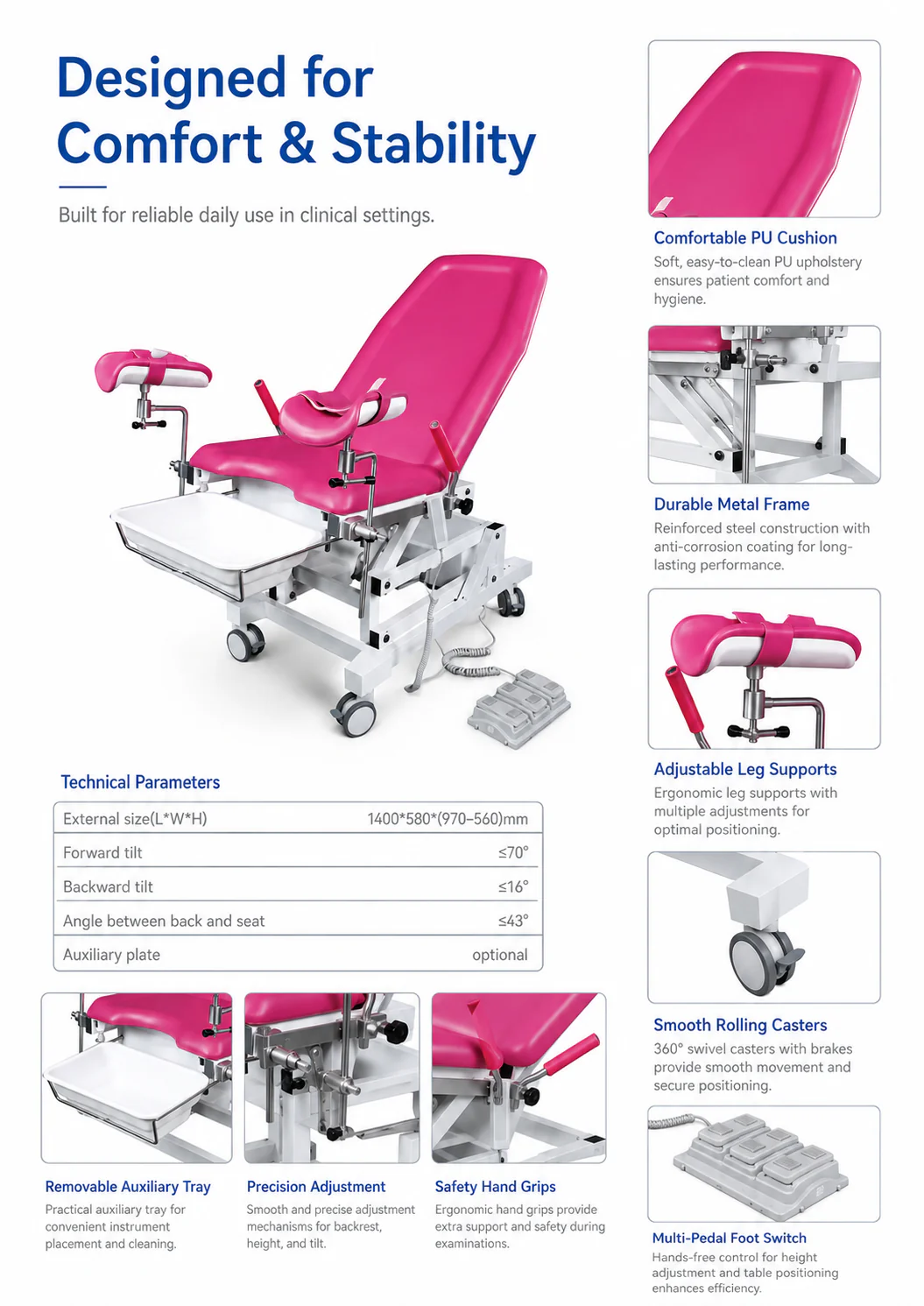

Build quality reflects the clinical environment: a heavy-duty steel frame ensures stability and safety under clinical working loads, with soft PU leather cushioning providing patient comfort during extended examinations. Silent casters with central locking allow the table to be moved between examination bays quietly and secured precisely in position. The removable auxiliary tray keeps instruments and consumables organized at the point of use, reducing reach and interruption during procedures. Adjustable leg supports with multi-angle capability allow optimal lithotomy positioning for each patient.

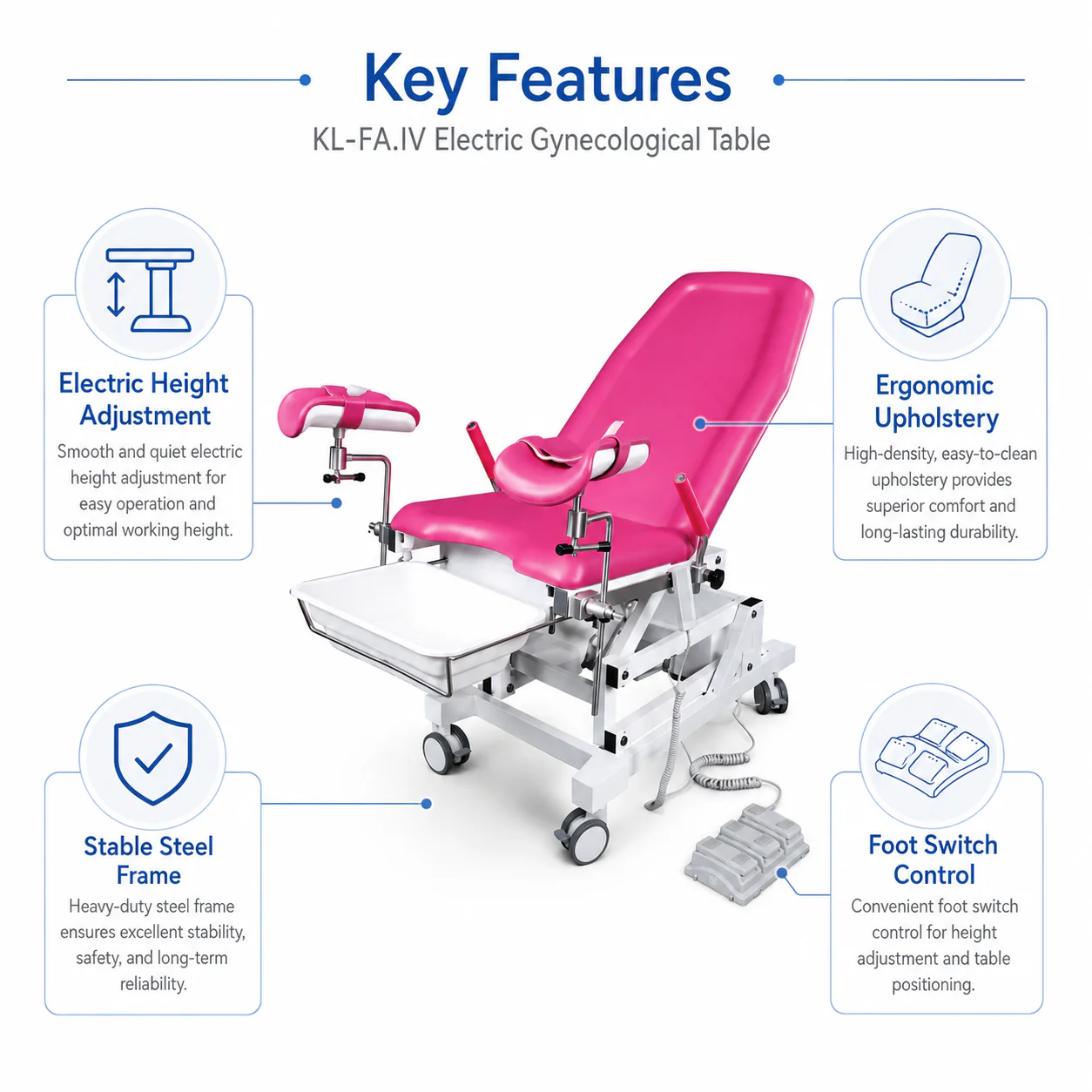

Key Features
- Full electric adjustment via foot pedal — hands-free control of height and tilt adjustments enables uninterrupted clinical workflow during active gynecological examination.
- Forward tilt ≤70° — Trendelenburg positioning for lithotomy access and pelvic examination; electrically controlled for smooth, precise positioning.
- Backward tilt ≤16° — reverse Trendelenburg for drainage-assisted clinical positioning and patient comfort adjustments.
- Back-to-seat angle ≤43° — independent control of trunk-to-seat relationship for fine-grained anatomical positioning.
- Height range 970–560 mm — wide height range accommodates the full spectrum of clinician working heights and patient access requirements.
- Silent casters with central locking — smooth, quiet casters with centralized brake system for controlled transport and secure stationary positioning.
- Removable auxiliary tray — large-capacity tray for instrument and consumable organization at the examination position; removable for cleaning.
- Adjustable leg supports — multi-angle leg support adjustment for optimal lithotomy positioning.
- Soft PU leather cushion — high-density foam with soft PU leather for patient comfort and easy surface disinfection.

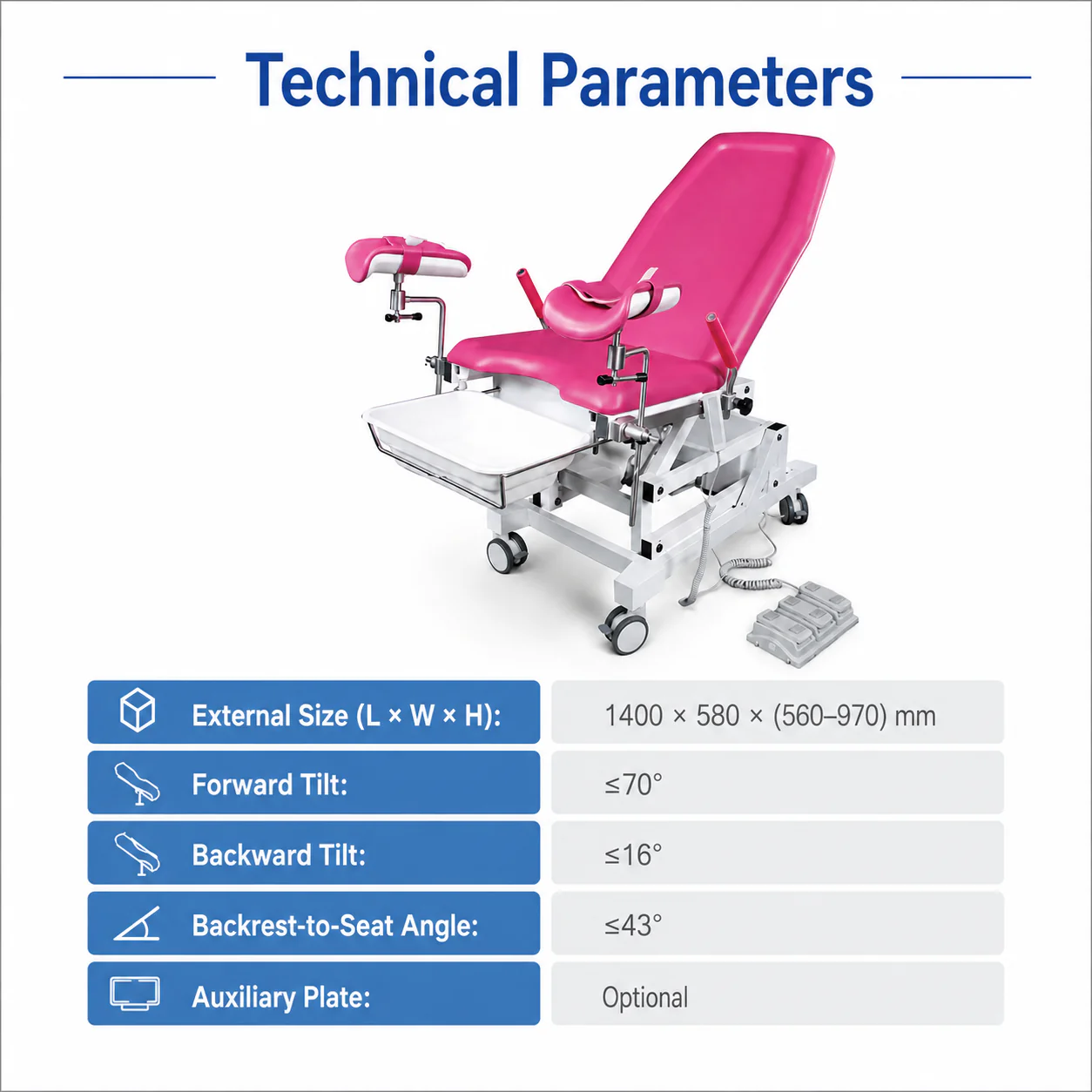

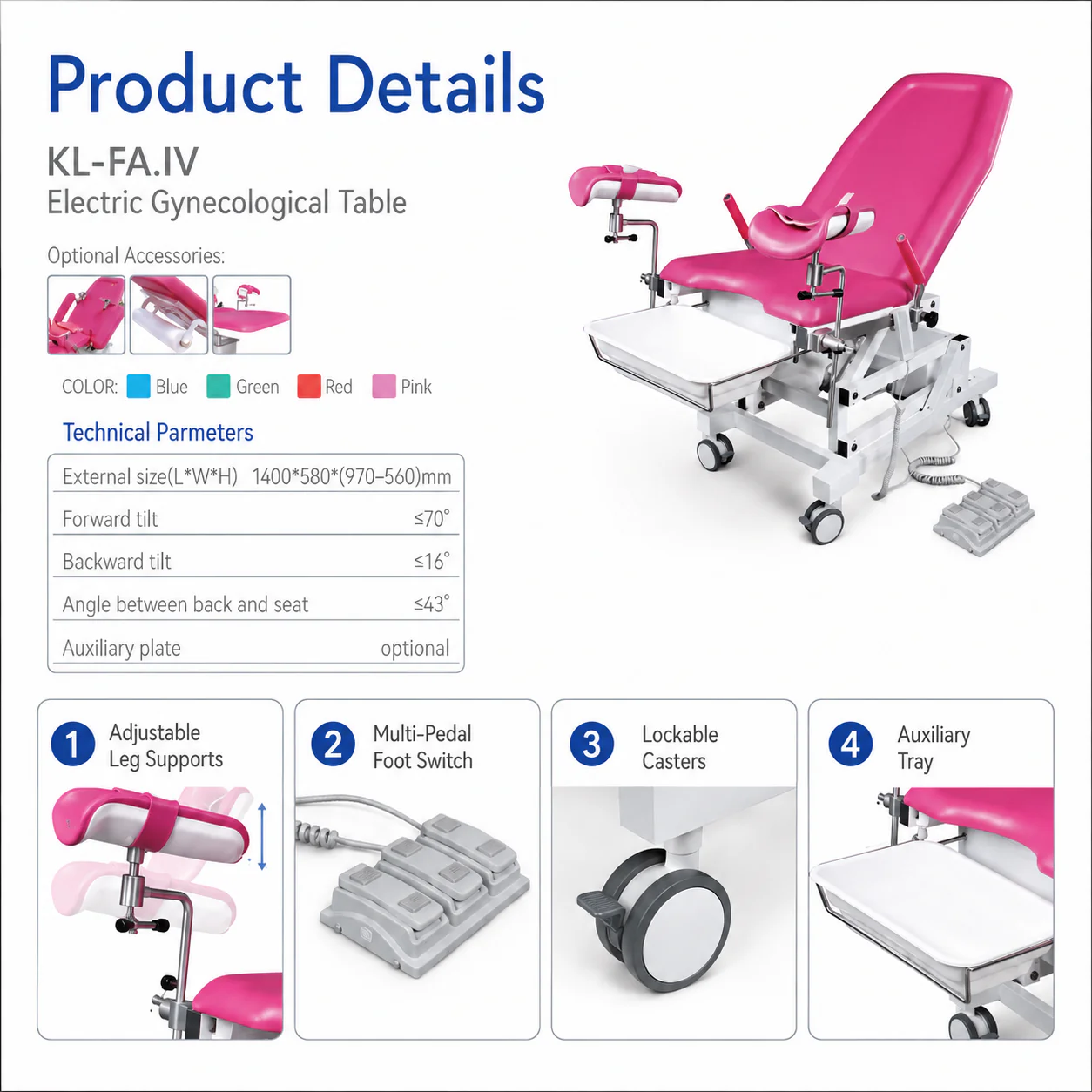

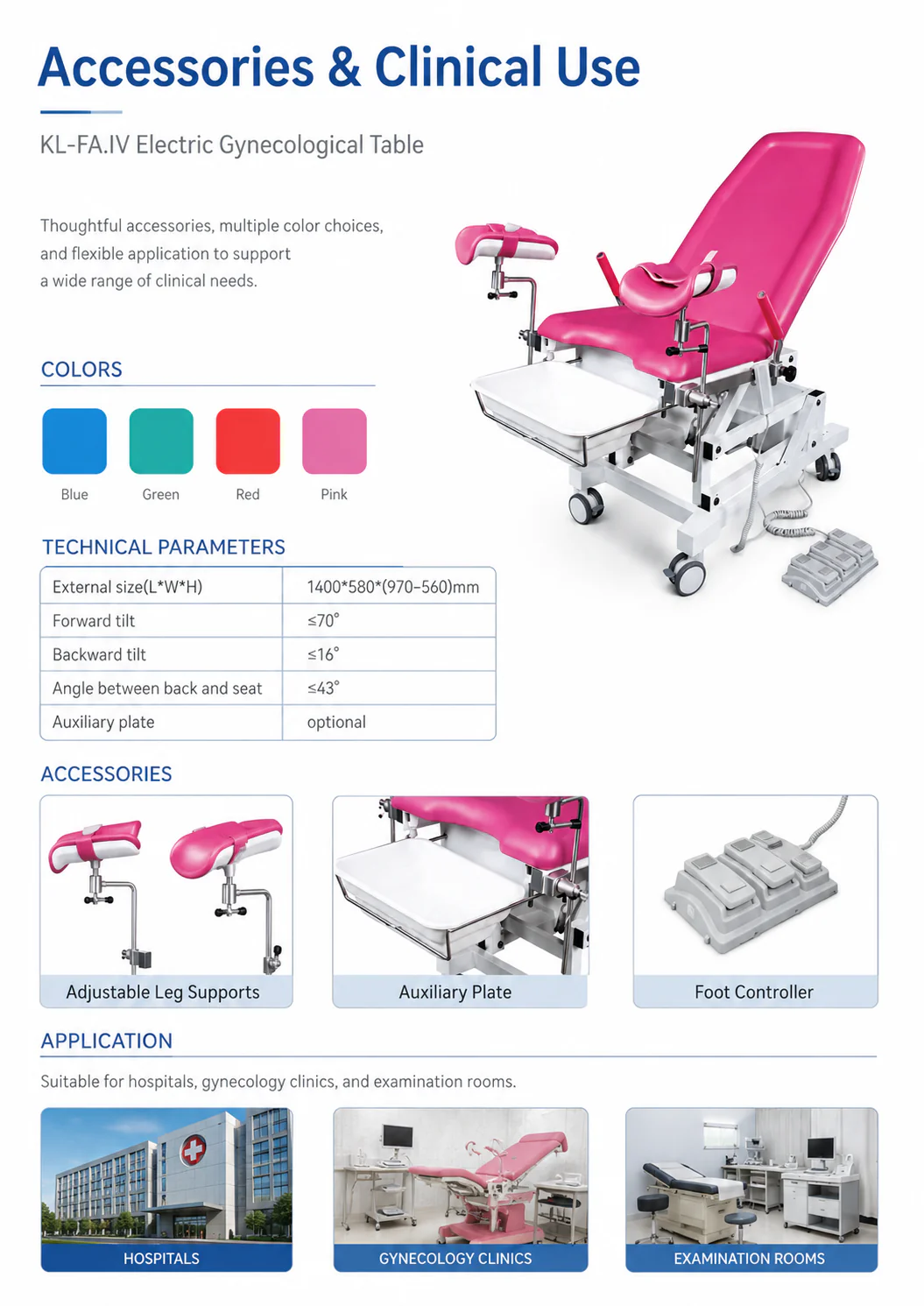

Technical Specifications
| Parameter | Value |
|---|---|
| Model | KL-FA-IV |
| Product type | Electric gynecological examination table |
| External size (L × W) | 1400 × 580 mm |
| Height range | 970–560 mm |
| Forward tilt | ≤70° |
| Backward tilt | ≤16° |
| Back-to-seat angle | ≤43° |
| Controls | Electric foot pedal |
| Casters | Silent, central locking |
| Auxiliary plate | Optional (removable tray) |

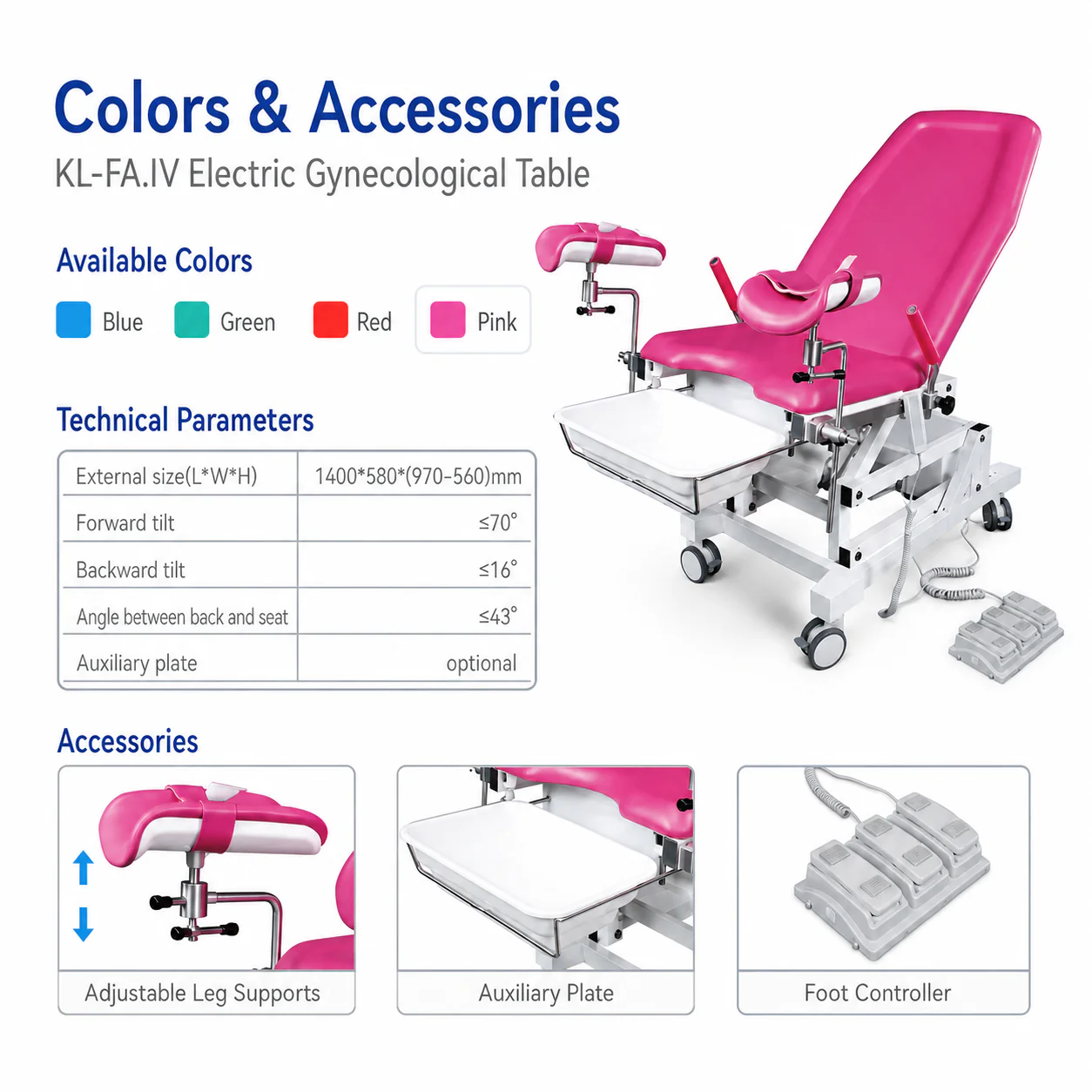

| Available colors | Blue, Green, Red, Pink |
Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.
Applications

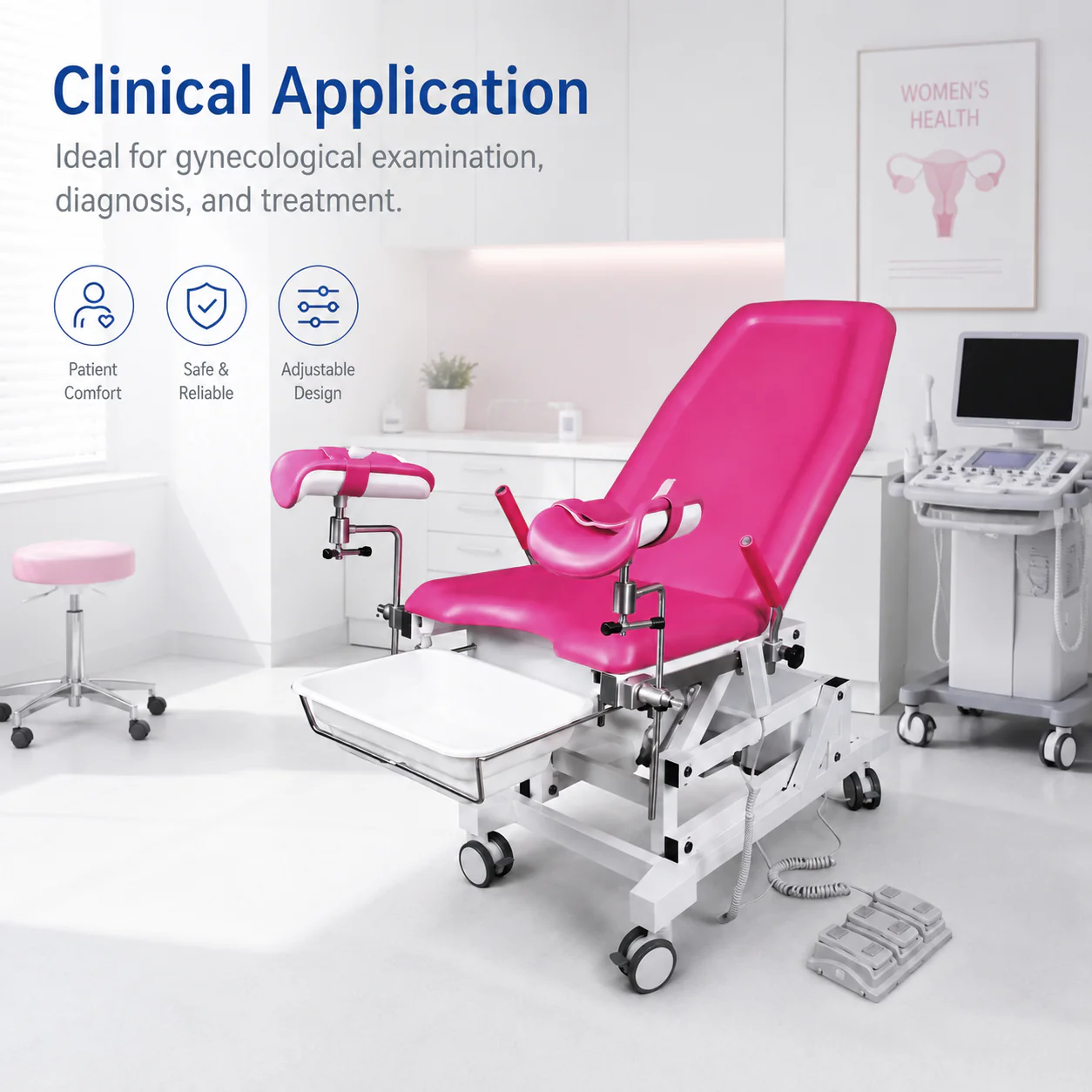

The KL-FA-IV is designed for hospital gynecology and obstetrics departments, women's health outpatient clinics, reproductive medicine centers, family planning units and specialist gynecological procedure rooms requiring full electric positional control. The foot pedal operation and removable tray make it particularly appropriate for environments where procedural hygiene and workflow continuity are priority requirements.
