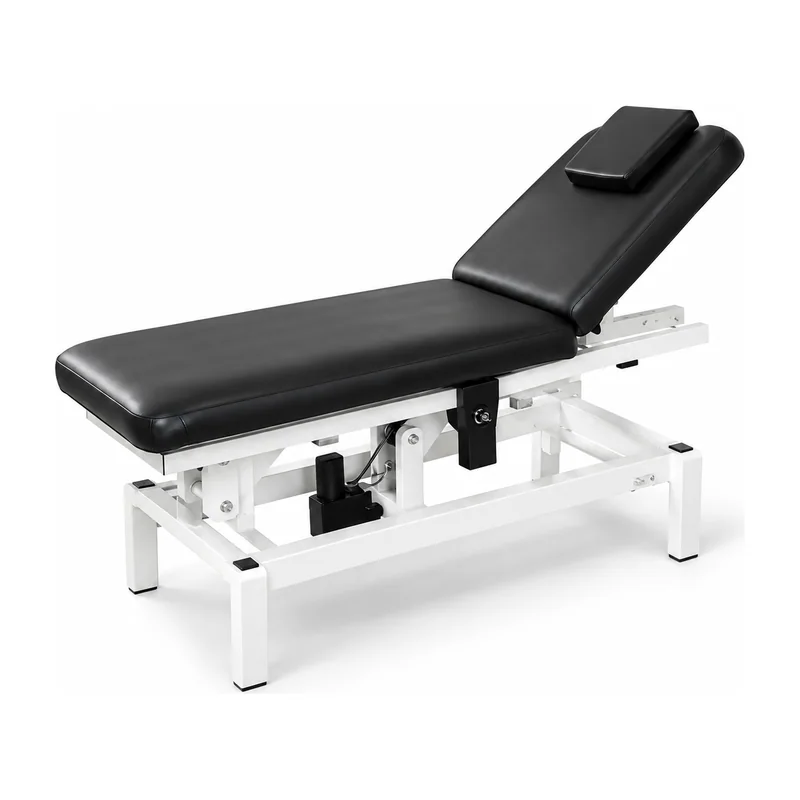

KL-BC120 Electric Examination Table — Dual-Motor Height and Backrest Adjustment for Clinical Efficiency

Quick answer. The Keling KL-BC120 is an electric examination table measuring 1940 × 700 mm with electric height adjustment from 490 mm to 890 mm and a backrest that adjusts 0–70°, driven by a dual motor system for quiet, stable operation. The frame is powder-coated heavy-duty steel with high-density foam PU upholstery. It is manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for clinics and medical examination rooms.

External size (L × W): 1940 × 700 mm
Table height range: 490–890 mm
Backrest adjustment: 0–70°
Motors: Dual motor (height + backrest)

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The KL-BC120 electric examination table addresses one of the most common ergonomic challenges in outpatient and primary care settings: getting the patient to the right height for the clinician. With a 400 mm electric height range (490–890 mm), the table can be lowered for easy patient access and raised to the clinician's optimal working height with a single button press — eliminating the manual cranking or bending that contributes to musculoskeletal strain among clinical staff over the course of a working day.

The dual motor system handles height and backrest adjustments independently, enabling the nurse or physician to reposition the patient smoothly without interrupting consultation. The backrest travels from flat to 70° to support positions ranging from supine examination to seated consultation, with smooth, quiet operation that avoids startling patients during assessments. An electric system also removes the mechanical complexity and maintenance demands associated with hydraulic lift mechanisms.

Build quality is grounded in a heavy-duty powder-coated steel frame, chosen for structural load capacity and scratch resistance in high-use environments. High-density foam cushioning with PU upholstery provides patient comfort across extended examination sessions and wipes down cleanly with standard disinfectant solutions. Optional casters allow the table to serve multiple consultation rooms if needed.

Quick facts

The Keling KL-BC120 is an electric medical examination table designed for clinics and examination rooms requiring motorized height and backrest adjustment.
Surface dimensions are 1940 × 700 mm; electric height adjusts from 490 mm to 890 mm — a 400 mm travel range.
The backrest adjusts electrically from 0° to 70°, supporting positions from flat for examination to near-upright for consultation.
A dual motor system powers height and backrest independently for quiet, stable and reliable adjustment.
The frame is heavy-duty steel with powder coating; cushion is high-density foam with PU upholstery.
Optional castors allow repositioning within the facility; color is customizable.

Key features

Dual motor system
separate motors for height and backrest deliver quiet, stable electric adjustment of both functions independently.
Electric height range 490–890 mm
400 mm of motorized height travel accommodates both low patient access and optimal clinician working height without manual effort.
Backrest adjustment 0–70°
smooth electric backrest travel from flat to 70° supports the full range from supine examination to upright consultation.
Heavy-duty powder-coated steel frame
robust construction with corrosion-resistant powder coating for structural stability and long service life in busy clinic environments.
PU upholstery with high-density foam cushion
patient comfort during examinations backed by easy-to-clean PU surface compatible with hospital disinfectants.
Optional castors
enable the table to be repositioned between rooms; locks in place during use.
Customizable color
available in a range of colors to suit facility aesthetics or departmental color schemes.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

10 parameters for KL-BC120

KL-BC120 technical specifications
Model	KL-BC120
Product type	Electric examination table
External size (L × W)	1940 × 700 mm
Table height range	490–890 mm
Backrest adjustment	0–70°
Motors	Dual motor (height + backrest)
Frame	Heavy-duty steel, powder coating
Cushion	High-density foam with PU upholstery
Castors	Optional
Color	Customizable

Applications

The KL-BC120 is suited for GP and specialist outpatient clinics, hospital examination rooms, physiotherapy assessment areas, occupational health suites, private medical practices and day procedure pre-assessment rooms. Its electric adjustment capability is particularly valuable in high-throughput settings where clinician ergonomics and patient access efficiency are priorities.

Questions buyers ask

What is the Keling KL-BC120 electric examination table used for?

The KL-BC120 is a motorized medical examination table for outpatient clinics and hospital examination rooms. Electric height adjustment (490–890 mm) and a motorized backrest (0–70°) allow clinicians to position patients precisely and ergonomically, reducing physical strain associated with manual adjustment over a full working day.

What is the height adjustment range of the KL-BC120, and how is it powered?

The KL-BC120 adjusts electrically from 490 mm to 890 mm — a 400 mm travel range — powered by a dedicated height motor. A second independent motor controls the backrest. Both are driven by the same control handset or foot control (contact Keling Medical for control configuration options).

How does the dual motor system benefit clinical workflow?

Dual motors allow height and backrest to be adjusted simultaneously or independently without mechanical conflict, delivering smoother, quieter operation than single-motor designs that must sequence adjustments. This reduces consultation interruption and enables faster patient turnaround in high-throughput clinics.

Can the KL-BC120 be ordered with castors and custom colors?

Yes. The KL-BC120 is available with optional castors for ward or multi-room use, and color is customizable to match facility branding or departmental color schemes. Contact Keling Medical via https://www.kelingmed.com to specify requirements when ordering.
