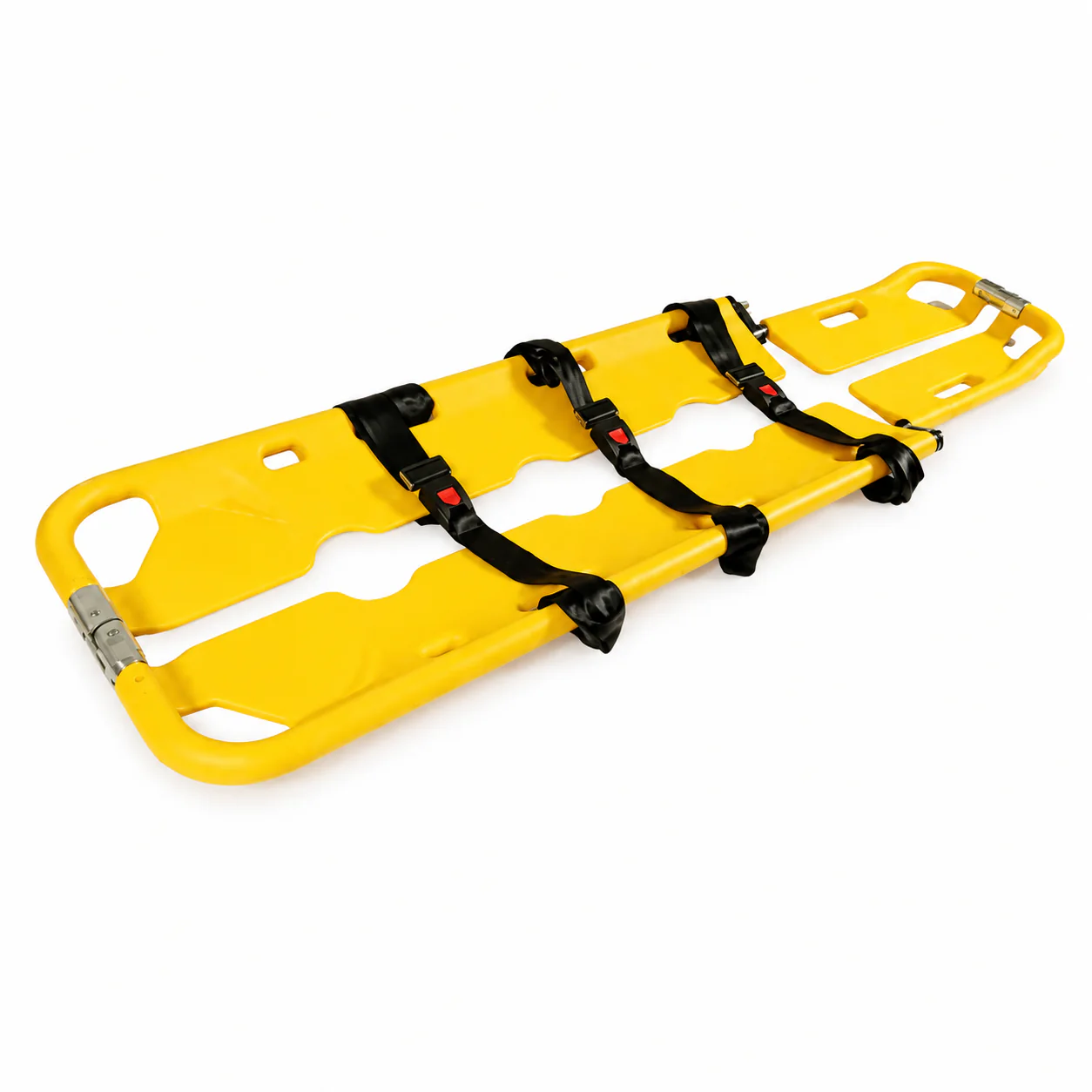

# KL-MS007 Plastic Shovel Stretcher — ≤159 kg Split Scoop with Three Quick-Release Straps
Quick answer: The Keling KL-MS007 is a plastic shovel (scoop) stretcher with a two-part split design, three adjustable quick-release safety straps, metal locking parts and a load capacity of ≤159 kg, measuring 1620 × 445 × 70 mm in use and 1200 × 445 × 70 mm folded. It is manufactured by Keling Medical (Keling Medical) for EMS teams, hospitals and rescue services.
Quick Facts
- The Keling KL-MS007 is a plastic shovel stretcher (scoop stretcher) rated for a load capacity of ≤159 kg.

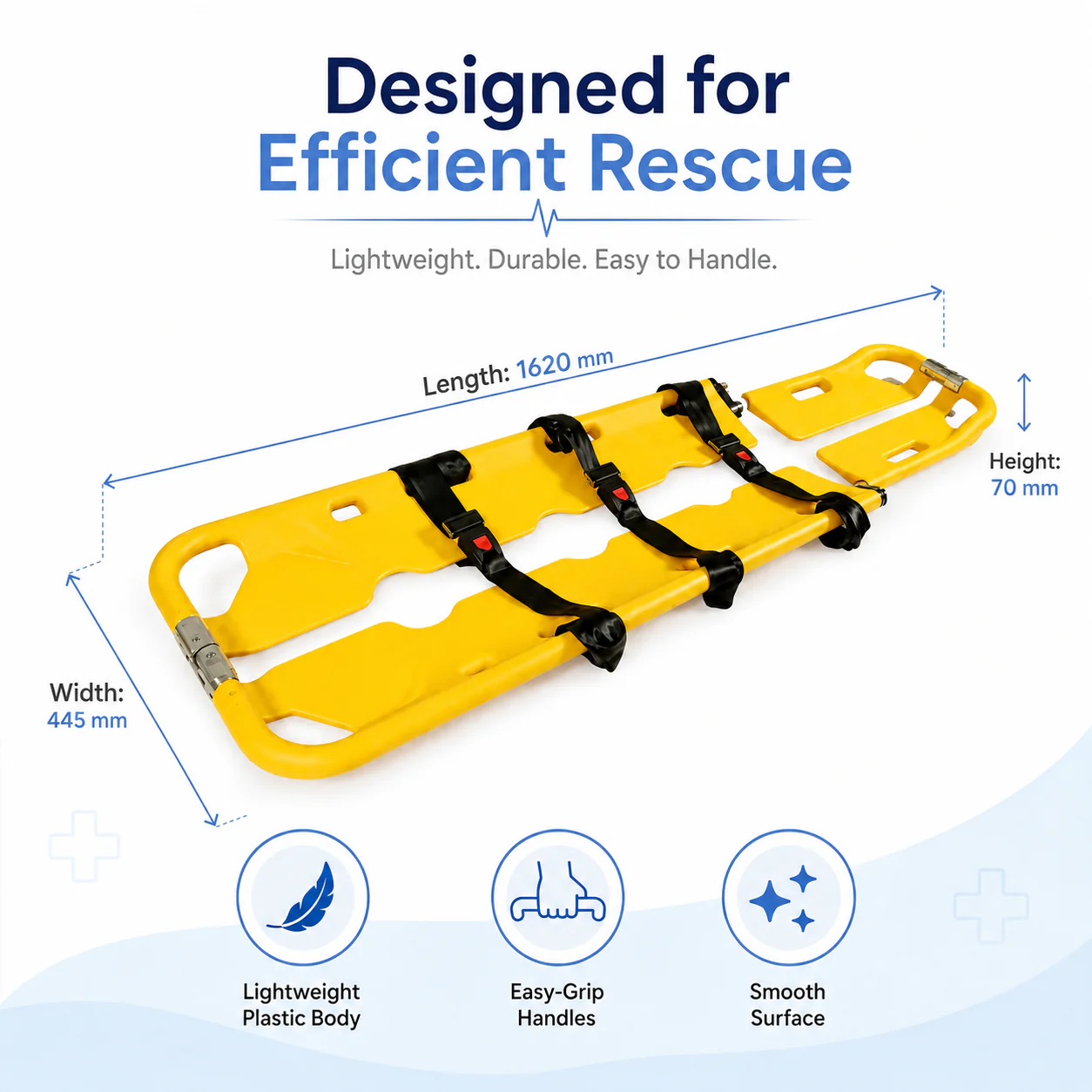

- Deployed dimensions are 1620 × 445 × 70 mm; folded dimensions are 1200 × 445 × 70 mm.
- The two-part split design allows insertion under a patient from both sides without lifting.
- Three adjustable safety straps with quick-release buckles secure the patient firmly during transfer.
- Metal locking parts at the split joints keep both halves stable and secure under load.
- The KL-MS007 is produced by Keling Medical, a Chinese medical equipment manufacturer with more than 20 years of industry experience.
Overview
The KL-MS007 plastic shovel stretcher is engineered for rapid, low-movement patient pick-up in ambulance response, emergency rescue and in-hospital transfer. The high-quality plastic body — waterproof, stain-resistant and straightforward to disinfect — delivers the smooth, rigid surface required for controlled patient lifting while resisting the fluid contamination typical of trauma scenes. A bright yellow color makes the stretcher immediately visible in emergency environments.
The two-piece split structure separates at both ends, allowing each half to be slid under the supine patient independently before being rejoined with durable metal locking parts. This approach minimises lateral patient movement compared to rolling techniques, making it a preferred tool when cervical or spinal injury is suspected. Once assembled, the 1620 mm surface provides full-body support for adult patients across a load capacity of ≤159 kg.

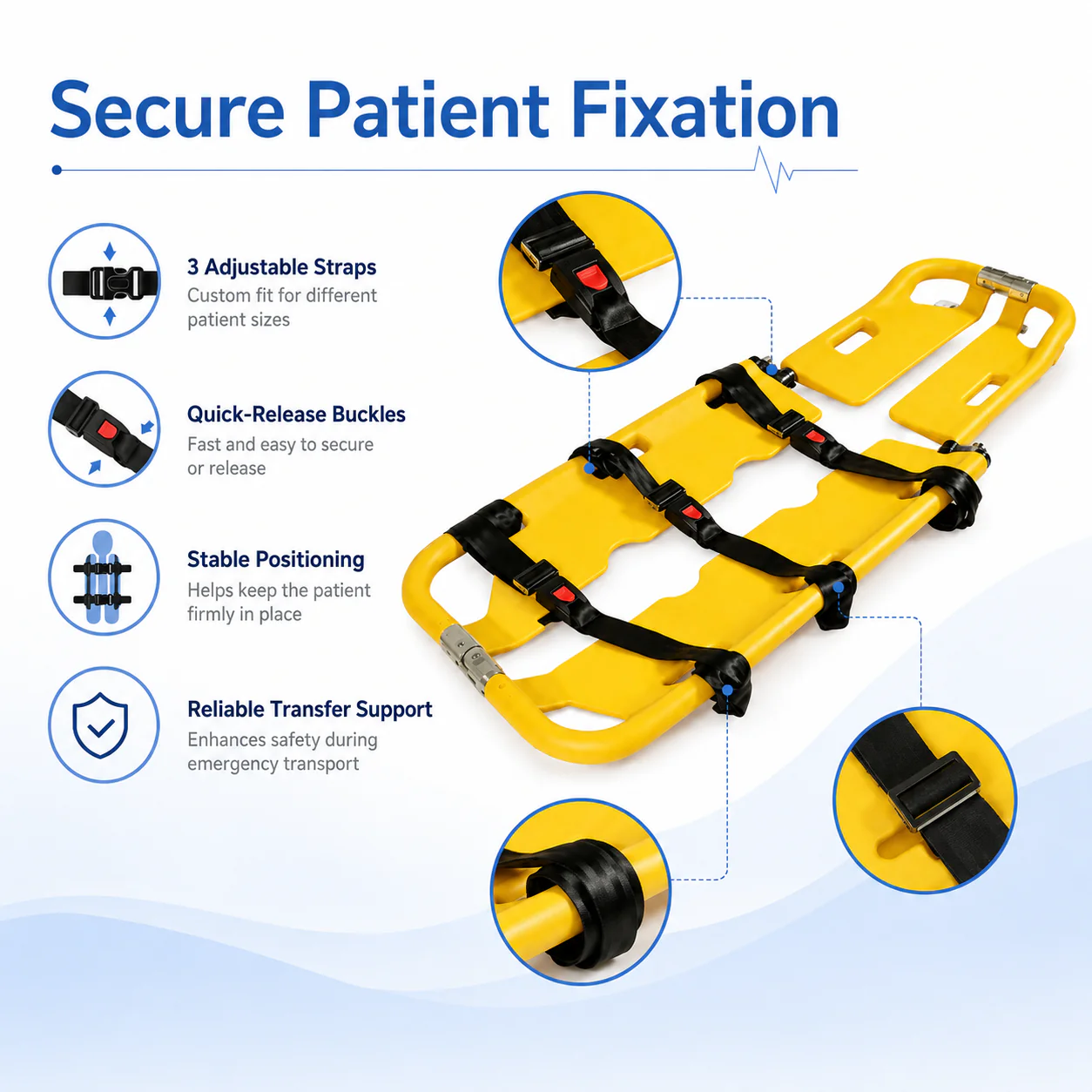

Patient security is managed by three adjustable safety straps with quick-release buckles — one across the chest, one at the waist and one at the thighs — that can be fastened and released with one hand. Multiple ergonomic carry handle openings along both sides enable a balanced two- or four-person lift. The foldable design reduces stored length to 1200 mm, fitting neatly in ambulance equipment bays and emergency kit lockers.

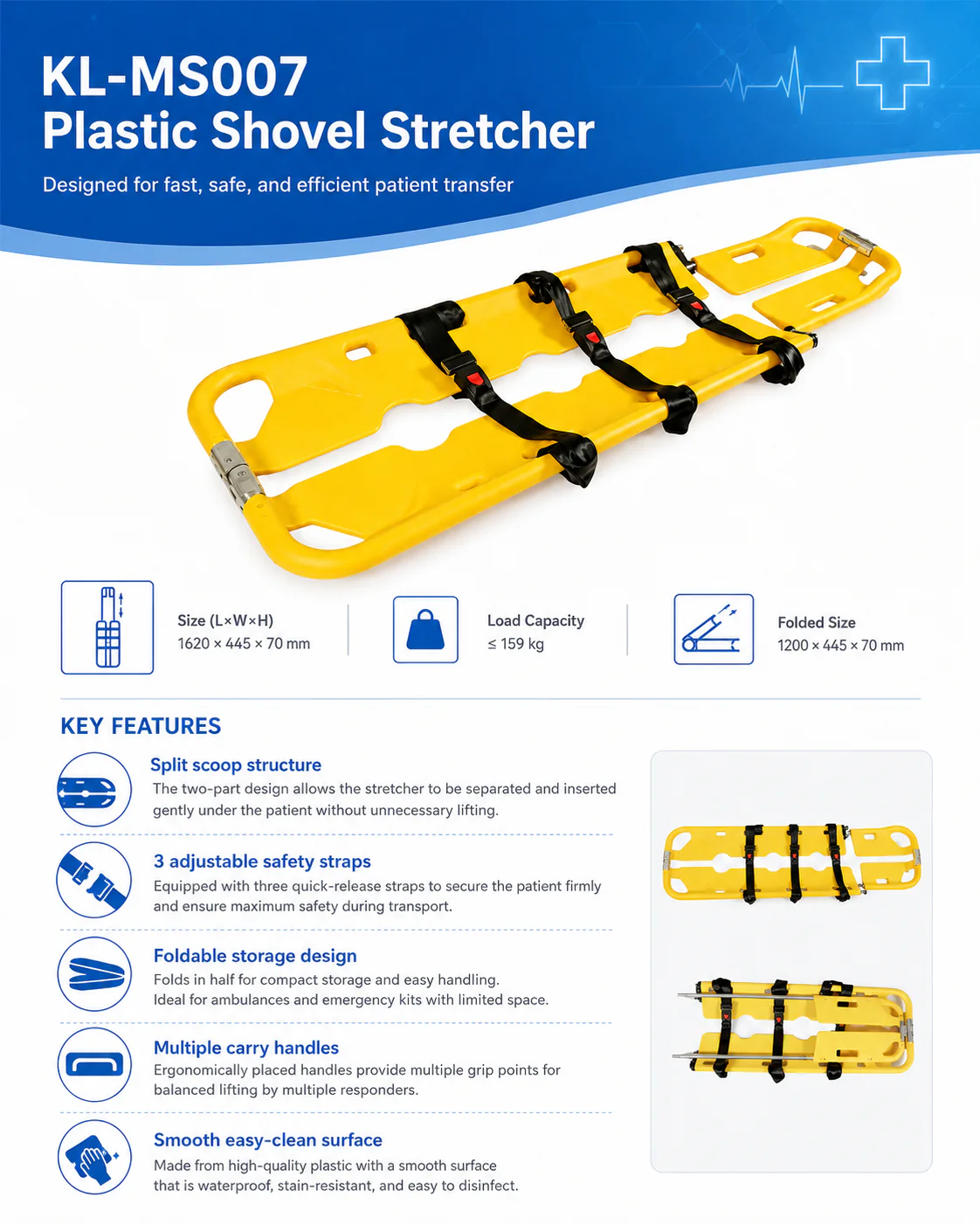

Key Features

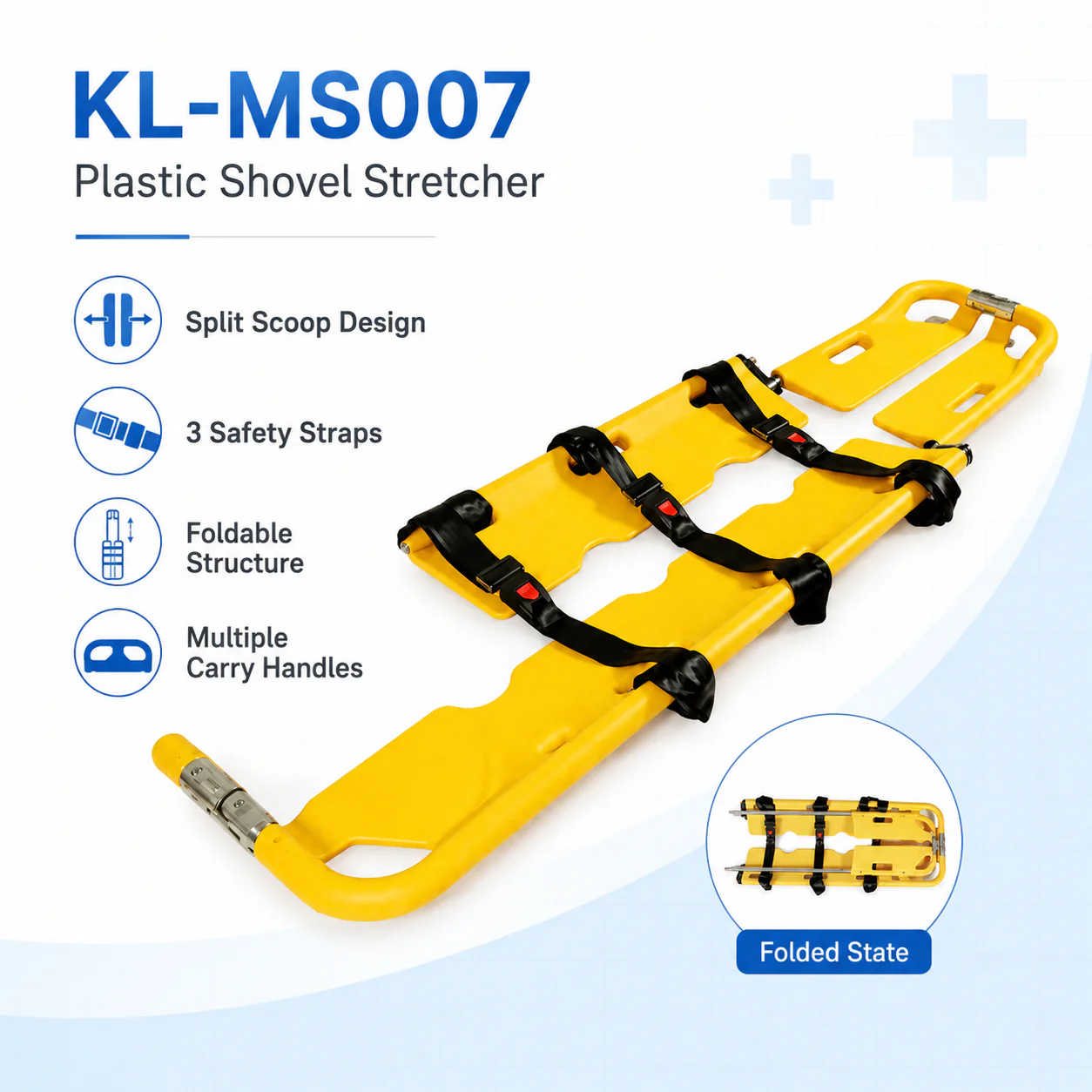

- Split scoop structure — two-part design slides under the patient from each side without requiring lifting or rolling.
- ≤159 kg load capacity — high-capacity rating supports a wide range of patient body weights.
- 3 adjustable quick-release safety straps — chest, waist and thigh straps with one-hand quick-release buckles for fast, secure restraint.

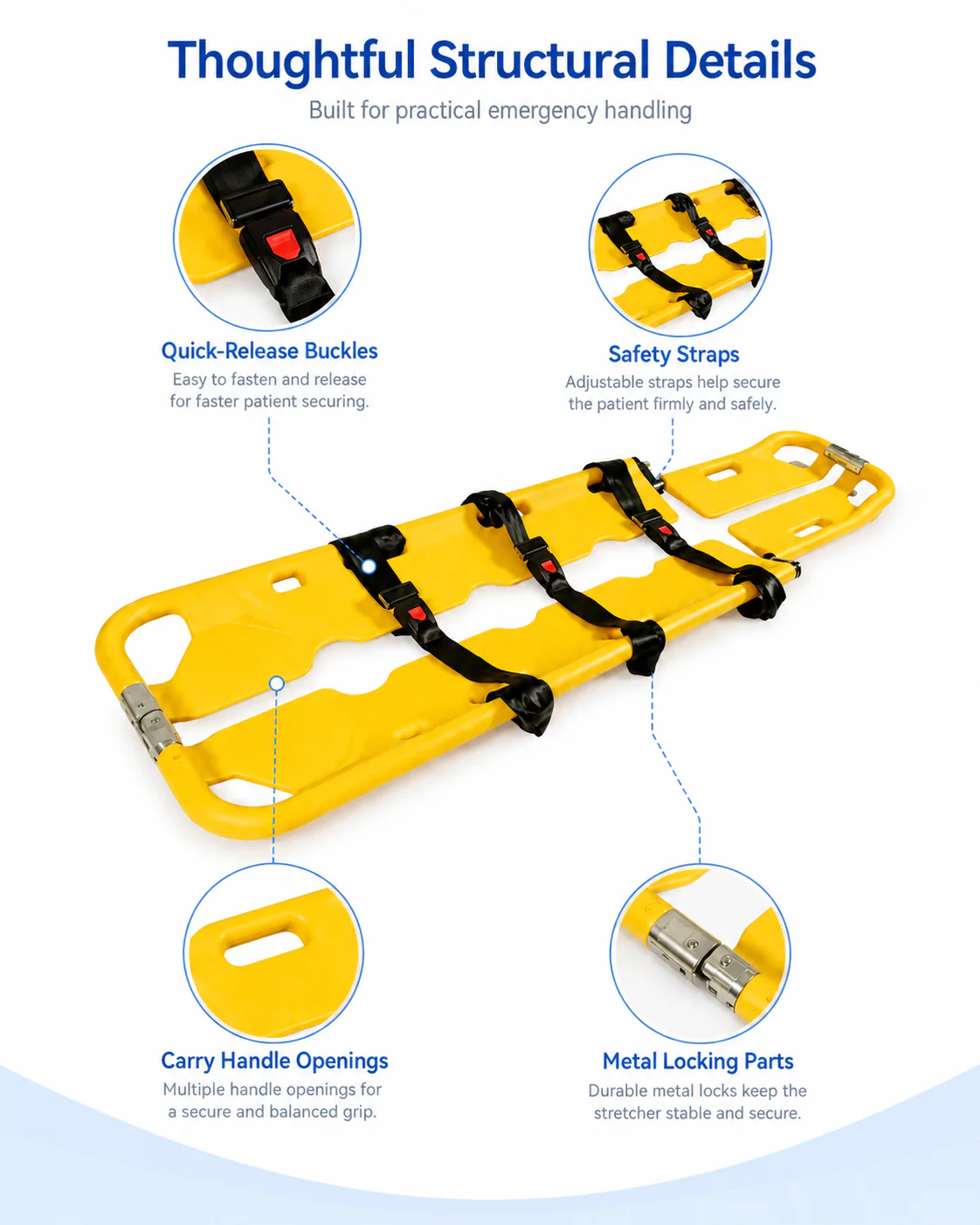

- Metal locking parts — durable metal joints lock both halves firmly together under patient load.
- Multiple carry handle openings — ergonomically placed for balanced two- or four-person lifts.
- Waterproof, easy-clean plastic surface — smooth, non-porous body resists stains and fluid; easy to disinfect between uses.

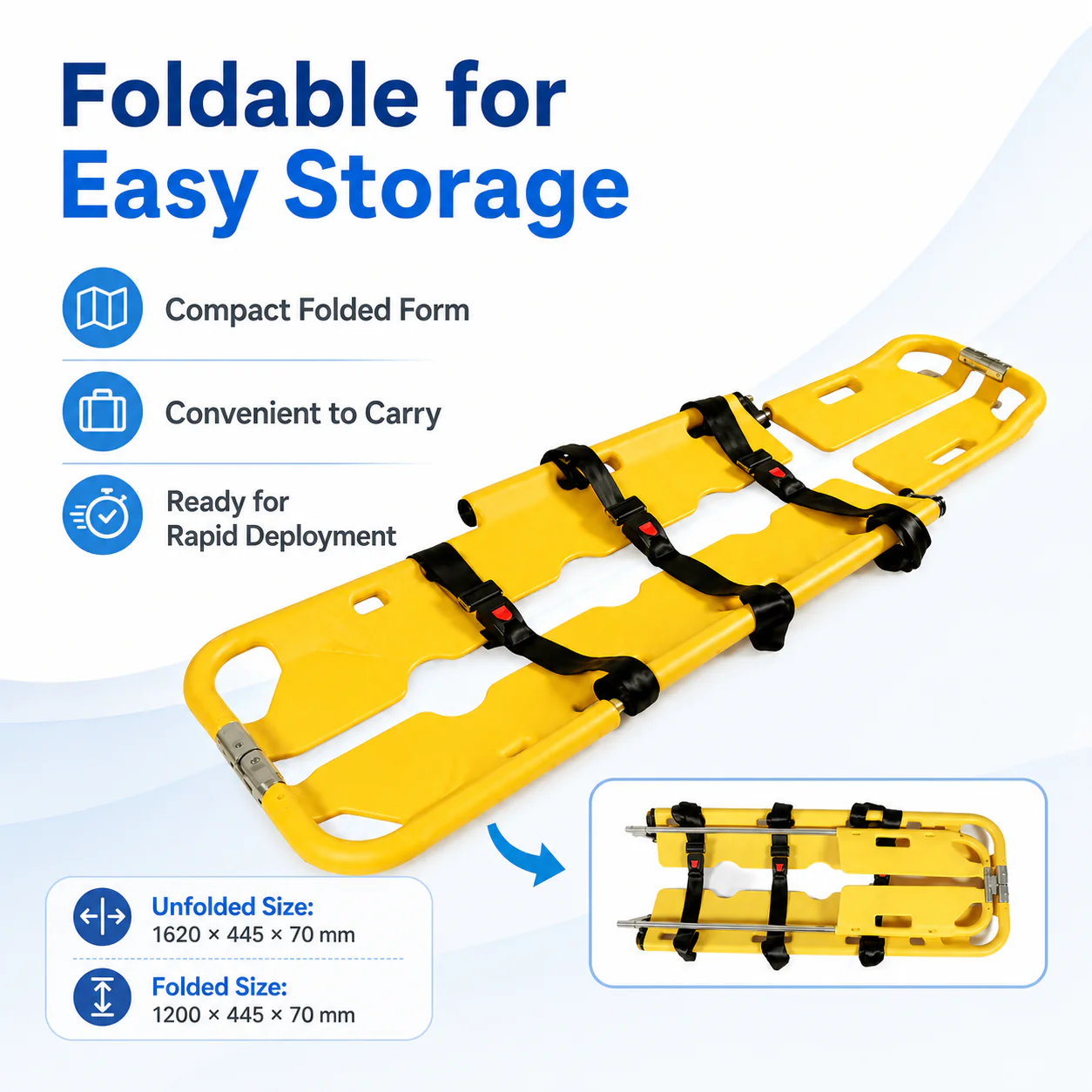

- Foldable storage design — folds to 1200 × 445 × 70 mm for compact ambulance and kit storage.

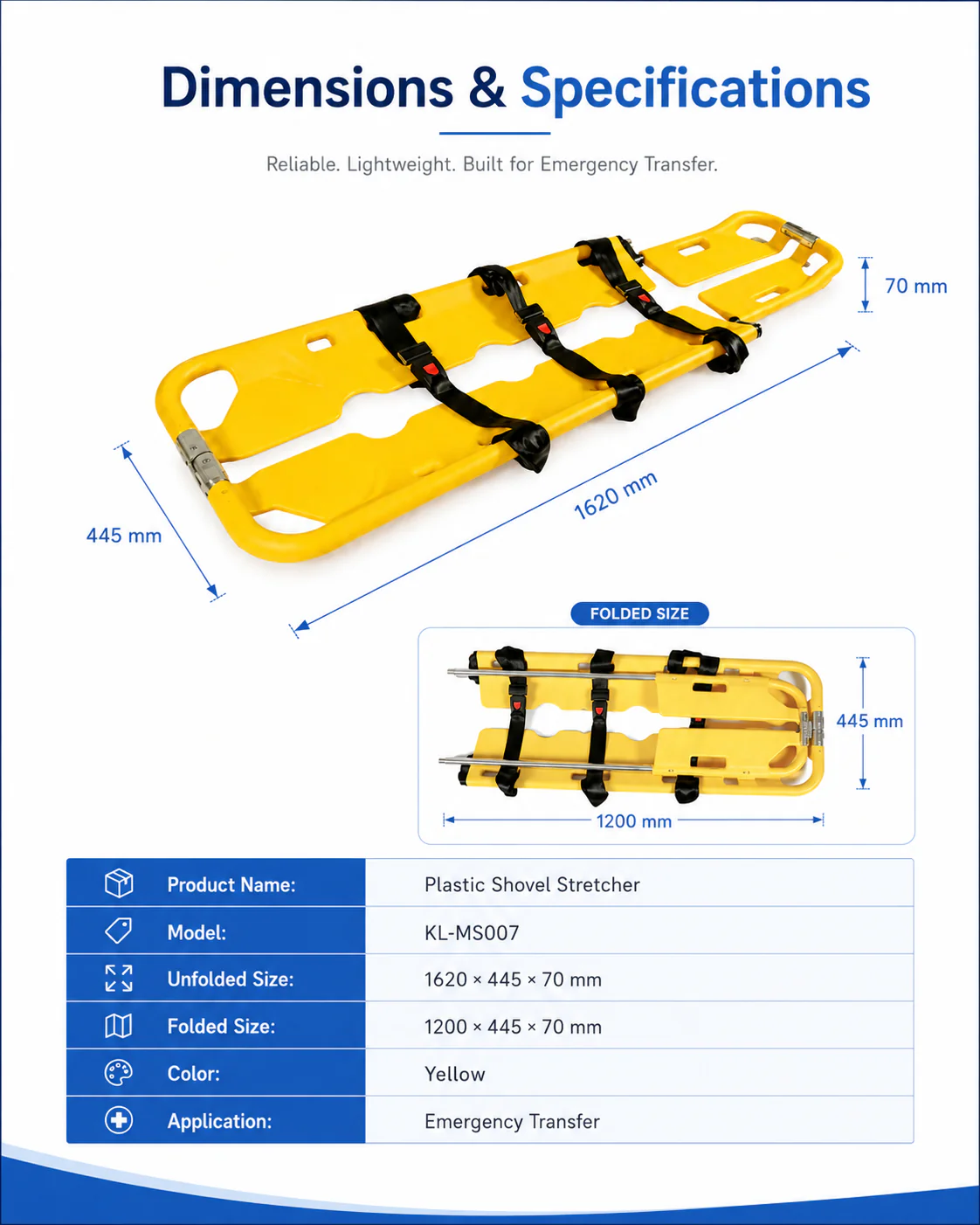

Technical Specifications
| Parameter | Value |
|---|---|
| Model | KL-MS007 |
| Product type | Plastic shovel stretcher (scoop stretcher) |
| Open size (L × W × H) | 1620 × 445 × 70 mm |
| Folded size (L × W × H) | 1200 × 445 × 70 mm |
| Load capacity | ≤159 kg |
| Body material | High-quality plastic (waterproof) |
| Patient restraint | 3 adjustable safety straps with quick-release buckles |
| Locking mechanism | Metal locking parts |
Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.
Applications

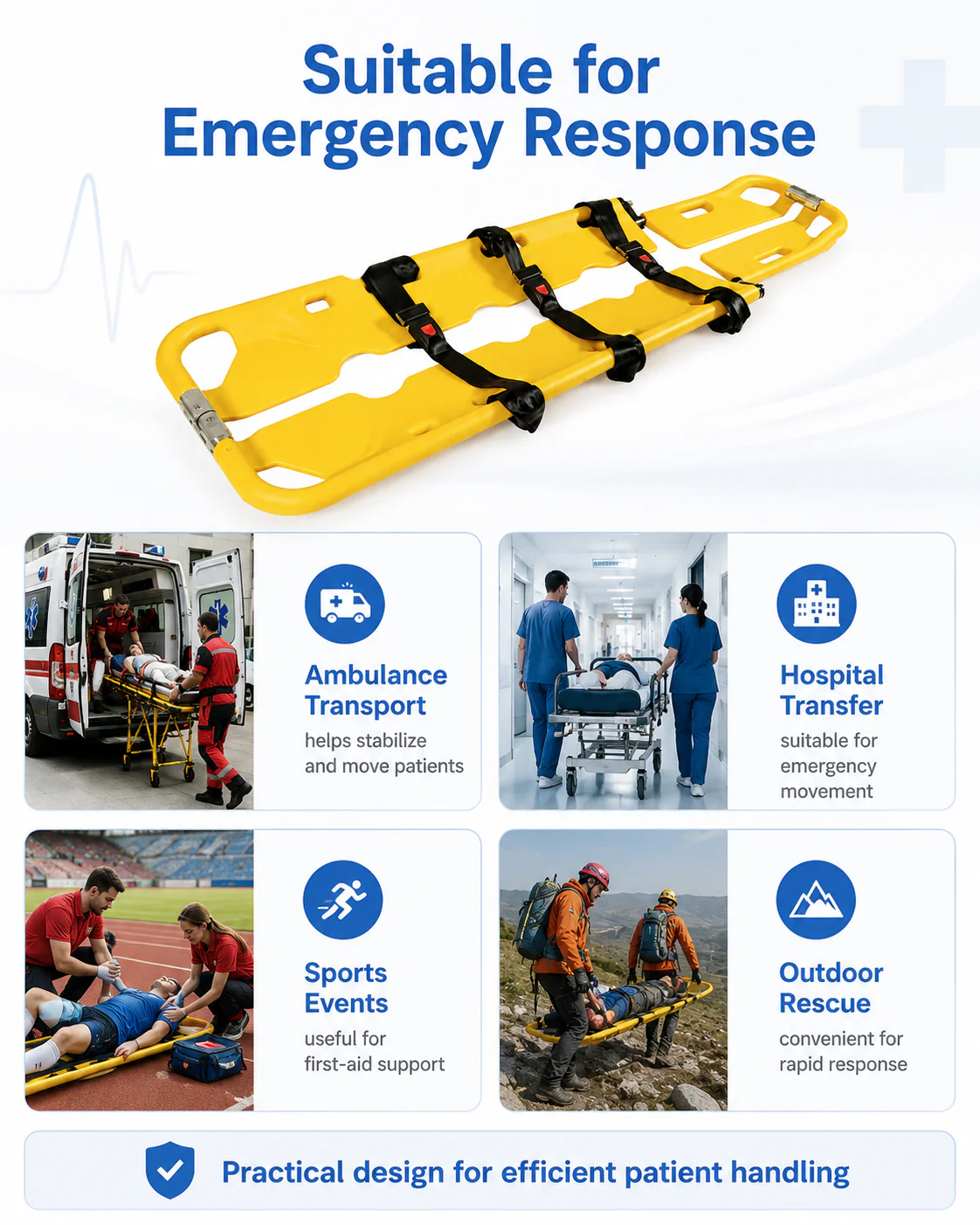

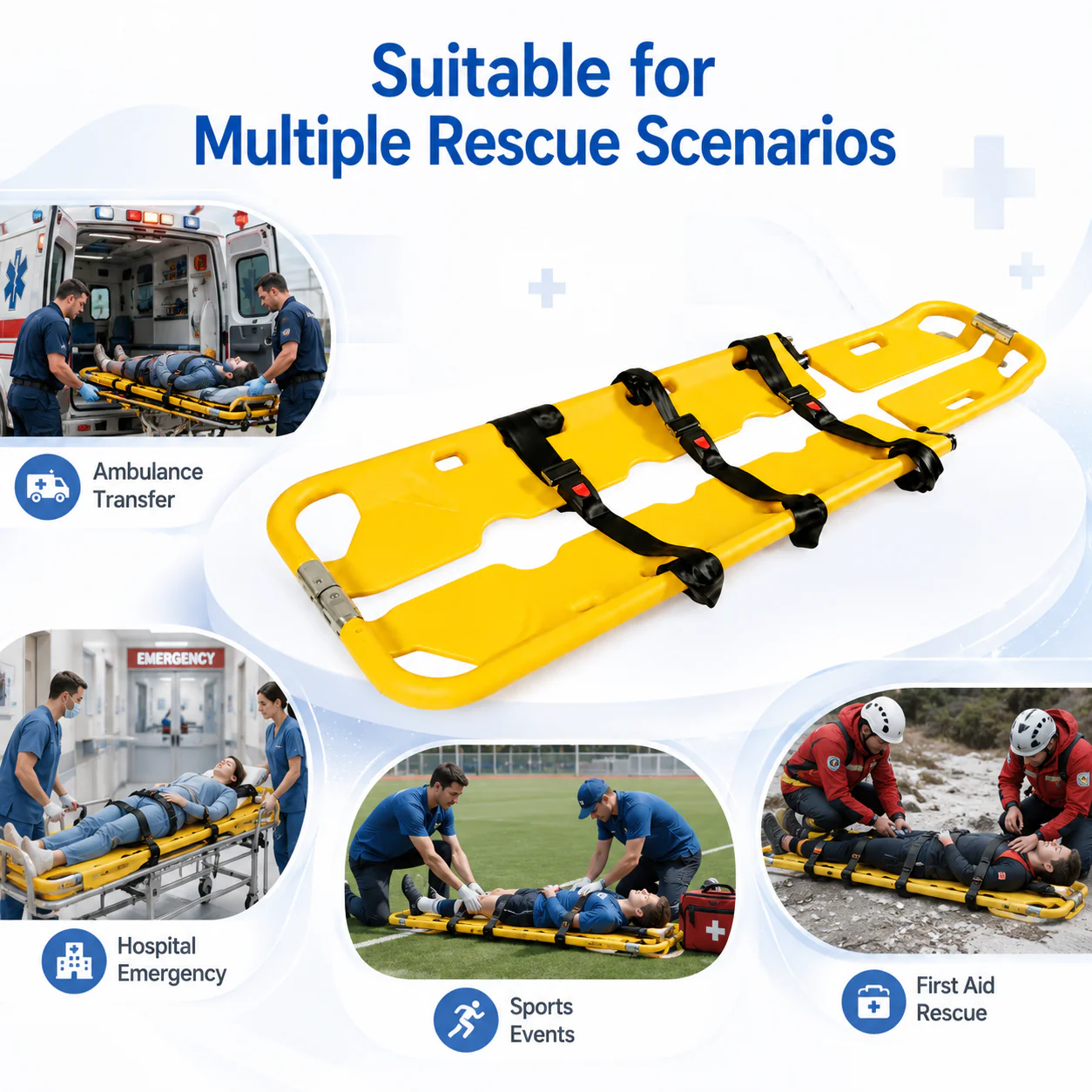

The KL-MS007 is used by ambulance and paramedic crews, hospital emergency departments, fire and rescue services handling road traffic accidents and building collapses, industrial first aid teams and disaster response organizations. The high load capacity and waterproof surface make it suitable for outdoor and trauma-scene use where fluid resistance and structural reliability are equally important.
