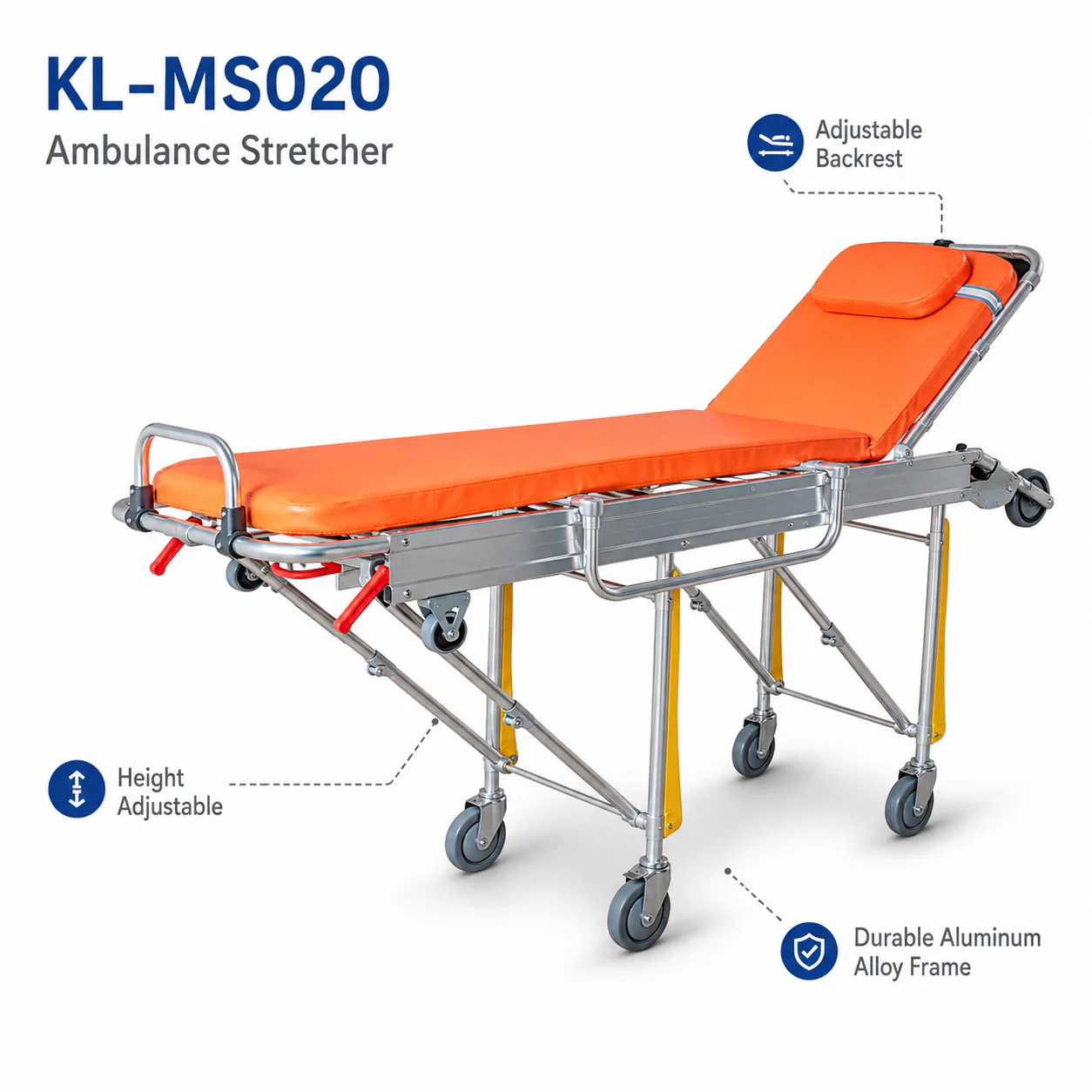

# KL-MS020 Ambulance Stretcher — Aluminum Alloy Height-Adjustable Emergency Stretcher
Quick answer: The Keling KL-MS020 is an ambulance stretcher with an aluminum alloy frame measuring 1900 × 550 × (260–920) mm, a 0–75° adjustable backrest, ≤159 kg load capacity and four swivel casters with brakes, manufactured by Keling Medical (Keling Medical) for ambulance services, hospitals and emergency rescue operations.
Quick Facts
- The Keling KL-MS020 is an ambulance stretcher designed for safe, comfortable and efficient patient transfer in emergency settings.
- External size is 1900 × 550 × (260–920) mm with height-adjustable legs for loading compatibility with ambulance vehicles.
- The backrest adjusts from 0° to 75° to accommodate different patient conditions and respiratory needs.
- Load capacity is ≤159 kg, supported by a high-strength aluminum alloy frame with reinforced support bars.
- Four 360° swivel casters with individual brakes provide smooth movement and secure positioning.
- Frame material is aluminum alloy; the mattress is high-density foam with a customizable color option.
Overview
The KL-MS020 ambulance stretcher is engineered for the complete patient journey from incident scene to hospital handover. Its aluminum alloy construction combines the lightweight handling required for ambulance loading and staircase negotiation with the structural rigidity needed to support patients weighing up to 159 kg across uneven terrain and vehicle movement. The height-adjustable scissor-style leg mechanism allows the stretcher to drop to a low loading position compatible with standard ambulance platforms, then rise to a comfortable working height for paramedics and receiving nurses.

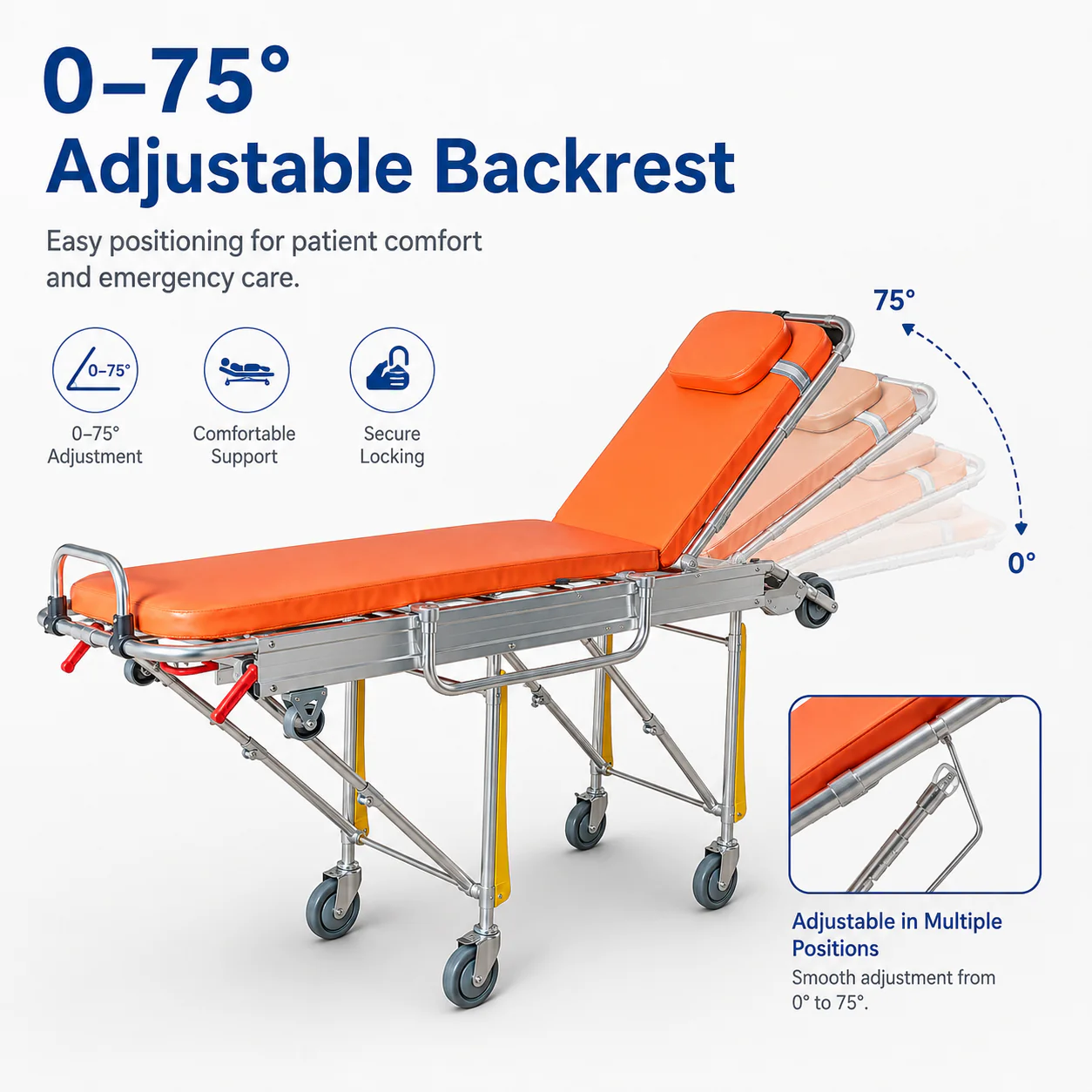

Backrest adjustment from 0° to 75° gives clinical teams flexibility for patient positioning during transport. Semi-recumbent positions support respiratory patients, while the flat configuration is appropriate for trauma and unconscious patients requiring full spinal support. Foldable protective side rails prevent accidental falls during movement through corridors and around corners without interrupting patient access from either side.
Mobility is delivered through four premium swivel casters that allow the KL-MS020 to navigate hospital corridors, door thresholds and ambulance bays without requiring the stretcher to be lifted or repositioned. Individual brakes on each caster lock the stretcher in place during patient loading, clinical assessment and transfer handover, eliminating unintended movement in any clinical environment.

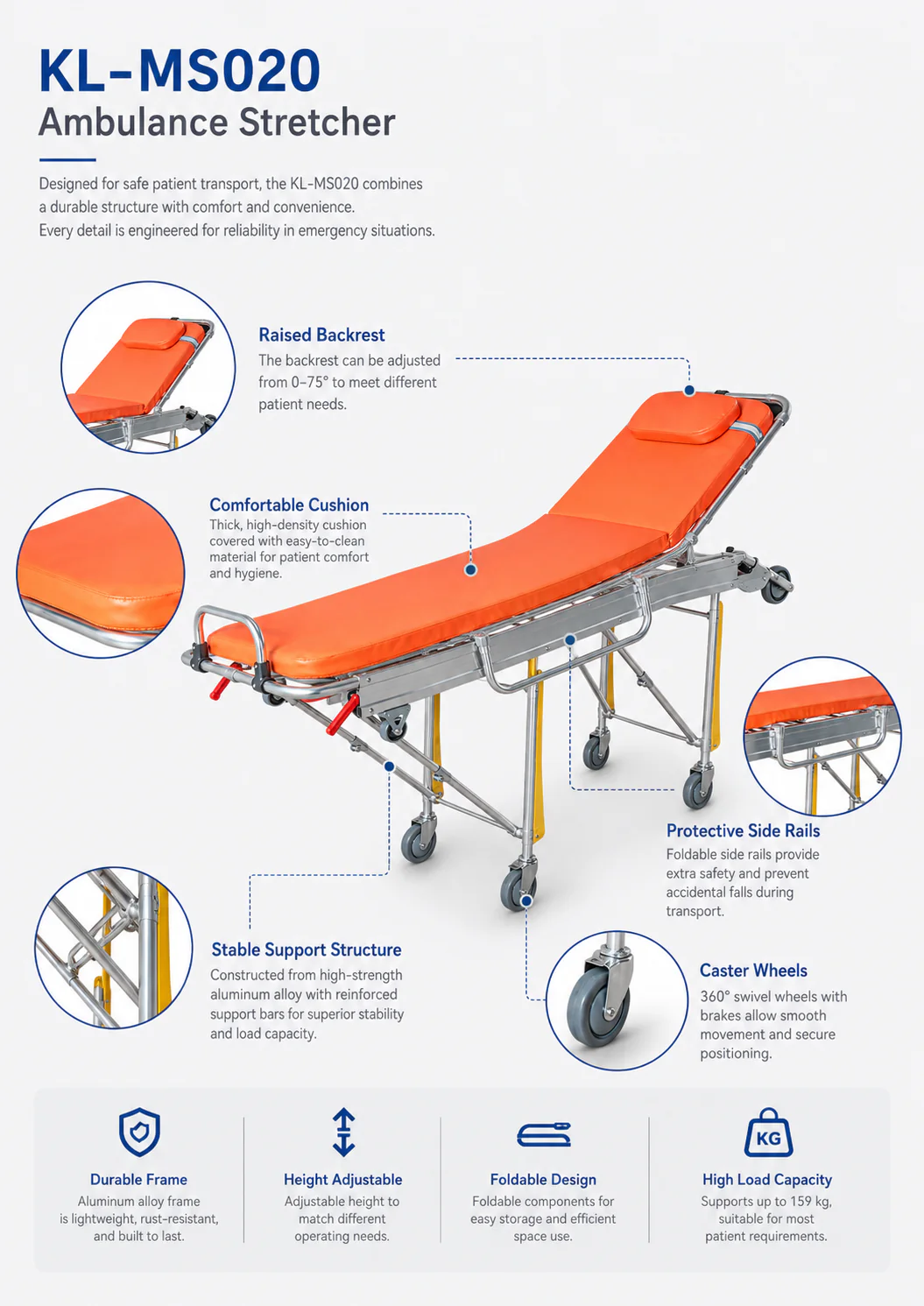

Key Features

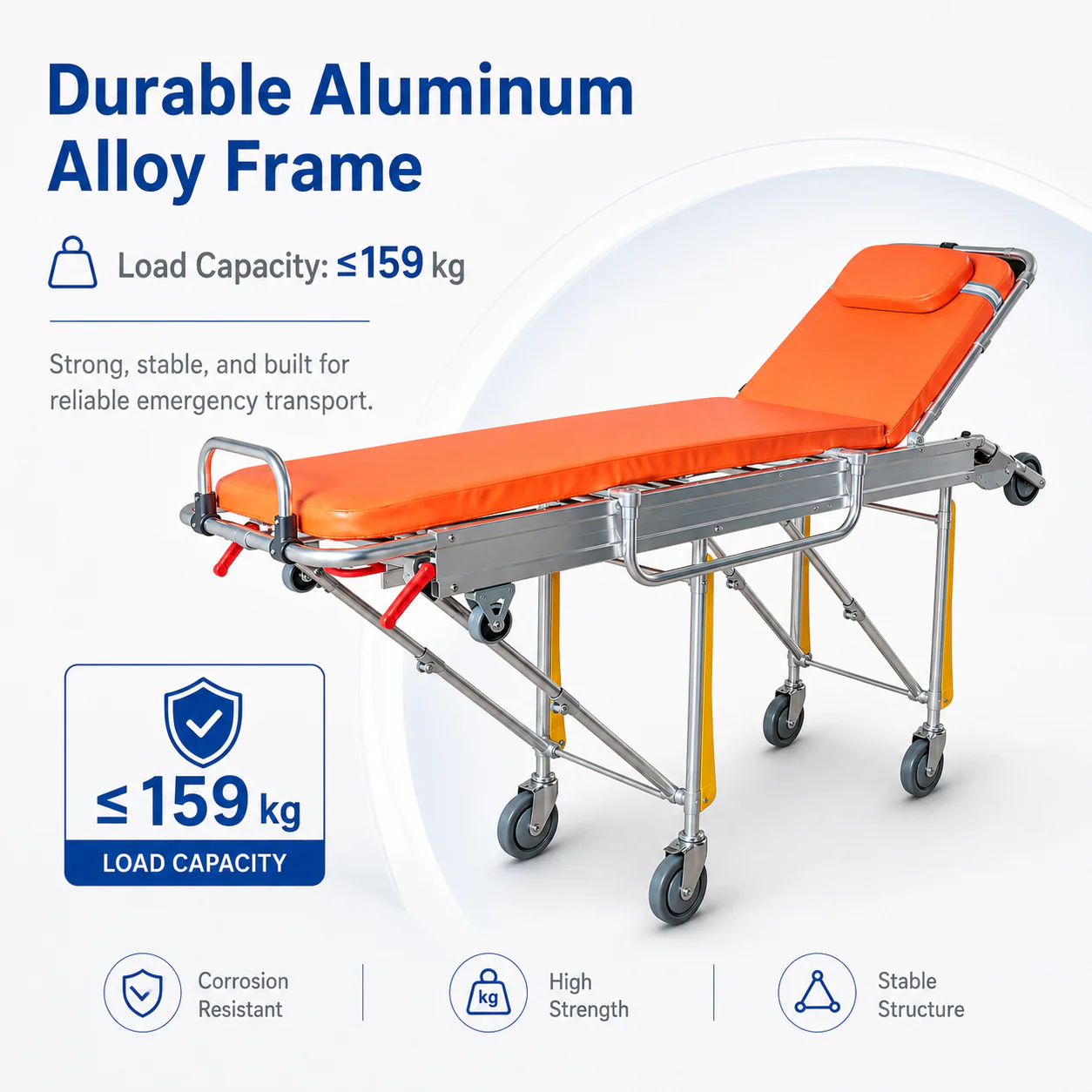

- Aluminum alloy frame — lightweight, high-strength aluminum alloy with reinforced support bars for corrosion resistance and long service life.
- Height-adjustable design — adjustable height range of 260–920 mm enables smooth ambulance loading and ergonomic clinical working height.
- 0–75° adjustable backrest — backrest adjusts through 75° to support varied patient postures from fully flat to semi-upright.

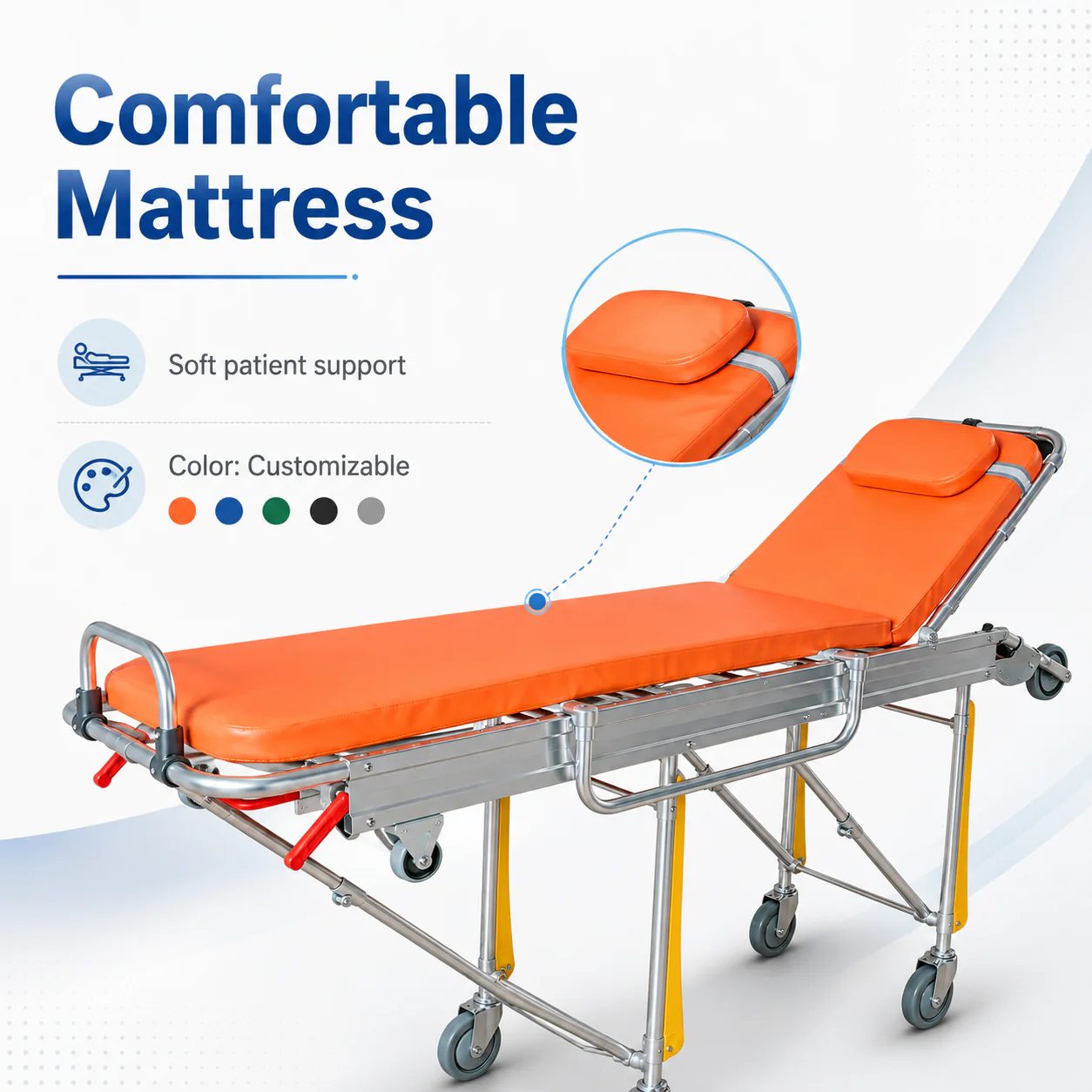

- High-density foam mattress — comfortable, easy-to-clean mattress covering with customizable color options.
- Foldable protective side rails — fold-down side rails provide fall prevention during transport while allowing clinical access.

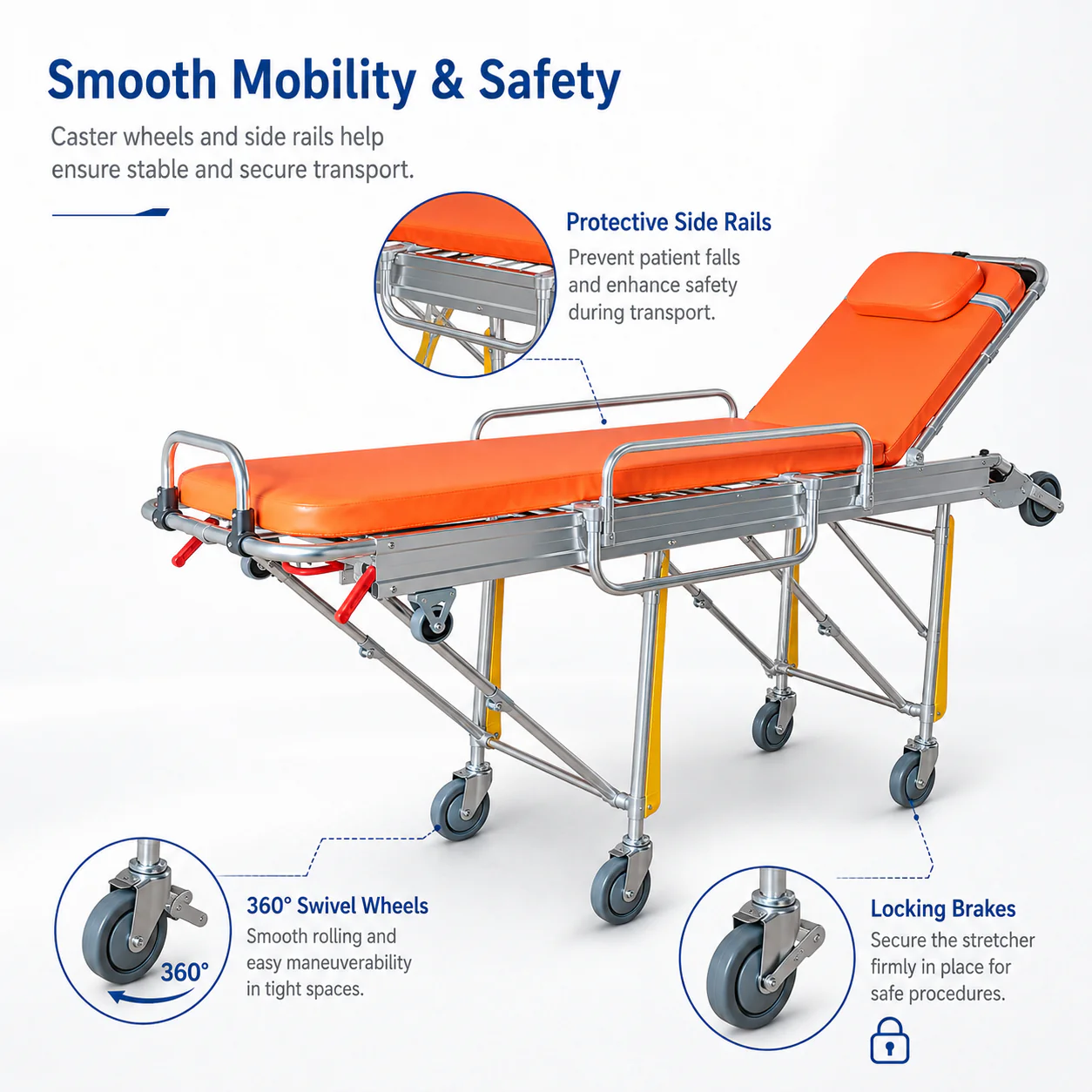

- 4-caster swivel mobility — four 360° swivel casters with individual brakes deliver stable, smooth movement and secure locking.

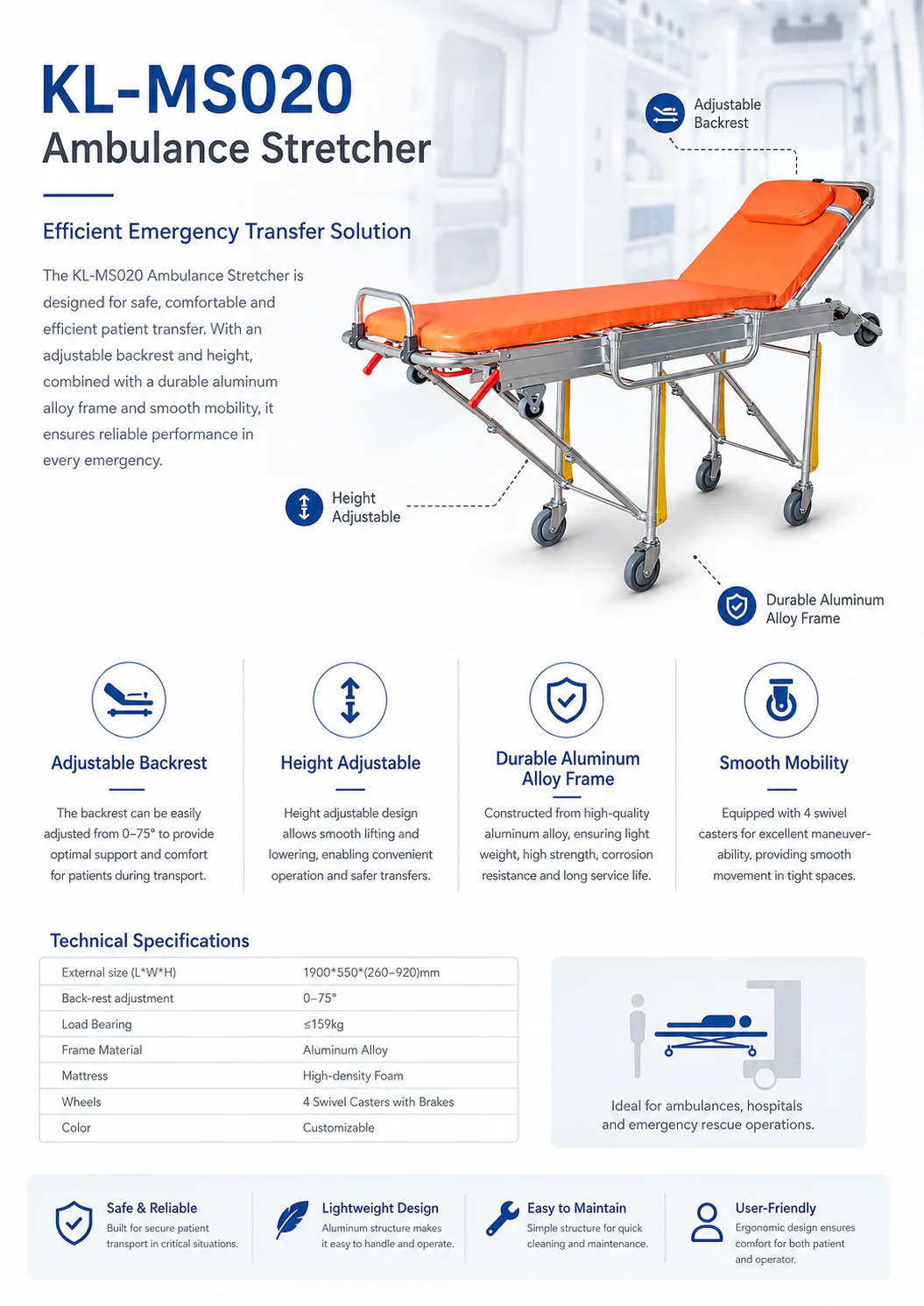

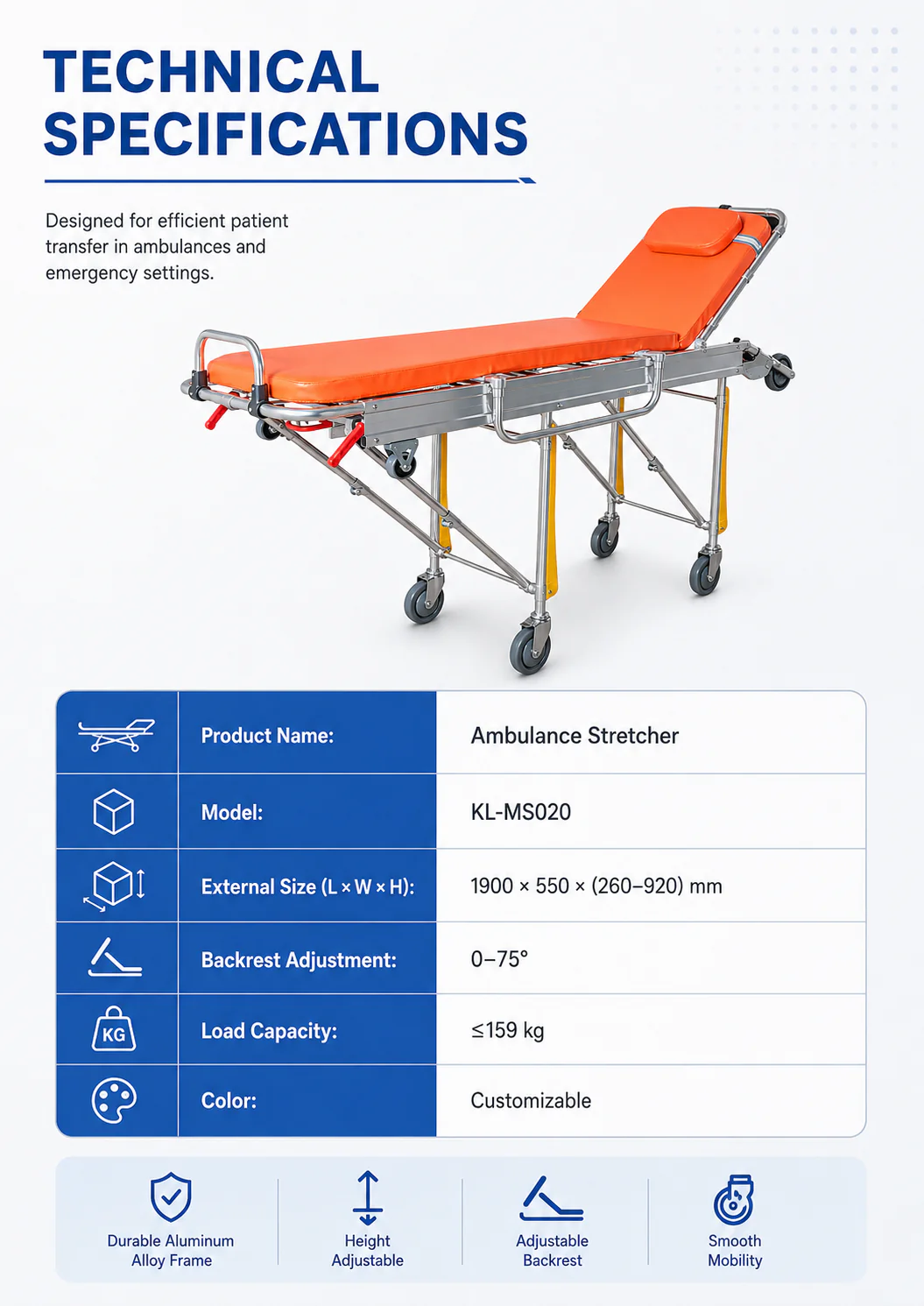

Technical Specifications
| Parameter | Value |
|---|---|
| Model | KL-MS020 |
| Product type | Ambulance stretcher |
| External size (L × W × H) | 1900 × 550 × (260–920) mm |
| Back-rest adjustment | 0–75° |
| Load bearing | ≤159 kg |
| Frame material | Aluminum alloy |
| Mattress | High-density foam |
| Wheels | 4 swivel casters with brakes |
| Color | Customizable |
Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

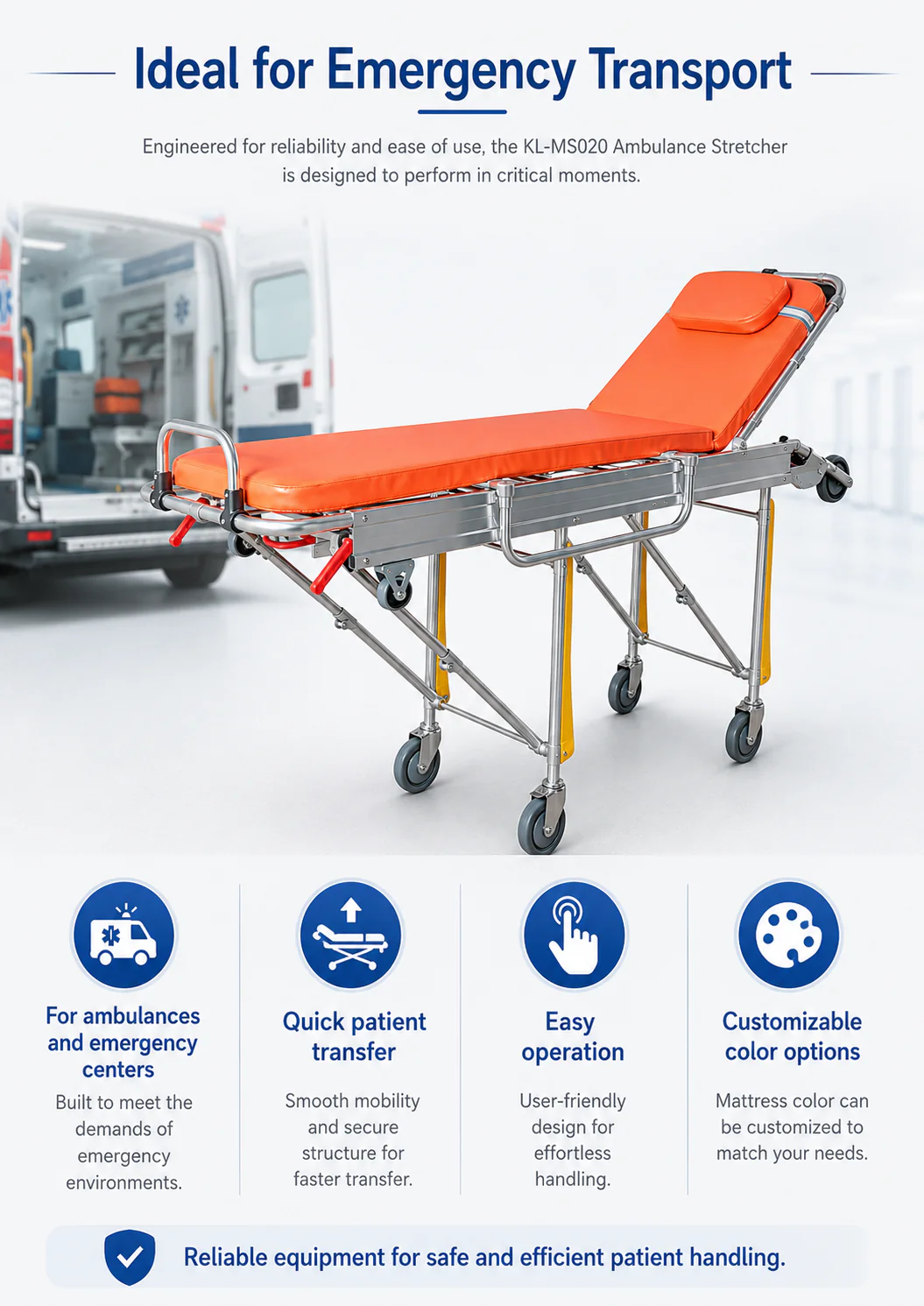

Applications
The KL-MS020 is used in ambulances, hospital emergency departments, pre-hospital emergency rescue and inter-ward patient transport. Its height adjustment and load capacity make it suitable for ground-level incident response, ambulance vehicle loading and unloading, emergency department reception areas and transfer to operating theatres or imaging suites.
