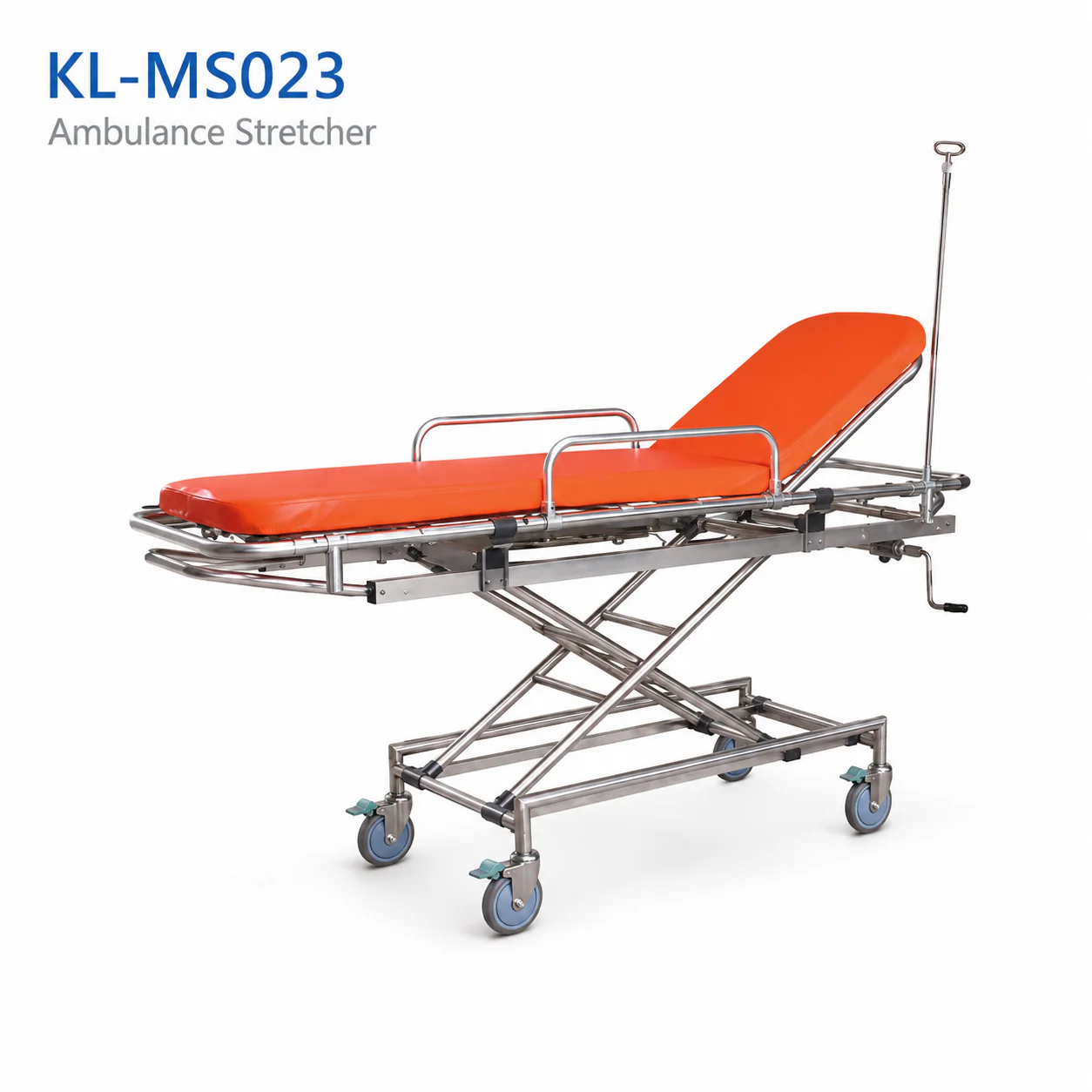

# KL-MS023 Ambulance Stretcher — Detachable Stainless Steel Scissor-Lift Stretcher with IV Pole
Quick answer: The Keling KL-MS023 is an ambulance stretcher with a heavy-duty stainless steel scissor-lift frame measuring 1950 × 550 × (260–920) mm, ≤159 kg load capacity, 0–75° backrest, detachable stretcher-base design, foldable aluminum side rails and an integrated IV pole, manufactured by Keling Medical (Keling Medical) for ambulance services and hospital emergency transfer.
Quick Facts
- The Keling KL-MS023 is an ambulance stretcher built on a heavy-duty stainless steel scissor-lift frame for durable, reliable height adjustment.
- External dimensions are 1950 × 550 × (260–920) mm, with manual crank height adjustment through the scissor-lift mechanism.
- The detachable design allows the stretcher surface to separate from the base for independent loading, cleaning and maintenance.
- Backrest adjustment range is 0–75° via a manual crank system for smooth, controllable positioning.
- Load capacity is ≤159 kg, supported by the stainless steel frame construction.
- Standard equipment includes foldable aluminum side rails and a stainless steel IV pole for infusion support during transport.
Overview
The KL-MS023 ambulance stretcher is defined by its stainless steel scissor-lift frame, which delivers proven reliable height adjustment through a manual crank mechanism. Stainless steel construction gives the KL-MS023 a corrosion-resistant, easy-to-clean structural base suited to the demanding environments of emergency departments and ambulance bays where chemical cleaning agents are routinely used. The scissor-lift geometry provides stable, even height change across the full 260–920 mm range without frame flex or side sway that can compromise patient comfort during adjustment.
The detachable design is a distinctive operational feature. The stretcher surface separates cleanly from the scissor-lift base, enabling the surface to be loaded directly onto a hospital bed or examined independently, reducing patient transfer steps and potential injury during handover. This detachability also simplifies decontamination, allowing surfaces and base to be cleaned separately according to different protocols.
Foldable aluminum side rails and a fixed stainless steel IV pole make the KL-MS023 functionally complete for transport requiring fluid administration. The side rails fold flat for patient access during examination and boarding, then raise to secure the patient during movement. The IV pole's stainless steel construction matches the frame's corrosion resistance and hygiene profile, supporting the stretcher's long-term use in infection-sensitive environments.

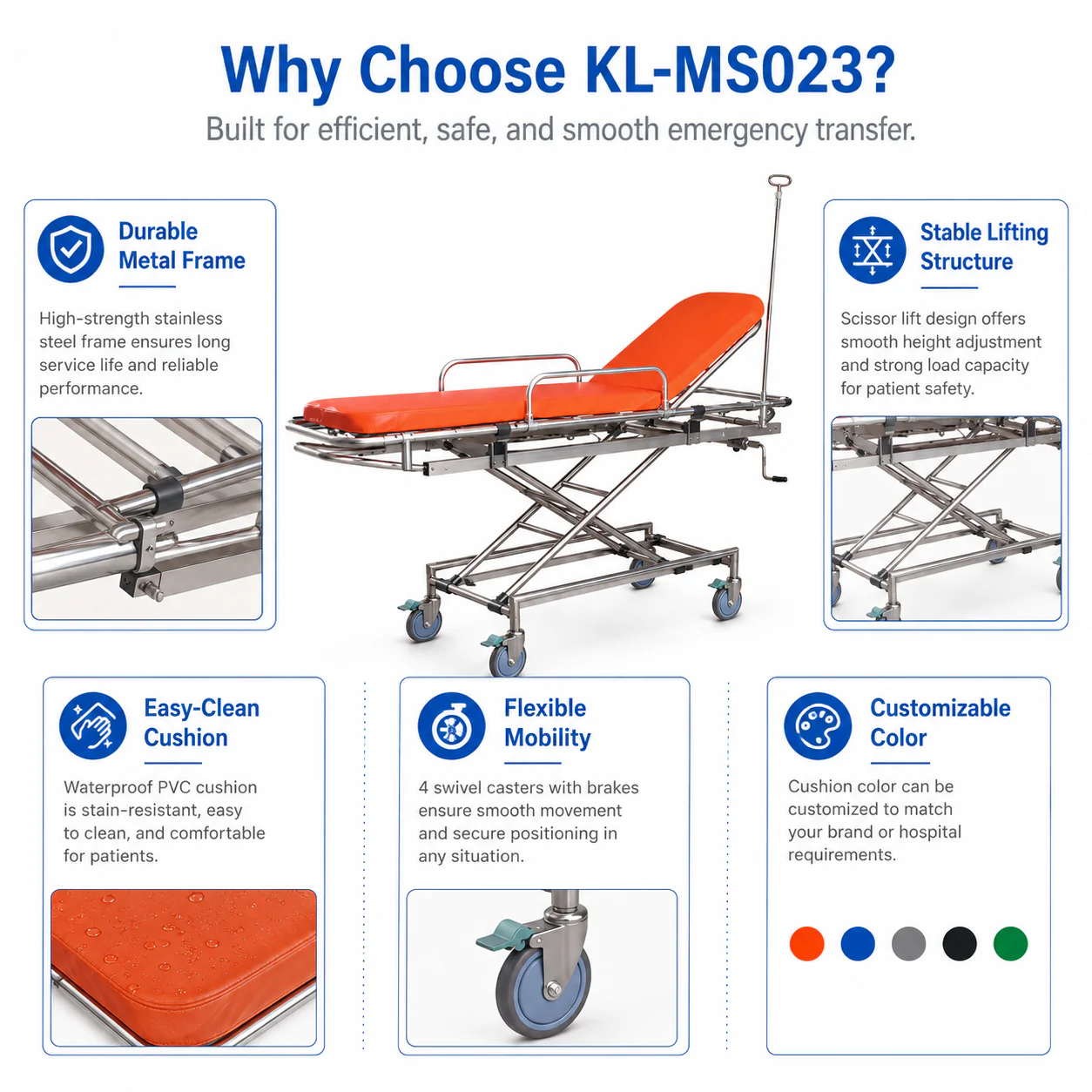

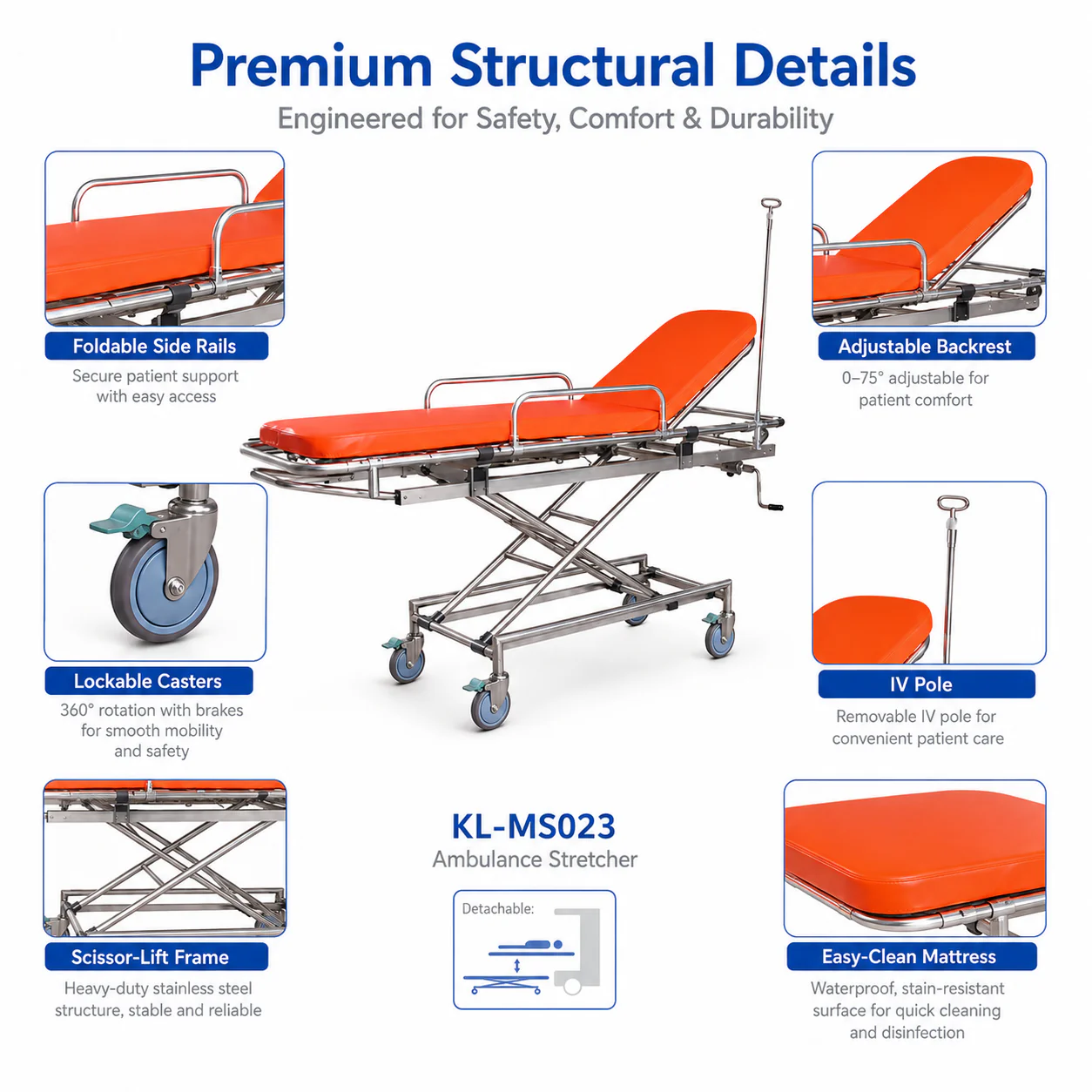

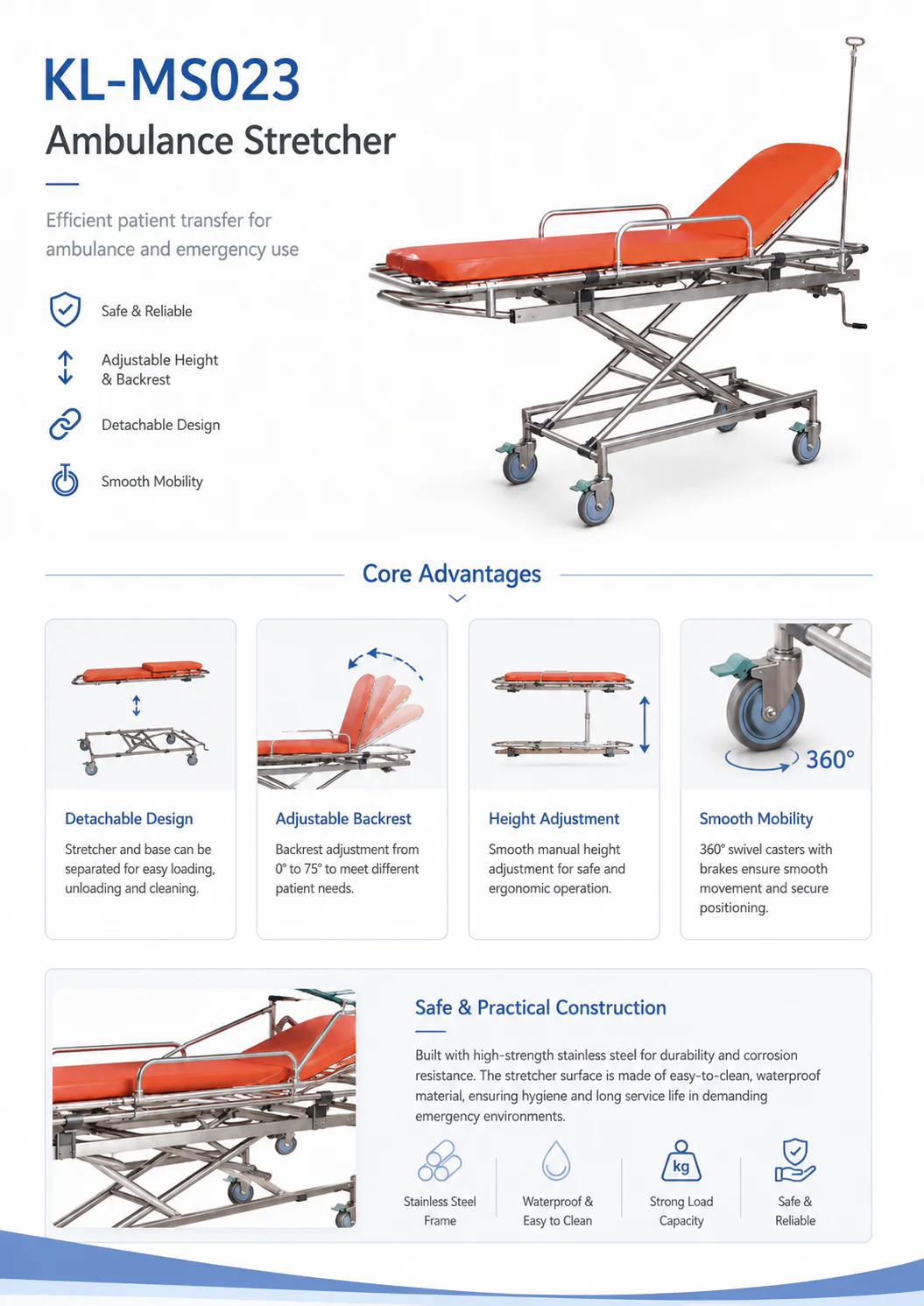

Key Features
- Stainless steel scissor-lift frame — heavy-duty stainless steel scissor structure for reliable, stable height adjustment and long service life.
- Detachable design — stretcher surface separates from base to simplify loading, patient handover and independent cleaning.
- Manual crank height adjustment — crank-operated scissor mechanism for smooth, controlled height change from 260 mm to 920 mm.
- 0–75° adjustable backrest — manual backrest adjustment for trauma-flat through semi-recumbent patient positioning.
- Foldable aluminum side rails — fold-down rails provide fall prevention during movement and fold clear for patient access.
- Stainless steel IV pole — integrated infusion pole for fluid administration during ambulance transport.
- 360° swivel casters with brakes — stable, smooth-rolling casters with brake locks for secure positioning.

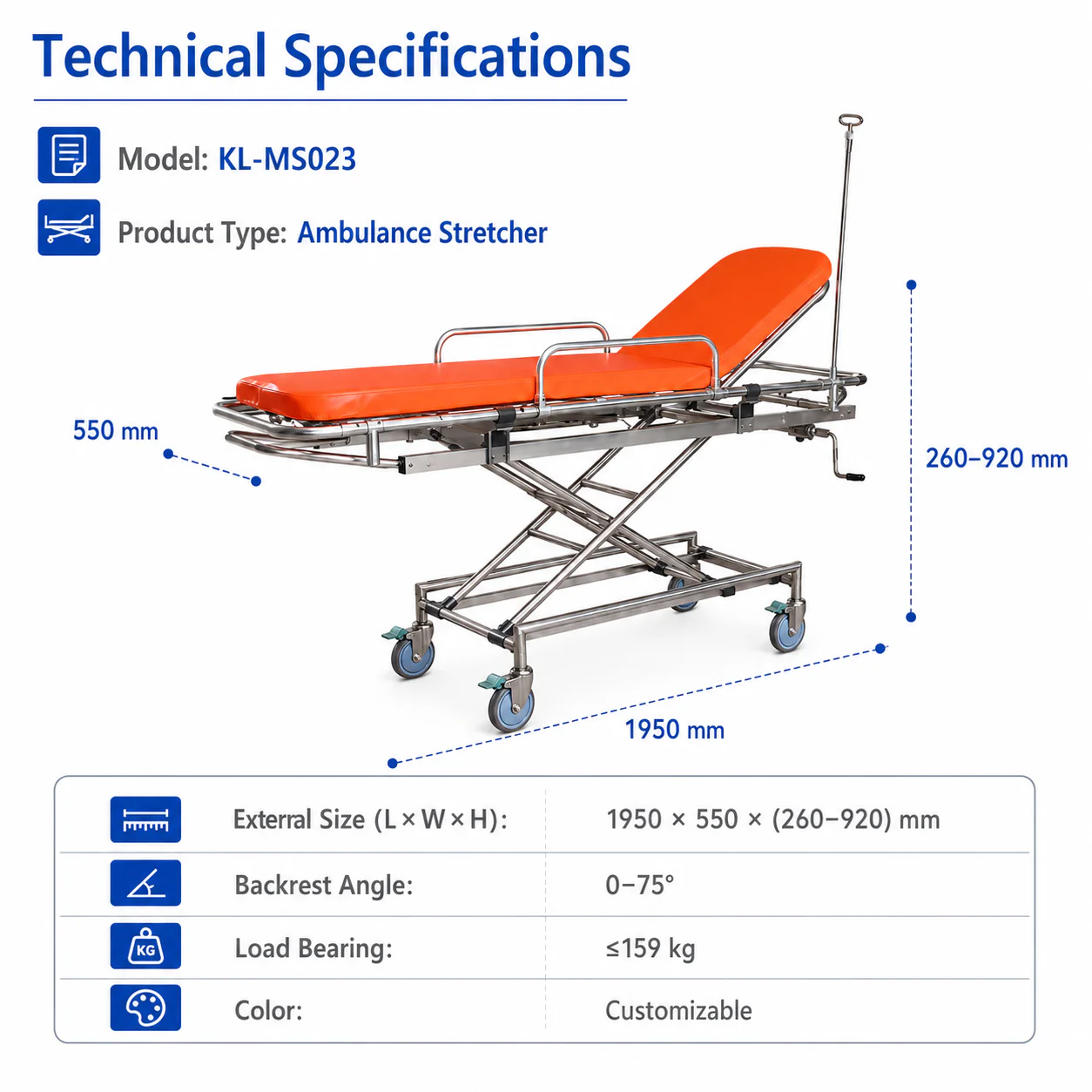

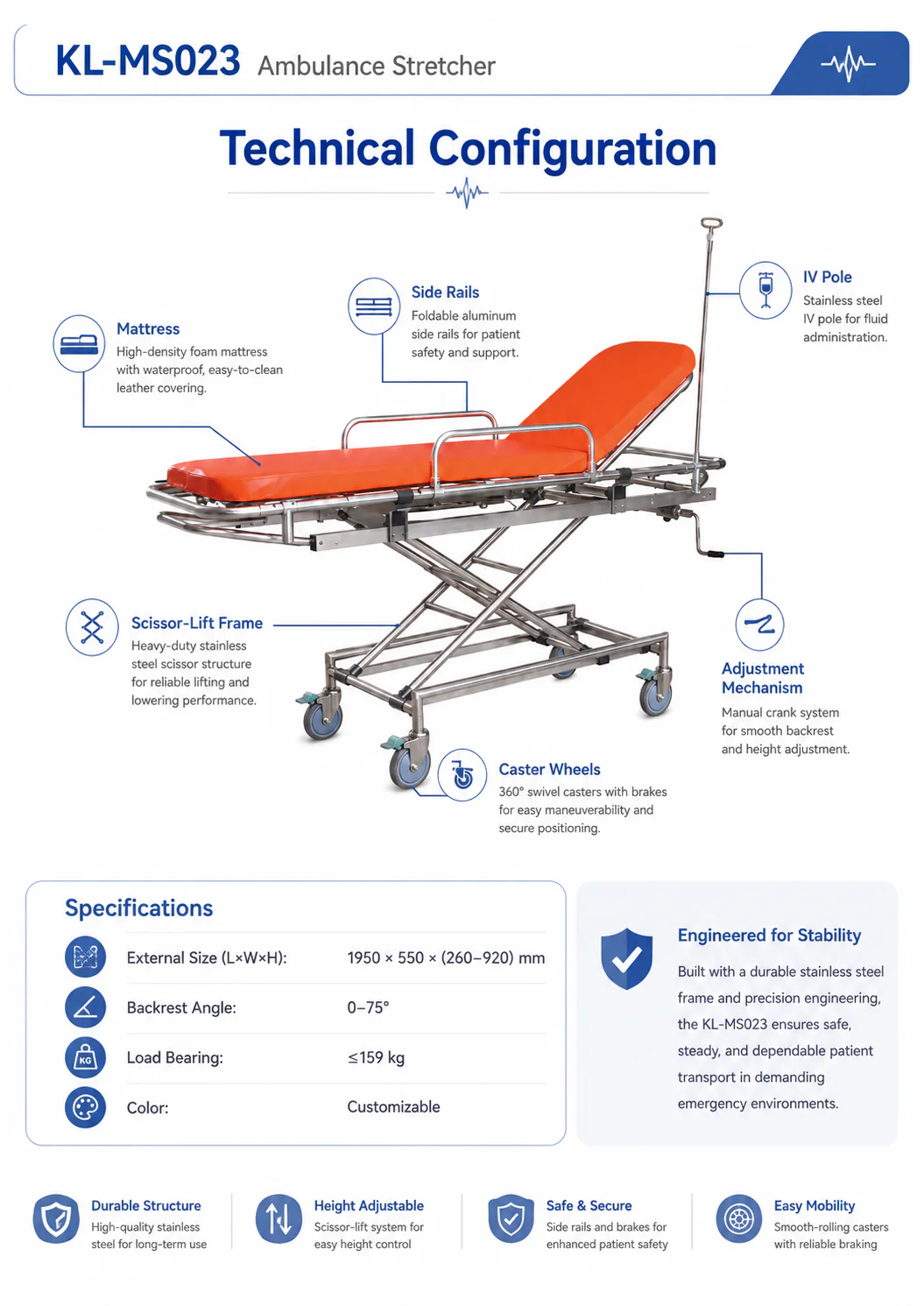

Technical Specifications
| Parameter | Value |
|---|---|
| Model | KL-MS023 |
| Product type | Ambulance stretcher |
| External size (L × W × H) | 1950 × 550 × (260–920) mm |
| Backrest angle | 0–75° |
| Load bearing | ≤159 kg |
| Frame material | Stainless steel |
| Lift mechanism | Manual crank scissor-lift |
| Side rails | Foldable aluminum |
| IV pole | Stainless steel, included |
| Mattress | High-density foam, waterproof cover |
| Casters | 360° swivel with brakes |
| Color | Customizable |
Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

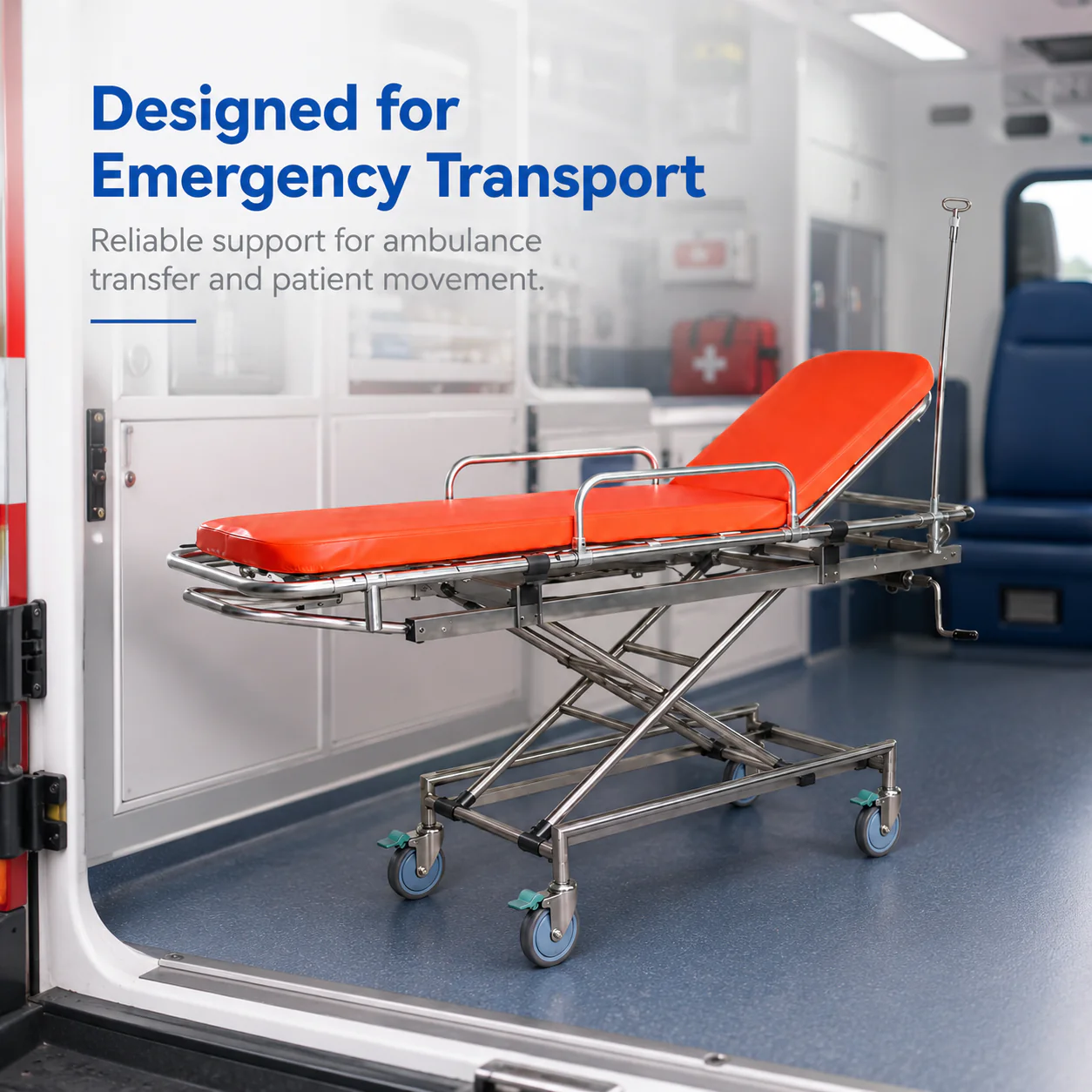

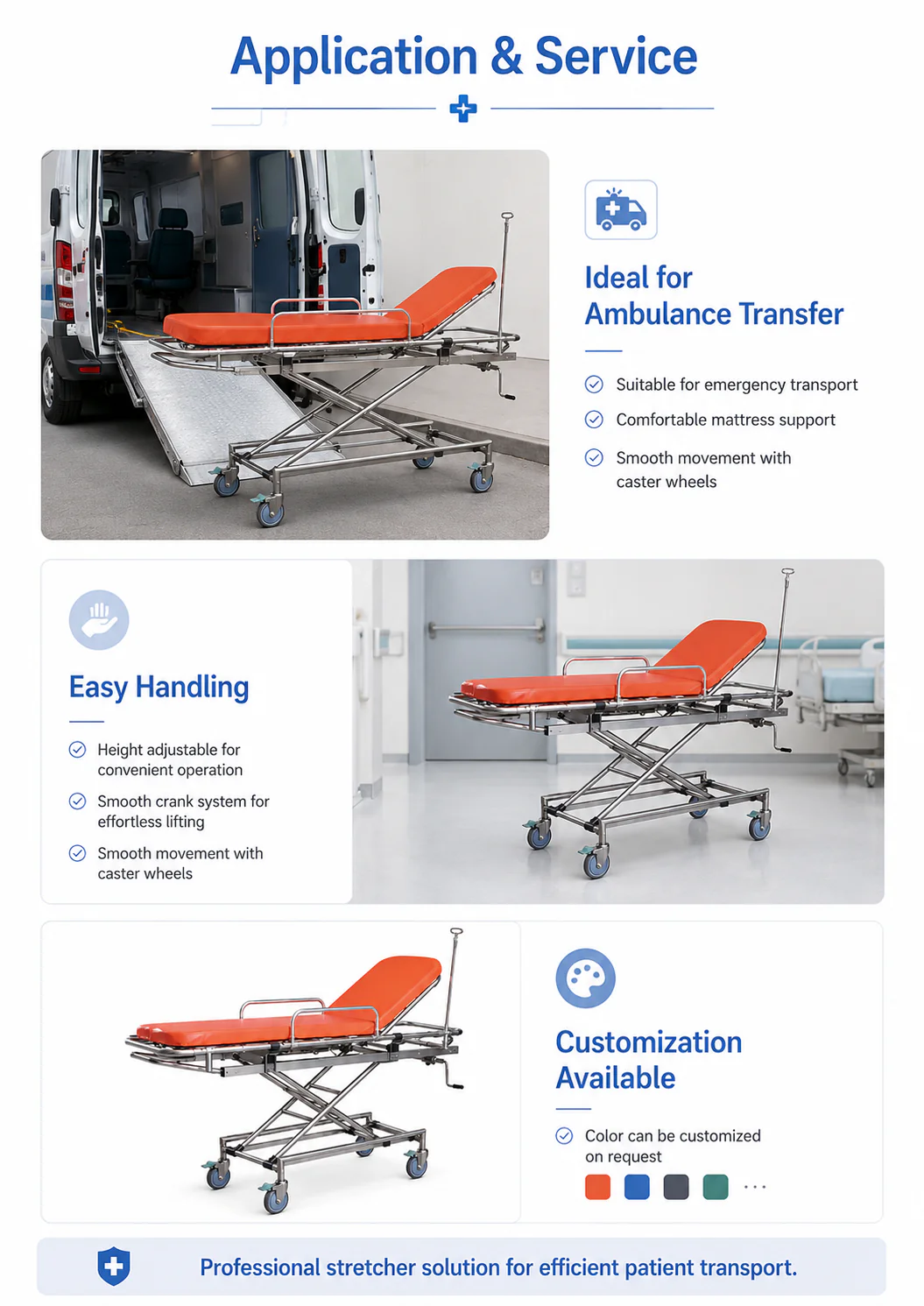

Applications
The KL-MS023 is used in ground ambulances, hospital emergency departments, inter-ward patient transport and post-operative recovery transfer. Its detachable design and IV pole make it particularly suited to patient transport requiring ongoing fluid administration, and its stainless steel construction suits high-turnover emergency environments with stringent decontamination protocols.
