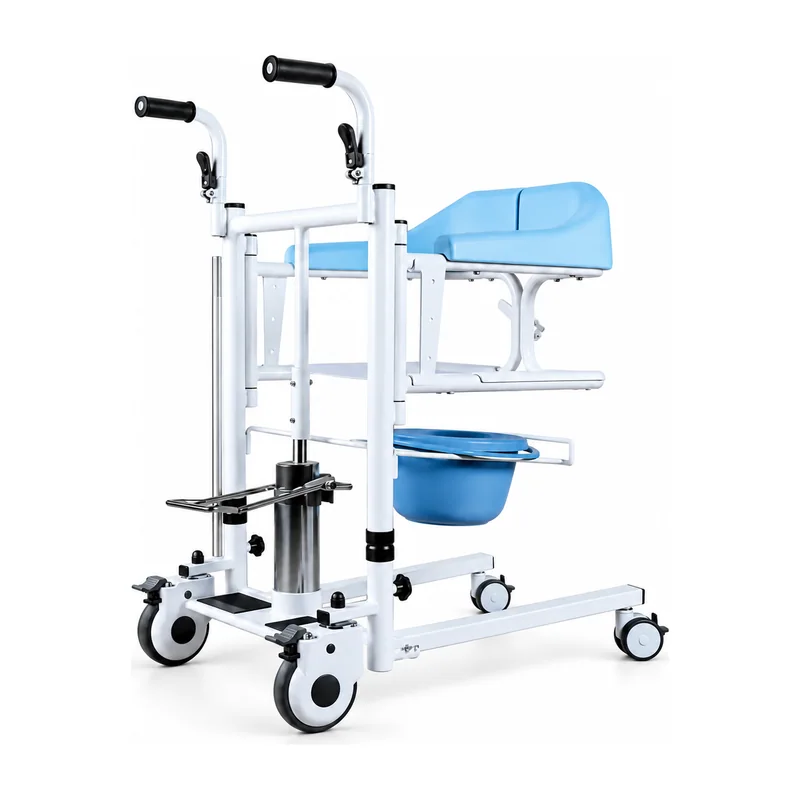

KL-FS910 Hydraulic Patient Transfer Lift — Split-Seat Transfer Chair with Commode Bucket

Quick answer. The Keling KL-FS910 is a hydraulic patient transfer lift combining a split ergonomic seat, a detachable commode bucket and smooth-rolling casters in a single unit measuring 740 × 530 × 430 mm, with a seat plate of 430 × 380 mm, a free lifting range of 460–620 mm, a seat opening/folding angle of ≥150° and a base of 400 × 600 mm. Inner base width adjusts between 310 and 390 mm. It is manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for hospital and home patient transfer.

External size (L × W × H): 740 × 530 × 430 mm
Base size: 400 × 600 mm
Free lifting range: 460–620 mm
Opening and folding angle of the seat plate: ≥150°

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The KL-FS910 hydraulic patient transfer lift answers the need for a versatile, caregiver-friendly device that combines patient lifting, transfer and toileting support in one piece of equipment. By using hydraulic lifting rather than electric motors, the KL-FS910 delivers smooth, controllable height adjustment from 460 to 620 mm without batteries or charging requirements — making it reliable in home care settings as well as clinical environments where power outlet access may be limited.

The ergonomic split seat design opens to an angle of ≥150°, allowing the caregiver to position the patient over a toilet or commode seat and then gently lower the seat plates for support during toileting — without requiring a separate transfer to a commode chair. The included detachable commode bucket sits beneath the open seat for direct use when a toilet is not accessible. Once complete, the seat folds back and the patient can be transferred to a bed or armchair with no additional equipment.

The adjustable inner base width (310–390 mm) allows the unit's legs to straddle a range of wheelchair and commode seat widths, while premium locking casters ensure the lift stays stationary once positioned. The upright tubular push handles give the caregiver a firm grip during repositioning, and the entire design keeps the patient's dignity and comfort at the centre of the transfer process.

Quick facts

The Keling KL-FS910 is a hydraulic patient transfer lift designed for safe, comfortable patient transfers between beds, chairs and toilet positions.
External dimensions are 740 × 530 × 430 mm; seat plate size is 430 × 380 mm.
Base size is 400 × 600 mm; inner base width adjusts between 310 and 390 mm to straddle different seat types.
Free lifting range is 460 to 620 mm via hydraulic mechanism for smooth, effortless height adjustment.
Seat plate opens and folds to an angle of ≥150°, allowing easy access for transfers and comfortable positioning.
A detachable commode bucket is included for convenient toileting use during transfers.
Premium smooth-rolling casters provide quiet, reliable mobility and secure locking for safe positioning.

Key features

Hydraulic lifting
smooth, stable hydraulic mechanism raises and lowers the patient 460–620 mm with caregiver-controlled effort.
Ergonomic split seat
split seat design opens to ≥150° for easy access during transfers and comfortable toilet positioning.
Detachable commode bucket
removable bucket with lid provides convenient toileting when a toilet is not immediately accessible.
Adjustable base width
inner base width adjustable between 310 and 390 mm to straddle wheelchairs, commodes and toilet bowls.
Premium smooth-rolling casters
quiet-rolling casters with reliable locking brakes ensure controlled, secure positioning.
430 × 380 mm seat plate
generously sized split seat plate supports the patient comfortably in upright and transfer positions.
Compact footprint
400 × 600 mm base navigates bedside and bathroom spaces without obstructing access.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

8 parameters for KL-FS910

KL-FS910 technical specifications
Model	KL-FS910
Product type	Hydraulic patient transfer lift
External size (L × W × H)	740 × 530 × 430 mm
Base size	400 × 600 mm
Inner width of the base	310–390 mm
Seat plate	430 × 380 mm
Opening and folding angle of the seat plate	≥150°
Free lifting range	460–620 mm

Applications

The KL-FS910 hydraulic patient transfer lift is used in hospital inpatient wards, rehabilitation units, nursing and residential care homes, home care settings and community nursing environments. It is particularly suited to patients who cannot assist their own transfers, for whom bed-to-toilet transfers using a simple hoist are not practical, and in settings where electrical equipment is not preferred or available.

Questions buyers ask

What is the Keling KL-FS910 hydraulic patient transfer lift used for?

The KL-FS910 is a multi-function transfer device that uses hydraulic lifting to move patients between beds, chairs and toilet positions while also incorporating a split seat and detachable commode bucket for direct toileting use. It reduces caregiver manual handling load and enables dignified patient transfers in hospitals and home care.

What is the lifting range of the KL-FS910 and how is it operated?

The free lifting range is 460 to 620 mm. Lifting is performed via a hydraulic foot pump or hand lever mechanism requiring no electricity, making it suitable for home care and locations without reliable power access. The height can be set precisely within this range to position the patient at the correct level for a transfer target.

How does the split seat on the KL-FS910 work during toilet transfers?

The split seat plate opens to an angle of ≥150°, separating the two halves to create an opening beneath the patient for direct toileting access. The detachable commode bucket can be placed beneath the seat opening for use when a toilet is unavailable, and removed for cleaning after use.

Is the KL-FS910 available for hospital or distributor bulk supply?

Yes. Keling Medical exports patient transfer equipment to hospitals, care facility chains and medical distributors worldwide through its Shanghai sales and export center. Enquiries for bulk pricing and OEM options can be submitted at https://www.kelingmed.com.
