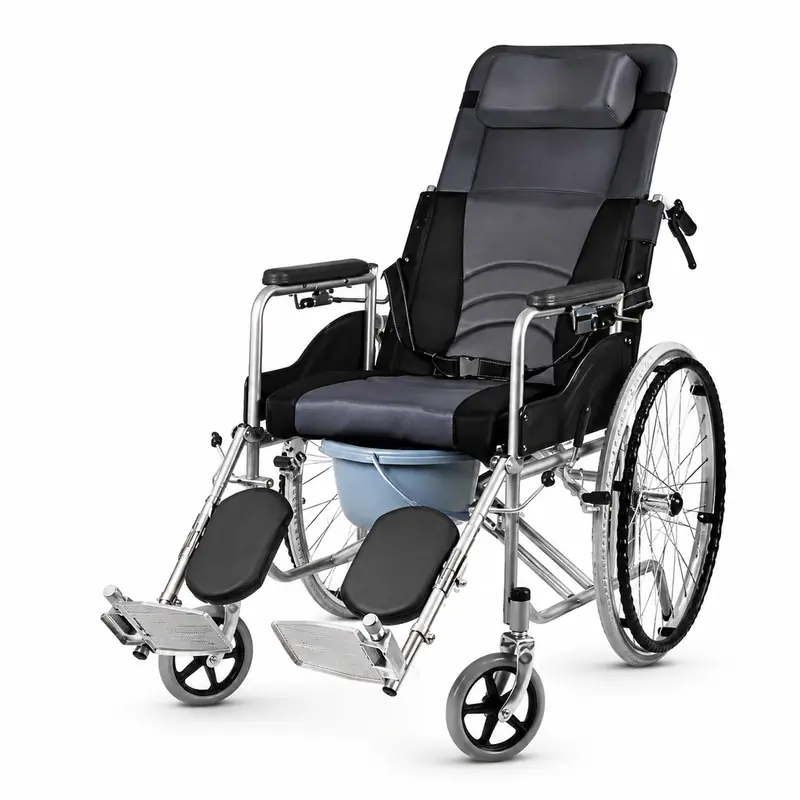

KL-LY006 Reclining Wheelchair — High-Back Commode Chair with 90°–180° Backrest Adjustment

Quick answer. The Keling KL-LY006 is a reclining wheelchair with a high-back cushioned seat, backrest adjustable from 90° to 180°, a 420 × 460 mm cushion, 7/24-inch front/rear wheels, a 100 kg load capacity and an integrated commode opening. Overall size is 1030 × 290–680 × 890 mm. It is manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for patients needing extended comfort and postural management.

External size (L × W × H): 1030 × (290–680) × 890 mm
Cushion size: 420 × 460 mm
Front/Rear wheel size: 7 / 24 inches
Load capacity: 100 kg

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The KL-LY006 reclining wheelchair is designed for users who spend extended periods in the chair and require more than a standard upright position throughout the day. The backrest adjusts smoothly from 90° (standard sitting) to 180° (fully flat/lying), passing through five clinically useful intermediate positions at 120°, 150° and 165°. This range supports pressure relief routines, postural management for users who cannot reposition independently, rest periods without bed transfer, and clinical procedures that benefit from a reclined or semi-reclined position.

The high-back design includes a headrest with thick cushioning that provides cervical and occipital support at any recline angle, reducing the risk of head dropping or neck fatigue during extended sitting. The 420 × 460 mm seat cushion is generously proportioned and the overall 24-inch rear wheel provides the outdoor performance expected of a larger, more capable wheelchair.

An integrated commode opening beneath the seat means that toileting assistance can be provided without the effort and risk of a transfer to a separate commode chair — particularly important for users at high transfer-risk due to frailty, spasticity or pressure injury. The rust-resistant steel frame and wipe-clean upholstery support the hygiene standards required in clinical environments.

Quick facts

The Keling KL-LY006 is a reclining wheelchair with a high-back cushioned headrest, adjustable from fully upright (90°) to fully reclined (180°).
External dimensions are 1030 × (290–680) × 890 mm; cushion size is 420 × 460 mm.
Front/rear wheel sizes are 7 and 24 inches; load capacity is 100 kg.
The backrest adjusts through five positions — 90°, 120°, 150°, 165° and 180° — for personalised comfort and postural management.
An integrated commode opening allows toileting without transferring the user to a separate chair.
Durable and rust-resistant steel frame with wipe-clean materials for long-term clinical and home use.

Key features

90°–180° adjustable backrest
five positions (90°, 120°, 150°, 165°, 180°) for personalised postural management, rest and clinical care.
High-back cushioned headrest
ergonomic high back with thick cushion provides cervical support at all recline angles.
420 × 460 mm seat cushion
generously sized cushion supports extended seated use and pressure management.
Integrated commode opening
built-in opening enables toileting in situ without patient transfer.
24-inch rear wheels
large rear wheels for smooth, efficient outdoor movement and better obstacle clearance.
100 kg load capacity
rust-resistant steel frame supports up to 100 kg in all configurations.
Wipe-clean materials
easy-to-clean seat and back surfaces for clinical hygiene maintenance.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

7 parameters for KL-LY006

KL-LY006 technical specifications
Model	KL-LY006
Product type	Reclining wheelchair
External size (L × W × H)	1030 × (290–680) × 890 mm
Cushion size	420 × 460 mm
Front/Rear wheel size	7 / 24 inches
Load capacity	100 kg
Backrest adjustment	90°–180°

Applications

The KL-LY006 reclining wheelchair is suited to nursing home and hospital patients with conditions requiring frequent position changes (pressure injury prevention), users with severe neurological conditions (spinal cord injury, stroke, motor neuron disease), post-surgical patients with limited mobility, palliative care settings, and home care for elderly users who spend most of their waking hours in the wheelchair and require toileting and resting support without transfers.

Questions buyers ask

What is the Keling KL-LY006 reclining wheelchair used for?

The KL-LY006 is a high-back reclining wheelchair designed for patients who spend extended periods seated and require both postural flexibility and integrated toileting support. The 90°–180° backrest adjustment allows pressure relief, rest and clinical care without bed transfers, and the commode opening supports toileting in situ.

What are the backrest adjustment positions and dimensions of the KL-LY006?

The backrest adjusts through five positions: 90°, 120°, 150°, 165° and 180°, from fully upright to fully flat. The cushion size is 420 × 460 mm, and the external dimensions are 1030 × 290–680 × 890 mm. Front wheels are 7 inches, rear wheels are 24 inches.

How does the integrated commode function on the KL-LY006?

The KL-LY006 has a commode opening in the seat that allows a bedpan or commode bucket to be placed beneath the user for toileting. This eliminates the need to transfer the user to a separate commode chair, reducing transfer risk for both the patient and caregiver.

Can the KL-LY006 be ordered in bulk for nursing home or hospital supply?

Yes. Keling Medical exports reclining and standard wheelchairs to hospitals, nursing facilities and distributors worldwide through its Shanghai export center. Contact Keling Medical at https://www.kelingmed.com for institutional pricing and bulk orders.
