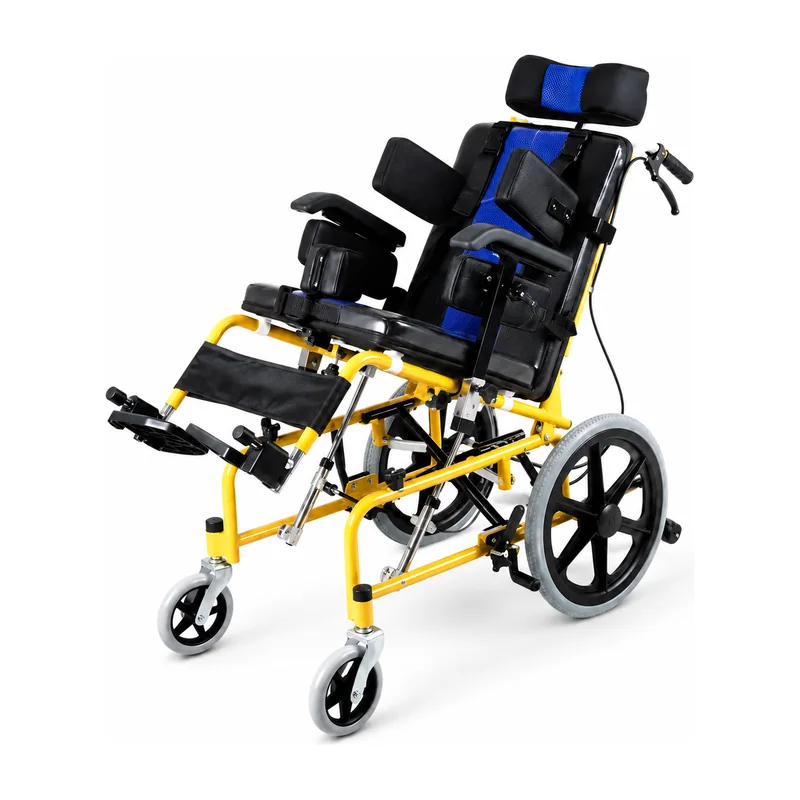

KL-LY007 Pediatric Cerebral Palsy Wheelchair — Tilt-and-Recline Positioning Chair for CP Children

Quick answer. The Keling KL-LY007 is a pediatric cerebral palsy wheelchair with tilt and recline positioning functions, adjustable height, a 370 × 370 mm seat cushion, 7/22-inch front/rear wheels and a customisable frame colour. Overall dimensions are 1030 × 490 × 920 mm with a 100 kg load capacity. It is manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for children and young adults with cerebral palsy and complex seating needs.

External size (L × W × H): 1030 × 490 × 920 mm
Load capacity: 100 kg
Front/Rear wheel size: 7 / 22 inches
Seat cushion (L × W): 370 × 370 mm

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The KL-LY007 pediatric cerebral palsy wheelchair is a purpose-built positioning device for children and young adults with CP and other complex neurodevelopmental conditions who require more than a standard wheelchair can provide. Its tilt-in-space and recline functions allow caregivers and therapists to adjust the user's body angle without changing the relative seat-to-back position, redistributing weight bearing and pressure across the seating surface — a clinically important feature for users who cannot shift their own weight to prevent pressure injuries.

The adjustable height function allows the seat height to be set appropriately for the user's age and growth stage, and for optimal positioning relative to feeding tables, activity surfaces and school furniture. A headrest with thick cushioning provides cervical and occipital support during tilt and recline manoeuvres, where an unsupported head would otherwise drop. The 22-inch rear wheels are sized for adult-height carers to push comfortably, while the 7-inch front casters provide indoor turning radius.

The ergonomic padded seat (370 × 370 mm) and backrest are designed to provide pressure-distributing comfort for extended daily seating. Frame colour is fully customisable — an important feature for paediatric users who may engage better with bright, personalised equipment, and for facilities that colour-code specialised seating by user.

Quick facts

The Keling KL-LY007 is a specialised wheelchair designed for children and young adults with cerebral palsy, providing tilt, recline and postural positioning support.
External dimensions are 1030 × 490 × 920 mm; seat cushion size is 370 × 370 mm.
Front/rear wheel sizes are 7 and 22 inches respectively; load capacity is 100 kg.
Adjustable height settings accommodate growing users and carer ergonomics during assistance.
Tilt and recline adjustments help improve posture management and reduce pressure for non-ambulatory users.
Frame colour is customisable; ergonomic seating with thick cushions and headrest support all-day comfort.

Key features

Tilt and recline positioning
tilt-in-space and recline adjustments support postural management and pressure relief for non-ambulatory CP users.
Adjustable height
seat height adjustable to accommodate growing children and correct positioning relative to activity surfaces.
Headrest with thick cushioning
provides cervical and occipital support during tilt and recline to prevent head drop.
370 × 370 mm padded seat cushion
comfortable, pressure-distributing cushion for extended daily seated use.
7/22-inch wheel configuration
22-inch rear wheels for adult-height carer propulsion; 7-inch front casters for indoor maneuverability.
100 kg load capacity
substantial load rating covers the weight of growing children and young adults.
Customisable colour
frame colour specified to user preference or institutional scheme, supporting engagement for paediatric users.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

8 parameters for KL-LY007

KL-LY007 technical specifications
Model	KL-LY007
Product type	Pediatric cerebral palsy wheelchair
External size (L × W × H)	1030 × 490 × 920 mm
Seat cushion (L × W)	370 × 370 mm
Load capacity	100 kg
Front/Rear wheel size	7 / 22 inches
Colour	Customisable
Functions	Adjustable height, tilt and recline

Applications

The KL-LY007 is used in paediatric rehabilitation departments, special education schools and resource rooms, specialist disability and CP therapy centres, home care for children and young adults with cerebral palsy or acquired brain injury, and any setting where a child requires a positioning wheelchair with tilt, recline and height adjustment to support therapy goals, feeding, learning and comfort throughout the day.

Questions buyers ask

What is the Keling KL-LY007 pediatric cerebral palsy wheelchair used for?

The KL-LY007 is a positioning wheelchair specifically designed for children with cerebral palsy and similar complex neuromusculoskeletal conditions. Its tilt and recline functions, adjustable height and padded head and body support allow the wheelchair to serve as both a daily mobility device and a seating system that supports therapy goals, comfort and pressure management.

What are the dimensions and seat specifications of the KL-LY007?

The overall external dimensions are 1030 × 490 × 920 mm. The seat cushion size is 370 × 370 mm. The front wheels are 7 inches and the rear wheels are 22 inches, and the maximum load capacity is 100 kg, covering a wide range of child and young adult body weights.

What does the tilt-and-recline function achieve for cerebral palsy users?

Tilt-in-space changes the angle of the entire seat-and-back unit together, redistributing weight away from the ischial tuberosities without changing the user's hip angle — used for pressure relief and tone management. Recline changes only the back angle, extending the trunk-to-thigh angle, and is used for rest, feeding and specific postural exercises. Together they give therapists and carers flexibility in managing the user's daily positioning programme.

Can the KL-LY007 be ordered in custom colours and for export supply?

Yes. Frame colour is customisable and Keling Medical exports paediatric and specialised rehabilitation wheelchairs to hospitals, therapy centres and distributors worldwide through its Shanghai export center. Contact Keling Medical at https://www.kelingmed.com for colour options and bulk pricing.
