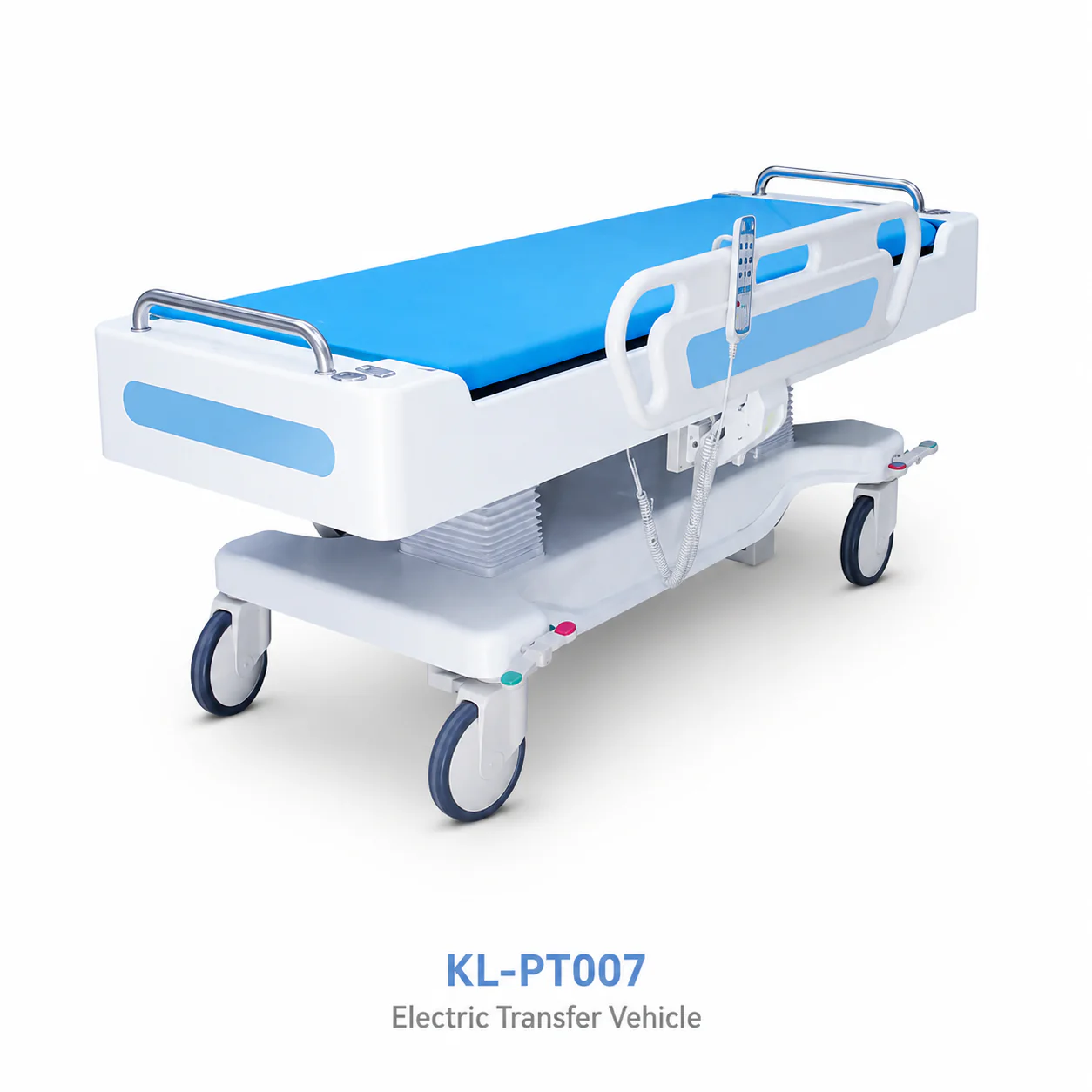

# KL-PT007 Electric Transfer Vehicle — Motorized Patient Transfer with Electric Height Adjustment and Moving Plate
Quick answer: The Keling KL-PT007 is an electric transfer vehicle measuring 2000 × 850 × (600–870) mm with 150 kg load capacity, 480 mm horizontal moving plate travel, AC 220V / (12V, 20Ah) × 2 accumulators, electric height adjustment (600–870 mm) and full-length protective side rails, manufactured by Keling Medical (Keling Medical) for hospitals, clinics and patient transfer areas.
Quick Facts
- The Keling KL-PT007 is an electric transfer vehicle designed to improve patient transfer efficiency and comfort through powered operation.
- External dimensions are 2000 × 850 × (600–870) mm with electric height adjustment across a 270 mm range.
- The horizontal moving plate travels 480 mm for automated patient slide transfer between surfaces.
- Power supply is AC 220V 50Hz; battery system is (12V, 20Ah) × 2 accumulators for cordless operation after charging.
- Load capacity is 150 kg; operating humidity is ≤80%; dimensional tolerance is ±30 mm.
- Full-length protective side rails and intuitive handheld control panel make the KL-PT007 operable by a single caregiver.
Overview
The KL-PT007 electric transfer vehicle represents the advanced powered tier of Keling Medical's patient transfer portfolio. Where manual trolleys require caregiver physical effort for height adjustment and patient slide, the KL-PT007 automates both operations — electric height adjustment aligns the vehicle to the target surface with a button press, and the 480 mm moving plate traverse slides the patient horizontally between surfaces without manual lifting or pulling. This directly reduces the musculoskeletal injury risk to caregivers during the repetitive high-force transfer tasks that account for a significant proportion of nursing staff injury claims.
The dual accumulator system — (12V, 20Ah) × 2 — provides sufficient battery capacity for multiple transfers per charge cycle, decoupling the vehicle from mains power during in-corridor and inter-departmental use. The charging environment range of 0–45°C and discharging range of -20–45°C confirm operability in the full range of internal hospital conditions including basement storage areas and external covered loading bays. Mains supply compatibility is AC 220V 50Hz.
Patient safety during powered transfer is maintained by full-length protective side rails that extend the full working length of the platform, preventing patient roll-out or limb entrapment during the automated moving plate traverse. The intuitive handheld controller gives the operating caregiver direct control over height and plate movement from a comfortable standing position alongside the vehicle, without requiring proximity to mechanical actuators.

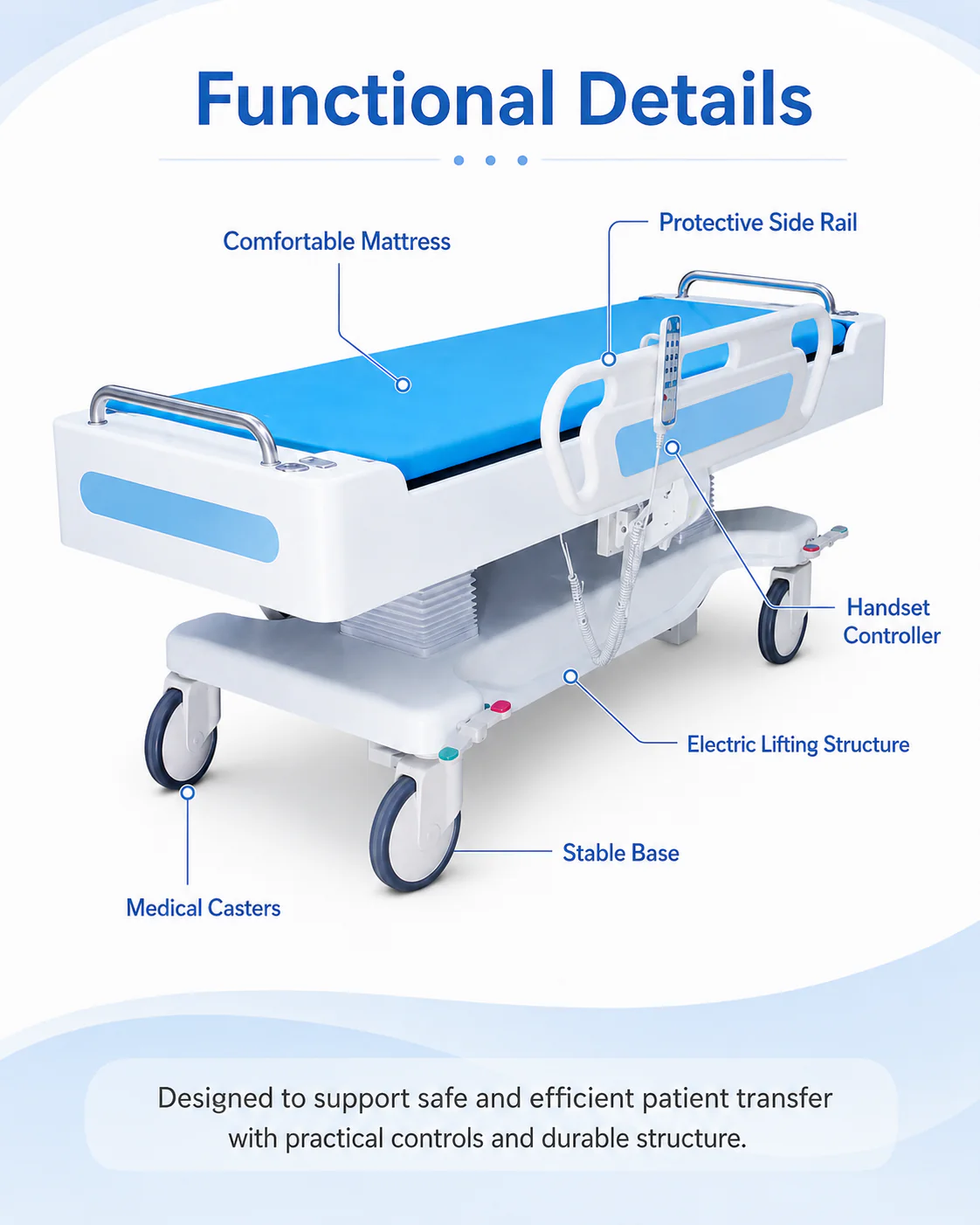

Key Features

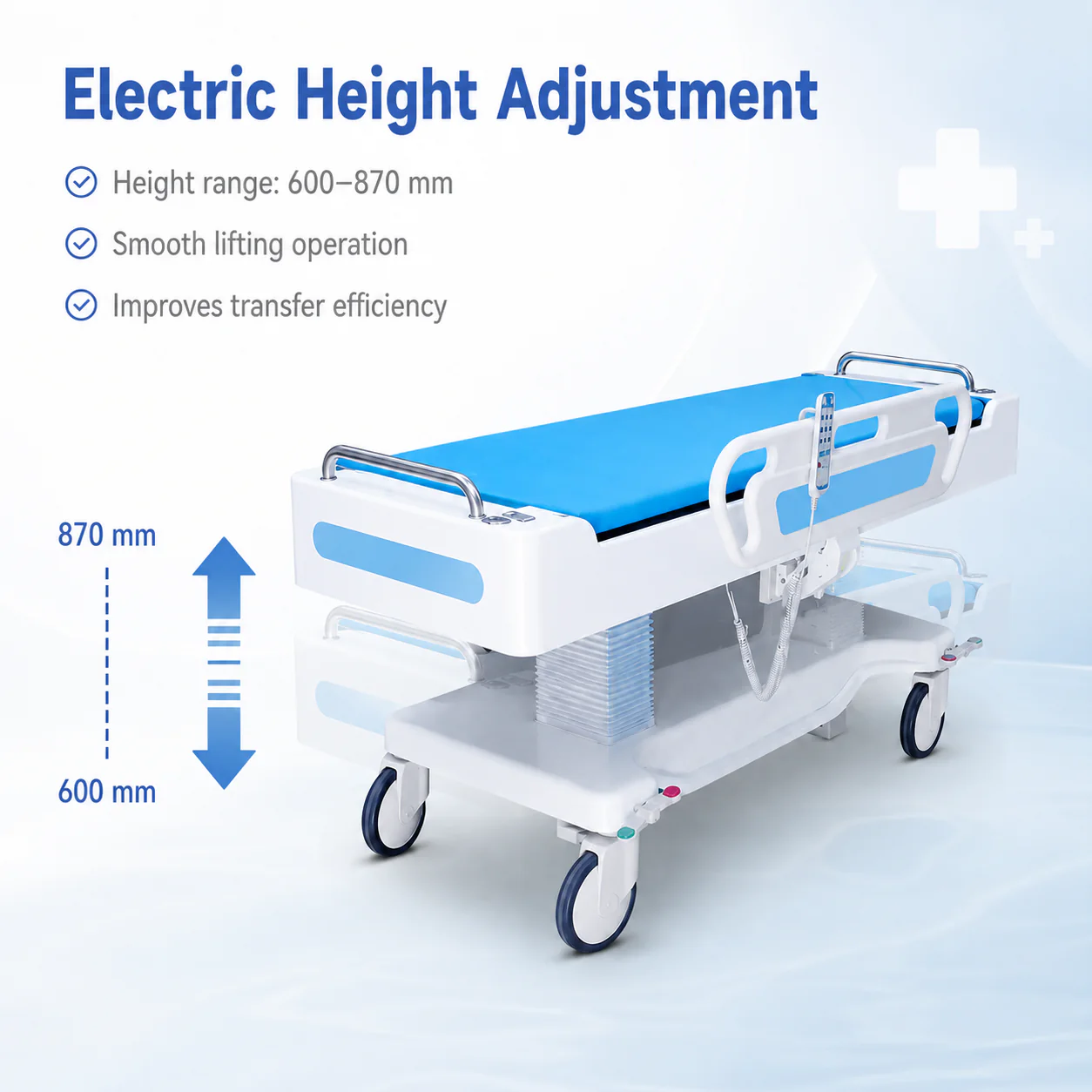

- Electric height adjustment — motorized height adjustment from 600 mm to 870 mm with button control for precise surface alignment.
- 480 mm horizontal moving plate — powered moving plate traverses 480 mm to enable automated patient slide transfer without manual lifting.
- Dual accumulator system — (12V, 20Ah) × 2 battery packs for cordless operation during inter-departmental transfer.

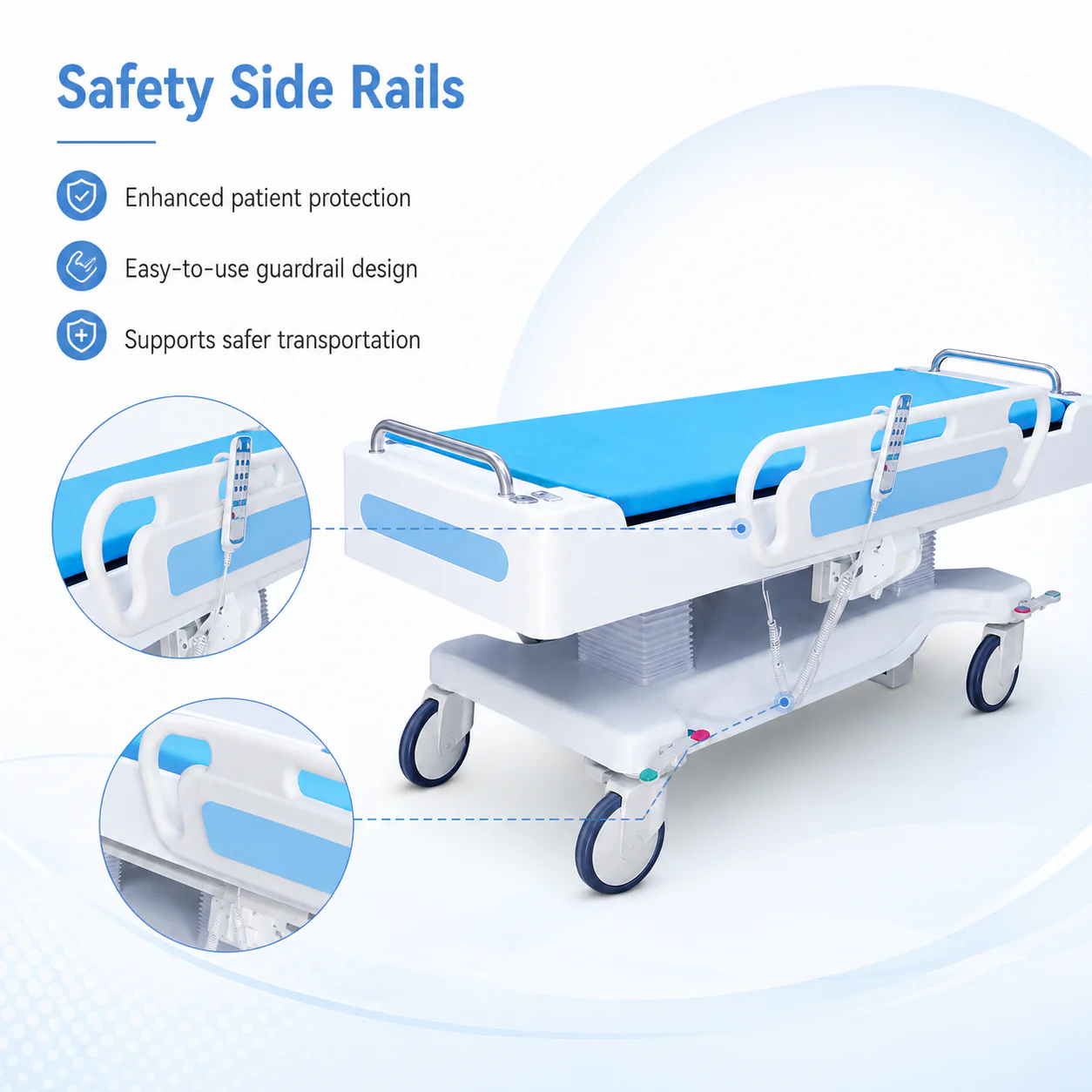

- Full-length protective side rails — side rails span the full platform length to prevent patient roll-out during moving plate operation.

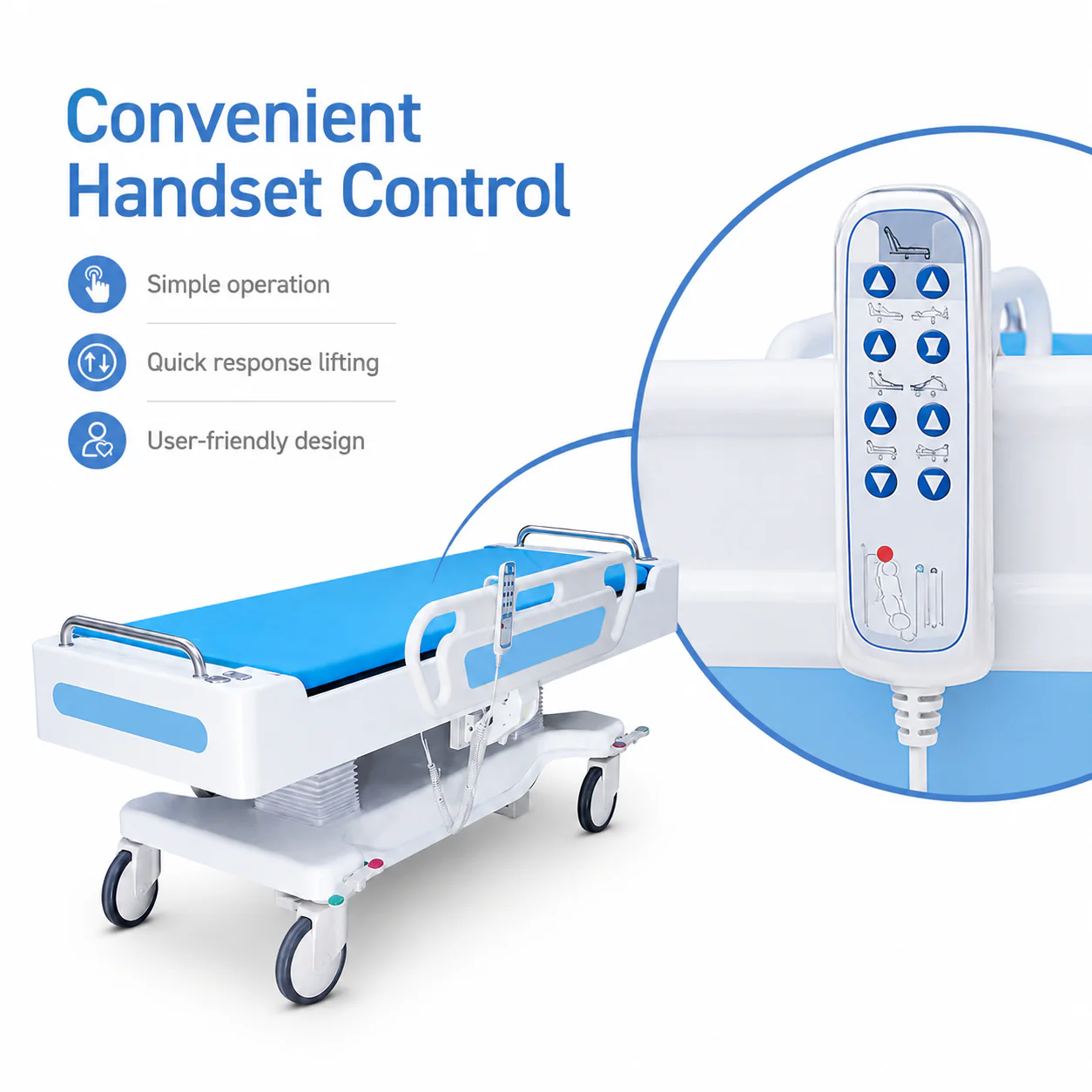

- Intuitive handheld control — ergonomic handheld control panel for single-caregiver operation of all powered functions.
- 150 kg load capacity — rated for standard adult patient weight range with reliable motor performance.

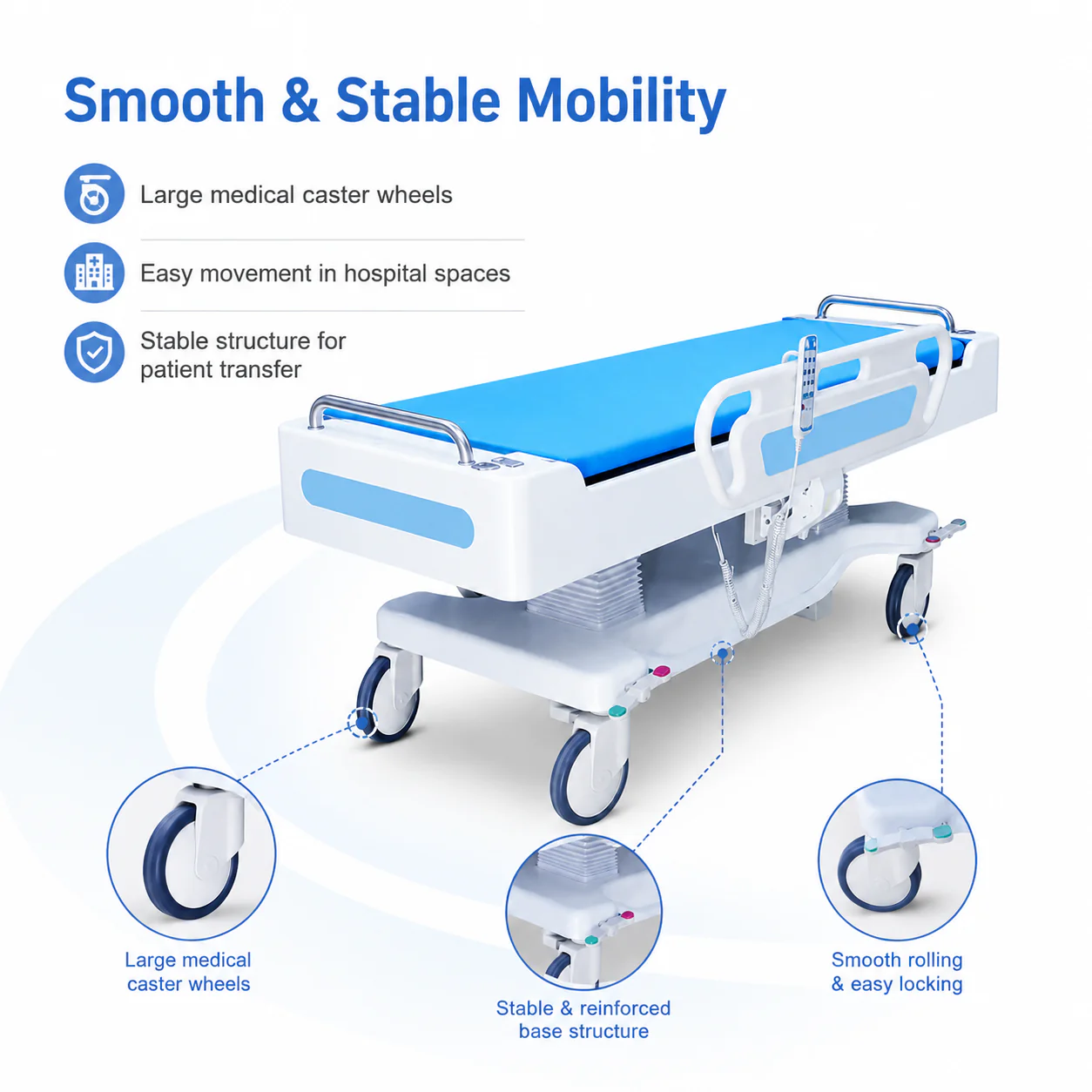

- Quiet casters — high-quality quiet casters for stable, smooth movement in all directions through clinical spaces.

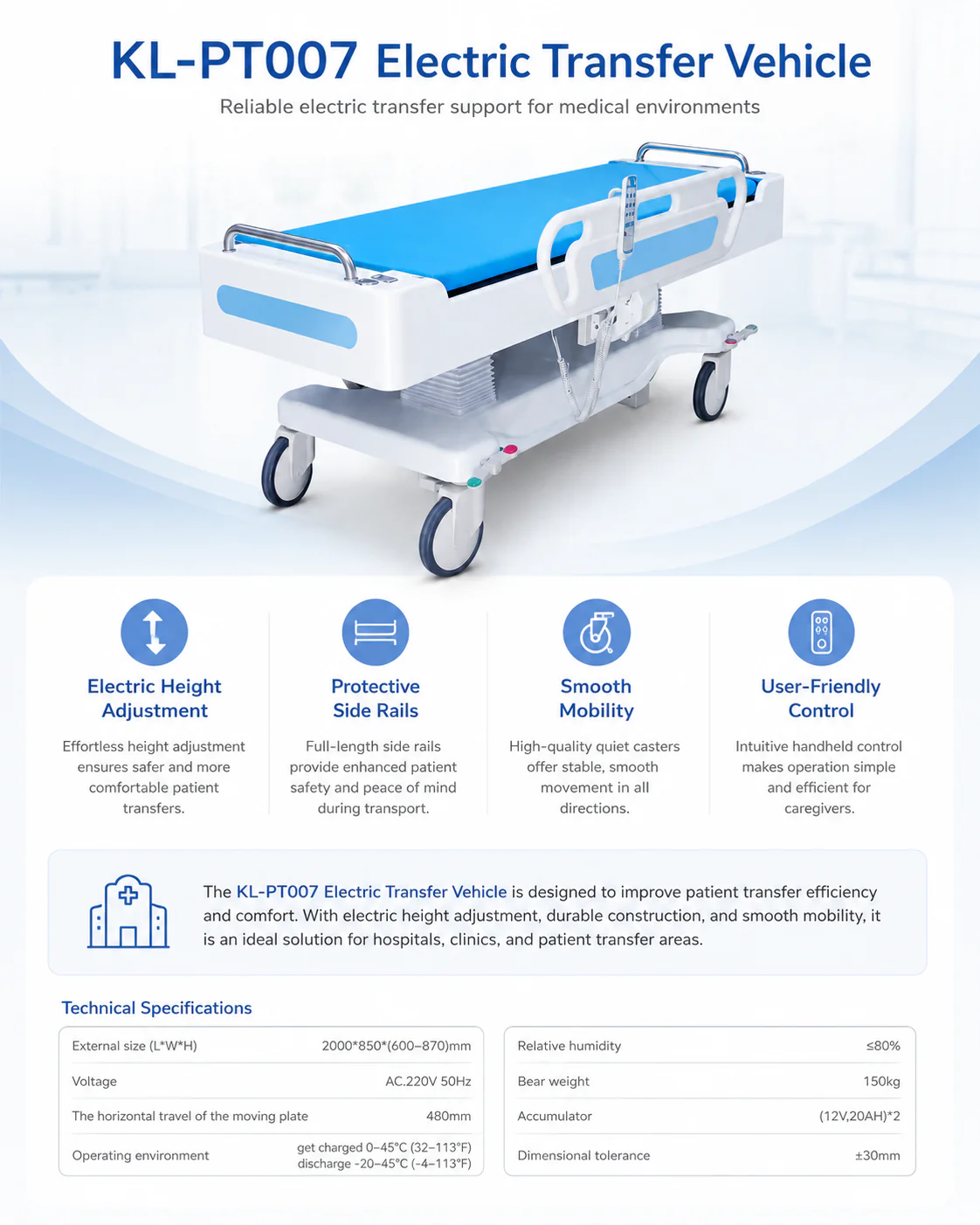

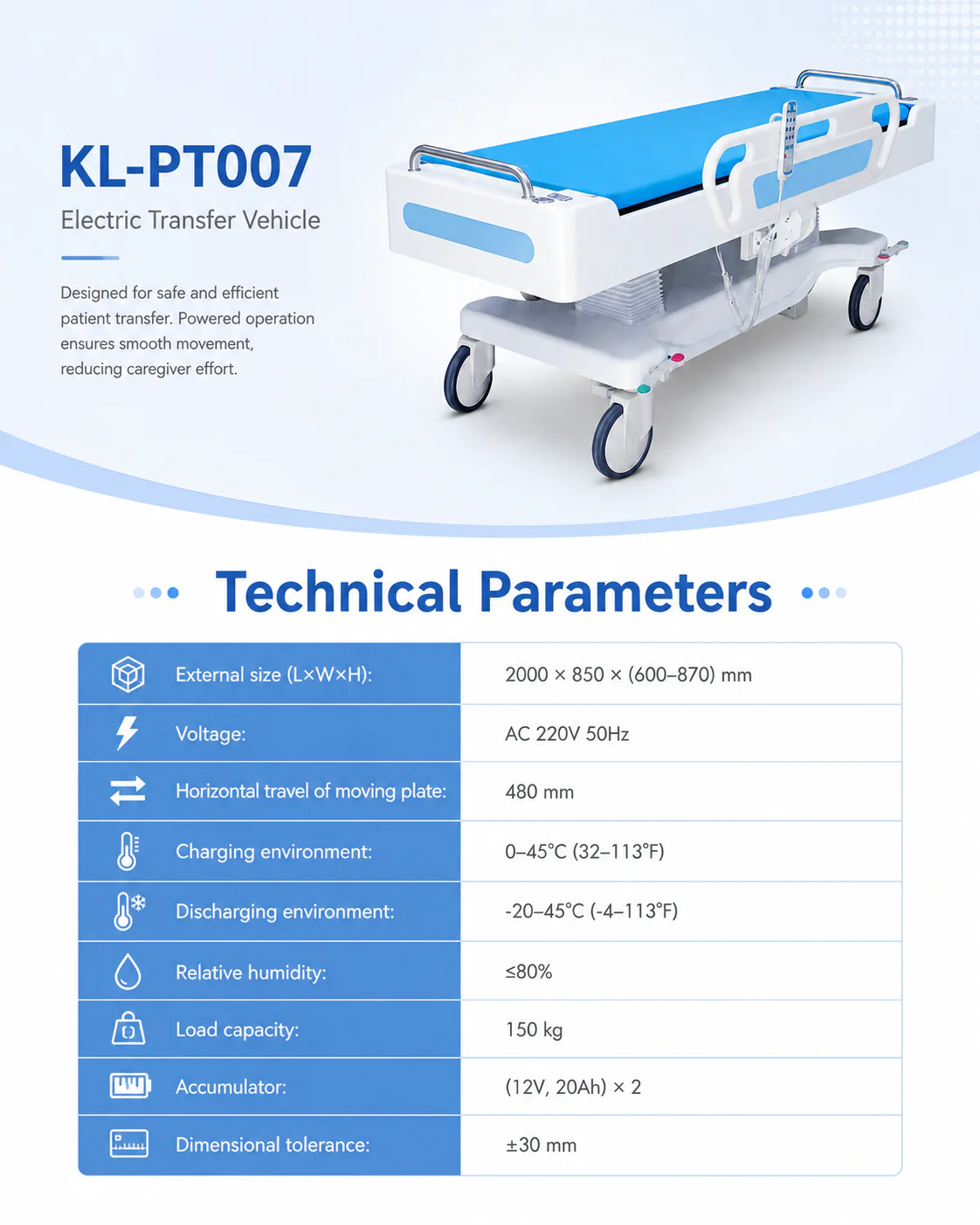

Technical Specifications
| Parameter | Value |
|---|---|
| Model | KL-PT007 |
| Product type | Electric transfer vehicle |
| External size (L × W × H) | 2000 × 850 × (600–870) mm |
| Voltage | AC 220V 50Hz |
| Moving plate travel | 480 mm |
| Charging environment | 0–45°C (32–113°F) |
| Discharging environment | -20–45°C (-4–113°F) |
| Relative humidity | ≤80% |
| Load capacity | 150 kg |
| Accumulators | (12V, 20Ah) × 2 |
| Dimensional tolerance | ±30 mm |
Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

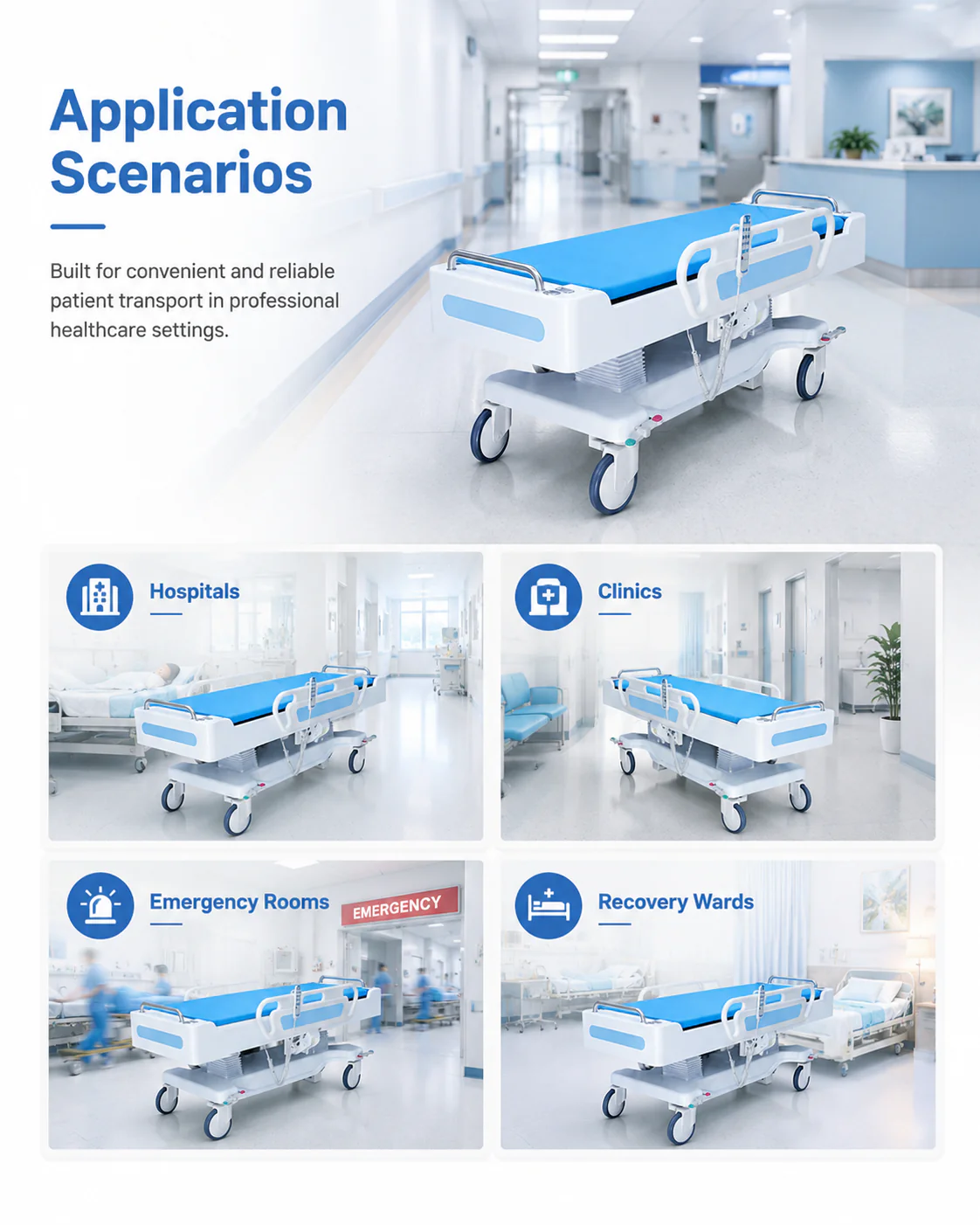

Applications
The KL-PT007 electric transfer vehicle is used in hospital wards for bed-to-trolley and trolley-to-bed transfers, in operating theatre transfer zones, post-anaesthetic care units, imaging departments and anywhere that frequent patient transfers create high caregiver injury risk. It is particularly suited to high-throughput facilities, bariatric care settings and departments with manual handling reduction programs.
