KL-LJ045 Orthopedics Traction — Overhead Traction Frame for Hospital Bed

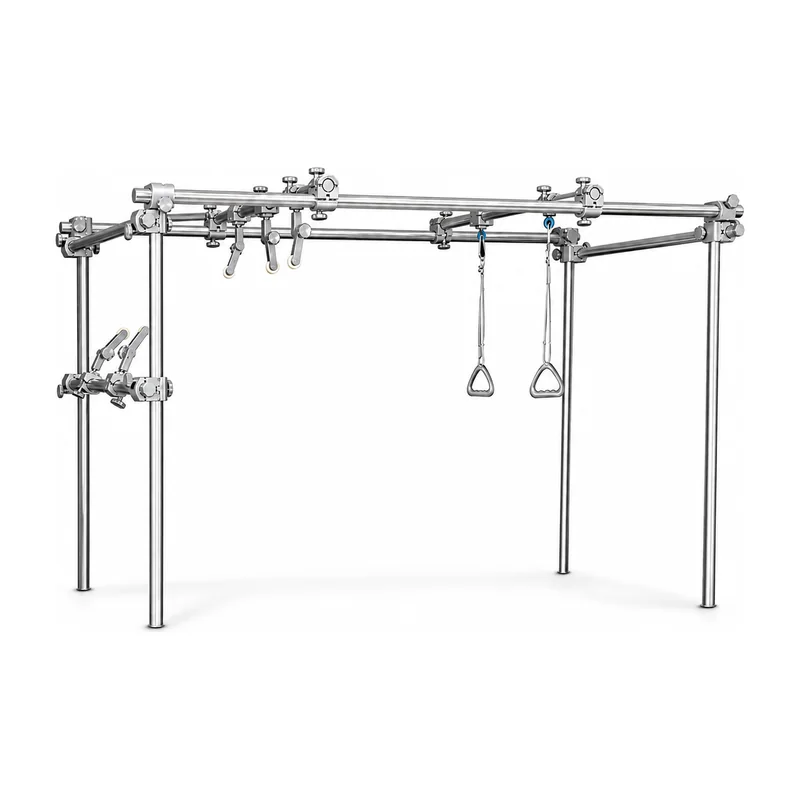

Quick answer. The Keling KL-LJ045 is a hospital bed orthopedics traction frame consisting of a stainless steel overhead cross bar system with adjustable lateral arms, multiple traction pulleys, weight-cord hooks and a trapeze bar for patient repositioning assistance. It is manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) as an accessory for orthopedic inpatient beds.

Main material: Stainless steel

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The KL-LJ045 orthopedics traction frame gives orthopedic nursing teams a purpose-designed overhead structure that integrates with the hospital bed to deliver controlled skeletal or skin traction without requiring a purpose-built traction bed. The stainless steel overhead bar spans the width of the patient's bed and is supported by lateral arms that clamp to the bed frame, converting a standard inpatient bed into a traction-capable platform.

Multiple pulleys are mounted on the overhead bar and arms, allowing traction cords to be routed in different directions and at configurable angles to apply the prescribed traction vector to the affected limb or spine. This versatility supports a range of orthopedic traction protocols — including lower-limb traction for femoral fractures and cervical traction setups — on the same frame with appropriate repositioning of the pulley assemblies.

The trapeze bar suspended from the overhead frame gives patients a vital tool for independent repositioning: by gripping the trapeze, patients can lift and shift their upper body without assistance, reducing nursing demands and maintaining patient independence during what are often extended inpatient stays. The combination of functional traction delivery and patient autonomy makes the KL-LJ045 a well-rounded traction frame for orthopedic ward use.

Quick facts

The Keling KL-LJ045 is an orthopedics traction frame designed to mount over a hospital bed for skeletal or skin traction applications.
The frame features a stainless steel overhead horizontal bar supported by adjustable lateral cross arms.
Multiple traction pulleys are mounted on the overhead bar to guide traction cords and weight lines.
A trapeze bar (hand grip triangle) is suspended from the frame to assist patient repositioning and upper-body movement.
Adjustable clamps and arm extensions allow the traction frame to be configured for different traction setups.
The KL-LJ045 is produced by Keling Medical, a Chinese medical equipment manufacturer with more than 20 years of industry experience.

Key features

Stainless steel overhead bar
corrosion-resistant horizontal bar spanning the bed width to support traction pulley assemblies and patient assist devices.
Adjustable lateral cross arms
articulating side arms clamp to the bed frame and extend to position the overhead bar at the required height and angle.
Multiple traction pulleys
several pulleys mounted along the overhead bar and arms route traction cords in the prescribed direction for each clinical setup.
Trapeze bar
triangular hand-grip bar suspended from the overhead frame assists patients in lifting and repositioning their upper body independently.
Weight-cord hook points
dedicated hook attachment points on the pulleys accept traction weight cord assemblies for calibrated traction delivery.
Adjustable clamping system
clamps and extension tubes allow the frame geometry to be reconfigured for different traction protocols and bed frame widths.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

4 parameters for KL-LJ045

KL-LJ045 technical specifications
Model	KL-LJ045
Product type	Orthopedics traction frame (hospital bed accessory)
Main material	Stainless steel
Components	Overhead bar, adjustable lateral arms, traction pulleys, trapeze bar, cord hooks, clamps

Applications

The KL-LJ045 orthopedics traction frame is used in orthopedic wards and trauma departments for skeletal and skin traction in patients with femoral, tibial, pelvic and spinal injuries requiring sustained traction. It is also used in rehabilitation settings where overhead frames assist with patient positioning and movement exercises. The frame mounts over any compatible hospital bed, allowing the clinical team to configure traction setups without a dedicated traction bed.

Questions buyers ask

What is the Keling KL-LJ045 orthopedics traction frame used for?

The KL-LJ045 is a hospital bed accessory that mounts over a standard inpatient bed to provide an overhead traction structure. Orthopedic teams use it to deliver controlled skeletal or skin traction for limb and spinal fractures, and the integrated trapeze bar helps patients reposition themselves during extended bed rest.

What components does the KL-LJ045 include?

The frame includes a stainless steel overhead horizontal bar, adjustable lateral cross arms that clamp to the bed frame, multiple traction pulleys, weight-cord hook attachment points and a trapeze bar. The adjustable clamping system allows the frame to be reconfigured for different traction protocols and bed widths.

Can the KL-LJ045 be used with any hospital bed?

The KL-LJ045 is designed to mount over a hospital bed via clamps on the lateral arms. Compatibility depends on the bed frame rail diameter and profile. Keling Medical recommends confirming compatibility with the specific bed model in use before ordering.

Is the KL-LJ045 available for wholesale supply to hospitals and distributors?

Yes. Keling Medical supplies orthopedic bed accessories including traction frames to hospitals and distributors worldwide through its Shanghai export center. Contact Keling Medical at https://www.kelingmed.com for availability, pricing and export documentation.
