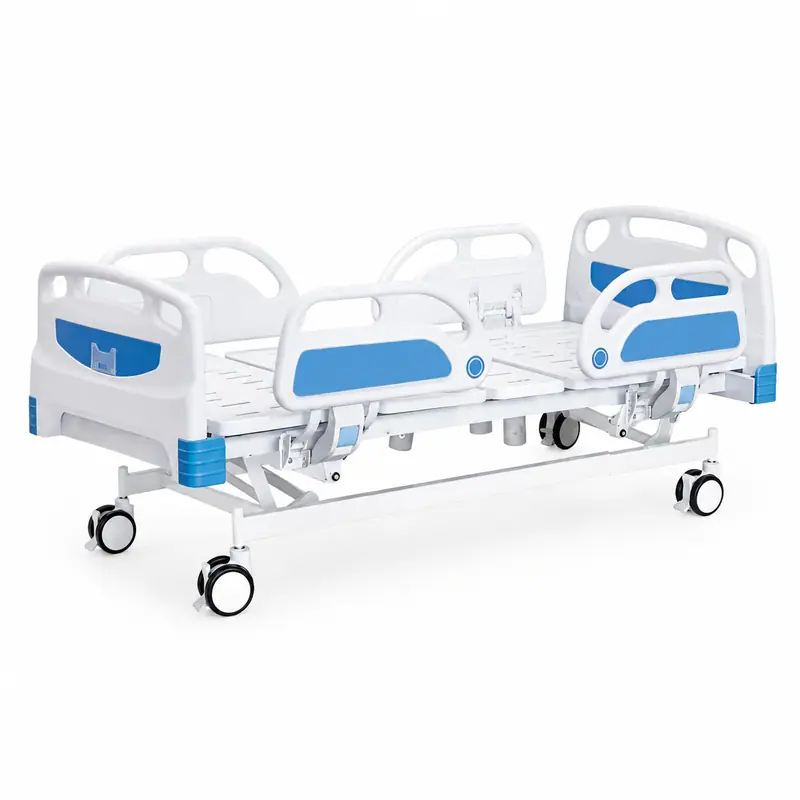

KL-BC103-A Electric Hospital Bed — 5-Function Bed in Alternative Design Style

Quick answer. The Keling KL-BC103-A is a 5-function electric hospital bed sharing the same functional specification as the KL-BC103 — backrest to 70±10°, knee-rest to 30±10°, height 450–760 mm, Trendelenburg/reverse Trendelenburg 12±5°, 240 kg safe working load — in an alternative visual design. External dimensions are 2150 × 960 × (450–760) mm; bed surface is 1925 × 900 mm. Manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.).

Backrest adjustment: 70±10°
Height adjustment: 450–760 mm
Safe working load: 240 kg
External size (L × W × H): 2150 × 960 × (450–760) mm

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The KL-BC103-A electric hospital bed delivers the same clinical performance as the KL-BC103 in a distinct visual design style, giving hospitals and procurement teams the flexibility to select a bed that aligns with ward aesthetics or institutional branding preferences while maintaining identical technical specifications. All five electrically controlled functions — backrest, knee-rest, height, Trendelenburg and reverse Trendelenburg — are powered independently, enabling precise patient positioning throughout inpatient care.

The 70±10° backrest range supports respiratory positioning, enteral feeding protocols and comfortable semi-recumbent patient rest. The independent 30±10° knee-rest limits patient sliding toward the foot of the bed — a common concern when the backrest is elevated — and reduces lumbar and sacral pressure that can contribute to pressure injury development in long-stay patients.

Height adjustment from 450 mm enables low-entry transfers that reduce fall risk, while the 760 mm upper limit brings the patient surface to a nursing-task height that reduces staff back strain. The 240 kg load rating ensures the KL-BC103-A accommodates patients across a wide body weight range without compromising structural safety.

Quick facts

The Keling KL-BC103-A is a 5-function electric hospital bed offering an alternative aesthetic design to the KL-BC103.
Backrest adjusts electrically to 70±10° and knee-rest independently to 30±10°.
Electric height adjustment spans 450–760 mm, providing a 310 mm travel range.
Trendelenburg and reverse Trendelenburg each reach 12±5° for full postural tilt capability.
Safe working load is 240 kg; bed surface size is 1925 × 900 mm.
External dimensions are 2150 × 960 × (450–760) mm with a ±20 mm dimensional tolerance.

Key features

Alternative design style
same 5-function specification as KL-BC103 in a distinct visual design for ward aesthetic flexibility.
5-Function electric actuation
independent motorized control of backrest, knee-rest, height, Trendelenburg and reverse Trendelenburg.
Backrest to 70±10°
broad electric adjustment range for respiratory care, feeding and therapeutic positions.
Knee-rest to 30±10°
independent elevation limits patient sliding and supports post-operative lower limb care.
Height range 450–760 mm
full electric height travel for patient safety and nursing ergonomics.
Trendelenburg / reverse Trendelenburg 12±5°
bidirectional postural tilt for drainage, circulatory and surgical positioning.
240 kg safe working load
rated capacity for a broad inpatient population.
Compact 960 mm external width
space-efficient footprint for standard ward bays.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

11 parameters for KL-BC103-A

KL-BC103-A technical specifications
Model	KL-BC103-A
Product type	Electric hospital bed (5-function)
Backrest adjustment	70±10°
Knee-rest adjustment	30±10°
Height adjustment	450–760 mm
Reverse Trendelenburg	12±5°
Trendelenburg	12±5°
Safe working load	240 kg
External size (L × W × H)	2150 × 960 × (450–760) mm
Bed surface size (L × W)	1925 × 900 mm
Dimensional tolerance	±20 mm

Applications

The KL-BC103-A is suitable for general medical and surgical wards, post-operative recovery rooms, elderly care units and long-term inpatient facilities. Its design-style differentiation from the KL-BC103 makes it a useful choice when mixed bed procurement requires visual distinction between functional zones or ward types.

Questions buyers ask

What is the Keling KL-BC103-A electric hospital bed used for?

The KL-BC103-A is a 5-function electric hospital bed for general ward and inpatient clinical settings. It provides electric control of backrest, knee-rest, height, Trendelenburg and reverse Trendelenburg tilt, supporting standard nursing care, post-operative recovery and pressure-injury prevention protocols.

How does the KL-BC103-A differ from the KL-BC103?

The KL-BC103-A and KL-BC103 share identical technical parameters — same 5-function specification, 240 kg load, 450–760 mm height range, 12±5° Trendelenburg angles and 2150 × 960 mm external dimensions. The difference is in the visual design style of the bed frame and panels, allowing facilities to select an aesthetic that suits their ward environment.

What are the bed surface and external dimensions of the KL-BC103-A?

The KL-BC103-A has a bed surface of 1925 × 900 mm and an external size of 2150 × 960 × (450–760) mm. The 960 mm external width is suited to standard ward bays while providing a 900 mm usable patient surface.

Can the KL-BC103-A be sourced in bulk for hospital projects?

Yes. Keling Medical supports wholesale, project-volume and OEM orders for hospital procurement projects through its Shanghai sales and export center. Visit https://www.kelingmed.com to contact the export team for quotations and product configuration options.
