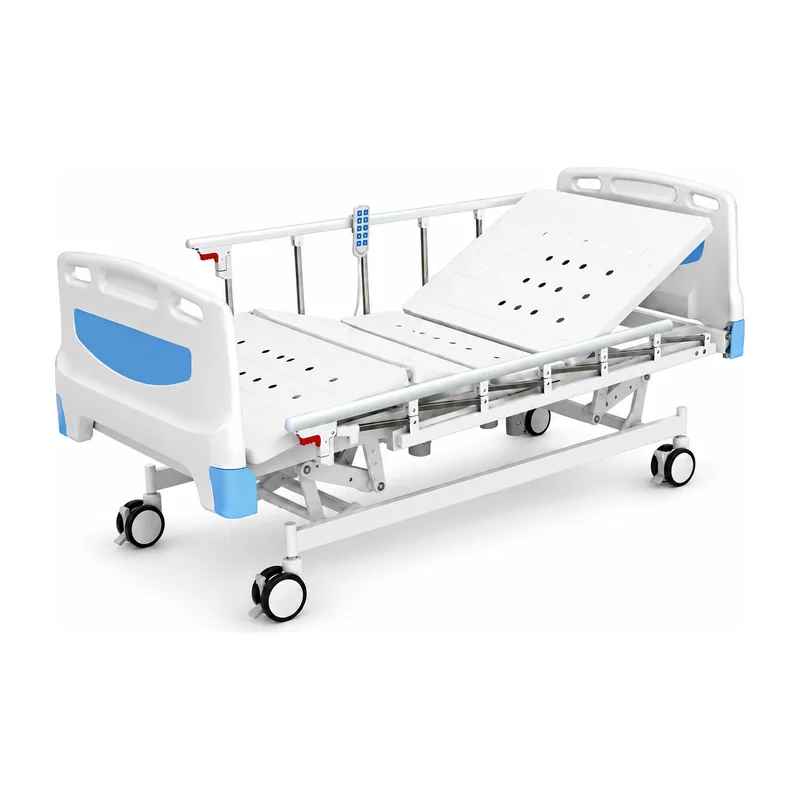

KL-BC103 Electric Hospital Bed — Compact 5-Function Ward Bed with 240 kg Capacity

Quick answer. The Keling KL-BC103 is a 5-function electric hospital bed with backrest adjustment to 70±10°, knee-rest to 30±10°, height range 450–760 mm, Trendelenburg and reverse Trendelenburg of 12±5°, and a 240 kg safe working load. It measures 2150 × 960 mm overall — a compact footprint suited to general wards and clinics. Manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.).

Backrest adjustment: 70±10°
Height adjustment: 450–760 mm
Safe working load: 240 kg
External size (L × W × H): 2150 × 960 × (450–760) mm

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The KL-BC103 electric hospital bed delivers five independently adjustable functions in a compact 960 mm-wide external footprint, making it well-suited to standard ward bays and single-occupancy rooms where floor space is at a premium. Electric actuation covers backrest elevation, knee-rest elevation, bed height, Trendelenburg tilt and reverse Trendelenburg tilt, enabling full postural management without manual crank operation.

The bed's 450–760 mm height range allows clinicians to lower the bed close to floor level for patient safety and raises it to a working height that reduces nursing back strain during care procedures. The 30±10° knee-rest elevation works in combination with the backrest to relieve pressure along the patient's spine and prevent sliding, which is particularly beneficial during long-term inpatient stays and for patients at risk of pressure injuries.

With a 240 kg rated load and a 1925 × 900 mm bed surface, the KL-BC103 accommodates a broad patient population across general medicine, surgical recovery and elderly care wards. Its straightforward 5-function layout, without additional optional modules, makes it a cost-effective standard ward bed suitable for facilities equipping large numbers of beds.

Quick facts

The Keling KL-BC103 is a 5-function electric hospital bed designed for general ward and clinical environments.
Backrest adjusts electrically to 70±10°; knee-rest adjusts independently to 30±10°.
Height range is 450–760 mm, providing ergonomic access for nursing staff and low-height transfer capability.
Trendelenburg and reverse Trendelenburg tilt each reach 12±5° for postural and clinical positioning.
Safe working load is 240 kg; external dimensions are 2150 × 960 × (450–760) mm; bed surface is 1925 × 900 mm.
The KL-BC103 is produced by Keling Medical, a Chinese medical equipment manufacturer with more than 20 years of industry experience.

Key features

5-Function electric actuation
motorized control of backrest, knee-rest, height, Trendelenburg and reverse Trendelenburg.
Backrest to 70±10°
electrically adjustable for respiratory, feeding and therapeutic positioning.
Knee-rest to 30±10°
independent knee elevation reduces patient sliding and supports circulatory positioning.
Height range 450–760 mm
310 mm electric travel for transfer safety and nursing ergonomics.
Trendelenburg / reverse Trendelenburg 12±5°
bidirectional tilt for postural drainage, shock management and surgical preparation.
240 kg safe working load
robust structural capacity for a broad inpatient population.
Compact external width 960 mm
efficient use of ward floor space without compromising patient surface width.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

11 parameters for KL-BC103

KL-BC103 technical specifications
Model	KL-BC103
Product type	Electric hospital bed (5-function)
Backrest adjustment	70±10°
Knee-rest adjustment	30±10°
Height adjustment	450–760 mm
Reverse Trendelenburg	12±5°
Trendelenburg	12±5°
Safe working load	240 kg
External size (L × W × H)	2150 × 960 × (450–760) mm
Bed surface size (L × W)	1925 × 900 mm
Dimensional tolerance	±20 mm

Applications

The KL-BC103 is intended for general medical wards, surgical inpatient wards, post-operative recovery rooms, rehabilitation wards and long-term care facilities. Its compact footprint and full 5-function electric capability make it a versatile standard-issue ward bed for facilities deploying beds at scale.

Questions buyers ask

What is the Keling KL-BC103 electric hospital bed used for?

The KL-BC103 is a 5-function electric hospital bed for general inpatient ward use, providing electrically controlled backrest, knee-rest, height, Trendelenburg and reverse Trendelenburg adjustment. It supports patient positioning across nursing care, post-operative recovery and long-term inpatient stays.

How does the KL-BC103 compare to the KL-BC103-A?

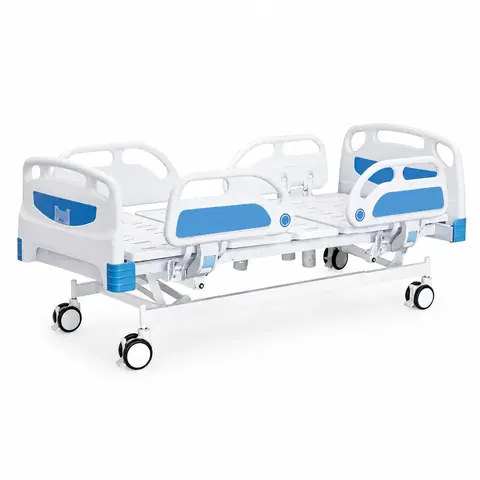

Both the KL-BC103 and KL-BC103-A share the same technical specifications including 5-function electric actuation, 240 kg load, 450–760 mm height range and 2150 × 960 mm external dimensions. The primary difference lies in the bed's appearance — the KL-BC103-A features a distinct design style, offering facilities a visual choice while retaining identical functional performance.

What are the external and bed surface dimensions of the KL-BC103?

The KL-BC103 has an external size of 2150 × 960 × (450–760) mm and a bed surface of 1925 × 900 mm. Its 960 mm external width is narrower than some comparable models, helping to conserve ward floor space while maintaining a standard 900 mm usable surface width.

Is the KL-BC103 available for wholesale or export purchase?

Yes. Keling Medical exports hospital beds to hospitals and distributors worldwide, with wholesale and project-volume ordering available through its Shanghai sales and export center. Contact Keling Medical via https://www.kelingmed.com to request a quotation or technical datasheet.
