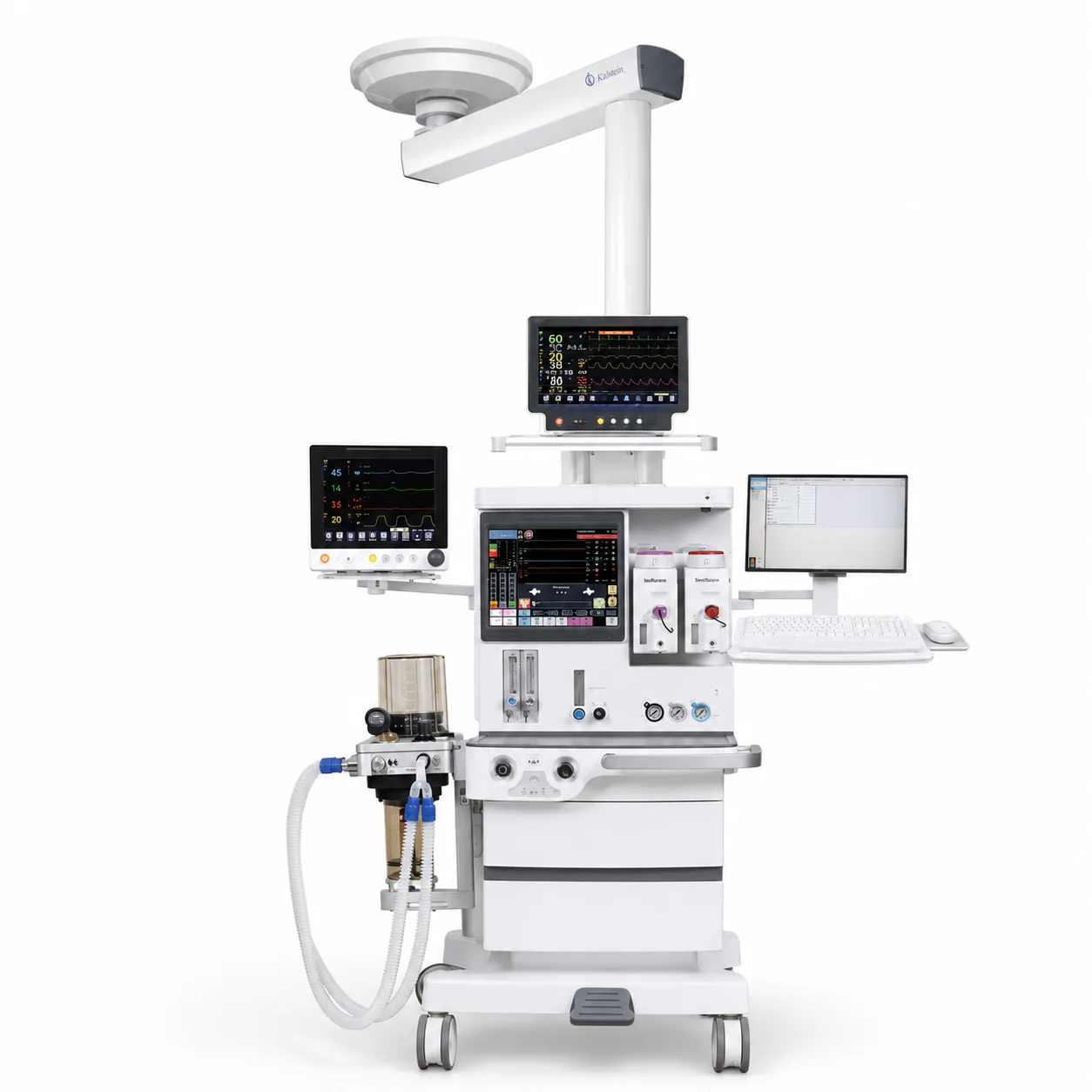

# KL-T7500 Electric Medical Pendant — Anesthesia Station Hanging Tower for Modern Operating Rooms
Quick answer: The Keling KL-T7500 is an electric medical pendant configured as an anesthesia station (series code KL-T·IIIAM). It is designed for modern clean and general operating rooms, providing vertical electric lift, horizontal rotation with precise positioning, high-capacity suspension for anesthetic machine systems and a full gas panel including two oxygen outlets, compressed air, suction gas, nitrous oxide and anesthesia gas. It is manufactured by Keling Medical (Keling Medical).
Quick Facts
- The Keling KL-T7500 is an electric pendant anesthesia station purpose-built to support suspension anesthetic machine systems in clean and general ORs.
- The KL-T7500 uses an imported motor for vertical electric lifting — allowing the anesthesia column to be raised and lowered smoothly at any point in a procedure.
- All medical gases, electrical outlets, instrument connections and network access are gathered on the centralized control board.
- The cross beam and control cabinet are formed from imported high-strength aluminium alloy using one-piece extrusion molding with primary oxidation treatment.

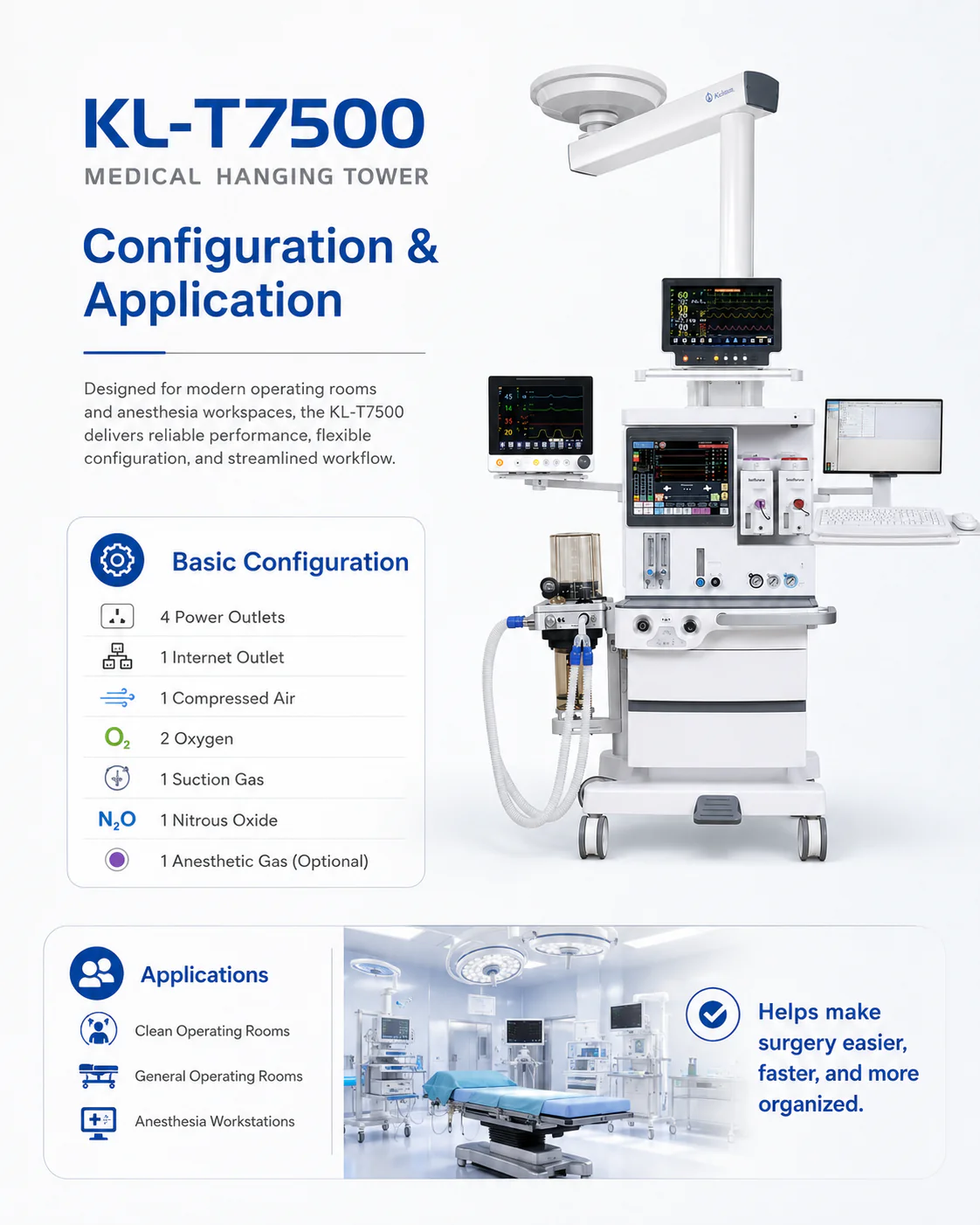

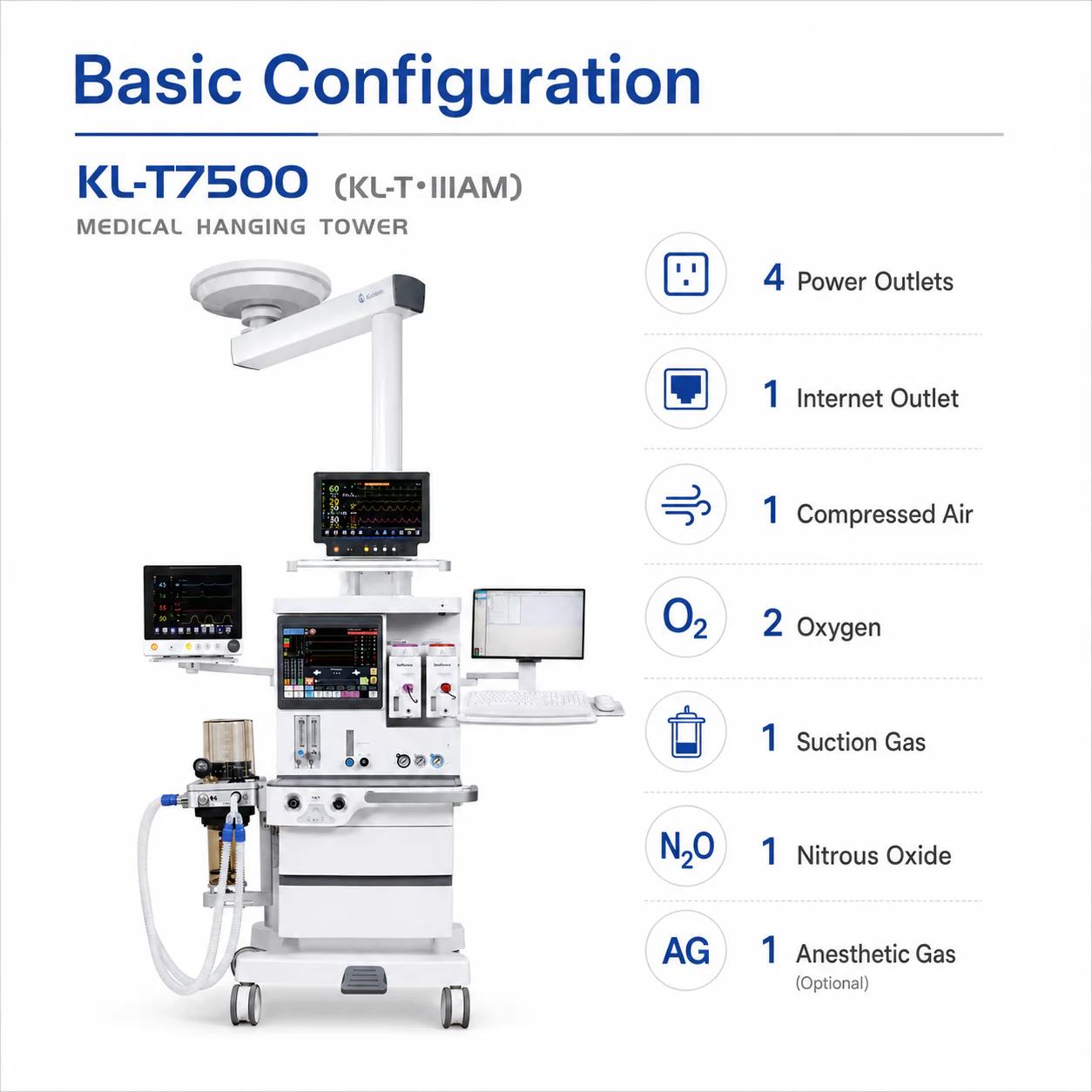

- Standard utility includes four power outlets, one internet outlet, two oxygen outlets, one compressed air, one suction gas, one nitrous oxide and one anesthesia gas (German standard terminals; optional gases available).
- The KL-T7500 is manufactured by Keling Medical, a Chinese medical equipment manufacturer established in 1996.
Overview

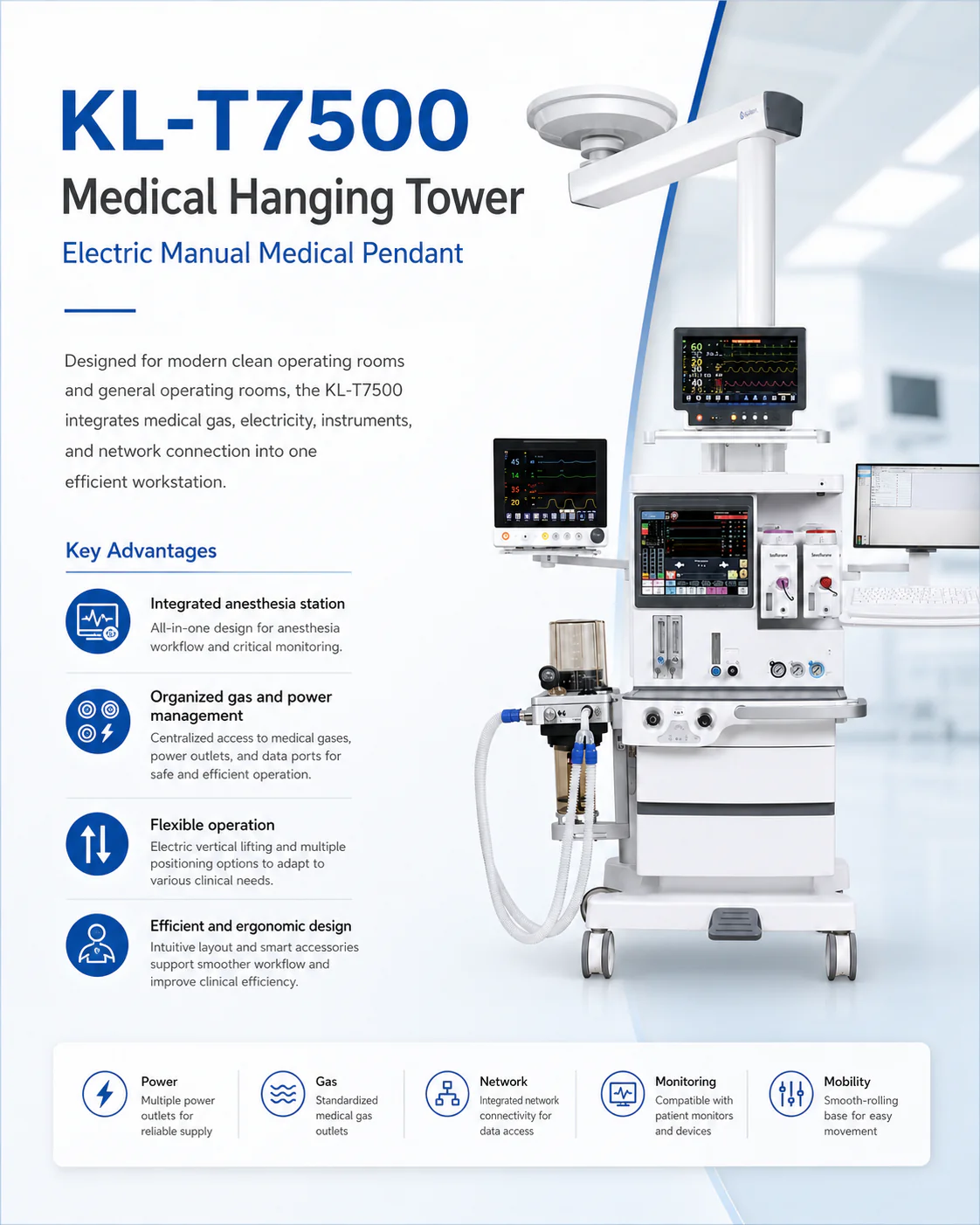

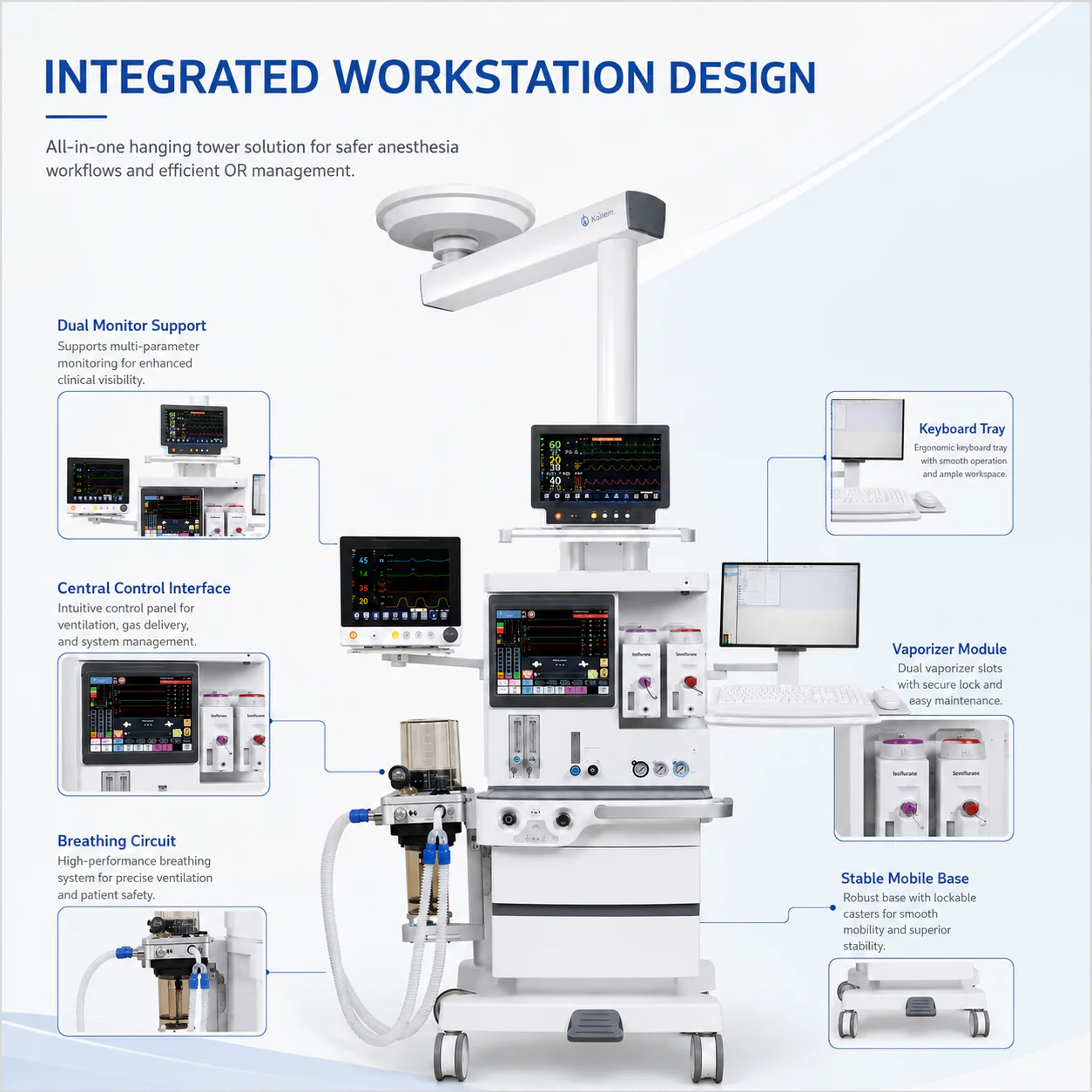

The KL-T7500 electric medical pendant is an anesthesia-station variant of Keling's motorized ceiling supply series, purpose-designed for operating rooms where the pendant must physically support a suspension anesthetic machine system and deliver all associated gas and electrical services from one ceiling-mounted column. With an imported motor providing smooth, quiet vertical lift and a broad gas configuration that includes two dedicated oxygen outlets — supporting both the anesthetic gas machine and supplemental patient oxygen independently — the KL-T7500 meets the high utility density requirements of modern anesthesia workstations.
All aspects of the mobile function are designed to make surgery easier and faster. The motorized vertical lift removes the physical effort of height adjustment, allowing the anesthesiologist to position the entire workstation column precisely for each patient without interrupting preparation or the surgical team's sterile workflow. Horizontal rotation uses the same mechanical friction damping brake found across the KL-T series, providing drift-free positional stability once the arm has been set.

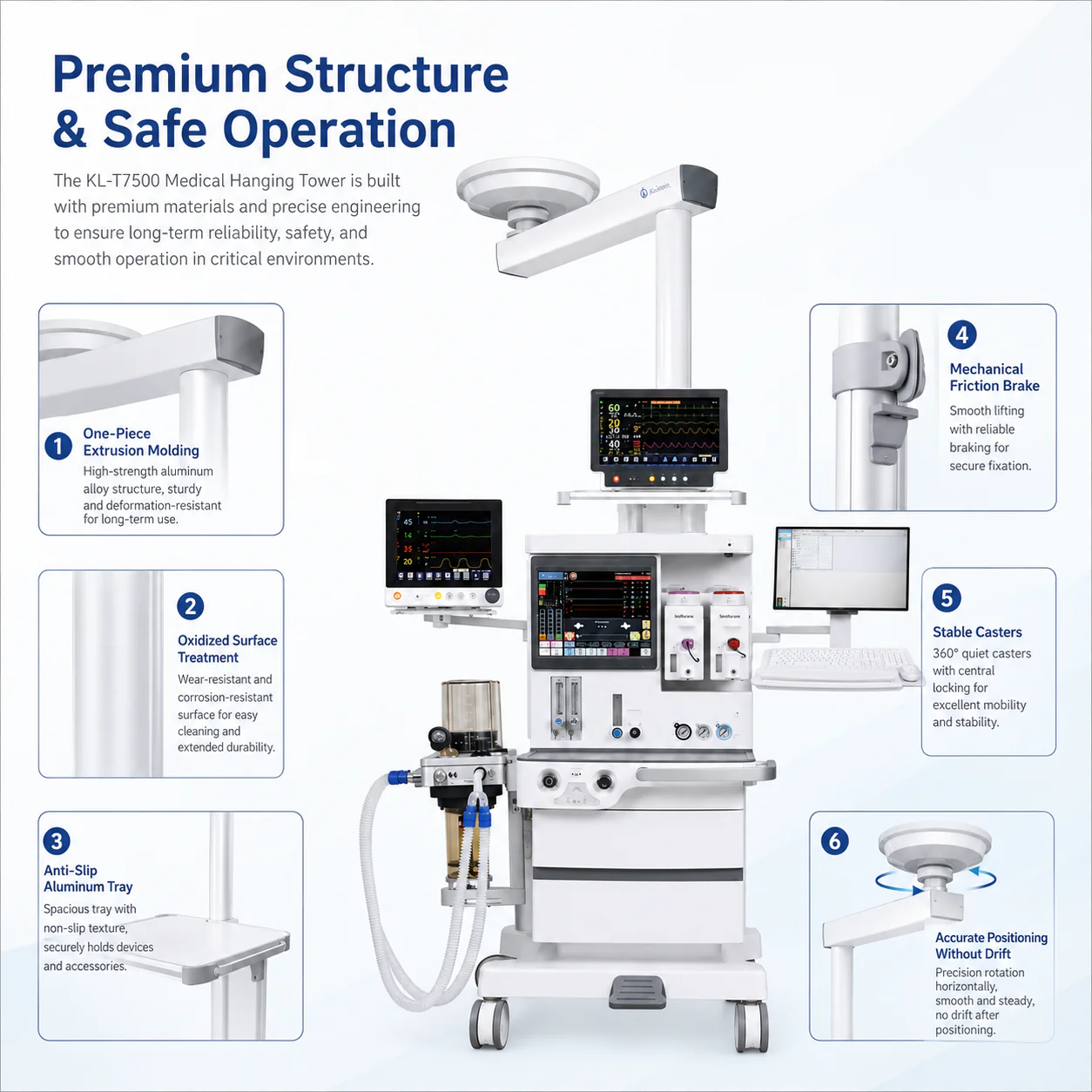

Structural integrity is ensured by the cross beam and control cabinet design: both are formed from imported high-strength aluminium alloy using the one-piece extrusion process, creating a unified, joint-free structure with no fatigue points. The surface undergoes primary oxidation treatment for corrosion resistance and clinical hygiene. Aluminum tray surfaces feature a non-slip texture, and all utility lines — gas pipelines, power supply and computer communication — are routed in independent, interference-free channels within the column.

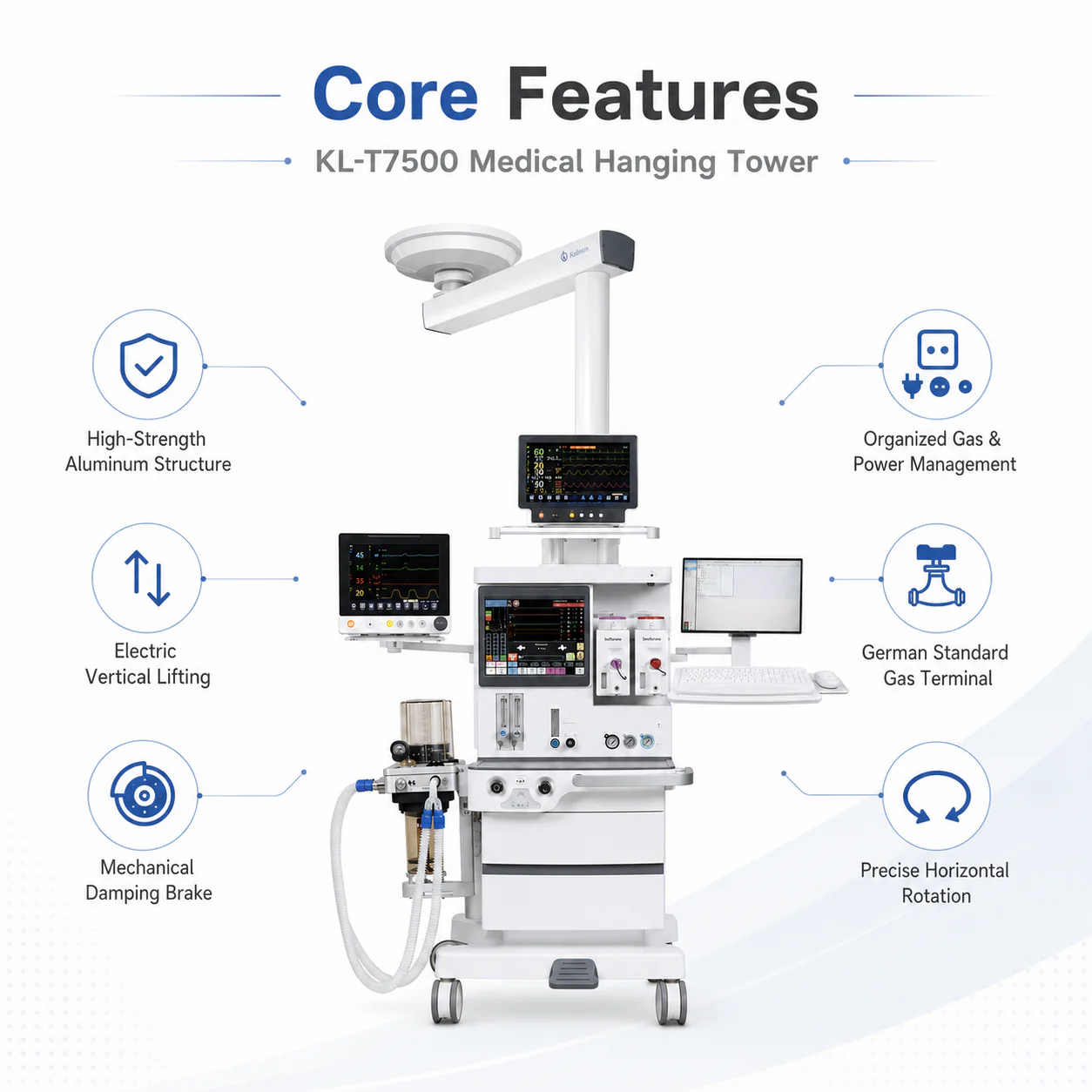

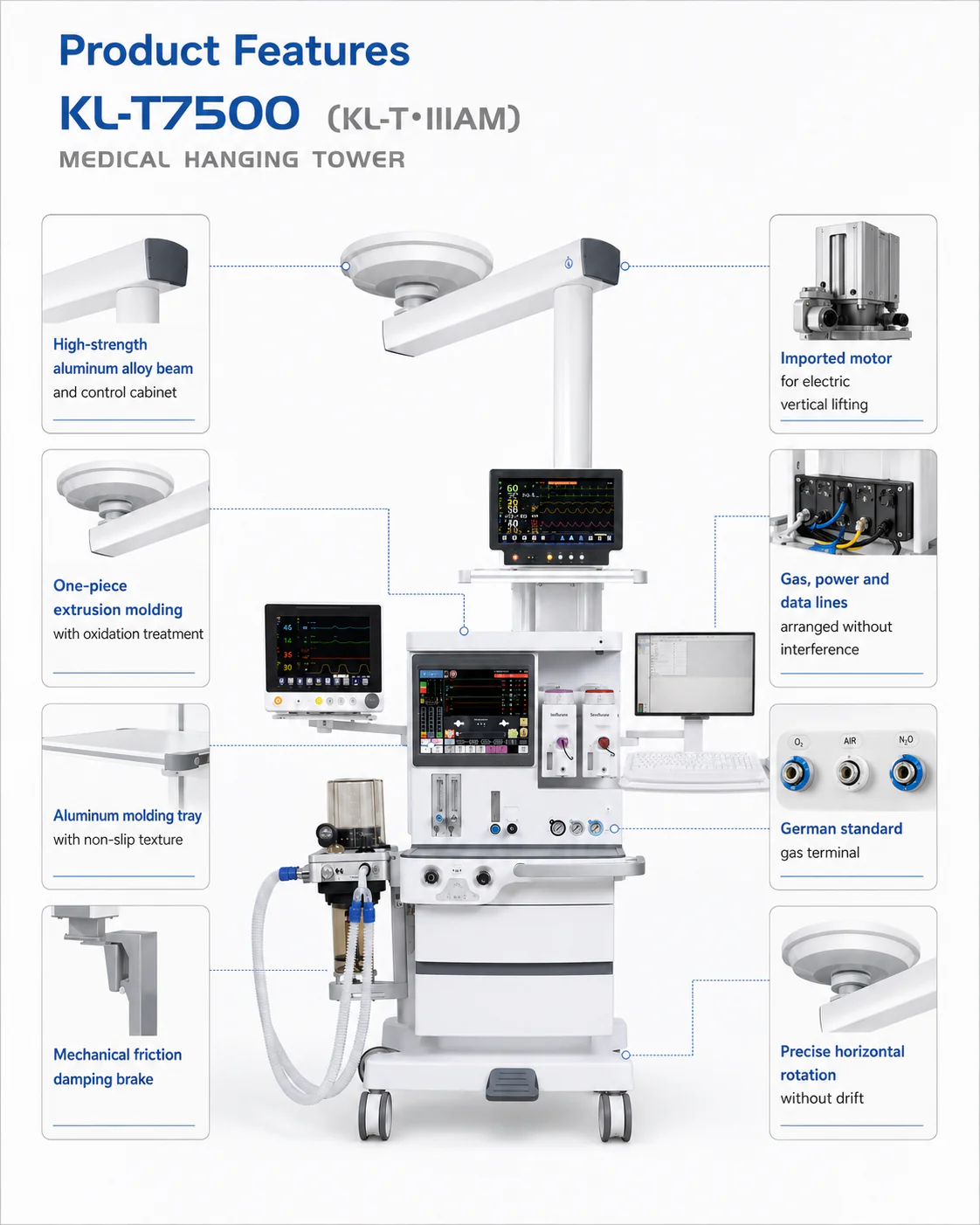

Key Features
- Electric vertical lift with imported motor — smooth, quiet motorized height adjustment supports precise anesthesia workstation positioning; all movement functions controlled at the unit.
- High-capacity suspension anesthetic machine support — cross beam and control cabinet designed to carry suspension anesthetic machine systems.
- Dual oxygen outlets — two dedicated oxygen terminals support simultaneous independent gas delivery to the anesthetic machine and patient supplemental supply.
- Full anesthesia gas panel — standard terminals include two oxygen, one compressed air, one suction gas, one nitrous oxide and one anesthesia gas (German standard; optional gases available).
- One-piece cross beam and cabinet construction — imported high-strength aluminium alloy; extrusion molding and primary oxidation treatment for strength and hygiene.
- Horizontal rotation with friction damping brake — precise, drift-free arm positioning.
- Non-slip aluminum tray — secure surface for anesthesia accessories, drug trays and monitoring devices.
- Independent utility routing — gas, power and data lines in separate conduits; prevents interference with sensitive anesthesia monitoring equipment.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | KL-T7500 |
| Series code | KL-T·IIIAM |
| Product type | Electric medical pendant — anesthesia station |
| Application | Modern clean OR, general OR |
| Lift mechanism | Electric (imported motor), vertical |
| Rotation | Horizontal, precise positioning without drift |
| Cabinet material | Imported high-strength aluminium alloy, one-piece extrusion molding, primary oxidation treatment |
| Tray | Aluminum molding, non-slip texture |
| Brake | Mechanical friction damping brake |
| Gas terminals | German standard (optional gases) |
| Power outlets | 4 |
| Data outlets | 1 internet outlet |
| Gas outlets | 2 oxygen, 1 compressed air, 1 suction gas, 1 nitrous oxide, 1 anesthesia gas |
Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.
Applications

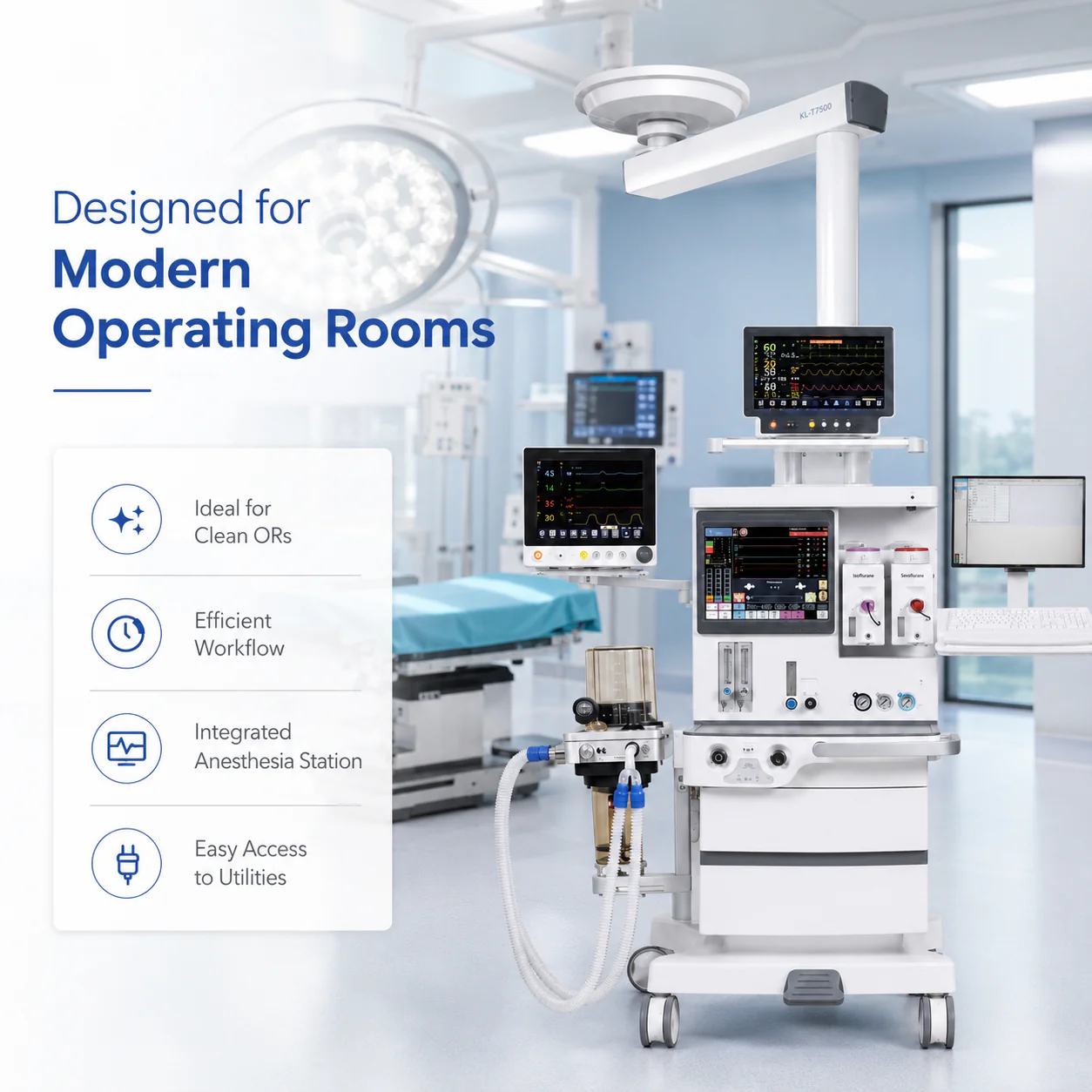

The KL-T7500 is suited to operating rooms where a ceiling-supported anesthesia machine system is specified — clean ORs, general ORs, cardiac and thoracic surgery suites, and any procedural room where the anesthesiologist's workstation must be organized at ceiling level. The dual oxygen outlets make it appropriate for rooms where both breathing circuit gas and supplemental patient oxygen must be delivered independently from the pendant.
