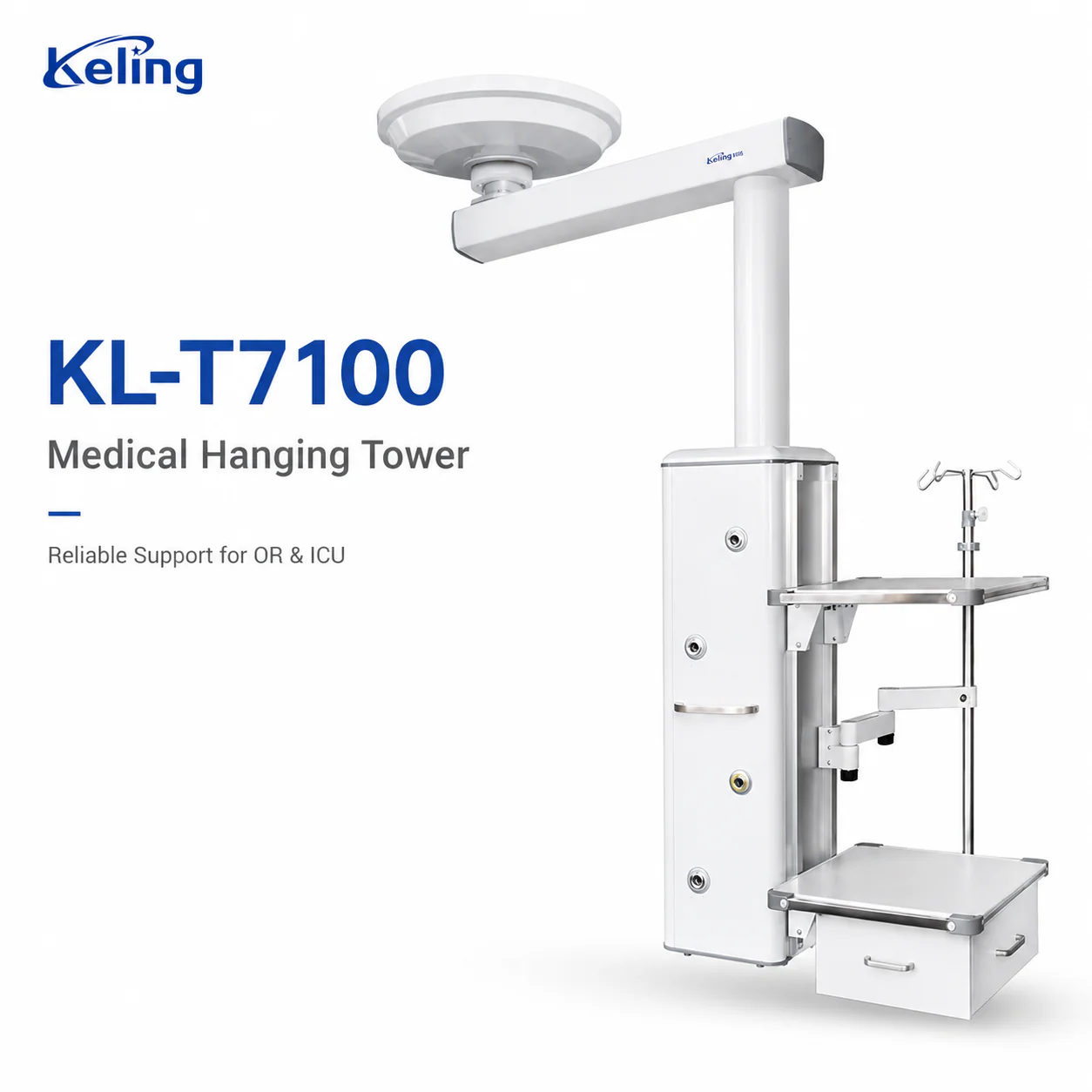

# KL-T7100 Manual Medical Pendant — Ceiling Supply Unit for Clean ORs and ICU Rooms

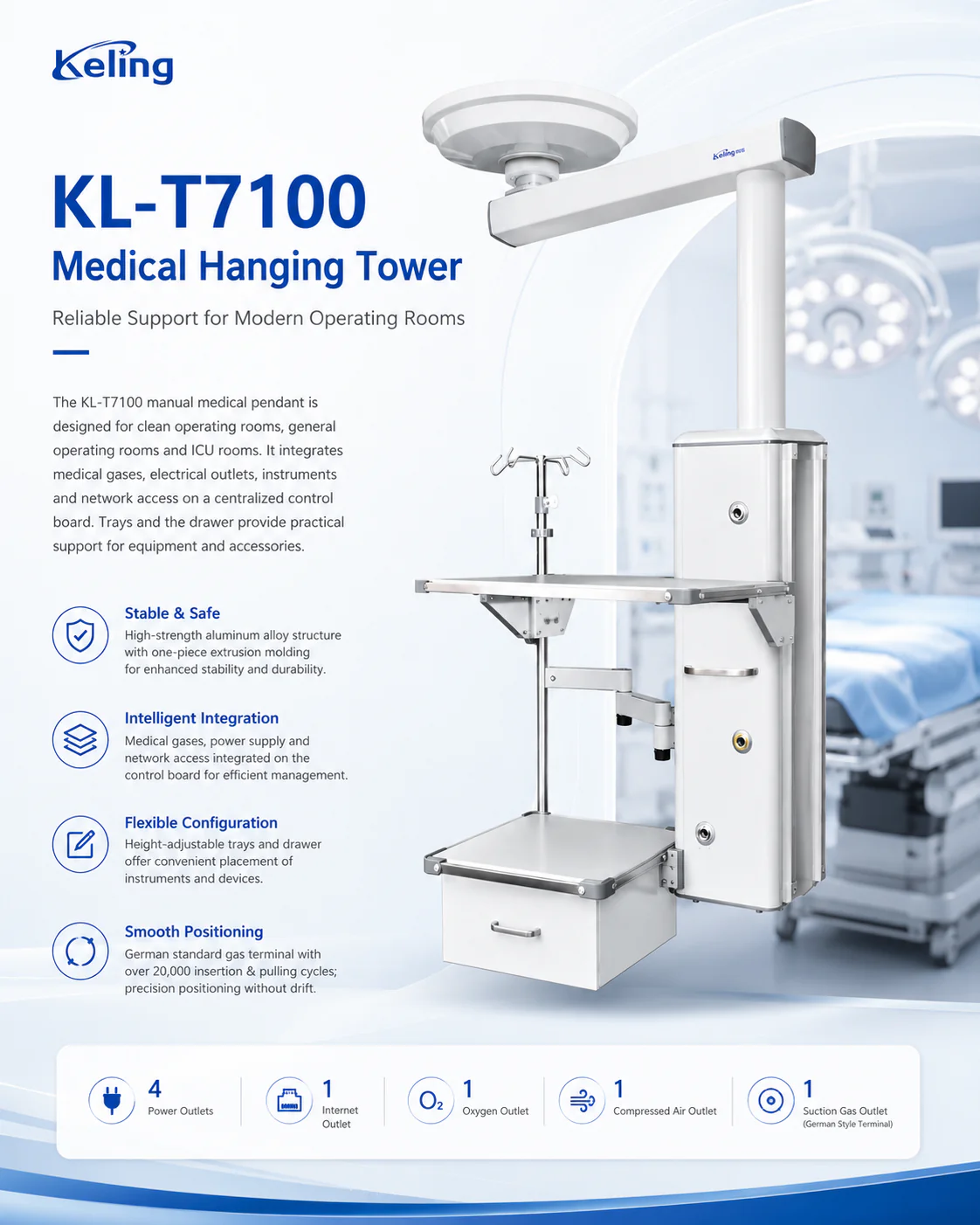

Quick answer: The Keling KL-T7100 is a manual medical pendant (medical hanging tower, series code KL-T·IIB) designed for modern clean operating rooms, general operating rooms and ICU rooms. It centralizes medical gases, electrical outlets, instruments and network access on a single control board, and features horizontal rotation with precise, drift-free positioning. It is manufactured by Keling Medical (Keling Medical) for hospitals and medical distributors worldwide.
Quick Facts
- The Keling KL-T7100 is a manual medical pendant serving clean ORs, general ORs and ICU rooms.
- All medical gases, electrical outlets, instruments and network connections are gathered on the KL-T7100's centralized control board.
- Trays and a drawer on the KL-T7100 support medical machines of appropriate weight and provide organized instrument storage.
- The arm rotates horizontally with a mechanical friction damping brake to achieve precise positioning without drift.

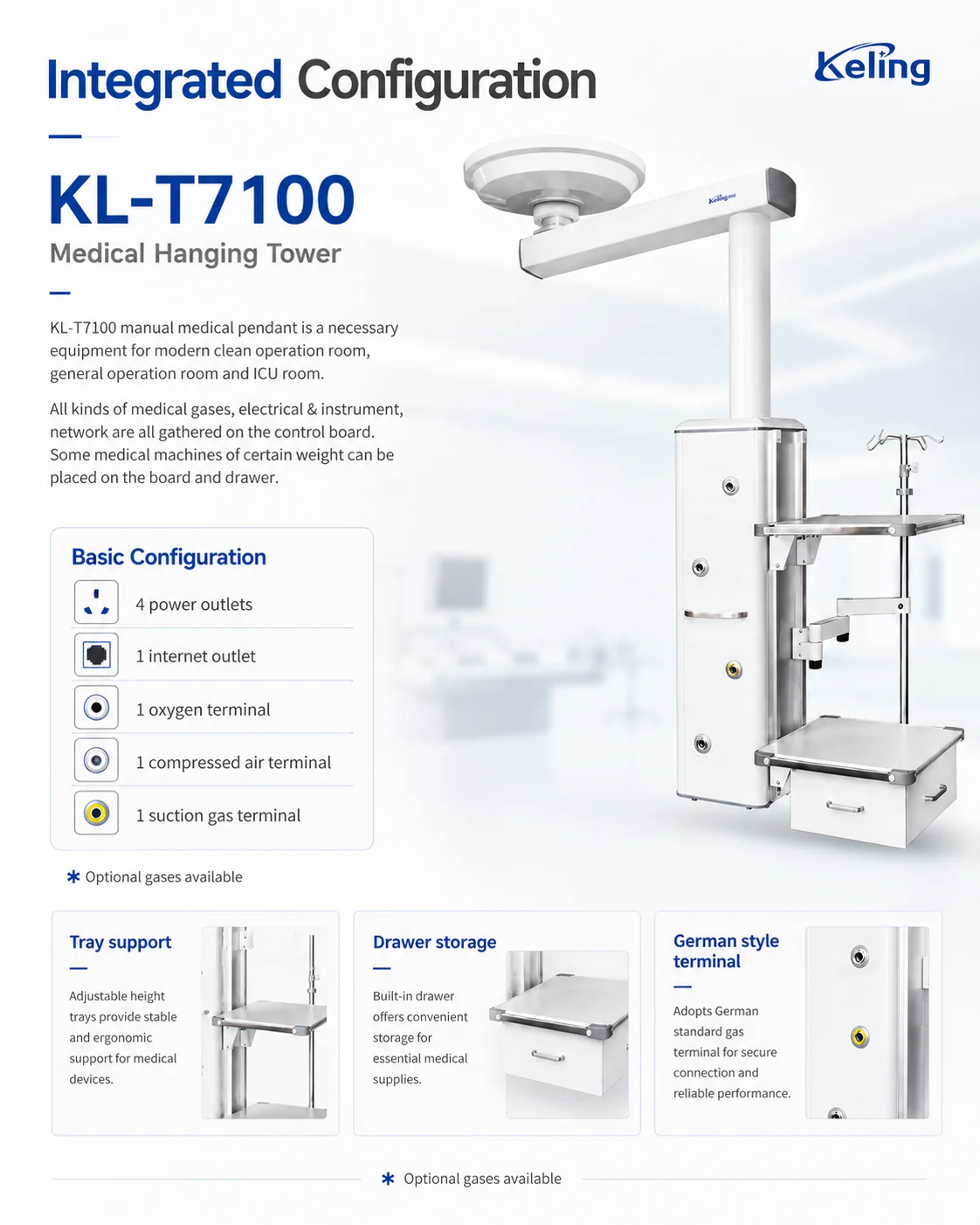

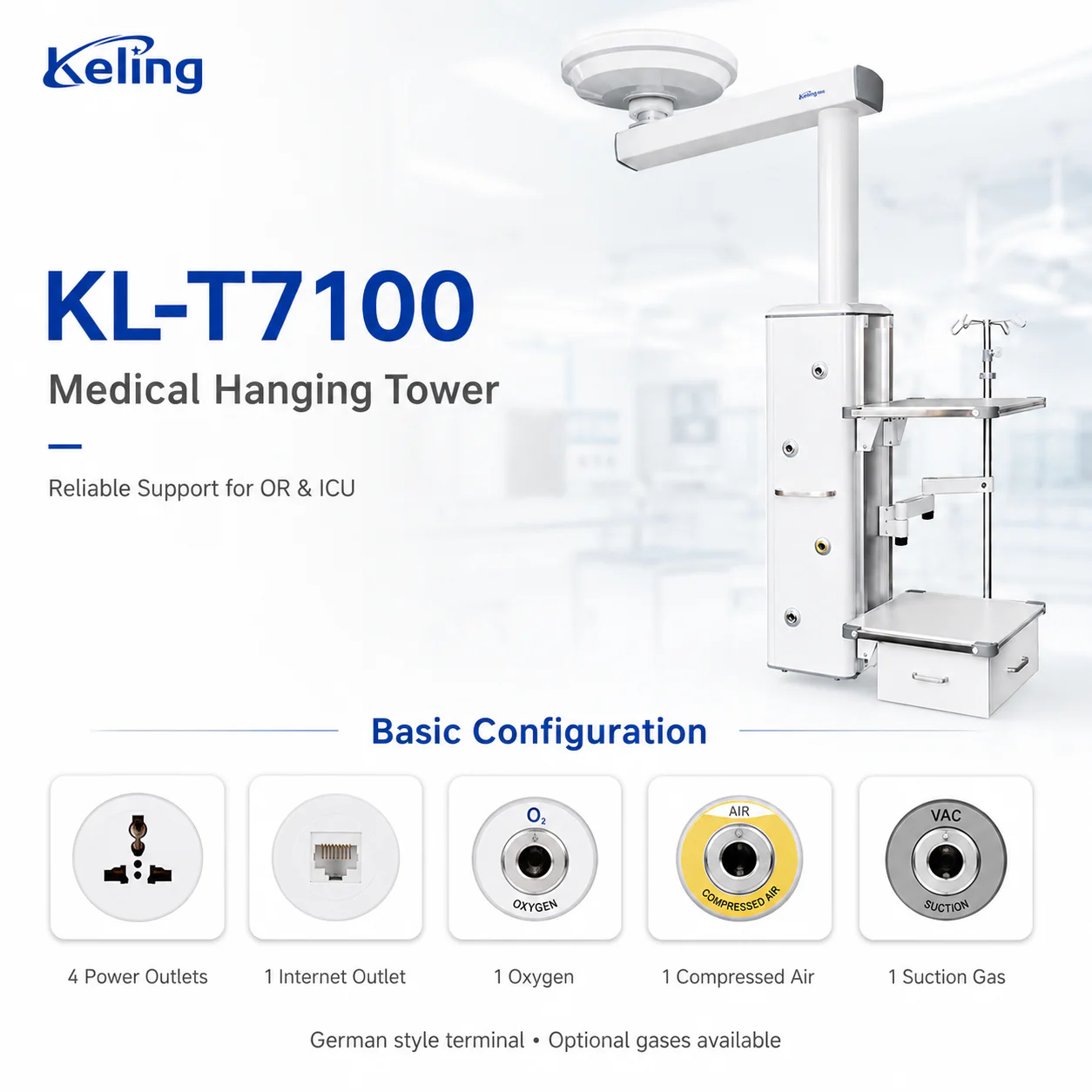

- Standard utility configuration includes four power outlets, one internet outlet, one oxygen outlet, one compressed air outlet and one suction gas outlet (German style terminals; optional gases available).
- The KL-T7100 is produced by Keling Medical, a Chinese medical equipment manufacturer with more than 20 years of industry experience.
Overview

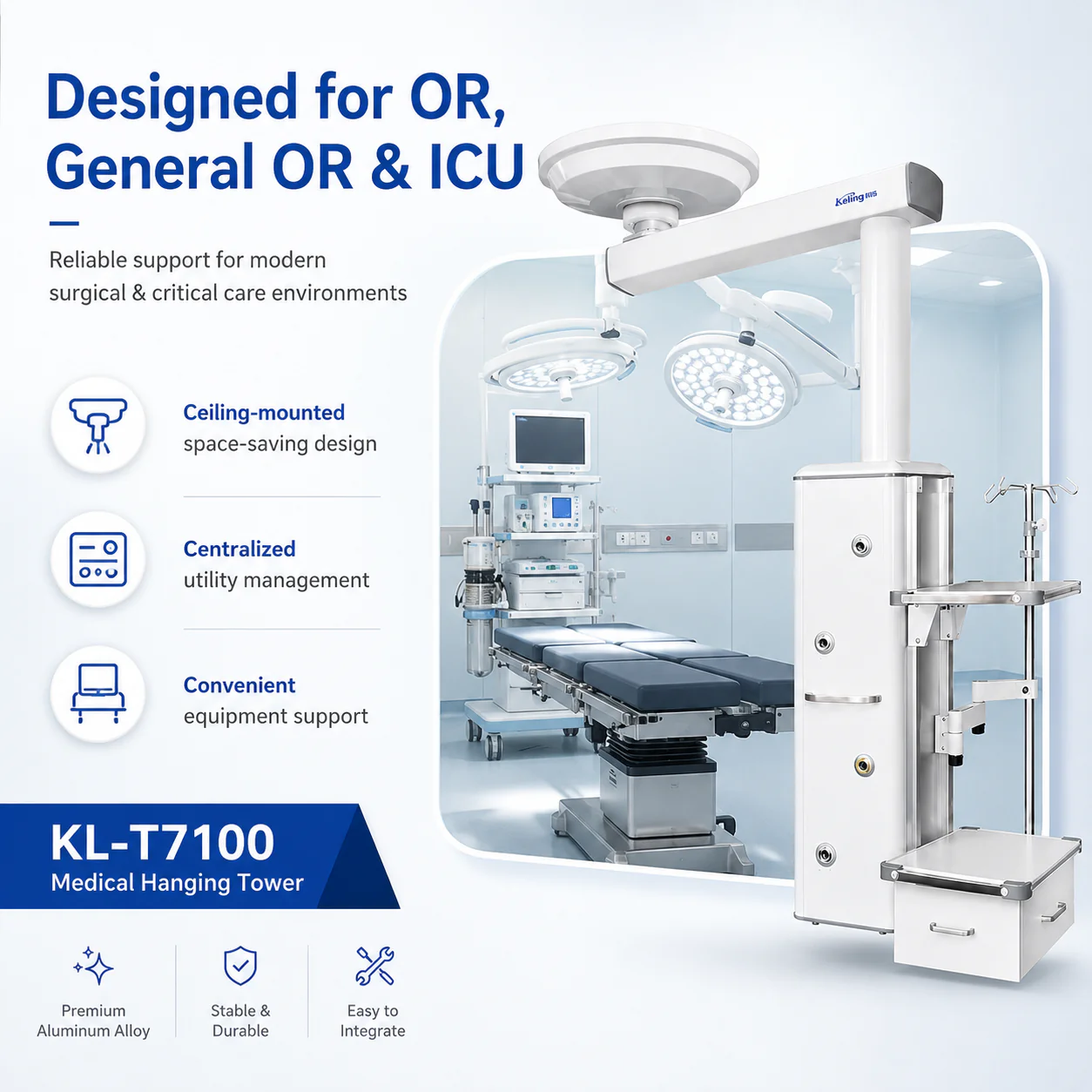

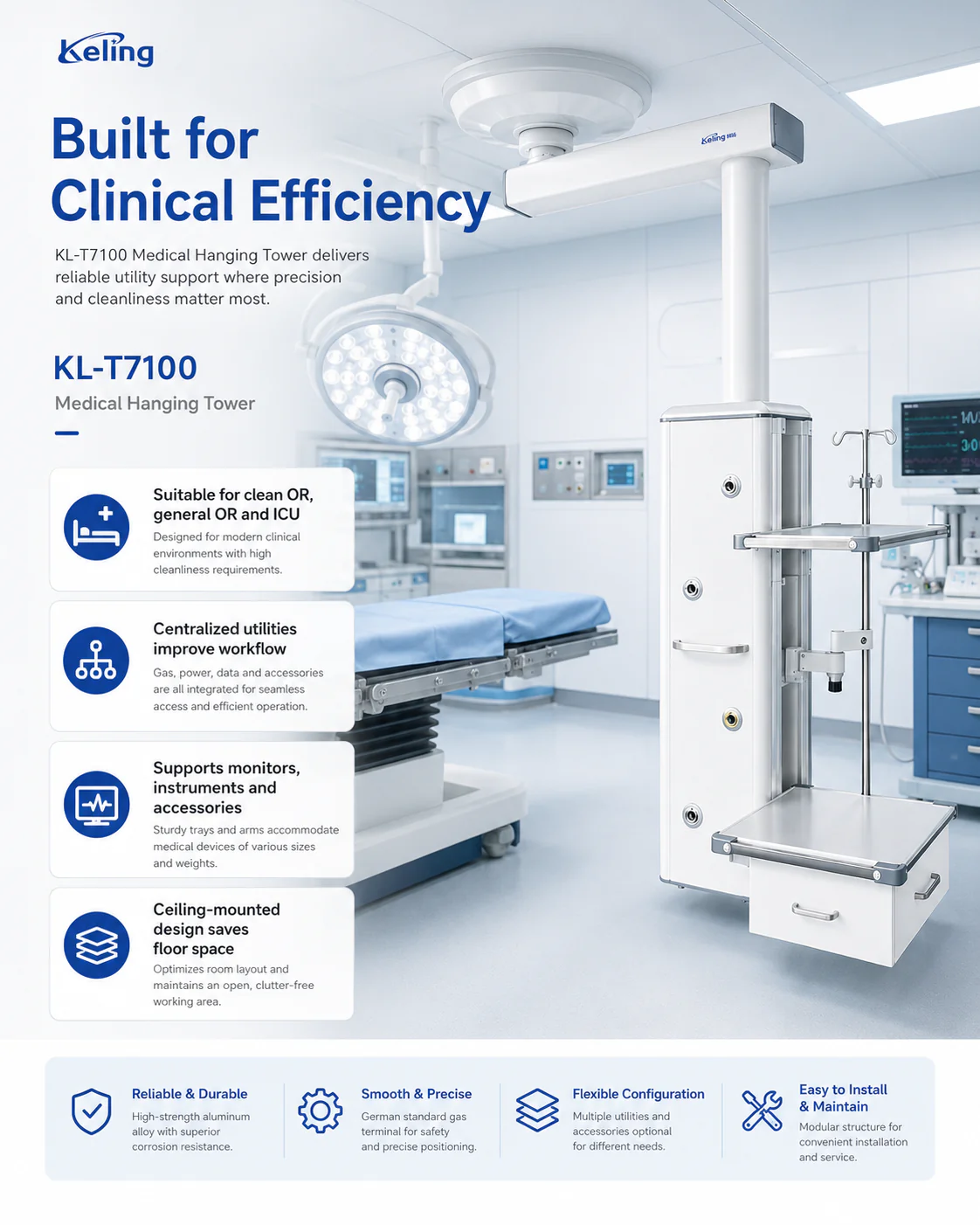

The KL-T7100 manual medical pendant is a ceiling-mounted supply system designed to serve three of the most demanding clinical environments: clean laminar-flow operating rooms, general operating rooms and intensive care units. By routing all utilities — medical gases, electrical power, data connectivity and instrument lines — to a single, organized control board on the pendant column, it eliminates floor-level cable clutter, reduces trip hazards and keeps the sterile zone free of obstructions. Trays and a storage drawer allow monitors, infusion pumps and lightweight medical machines to be positioned at the point of care without additional stands.

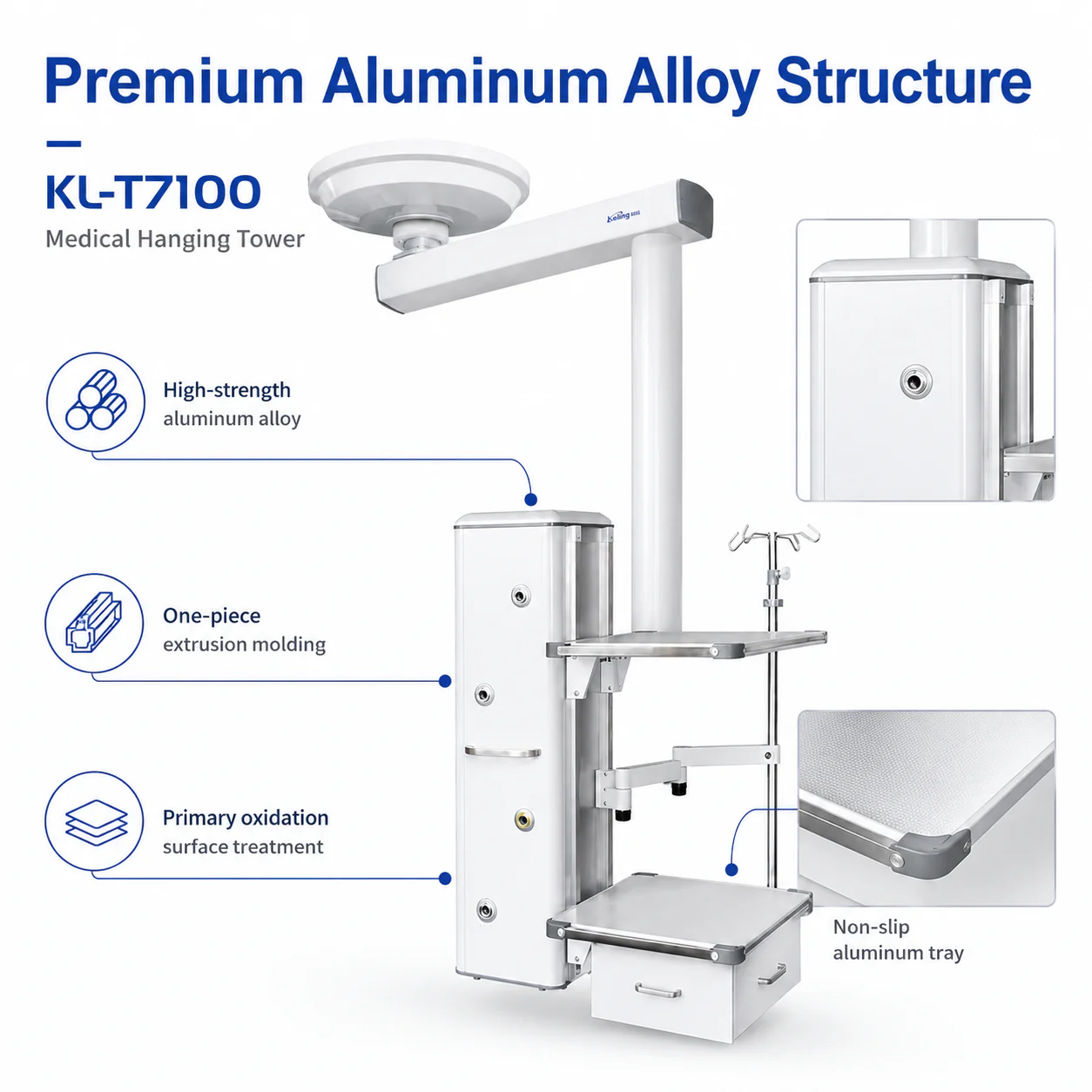

The cabinet housing is formed from imported high-strength aluminium alloy using a patented one-piece extrusion process, delivering exceptional rigidity while keeping the overall pendant lightweight. The anodized surface is smooth and easy to wipe down with clinical disinfectants. The aluminum tray features a molded non-slip texture to prevent instruments from sliding during lateral repositioning.

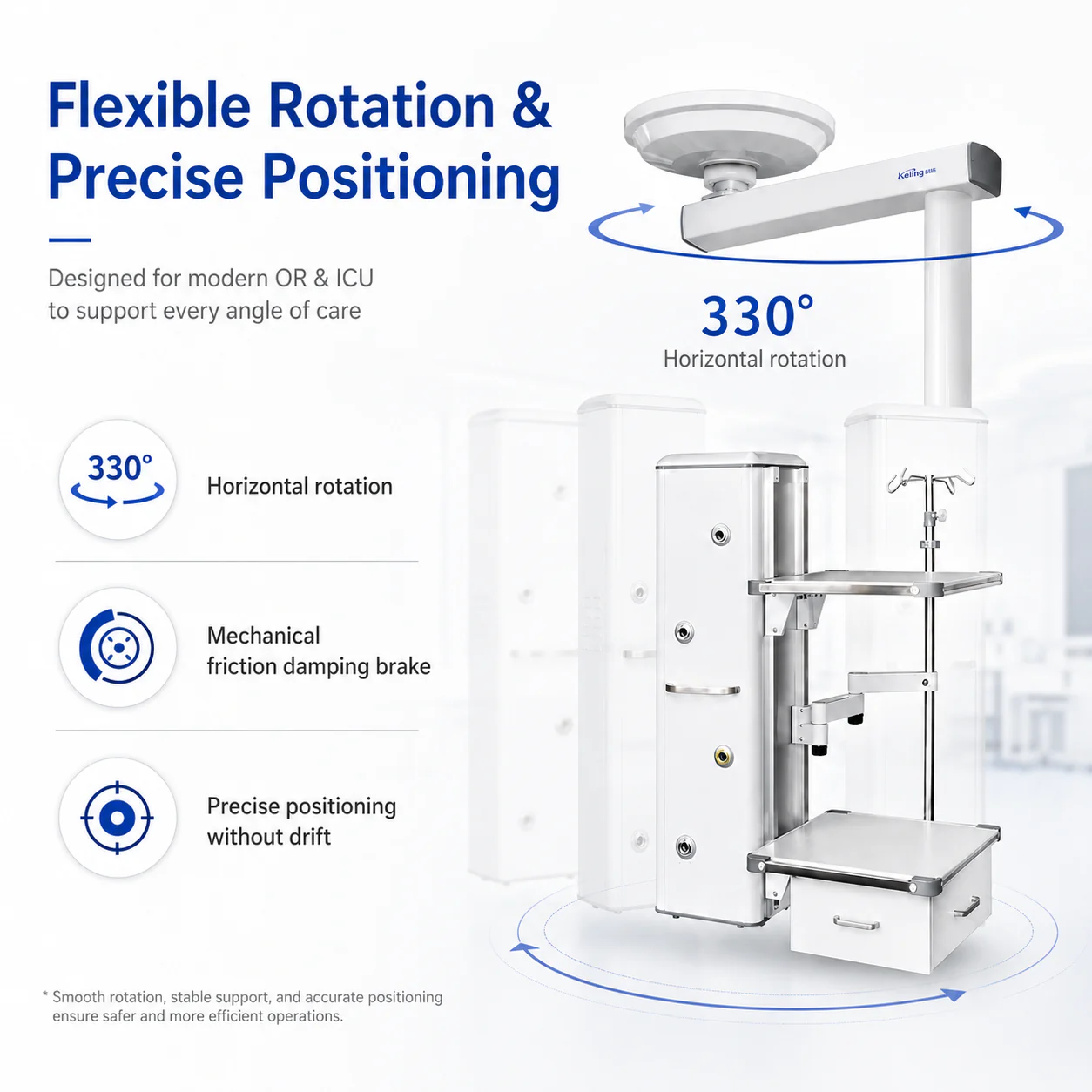

Horizontal rotation uses a mechanical friction damping brake: the arm can be swung to any angle around the vertical axis, then held precisely in position without drift. German standard gas terminals are specified for all gas connections, with a service life rated at over 20,000 insertion and pull-out cycles. Independent routing of gas, power and communication lines in separate channels prevents electrical interference and simplifies maintenance access.

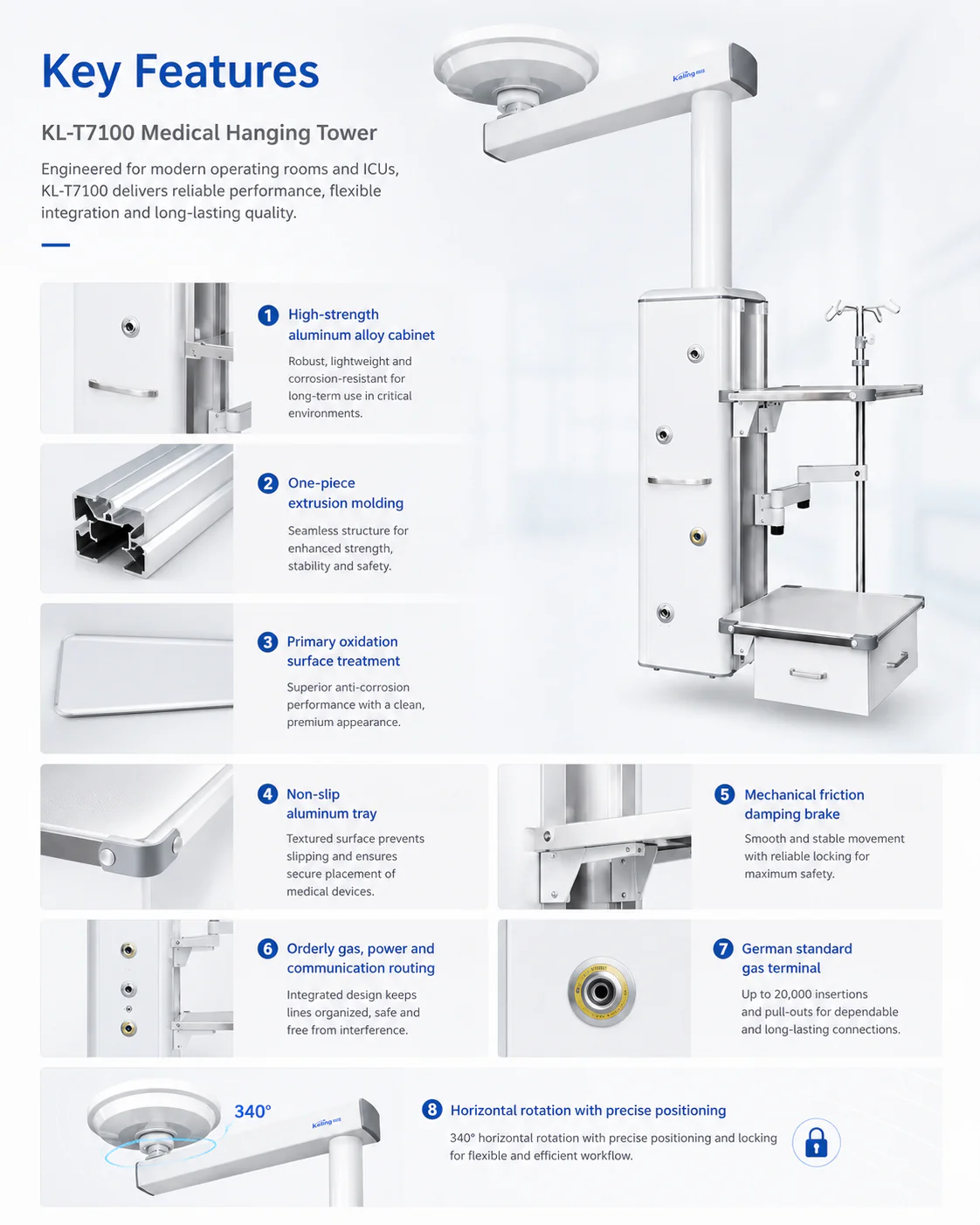

Key Features
- Centralized control board — medical gases, power outlets, network access and instrument connections all on one organized panel for efficient bedside or tableside management.
- Tray and drawer support — height-adjustable trays and a storage drawer accommodate monitors, infusion pumps and lightweight medical equipment directly on the pendant.
- High-strength aluminium alloy cabinet — one-piece extrusion molding using imported alloy; primary oxidation treatment for durability and hygiene.
- Horizontal rotation with friction brake — smooth swing to any position; mechanical damping brake holds angle precisely without drift.
- German standard gas terminals — rated for over 20,000 insertion and pull-out cycles; separated routing prevents interference.

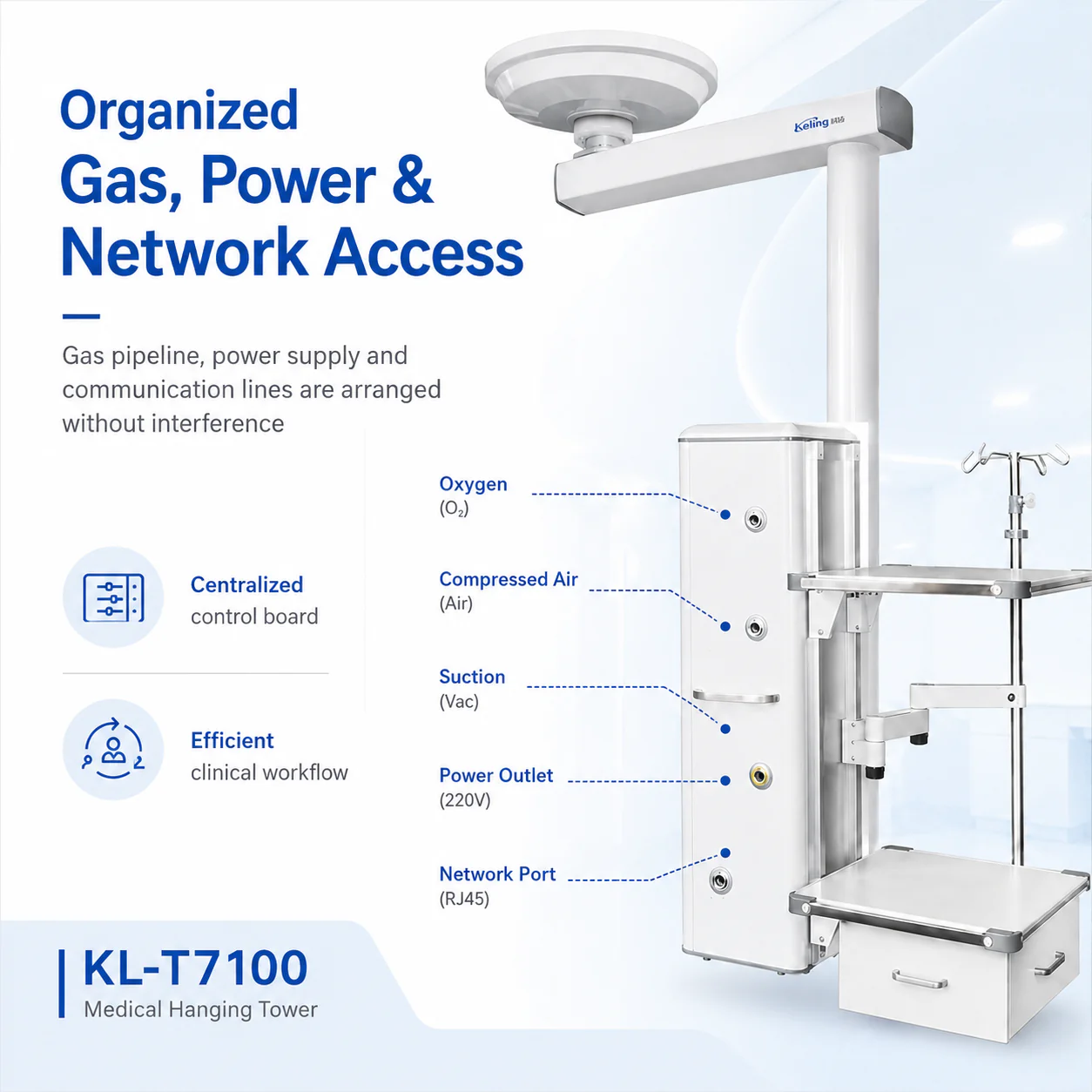

- Intelligent utility integration — gas pipelines, power supply and computer communication lines are arranged in independent channels without interference.
- Non-slip aluminum tray — molded tray surface prevents instrument movement during positioning.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | KL-T7100 |
| Series code | KL-T·IIB |
| Product type | Manual medical pendant (medical hanging tower) |
| Application | Clean OR, general OR, ICU room |
| Cabinet material | Imported high-strength aluminium alloy, one-piece extrusion molding, primary oxidation treatment |
| Tray | Aluminum molding, non-slip texture |
| Brake | Mechanical friction damping brake |
| Rotation | Horizontal, precise positioning without drift |
| Gas terminals | German standard (over 20,000 insertion/pull-out cycles) |
| Power outlets | 4 |
| Data outlets | 1 internet outlet |
| Gas outlets | 1 oxygen, 1 compressed air, 1 suction gas (German style terminal; optional gases) |
Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.
Applications
The KL-T7100 manual medical pendant is deployed in clean and general operating rooms where a reliable, organized supply column is required without motorized lift, and in ICU rooms where bedside utility management, gas supply and monitoring equipment placement are critical. It also suits recovery rooms and procedure rooms where ceiling-mounted supply reduces floor clutter.
