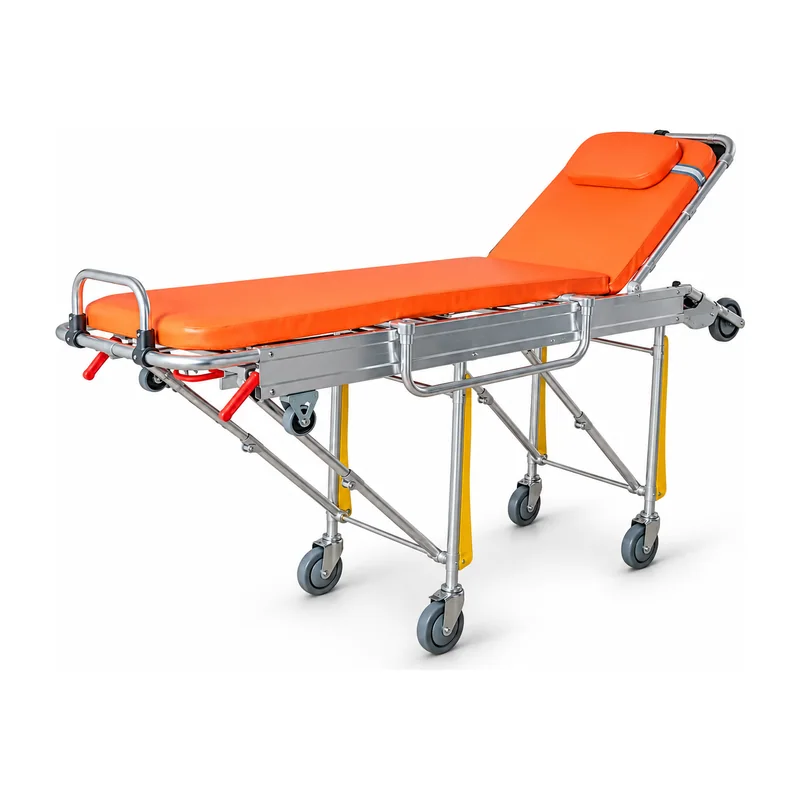

KL-MS020 Ambulance Stretcher — Aluminum Alloy Height-Adjustable Emergency Stretcher

Quick answer. The Keling KL-MS020 is an ambulance stretcher with an aluminum alloy frame measuring 1900 × 550 × (260–920) mm, a 0–75° adjustable backrest, ≤159 kg load capacity and four swivel casters with brakes, manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for ambulance services, hospitals and emergency rescue operations.

External size (L × W × H): 1900 × 550 × (260–920) mm
Load bearing: ≤159 kg
Back-rest adjustment: 0–75°
Wheels: 4 swivel casters with brakes

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The KL-MS020 ambulance stretcher is engineered for the complete patient journey from incident scene to hospital handover. Its aluminum alloy construction combines the lightweight handling required for ambulance loading and staircase negotiation with the structural rigidity needed to support patients weighing up to 159 kg across uneven terrain and vehicle movement. The height-adjustable scissor-style leg mechanism allows the stretcher to drop to a low loading position compatible with standard ambulance platforms, then rise to a comfortable working height for paramedics and receiving nurses.

Backrest adjustment from 0° to 75° gives clinical teams flexibility for patient positioning during transport. Semi-recumbent positions support respiratory patients, while the flat configuration is appropriate for trauma and unconscious patients requiring full spinal support. Foldable protective side rails prevent accidental falls during movement through corridors and around corners without interrupting patient access from either side.

Mobility is delivered through four premium swivel casters that allow the KL-MS020 to navigate hospital corridors, door thresholds and ambulance bays without requiring the stretcher to be lifted or repositioned. Individual brakes on each caster lock the stretcher in place during patient loading, clinical assessment and transfer handover, eliminating unintended movement in any clinical environment.

Quick facts

The Keling KL-MS020 is an ambulance stretcher designed for safe, comfortable and efficient patient transfer in emergency settings.
External size is 1900 × 550 × (260–920) mm with height-adjustable legs for loading compatibility with ambulance vehicles.
The backrest adjusts from 0° to 75° to accommodate different patient conditions and respiratory needs.
Load capacity is ≤159 kg, supported by a high-strength aluminum alloy frame with reinforced support bars.
Four 360° swivel casters with individual brakes provide smooth movement and secure positioning.
Frame material is aluminum alloy; the mattress is high-density foam with a customizable color option.

Key features

Aluminum alloy frame
lightweight, high-strength aluminum alloy with reinforced support bars for corrosion resistance and long service life.
Height-adjustable design
adjustable height range of 260–920 mm enables smooth ambulance loading and ergonomic clinical working height.
0–75° adjustable backrest
backrest adjusts through 75° to support varied patient postures from fully flat to semi-upright.
High-density foam mattress
comfortable, easy-to-clean mattress covering with customizable color options.
Foldable protective side rails
fold-down side rails provide fall prevention during transport while allowing clinical access.
4-caster swivel mobility
four 360° swivel casters with individual brakes deliver stable, smooth movement and secure locking.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

9 parameters for KL-MS020

KL-MS020 technical specifications
Model	KL-MS020
Product type	Ambulance stretcher
External size (L × W × H)	1900 × 550 × (260–920) mm
Back-rest adjustment	0–75°
Load bearing	≤159 kg
Frame material	Aluminum alloy
Mattress	High-density foam
Wheels	4 swivel casters with brakes
Color	Customizable

Applications

The KL-MS020 is used in ambulances, hospital emergency departments, pre-hospital emergency rescue and inter-ward patient transport. Its height adjustment and load capacity make it suitable for ground-level incident response, ambulance vehicle loading and unloading, emergency department reception areas and transfer to operating theatres or imaging suites.

Questions buyers ask

What is the Keling KL-MS020 ambulance stretcher used for?

The KL-MS020 is a mobile ambulance stretcher used to transport patients from incident scenes to ambulances and from ambulances to hospital departments. Its adjustable height allows compatibility with ambulance platforms, and the adjustable backrest accommodates a wide range of patient conditions during transfer.

What is the height adjustment range and load capacity of the KL-MS020?

The KL-MS020 adjusts in height from 260 mm to 920 mm, providing a low ambulance-loading position and a raised clinical working height. Load capacity is ≤159 kg, supported by the aluminum alloy frame construction.

What type of casters does the KL-MS020 use?

The KL-MS020 is equipped with four 360° swivel casters with individual brakes. This combination enables smooth movement in any direction through tight corridors and ambulance bays, with secure locking when stationary.

Can the KL-MS020 be customized or ordered in bulk for ambulance services?

Yes. Keling Medical offers customizable mattress colors and supports bulk orders for ambulance services, hospital fleets and medical distributors through its Shanghai export center. Contact Keling Medical via https://www.kelingmed.com for specifications and pricing.
