Stretchers & First Aid

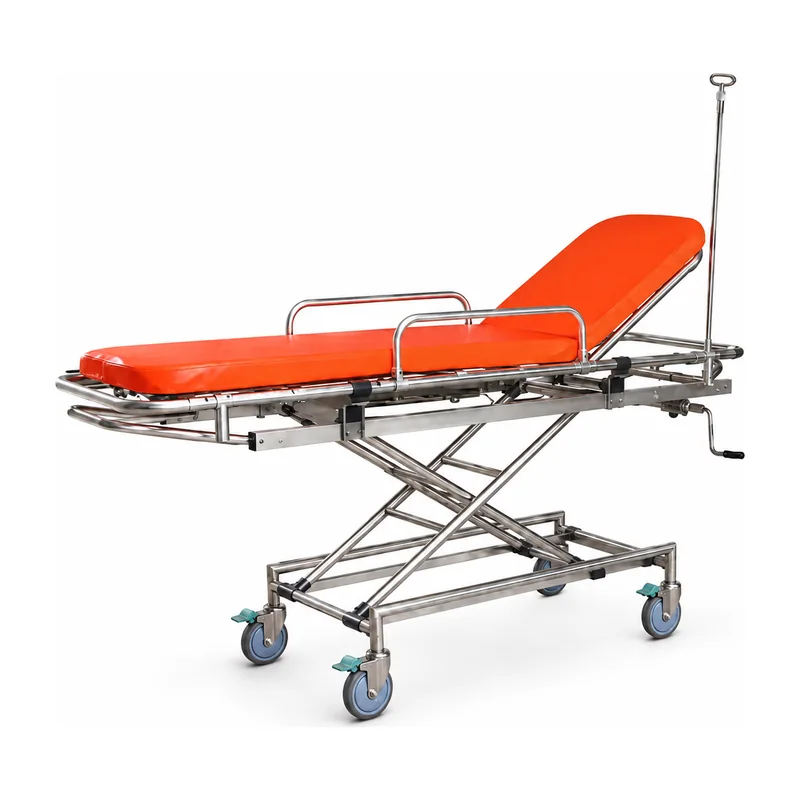

KL-MS023 Ambulance Stretcher — Detachable Stainless Steel Scissor-Lift Stretcher with IV Pole

Quick answer. The Keling KL-MS023 is an ambulance stretcher with a heavy-duty stainless steel scissor-lift frame measuring 1950 × 550 × (260–920) mm, ≤159 kg load capacity, 0–75° backrest, detachable stretcher-base design, foldable aluminum side rails and an integrated IV pole, manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for ambulance services and hospital emergency transfer.
External size (L × W × H)
1950 × 550 × (260–920) mm
Backrest angle
0–75°
Load bearing
≤159 kg
Casters
360° swivel with brakes
Markdown
ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The KL-MS023 ambulance stretcher is defined by its stainless steel scissor-lift frame, which delivers proven reliable height adjustment through a manual crank mechanism. Stainless steel construction gives the KL-MS023 a corrosion-resistant, easy-to-clean structural base suited to the demanding environments of emergency departments and ambulance bays where chemical cleaning agents are routinely used. The scissor-lift geometry provides stable, even height change across the full 260–920 mm range without frame flex or side sway that can compromise patient comfort during adjustment.

The detachable design is a distinctive operational feature. The stretcher surface separates cleanly from the scissor-lift base, enabling the surface to be loaded directly onto a hospital bed or examined independently, reducing patient transfer steps and potential injury during handover. This detachability also simplifies decontamination, allowing surfaces and base to be cleaned separately according to different protocols.

Foldable aluminum side rails and a fixed stainless steel IV pole make the KL-MS023 functionally complete for transport requiring fluid administration. The side rails fold flat for patient access during examination and boarding, then raise to secure the patient during movement. The IV pole's stainless steel construction matches the frame's corrosion resistance and hygiene profile, supporting the stretcher's long-term use in infection-sensitive environments.

Quick facts

  • The Keling KL-MS023 is an ambulance stretcher built on a heavy-duty stainless steel scissor-lift frame for durable, reliable height adjustment.
  • External dimensions are 1950 × 550 × (260–920) mm, with manual crank height adjustment through the scissor-lift mechanism.
  • The detachable design allows the stretcher surface to separate from the base for independent loading, cleaning and maintenance.
  • Backrest adjustment range is 0–75° via a manual crank system for smooth, controllable positioning.
  • Load capacity is ≤159 kg, supported by the stainless steel frame construction.
  • Standard equipment includes foldable aluminum side rails and a stainless steel IV pole for infusion support during transport.

Key features

  • Stainless steel scissor-lift frame

    heavy-duty stainless steel scissor structure for reliable, stable height adjustment and long service life.

  • Detachable design

    stretcher surface separates from base to simplify loading, patient handover and independent cleaning.

  • Manual crank height adjustment

    crank-operated scissor mechanism for smooth, controlled height change from 260 mm to 920 mm.

  • 0–75° adjustable backrest

    manual backrest adjustment for trauma-flat through semi-recumbent patient positioning.

  • Foldable aluminum side rails

    fold-down rails provide fall prevention during movement and fold clear for patient access.

  • Stainless steel IV pole

    integrated infusion pole for fluid administration during ambulance transport.

  • 360° swivel casters with brakes

    stable, smooth-rolling casters with brake locks for secure positioning.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

12 parameters for KL-MS023

KL-MS023 technical specifications
ModelKL-MS023
Product typeAmbulance stretcher
External size (L × W × H)1950 × 550 × (260–920) mm
Backrest angle0–75°
Load bearing≤159 kg
Frame materialStainless steel
Lift mechanismManual crank scissor-lift
Side railsFoldable aluminum
IV poleStainless steel, included
MattressHigh-density foam, waterproof cover
Casters360° swivel with brakes
ColorCustomizable

Applications

The KL-MS023 is used in ground ambulances, hospital emergency departments, inter-ward patient transport and post-operative recovery transfer. Its detachable design and IV pole make it particularly suited to patient transport requiring ongoing fluid administration, and its stainless steel construction suits high-turnover emergency environments with stringent decontamination protocols.

Questions buyers ask

What is the Keling KL-MS023 ambulance stretcher used for?

The KL-MS023 is a mobile ambulance stretcher used for prehospital patient transfer and hospital inter-departmental transport. It is particularly suited to patients requiring IV fluid administration during transport, thanks to its integrated stainless steel IV pole and corrosion-resistant frame.

What is the detachable design of the KL-MS023?

The KL-MS023 allows the stretcher surface (mattress and frame) to be separated from the scissor-lift base. This enables direct loading of the stretcher surface onto a hospital bed to minimize patient transfer steps, and allows independent cleaning of the two components.

How does the scissor-lift height adjustment work on the KL-MS023?

A manual crank mechanism drives the scissor-lift structure to raise or lower the stretcher between 260 mm and 920 mm. The crank provides controlled, smooth adjustment without hydraulic components, simplifying maintenance and reducing the risk of fluid leaks.

Can the KL-MS023 be ordered in bulk for ambulance fleets or hospital procurement?

Yes. Keling Medical supports fleet and wholesale orders for ambulance services, hospitals and distributors worldwide through its Shanghai export center. Visit https://www.kelingmed.com or contact Keling Medical directly for quantity pricing and configuration options.
