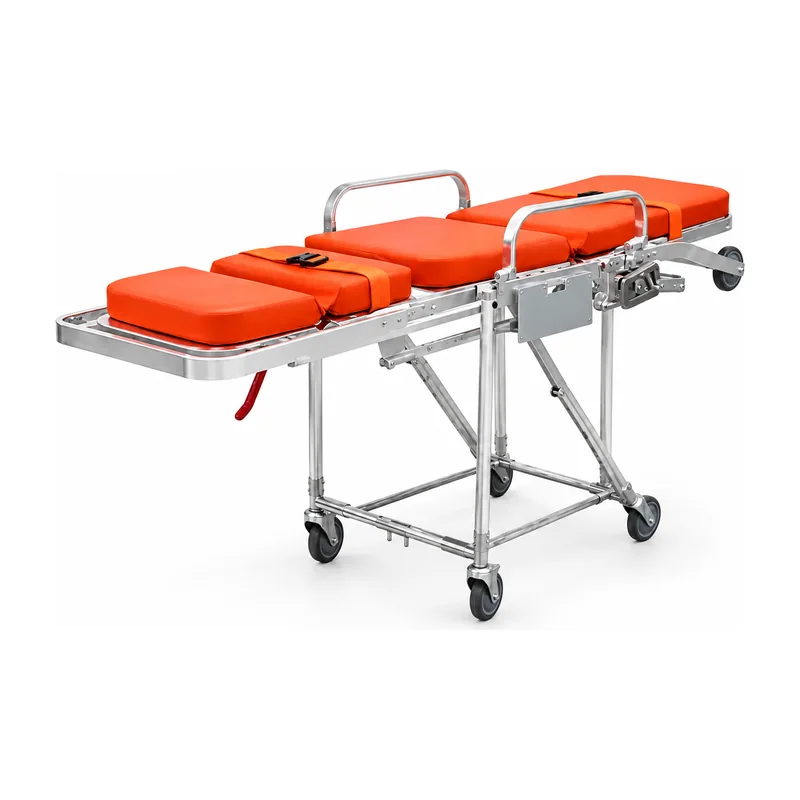

KL-MS022 Ambulance Stretcher — Foldable Frame with Wide 0–85° Backrest Range

Quick answer. The Keling KL-MS022 is an ambulance stretcher measuring 1960 × 550 × (250–860) mm with a foldable frame, 0–85° adjustable backrest, high-density mattress with safety strap and swivel casters for smooth mobility, manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for ambulance patient transport and hospital transfer.

External size (L × W × H): 1960 × 550 × (250–860) mm
Back-rest adjustment: 0–85°
Frame: Foldable
Mattress: High-density with safety strap

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The KL-MS022 ambulance stretcher combines a wide backrest adjustment range with a compact foldable frame to serve ambulance services that need versatile patient positioning and space-efficient storage. The 0–85° backrest range — extending further than comparable models in the range — supports not only the standard trauma-flat and semi-recumbent positions but also near-upright seating for conscious, cooperative patients during transport of shorter distances or during clinical assessment en route.

Foldable frame construction is a practical operational feature for services with limited vehicle bay space or shared equipment storage. When folded the KL-MS022 occupies a significantly reduced footprint, enabling it to be stored alongside other equipment or deployed from smaller-capacity vehicles without compromising on the full working platform dimensions when open. The frame maintains structural rigidity in the deployed position while the folding joints are engineered for rapid, tool-free operation.

Patient comfort during transport is supported by the thick high-density mattress covered with a wipe-clean surface, combined with an integrated safety strap that secures the patient without restricting clinical access. Swivel casters deliver smooth movement through tight hospital corridors and vehicle approach ramps, ensuring patient stability from scene through to ward handover.

Quick facts

The Keling KL-MS022 is an ambulance stretcher designed for reliable patient transport in emergency and clinical settings.
External dimensions are 1960 × 550 × (250–860) mm, with a height range from a low loading position to a clinical working height.
The backrest adjusts from 0° to 85°, the widest range in the KL-MS020 series, enabling near-upright sitting positions for conscious patients.
A foldable frame design saves space in ambulance bays and allows efficient storage when the stretcher is not in service.
The KL-MS022 includes a high-density mattress with safety strap for patient comfort and transport security.
Swivel casters enable smooth maneuverability through corridors, doorways and ambulance loading areas.

Key features

0–85° adjustable backrest
widest backrest range in the series, supporting trauma-flat, semi-recumbent and near-upright patient positions.
Foldable frame
compact folding design saves space in ambulance bays and allows easy storage when not deployed.
High-density mattress
thick mattress with safety strap provides patient comfort and secure positioning during transport.
Smooth swivel casters
swivel casters for smooth movement in all directions through corridors, doorways and vehicle ramps.
Stable support structure
robust frame construction ensures rigidity and reliability under load when the stretcher is deployed.
Customizable color
multiple color options available to match fleet or hospital requirements.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

8 parameters for KL-MS022

KL-MS022 technical specifications
Model	KL-MS022
Product type	Ambulance stretcher
External size (L × W × H)	1960 × 550 × (250–860) mm
Back-rest adjustment	0–85°
Frame	Foldable
Mattress	High-density with safety strap
Casters	Swivel
Color	Customizable

Applications

The KL-MS022 is used in ground ambulances and patient transport vehicles, hospital emergency departments, ward transfer corridors and outpatient clinical areas. The wide backrest range and foldable frame particularly suit patient transport vehicle fleets, day-procedure units and facilities where patient positioning flexibility and efficient equipment storage are both operational priorities.

Questions buyers ask

What is the Keling KL-MS022 ambulance stretcher used for?

The KL-MS022 is a foldable ambulance stretcher used for transporting patients between incident scenes and hospitals, and for inter-ward transfer within hospitals. Its 0–85° backrest range allows positioning of patients from fully flat through to near-upright sitting, accommodating a broad range of clinical presentations.

What makes the KL-MS022 backrest adjustment different from the KL-MS020 and KL-MS023?

The KL-MS022 adjusts from 0° to 85°, compared with 0–75° on the KL-MS020 and KL-MS023. This wider range enables a near-upright seated position that is not achievable on the other models, making the KL-MS022 more suitable for awake and cooperative patients during shorter transport distances.

How does the foldable frame benefit ambulance operators?

When folded, the KL-MS022 occupies a smaller footprint, allowing it to be stored more efficiently in ambulance bays, vehicle compartments and multi-equipment storage areas without needing a dedicated full-size bay. Deployment requires no tools and returns the stretcher to its full working platform.

Is the KL-MS022 available for export and wholesale orders?

Yes. Keling Medical is an export-oriented manufacturer supplying ambulance services and medical distributors worldwide from its Shanghai sales and export center. Contact Keling Medical via https://www.kelingmed.com for pricing and delivery arrangements.
