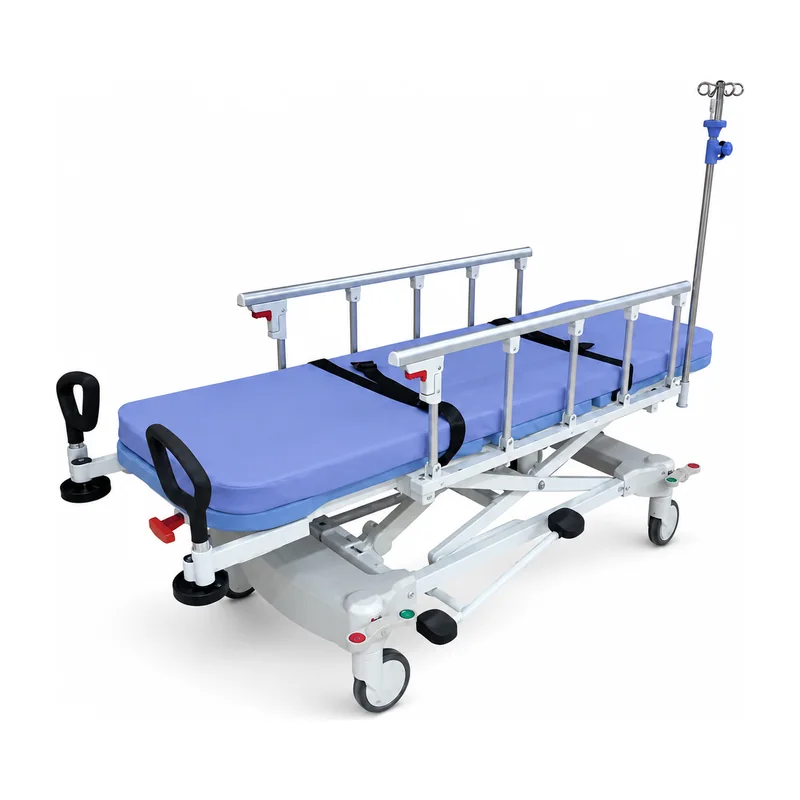

KL-PT002 Patient Transportation Trolley — Hydraulic Height-Adjustable Transfer Trolley with IV Pole

Quick answer. The Keling KL-PT002 is a hydraulic patient transportation trolley measuring 2003 × 640 × (530–900) mm with a 160 kg safe working load, 0–85° adjustable backrest, 530 mm hydraulic height adjustment range, foldable aluminum alloy side rails, IV pole and ergonomic push handles, manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for hospital ward transfer and emergency patient transport.

External size (L × W × H): 2003 × 640 × (530–900) mm
Safe load: 160 kg
Backrest adjustment: 0–85°
Mattress size: 1950 × 600 × 60 mm

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The KL-PT002 patient transportation trolley is built for the full range of hospital transfer tasks — from emergency department patient receipt through to inter-ward movement and pre-operative positioning. At 2003 × 640 mm surface area and with a 160 kg safe load, it accommodates the majority of the adult patient population without requiring a specialist bariatric platform. The 530 mm hydraulic height adjustment range bridges the gap between comfortable nursing access at the lower position and bedside transfer height compatibility at the upper range, reducing patient lift distance and caregiver musculoskeletal strain.

The 0–85° backrest adjustment is one of the widest available in the transportation trolley range, enabling near-upright positioning for cardiac, respiratory and conscious patients during transport — particularly relevant in longer hospital transfer corridors and lift journeys. Foldable aluminum alloy side rails provide patient fall prevention during movement, then fold flat to the side for easy boarding and transfer without requiring the patient to swing over a fixed rail.

The integrated IV pole with height-adjustable hook array allows continuous infusion support throughout transport without interrupting or disconnecting running IV lines. Ergonomic push handles give staff controlled maneuverability around corridor bends, into lifts and up ramps, while 360° swivel casters with a dual braking system secure the trolley on arrival at any clinical location.

Quick facts

The Keling KL-PT002 is a patient transportation trolley designed for reliable, safe and efficient hospital patient transfer.
External dimensions are 2003 × 640 × (530–900) mm, with 530 mm of hydraulic height adjustment range.
Safe working load is 160 kg, supported by a reinforced frame construction.
The backrest adjusts from 0° to 85° for a wide range of clinical patient positions.
Hydraulic lifting base provides smooth, stable and effortless height elevation without manual cranking.
Standard accessories include a height-adjustable IV pole, foldable aluminum alloy side rails and ergonomic push handles.

Key features

Hydraulic lifting base
smooth, stable hydraulic height adjustment from 530 mm to 900 mm with minimal operator effort.
0–85° adjustable backrest
wide backrest range covers flat, semi-recumbent and near-upright patient positions.
160 kg safe working load
rated for standard adult patient populations with reinforced frame construction.
Foldable aluminum alloy side rails
fold-down rails prevent patient falls during transport and open fully for boarding access.
Integrated IV pole
height-adjustable IV pole with hooks for continuous infusion support during transfer.
Ergonomic push handles
dual push handles provide controlled maneuverability and easy steering by a single operator.
360° swivel casters with dual brakes
smooth-rolling casters with reliable dual brake system for mobility and secure positioning.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

11 parameters for KL-PT002

KL-PT002 technical specifications
Model	KL-PT002
Product type	Patient transportation trolley
External size (L × W × H)	2003 × 640 × (530–900) mm
Height adjustment range	530 mm (530–900 mm)
Safe load	160 kg
Backrest adjustment	0–85°
Mattress size	1950 × 600 × 60 mm
Lift mechanism	Hydraulic
Side rails	Foldable aluminum alloy
IV pole	Included, height-adjustable
Color	Customizable

Applications

The KL-PT002 is used in hospital wards, emergency departments, operating theatre transfer zones, ICU corridors and radiology transfer bays. Its IV pole and hydraulic height adjustment suit post-operative patients and those requiring continuous infusion, while the wide backrest range supports respiratory and cardiac patients during inter-departmental transport.

Questions buyers ask

What is the Keling KL-PT002 patient transportation trolley used for?

The KL-PT002 is a full-featured hospital patient transportation trolley used to move patients between departments, wards and procedure rooms. Its hydraulic height adjustment, IV pole and foldable side rails provide a complete transport platform for patients ranging from fully recumbent to nearly upright during transfer.

How much does the KL-PT002 adjust in height and how is it operated?

The KL-PT002 adjusts from 530 mm to 900 mm — a 370 mm range — via a hydraulic lift mechanism. Hydraulic operation delivers smooth, controlled height change without manual cranking, allowing a single operator to adjust height while maintaining patient observation.

What accessories come standard with the KL-PT002?

The KL-PT002 includes foldable aluminum alloy side rails, a height-adjustable IV pole and ergonomic push handles. The mattress measures 1950 × 600 × 60 mm with color options available.

Can the KL-PT002 be ordered for hospital fleet or export?

Yes. Keling Medical supports bulk hospital and fleet procurement and export orders through its Shanghai sales and export center. Contact Keling Medical via https://www.kelingmed.com for volume specifications and pricing.
