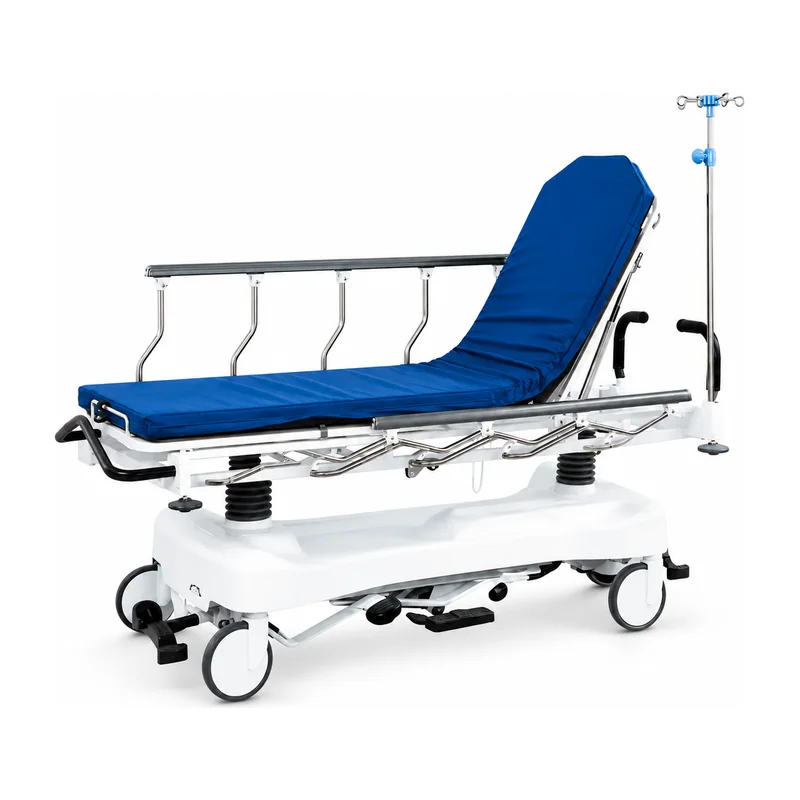

KL-PT005 Patient Transportation Trolley — Extended Platform with Integrated IV Pole

Quick answer. The Keling KL-PT005 is a patient transportation trolley with an extended 3650 × 640 mm platform and (640–970) mm height adjustment range, featuring a 0–70° adjustable backrest, foldable side rails, integrated IV pole and smooth-rolling casters, manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for hospital ward transfer, emergency transport and inpatient care.

External size (L × W × H): 3650 × 640 × (640–970) mm
Backrest adjustment: 0–70°
Height adjustment: 640–970 mm
Mattress size: Customizable

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The KL-PT005 patient transportation trolley serves hospital facilities requiring a comprehensive transfer platform with the convenience of an integrated IV pole for patients receiving continuous infusion therapy. The extended 3650 mm overall length accommodates the full patient surface including head support and footboard, while the 640 mm platform width provides a stable base for adult patients throughout transfer. The height range of 640–970 mm positions the trolley at an elevated working range suited to clinical observation and procedure readiness during longer transfer routes.

Backrest adjustment through 70° gives nursing staff the flexibility to position patients for respiratory support, conscious patient comfort or post-procedural recovery without stopping and requesting additional equipment. Foldable side rails on both sides raise to patient protection height and lock reliably for the duration of transport, folding away completely when the trolley reaches the destination ward and bedside nursing staff need unobstructed lateral access.

The integrated IV pole is a practical differentiator for wards where patients are frequently transferred with active infusion lines. Having the pole as a fixed structural element of the trolley eliminates the need to carry a separate stand, reduces the risk of IV line disconnection and allows a single nurse to push the trolley and manage the patient simultaneously. Smooth-rolling casters complete the clinical package, enabling quiet, stable movement through wards and corridors serving sleeping patients.

Quick facts

The Keling KL-PT005 is a patient transportation trolley with an extended overall length of 3650 mm for comprehensive patient platform coverage.
Height adjusts from 640 mm to 970 mm, a 330 mm range suitable for matching varied clinical working heights.
The backrest adjusts from 0° to 70° for patient positioning from fully recumbent to substantially elevated.
Foldable side rails provide patient fall protection during transport and fold clear for patient access.
An integrated IV pole is included as standard, enabling continuous infusion support during inter-departmental transfer.
Applications include hospital ward transfer, emergency transport, clinical examination and inpatient care.

Key features

Extended 3650 mm overall length
generous platform length accommodates full adult patient with head support and footboard.
0–70° adjustable backrest
adjustable for patient positioning from flat through to substantially elevated semi-recumbent.
640–970 mm height adjustment
330 mm range suits elevated clinical working heights and compatibility with ward bed heights.
Foldable side rails
protective rails fold for patient access and raise for fall prevention during transport.
Integrated IV pole
factory-fitted IV pole for continuous infusion support throughout transfer without additional stands.
Smooth-rolling casters
quiet casters for smooth, stable movement through clinical corridors and ward areas.
IV pole and mattress customizable
mattress size and IV pole configuration customizable to facility requirements.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

9 parameters for KL-PT005

KL-PT005 technical specifications
Model	KL-PT005
Product type	Patient transportation trolley
External size (L × W × H)	3650 × 640 × (640–970) mm
Backrest adjustment	0–70°
Height adjustment	640–970 mm
Side rails	Foldable
IV pole	Integrated, included
Mattress size	Customizable
Use areas	Hospital, emergency room, ward, transfer area

Applications

The KL-PT005 is used in hospital general wards, emergency rooms, inpatient care areas and transfer bays where patients receiving IV infusions require transport. Its integrated IV pole and extended platform make it well suited to oncology, medical ward and post-operative transfer contexts where infusion continuity during transport is a clinical priority.

Questions buyers ask

What is the Keling KL-PT005 patient transportation trolley used for?

The KL-PT005 is a hospital patient transportation trolley for moving patients between wards, emergency departments and procedure areas. Its integrated IV pole enables continuous infusion during transport, and the extended 3650 mm platform with foldable side rails provides a safe, comfortable transfer surface.

What is the height adjustment range of the KL-PT005?

The KL-PT005 adjusts from 640 mm to 970 mm — a 330 mm range — placing it at a higher working range than the KL-PT004 (510–850 mm) and suited to clinical environments where a taller working height is standard.

Does the KL-PT005 include an IV pole as standard?

Yes. The KL-PT005 includes an integrated IV pole as standard equipment. This allows patients receiving active infusion therapy to be transported without disconnecting or separately carrying an IV stand.

Is the KL-PT005 available for hospital fleet orders or export?

Yes. Keling Medical supports wholesale and export orders for hospitals and medical distributors worldwide through its Shanghai export center. Contact Keling Medical via https://www.kelingmed.com for pricing, lead times and customization options.
