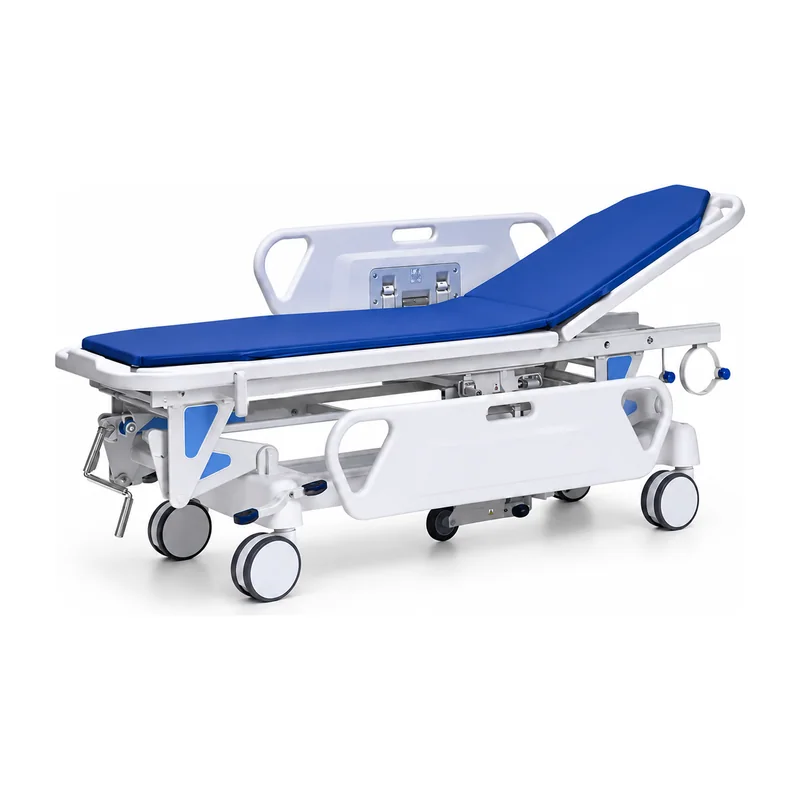

KL-PT003 Patient Transportation Trolley — High-Capacity Transfer Trolley with 6-Inch Castors

Quick answer. The Keling KL-PT003 is a patient transportation trolley with a 250 kg load capacity, measuring 1930 × 640 × (590–870) mm, with 0–75° backrest adjustment, 590 mm height adjustment range, 6-inch premium castors, foldable side rails and a customizable mattress, manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for hospital patient transport.

External size (L × W × H): 1930 × 640 × (590–870) mm
Load capacity: 250 kg
Backrest adjustment: 0–75°
Height adjustment: 590–870 mm

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The KL-PT003 patient transportation trolley is the high-load variant in the KL-PT series, rated to 250 kg to accommodate the full adult patient weight range including bariatric patients, without requiring separate specialist equipment. The 1930 × 640 mm platform provides a spacious transfer surface, and the 590–870 mm height range with smooth adjustment mechanism enables the trolley to align with a wide variety of bed heights across different ward configurations — reducing the patient lift gap during handover.

Castor selection significantly influences trolley handling in practice, and the KL-PT003's 6-inch premium castors are a direct operational advantage. Larger castors roll over threshold ridges and carpet transitions more smoothly than smaller alternatives, reducing the jarring experienced by the patient during corridor navigation. The secure braking system locks all castors simultaneously at the destination, providing a stable transfer platform for the patient handover.

Backrest adjustment from 0° to 75° via a smooth mechanism supports the full spectrum of patient conditions encountered in hospital transport — from fully recumbent post-operative patients to semi-upright respiratory patients. Foldable side rails provide patient fall protection during movement, opening cleanly when boarding access is needed. The customizable mattress allows procurement teams to specify color to match infection-control or ward identification schemes.

Quick facts

The Keling KL-PT003 is a patient transportation trolley engineered for safety, comfort and reliability in hospital patient transfer.
External dimensions are 1930 × 640 × (590–870) mm, with a 280 mm height adjustment range.
Load capacity is 250 kg — the highest in the KL-PT series — supported by a robust frame with premium materials.
The backrest adjusts from 0° to 75° for flexible patient positioning across clinical presentations.
Height adjustment spans 590–870 mm for compatibility with varying bed heights during patient transfer.
Six-inch premium castors deliver smooth rolling with reliable braking and excellent maneuverability in clinical corridors.

Key features

250 kg load capacity
highest load rating in the KL-PT series, supporting standard and bariatric patient transfer without specialist equipment.
6-inch premium castors
larger diameter castors roll smoothly over thresholds and floor transitions with reliable braking.
0–75° adjustable backrest
smooth backrest mechanism for patient positioning from flat through to semi-upright.
590–870 mm height adjustment
280 mm adjustment range for compatibility with a wide variety of ward bed heights.
Foldable side rails
protective rails fold down for boarding access and raise securely during transport.
Robust frame construction
premium materials support the 250 kg load rating with long-term structural reliability.
Customizable mattress
mattress available in selected colors to match ward or facility requirements.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

8 parameters for KL-PT003

KL-PT003 technical specifications
Model	KL-PT003
Product type	Patient transportation trolley
External size (L × W × H)	1930 × 640 × (590–870) mm
Load capacity	250 kg
Backrest adjustment	0–75°
Height adjustment	590–870 mm
Castor diameter	6 inch
Mattress	Customizable

Applications

The KL-PT003 is used in general hospital wards, bariatric care units, emergency departments and inter-departmental transfer corridors. Its 250 kg load rating makes it the preferred choice for hospitals with bariatric patient programs or general wards where a single trolley must cover the full patient weight range without procurement of specialist equipment.

Questions buyers ask

What is the Keling KL-PT003 patient transportation trolley used for?

The KL-PT003 is a high-capacity patient transportation trolley for moving patients between hospital departments, wards and procedure areas. Its 250 kg load capacity accommodates both standard and bariatric patients, while the 6-inch castors and smooth height adjustment improve handling and bed-alignment during patient transfer.

What distinguishes the KL-PT003 from the KL-PT001 and KL-PT002?

The KL-PT003 has a higher load capacity (250 kg versus 150 kg and 160 kg) and is fitted with larger 6-inch castors for improved floor-clearance and smooth rolling. The height range of 590–870 mm is also distinct, and the 0–75° backrest covers a standard clinical range while the robust frame supports the elevated load specification.

Can the mattress color be customized for the KL-PT003?

Yes. The mattress on the KL-PT003 is available in customizable colors. Contact Keling Medical for available options to match your facility's ward color coding or preference.

Is the KL-PT003 available for export and bulk orders?

Yes. Keling Medical supplies hospital procurement teams and medical distributors worldwide and supports bulk export orders through its Shanghai sales and export center. Contact Keling Medical via https://www.kelingmed.com for volume pricing and lead times.
