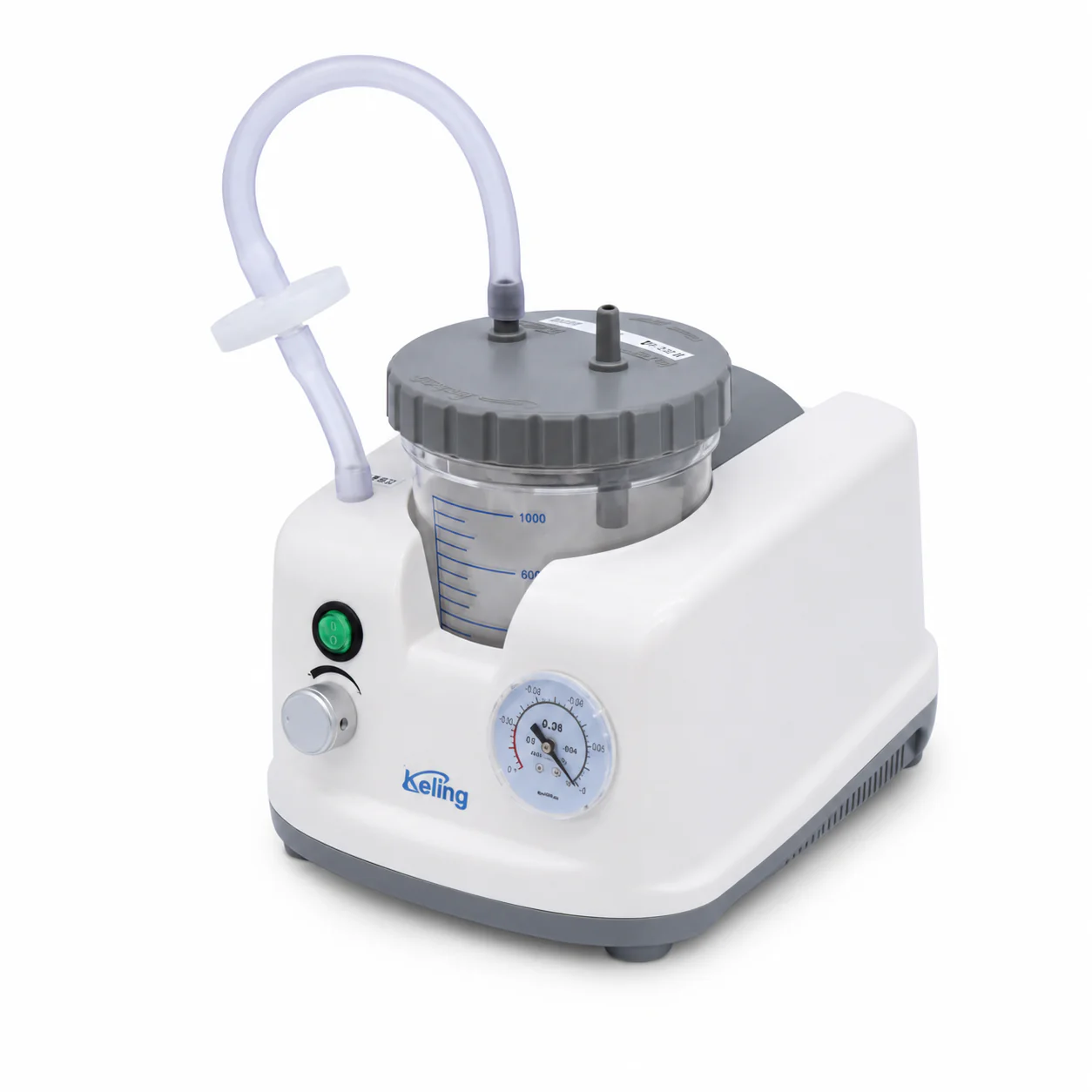

# DFX-23A-II Electric Sputum Suction Machine — Ultra-Compact Portable Aspirator for Bedside and Home Use
Quick answer: The Keling DFX-23A-II is a portable electric sputum suction machine with ≥15 L/min free air flow, a negative pressure range of 0.013–0.07 MPa, a 1×1000 ml medical-grade plastic liquid vessel, ≤55 dB noise level and an exceptionally low 50 VA input power. It is manufactured by Keling Medical (Keling Medical) for hospitals, clinics and household first-aid use.
Quick Facts
- The Keling DFX-23A-II is a portable electric sputum suction machine in a compact, lightweight format for bedside and home use.
- Free air flow is ≥15 L/min with an adjustable negative pressure range of 0.013–0.07 MPa.
- Liquid vessel is 1×1000 ml medical-grade plastic, with a macromolecule suction bottle designed for easy disinfection and cleaning.
- Input power is only 50 VA — the lowest in the DFX-23A family — and noise level is ≤55 dB for quiet bedside operation.
- Power supply is 220 V ±10% 50 Hz ±2%; the maintenance-free oil-free piston pump requires no lubrication servicing.
- Built-in overflow protection prevents fluid from entering the pump assembly, and the one-piece ABS housing ensures a durable, compact build.
Overview

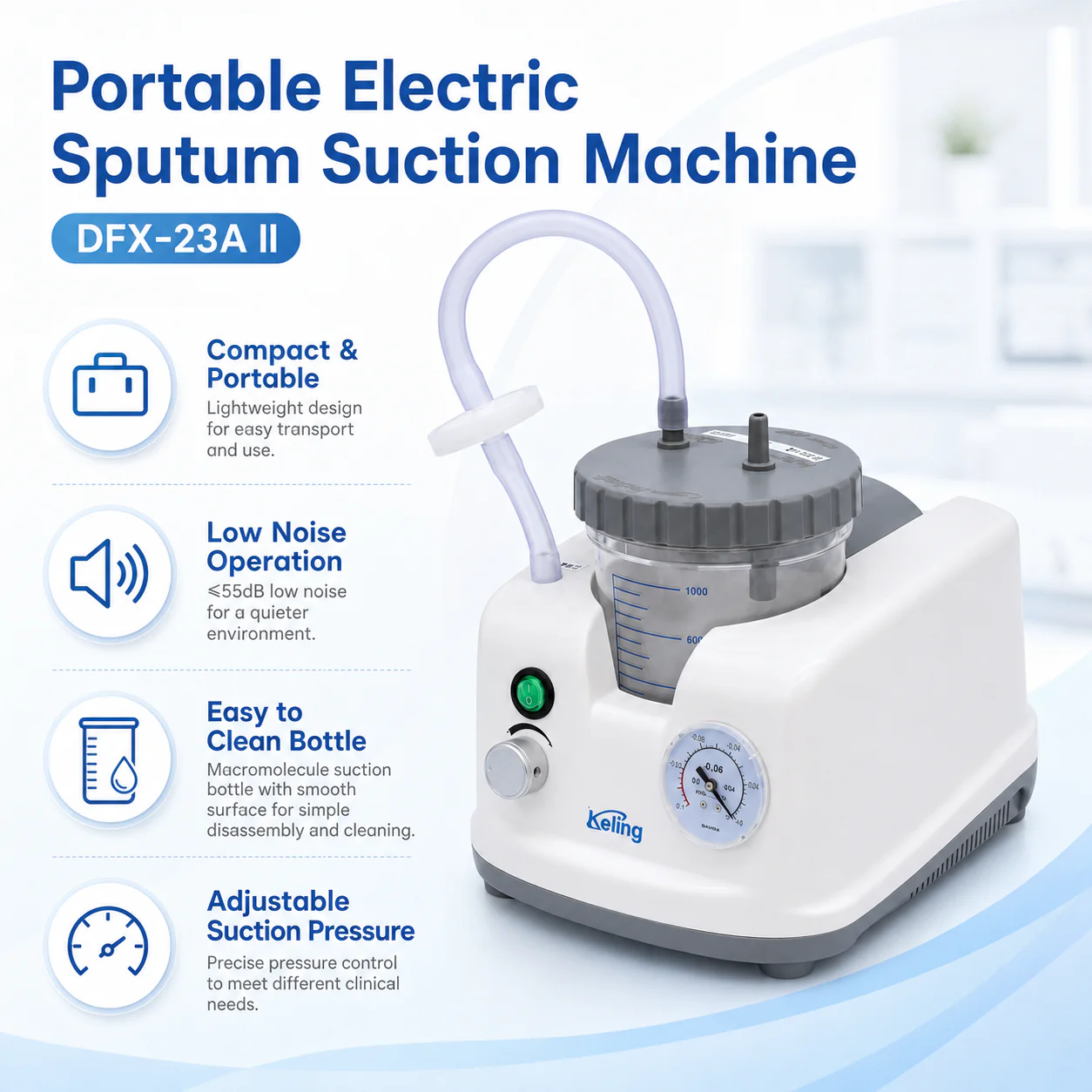

The DFX-23A-II portable electric sputum suction machine occupies the most compact and energy-efficient position in Keling Medical's DFX-23A series. With a 50 VA power draw — approximately one-third that of comparable models — and a lightweight one-piece ABS housing, it is particularly suited to prolonged bedside use, home nursing environments and settings where power consumption or weight are critical considerations.
Free air flow of ≥15 L/min and an adjustable negative pressure range of 0.013–0.07 MPa provide effective suctioning of sputum and other secretions for patients with moderate secretion volumes. The macromolecule (medical-grade polymer) 1×1000 ml suction bottle removes easily for disinfection and cleaning between uses, supporting infection control protocols in both clinical and home settings. An integrated overflow protection device keeps the maintenance-free oil-free piston pump safe from fluid contamination even if a caregiver fails to empty the bottle before it reaches capacity.

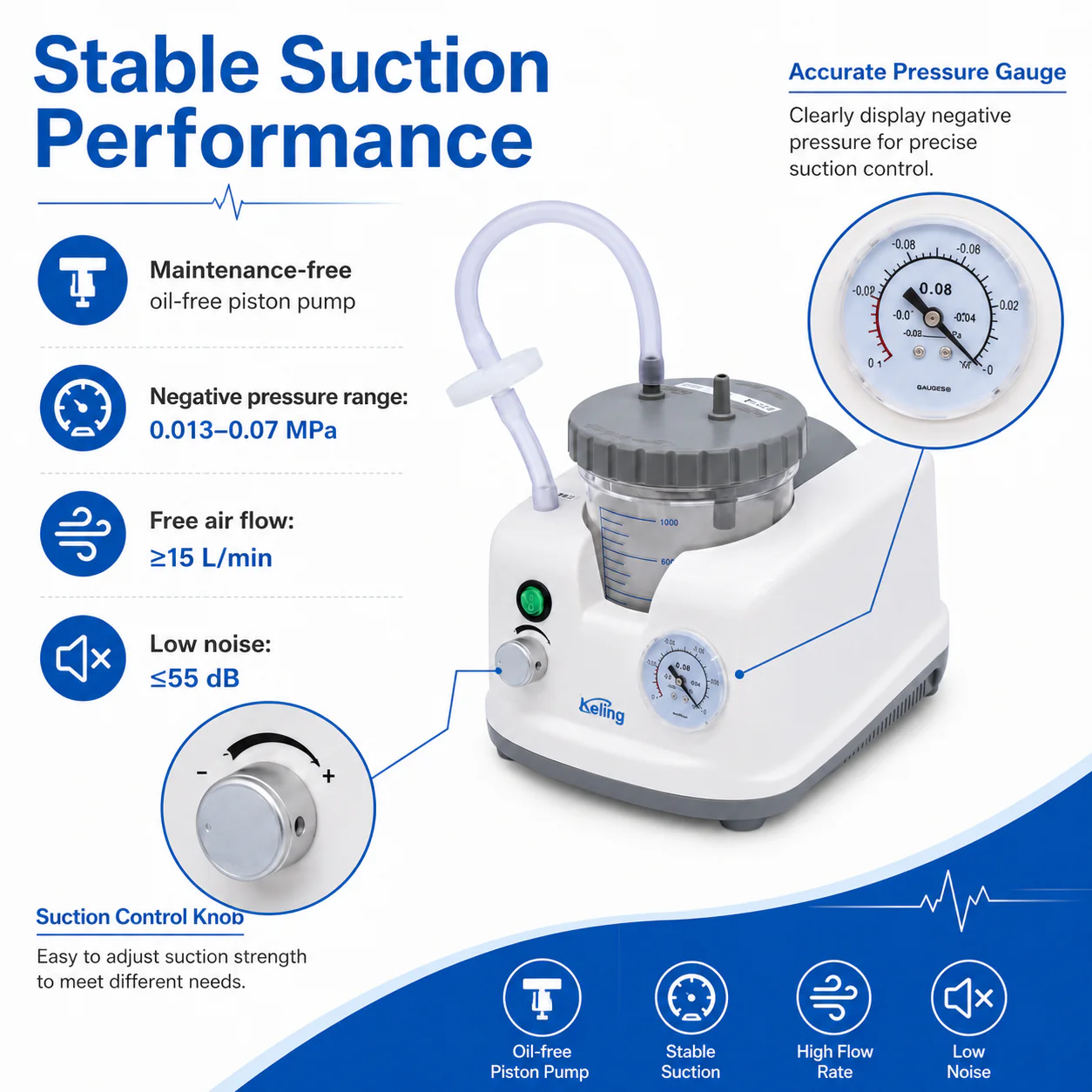

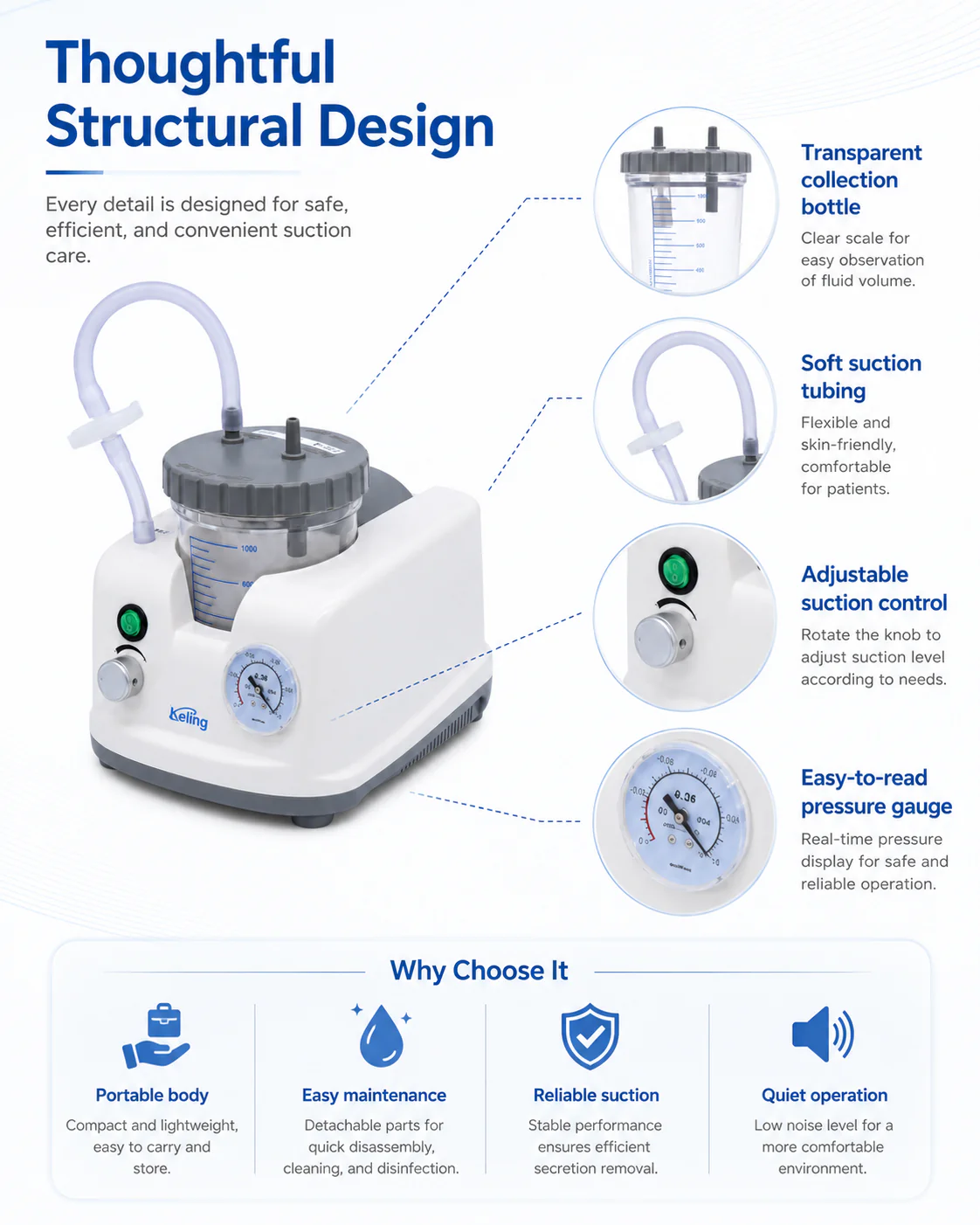

Operating at ≤55 dB, the DFX-23A-II generates minimal noise during suctioning — an important quality for patients undergoing extended treatments or those resting between sessions. The simple ON/OFF and vacuum adjustment controls on the front panel require no specialist training, making the unit accessible to home caregivers as well as nursing staff.

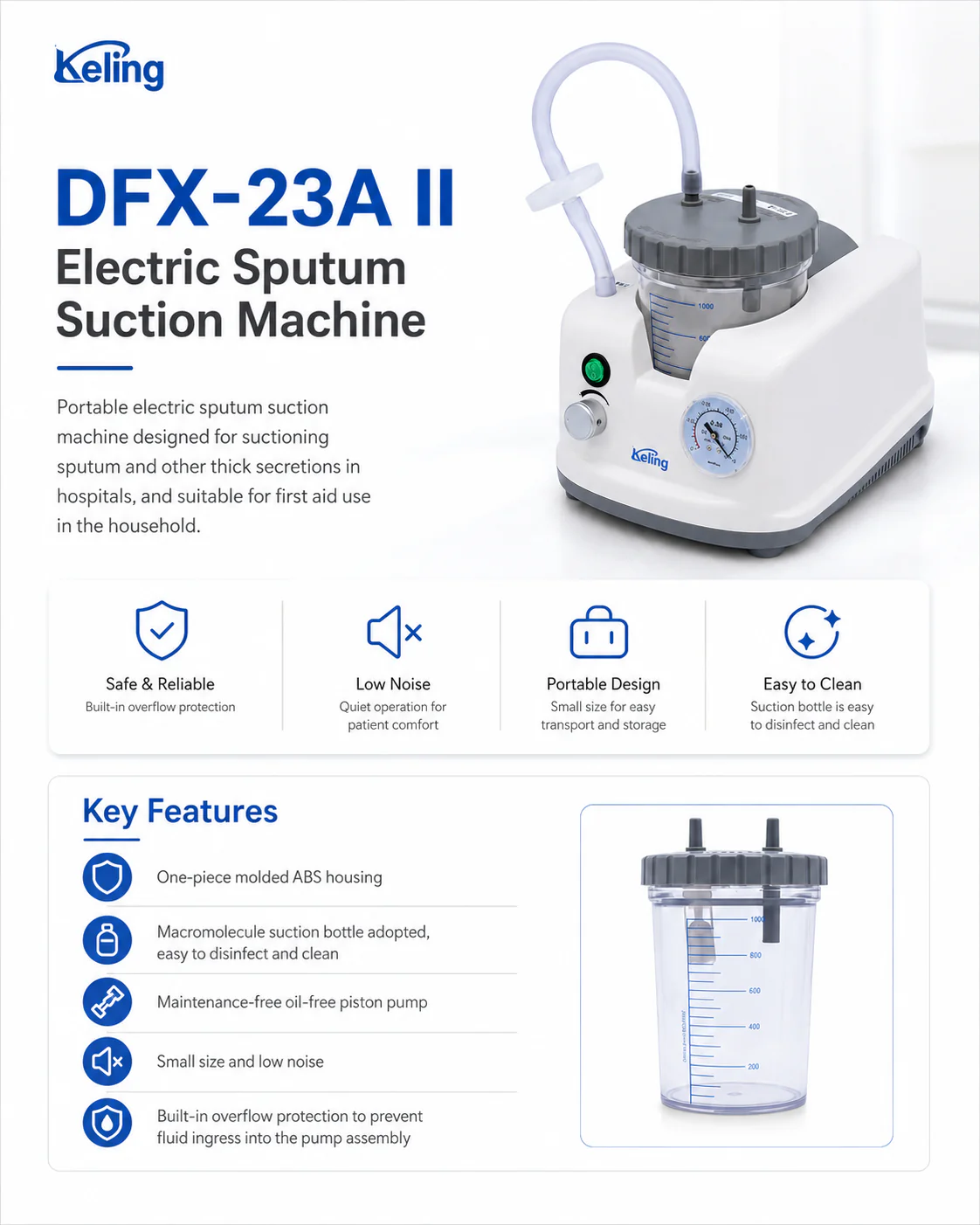

Key Features
- ≥15 L/min free air flow — sufficient suction rate for effective aspiration of sputum and moderate-viscosity secretions.
- 0.013–0.07 MPa negative pressure range — adjustable vacuum allows clinicians and caregivers to match suction strength to patient needs.
- 50 VA ultra-low power consumption — the most energy-efficient model in the DFX-23A range, suited to continuous home or ward use.

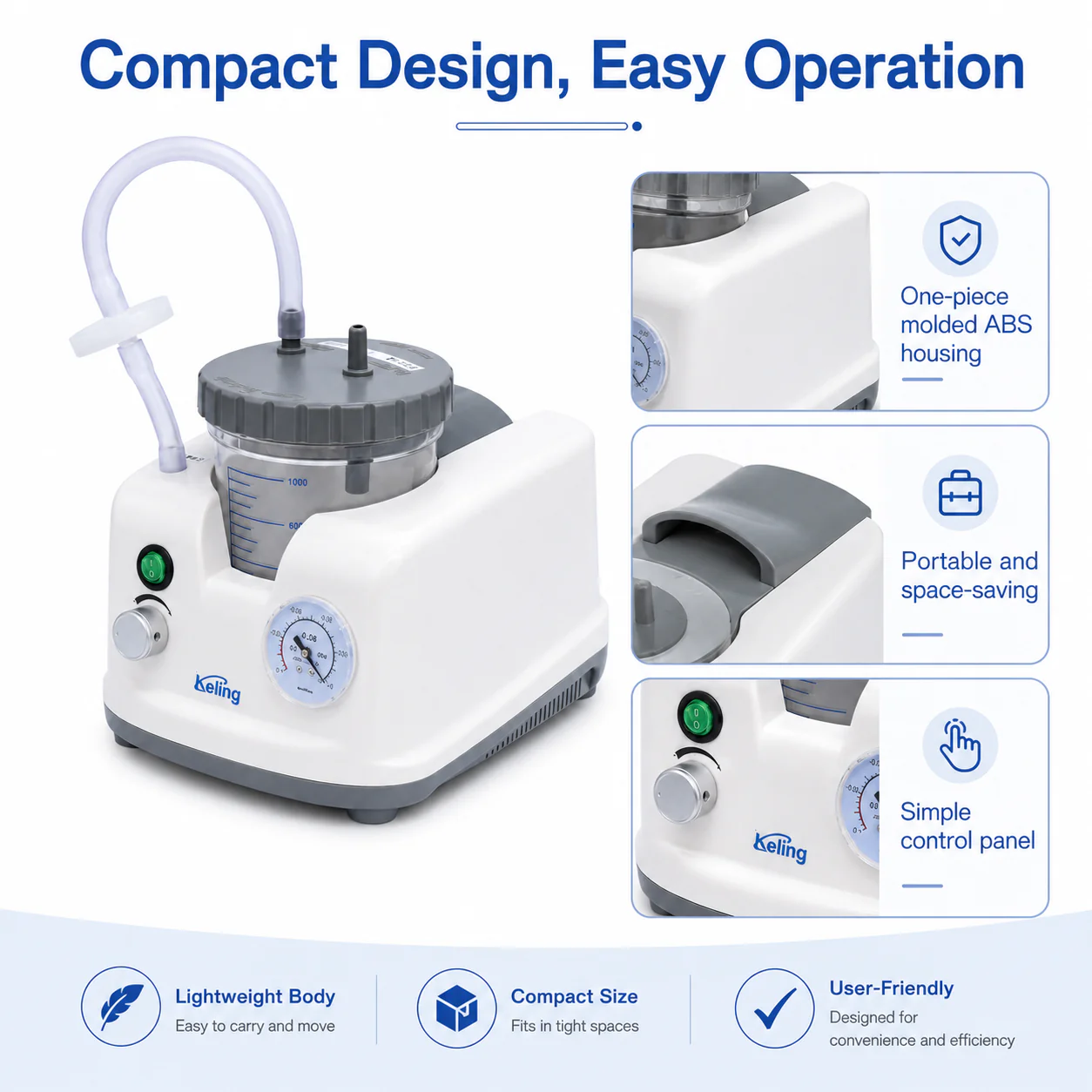

- One-piece molded ABS housing — compact and lightweight, designed for ease of carrying and repositioning between patients or rooms.

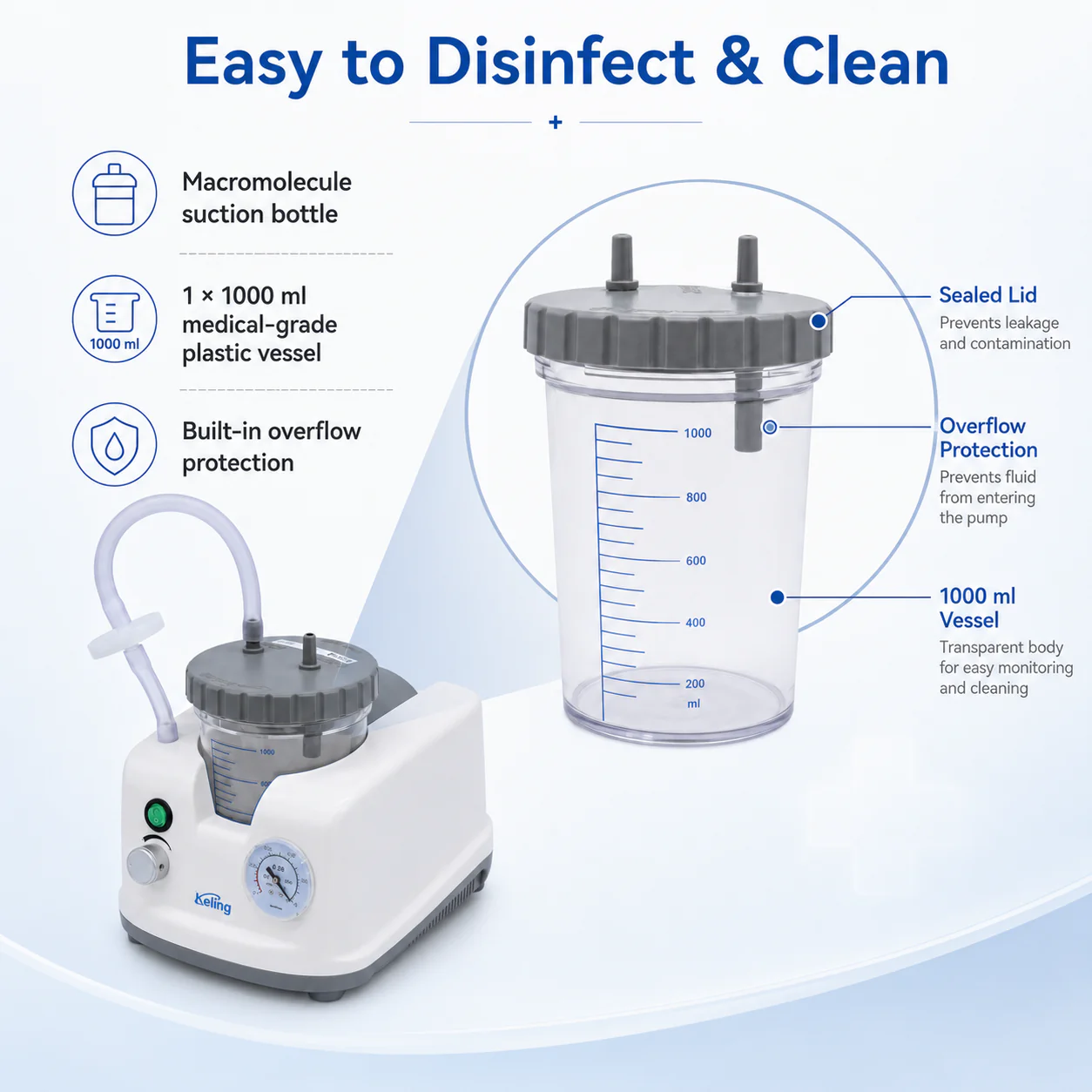

- Macromolecule suction bottle — 1×1000 ml medical-grade plastic vessel is simple to detach, disinfect and reattach for hygienic reuse.
- Maintenance-free oil-free piston pump — no lubrication required, keeping ongoing maintenance demands and costs minimal.
- Built-in overflow protection — safeguards the pump assembly from fluid ingress when the collection bottle approaches capacity.

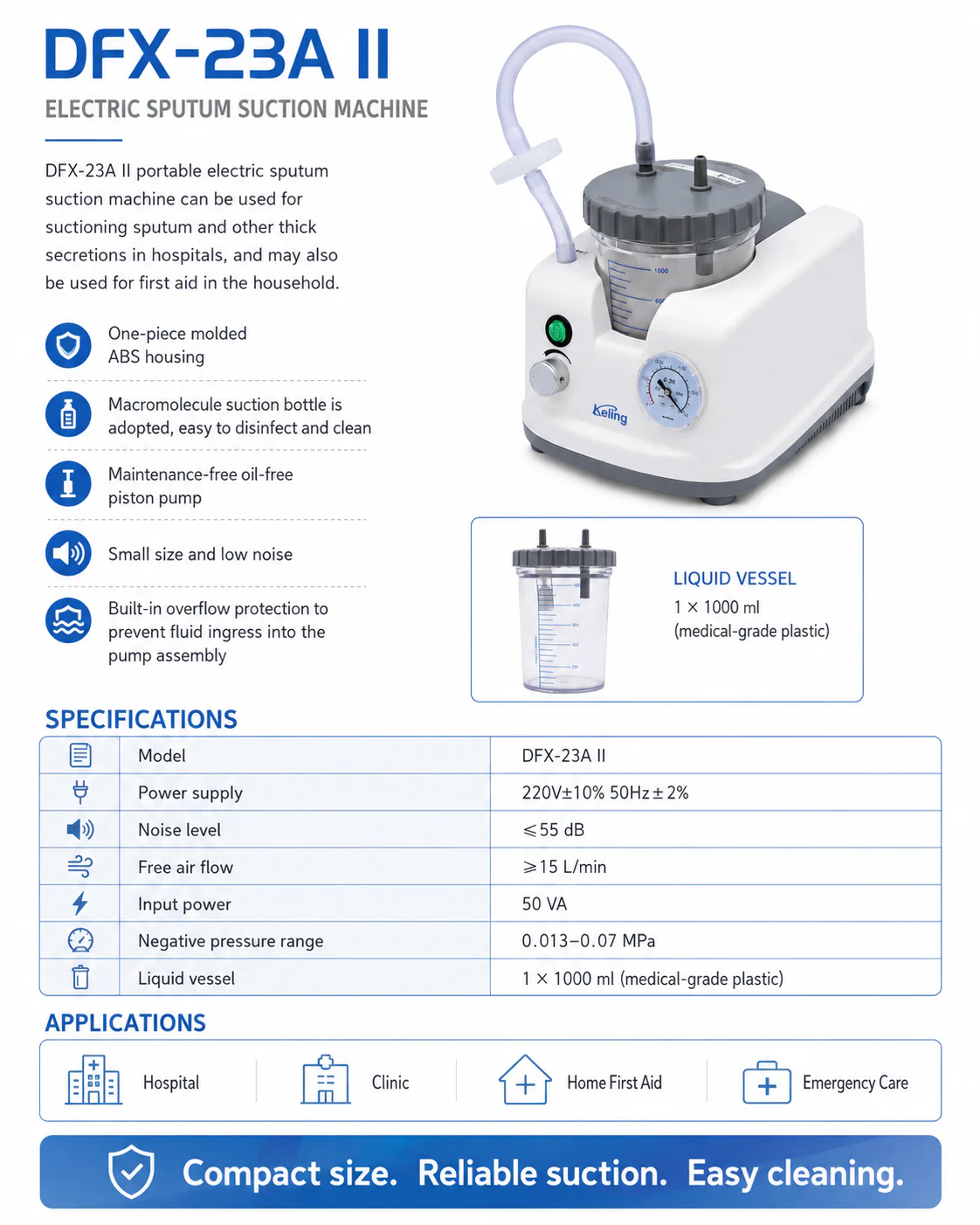

Technical Specifications
| Parameter | Value |
|---|---|
| Model | DFX-23A-II |
| Product type | Electric sputum suction machine |
| Power supply | 220 V ±10% 50 Hz ±2% |
| Free air flow | ≥15 L/min |
| Negative pressure range | 0.013–0.07 MPa |
| Noise level | ≤55 dB |
| Input power | 50 VA |
| Liquid vessel | 1×1000 ml (medical-grade plastic) |
Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.
Applications
The DFX-23A-II is suited to hospital general wards, outpatient ENT clinics, nursing homes, home care environments and any setting where a compact, low-power portable suction unit is required for routine airway secretion management. It is appropriate for patients with chronic respiratory conditions who require regular sputum clearance at home with support from family caregivers.
