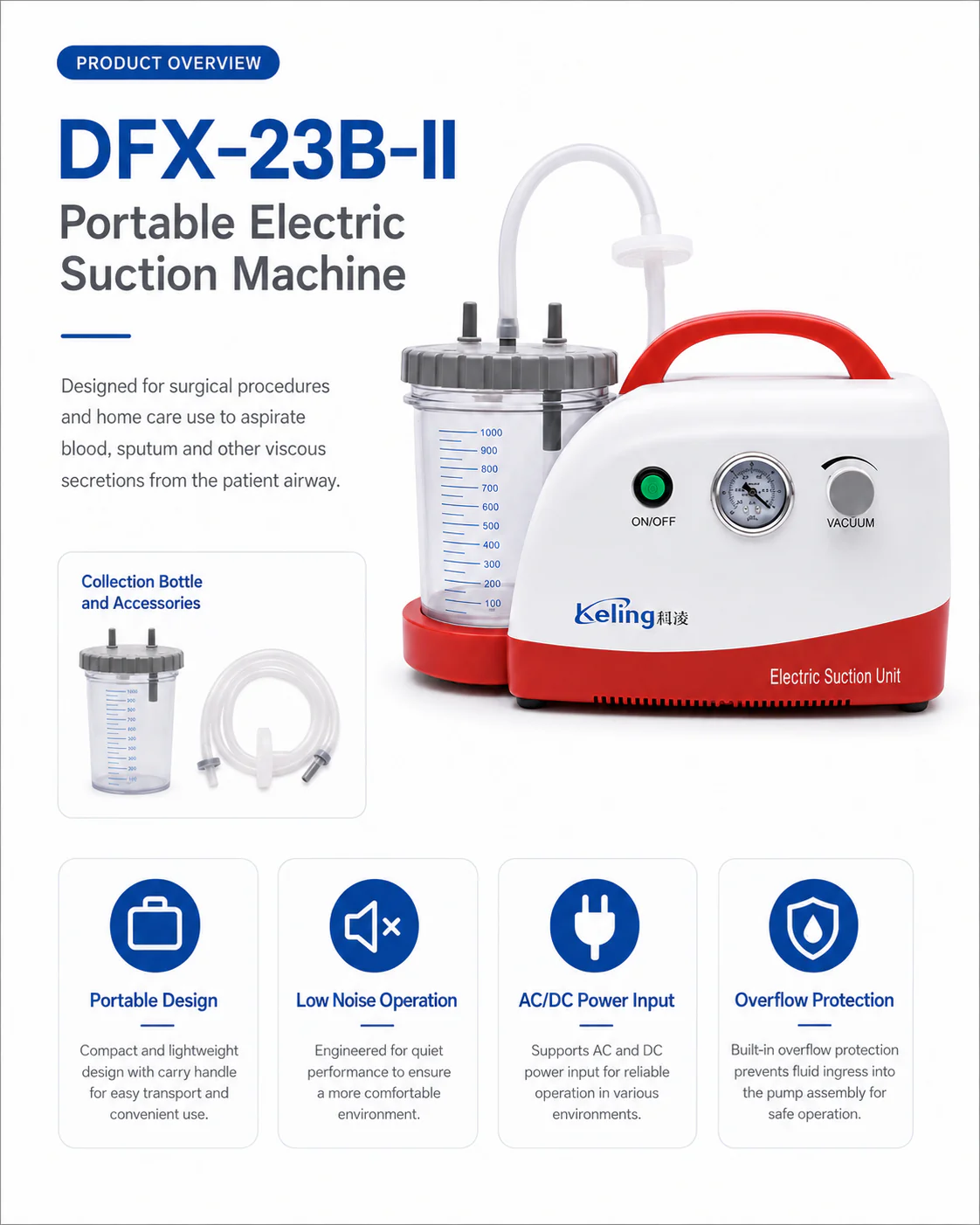

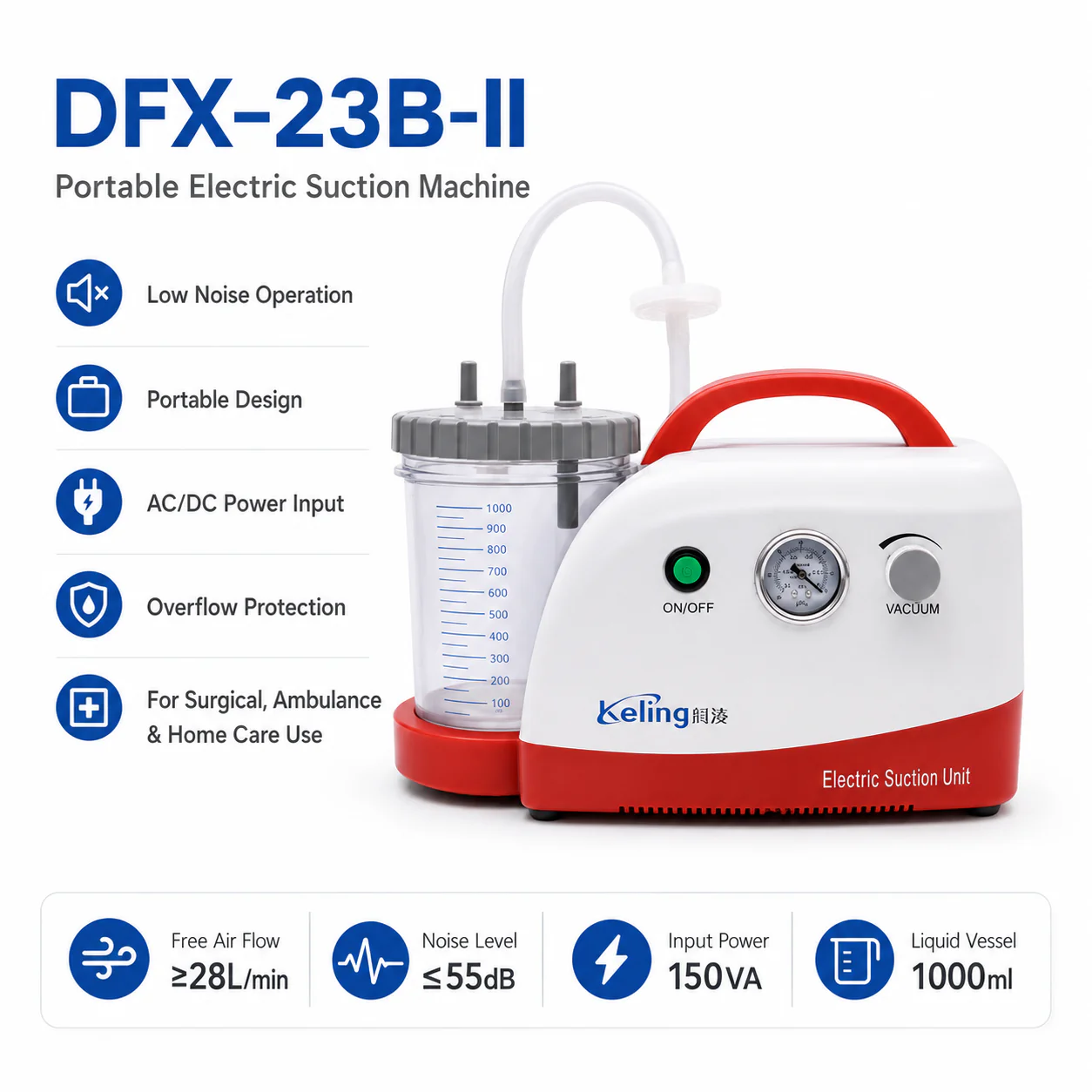

# DFX-23B-II Portable Electric Suction Machine — AC/DC Dual-Power Aspirator for Ambulance, Surgical and Field Use
Quick answer: The Keling DFX-23B-II is a portable electric suction machine with ≥28 L/min free air flow, a negative pressure range of 0.013–0.085 MPa, AC/DC dual-power input compatible with vehicle power, up to 2 hours of self-stored battery supply and a 1×1000 ml medical-grade plastic liquid vessel with ≤55 dB noise. It is manufactured by Keling Medical (Keling Medical) for surgical procedures, ambulance and field emergency applications.
Quick Facts
- The Keling DFX-23B-II is a portable electric suction machine specifically designed for surgical procedures, ambulance use and field emergency applications.
- Free air flow is ≥28 L/min — the highest in the DFX-23A/B portable series — with a negative pressure range of 0.013–0.085 MPa.
- The DFX-23B-II supports both AC mains (220 V ±10% 50 Hz ±2%) and DC vehicle power supply, with automatic AC/DC switching that does not interrupt operation.
- Integrated self-storage battery provides up to 2 hours of continuous operation without external power, and built-in overcharge protection stops charging automatically when the battery is full.
- Liquid vessel is 1×1000 ml medical-grade plastic; noise level is ≤55 dB and input power is 150 VA.
- The cold-rolled steel housing with electrostatic surface spray provides a durable, professional-grade casing suited to the rigors of ambulance and field environments.
Overview
The DFX-23B-II portable electric suction machine addresses the suction needs of mobile clinical environments — ambulances, field emergency units, home visits and surgical procedures where mains power may be unavailable or interrupted. Its AC/DC automatic switching capability means the unit transitions seamlessly between mains and vehicle power without operator intervention, and the built-in battery extends operational independence for up to 2 hours when no external power source is accessible.

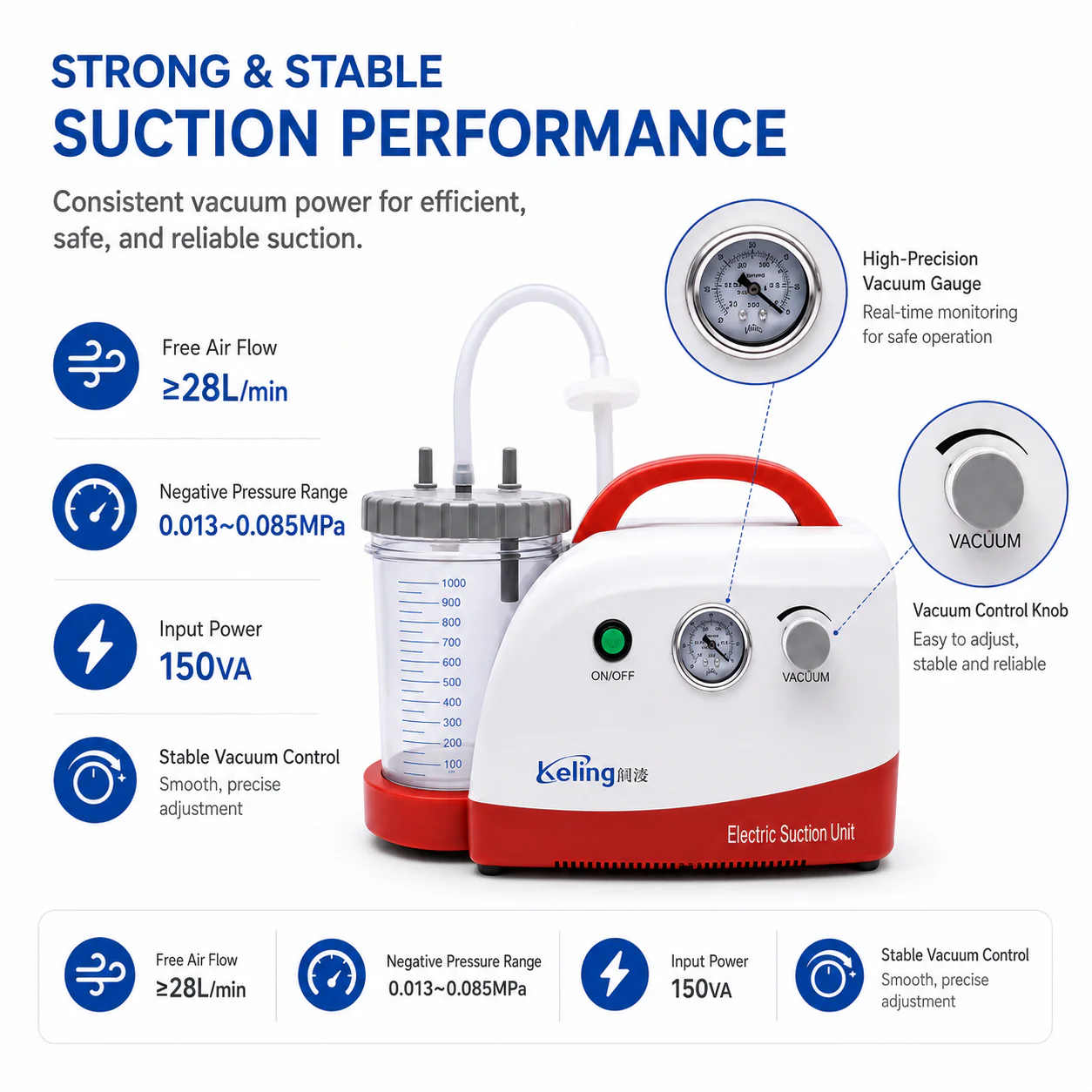

With ≥28 L/min free air flow and a vacuum range of 0.013–0.085 MPa, the DFX-23B-II delivers strong, adjustable suction for aspirating blood, sputum and other viscous secretions encountered in surgical and emergency scenarios. The maintenance-free oil-free piston pump requires no lubrication or oil changes, reducing maintenance burden in settings where servicing infrastructure may not be readily available. Built-in overflow protection prevents secretion fluid from reaching the pump if the 1000 ml collection bottle fills during an extended procedure.

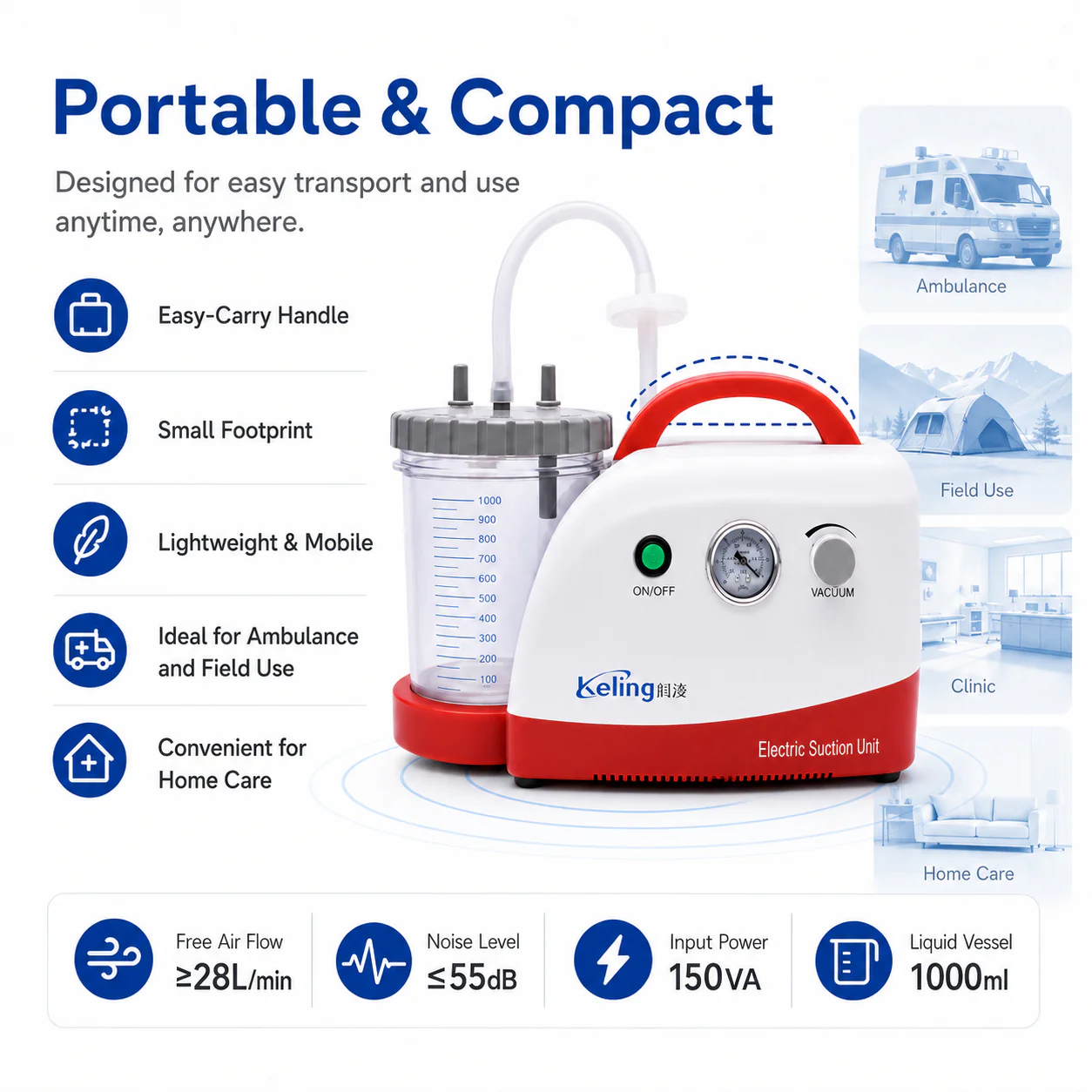

The high-quality cold-rolled steel housing with electrostatic spray finish gives the DFX-23B-II the structural durability expected in ambulance and field kit, while keeping the unit compact and portable for rapid deployment. Automatic overcharge protection ensures the battery is maintained safely during periods of mains charging without operator monitoring.

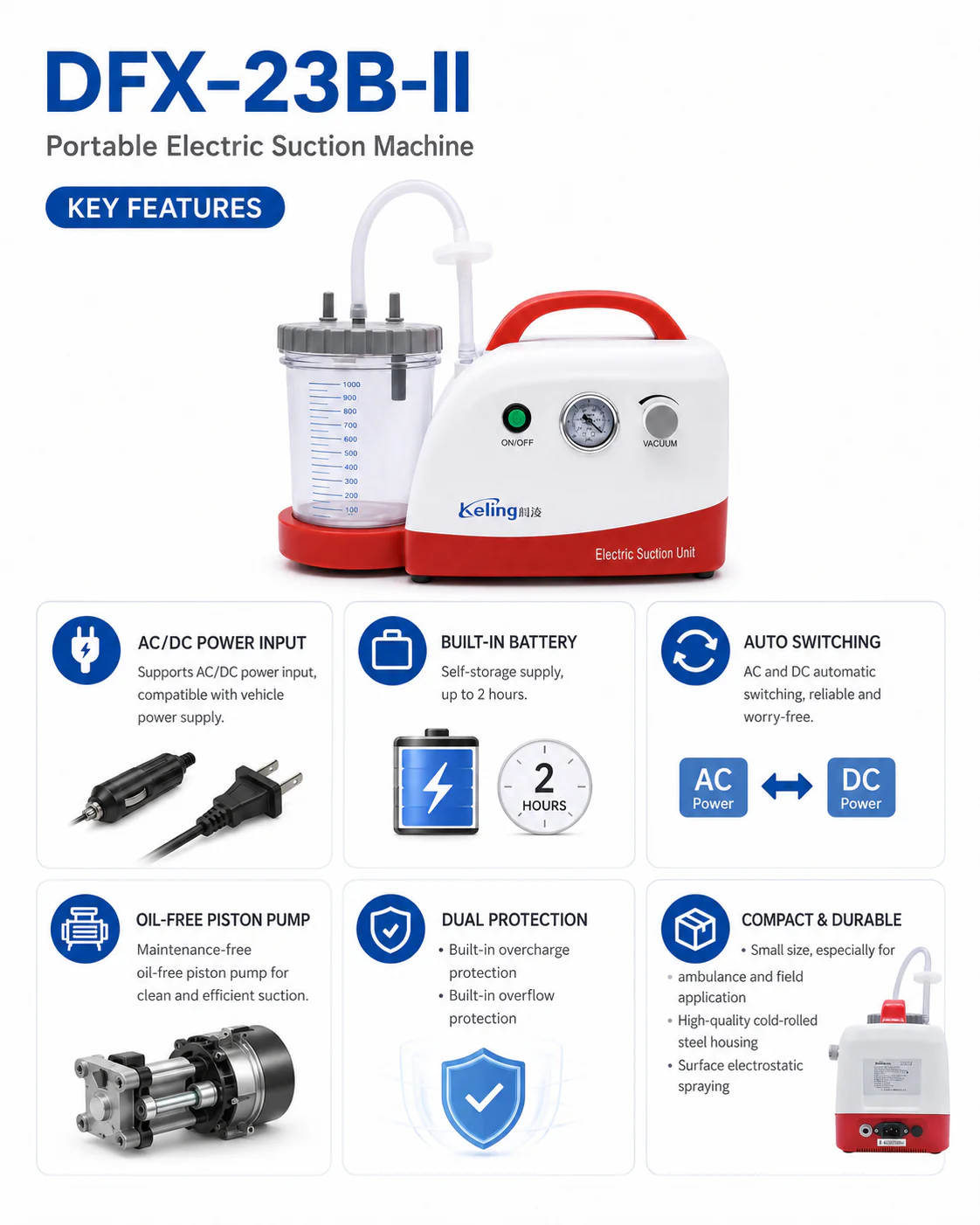

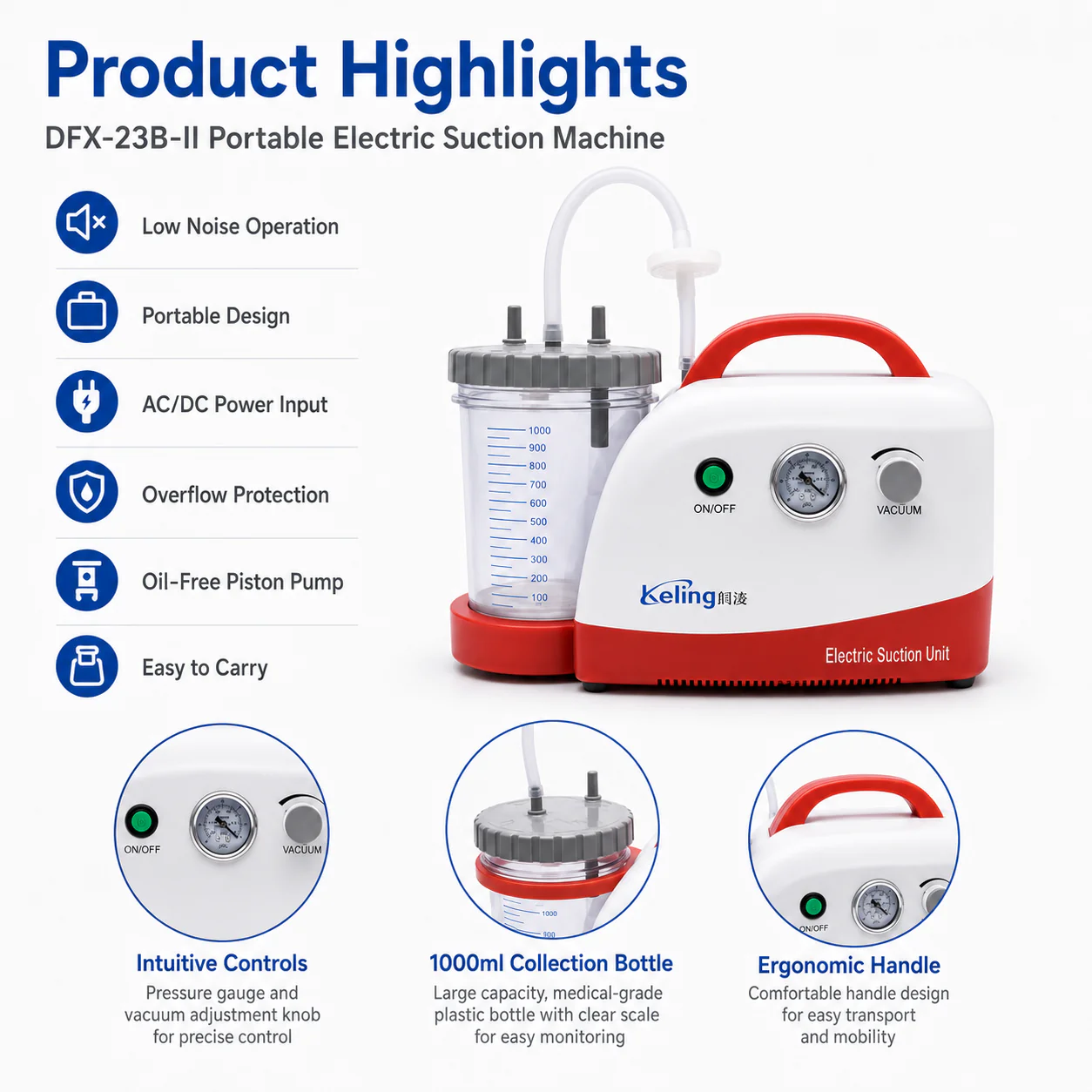

Key Features
- ≥28 L/min free air flow — the strongest suction rate in the DFX-23A/B portable series, suited to surgical aspiration and emergency secretion clearance.
- 0.013–0.085 MPa vacuum range — wide adjustable negative pressure range for varying clinical requirements from gentle to aggressive suctioning.

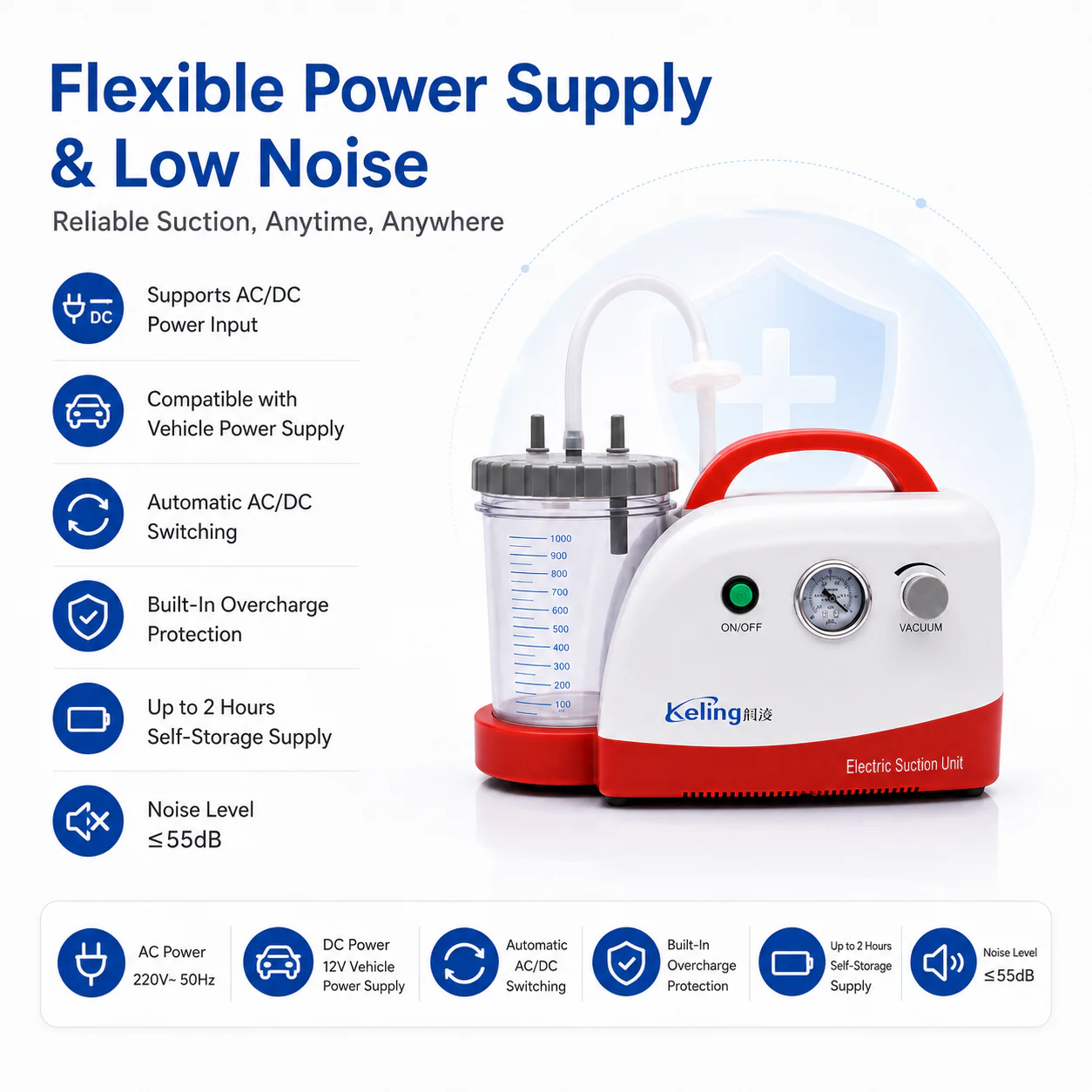

- AC/DC dual-power input — automatically switches between mains (220 V) and DC vehicle power without interrupting operation.
- Up to 2 hours battery autonomy — integrated self-storage supply enables field use and pre-hospital care when mains power is unavailable.
- Automatic overcharge protection — charging stops automatically when battery reaches full capacity, protecting battery service life.
- Cold-rolled steel housing with electrostatic spray — durable professional-grade exterior built for ambulance and field deployment.

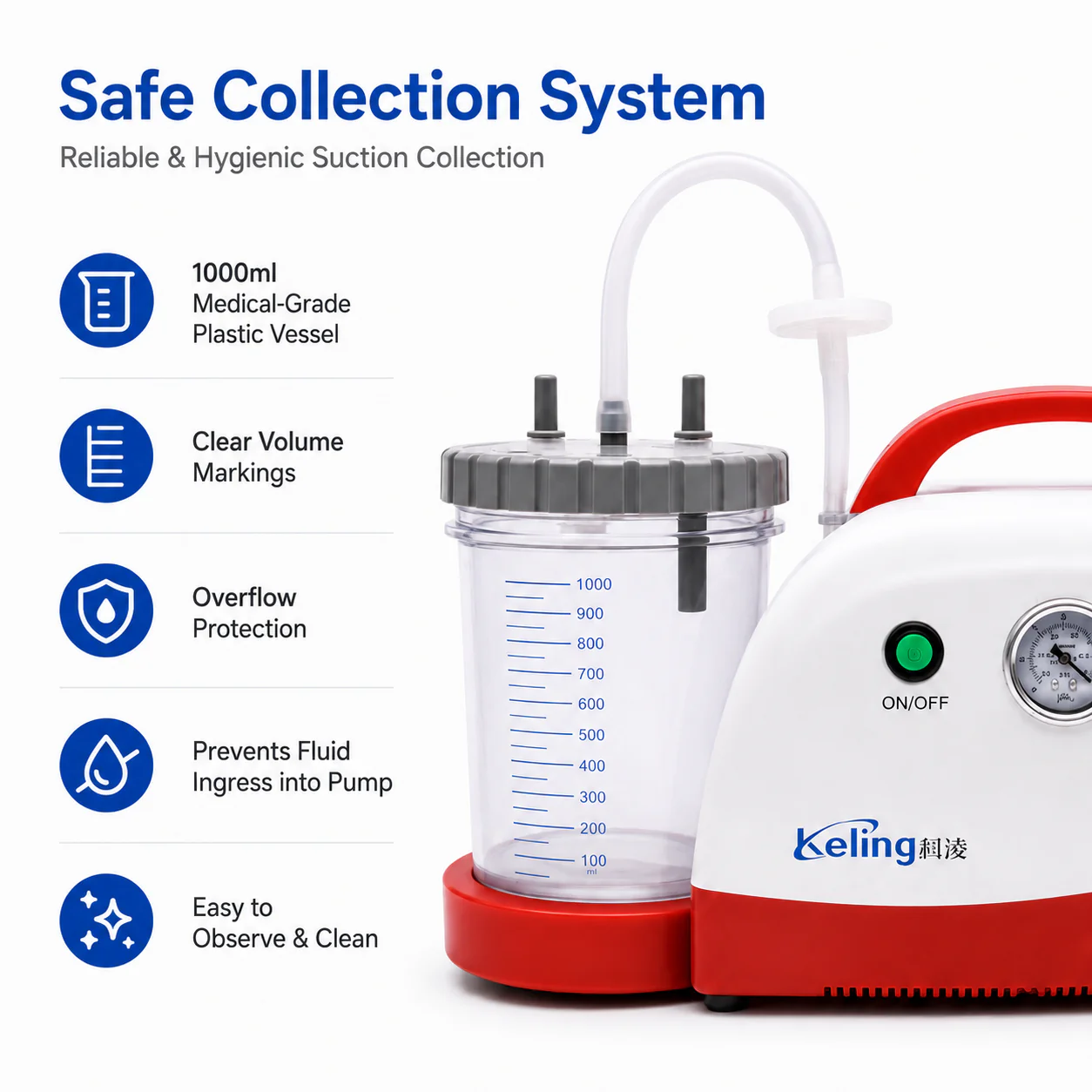

- Built-in overflow protection — prevents fluid entry into the pump assembly from a full collection bottle during extended procedures.

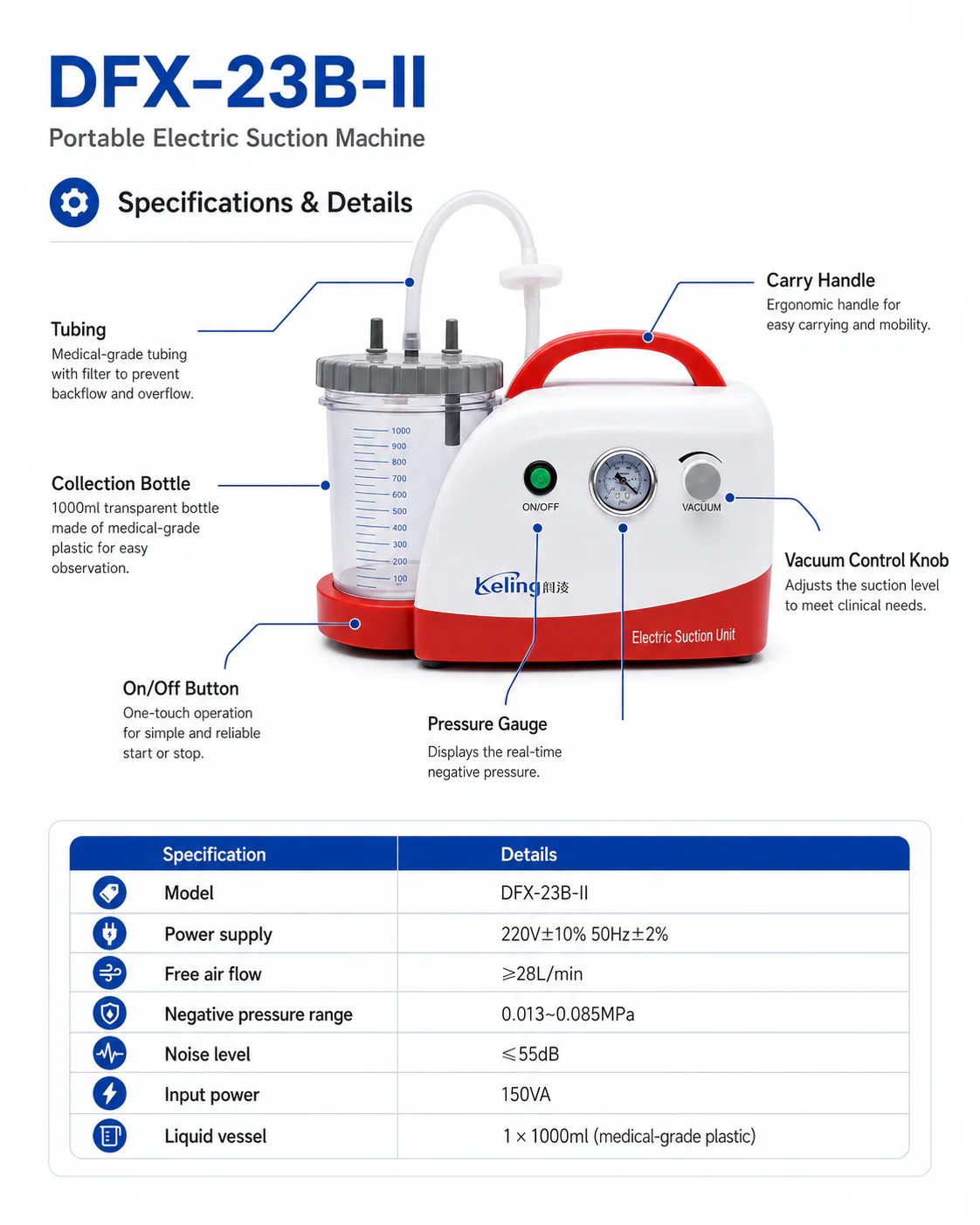

Technical Specifications
| Parameter | Value |
|---|---|
| Model | DFX-23B-II |
| Product type | Portable electric suction machine |
| Power supply | 220 V ±10% 50 Hz ±2% (AC) / DC vehicle power |
| Free air flow | ≥28 L/min |
| Negative pressure range | 0.013–0.085 MPa |
| Noise level | ≤55 dB |
| Input power | 150 VA |
| Battery autonomy | Up to 2 hours |
| Liquid vessel | 1×1000 ml (medical-grade plastic) |
Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

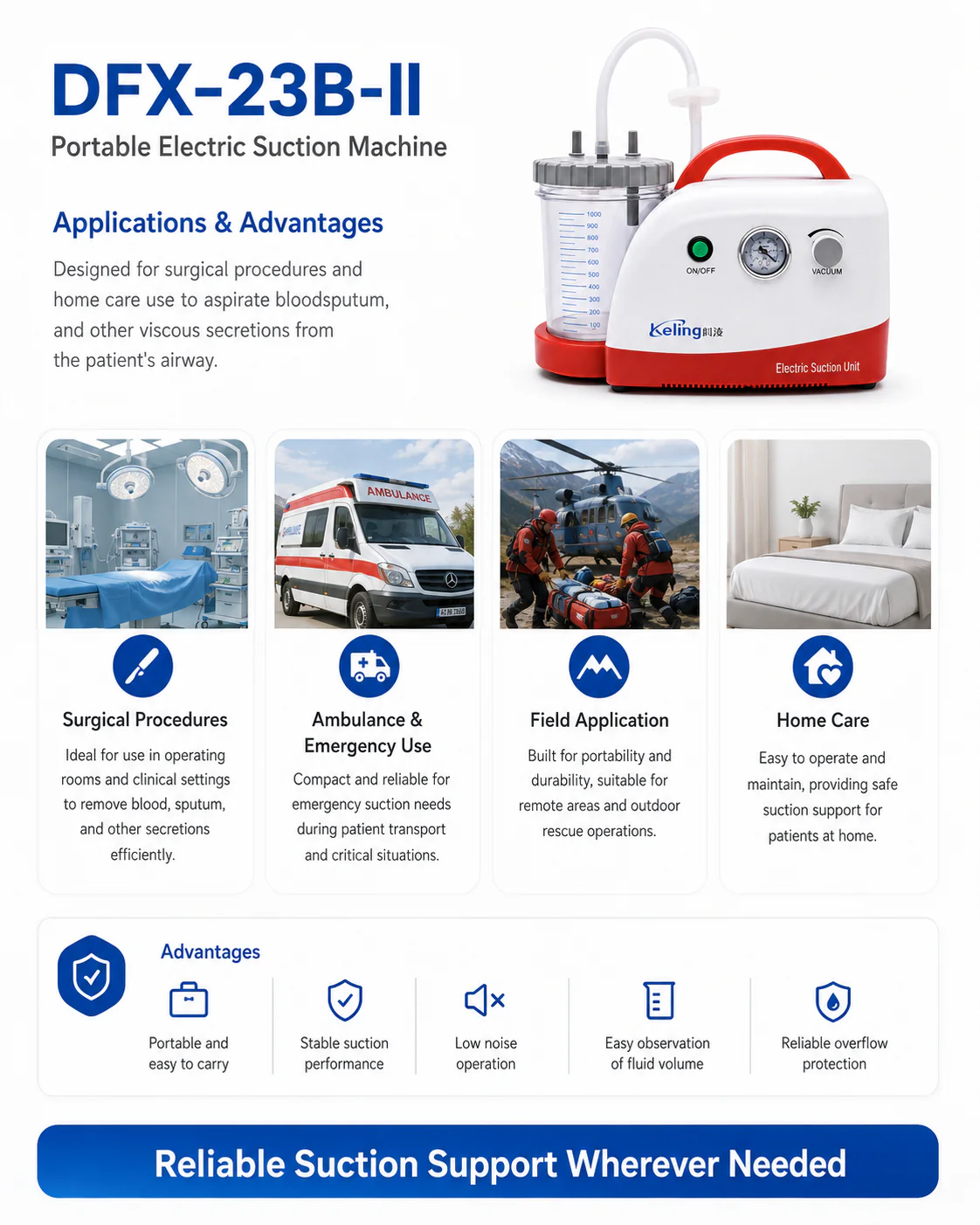

Applications
The DFX-23B-II portable electric suction machine is used in ambulances and pre-hospital emergency care, field hospitals and mobile medical units, surgical procedure rooms requiring portable backup suction, home nursing visits, and any clinical setting where reliable suctioning must be maintained independently of mains power availability. It handles blood, sputum and viscous secretions in both emergency and routine surgical care contexts.
