# KL-LED-DTR78 Double-Dome LED Shadowless Operating Lamp with Camera — 160,000 Lux, OSRAM LEDs, Ra≥85
Quick answer: The Keling KL-LED-DTR78 is a double-dome ceiling-mounted LED shadowless operating lamp with integrated camera system delivering 160,000 lux per dome, using OSRAM LEDs with color rendering index Ra≥85 (R9≥97, R11≥97), manufactured by Keling Medical (Keling Medical) for hospitals, clinics, and medical distributors. The KL-LED-DTR78 features a titanium-alloy balance arm with no-drift positioning, green light mode for cardiac and neurosurgery, and accepts universal 110–240 V power supply.
Quick Facts
- The Keling KL-LED-DTR78 produces 160,000 lux per dome at 1 m working distance using OSRAM LED components.
- The KL-LED-DTR78 includes a green light mode with green color rendering index R11≥97 for cardiac surgery and neurosurgery.
- The KL-LED-DTR78 contains 84 LEDs in dome 1 and 144 LEDs in dome 2, with an average rated life of 50,000 hours.
- The KL-LED-DTR78 features a titanium-alloy balance arm designed for no-drift positioning and stable light placement during surgery.
- The KL-LED-DTR78 light field diameter is electrically adjustable from 20 cm to 30 cm with a combined L1+L2 depth of illumination of 150 cm.
- Keling Medical (Keling Medical) manufactures the KL-LED-DTR78 with an integrated camera system for video documentation and telemedicine applications.
Overview
The Keling KL-LED-DTR78 is a double-dome ceiling-mounted LED shadowless operating lamp with integrated camera system, designed for hospitals and surgical centers requiring high-performance illumination combined with intraoperative video documentation. Each primary dome delivers 160,000 lux at 1 m using OSRAM LED components. The titanium-alloy balance arm ensures stable, drift-free positioning throughout lengthy procedures — a critical feature in high-precision surgery where lamp movement between adjustments must be eliminated.
The KL-LED-DTR78 incorporates a computer-programmed optical arrangement for high shadowless rate, and high thermal conductivity heat dissipation technology to maintain a low temperature rise within the fixture and at the operative site. Optical PC lenses on each LED element provide anti-glare performance for the surgical team. The heat-to-light ratio is ≤3.2 mW/m²lx, limiting radiant heat exposure during long procedures.

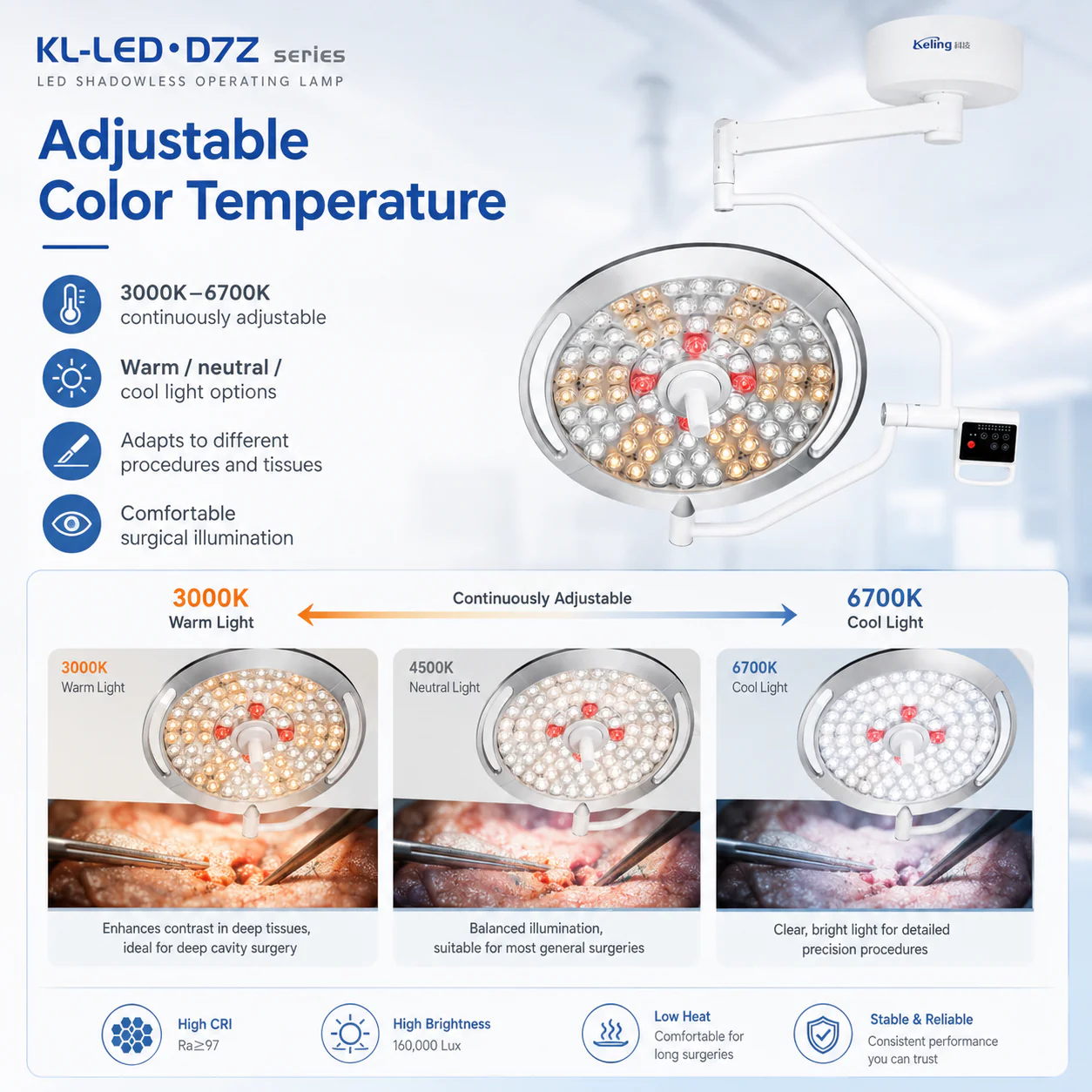

The KL-LED-DTR78 offers a comprehensive set of illumination modes: an Endo mode at 15,000 lux for minimally invasive procedures, a green light mode (R11≥97) specifically engineered for cardiac and neurosurgery disciplines requiring high green color rendering, and continuously adjustable color temperature from 3,000 K to 6,700 K. Illumination automatic compensation activates when occlusion is detected, maintaining consistent brightness at the operative field. The RI index function is specifically designed for high color-rendering tasks including deep and difficult incisions where tissue color discrimination is most critical.

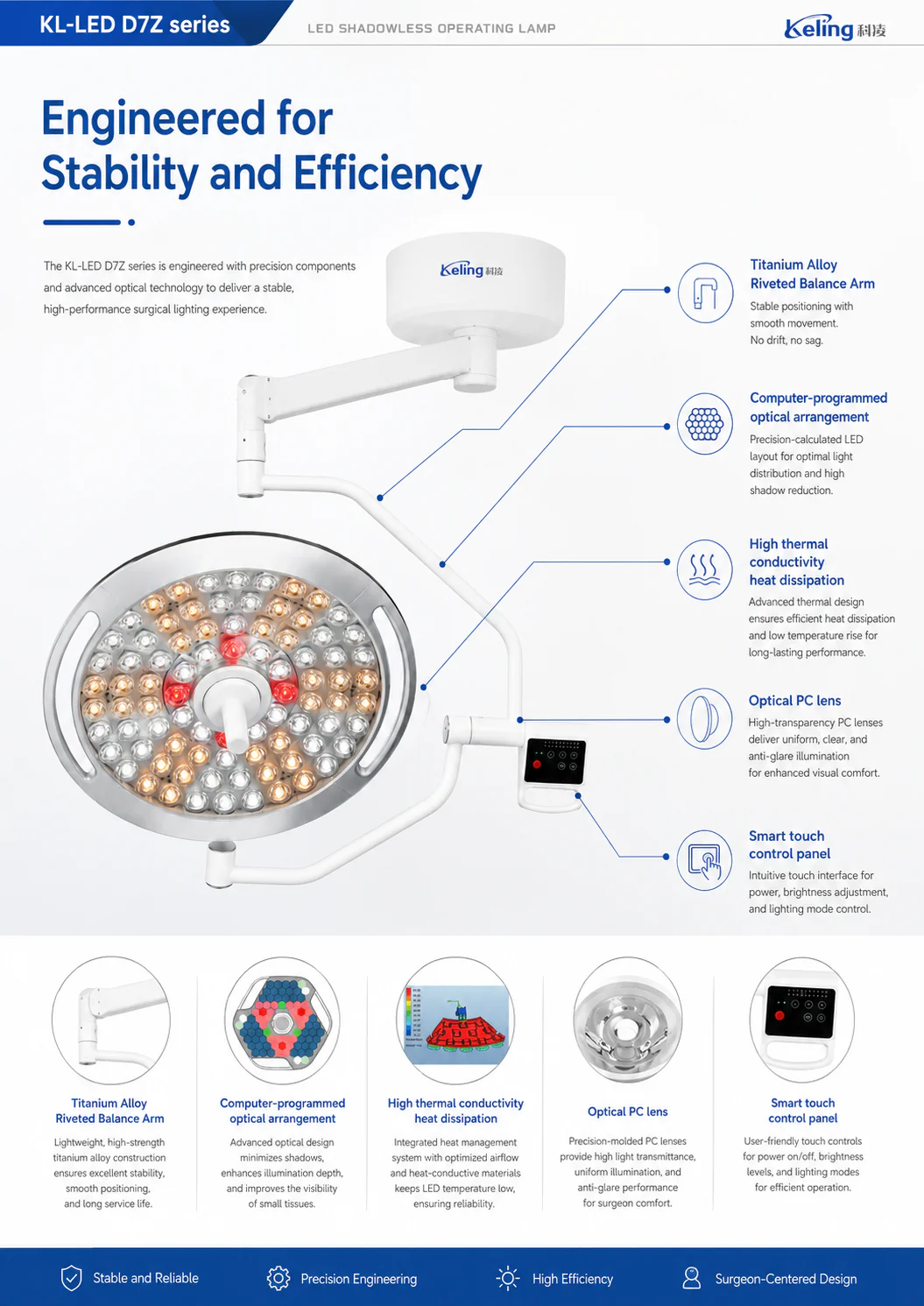

Key Features

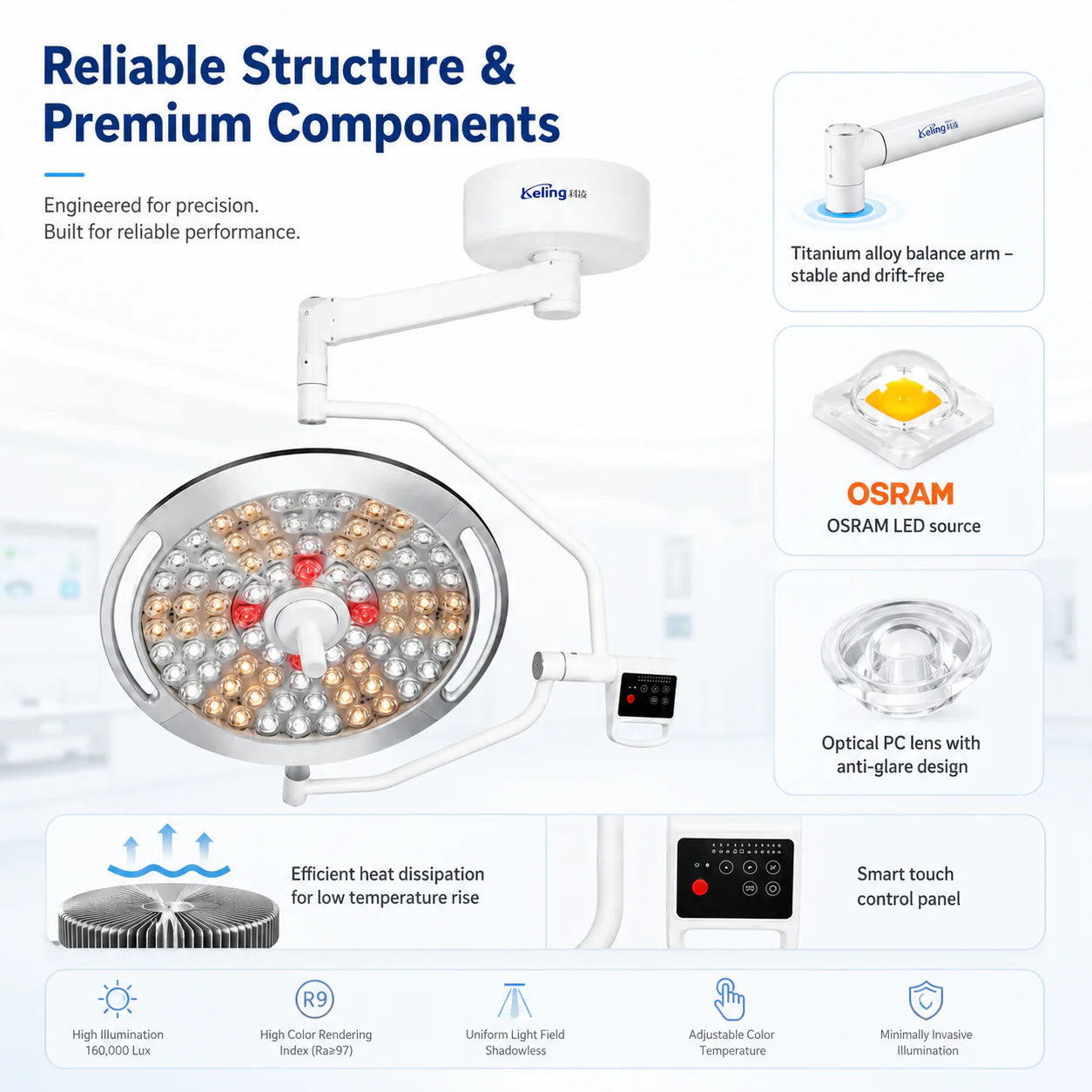

- OSRAM LED components — Double-dome configuration uses OSRAM LEDs for reliable, high-fidelity output: 84 LEDs in dome 1, 144 LEDs in dome 2.
- Titanium-alloy balance arm, no-drift — Titanium-alloy arm maintains stable lamp position without drift during procedures, eliminating the need for repeated repositioning.
- Integrated camera system — Built-in camera supports intraoperative video documentation, recording, and telemedicine or remote-viewing applications.

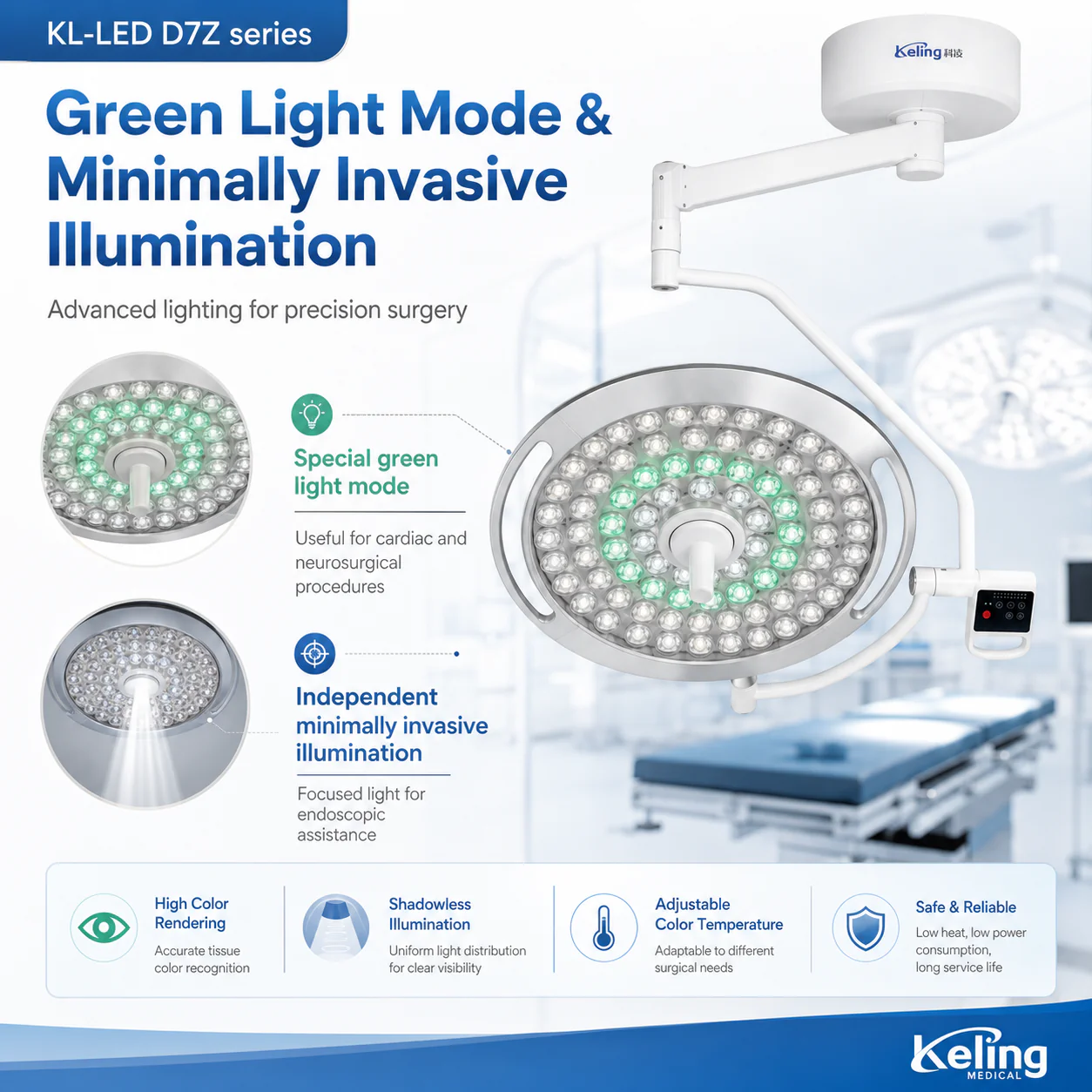

- Green light mode (R11≥97) — Dedicated mode for cardiac surgery and neurosurgery requiring precise color rendering of vascular and neural tissue.
- RI index function — Specially designed for high color-rendering tasks including deep and difficult incisions, with independently controlled illumination to show color differences and fine tissue detail.
- Minimally invasive (Endo) mode — Independently controlled Endo illumination at 15,000 lux, electrically adjusted, applicable to all kinds of minimally invasive surgery.

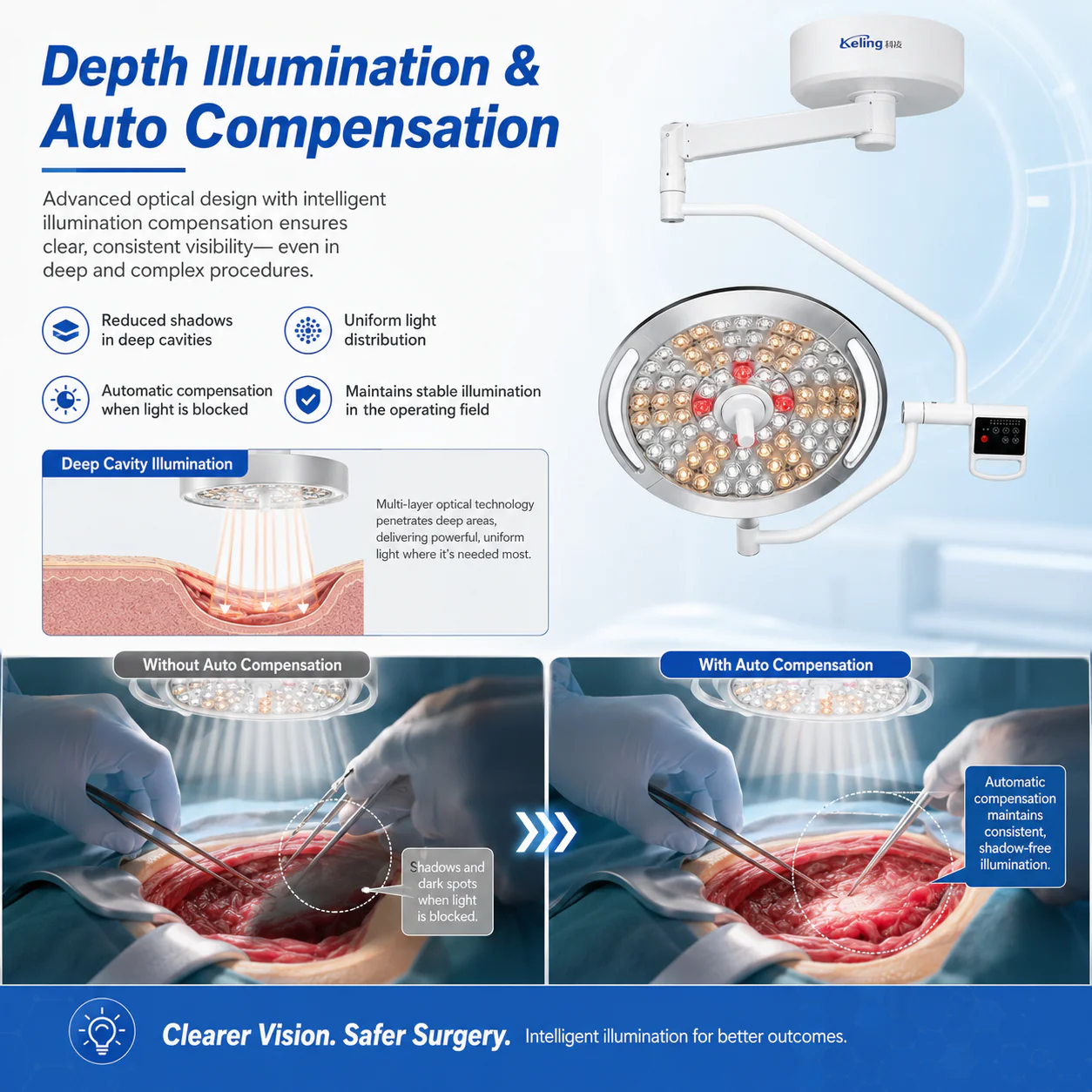

- Illumination automatic compensation — Automatically compensates when doctor's head covers the light source, maintaining ideal operative brightness from unobstructed LED segments.
- Computer-programmed optical arrangement — High shadowless rate achieved through optimized LED geometry.
- Anti-glare optical PC lens — PC lenses on each LED element reduce glare and improve team visual comfort.
- High thermal conductivity heat dissipation — Low temperature rise technology protects LED life and limits heat-to-light ratio to ≤3.2 mW/m²lx.

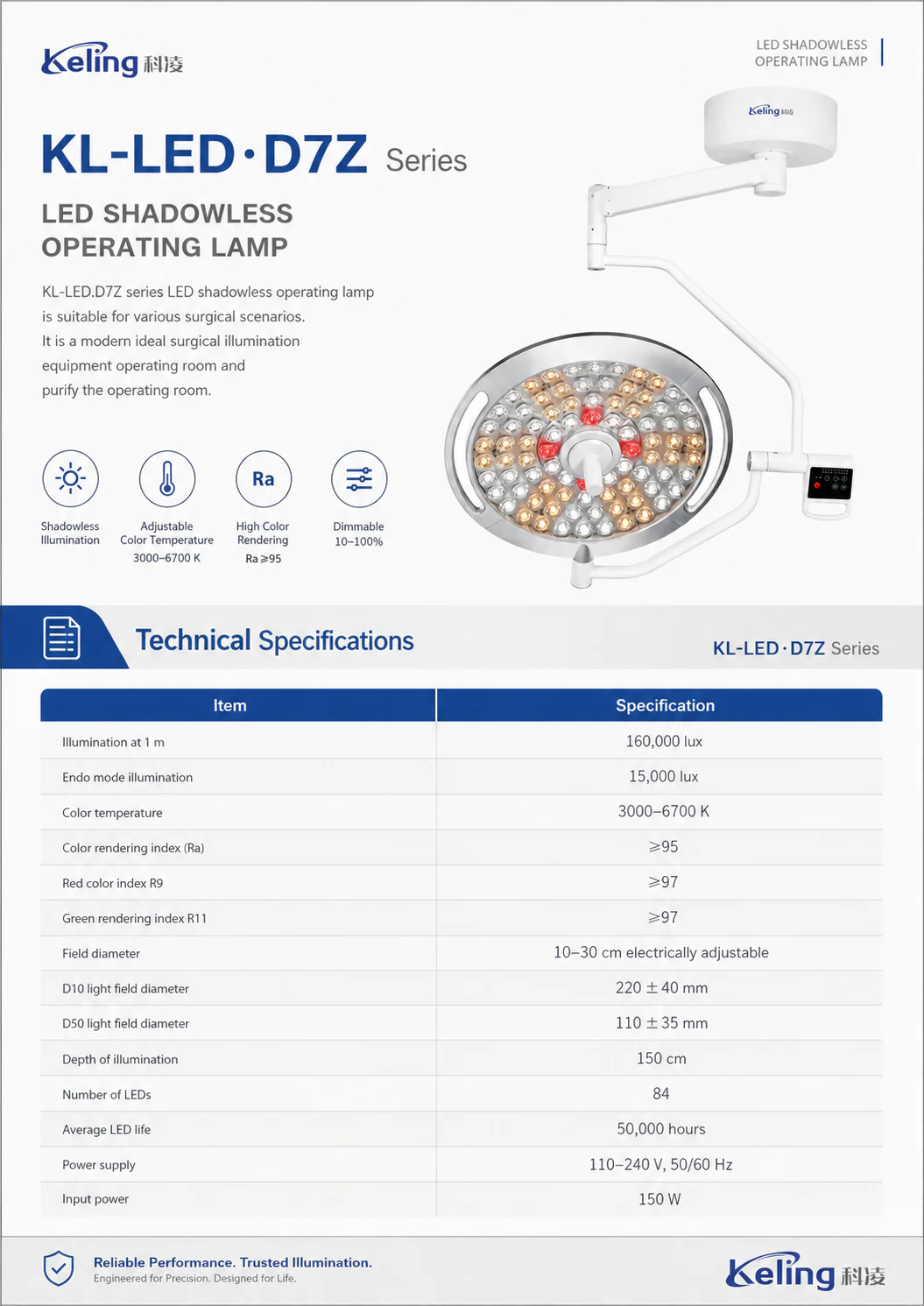

Technical Specifications
| Parameter | Value |
|---|---|
| Model | KL-LED·DTR78 |
| Illumination at 1 m (lux) | 160,000 / 160,000 |
| Illumination at 1 m — Endo mode (lux) | 15,000 (electrically adjusted) |
| Light field diameter (cm) | 20–30 (electrically adjusted) |
| Light field diameter D10 (mm) | 220±40 / 220±40 |
| Light field diameter D50 (mm) | 110±35 / 110±35 |
| L1+L2 Depth of illumination (cm) | 150 |

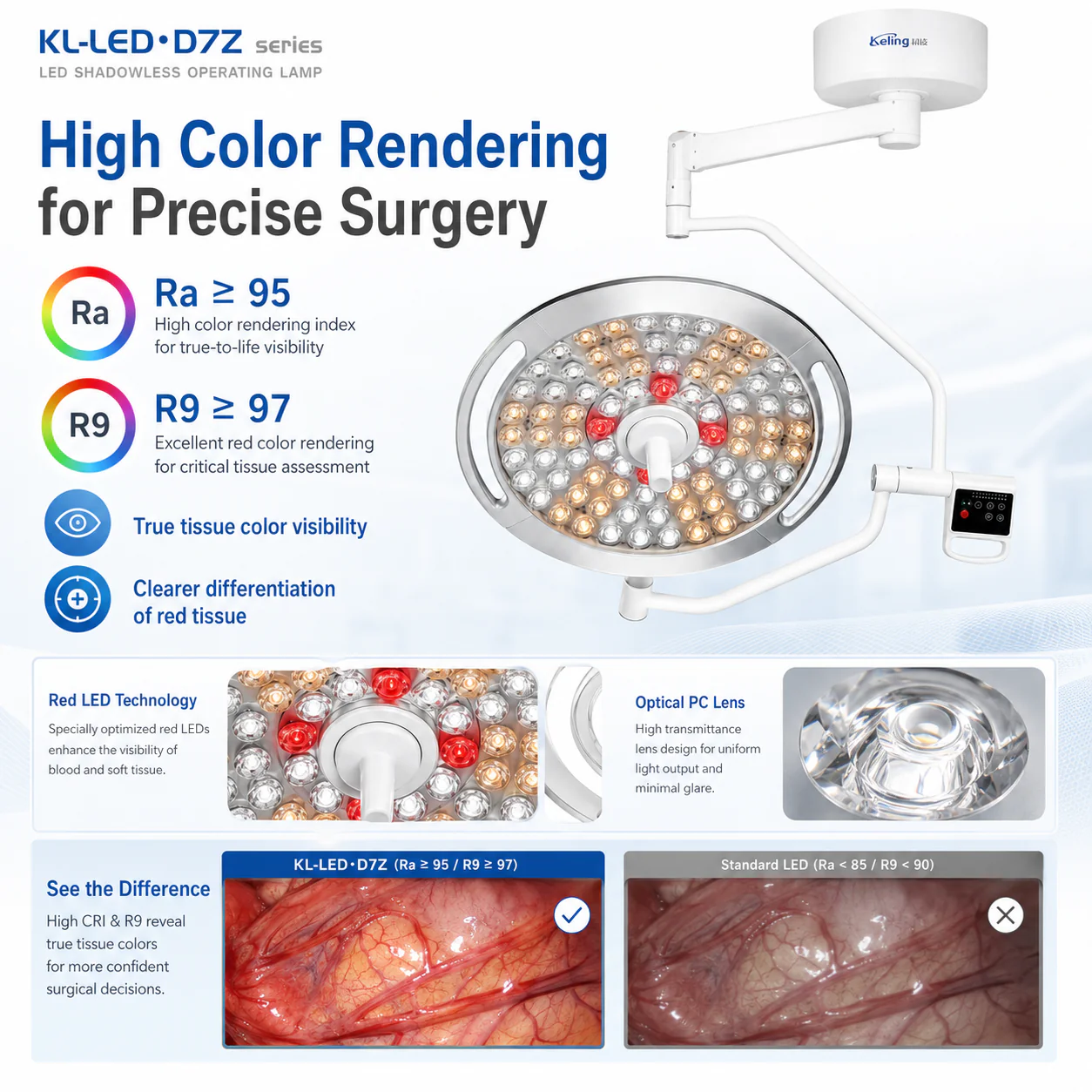

| Color rendering index (Ra) | 100≥Ra≥85 |
| Red color index R9 | ≥97 |
| Green color index R11 | ≥97 |
| Color temperature (K) | 6,700≥Tc≥3,000 (continuously adjustable) |
| Number of LEDs | 84 (dome 1) / 144 (dome 2) |
| Average LED life (hours) | 50,000 |
| Heat-to-light ratio (mW/m²lx) | ≤3.2 |
| Power supply | 110–240 V, 50/60 Hz |
| Input power (VA) | 150 W (dome 1) / 200 W (dome 2) |
| Ceiling height for installation (cm) | 270–320 |
| Balance arm material | Titanium alloy |
Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.
Applications
The KL-LED-DTR78 double-dome LED shadowless operating lamp with camera is ceiling-mounted and intended for sterile surgical environments where high-performance illumination, drift-free positioning, and intraoperative video documentation are required. Its green light mode and camera system make it especially suited to:
Cardiac surgery, neurosurgery, general surgery, deep-cavity abdominal and thoracic surgery, laparoscopic and minimally invasive surgery, gynecology, urology, orthopedic surgery, plastic and reconstructive surgery, teaching hospitals and medical centers requiring surgical video documentation, and telemedicine-enabled operating rooms.
