# KL-LED-STZ5 Camera System — LED Operation Lamp with HD Surgical Field Camera
Quick answer: The Keling KL-LED-STZ5 Camera System is a ceiling-mounted LED operation lamp combining dual lamp heads with an HD surgical field camera (model MH-DFC210-SR), delivering high-definition real-time imaging alongside shadowless illumination. It is manufactured by Keling Medical (Keling Medical) for operating theatres, hospitals and medical distributors worldwide. The camera provides 1920 × 1080 output via 3G-SDI interface with 10× optical zoom.
Quick Facts
- The Keling KL-LED-STZ5 Camera System is a ceiling-mounted LED operating lamp with dual lamp heads and an integrated HD surgical field camera.
- The HD camera (model MH-DFC210-SR) uses a 1/2.8" Progressive Scan CMOS sensor with signal-to-noise ratio >50 dB.
- Optical zoom is 10×; focal length ranges from 4.7 to 47 mm; aperture is F1.6–F3.0.
- Output is 3G-SDI via MCX female connector at 1920 × 1080, supporting PAL 25/50 fps and NTSC 30/60 fps.
- The camera power supply is 12 VDC, 1.5 A; power consumption is 5.5 W; dimensions are 242 × 180 × 358 mm.
- The KL-LED-STZ5 Camera System is manufactured by Keling Medical, with more than 20 years of industry experience and operating from an ISO 13485-certified facility in Jiangsu, China.
Overview

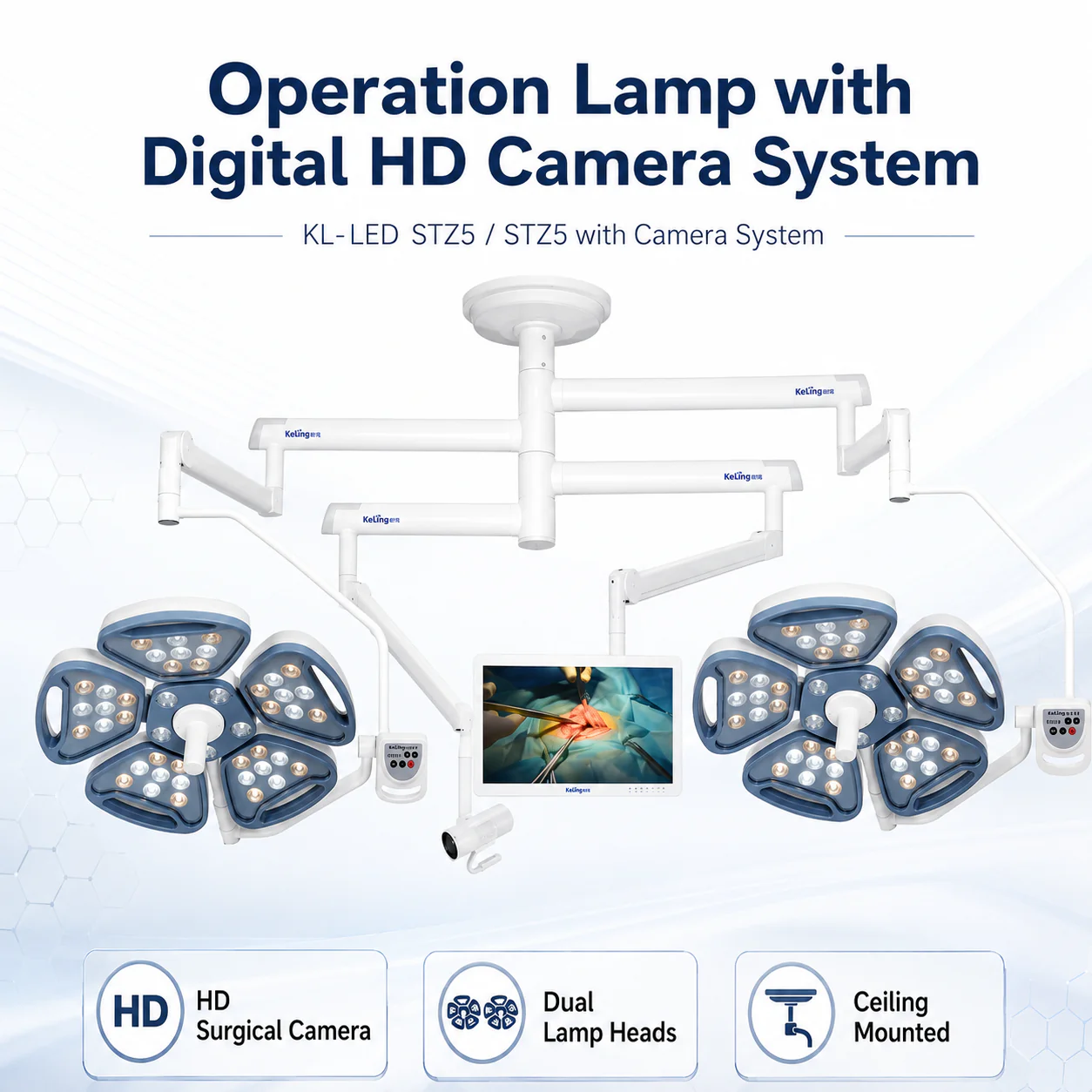

The KL-LED-STZ5 Camera System provides operating room teams with a fully integrated solution for both surgical illumination and high-definition field documentation. Dual multi-petal LED lamp heads deliver uniform, shadowless light across the operative field, while the ceiling-mounted HD camera captures crystal-clear video and still images simultaneously, supporting precise surgical decisions and real-time team collaboration.

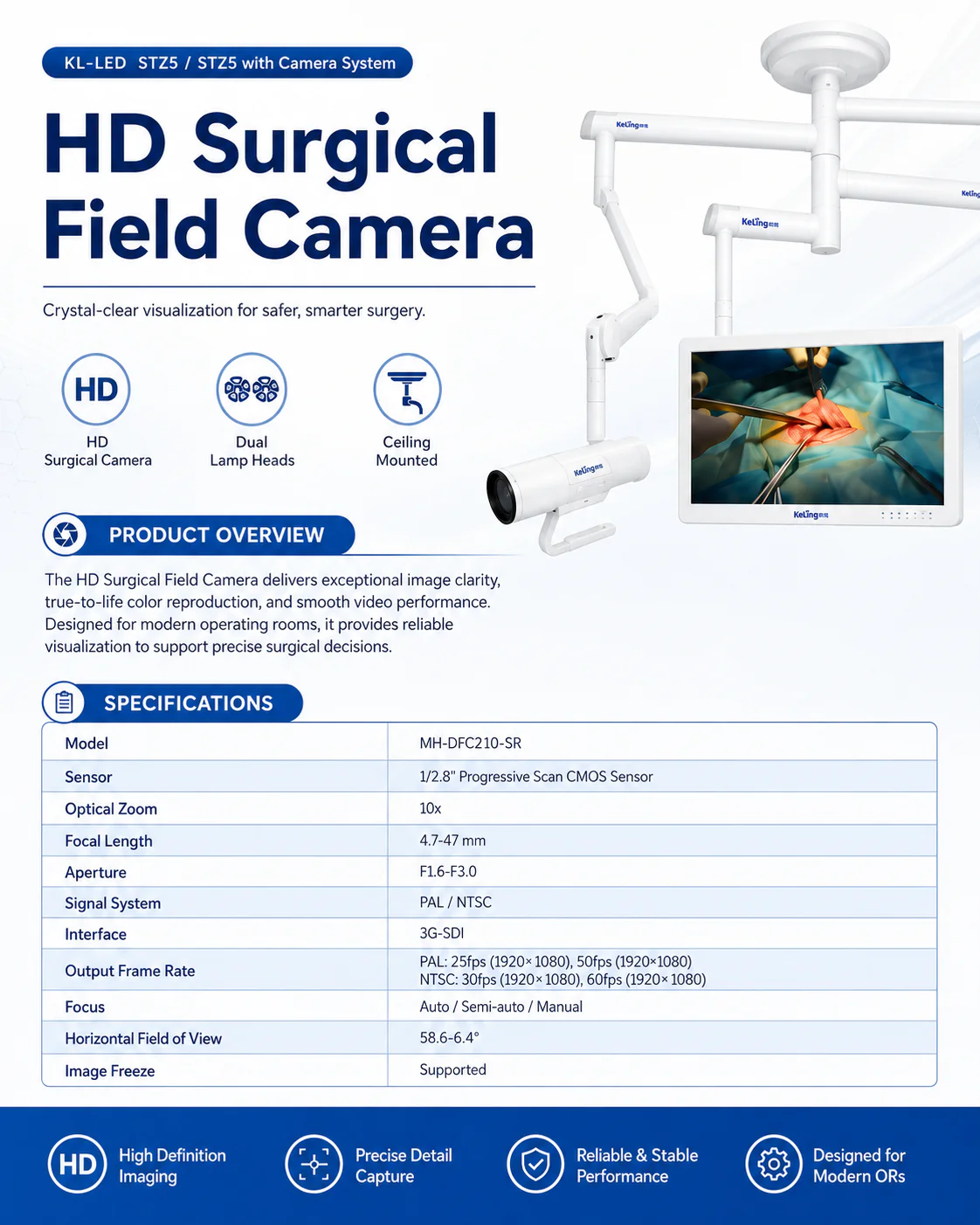

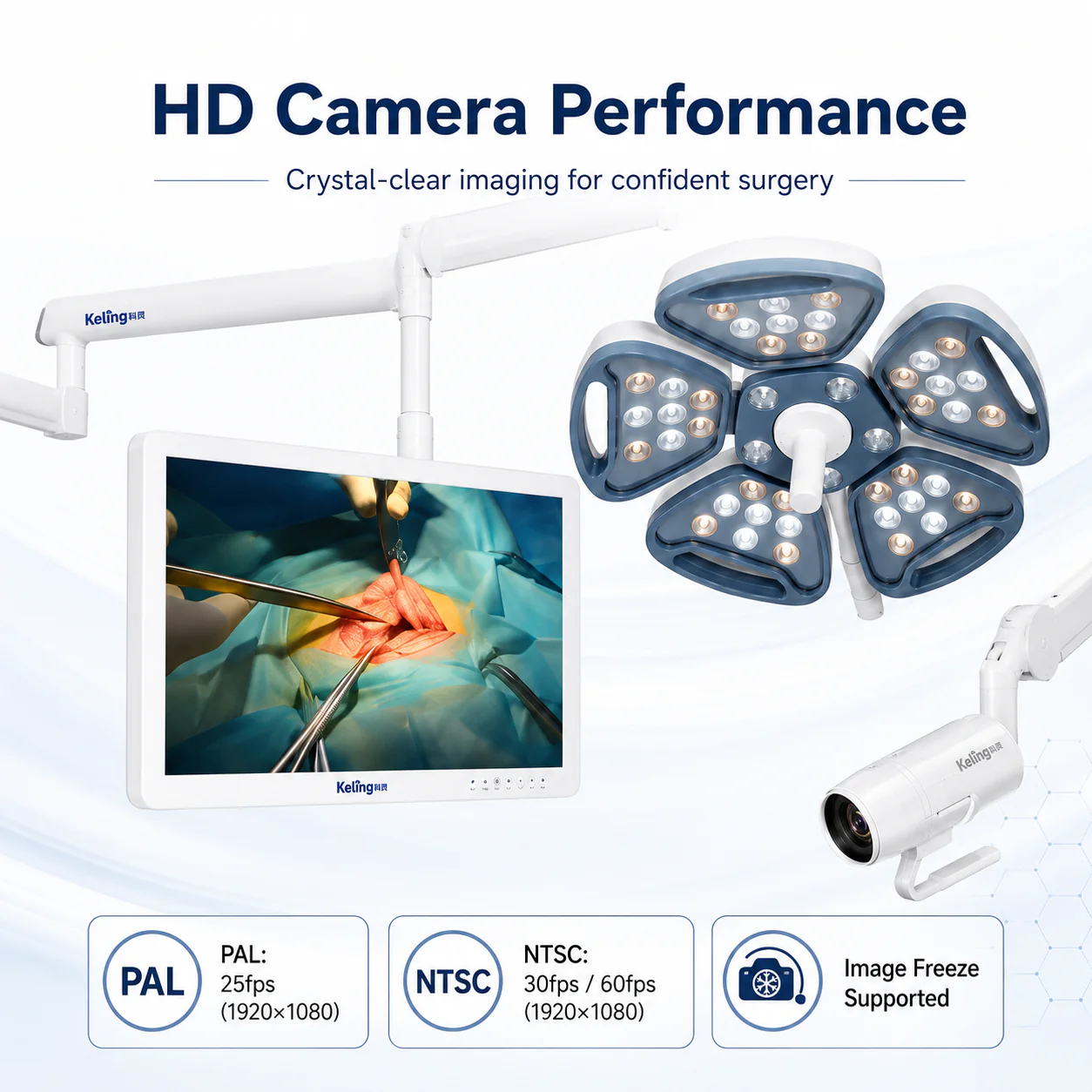

At the heart of the imaging subsystem is the MH-DFC210-SR HD surgical field camera, which pairs a 1/2.8" Progressive Scan CMOS sensor with 10× optical zoom to cover everything from wide field overviews to close-up tissue detail. The 3G-SDI output transmits the full 1920 × 1080 stream to the paired HD medical monitor over a single cable. Focus modes — Auto, Semi-auto and Manual — and horizontal field of view adjustment from 58.6° to 6.4° give the operating team flexible control without interrupting the procedure. Image freeze is supported for still capture, and the 3G-SDI interface provides a standard pathway for integration into hospital AV systems.
Ceiling suspension arms allow smooth repositioning of both the lamp heads and the camera. The HD medical monitor displays the live surgical view for the entire team, while the additional panoramic camera and optional recording server — shown in the system overview — support documentation, remote consultation and resident teaching. The design is built to IEC 60601-1 and IEC 60601-1-2 electrical safety and EMC standards, as indicated on the camera datasheet.
Key Features

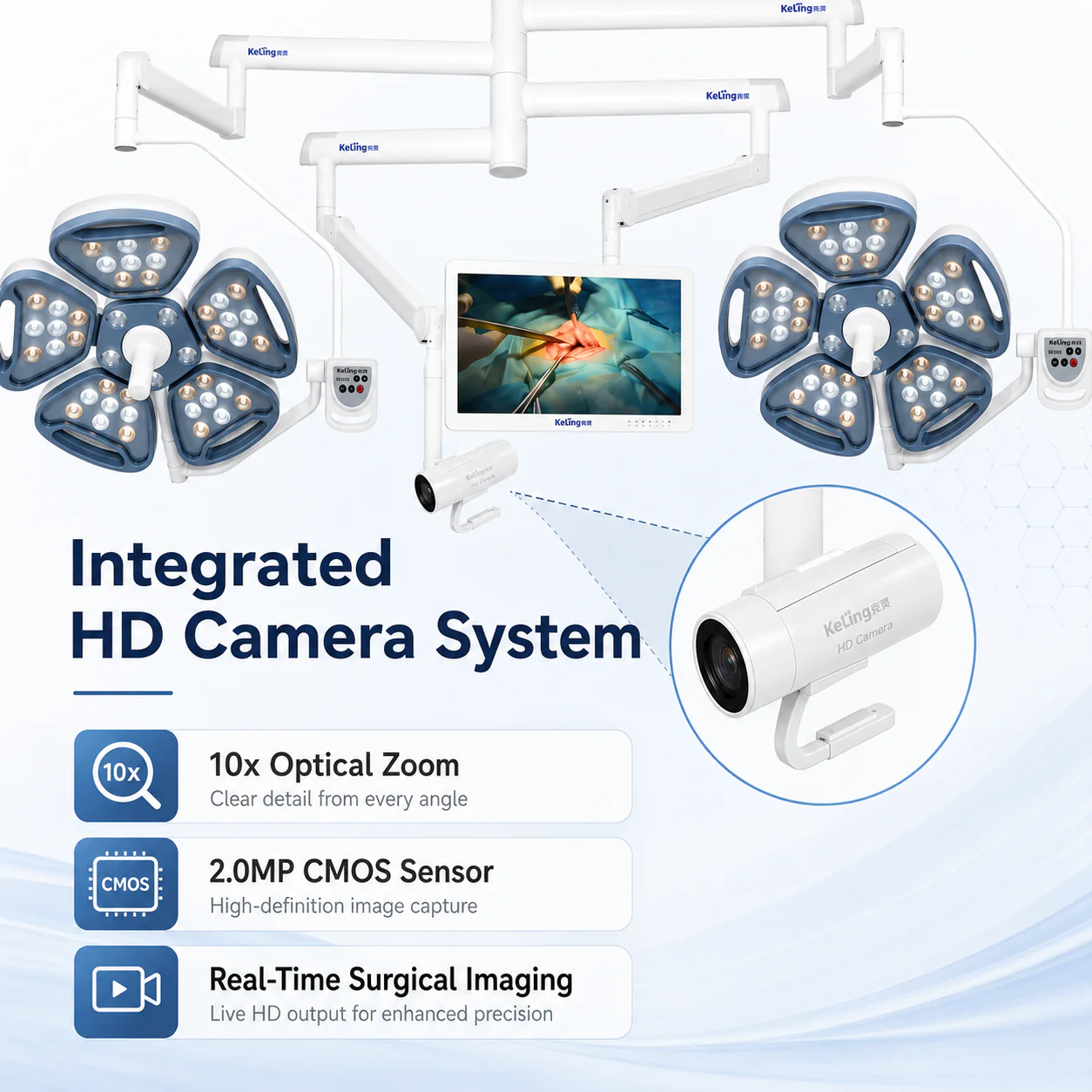

- HD Surgical Field Camera — MH-DFC210-SR with 1/2.8" Progressive Scan CMOS sensor, >50 dB S/N ratio and image freeze function for precise documentation.
- 10× Optical Zoom — focal length 4.7–47 mm, aperture F1.6–F3.0, horizontal FOV 58.6–6.4° for both wide and telephoto surgical views.
- 3G-SDI Output — single-cable 1920 × 1080 transmission at up to 60 fps (NTSC), compatible with standard hospital AV and recording infrastructure.

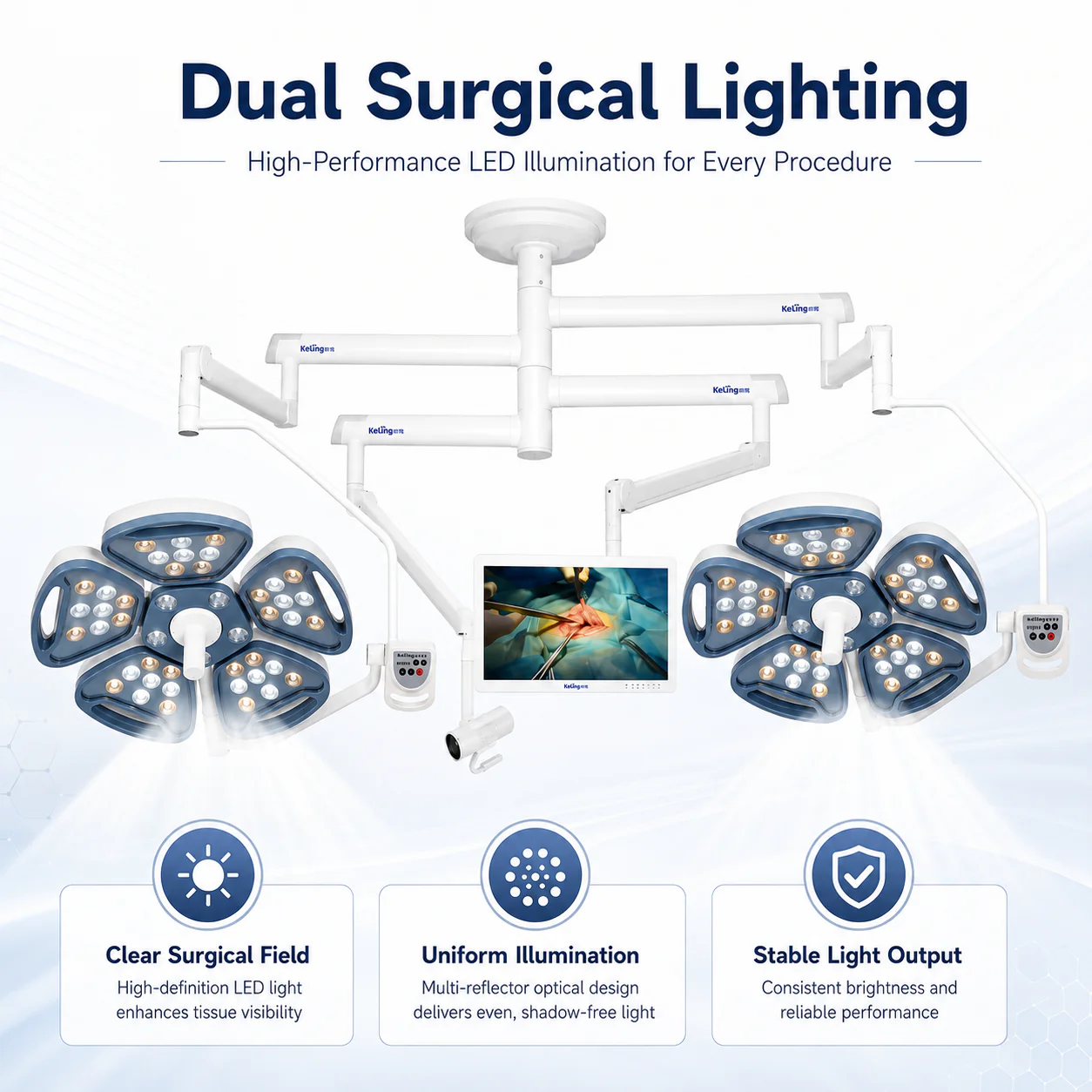

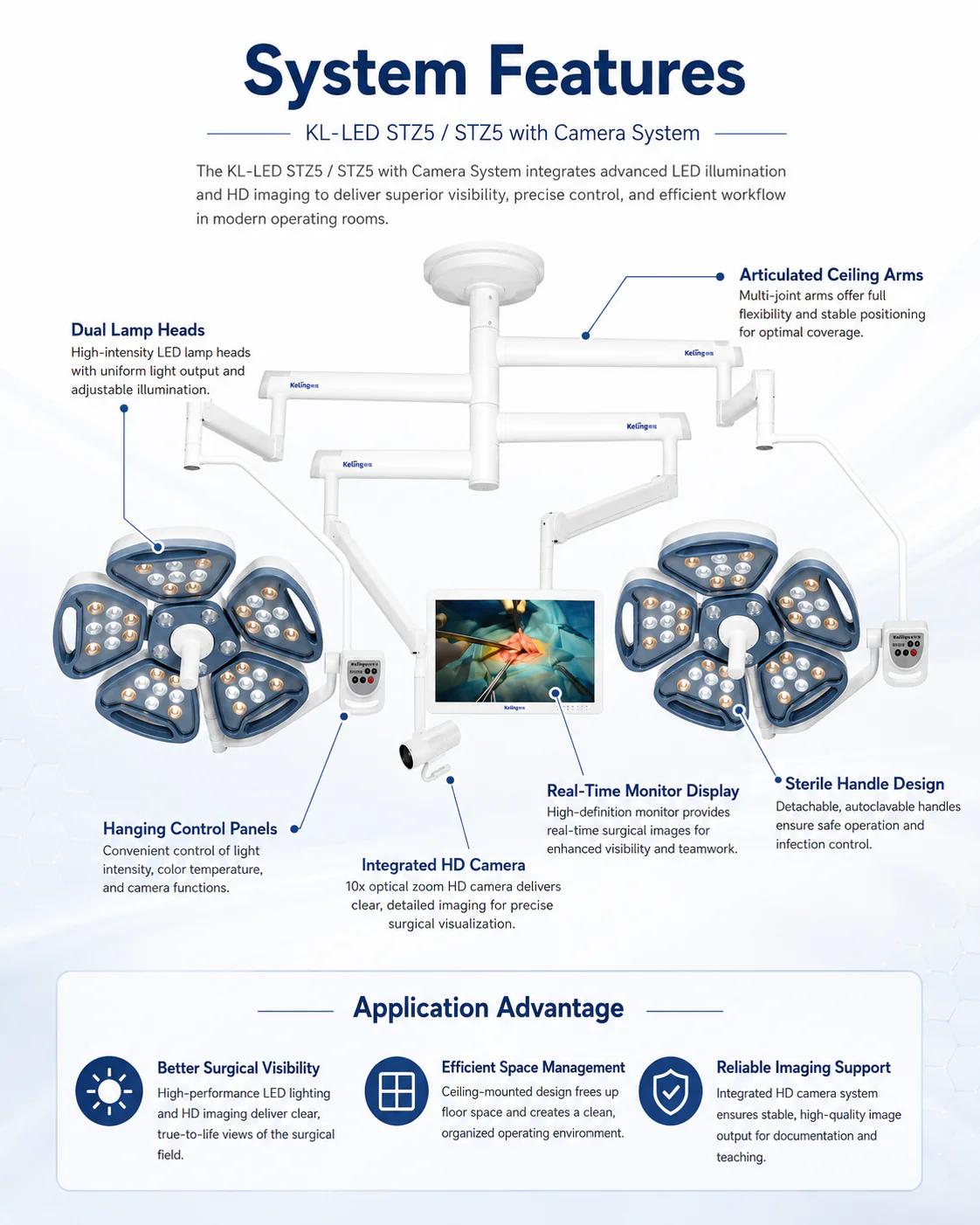

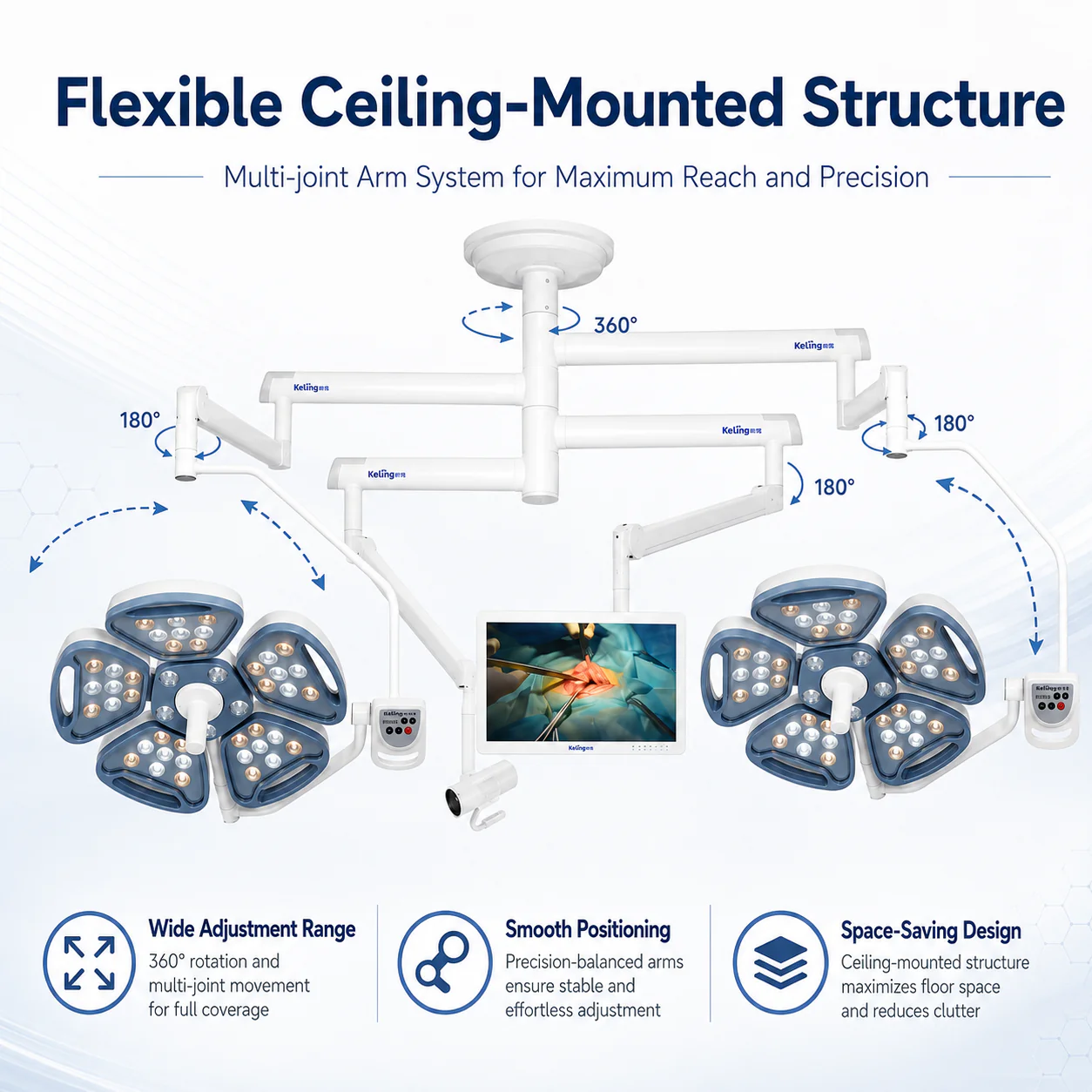

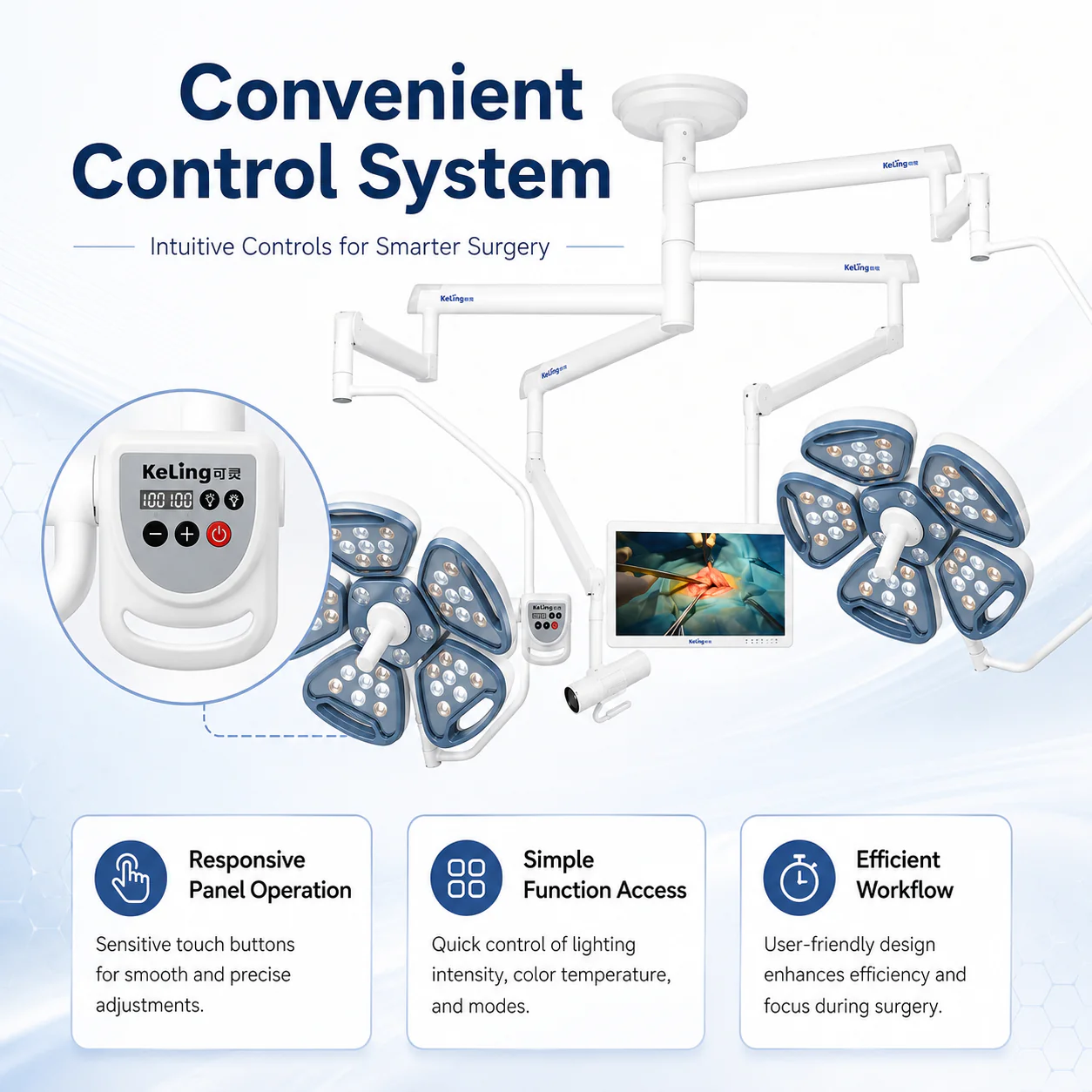

- Dual LED Lamp Heads — multi-joint ceiling suspension arms with dual petal-head lamps provide uniform, adjustable illumination across the surgical field.
- Precise Surgical Visualization — accurate color reproduction with adjustable white balance (Auto 1 / Auto 2 / Manual / One-touch) for reliable tissue differentiation.
- Flexible Focus & Exposure — Auto/Semi-auto/Manual focus; electronic shutter 1/25 s to 1/100,000 s; strong light suppression supported.
- HD Medical Monitor — dedicated display for real-time surgical field visualization and multi-team collaboration.
- IEC 60601-Compliant Camera — complies with Medical Electrical Equipment Safety Standard IEC 60601-1 and EMC standard IEC 60601-1-2.

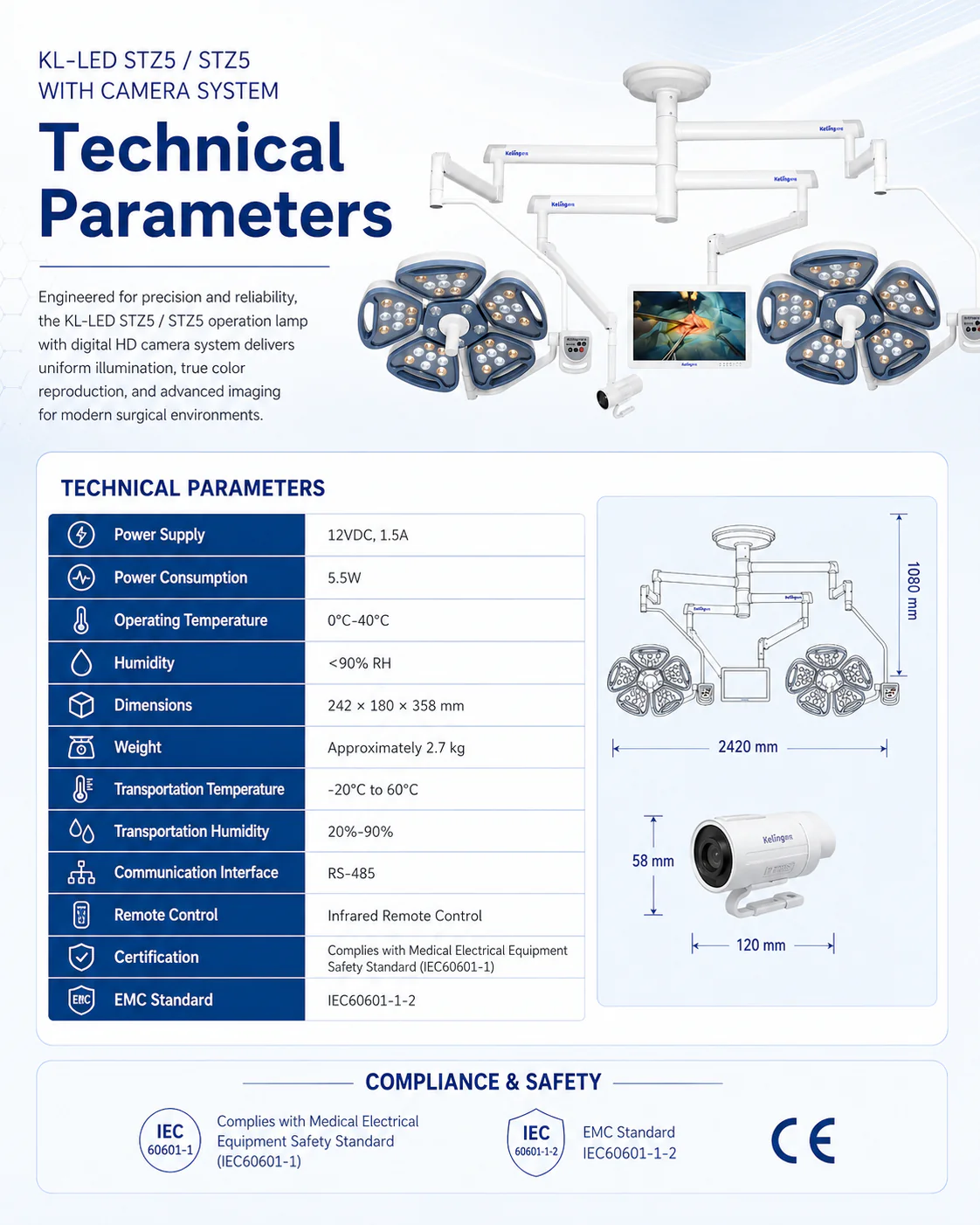

Technical Specifications

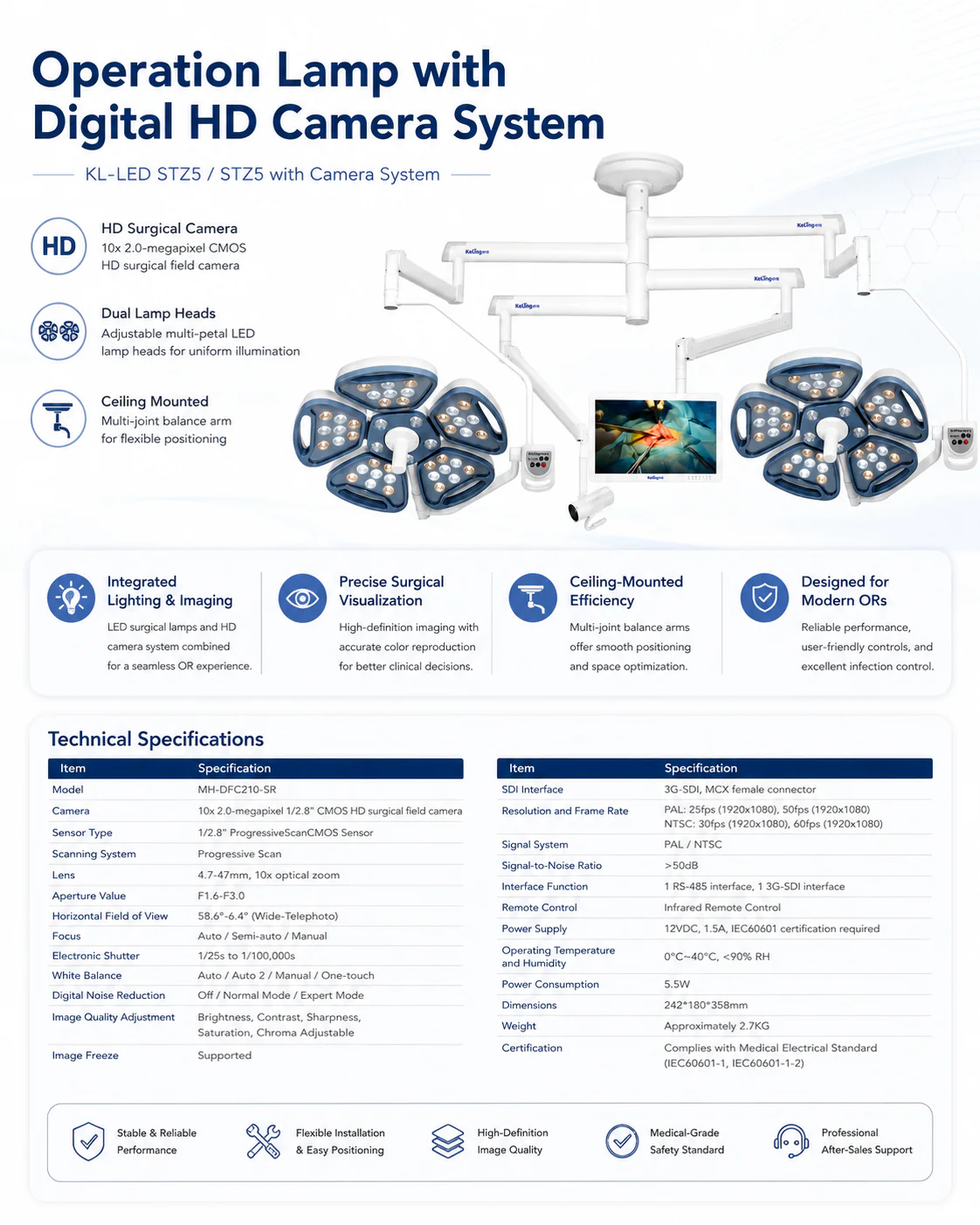

| Parameter | Value |
|---|---|
| Model | KL-LED-STZ5 / STZ5 with camera system |
| Camera model | MH-DFC210-SR HD surgical field camera |
| Sensor type | 1/2.8" Progressive Scan CMOS |
| Signal system | PAL / NTSC |
| Signal-to-noise ratio | >50 dB |
| Optical zoom | 10× |
| Focal length | 4.7–47 mm |
| Aperture | F1.6–F3.0 |
| Horizontal field of view | 58.6–6.4° (wide-telephoto) |
| Focus | Auto / Semi-auto / Manual |
| Electronic shutter | 1/25 s to 1/100,000 s |
| White balance | Auto 1 / Auto 2 / Manual / One-touch |
| Output interface | 3G-SDI, MCX female connector |
| PAL frame rate | 25 fps (1920 × 1080), 50 fps (1920 × 1080) |
| NTSC frame rate | 30 fps (1920 × 1080), 60 fps (1920 × 1080) |
| Communication interface | 1 RS-485; 1 3G-SDI (MCX female connector) |
| Remote control | Infrared |
| Camera power supply | 12 VDC, 1.5 A |
| Camera power consumption | 5.5 W |
| Camera dimensions | 242 × 180 × 358 mm |
| Camera weight | Approximately 2.7 kg |
| Operating temperature | 0°C–40°C, <90% RH |
| Camera certification | IEC 60601-1, IEC 60601-1-2 |
| Image freeze | Supported |
Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.
Applications
The KL-LED-STZ5 Camera System is suited for modern operating theatres in general hospitals, specialty surgical centres and academic medical institutions. It serves general and specialty surgery, orthopaedics, neurosurgery and cardiovascular procedures, and supports surgical education, telemedicine consultations and live streaming in training hospitals.
