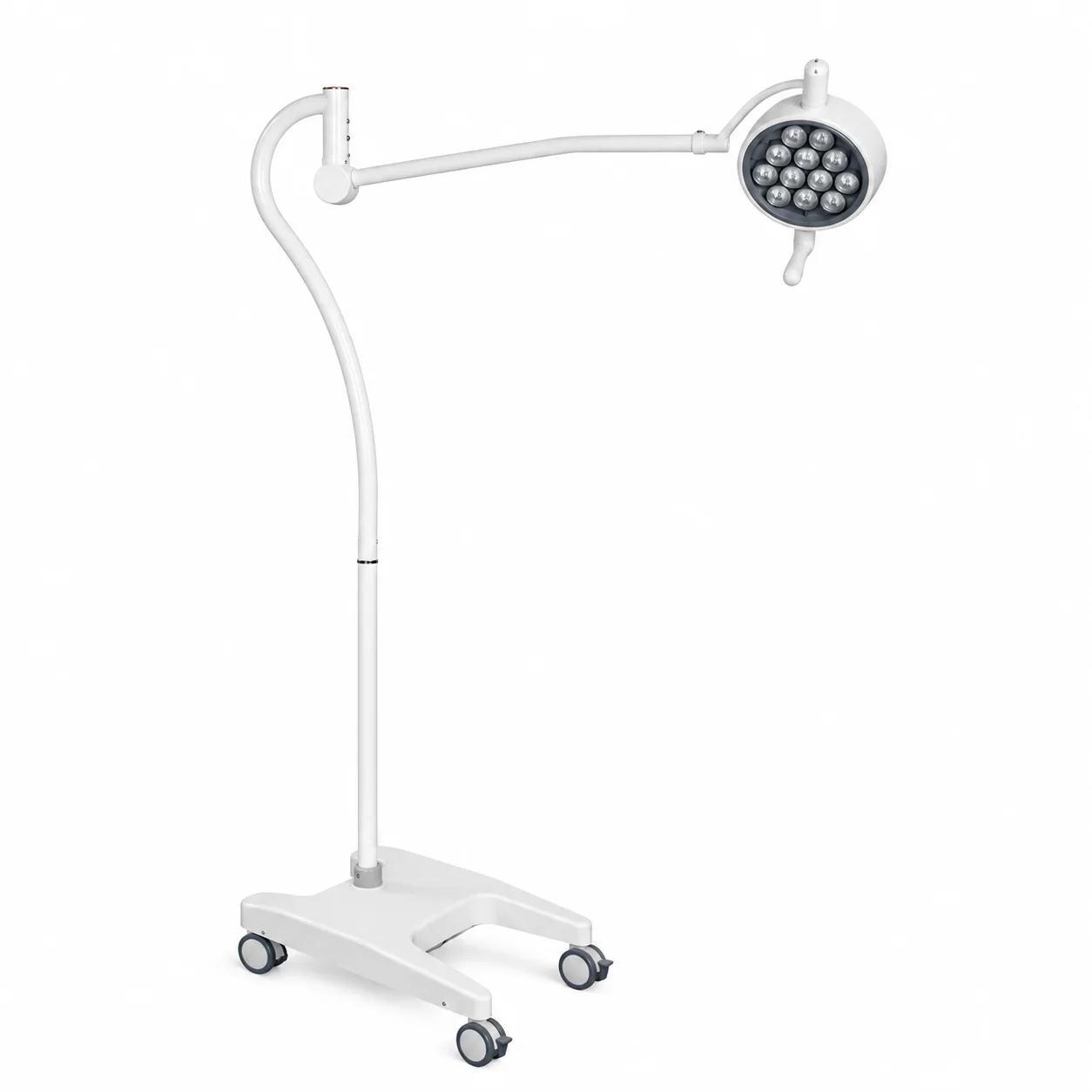

# KL01L-IILED Examination Shadowless Lamp — LED Exam Room Light with Flexible Balance Arm
Quick answer: The Keling KL01L-IILED is an LED examination shadowless lamp providing ≥60,000 lux illumination at 1 m, multi-level brightness control and a flexible counterbalanced arm. It is manufactured by Keling Medical (Keling Medical) for examination rooms, outpatient clinics and minor procedure areas, and is available in ceiling-mounted, floor-standing and AC/DC configurations.
Quick Facts
- The Keling KL01L-IILED is an LED examination shadowless lamp designed specifically for clinical examination rooms.
- Illumination at 1 m is ≥60,000 lux; optional color temperature range is 3500 K–6700 K.
- Color rendering index is 100 ≥ Ra ≥ 85, supporting accurate color assessment during examination.
- Input power is 20 VA; the lamp supports AC/DC operation for use in environments with uncertain power supply.
- The spring balance arm allows flexible up/down movement and tilts left/right 160° and front/back 190°, with spring arm adjustment ≥600.
- The KL01L-IILED features an imported LED cold light source, multi-level brightness adjustment and a detachable handle for easy cleaning and disinfection.
Overview

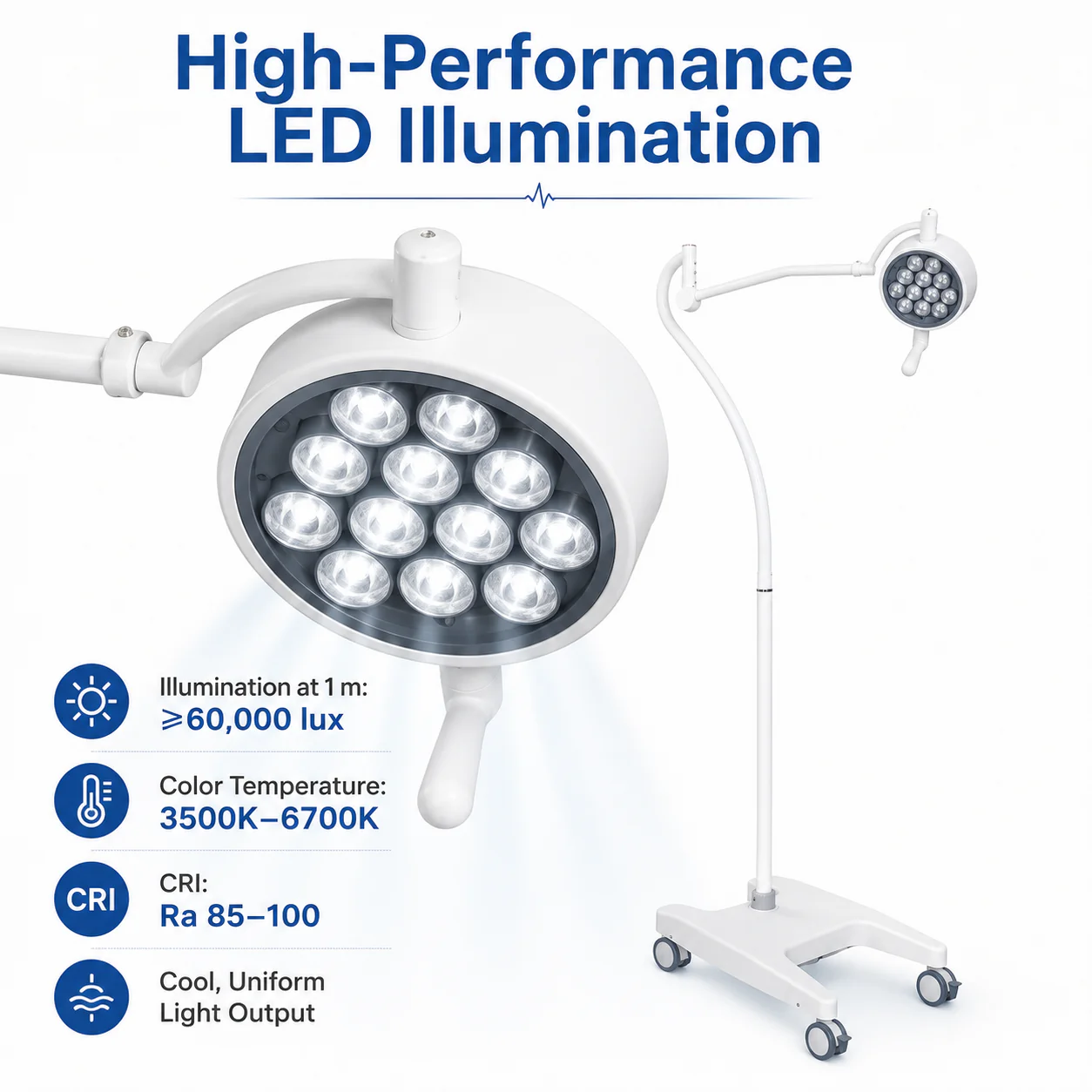

The KL01L-IILED examination shadowless lamp brings reliable, high-intensity LED illumination to clinical examination rooms, outpatient consultations and minor procedure spaces. With ≥60,000 lux delivered at 1 m through an imported LED cold light source, it provides bright, flicker-free light that minimizes heat output to keep patients comfortable during extended examinations. The adjustable color temperature — from warm 3500 K to daylight 6700 K — allows clinicians to select the tone that best reveals tissue characteristics and supports accurate clinical assessment.
Multi-level brightness dimming gives the user stepless or incremental control over illumination intensity, adapting instantly to different procedures: from a gentle setting for routine visual checks to full brightness for detailed wound inspection or minor suturing. The counterbalanced flexible arm is the KL01L-IILED's most practical ergonomic feature: its spring mechanism holds any set position precisely, yet requires only light pressure to reposition, allowing the clinician to redirect the beam without removing gloves or interrupting the procedure.

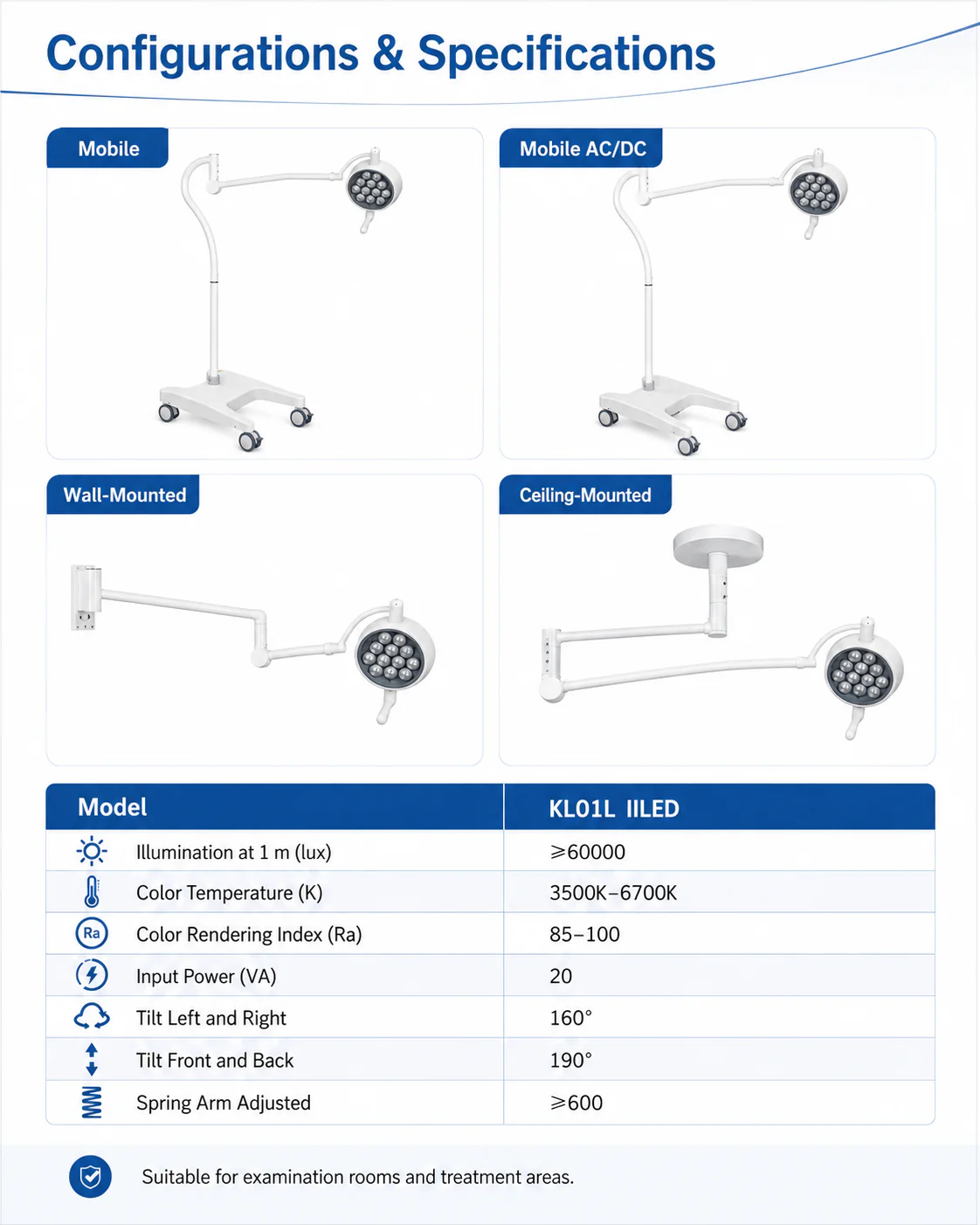

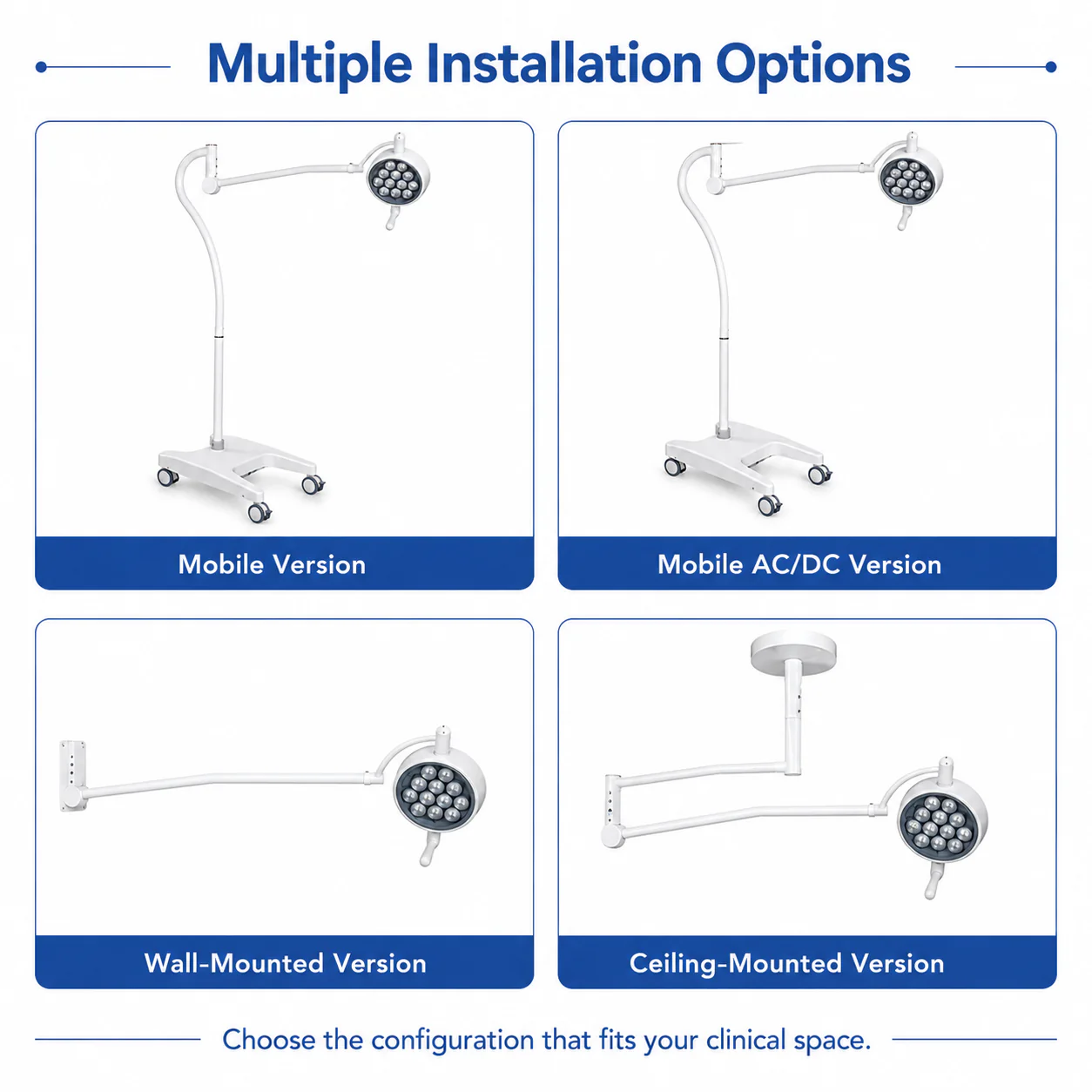

The detachable handle jacket simplifies sterilization between patients — it can be removed and cleaned or replaced without tools, maintaining hygiene compliance across busy examination suites. Three installation configurations are available: ceiling-mounted (fixed arm), floor-standing mobile (KL01L-IILED) and battery-backed AC/DC (KL01L-IILED AC/DC), giving hospitals the flexibility to equip fixed exam bays, trolley-side positions and settings where mains power is intermittent.

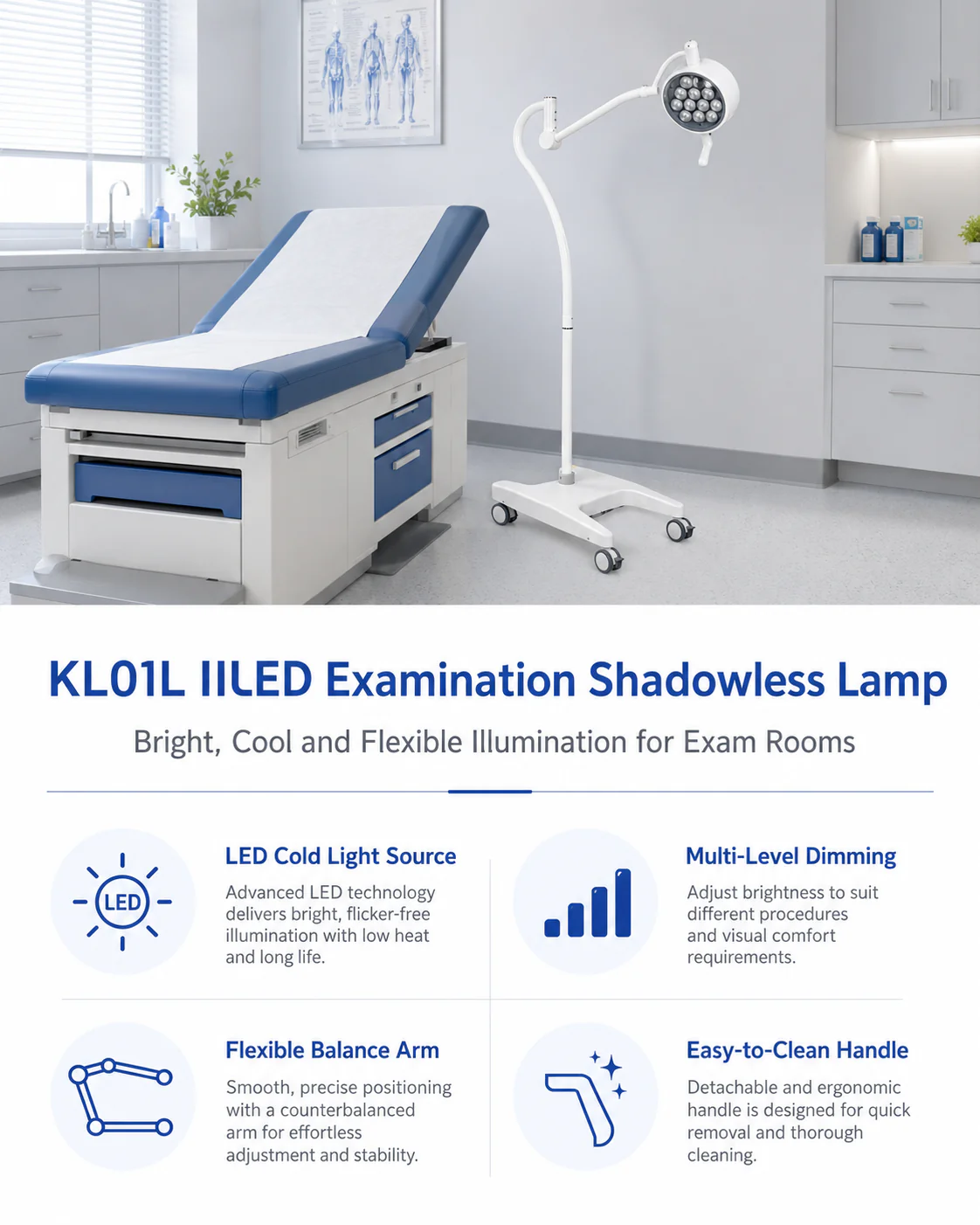

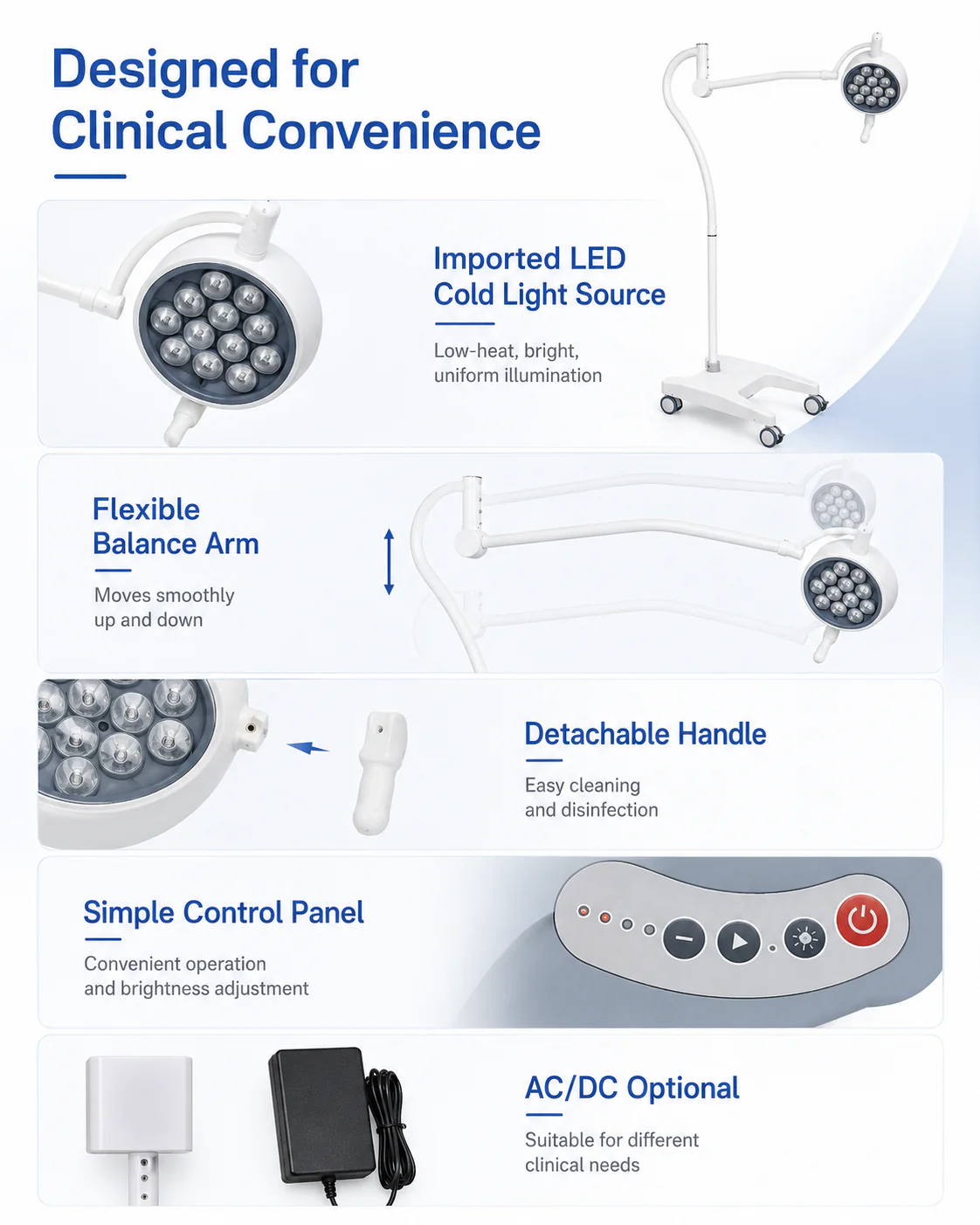

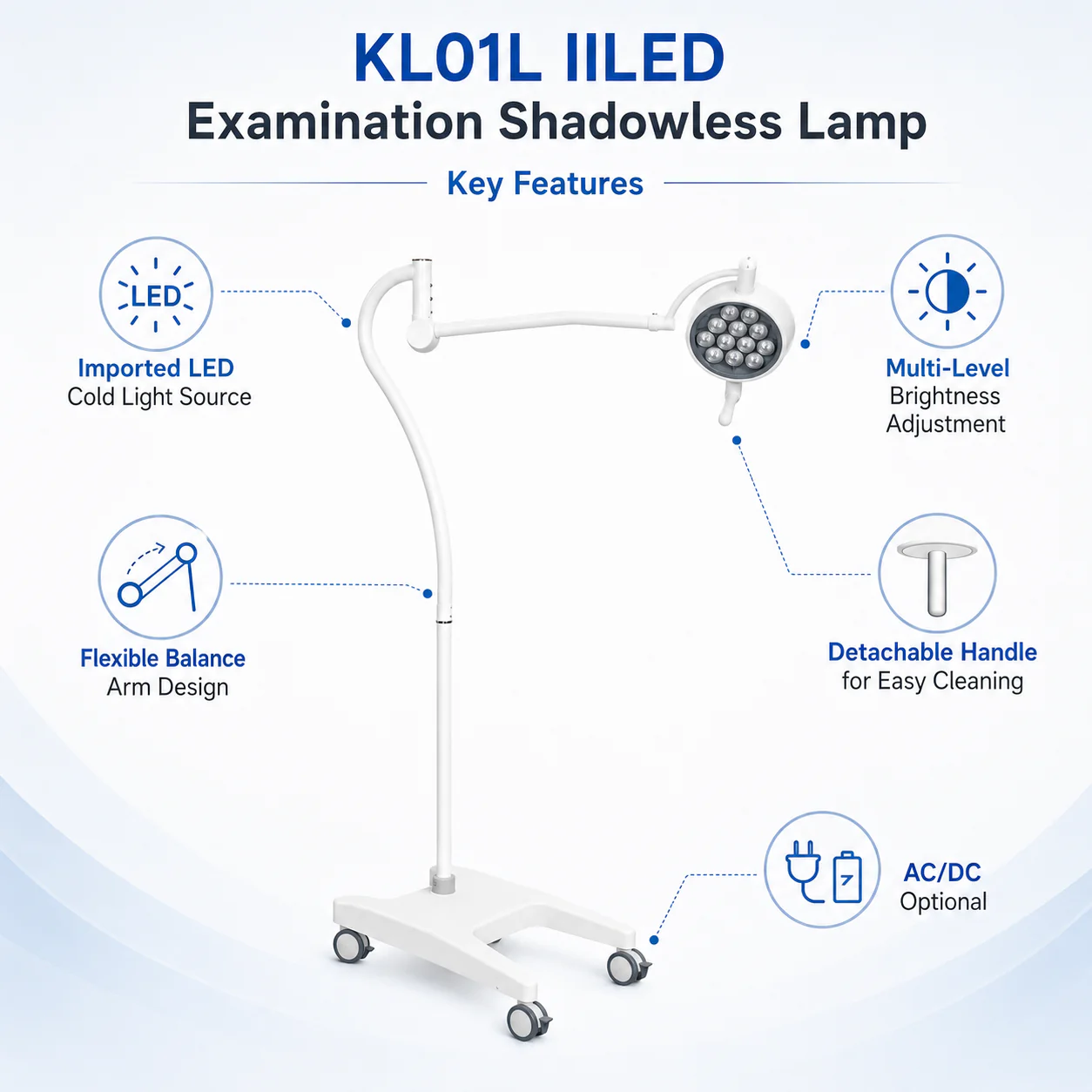

Key Features
- Imported LED Cold Light Source — bright, flicker-free LED illumination with low heat emission for patient and clinician comfort.
- Multi-Level Brightness Dimming — adjustable brightness settings to match different examination and procedure requirements.
- Wide Color Temperature Range — 3500 K–6700 K adjustment for optimal visual comfort and tissue color recognition.
- Flexible Balance Arm — counterbalanced spring arm moves smoothly up, down and in all directions; holds position securely once set.

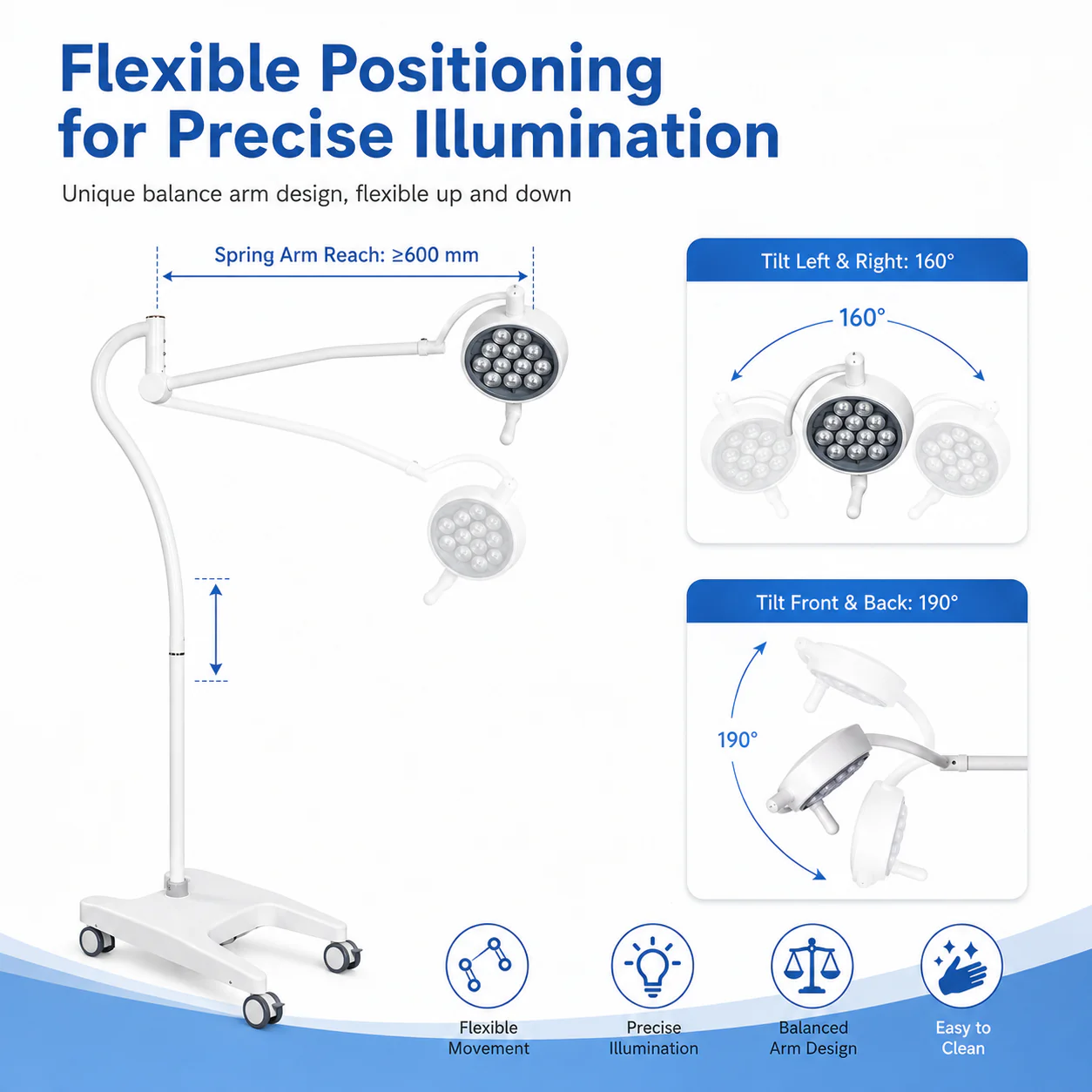

- Wide Tilt Range — tilts left and right 160°, front and back 190°, with spring arm travel ≥600.
- Detachable Handle — ergonomic, removable handle jacket for rapid cleaning and disinfection between patients.
- AC/DC Capability — optional battery-backed AC/DC model ensures continued operation during power interruptions.
- Three Mount Options — ceiling, floor-standing mobile and wall-mount configurations to suit fixed and mobile clinical environments.

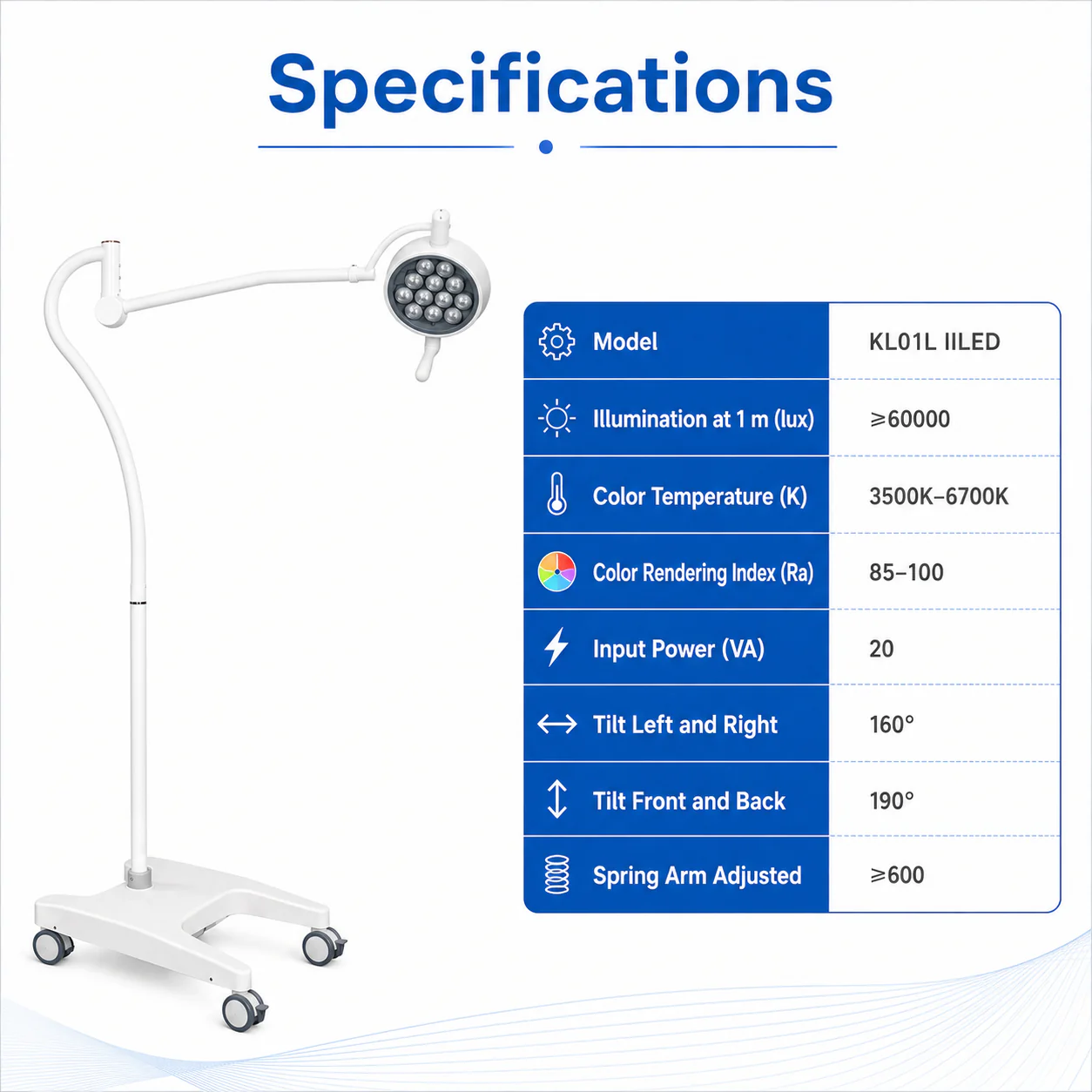

Technical Specifications
| Parameter | Value |
|---|---|
| Model | KL01L-IILED |
| Illumination at 1 m (lux) | ≥60,000 |
| Optional color temperature (K) | 6700 ≥ Tc ≥ 3500 |
| Color rendering index (Ra) | 100 ≥ Ra ≥ 85 |
| Input power (VA) | 20 |
| Tilt left and right | 160° |
| Tilt front and back | 190° |
| Spring arm adjusted | ≥600 |
Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.
Applications
The KL01L-IILED is used in outpatient examination rooms, general practitioner and specialist consulting rooms, minor procedure and dressing rooms, emergency triage areas, maternity and gynaecological examination spaces, and paediatric clinics. The AC/DC variant is particularly suited to facilities with unstable power supply or in mobile medical units.
