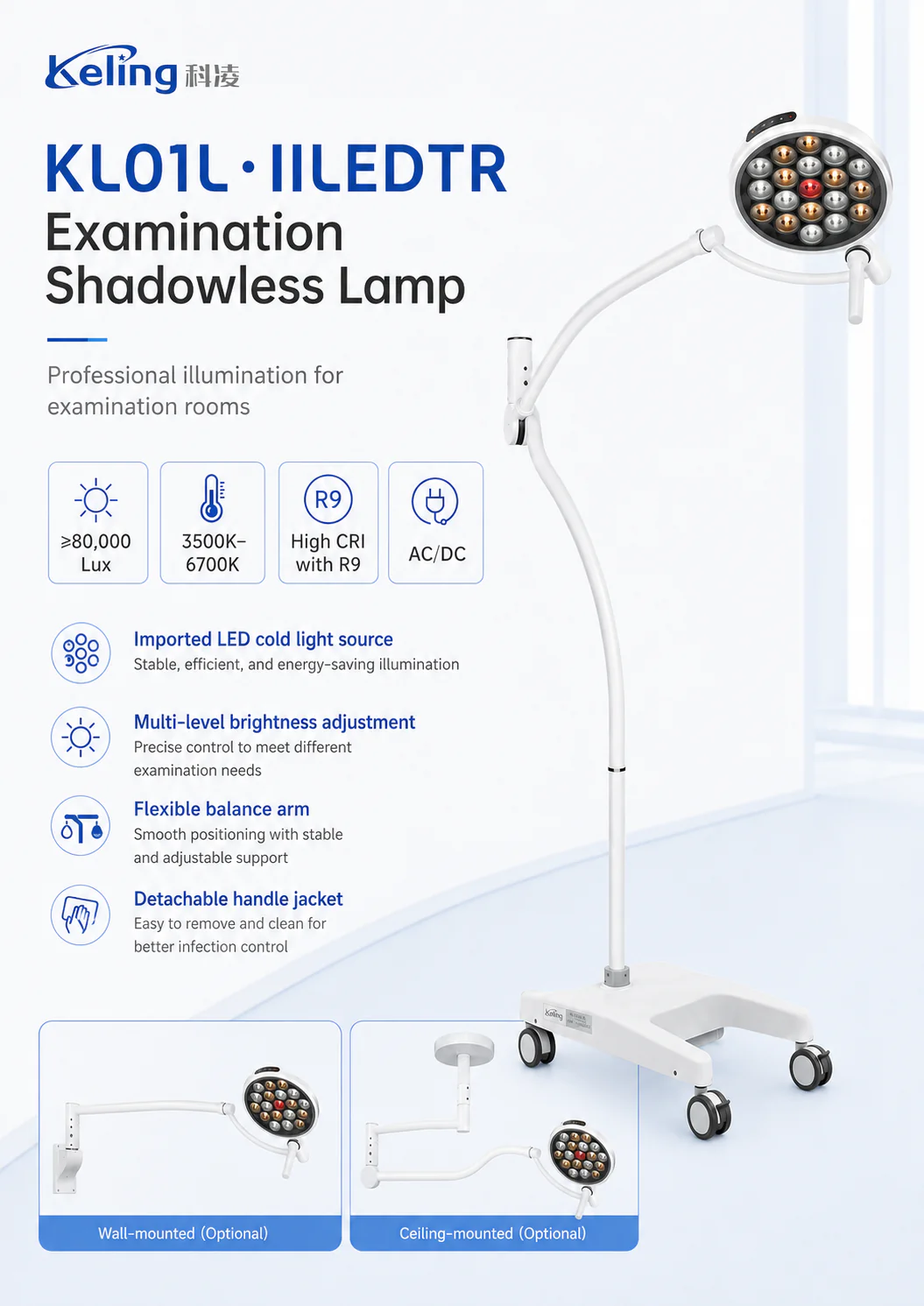

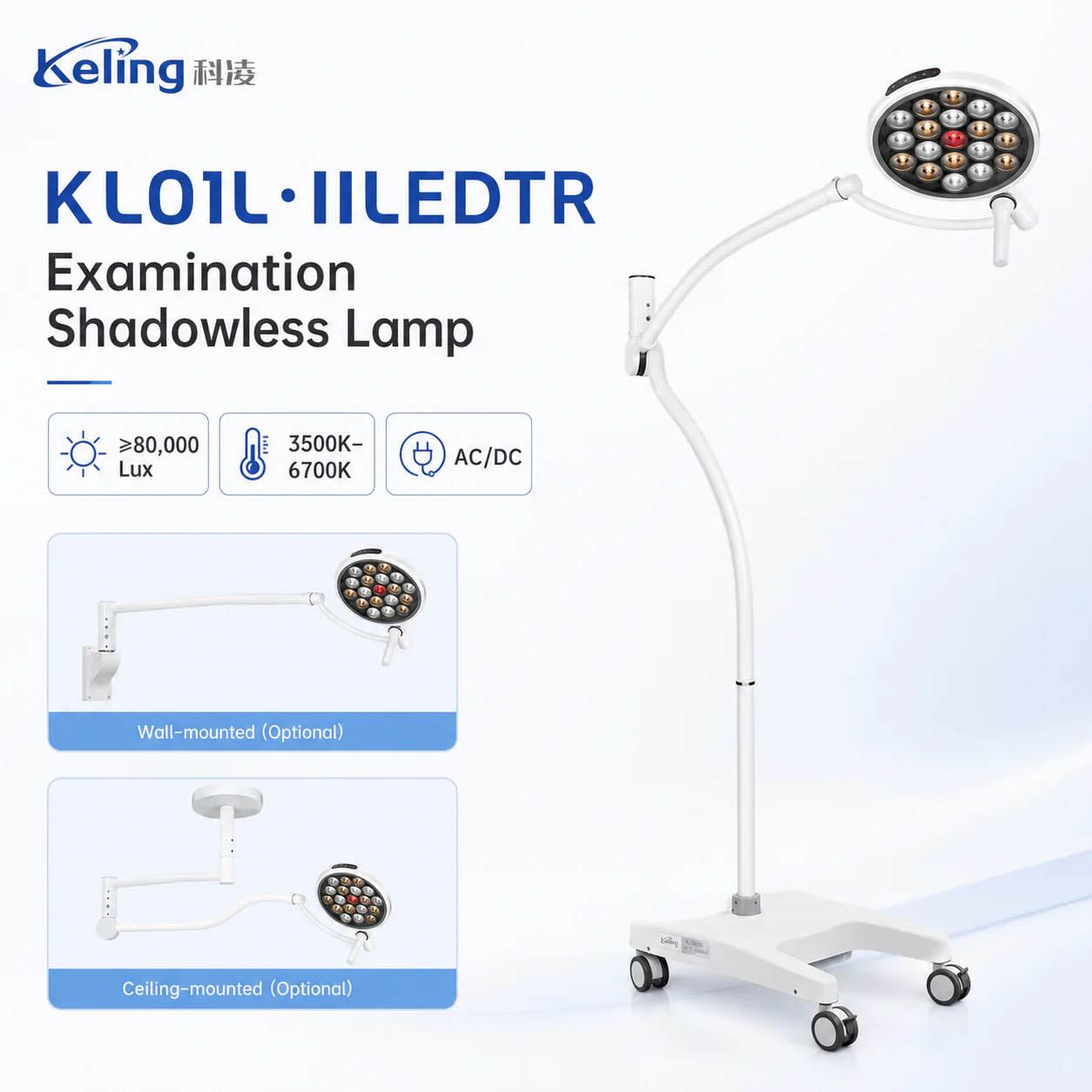

# KL01L-IILEDTR Examination Shadowless Lamp — High-Output LED Exam Light with Color Temperature Control and R9 Function
Quick answer: The Keling KL01L-IILEDTR is an LED examination shadowless lamp rated at ≥80,000 lux at 1 m, with adjustable color temperature (3500–6700 K), R9 deep-red function for superior tissue color rendering, and a flexible counterbalanced arm. It is manufactured by Keling Medical (Keling Medical) for examination rooms and procedure areas, and is available in ceiling-mounted, floor-standing and AC/DC configurations.
Quick Facts
- The Keling KL01L-IILEDTR is a high-output LED examination shadowless lamp for clinical examination rooms with ≥80,000 lux at 1 m.
- Color temperature is adjustable from 3500 K to 6700 K, and the lamp includes R9 deep-red LED function for enhanced tissue differentiation.
- Color rendering index is 100 ≥ Ra ≥ 85, supporting accurate clinical color assessment.
- Input power is 20 VA; the lamp operates on AC/DC for use in areas with variable power availability.
- The spring balance arm tilts 160° left/right and 190° front/back; spring arm travel is ≥600.
- The KL01L-IILEDTR features a detachable handle jacket for easy cleaning, and uses an imported LED cold light source.
Overview

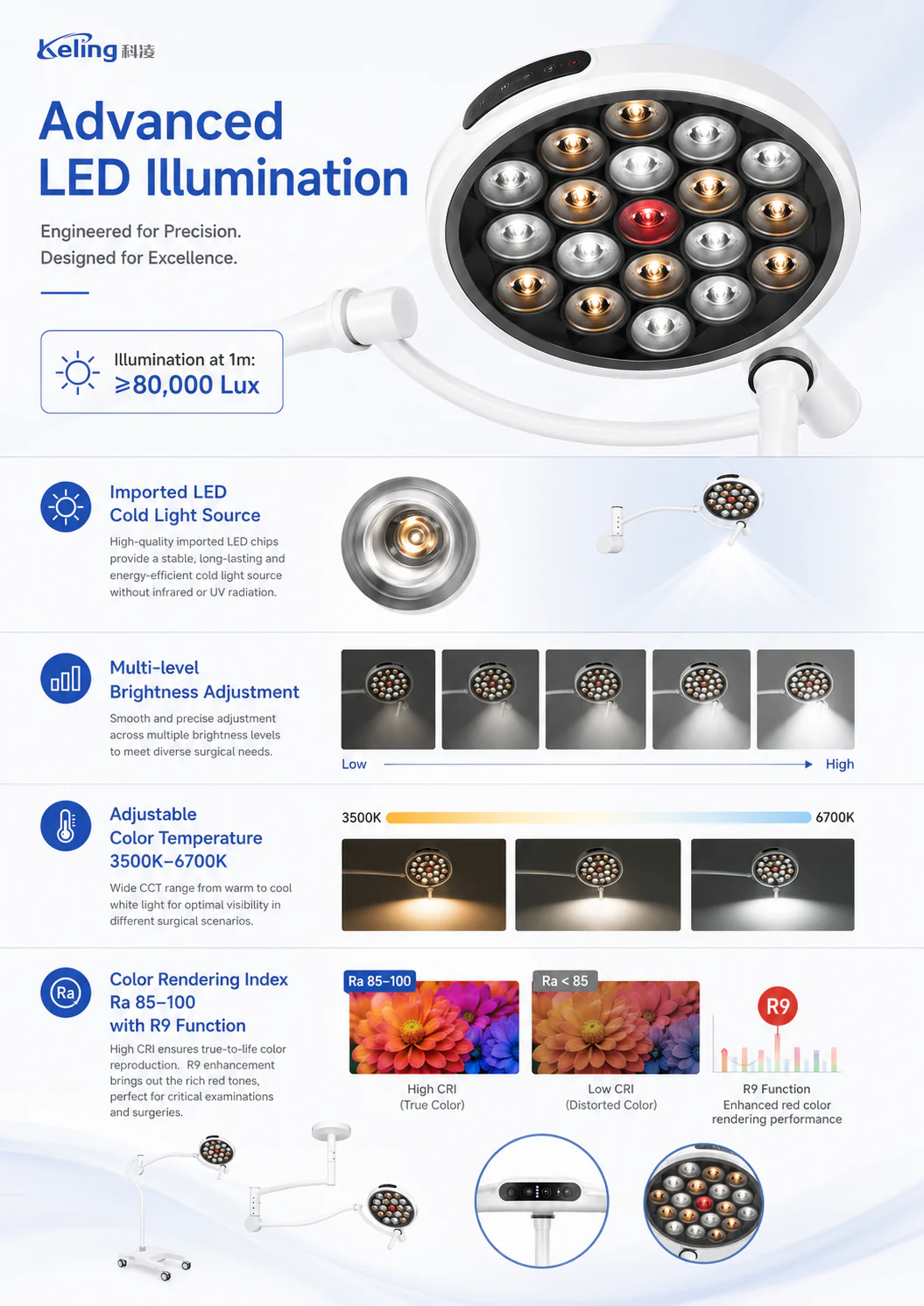

The KL01L-IILEDTR examination shadowless lamp is the higher-output sibling of the KL01L-IILED series, distinguished by its ≥80,000 lux rating and the addition of an R9 deep-red LED channel. In clinical practice, R9 function improves the rendering of red-spectrum tissue tones — such as blood, mucosal surfaces and inflamed tissue — that standard white LEDs can underrepresent, giving clinicians a more accurate view of conditions that depend on color differentiation. Combined with adjustable color temperature from warm 3500 K to cool daylight 6700 K, the IILEDTR adapts to examination conditions ranging from dermatological assessment to wound inspection.

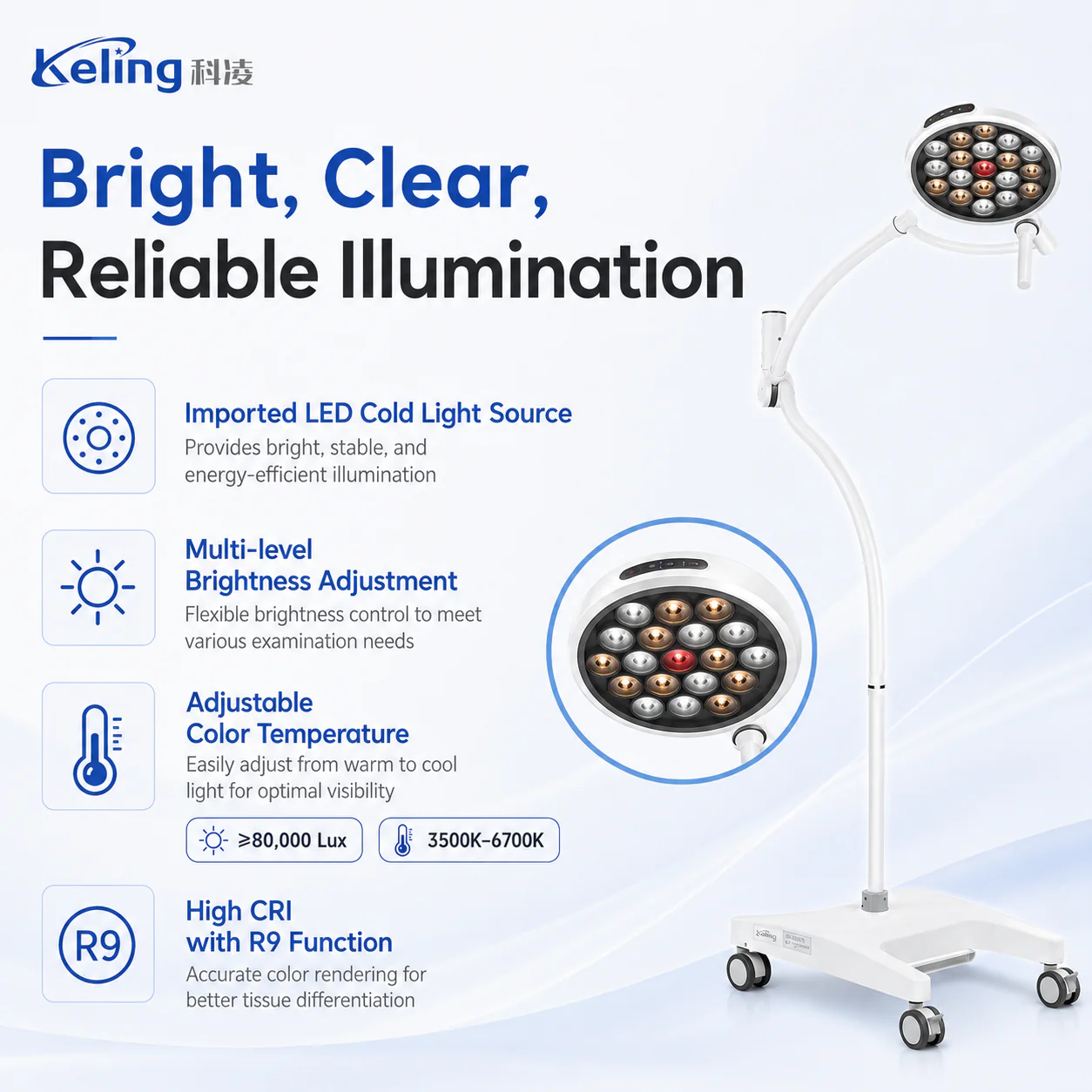

The lamp uses an imported LED cold light source that produces bright, stable illumination with minimal infrared heat, maintaining patient comfort throughout the examination. Multi-level brightness control allows the clinician to dial in the precise intensity required for each task, from ambient lighting to close-focus maximum output. The counterbalanced spring arm provides smooth, one-hand repositioning in any direction and holds the lamp head precisely where set, reducing the need for repeated adjustments during examinations.

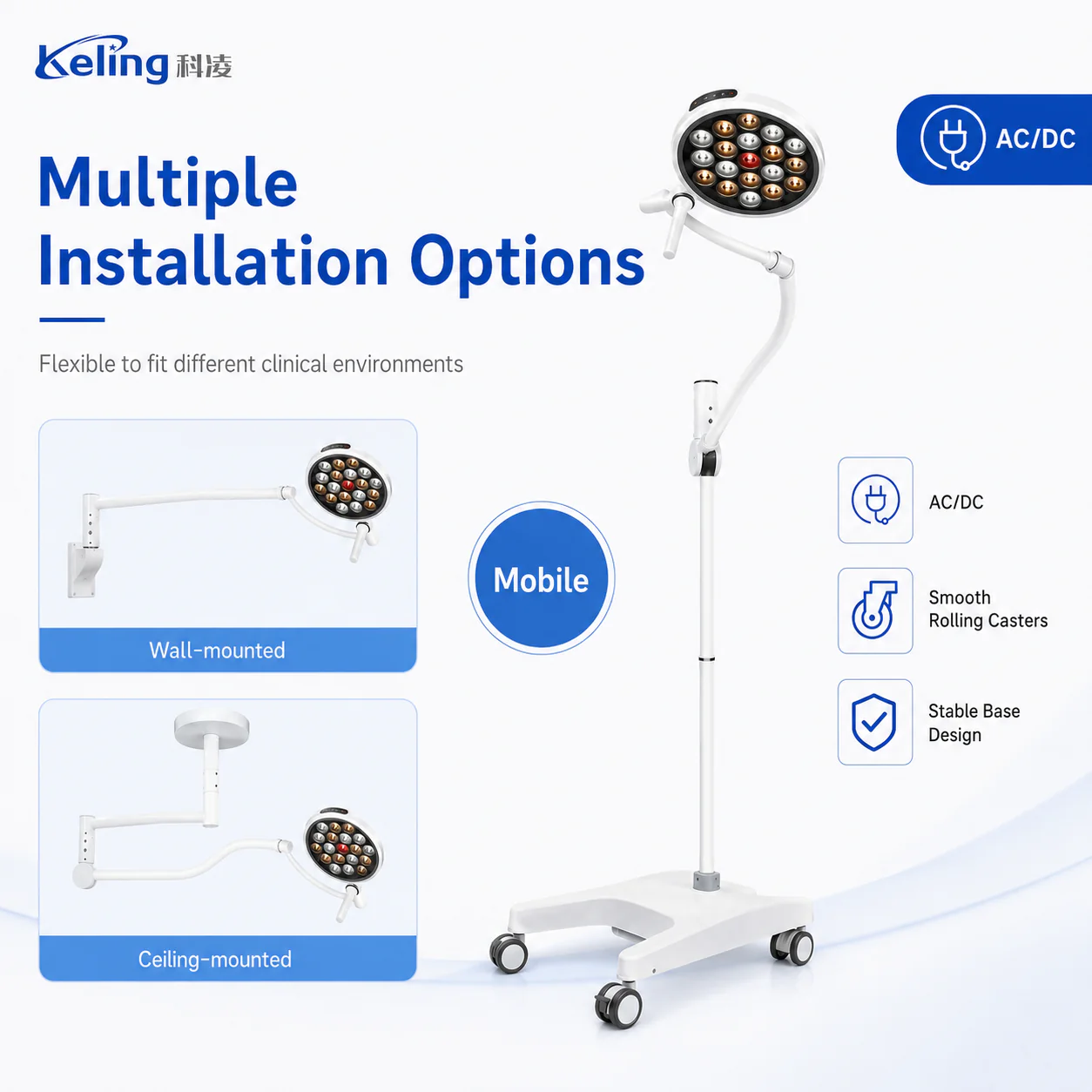

Available in standard floor-standing, ceiling-mounted and AC/DC battery-backed variants, the KL01L-IILEDTR suits both fixed examination bays and mobile deployment in wards or emergency areas where mains power may be unavailable. The detachable handle jacket removes and reattaches without tools, streamlining cleaning and disinfection protocols between patients in busy outpatient environments.
Key Features
- ≥80,000 Lux Output — higher illumination level than standard exam lamps, providing clear visibility for detailed clinical examination and minor procedures.
- R9 Deep-Red Function — dedicated red-spectrum LED channel improves rendering of blood, mucosa and inflamed tissue for accurate clinical color assessment.

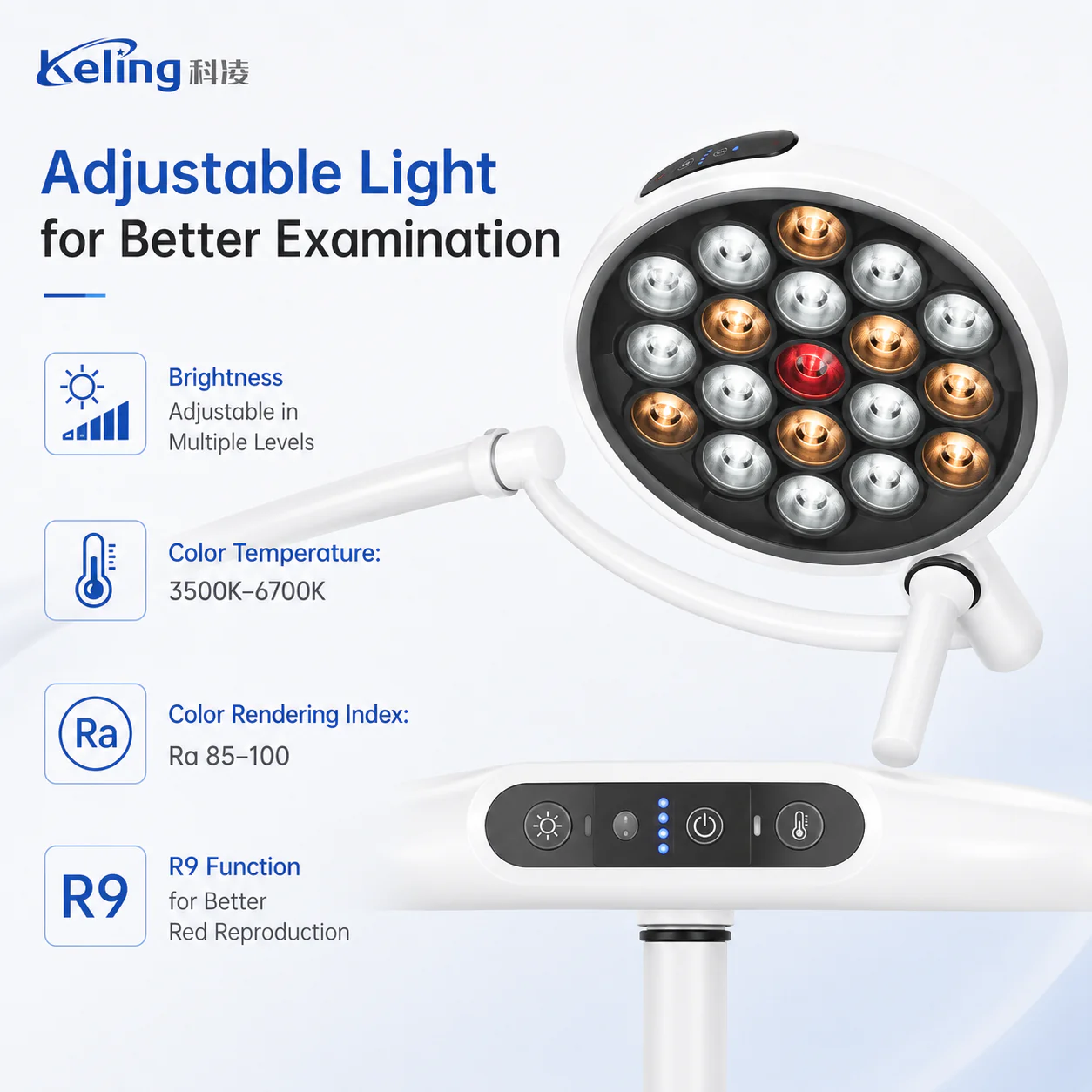

- Adjustable Color Temperature — 3500 K–6700 K range allows the clinician to select warm, neutral or daylight color tone for each examination type.
- Imported LED Cold Light Source — minimal heat output from an advanced LED cold light technology ensures patient comfort during extended examinations.
- Multi-Level Brightness Control — stepless or incremental dimming to adapt illumination intensity to the procedure.

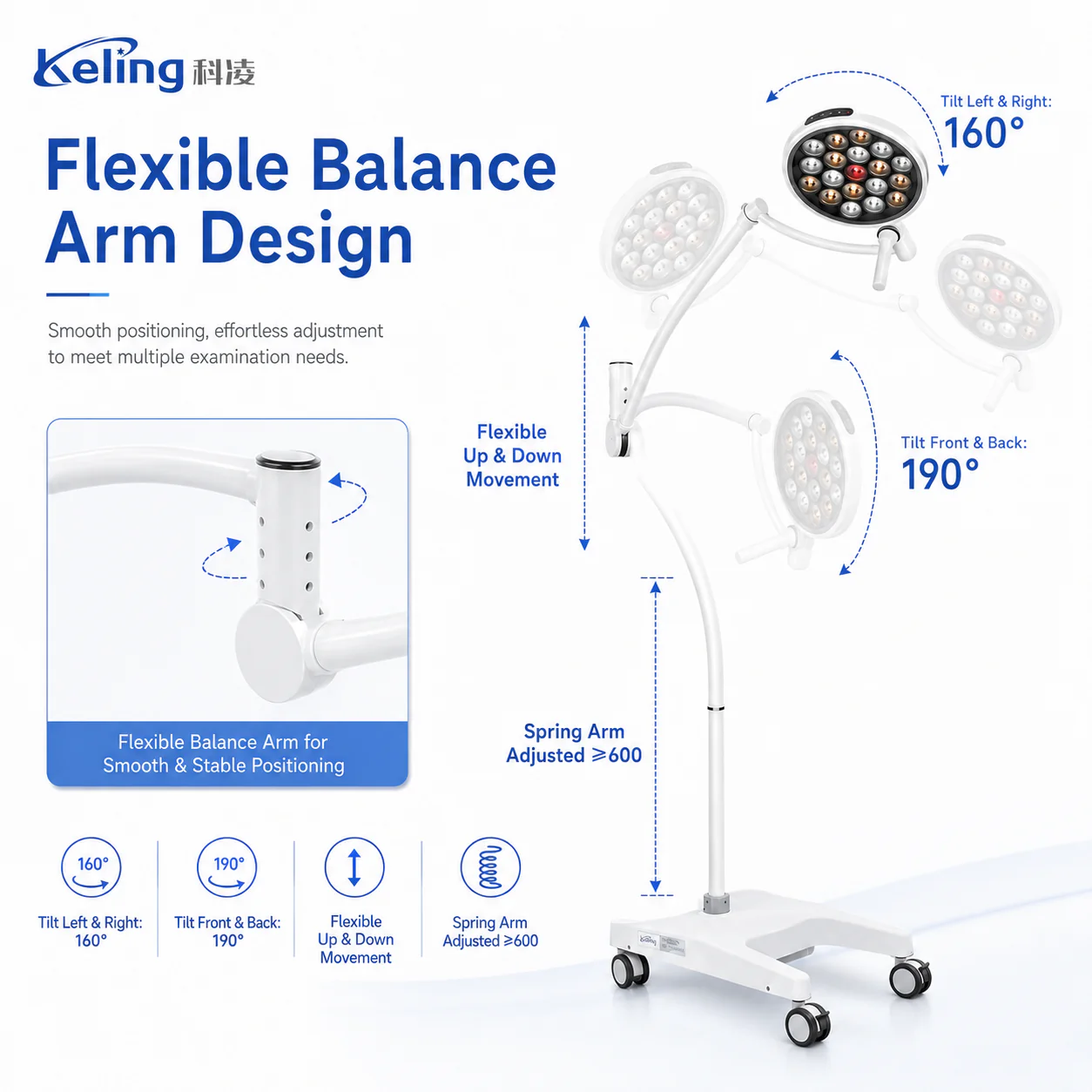

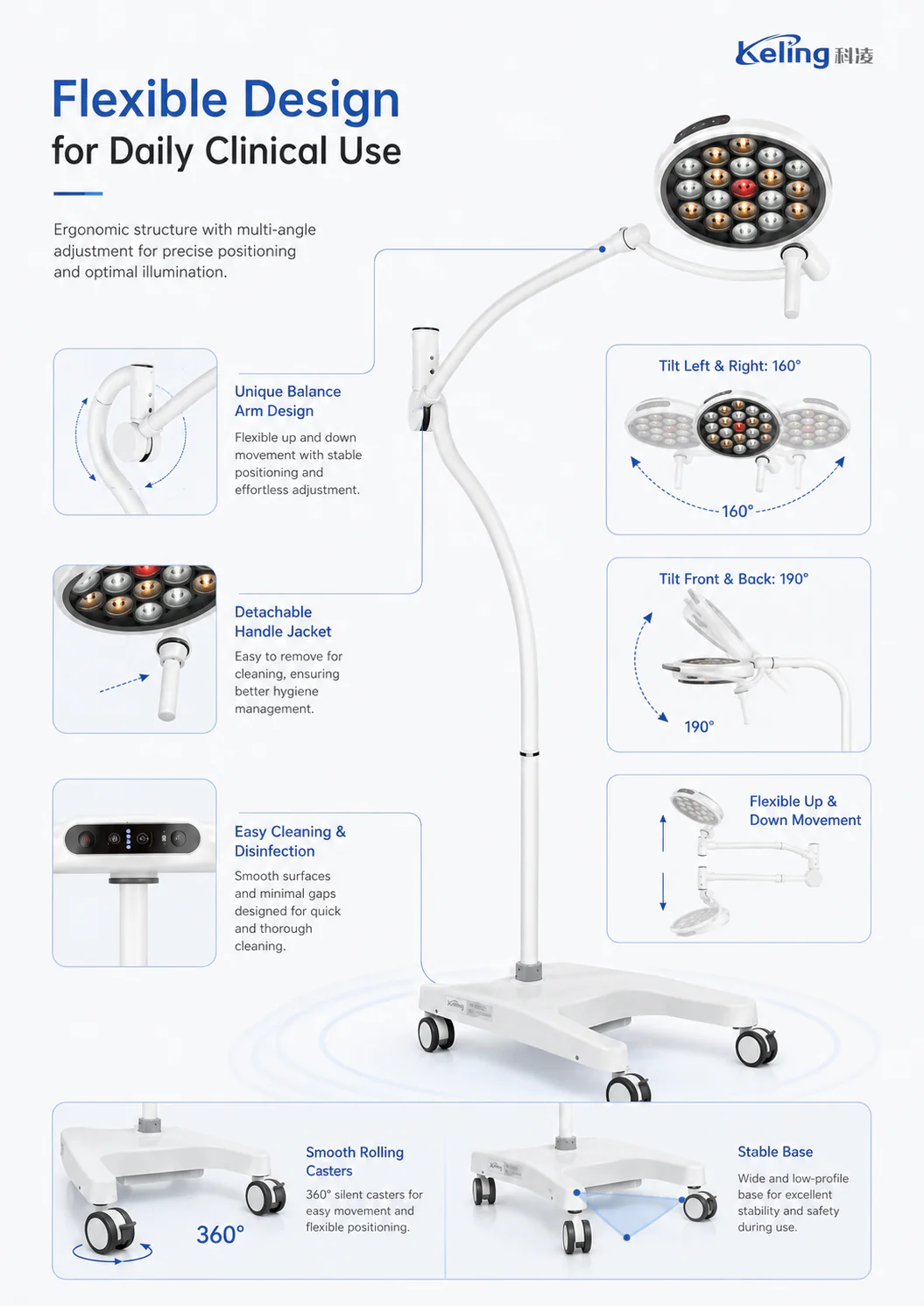

- Flexible Balance Arm — counterbalanced spring arm with 160° left/right tilt, 190° front/back tilt and ≥600 spring travel for precise positioning.

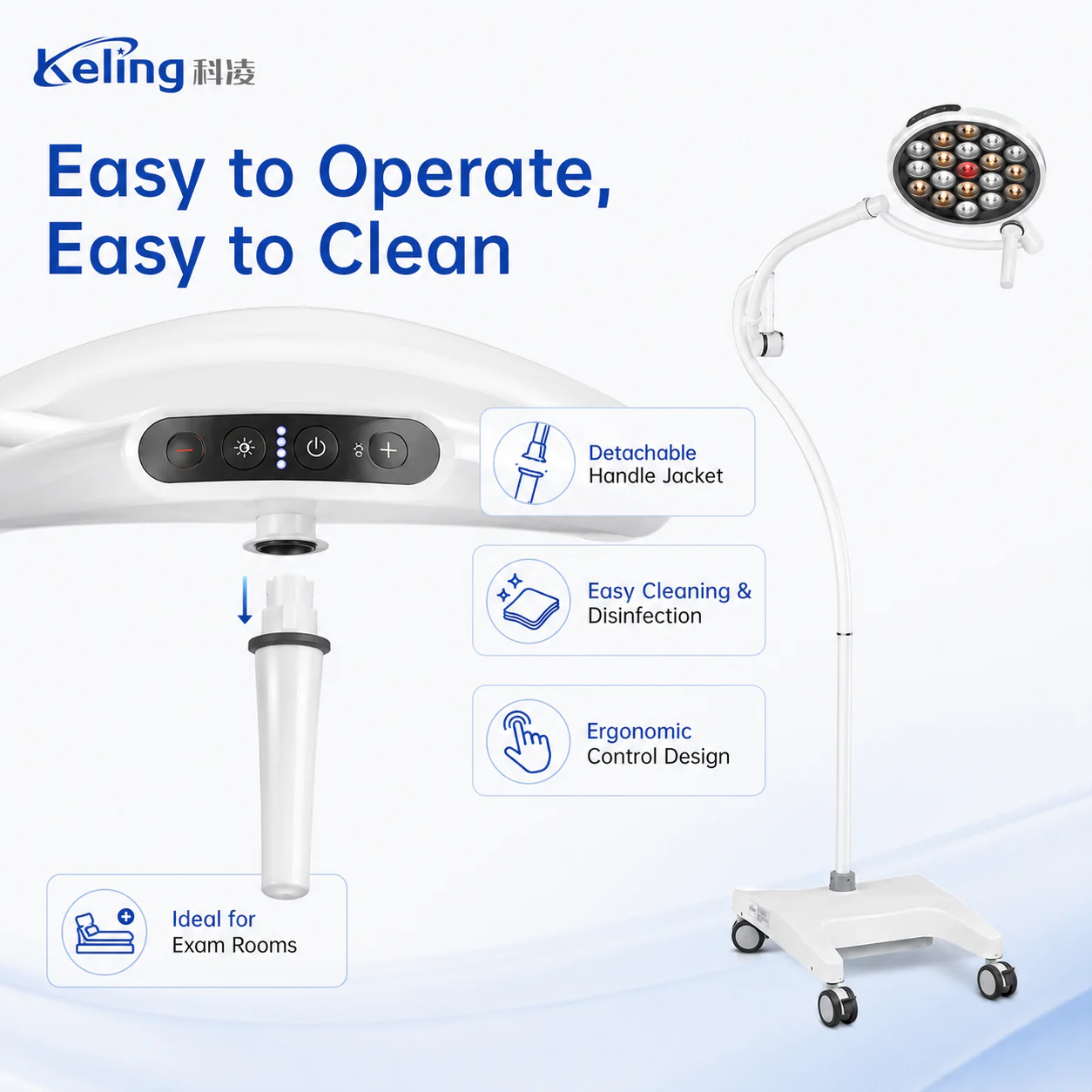

- Detachable Handle Jacket — removable handle for rapid cleaning and disinfection, maintaining infection control compliance.
- AC/DC Operation — battery-backed model available for continuous operation during power interruptions.

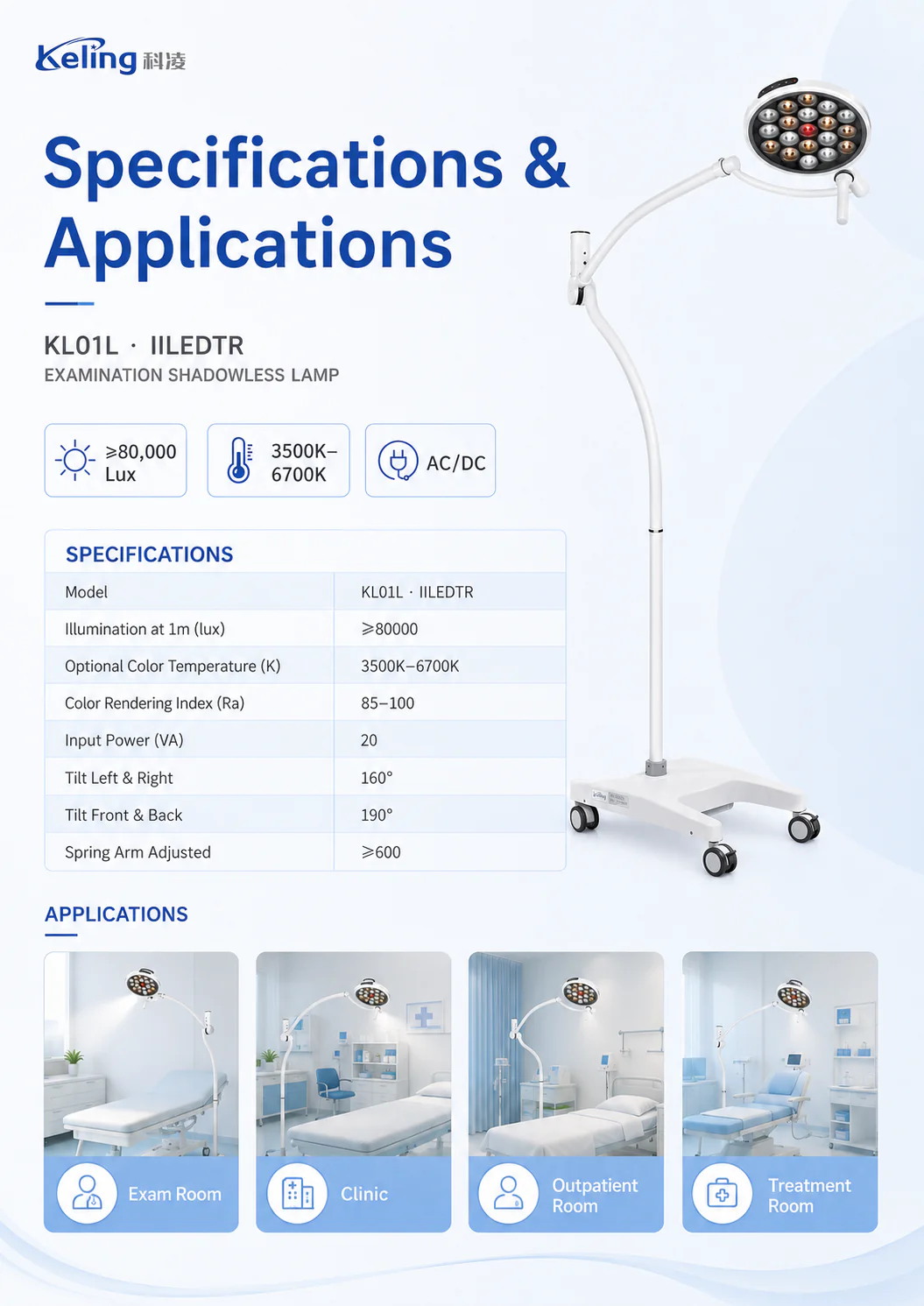

Technical Specifications
| Parameter | Value |
|---|---|
| Model | KL01L-IILEDTR |
| Illumination at 1 m (lux) | ≥80,000 |
| Optional color temperature (K) | 6700 ≥ Tc ≥ 3500 |
| Color rendering index (Ra) | 100 ≥ Ra ≥ 85 |
| R9 function | Yes |
| Input power (VA) | 20 |
| Tilt left and right | 160° |
| Tilt front and back | 190° |
| Spring arm adjusted | ≥600 |
Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.
Applications
The KL01L-IILEDTR examination shadowless lamp is used in outpatient consulting rooms, specialist examination suites (dermatology, ENT, gynaecology, urology), emergency triage areas, minor procedure and treatment rooms, dental and veterinary examination settings, and any clinical space where high illumination combined with accurate tissue color rendering is essential.
