# KL01L-ILED-I Examination Shadowless Lamp — High-CRI LED Exam Light with Modern Elegant Design
Quick answer: The Keling KL01L-ILED-I is an LED examination shadowless lamp with a new-shape modern design, delivering ≥40,000 lux at 1 m and ≥60,000 lux at 0.5 m, with a high color rendering index of Ra ≥ 95 and 4500 ± 500 K color temperature. It is manufactured by Keling Medical (Keling Medical) for examination rooms in hospitals, clinics and outpatient facilities, and features a detachable handle for easy sterilization.
Quick Facts
- The Keling KL01L-ILED-I is an LED examination shadowless lamp featuring a new elegant shape with an imported LED cold light source.
- Illumination is ≥40,000 lux at 1 m and ≥60,000 lux at 0.5 m; color temperature is 4500 ± 500 K.
- Color rendering index is Ra ≥ 95 — notably higher than standard exam lamp minimums, ensuring accurate tissue and skin tone representation.
- Tilt range is 75° left/right and 75° front/back; lifting distance is ≥ 500 mm; input power is 20 ± 10% VA.
- The lamp uses a flexible rotation arm for precise positioning and features a detachable handle jacket for cleaning and disinfection.
- The KL01L-ILED-I is suited for wall-mount and floor-standing installation in examination rooms.
Overview

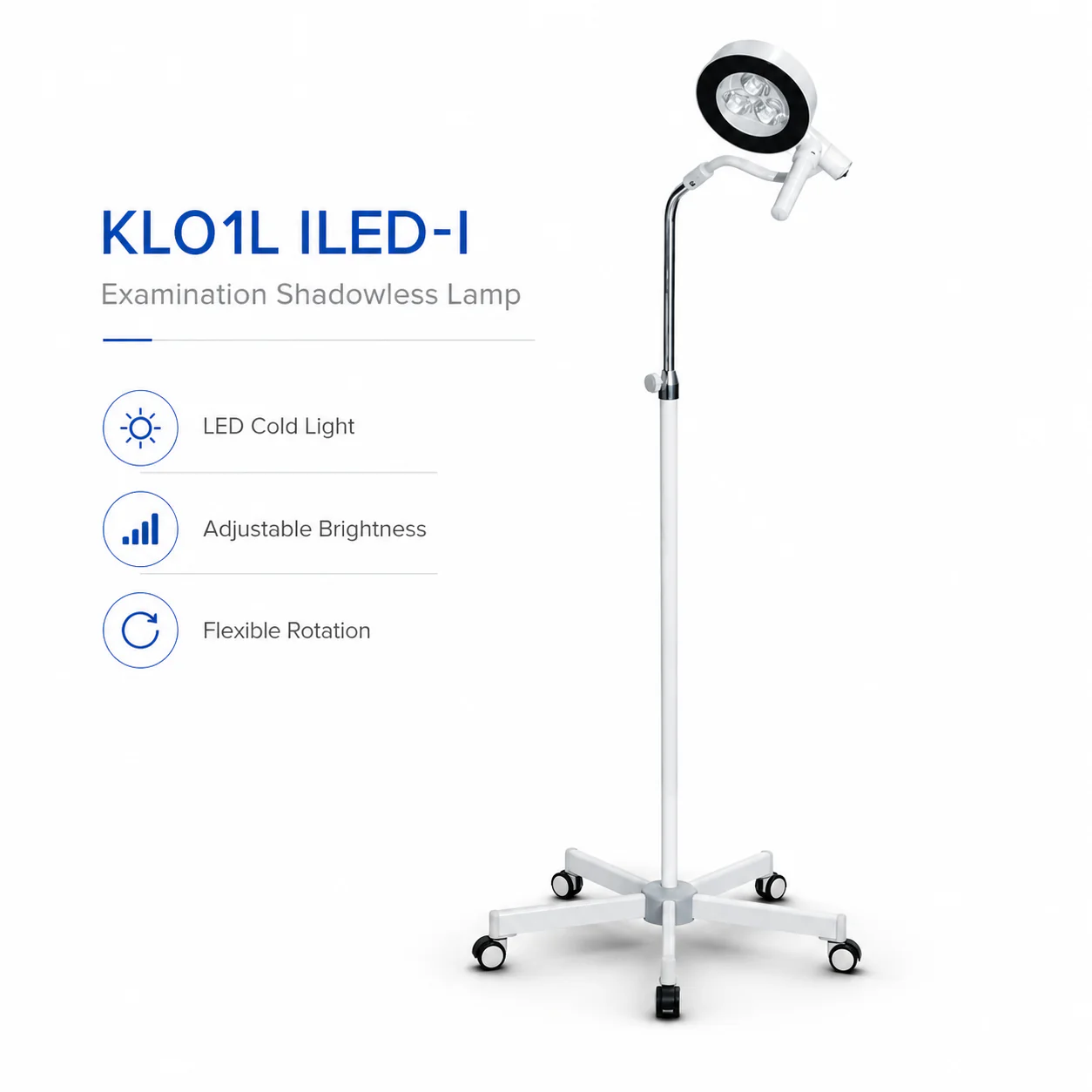

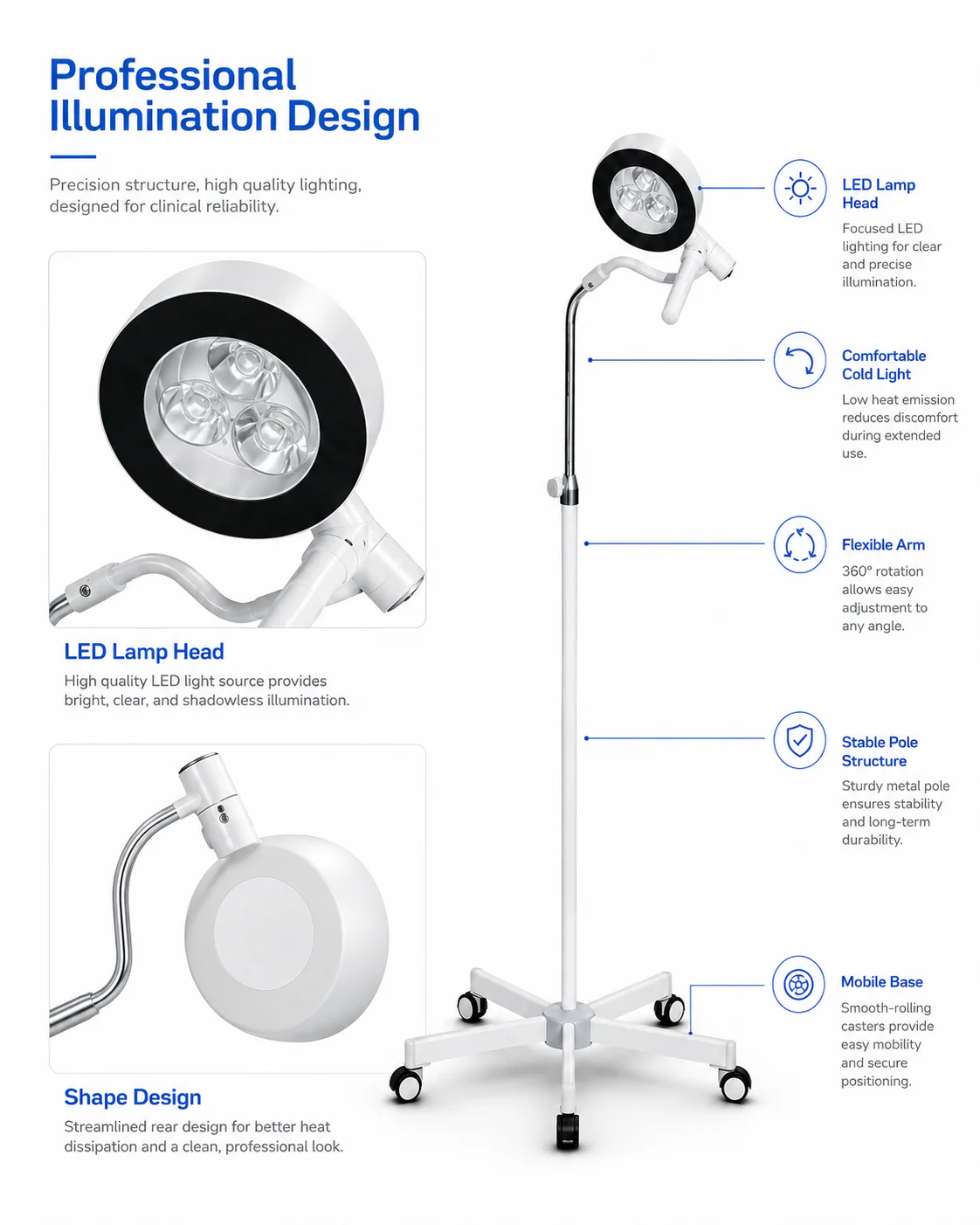

The KL01L-ILED-I examination shadowless lamp combines a distinctively modern lamp head design with high-performance LED cold-light technology to deliver clinical-grade illumination with a visually refined appearance. The new-shape round head — finished in clean white with a pronounced black rim — presents a professional aesthetic suited to contemporary examination suites, specialist consulting rooms and private clinics where both performance and interior design matter.
The LED cold light source produces ≥40,000 lux at the standard 1 m reference distance and rises to ≥60,000 lux at 0.5 m close focus, making the KL01L-ILED-I effective for detailed examination tasks that bring the lamp head close to the patient — dermatological inspection, wound assessment, oral and ENT checks. A color rendering index of Ra ≥ 95 is the key differentiator in this model: at this CRI level, skin tone, mucosa, bruising and subtle tissue color changes are rendered with sufficient fidelity to support clinical decision-making without the distortion that lower-CRI sources introduce.

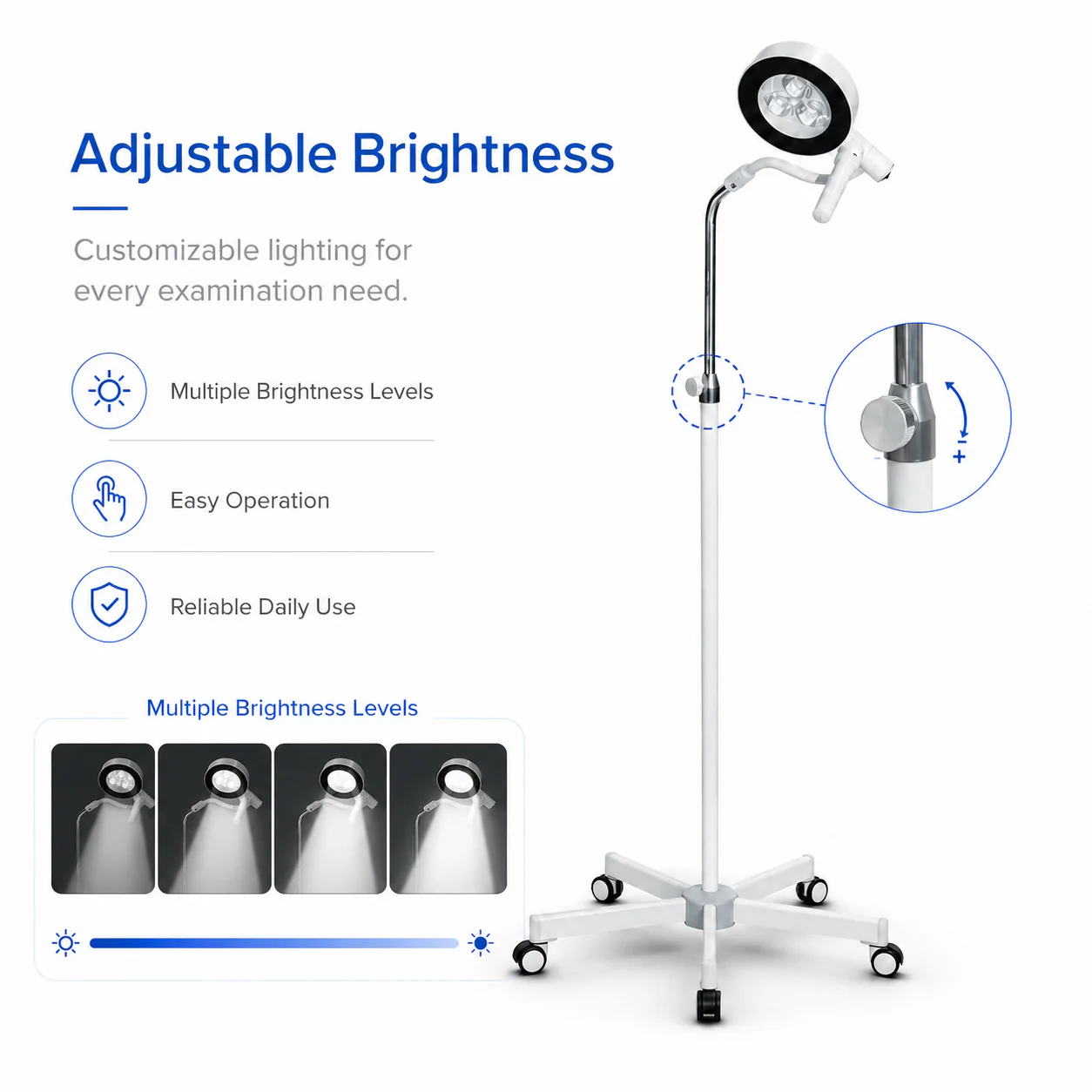

Multi-level brightness adjustment is available across the arm, which offers flexible rotation of 75° in all four directions and a lifting distance of ≥ 500 mm to cover different table heights and working positions. The detachable handle jacket removes and reinstalls without tools, making inter-patient cleaning straightforward. The lamp is available in floor-standing and wall-mount configurations to suit different examination room layouts.

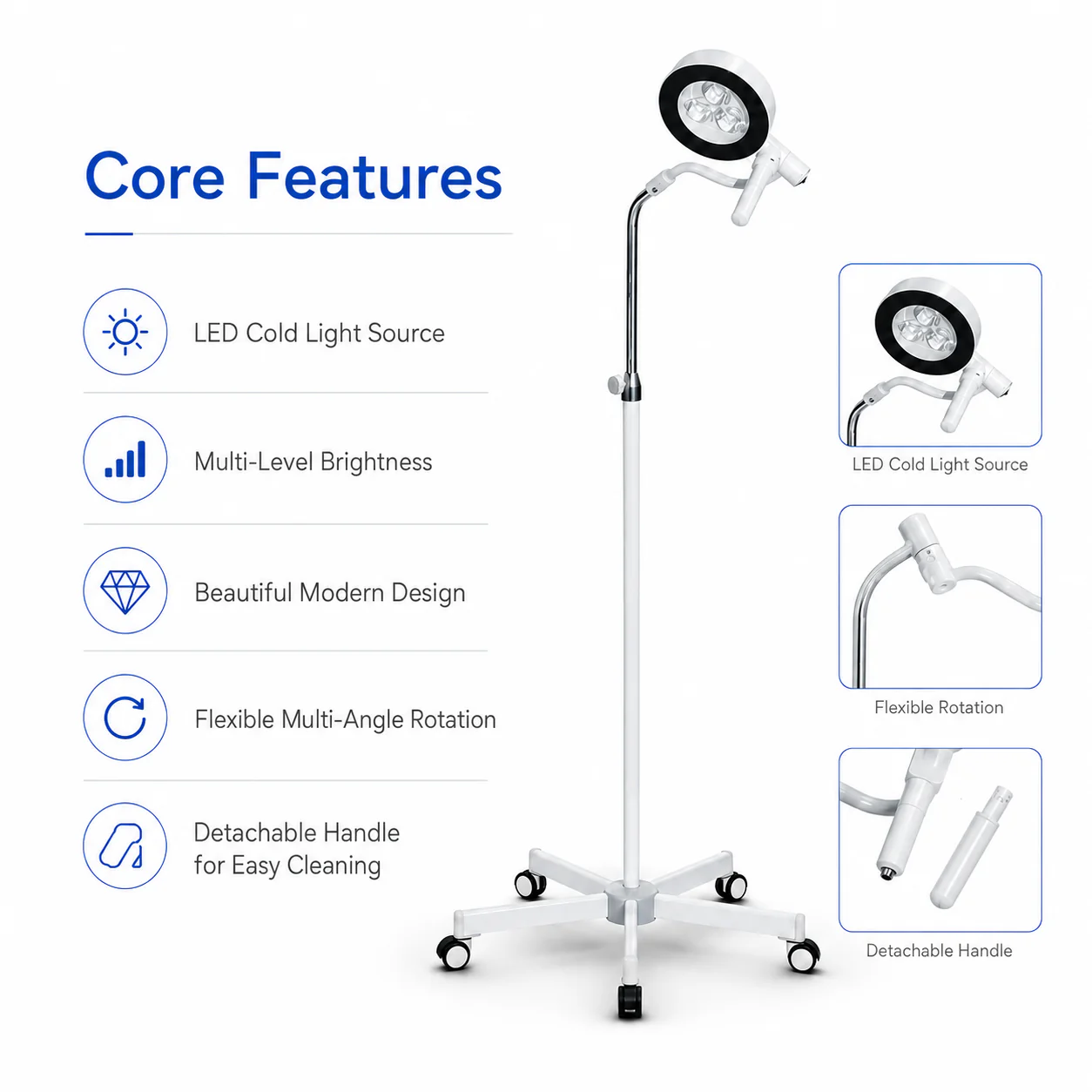

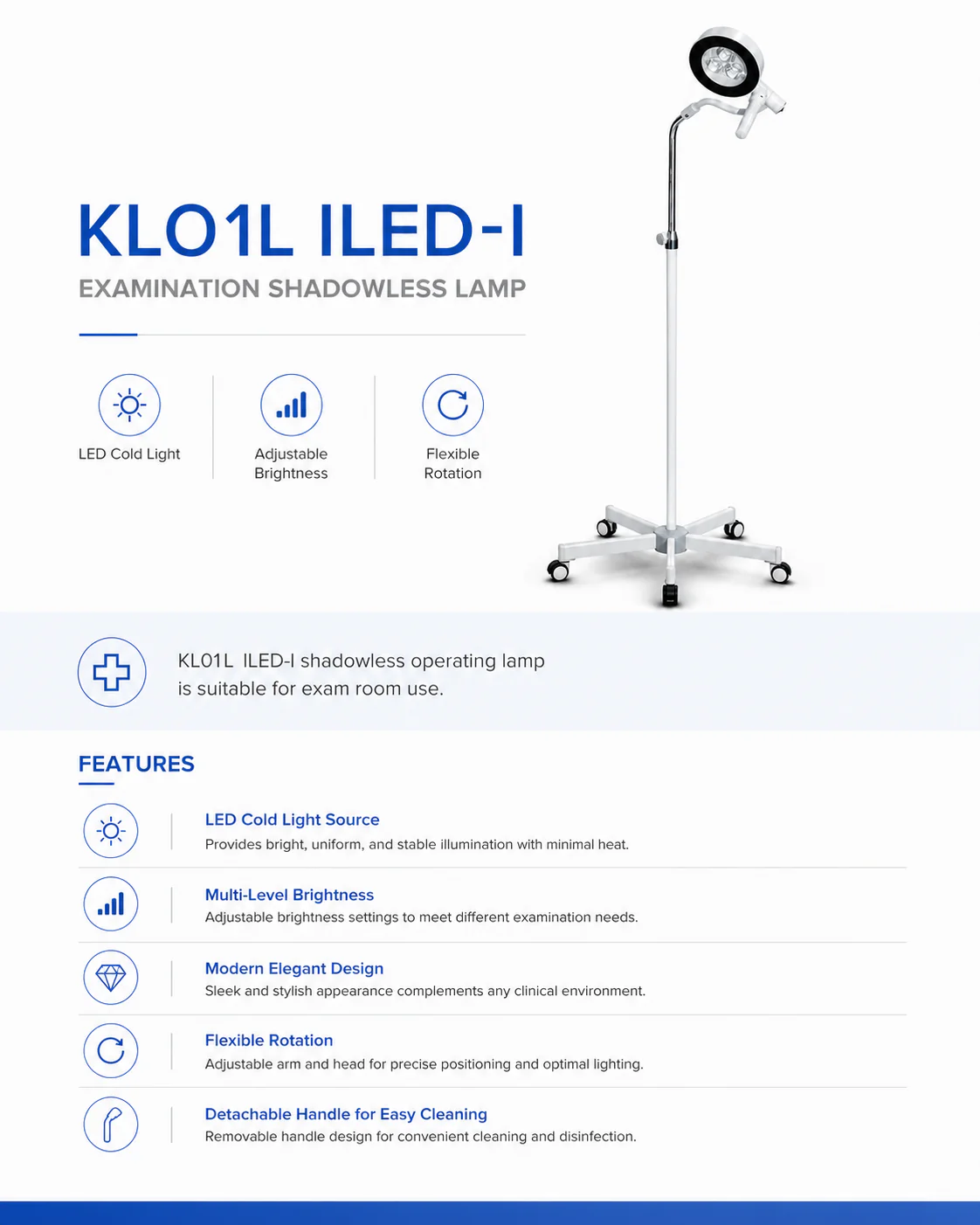

Key Features
- Ra ≥ 95 High-CRI LED — exceptionally accurate color rendering of skin tone, mucosa and tissue detail for reliable clinical examination.
- Dual-Distance Illumination — ≥40,000 lux at 1 m and ≥60,000 lux at 0.5 m provide strong output at both standard and close-focus working distances.
- New Modern Elegant Design — distinctive new-shape round lamp head complements contemporary clinical interiors and private clinic environments.

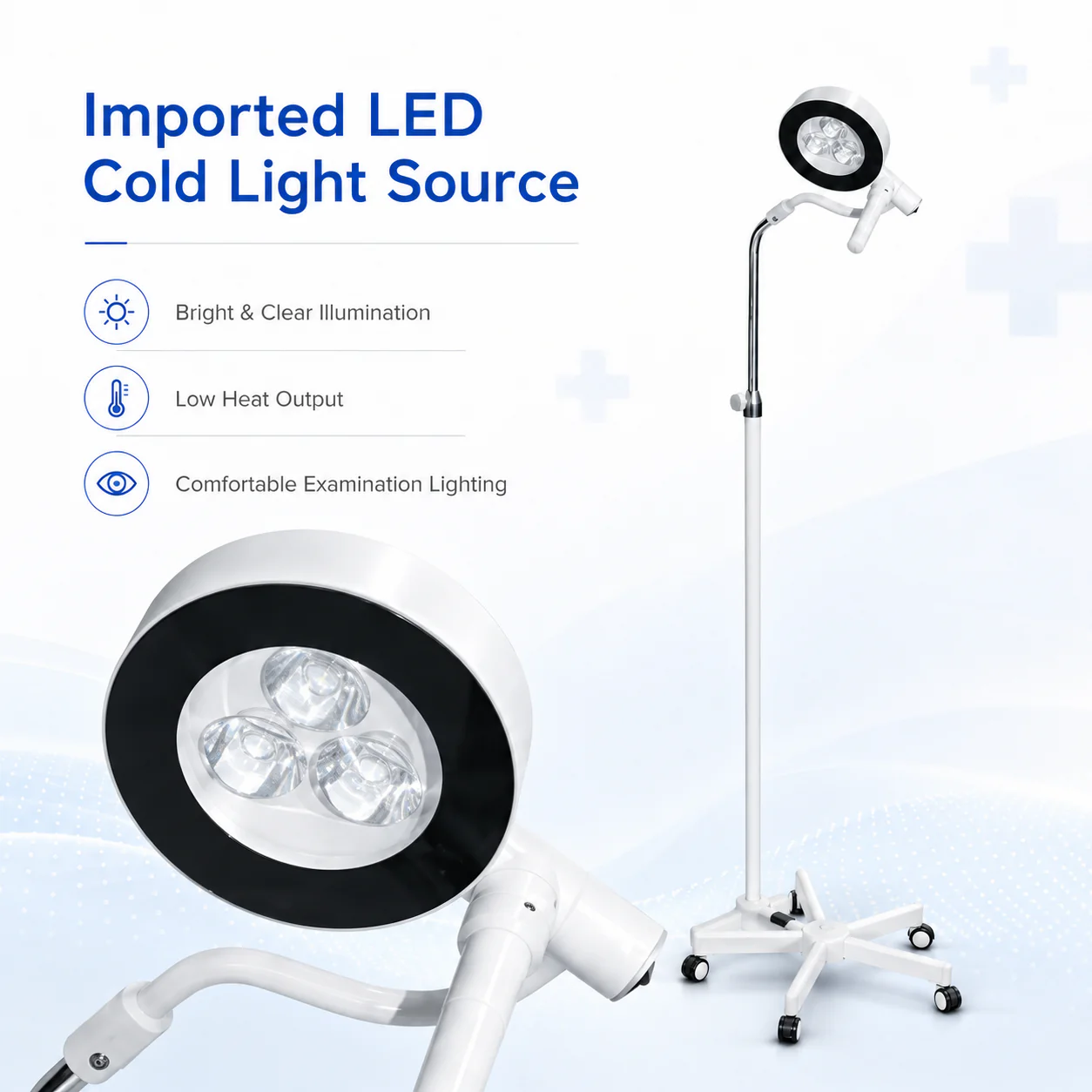

- Imported LED Cold Light Source — low heat, stable brightness and long service life with minimal maintenance.
- Multi-Level Brightness Control — adjustable illumination intensity for different examination needs.

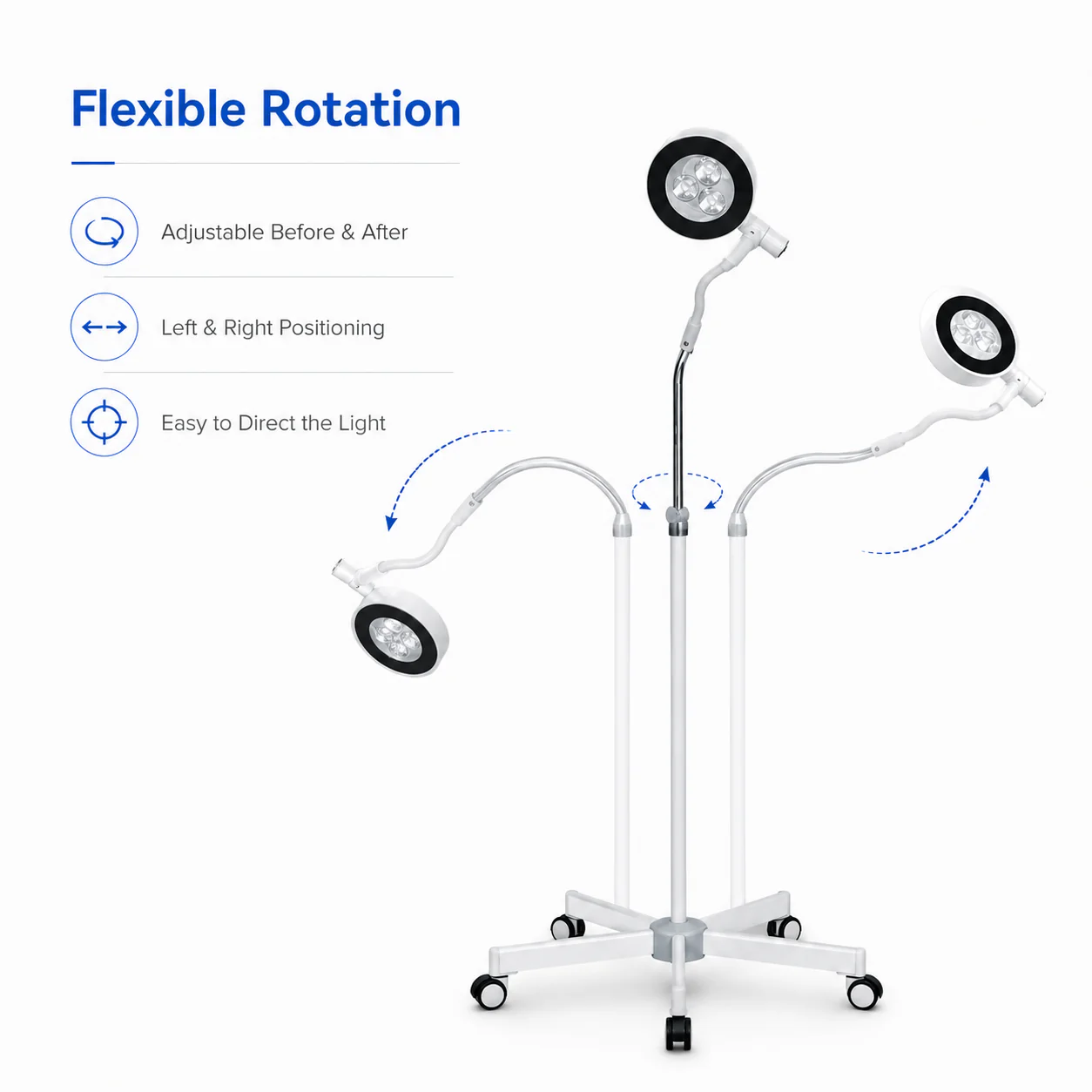

- Flexible Rotation Arm — 75° tilt in all four directions and ≥ 500 mm lifting distance for versatile positioning.

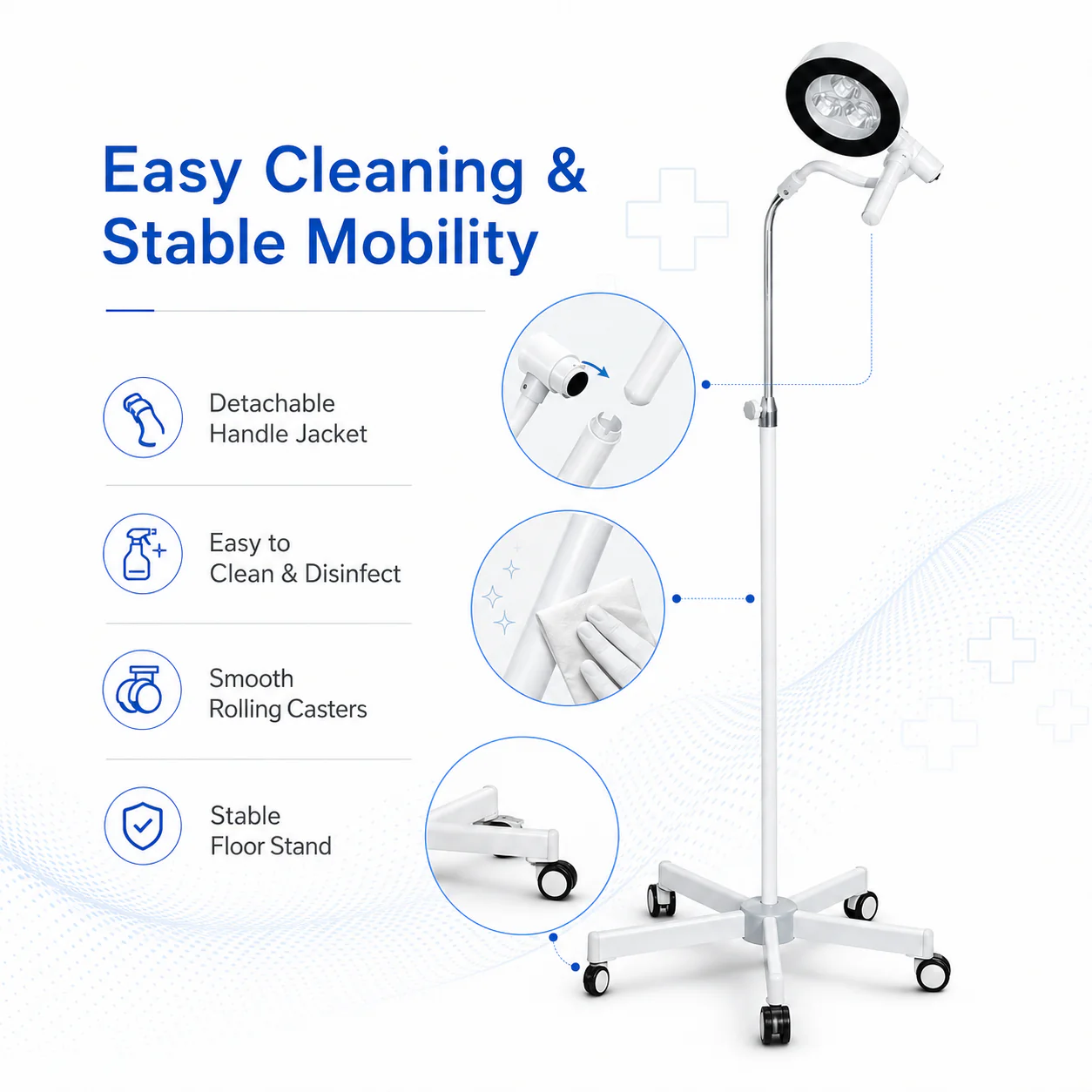

- Detachable Handle for Easy Cleaning — removable handle jacket supports rapid disinfection between patients.
- Floor-Standing and Wall-Mount Options — suits fixed examination bays and wall-bracket installations.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | KL01L-ILED-I |
| Illumination at 1 m (lux) | ≥40,000 |
| Illumination at 0.5 m (lux) | ≥60,000 |
| Color rendering index (Ra) | Ra ≥ 95 |
| Color temperature (K) | 4500 ± 500 |
| Input power (VA) | 20 ± 10% |
| Tilt left and right | 75° |
| Tilt front and back | 75° |
| Lifting distance (mm) | ≥500 |
Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.
Applications

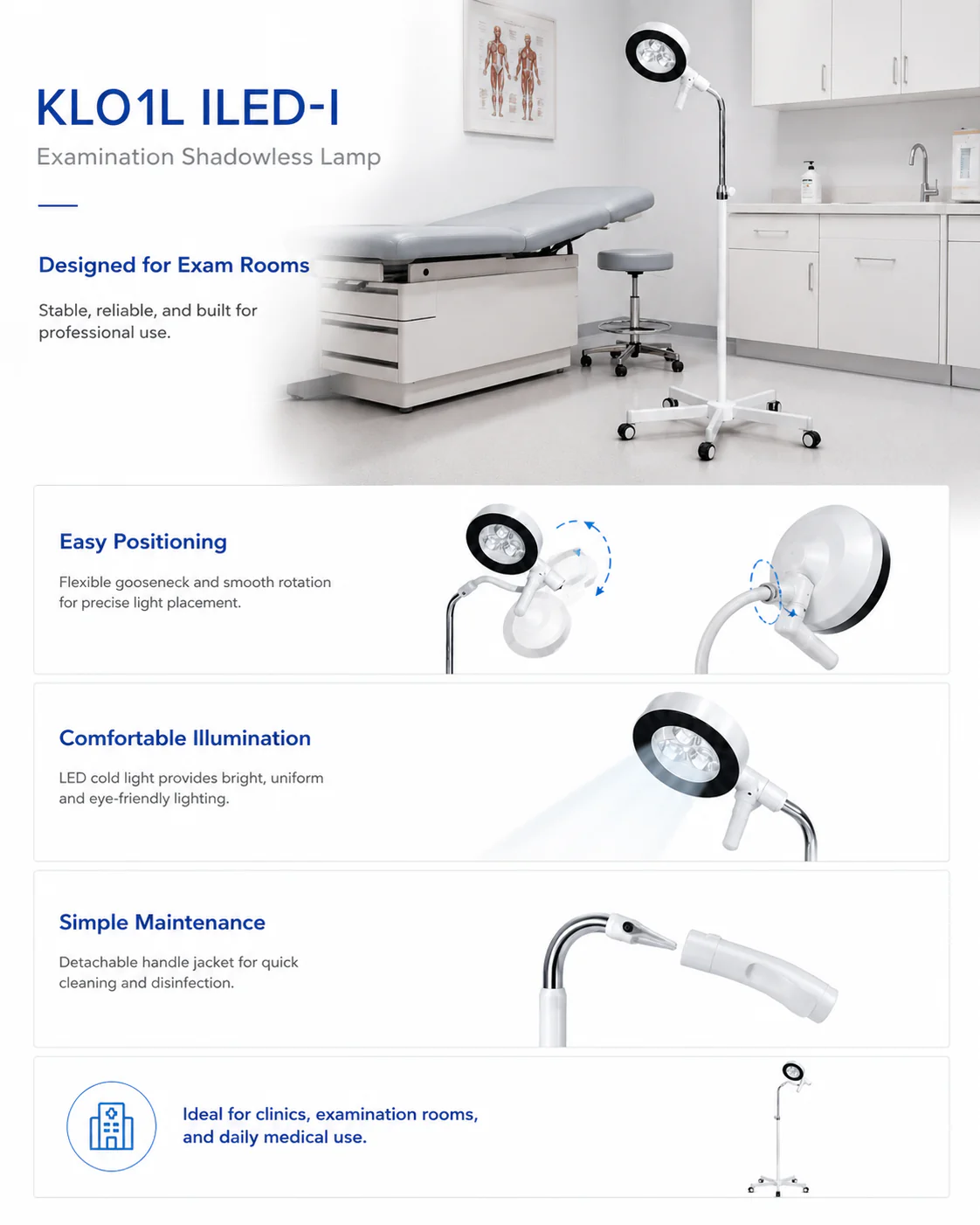

The KL01L-ILED-I examination shadowless lamp is suited for specialist consulting rooms (dermatology, ENT, ophthalmology, gynaecology), general medical examination bays, private clinics and day-surgery pre-assessment areas, paediatric examination rooms, dental practices and any clinical setting where high-CRI illumination is required for accurate color-based clinical assessment.
