# KL01L-ILED & IILED-I Examination Shadowless Lamp — Compact LED Exam Lights with 180° Rotation
Quick answer: The Keling KL01L-ILED and KL01L-IILED-I are compact LED examination shadowless lamps delivering ≥30,000 lux at 1 m with a color temperature of 4500 ± 500 K and Ra ≥ 85. Both models feature a streamlined appearance, 180° rotation in all directions and height adjustment ≥ 400 mm, and are available in AC/DC battery-backed configurations. They are manufactured by Keling Medical (Keling Medical) for outpatient and clinical examination rooms.
Quick Facts
- The Keling KL01L-ILED and KL01L-IILED-I are compact LED examination shadowless lamps for exam rooms and minor procedure spaces.
- Illumination at 1 m is ≥30,000 lux; color temperature is 4500 ± 500 K; color rendering index is Ra ≥ 85.
- Input power is 20 ± 10% VA for both models.
- Tilt range is 180° left/right and 180° front/back; height adjustment distance is ≥ 400 mm.
- Both models feature a streamlined, elegant appearance and an imported LED cold light source.
- The KL01L-IILED-I is available with a mobile wheeled base (KL01L-IILED-I) and in an AC/DC variant (KL01L-IILED-I AC/DC).
Overview

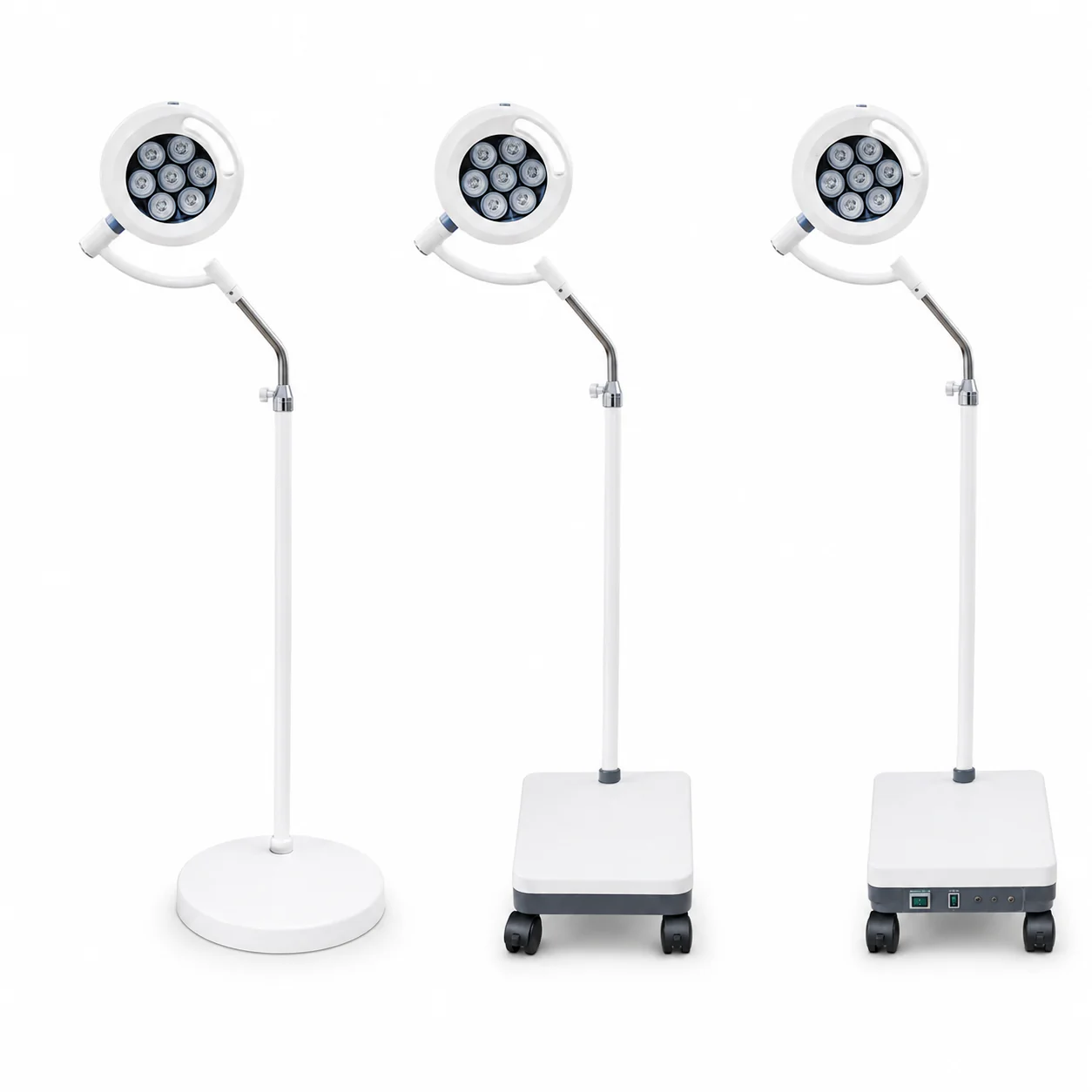

The KL01L-ILED and KL01L-IILED-I share a common platform built around an imported LED cold light source and a slim, round lamp head with a clean modern profile. Developed for busy outpatient departments and examination rooms where space is limited, the streamlined design installs without visual clutter and the compact lamp head is easily repositioned with one hand. Despite its modest size, the LED array delivers ≥30,000 lux of shadowless, cool-white light at 1 m — sufficient for detailed clinical inspections, dressing changes and minor procedures.

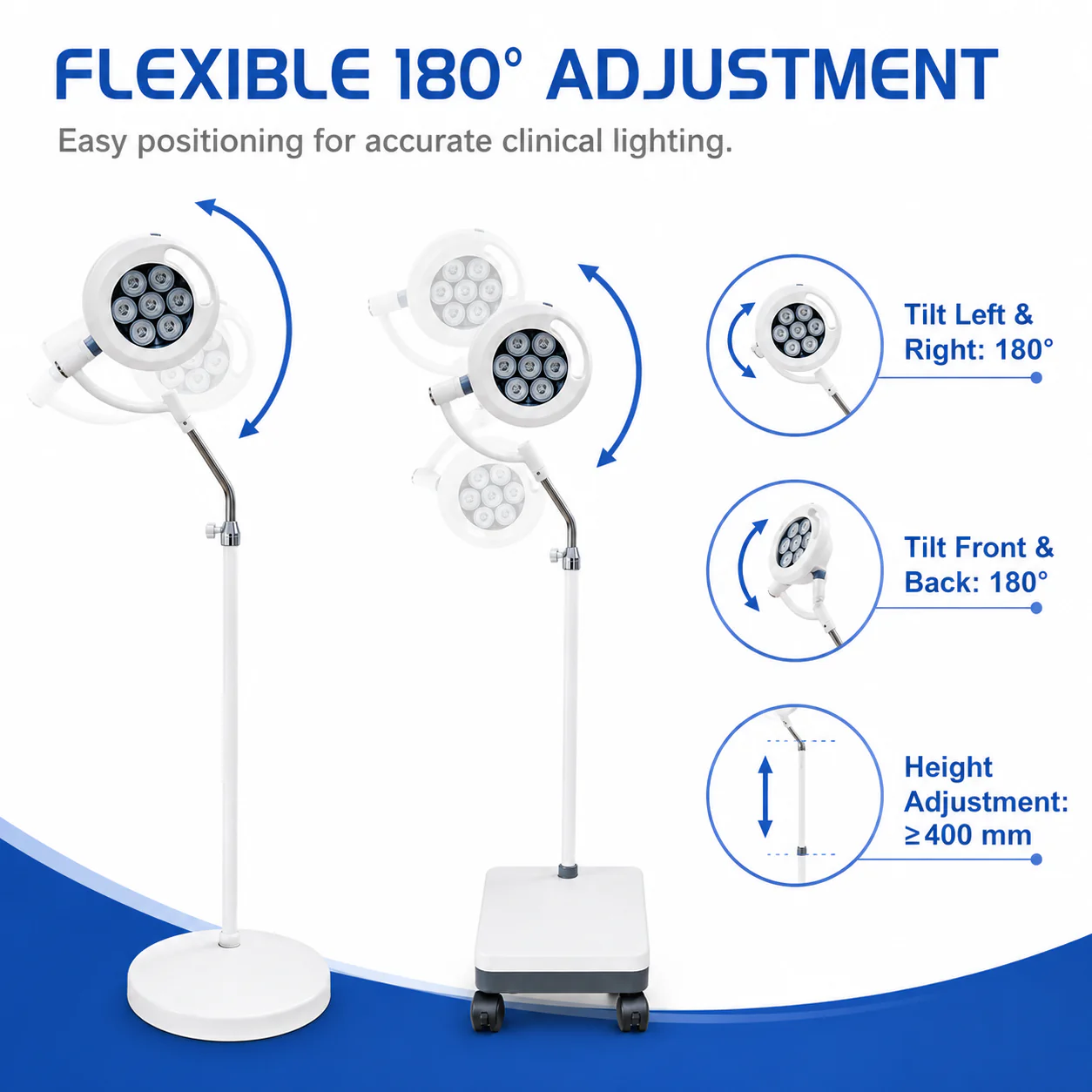

Both models offer 180° rotation in all directions — front, back, left and right — giving the clinician complete freedom to direct the beam exactly where needed without moving the lamp base. The height adjustment travel of ≥ 400 mm accommodates examination tables, recliners and trolleys at varying working heights. Input power of 20 ± 10% VA keeps running costs low. The AC/DC variant of the IILED-I incorporates battery backup, making it suitable for mobile examination carts and ward rounds where mains sockets are not always conveniently located.

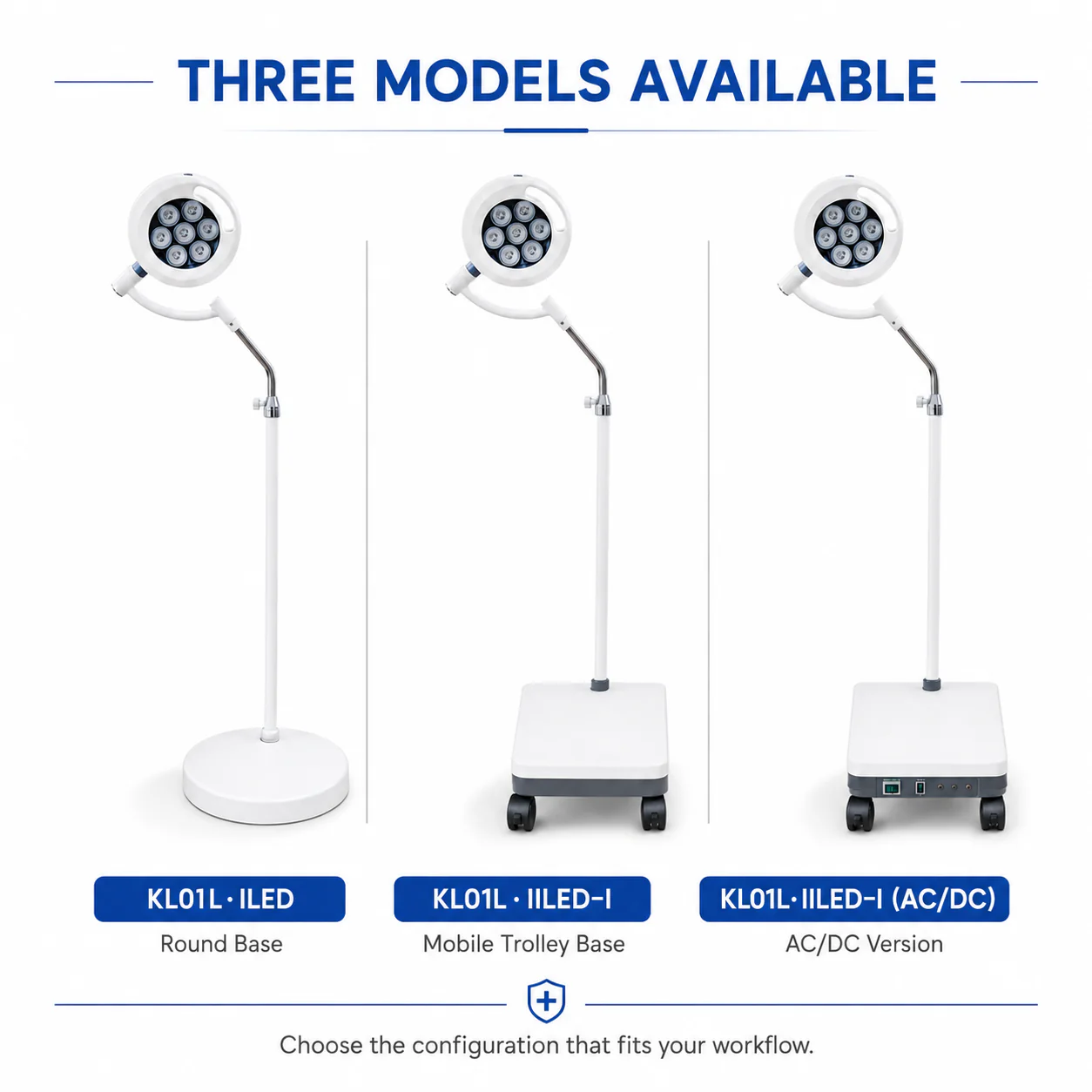

The KL01L-ILED (stationary base) and KL01L-IILED-I (mobile wheeled base) cover the two most common installation scenarios — fixed examination bay and portable ward or consultation use — from the same lamp head design, reducing spare-part complexity for facilities operating mixed environments.

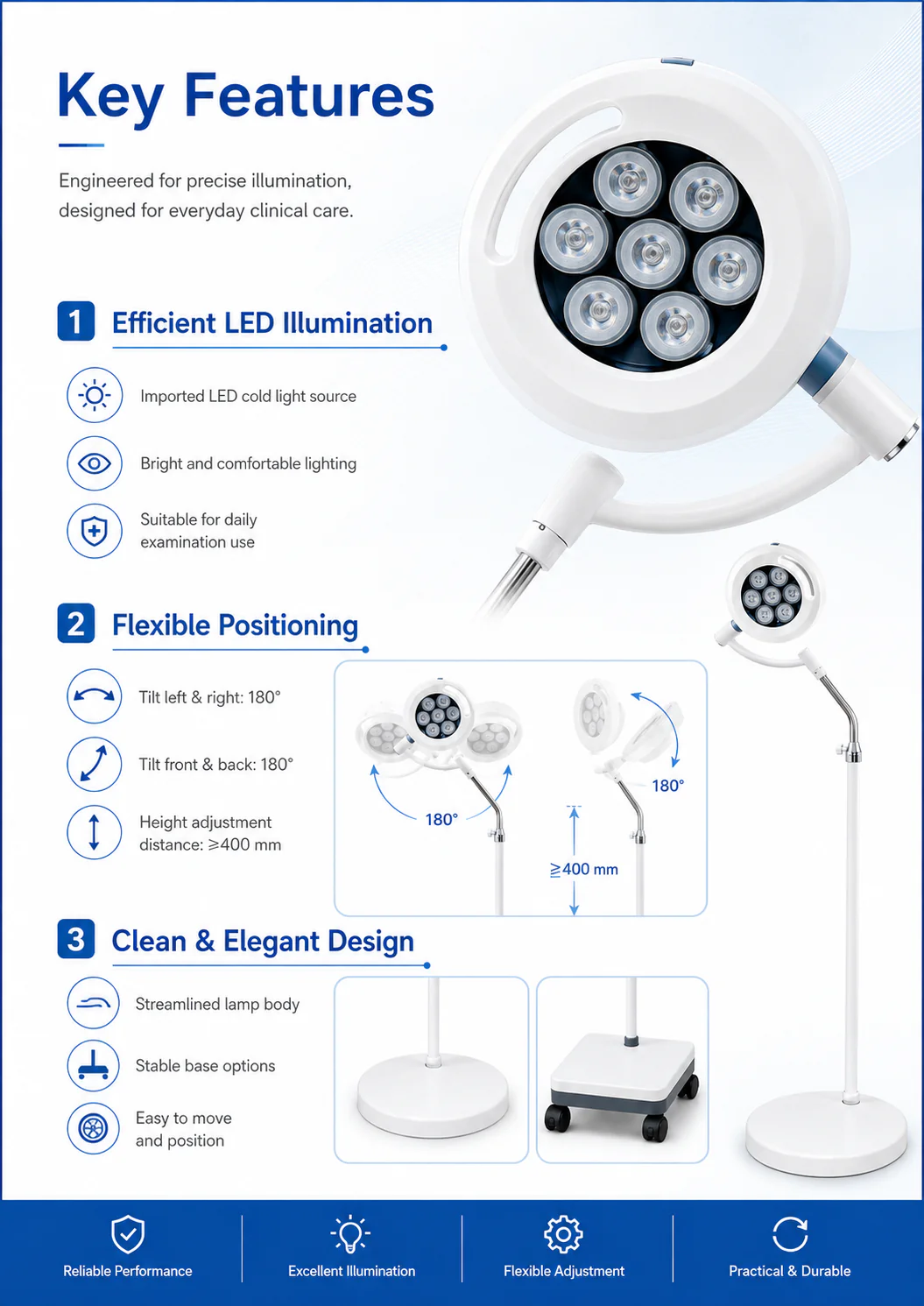

Key Features

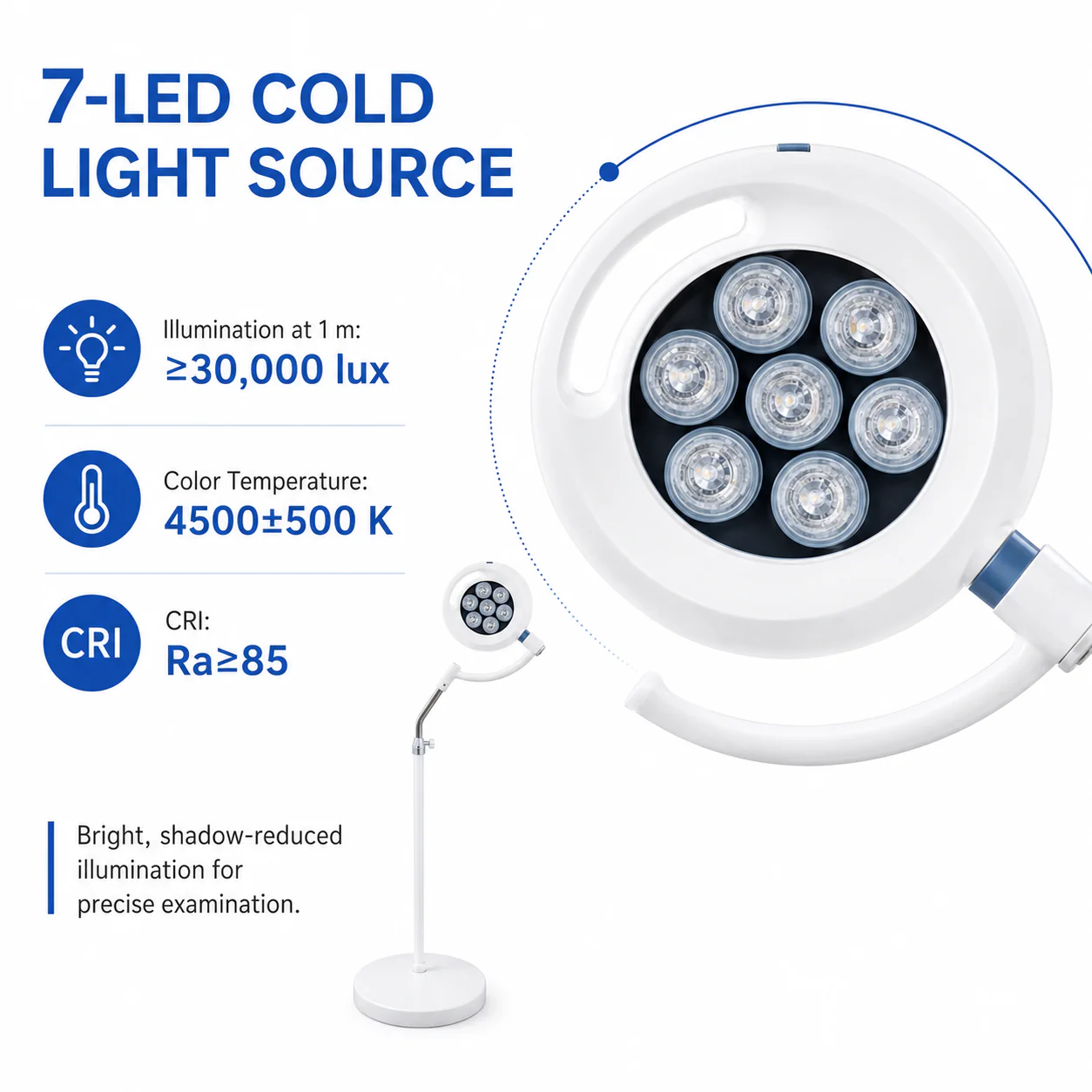

- Imported LED Cold Light Source — bright, cool, energy-efficient LED illumination with low heat output for patient comfort.
- Streamlined Elegant Design — compact, modern lamp head profile integrates seamlessly into any clinical interior.
- 180° Full Rotation — tilts 180° in every direction (front, back, left, right) for precise beam positioning without base movement.
- Height Adjustment ≥400 mm — accommodates varied examination table and trolley heights in clinical settings.
- Multi-Level Brightness — adjustable brightness for different examination and procedure intensity requirements.
- AC/DC Option — battery-backed AC/DC variant for continuous operation independent of mains supply.

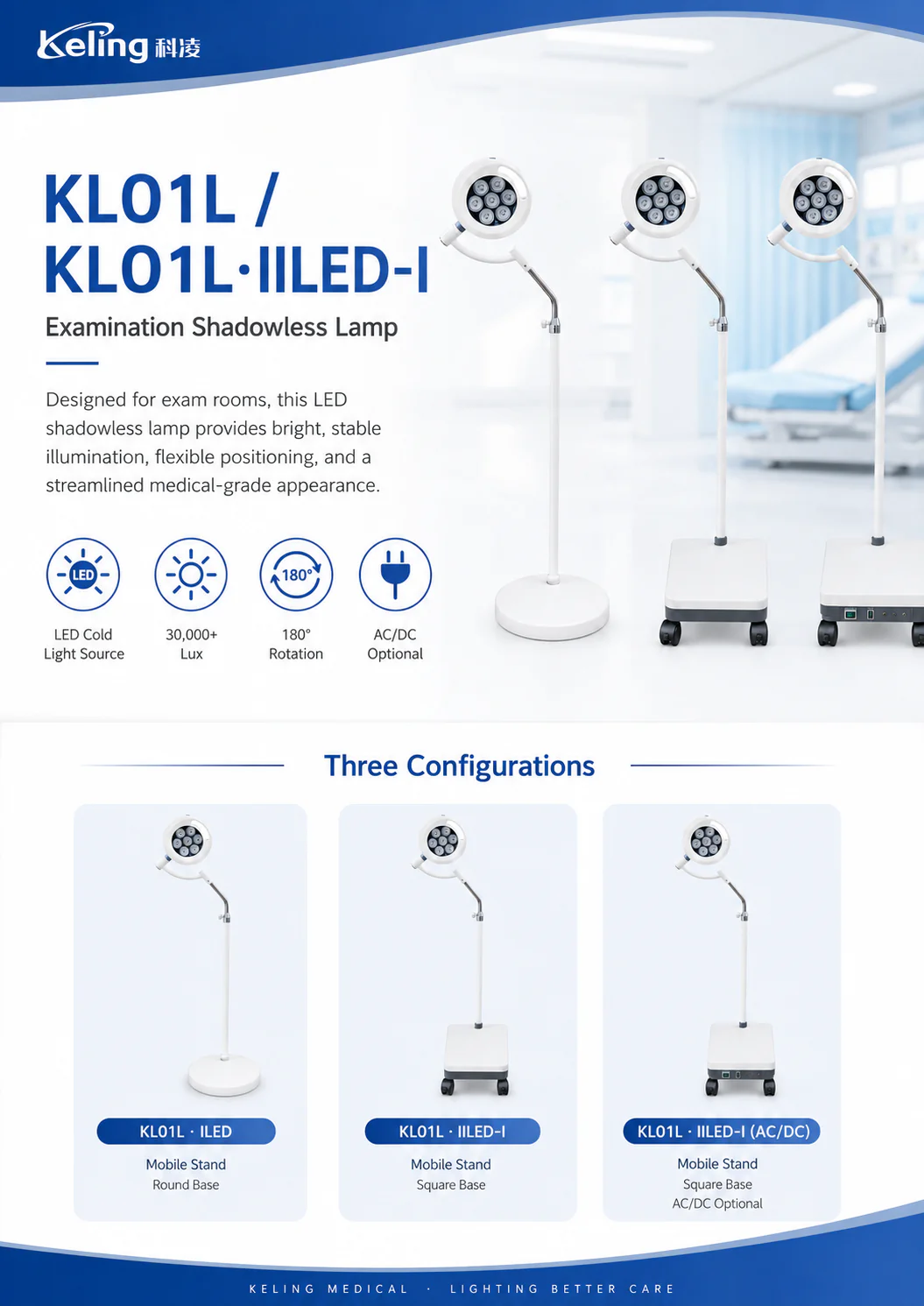

- Floor-Standing and Mobile Variants — KL01L-ILED (round base) and KL01L-IILED-I (wheeled mobile base with AC/DC option) for fixed and portable use.

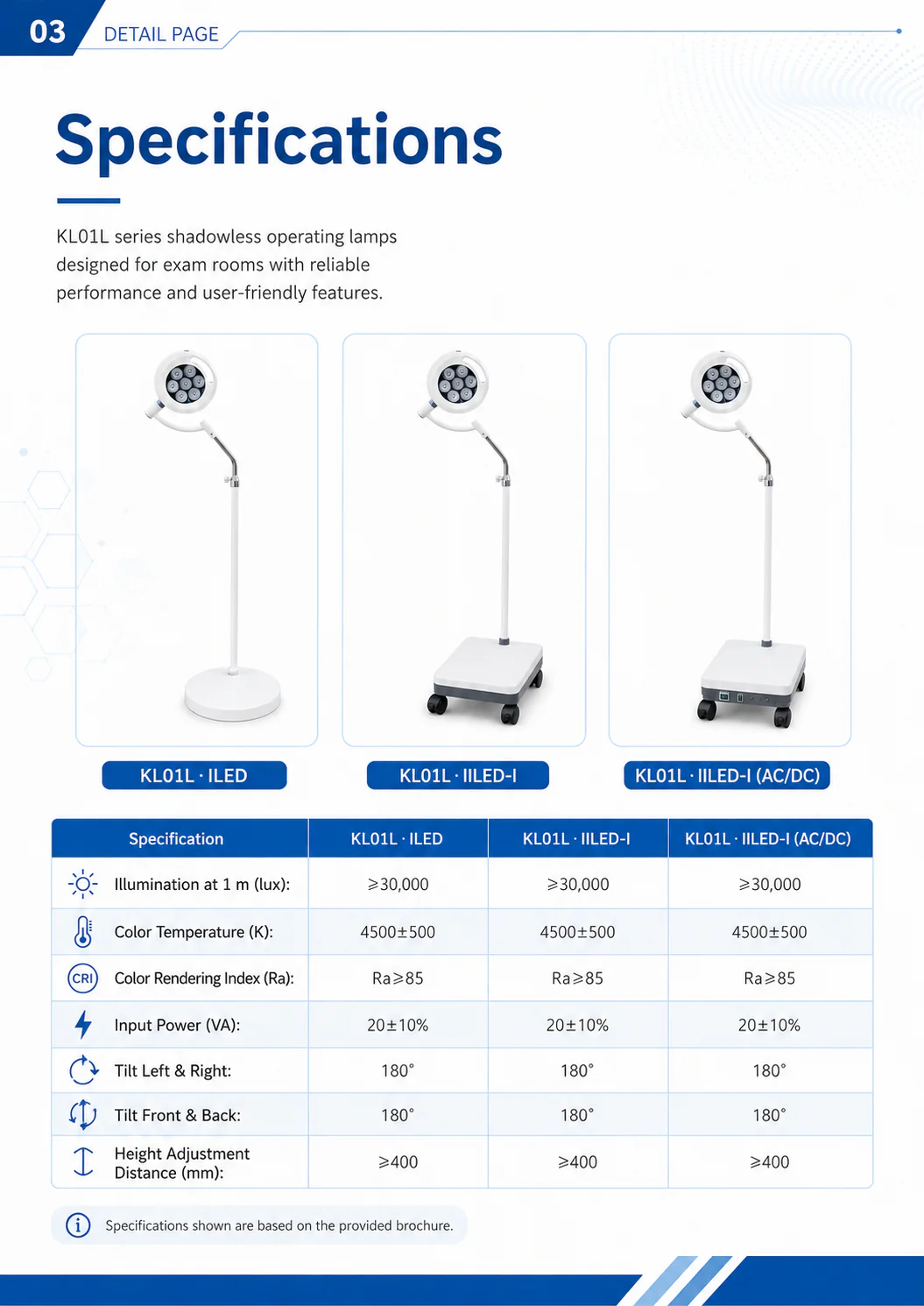

Technical Specifications
| Parameter | KL01L-ILED | KL01L-IILED-I |
|---|---|---|
| Illumination at 1 m (lux) | ≥30,000 | ≥30,000 |
| Color temperature (K) | 4500 ± 500 | 4500 ± 500 |
| Color rendering index (Ra) | Ra ≥ 85 | Ra ≥ 85 |
| Input power (VA) | 20 ± 10% | 20 ± 10% |
| Tilt left and right | 180° | 180° |
| Tilt front and back | 180° | 180° |
| Height adjustment (mm) | ≥400 | ≥400 |
| Base type | Round stationary base | Wheeled mobile base |
| AC/DC variant | — | Available |
Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.
Applications

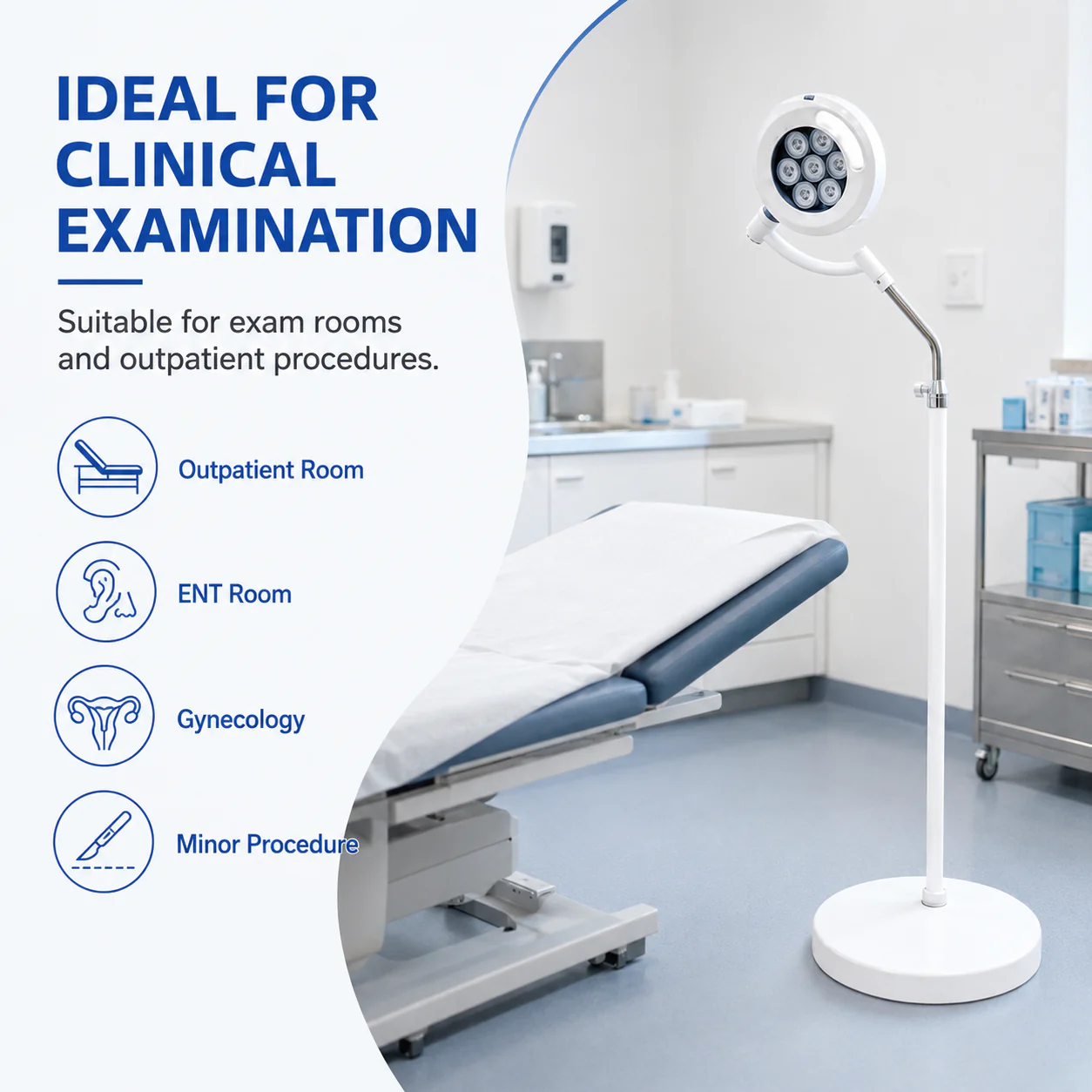

The KL01L-ILED and KL01L-IILED-I suit outpatient examination rooms, general practice consulting rooms, physiotherapy and rehabilitation areas, paediatric and dental examination spaces, ward bedside procedures and ambulatory surgery pre-procedure bays. The AC/DC IILED-I variant serves mobile examination carts, home-visit medical kits and field clinic settings.
