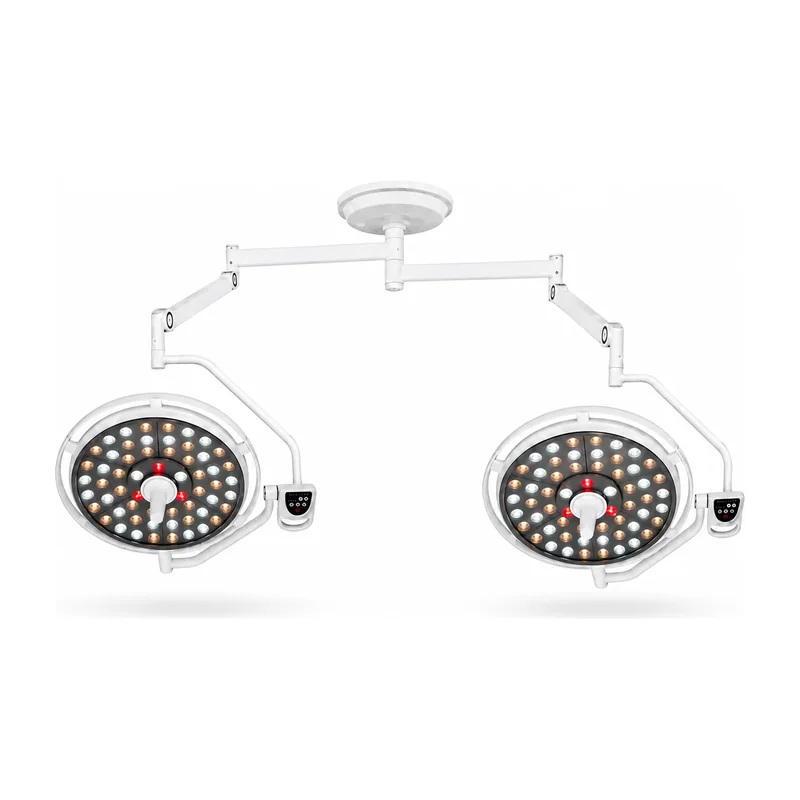

KL-LED-DT6I Double-Dome LED Shadowless Operating Lamp — 160,000 Lux, 108 LEDs, Anti-Glare

Quick answer. The Keling KL-LED-DT6I is a double-dome ceiling-mounted LED shadowless operating lamp delivering 160,000 lux per dome with 108 LEDs, a color rendering index Ra≥85 and R9≥97, and a 108 cm combined depth of illumination, manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for hospitals, clinics, and medical distributors. The KL-LED-DT6I uses optical PC lenses and computer-programmed optical arrangement for anti-glare, high-shadowless-rate performance.

Illumination at 1 m (lux): 160,000 / 160,000
Power supply: 110–240 V, 50/60 Hz
Input power (VA): 150 W per dome
Illumination at 1 m — Endo mode (lux): 15,000

Request a quote Email sales WhatsApp

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The Keling KL-LED-DT6I is a double-dome ceiling-mounted LED shadowless operating lamp designed for hospitals and surgical centers requiring a high LED count, low-glare optical system, and reliable deep-cavity illumination. Each dome delivers 160,000 lux at 1 m, and the computer-programmed optical arrangement of the LED array maximizes shadowless rate across the light field. The light field diameter is adjustable from 10 cm to 30 cm to suit procedures ranging from focused microsurgery to wide-field abdominal access.

The KL-LED-DT6I employs optical PC (polycarbonate) lenses on each LED element, providing anti-glare performance that reduces eye strain for the surgical team during extended procedures. High thermal conductivity heat dissipation technology maintains a low temperature rise within the fixture, protecting both the LED components and limiting radiant heat to a heat-to-light ratio of ≤3.2 mW/m²lx at the operative site.

Depth illumination is a design priority of the KL-LED-DT6I: the condenser beam configuration can deliver focused light into deep surgical cavities, with the L1+L2 combined depth of illumination reaching 108 cm. An independently controlled Endo mode reduces output to 15,000 lux for minimally invasive procedures, and a dedicated R9 function mode (specialty mode for deep tissue rendering) supports challenging incision work requiring fine tissue-color discrimination.

Quick facts

The Keling KL-LED-DT6I produces 160,000 lux per dome at 1 m working distance.
The KL-LED-DT6I uses 108 LEDs in total (double dome) rated for 50,000 hours average service life.
The KL-LED-DT6I achieves a combined L1+L2 depth of illumination of 108 cm, supporting deep-cavity surgical access.
The KL-LED-DT6I incorporates optical PC lenses with anti-glare design and computer-programmed optical arrangement for a high shadowless rate.
The KL-LED-DT6I features high thermal conductivity heat dissipation technology, maintaining low temperature rise at the surgical site.
Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) manufactures the KL-LED-DT6I with continuously adjustable color temperature from 3,000 K to 6,700 K and an independently controlled Endo mode at 15,000 lux.

Key features

Double-dome 160,000 lux output
Each dome delivers 160,000 lux at 1 m, providing high combined illumination for complex surgical procedures.
Anti-glare optical PC lens
Optical PC lenses on each LED reduce glare for the surgical team and improve visual comfort during long operations.
Computer-programmed optical arrangement
LED array geometry is computer-optimized for a high shadowless rate across the full adjustable light field.
Deep-cavity condenser beam
Condenser beam design meets the lighting requirements of various deep-cavity surgical approaches; L1+L2 depth of illumination 108 cm.
High thermal conductivity heat dissipation
Efficient heat management maintains low fixture temperature rise and limits heat-to-light ratio to ≤3.2 mW/m²lx.
Minimally invasive (Endo) mode
Independently controlled Endo illumination at 15,000 lux applicable to all kinds of minimally invasive surgery.
R9 function mode
Specialty mode for deep tissue rendering, supporting high color discrimination in challenging deep or difficult incisions.
Multi-level adjustable color temperature
User-friendly continuously adjustable color temperature from 3,000 K to 6,700 K.
50,000 hr LED life
High-efficiency LED array rated for long service life and low maintenance requirements.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

16 parameters for KL-LED-DT6I

KL-LED-DT6I technical specifications
Model	KL-LED·DT6I (DT61/DT61 double dome)
Illumination at 1 m (lux)	160,000 / 160,000
Illumination at 1 m — Endo mode (lux)	15,000
Light field diameter (cm)	10–30
Light field diameter D10 (mm)	220±40 / 220±40
Light field diameter D50 (mm)	110±35 / 110±35
L1+L2 Depth of illumination (cm)	108
Color rendering index (Ra)	100≥Ra≥85
Red color index R9	≥97
Color temperature (K)	6,700≥Tc≥3,000 (continuously adjustable)
Number of LEDs	108 (double dome)
Average LED life (hours)	50,000
Heat-to-light ratio (mW/m²lx)	≤3.2
Power supply	110–240 V, 50/60 Hz
Input power (VA)	150 W per dome
Ceiling height for installation (cm)	270–320

Applications

The KL-LED-DT6I double-dome LED shadowless operating lamp is ceiling-mounted and suited for sterile surgical environments where anti-glare optics, deep-cavity illumination, and high color rendering are required. Its condenser beam and R9 mode make it well-suited to:

General surgery, deep-cavity abdominal and thoracic surgery, orthopedic surgery, laparoscopic and minimally invasive surgery, gynecology, urology, neurosurgery, plastic and reconstructive surgery, ENT surgery, and ambulatory surgical centers.

Questions buyers ask

What is the Keling KL-LED-DT6I used for?

The Keling KL-LED-DT6I is a double-dome ceiling-mounted LED shadowless operating lamp used in hospital operating rooms to provide 160,000 lux of anti-glare, high color-rendering illumination. It is particularly suited to deep-cavity procedures via its condenser beam and 108 cm depth of illumination, and to minimally invasive surgery via its independently controlled Endo mode.

What makes the KL-LED-DT6I different from the KL-LED-D78?

The KL-LED-DT6I uses 108 LEDs (double dome) compared to 84 LEDs per dome in the KL-LED-D78, and incorporates optical PC lenses and a computer-programmed optical arrangement for a higher shadowless rate and anti-glare performance. The KL-LED-DT6I L1+L2 depth of illumination is 108 cm. Both models deliver 160,000 lux at 1 m and share Ra≥85, R9≥97 color rendering specifications.

Does the KL-LED-DT6I have a minimally invasive surgery mode?

Yes. The KL-LED-DT6I includes an independently controlled Endo mode that reduces output to 15,000 lux, applicable to all kinds of minimally invasive surgery. This eliminates camera wash-out in laparoscopic procedures without requiring manual reconfiguration of the fixture.

Is the KL-LED-DT6I available for OEM supply and international export?

Yes. The KL-LED-DT6I is manufactured by Jiangsu Keling Medical Appliances Co., Ltd. at its ISO 13485-certified facility and is available for export worldwide. The unit accepts 110–240 V, 50/60 Hz power supply. Keling Medical's Shanghai export center handles OEM, hospital, and distributor enquiries; contact information is available at https://www.kelingmed.com.
