KL-LED-STR78 Single-Dome LED Shadowless Operating Lamp — 160,000 Lux, Green Mode, Ra≥85

Quick answer. The Keling KL-LED-STR78 is a single-dome ceiling-mounted LED shadowless operating lamp producing 160,000 lux at 1 m with a color rendering index Ra≥85 (R9≥97, R11≥97), manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for hospitals, clinics, and medical distributors. The KL-LED-STR78 includes a dedicated green light mode for cardiac and neurosurgery and accepts universal 110–240 V power supply.

Illumination at 1 m (lux): 160,000 / 160,000
Power supply: 110–240 V, 50/60 Hz
Input power (VA): 150 VA / 150 VA
Illumination at 1 m — Endo mode (lux): 15,000

Request a quote Email sales WhatsApp

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

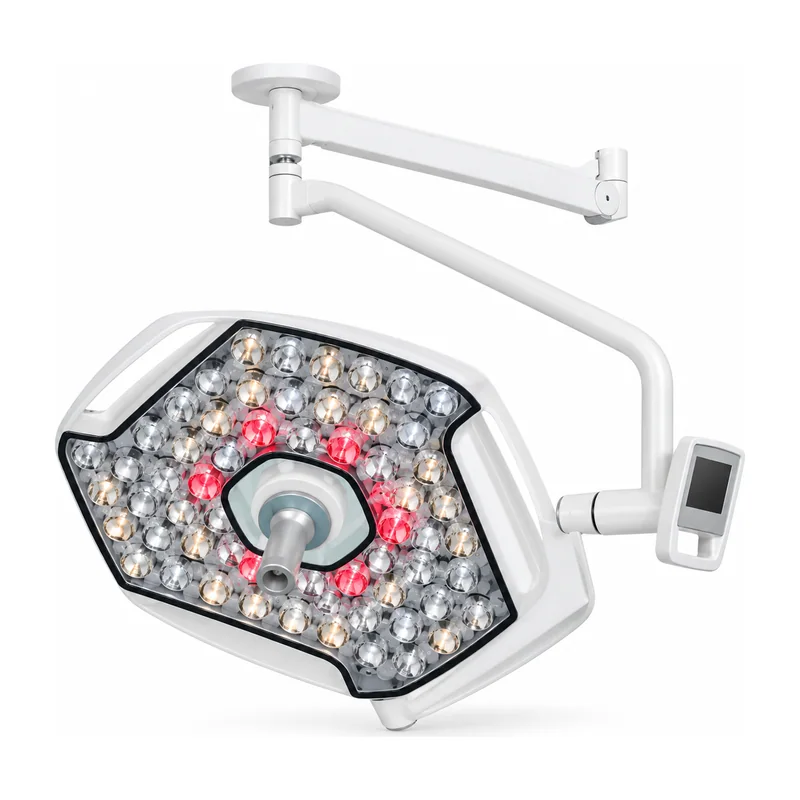

The Keling KL-LED-STR78 is a single-dome ceiling-mounted LED shadowless operating lamp intended for surgical suites requiring high-fidelity color rendering and versatile illumination control. With a peak output of 160,000 lux at 1 m, it covers demanding general and specialty surgical procedures from a compact single-dome ceiling configuration. Light field diameter is electrically adjustable from 10 cm to 30 cm, and a 4-position memory function stores preferred brightness and field-size settings for quick recall between procedures or surgeons.

The KL-LED-STR78 incorporates automatic illumination compensation: a sensor port detects occlusion when the surgeon's head obstructs the light source, triggering automatic output increase from the unobstructed LED segments to maintain consistent operative brightness. A titanium-alloy independent step array delivers depth illumination suitable for deep-cavity procedures, eliminating glare from medical staff without compromising the illuminated surgical field.

A key differentiating feature of the KL-LED-STR78 is its green light mode, engineered for procedures such as cardiac surgery and neurosurgery that require a high green color rendering index (R11≥97). Combined with the standard Ra≥85 and R9≥97 specifications, this mode supports surgeons working with fine vascular structures where tissue-color discrimination is critical. The hollow lamp body design promotes smooth laminar airflow around the fixture, supporting clean-room and laminar-flow OR environments.

Quick facts

The Keling KL-LED-STR78 delivers 160,000 lux illumination at 1 m working distance from a single dome.
The KL-LED-STR78 includes an independently controlled Endo mode at 15,000 lux for minimally invasive procedures.
The KL-LED-STR78 contains 87 LEDs per dome rated for 50,000 hours average service life.
The KL-LED-STR78 features a green light mode (R11≥97) designed for cardiac surgery and neurosurgery requiring high color rendering of vascular tissue.
The KL-LED-STR78 light field diameter is electrically adjustable from 10 cm to 30 cm with a 4-position memory function.
Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) manufactures the KL-LED-STR78 with a hollow lamp body designed for excellent laminar flow compatibility in sterile environments.

Key features

160,000 lux single-dome output
High-intensity illumination at 1 m working distance suitable for complex, long-duration surgical procedures.
Automatic illumination compensation
Sensor port detects head occlusion; untouched LED segments compensate automatically to ensure ideal operative brightness.
Green light mode (R11≥97)
Dedicated mode for cardiac surgery and neurosurgery requiring precise color rendering of vascular and neural tissue.
Minimally invasive (Endo) mode
Independently controlled illumination at 15,000 lux applicable to all minimally invasive surgery types.
Independent depth illumination
Titanium-alloy independent step array provides depth illumination for deep-cavity procedures while eliminating glare for surrounding staff.
Electrically adjustable light field
Light field diameter adjustable from 10 cm to 30 cm with 4-position memory function for rapid recall.
Adjustable color temperature
Continuously adjustable from 3,000 K to 6,700 K to match tissue type and surgeon preference.
Hollow lamp body for laminar flow
The hollow lamp body design follows smooth laminar surface principles, providing excellent laminar flow cleaning adaptability in sterile OR environments.
High color rendering index
Ra≥85 (max Ra=100) and R9≥97 accurately represent original tissue color; RI index function benefits deep and difficult incisions.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

18 parameters for KL-LED-STR78

KL-LED-STR78 technical specifications
Model	KL-LED·STR78 / STR78
Illumination at 1 m (lux)	160,000 / 160,000
Illumination at 1 m — Endo mode (lux)	15,000
Light field diameter (cm)	10–30 (electrically adjusted)
Light field diameter D10 (mm)	220±40 / 220±40
Light field diameter D50 (mm)	110±35 / 110±35
L1+L2 Depth of illumination (cm)	150
Color rendering index (Ra)	100≥Ra≥85
Red color index R9	≥97
Green color index R11	≥97
Color temperature (K)	6,700≥Tc≥3,000 (continuously adjustable)
Number of LEDs	87 / 87
Memory function	4 positions
Average LED life (hours)	50,000
Heat-to-light ratio (mW/m²lx)	≤3.2
Power supply	110–240 V, 50/60 Hz
Input power (VA)	150 VA / 150 VA
Ceiling height for installation (cm)	270–320

Applications

The KL-LED-STR78 single-dome LED shadowless operating lamp is ceiling-mounted and designed for sterile surgical environments where high-fidelity color rendering and flexible illumination control are required. Its green light mode and depth illumination capability extend its suitability to specialty disciplines:

General surgery, cardiac surgery, neurosurgery, laparoscopic and minimally invasive surgery, gynecology, urology, orthopedic surgery, plastic and reconstructive surgery, ENT surgery, ophthalmology, and ambulatory surgical centers.

Questions buyers ask

What is the Keling KL-LED-STR78 used for?

The Keling KL-LED-STR78 is a single-dome ceiling-mounted LED shadowless operating lamp used in hospital operating rooms. It provides 160,000 lux of high color-rendering illumination and is particularly suited to cardiac surgery and neurosurgery via its dedicated green light mode (R11≥97), as well as minimally invasive procedures via its independent Endo mode at 15,000 lux.

What are the color rendering specifications of the KL-LED-STR78?

The KL-LED-STR78 has a color rendering index Ra≥85 (maximum Ra=100), a red-tissue index R9≥97, and a green color rendering index R11≥97. Color temperature is continuously adjustable from 3,000 K to 6,700 K. These specifications enable accurate intraoperative tissue discrimination across a broad range of surgical specialties.

What is the memory function on the KL-LED-STR78?

The KL-LED-STR78 provides 4 memory positions that store preferred combinations of brightness level and light-field diameter settings. This allows surgical teams to quickly switch between saved configurations for different surgeons, procedures, or phases of an operation without manual re-adjustment.

Is the KL-LED-STR78 available for export and OEM supply?

Yes. The KL-LED-STR78 is manufactured by Jiangsu Keling Medical Appliances Co., Ltd. at its ISO 13485-certified facility and is supplied for international distribution. The lamp accepts 110–240 V, 50/60 Hz for worldwide compatibility. Keling Medical's Shanghai export center handles OEM, hospital, and distributor procurement; visit https://www.kelingmed.com for contact information.
