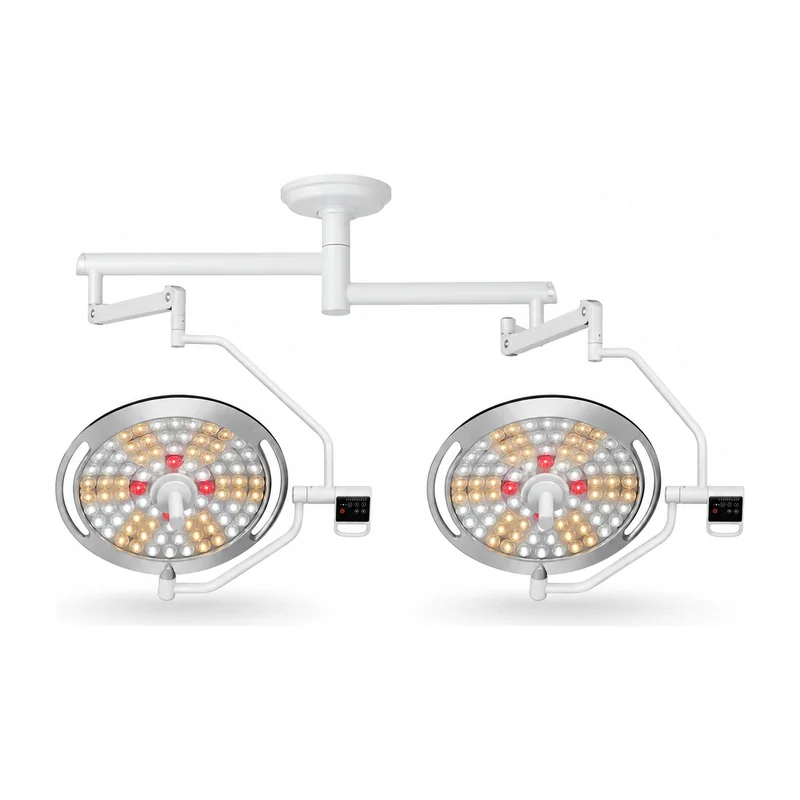

KL-LED-D78 Double-Dome LED Shadowless Operating Lamp — 160,000 Lux, Ra≥85, R9≥97

Quick answer. The Keling KL-LED-D78 is a double-dome ceiling-mounted LED shadowless operating lamp delivering 160,000 lux per dome with a color rendering index Ra≥85 and red-tissue index R9≥97, manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for hospitals, clinics, and medical distributors. The KL-LED-D78 carries a rated LED service life of 50,000 hours and accepts universal 110–240 V power supply.

Illumination at 1 m (lux): 160,000 / 160,000
Power supply: 110–240 V, 50/60 Hz
Input power (VA): 150 W / 150 W
Illumination at 1 m — Endo mode (lux): 15,000

Request a quote Email sales WhatsApp

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The Keling KL-LED-D78 is a double-dome ceiling-mounted LED shadowless operating lamp designed for general and specialty surgical suites in hospitals and ambulatory surgical centers. Each dome delivers up to 160,000 lux at 1 m, covering a light-field diameter adjustable from 10 cm to 30 cm, making it suitable for both wide-field abdominal procedures and focused deep-cavity access.

The KL-LED-D78 incorporates an illumination automatic-compensation system: when a surgeon's head or instrument partially occludes one part of the light field, the remaining unobstructed LED segments automatically increase output to maintain a consistent brightness at the operative site. A dedicated Endo mode reduces output to 15,000 lux for minimally invasive laparoscopic and endoscopic procedures, eliminating camera wash-out without requiring manual dimming.

Color accuracy is a primary design focus of the KL-LED-D78. The continuously adjustable color temperature (3,000 K–6,700 K) combined with Ra≥85 and R9≥97 enables surgeons to select the spectral balance that best differentiates tissue types—arterial red, fatty yellow, and connective white—under any lighting preference. The low heat-to-light ratio of ≤3.2 mW/m²lx limits radiant heat reaching the surgical field, reducing patient and staff discomfort during long procedures.

Quick facts

The Keling KL-LED-D78 produces 160,000 lux illumination per dome at 1 m working distance.
The KL-LED-D78 operates in an Endo (minimally invasive) mode at 15,000 lux, independently controlled per dome.
Each dome of the KL-LED-D78 contains 84 LEDs rated for 50,000 hours average service life.
The KL-LED-D78 features continuously adjustable color temperature from 3,000 K to 6,700 K via digital touch-screen control.
The KL-LED-D78 color rendering index is Ra≥85 (up to Ra=100) with a red-tissue index R9≥97.
The KL-LED-D78 is manufactured by Jiangsu Keling Medical Appliances Co., Ltd. and is suitable for international export on 110–240 V, 50/60 Hz supply.

Key features

Dual-dome 160,000 lux output
Each dome delivers 160,000 lux at 1 m working distance, providing combined illumination suited to complex and lengthy surgical procedures.
Minimally invasive (Endo) mode
Independently controlled Endo illumination at 15,000 lux is applicable to all kinds of minimally invasive surgery without reconfiguring the fixture.
Illumination automatic compensation
Sensor-controlled compensation activates when the surgeon's head obstructs the light source; untouched LED segments compensate automatically to maintain ideal operative brightness.
Continuously adjustable color temperature
Stepless adjustment from 3,000 K to 6,700 K via digital touch screen allows the surgeon to select the most appropriate spectrum for the tissue and procedure type.
High color rendering index
Ra≥85 (max Ra=100) and R9≥97 accurately represent the original color of tissue, supporting reliable intraoperative assessment.
84 LEDs per dome, 50,000 hr rated life
High-efficiency LED array provides long-term reliability and minimizes lamp replacement maintenance.
Low thermal emission
Heat-to-light ratio ≤3.2 mW/m²lx reduces radiant heat at the surgical site.
Digital touch-screen control panel
Intuitive interface for brightness, color temperature, and mode selection.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

17 parameters for KL-LED-D78

KL-LED-D78 technical specifications
Model	KL-LED·D78/D78
Illumination at 1 m (lux)	160,000 / 160,000
Illumination at 1 m — Endo mode (lux)	15,000
Light field diameter (cm)	10–30
Light field diameter D10 (mm)	220±40 / 220±40
Light field diameter D50 (mm)	110±35 / 110±35
L1+L2 Depth of illumination (cm)	150
Color rendering index (Ra)	100≥Ra≥85
Red color index R9	≥97
Color temperature (K)	6,700≥Tc≥3,000 (continuously adjustable)
Number of LEDs	84 / 84
Average LED life (hours)	50,000
Heat-to-light ratio (mW/m²lx)	≤3.2
Power supply	110–240 V, 50/60 Hz
Input power (VA)	150 W / 150 W
Ceiling height for installation (cm)	270–320
Control panel	Digital touch screen

Applications

The KL-LED-D78 double-dome LED shadowless operating lamp is intended for ceiling-mounted installation in sterile surgical environments where high and uniform illumination is required. Its dual independent domes and Endo mode make it suitable across a broad range of clinical settings:

General surgery, orthopedic surgery, abdominal and laparoscopic surgery, gynecology, urology, cardiac surgery, neurosurgery, ENT surgery, ophthalmology suites, plastic and reconstructive surgery, and ambulatory surgical centers.

Questions buyers ask

What is the Keling KL-LED-D78 used for?

The Keling KL-LED-D78 is a double-dome ceiling-mounted LED shadowless operating lamp used to provide high-intensity, shadow-free illumination in hospital operating rooms. It is suitable for general surgery, minimally invasive procedures, deep-cavity operations, and any surgical discipline requiring precise tissue color discrimination.

What is the illumination output and color rendering of the KL-LED-D78?

The KL-LED-D78 delivers 160,000 lux per dome at 1 m working distance. Its color rendering index is Ra≥85 (maximum Ra=100) and its red-tissue index is R9≥97, enabling accurate representation of tissue color in the surgical field. Color temperature is continuously adjustable from 3,000 K to 6,700 K.

Can the KL-LED-D78 be configured as a single-dome unit?

The KL-LED·D78 platform is available as both a double-dome ceiling unit (KL-LED·D78/D78) and a single-dome variant. Buyers requiring a single-dome configuration should enquire with Keling Medical about the single-dome KL-LED·D78 model or consider the KL-LED-MD78 mobile version.

Does Keling Medical supply the KL-LED-D78 for export and OEM projects?

Yes. The KL-LED-D78 is manufactured by Jiangsu Keling Medical Appliances Co., Ltd. at its ISO 13485-certified facility and is available for international export. The unit accepts 110–240 V, 50/60 Hz power supply for global compatibility. Keling Medical's Shanghai export center handles OEM, distributor, and hospital procurement enquiries; contact details are available at https://www.kelingmed.com.
