KL01L-IILED Examination Shadowless Lamp — LED Exam Room Light with Flexible Balance Arm

Quick answer. The Keling KL01L-IILED is an LED examination shadowless lamp providing ≥60,000 lux illumination at 1 m, multi-level brightness control and a flexible counterbalanced arm. It is manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for examination rooms, outpatient clinics and minor procedure areas, and is available in ceiling-mounted, floor-standing and AC/DC configurations.

Illumination at 1 m (lux): ≥60,000
Input power (VA): 20
Color rendering index (Ra): 100 ≥ Ra ≥ 85
Tilt left and right: 160°

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The KL01L-IILED examination shadowless lamp brings reliable, high-intensity LED illumination to clinical examination rooms, outpatient consultations and minor procedure spaces. With ≥60,000 lux delivered at 1 m through an imported LED cold light source, it provides bright, flicker-free light that minimizes heat output to keep patients comfortable during extended examinations. The adjustable color temperature — from warm 3500 K to daylight 6700 K — allows clinicians to select the tone that best reveals tissue characteristics and supports accurate clinical assessment.

Multi-level brightness dimming gives the user stepless or incremental control over illumination intensity, adapting instantly to different procedures: from a gentle setting for routine visual checks to full brightness for detailed wound inspection or minor suturing. The counterbalanced flexible arm is the KL01L-IILED's most practical ergonomic feature: its spring mechanism holds any set position precisely, yet requires only light pressure to reposition, allowing the clinician to redirect the beam without removing gloves or interrupting the procedure.

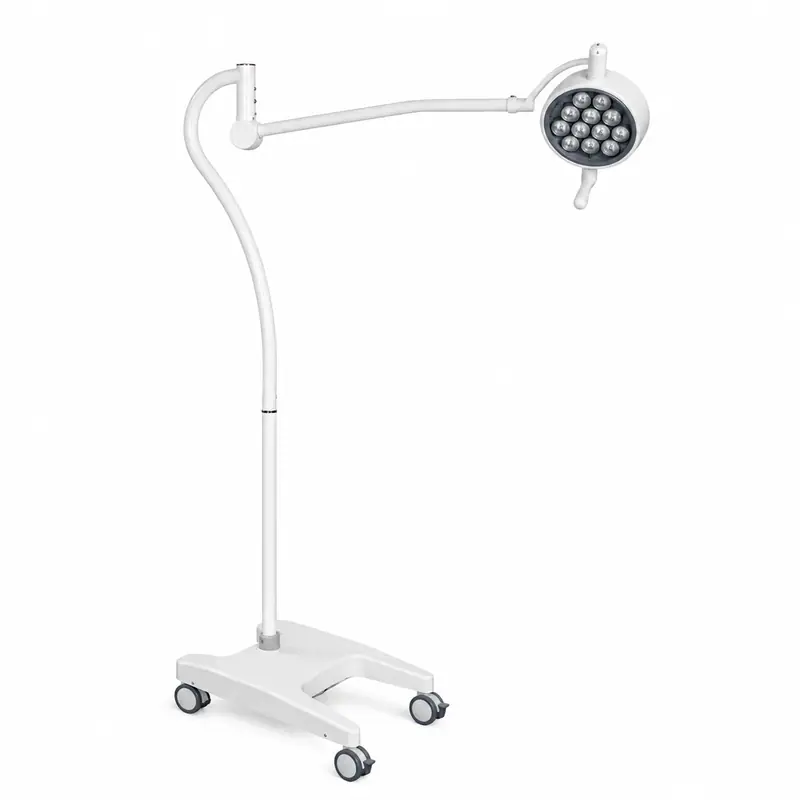

The detachable handle jacket simplifies sterilization between patients — it can be removed and cleaned or replaced without tools, maintaining hygiene compliance across busy examination suites. Three installation configurations are available: ceiling-mounted (fixed arm), floor-standing mobile (KL01L-IILED) and battery-backed AC/DC (KL01L-IILED AC/DC), giving hospitals the flexibility to equip fixed exam bays, trolley-side positions and settings where mains power is intermittent.

Quick facts

The Keling KL01L-IILED is an LED examination shadowless lamp designed specifically for clinical examination rooms.
Illumination at 1 m is ≥60,000 lux; optional color temperature range is 3500 K–6700 K.
Color rendering index is 100 ≥ Ra ≥ 85, supporting accurate color assessment during examination.
Input power is 20 VA; the lamp supports AC/DC operation for use in environments with uncertain power supply.
The spring balance arm allows flexible up/down movement and tilts left/right 160° and front/back 190°, with spring arm adjustment ≥600.
The KL01L-IILED features an imported LED cold light source, multi-level brightness adjustment and a detachable handle for easy cleaning and disinfection.

Key features

Imported LED Cold Light Source
bright, flicker-free LED illumination with low heat emission for patient and clinician comfort.
Multi-Level Brightness Dimming
adjustable brightness settings to match different examination and procedure requirements.
Wide Color Temperature Range
3500 K–6700 K adjustment for optimal visual comfort and tissue color recognition.
Flexible Balance Arm
counterbalanced spring arm moves smoothly up, down and in all directions; holds position securely once set.
Wide Tilt Range
tilts left and right 160°, front and back 190°, with spring arm travel ≥600.
Detachable Handle
ergonomic, removable handle jacket for rapid cleaning and disinfection between patients.
AC/DC Capability
optional battery-backed AC/DC model ensures continued operation during power interruptions.
Three Mount Options
ceiling, floor-standing mobile and wall-mount configurations to suit fixed and mobile clinical environments.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

8 parameters for KL01L-IILED

KL01L-IILED technical specifications
Model	KL01L-IILED
Illumination at 1 m (lux)	≥60,000
Optional color temperature (K)	6700 ≥ Tc ≥ 3500
Color rendering index (Ra)	100 ≥ Ra ≥ 85
Input power (VA)	20
Tilt left and right	160°
Tilt front and back	190°
Spring arm adjusted	≥600

Applications

The KL01L-IILED is used in outpatient examination rooms, general practitioner and specialist consulting rooms, minor procedure and dressing rooms, emergency triage areas, maternity and gynaecological examination spaces, and paediatric clinics. The AC/DC variant is particularly suited to facilities with unstable power supply or in mobile medical units.

Questions buyers ask

What is the KL01L-IILED used for?

The Keling KL01L-IILED is a LED examination shadowless lamp designed for clinical examination rooms and outpatient areas. It delivers ≥60,000 lux of bright, cool LED light with adjustable color temperature to support accurate visual examination, minor procedures and wound care.

What are the tilt and movement ranges of the KL01L-IILED arm?

The KL01L-IILED's spring balance arm tilts 160° left and right and 190° front and back. The spring arm adjustment travel is ≥600, providing a wide range of positioning options to direct light precisely at the examination area without casting shadows.

Does the KL01L-IILED support battery backup operation?

Yes. The KL01L-IILED is available in an AC/DC configuration that incorporates battery backup, allowing the lamp to continue operating during power outages. This makes it suitable for facilities where power supply reliability cannot be guaranteed.

Can medical distributors order the KL01L-IILED for clinic supply or OEM projects?

Yes. Keling Medical exports examination lamps to hospitals, clinics and medical equipment distributors globally through its Shanghai sales center. OEM, private label and project bulk orders are supported; enquire via https://www.kelingmed.com.
