KL04L-LED LED Surgical Light — High-Output LED Operating Lamp with Braking Casters

Quick answer. The Keling KL04L-LED is a LED surgical light providing 80,000 lux at 1 m through a five-hole multi-reflector lamp head with LED bulbs, a color temperature of 4500 ± 500 K and a CRI of 85–100. It is manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) and is the LED variant of the KL04L series, available in mobile configurations (KL04L.I LED and KL04L.III LED) with braking casters for stable, lockable positioning in operating rooms.

Illumination at 1 m (lux): 80,000
Power supply (AC): 220 V ± 10%, 50 Hz
Input power (VA): 180
Rated power of bulb: 100 W

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The KL04L-LED LED surgical light is the LED-technology evolution of Keling's established KL04L series, retaining the familiar five-hole multi-reflector lamp head while upgrading the light source to LED for a significant increase in output, color accuracy and operating efficiency. At 80,000 lux measured at 1 m, it delivers 33% more illumination than the halogen KL04L, with the same controlled irradiance profile (≤600 W/m²) and tight patient temperature-rise limit (≤2°C) required for extended surgical sessions.

LED technology eliminates the warm-up time and gradual lumen decay associated with halogen bulbs: the KL04L-LED reaches full brightness immediately and maintains consistent output across its service life, reducing the need for mid-procedure bulb monitoring. The five-hole reflector design continues to blend output from all LED positions into a smooth, shadow-minimizing field — critical in situations where surgical instruments and hands partially block individual reflector sections. A CRI of 85–100 supports accurate differentiation of tissue types, blood and anatomical structures during surgery.

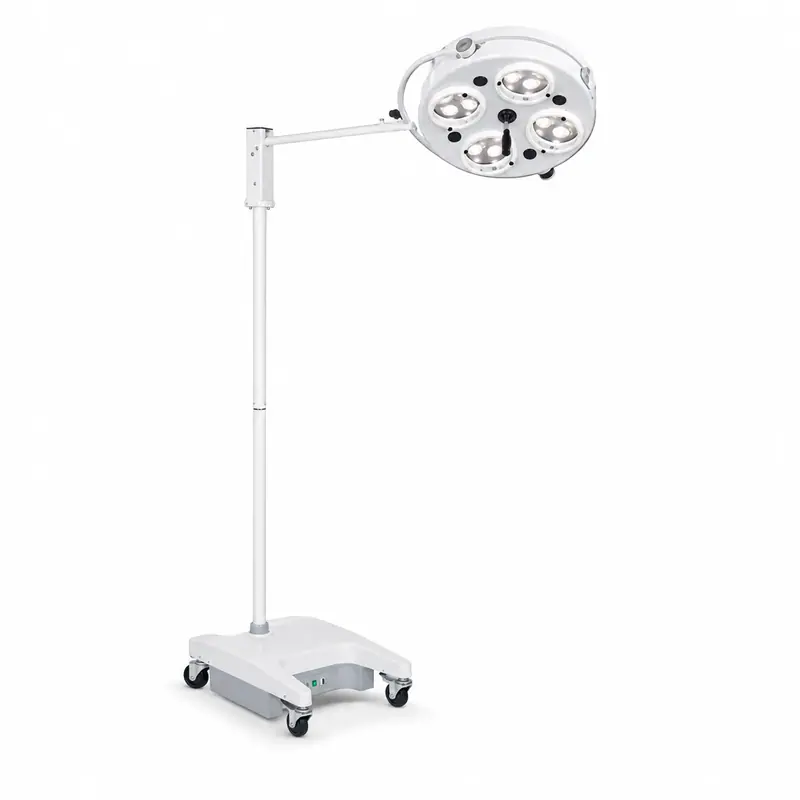

The two mobile variants — KL04L.I (LED) on a wheeled mobile base and KL04L.III (LED) on an alternative mobile chassis — are both fitted with braking casters that lock the lamp firmly in position once placed, preventing accidental drift during a procedure. The same 24 V bulb voltage allows facilities already using the halogen KL04L to evaluate LED performance without changing their supply infrastructure.

Quick facts

The Keling KL04L-LED is a LED surgical light delivering 80,000 lux at 1 m, an increase of 33% over the halogen KL04L's 60,000 lux.
The lamp uses LED bulbs in a five-hole multi-reflector lamp head; color temperature is 4500 ± 500 K; CRI is 100 ≥ Ra ≥ 85.
Power supply is 220 V ± 10%, 50 Hz; input power is 180 VA; rated bulb voltage is 24 V; rated power of bulb is 100 W.
Total irradiance is ≤600 W/m²; total irradiance value is <6 mW/m²lx.
Mobile variants (KL04L.I LED and KL04L.III LED) are equipped with braking casters for stable, lockable positioning.
The KL04L-LED is a direct LED-technology upgrade of the KL04L halogen series, sharing the same mounting footprint.

Key features

80,000 Lux LED Output
higher illumination than the halogen equivalent (60,000 lux), providing clearer, brighter surgical illumination.
LED Bulbs (Notes: the bulb is LED)
instantaneous full brightness, consistent output over service life and reduced heat compared to halogen technology.
Five-Hole Multi-Reflector Head
independent reflector bays create a smooth, shadowless light field even when partially obstructed.
CRI 85–100
color temperature 4500 ± 500 K with high color rendering for accurate tissue and anatomical color differentiation.
Braking Casters
lockable casters on mobile variants secure the lamp in place during surgery, preventing unintended movement.
Controlled Patient Heat Exposure
irradiance ≤600 W/m²; temperature rise on patient's head ≤2°C during surgical operation.
Mobile and Lockable Design
KL04L.I (LED) and KL04L.III (LED) mobile variants suit operating rooms, procedure rooms and emergency departments.
Standard 24V Supply Voltage
compatible with existing surgical light supply infrastructure, simplifying facility upgrades.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

13 parameters for KL04L-LED

KL04L-LED technical specifications
Model	KL04L (LED)
Illumination at 1 m (lux)	80,000
Optional color temperature (K)	4500 ± 500
Color rendering index (Ra)	100 ≥ Ra ≥ 85
Light source	LED
Power supply (AC)	220 V ± 10%, 50 Hz
Input power (VA)	180
Total irradiance (W/m²)	≤600
Total irradiance value (mW/m²lx)	<6
Rated voltage of bulb	24 V
Rated power of bulb	100 W
Patient temperature rise (surgical)	≤2°C
Service temperature rise	≤10°C

Applications

The KL04L-LED LED surgical light is suited for general operating theatres, orthopaedic and trauma surgery suites, gynaecological and obstetric theatres, laparoscopy support rooms, ENT procedure rooms and minor surgery centres. Mobile variants serve as primary lights in smaller procedure rooms and as backup or satellite lights in larger operating suites.

Questions buyers ask

What is the KL04L-LED surgical light used for?

The Keling KL04L-LED is a LED surgical light for operating theatre illumination. It delivers 80,000 lux through a five-hole LED multi-reflector lamp head, providing bright, shadowless light for general and specialist surgical procedures in hospitals and procedure rooms.

How does the KL04L-LED differ from the halogen KL04L?

The KL04L-LED replaces the halogen bulbs with LED technology, increasing illumination from 60,000 to 80,000 lux, achieving instantaneous full brightness and providing more consistent output across its service life. Both share the same five-hole reflector head design, 24 V supply voltage and chassis options. The LED version does not include the battery-backup option available on the KL04L.I halogen variant.

Do the mobile variants have wheel locks?

Yes. Both mobile variants of the KL04L-LED series — KL04L.I (LED) and KL04L.III (LED) — are fitted with braking casters that lock securely to prevent the lamp from drifting during surgery. The brakes are engaged by foot pedal.

Can the KL04L-LED be ordered for hospital project supply or OEM?

Yes. Keling Medical supplies LED surgical lights to hospitals, operating theatre integrators and medical distributors worldwide through its Shanghai export center. Project quantities, OEM labelling and custom configurations are available; contact Keling Medical at https://www.kelingmed.com.
