Examination light guide: wall, ceiling and mobile medical exam lights
How to choose an examination light: wall-mounted, ceiling and mobile LED exam lights compared, with lux, color rendering and color temperature specs for buyers.
An examination light is a focused medical lamp that puts a bright, color-accurate pool of light on the area a clinician needs to see: skin, a wound, the throat, the cervix or a suture line. Exam lights come in three mountings (mobile floor stand, wall arm and ceiling arm), and most new models use LEDs delivering roughly 30,000 to 80,000 lux at 1 m.
What is an examination light, and how is it different from room lighting?
An examination light concentrates light into a small, adjustable field; the room's ceiling lighting only provides an even background level. Even a brightly lit exam room cannot show the fine color differences or surface detail that a close, directional medical lamp reveals.
Good practice is to plan both together. General lighting should be bright and glare-free for the whole room, and the exam light adds intensity exactly where the clinician looks. Large differences between the two cause eye fatigue, so a dimmable exam light is useful.
Types of medical exam lights
There are three main mountings, plus two specialist variants.
| Type | Best for | Strengths | Trade-offs |
|---|---|---|---|
| Mobile (floor stand) | Shared use across rooms, wards, emergency bays | Moves where needed; no installation | Base takes floor space; cable on the floor; can tip if overreached |
| Wall-mounted | Fixed exam rooms, gynecology, ENT, dermatology | Always in place; clear floor; long reach on a jointed arm | Fixed to one wall; needs a structural wall and electrical point |
| Ceiling-mounted | Procedure rooms, emergency treatment rooms | Reaches both sides of the table; no floor obstruction | Needs ceiling structure and installation planning |
| Table or rail mount | Treatment chairs, small clinics | Compact; low cost | Short reach; limited output |
| Procedure light | Minor surgery, wound care, dental implant work | Higher output, larger head, better shadow control | Higher cost; often ceiling or mobile only |
The rule of thumb: buy wall-mounted examination lights for rooms with one fixed table, mobile units where one light serves many bays, and ceiling-mounted lights where procedures happen daily.
How bright should exam lights be?
Most LED exam lights are rated between about 30,000 and 80,000 lux at 1 m. In practice they are used closer, at 0.5 m or less, where the illuminance is considerably higher.
Match the output to the task:
- General examination, wards, ENT and dermatology: around 30,000 to 40,000 lux at 1 m is usually enough.
- Gynecology and wound assessment: 40,000 to 60,000 lux helps with deeper or darker areas.
- Minor procedures and suturing: 60,000 to 80,000 lux, or a dedicated procedure light.
- Minor surgery in a treatment room: consider a compact surgical light rather than an exam light.
Keling's examination range illustrates the spread. The KL01L-ILED-I Examination Shadowless Lamp delivers ≥40,000 lux at 1 m and ≥60,000 lux at 0.5 m, while the KL01L-IILEDTR Examination Shadowless Lamp is rated at ≥80,000 lux at 1 m for heavier procedure work.
More lux is not always better. Very bright light on pale skin causes glare and reflections. Look for a stepless or multi-level dimmer so the clinician can choose.
Color rendering and color temperature
Color accuracy matters as much as brightness. Clinicians judge redness, pallor, jaundice, cyanosis and wound healing by color, and poor light can hide or exaggerate them.
Color rendering index (Ra): IEC 60601-2-41 sets Ra 85 to 100 for medical luminaires. Ra 90 or higher is worth paying for in dermatology and wound care. Some lights also report R9, the rendering of saturated red, which is relevant for blood and tissue.
Color temperature: neutral white around 4,500 K is the common default, and the standard's range for these luminaires runs from about 3,000 to 6,700 K. Adjustable color temperature lets the user tune the light; the KL01L-IILEDTR Examination Shadowless Lamp adjusts from 3,500 to 6,700 K and adds an R9 deep-red function.
LED exam lights vs halogen
LED has largely replaced halogen in new examination lights. The reasons are practical:
- Less heat at the patient's skin and in the room
- Long service life, so bulb replacement is rare
- Lower power draw for the same light output
- Instant on, with stable color over the life of the lamp
Halogen and cold-light lamps are still sold and are cheaper to buy, but bulbs need regular replacement and stocking. The KL01L-IP Examination Shadowless Lamp is a cold-light model using a 24 V, 25 W bulb with ≥12,000 lux at 1 m, suited to basic examination where low cost matters most.
Arm, head and handling
A light that is hard to position will be used badly. On a demonstration, check:
- Reach and range: the arm should cover the whole table from its mounting point without stretching.
- Balance: a counterbalanced or spring arm should stay exactly where it is put, without drifting.
- Rotation: the head should rotate and tilt freely; compact heads with 180° rotation are easier around the face and pelvis.
- Controls: on/off and dimming on the head, reachable with a gloved hand.
- Handle: removable or coverable for procedures that need a sterile field.
- Light field size: a small, defined spot for ENT, a wider field for wound care.
Medical exam lights ceiling mount, wall or mobile: room by room
Exam room lights in a hospital vary by department. A practical starting plan:
| Room or area | Suggested light | Notes |
|---|---|---|
| GP or outpatient exam room | Wall-mounted LED exam light | Mount on the side of the table where the clinician stands |
| Gynecology room | Wall or mobile LED, 40,000 lux or more | Focused field at the foot of the table |
| ENT or ophthalmic room | Compact LED with small spot | Low glare and fine dimming matter |
| Emergency department bays | Ceiling or mobile LED | One light per bay; mobile units for overflow |
| Wards | Mobile medical floor lamp | Shared between beds for dressings and line insertion |
| Minor procedure room | Ceiling procedure light or compact surgical light | Higher output and better shadow control |
| Dental implant or minor surgery | Dedicated surgical lamp | Filtered spectrum to avoid curing composite resin |

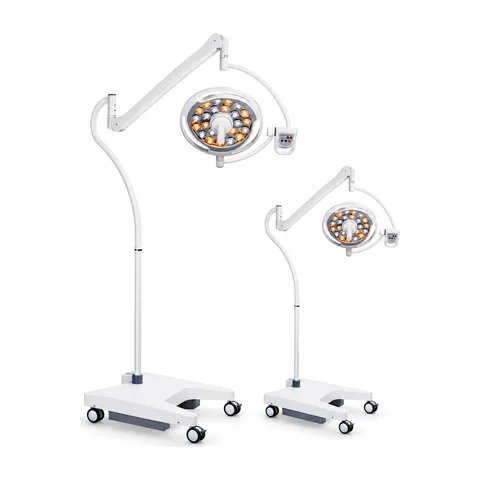

For dental implant and minor surgery, a filtered surgical light avoids curing composite materials prematurely. The KL-LED-MST45 Mobile LED Surgical Lamp for Dental Implant & Minor Surgery is a mobile LED surgical lamp for this work, with a spectral filter that removes UV and blue light.
Maintenance and life-cycle cost
The purchase price of an exam light is small compared with what it costs to own if it fails often or needs bulbs. Ask how the light is maintained before you compare prices.
- Light source: LED modules typically last for tens of thousands of hours; halogen and cold-light bulbs need stocking and regular replacement.
- Arm joints and springs: the most common wear point. Check whether tension can be adjusted on site and whether spare joints are available.
- Power supply and wiring: internal cables in jointed arms flex every day; ask how they are routed and protected.
- Cleaning: daily wiping with hospital disinfectants can cloud some lens plastics, so ask which agents are compatible.
A wall or ceiling light that drifts or flickers will simply stop being used, and clinicians will fall back on penlights and room lighting.
What to put in a tender for medical procedure lighting
A one-line requirement such as "LED exam light" invites widely different offers. Specify at least:
- Mounting type (mobile, wall, ceiling) and, for fixed units, the arm reach in mm
- Central illuminance at 1 m in lux, and dimming steps
- Ra (and R9 if relevant) and color temperature, fixed or adjustable
- Light field diameter at the working distance
- Power supply (voltage, frequency) and any battery option for mobile units
- Cleanability: housing seal, IP rating, list of compatible disinfectants
- Documents: IEC 60601-1 and IEC 60601-2-41 test reports, ISO 13485 certificate of the manufacturer and the registration that applies in your country
- Warranty, spare parts availability and service manual
Ask the manufacturer for the documents that apply to the specific model and destination country rather than relying on a general brochure statement.
Exam lights alongside exam tables
An exam light only works as well as the table and room layout around it. Buy them together when you can, so the light reaches the full length of the table and the mounting point is planned before walls are finished. Keling's examination table buyer's guide and the gynecological examination chair guide cover the matching furniture. For theaters rather than exam rooms, see the overview of ceiling, wall and mobile operating room lights.
Next steps
List each room, its table and the procedures performed there, then pick the mounting and output from the tables above. Keling's surgical and examination lights range covers mobile, wall and ceiling options; request a quote with your room list and the export team will propose matching models and the documents for your market.
Frequently asked questions
What is an examination light used for?
An examination light gives a bright, focused, color-accurate pool of light for looking closely at skin, wounds, the ear, nose and throat, the cervix, or a suture site. It is used in GP and specialist exam rooms, emergency bays, wards and treatment rooms, and for minor procedures such as wound closure, dressing changes and small excisions.
How many lux does a medical exam light need?
Most LED examination lights deliver about 30,000 to 80,000 lux at 1 m, and much more at the shorter working distances used in practice. General exams and gynecology work well at the lower end. For minor procedures, choose 60,000 lux or more, or a small surgical light if the procedure room handles deeper wounds.
Is a wall mounted examination light better than a mobile one?
A wall-mounted examination light is better when the light serves one fixed table: it is always there, has no base to trip over and leaves the floor clear for cleaning. A mobile medical floor lamp is better when one light must serve several rooms or beds, or when the table position changes often.
What is the difference between an exam light and a surgical light?
A surgical light is built for long operations: very high illuminance, a large multi-source head for shadow control, depth of illumination for cavities and strict backup requirements. An exam light is smaller, cheaper and lighter, with lower output and a simpler arm. Procedure lights sit between the two.
What color temperature is best for exam room lights?
Neutral white around 4,000 to 5,000 K is the usual choice for exam lights, with 4,500 K common. It renders skin and mucous membranes naturally under most room lighting. Lights with adjustable color temperature let clinicians switch to warmer or cooler light, which some find helpful for particular tissues.
Can LED exam lights be cleaned with hospital disinfectants?
Generally yes, if the housing is sealed and the manufacturer lists compatible disinfectants in the instructions for use. Check the IP rating, look for smooth housings without vents above the light field, and ask whether the handle is removable or covered for sterile procedures.
