How to choose an LED surgical light: the specifications that matter
A buyer's guide to LED surgical lights. What central illuminance, colour rendering, light field, depth of illumination, heat and endo mode mean, and how to compare datasheets.
An LED surgical light is one of the few pieces of operating room equipment the whole team uses on every case, and one of the hardest to compare on paper. Datasheets quote big lux numbers, but two lights with the same lux figure can perform very differently over a deep abdominal cavity. This guide explains the specifications that decide real-world performance and how to read them on a datasheet, using Keling's own surgical light range as worked examples.
Start with the standard: IEC 60601-2-41
Surgical luminaires are covered by IEC 60601-2-41, the particular safety and performance standard for surgical and diagnostic lights. It defines how illuminance, light field, depth of illumination, colour rendering and radiant energy are measured, always at a 1 m reference distance. Because every figure is defined the same way, it is the only fair basis for comparing suppliers. When you shortlist a light, ask for the test report against this standard as well as the CE documentation.
Central illuminance (Ec): enough, not the most
Central illuminance is the light level at the centre of the field at 1 m, in lux. The standard allows 40,000 to 160,000 lux. More is not automatically better: very high output on a shallow field causes glare and eye fatigue, and the surgeon will simply dim the lamp.
As a rule of thumb:
- Major and deep-cavity surgery: 120,000–160,000 lux from the main dome. Keling's ceiling-mounted KL-LED-STZ5 Ceiling-Mounted LED Shadowless Operating Lamp and KL-LED-D78 Double-Dome LED Shadowless Operating Lamp deliver 160,000 lux per dome.

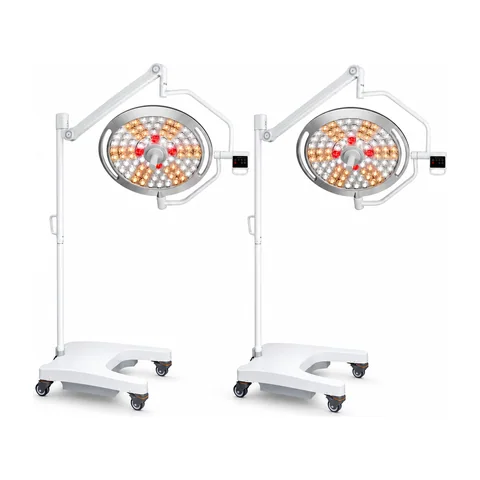

- Satellite dome or second field: 120,000–160,000 lux, or a mobile unit such as the KL-LED-MD78 Mobile LED Shadowless Operating Lamp.
- Minor surgery, dental implant and outpatient procedures: a smaller mobile light such as the KL-LED-MST45 Mobile LED Surgical Lamp for Dental Implant & Minor Surgery.
Check that brightness is dimmable over a wide range, because the same theatre may run very different procedures in one day.
Colour rendering: Ra and R9
The colour rendering index (Ra) describes how faithfully the light shows colours compared with a reference source. Surgical lights should reach Ra 85 or higher. Ra averages eight pastel test colours, so also ask for R9, the saturated red value. Tissue, blood and vessels sit in the red part of the spectrum, and a high R9 makes subtle differences visible. The Keling KL-LED-D78, for example, specifies Ra ≥ 85 and R9 ≥ 97.
Adjustable colour temperature (typically 3,000–6,700 K) lets the team choose a warmer or cooler white for different tissues and for long cases where a very cold light becomes tiring.
Light field: d10 and d50
The light field diameter tells you how wide the illuminated area is. Two figures matter:
- d10 is the diameter where illuminance falls to 10% of the centre value: the edge of the usable field.
- d50 is the diameter where it falls to 50%: the bright core.
A d50 that is a good fraction of d10 means light falls off gently rather than as a hard spot. Many LED lights let you focus the field; the KL-LED-STZ5 adjusts from 10 to 28 cm at 1 m.
Depth of illumination (L1+L2)
Depth of illumination is the vertical distance above and below the 1 m reference point over which light stays above a set fraction of the centre value. It decides whether the bottom of a deep cavity is lit without constant refocusing. Compare L1+L2 directly between suppliers; a figure around 150 cm, as on the KL-LED-STZ5, keeps both a shallow incision and a deep pelvic field usable.
Shadow control
Surgeons' heads and hands block light. Multi-lens LED domes direct light from many points, so an obstruction removes only part of it. Ask for the residual illuminance figures with one and two masks (measured under IEC 60601-2-41) and look at the dome geometry: petal or multi-lobe domes like the five-petal KL-LED-STZ5 spread the sources across a wider area.
Heat at the wound
LEDs run much cooler than halogen lamps, but they are not cold. Radiant energy dries exposed tissue during long cases. The standard limits the ratio of irradiance to illuminance; look for a low heat-to-light ratio (the KL-LED-STZ5 specifies ≤ 3.2 mW/m²·lx) and for good heat dissipation, which also extends LED life. Typical LED lifespans are quoted around 40,000–60,000 hours.
Endo mode for minimally invasive surgery
During laparoscopy the surgeon watches a monitor, and a bright overhead light washes it out. An endo (minimally invasive) mode switches to a low, often green or dim ambient light so staff can still move around safely. The best implementations run it on an independent circuit so it works without changing the main dome settings; the KL-LED-STZ5 endo mode gives 10,000 lux at 1 m.
Mounting: ceiling, wall or mobile
- Ceiling-mounted lights are standard for operating rooms. Confirm the ceiling height range (Keling's ceiling lights are specified for about 2.7–3.2 m) and the steel structure above the false ceiling before ordering, and draw lamp arms and pendant arms on the same plan.
- Mobile lights need no installation, serve as backup during power or ceiling work, and move between rooms.
- Camera systems built into the dome handle recording and teaching; see the KL-LED-STZ5-Camera-System Camera System.
Single dome, double dome or more
A double-dome configuration is the norm for general operating rooms: it gives redundancy if one dome fails and lights the field from two angles. Single domes suit minor procedure rooms. Very large rooms or hybrid ORs can add a third dome or a monitor arm on the same central axis.
A checklist for comparing quotations
- Central illuminance at 1 m, and dimming range
- Ra and R9
- d10, d50 and focus range
- Depth of illumination L1+L2
- Residual illuminance with masks
- Heat-to-light ratio and LED lifespan
- Endo mode: independent or not
- Ceiling height range, mounting plate and arm reach
- Power supply, battery backup option and input power
- IEC 60601-2-41 test report, CE documentation and ISO 13485 certificate of the maker
Keling Medical makes ceiling, mobile and camera-ready LED surgical lights in its ISO 13485-certified factory in Yangzhou. Browse the surgical light range or send your room list through the quote form and the export team will recommend a configuration.
