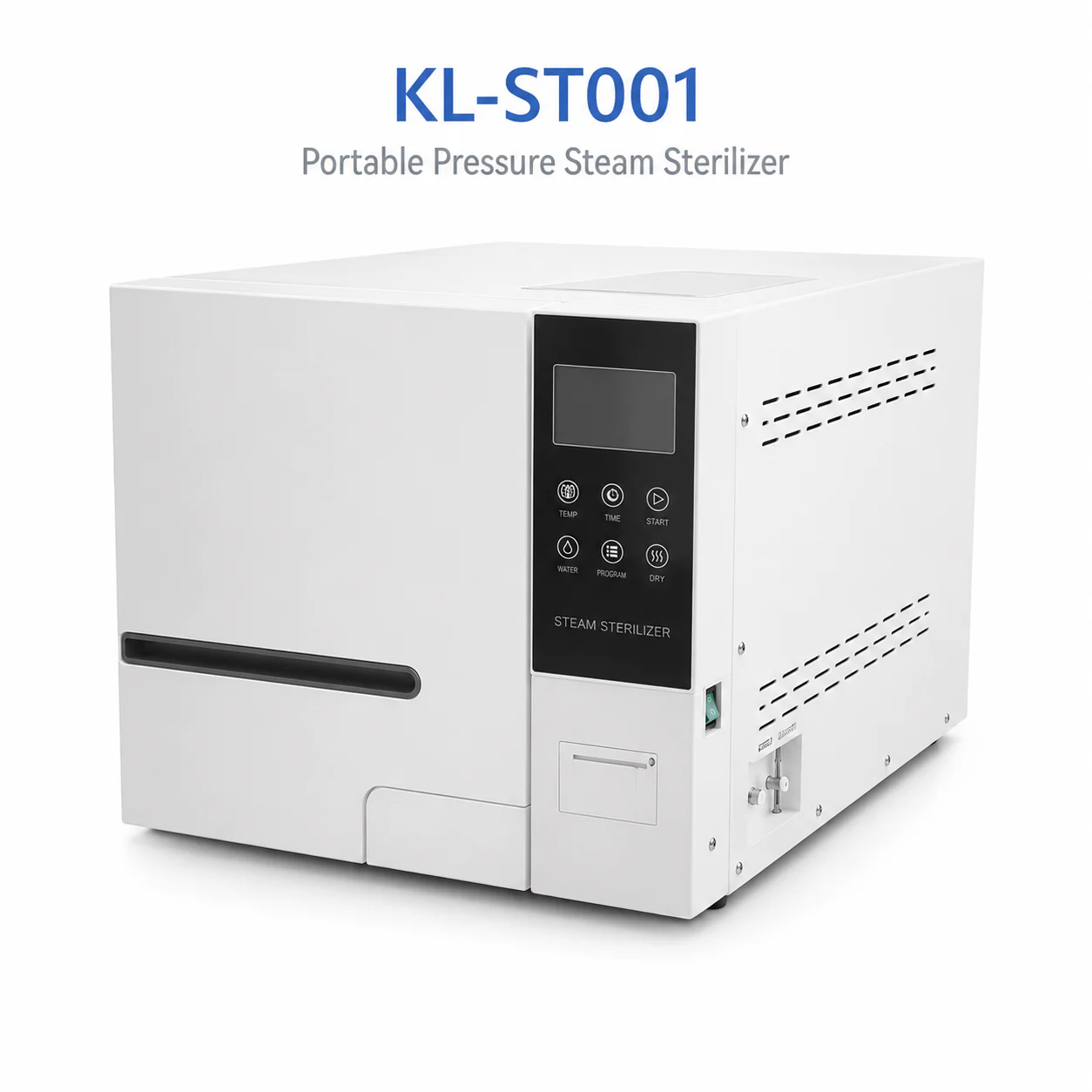

# KL-ST001 Portable Pressure Steam Sterilizer — Compact Benchtop Sterilization with Precise Control and Built-In Drying
Quick answer: The Keling KL-ST001 is a portable pressure steam sterilizer (benchtop autoclave) available in 18 L and 23 L chamber sizes, rated at 134°C working temperature and 0.22 MPa working pressure, with 2.2 kW power and a drying time range of 0–240 min. It is manufactured by Keling Medical (Keling Medical) for clinics, dental practices, laboratories and beauty centers.
Quick Facts

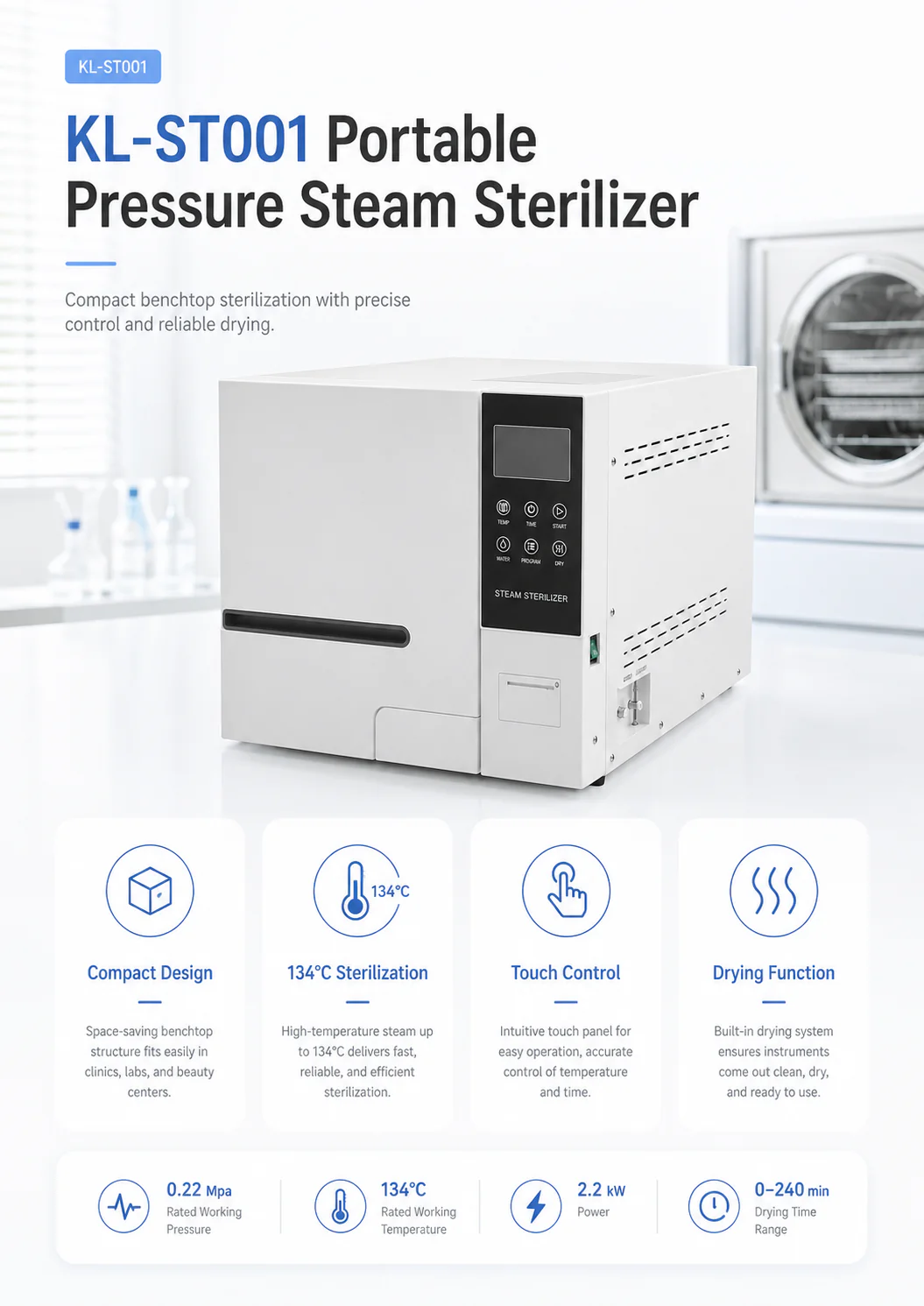

- The Keling KL-ST001 is a portable pressure steam sterilizer designed for compact, space-saving benchtop sterilization.

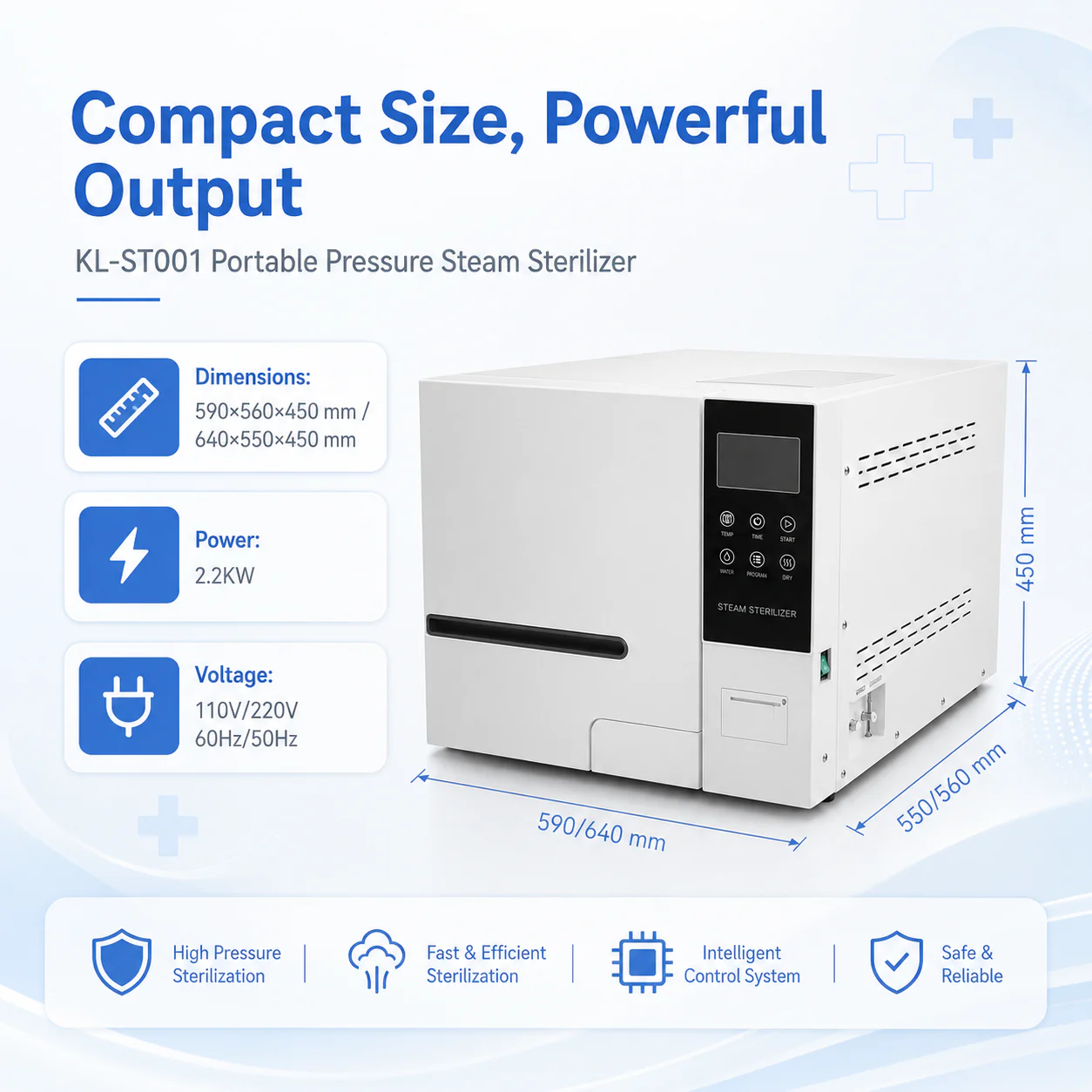

- Chamber volumes are 18 L (Φ250 × 360 mm) and 23 L (Φ250 × 450 mm); external dimensions are 590 × 505 × 450 mm and 640 × 505 × 450 mm respectively.
- Rated working pressure is 0.22 MPa and rated working temperature is 134°C, achieving effective steam sterilization.
- Sterilization temperature and time range is 116–134°C / 4–120 min, covering both flash and standard sterilization cycles.
- Built-in drying function with a 0–240 min drying time range ensures instruments come out clean and dry, ready for immediate use.
- Power supply is 110 V/220 V at 60 Hz/50 Hz, with 2.2 kW power output and intuitive touch-panel control.
Overview

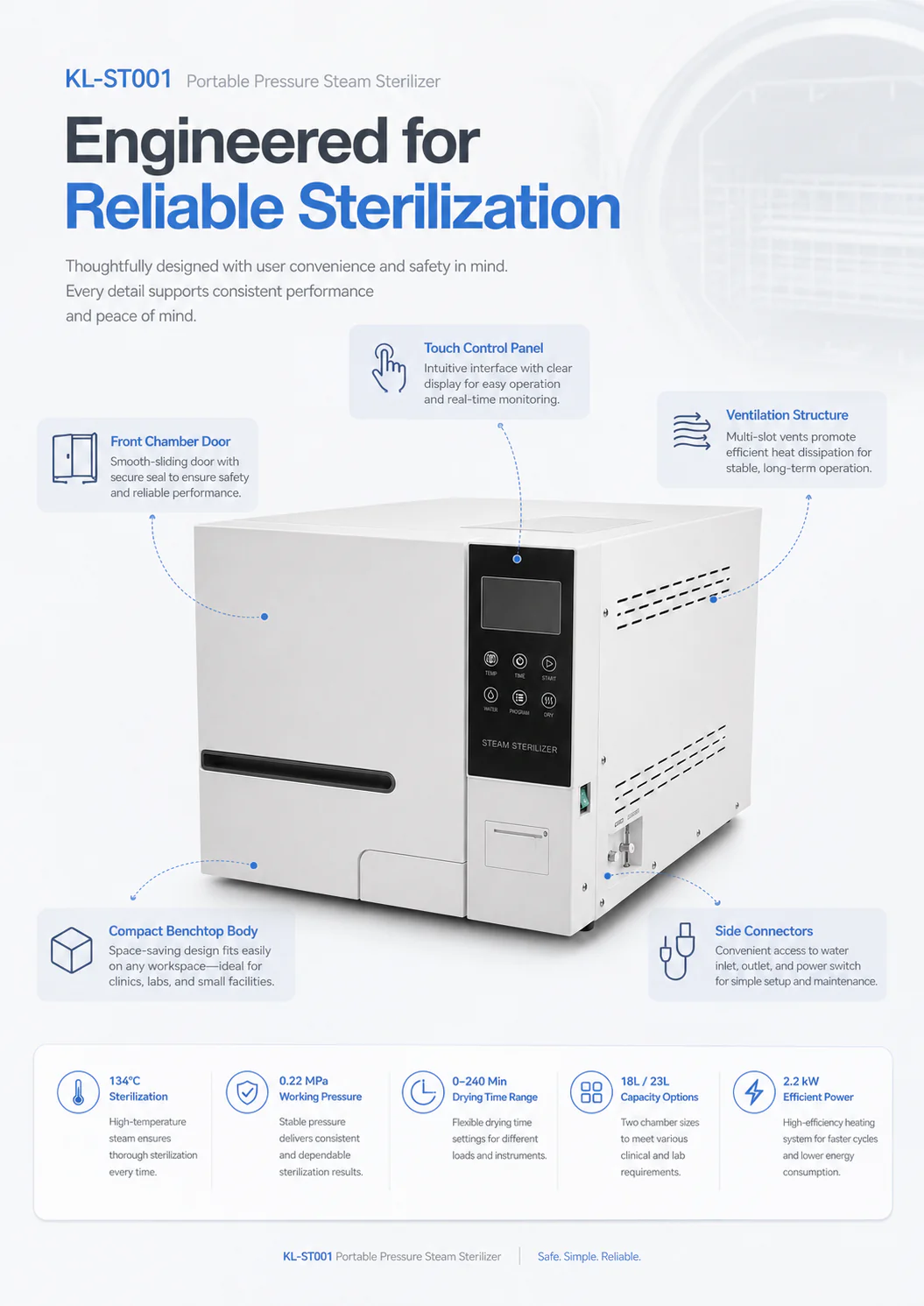

The KL-ST001 portable pressure steam sterilizer delivers reliable, validated steam sterilization in a benchtop format suited to clinics, dental offices, cosmetic centers and small laboratories where space and simplicity are priorities. Available in 18 L and 23 L chamber configurations, it handles standard instrument loads — surgical tools, dental handpieces, laboratory glassware and beauty instruments — without the floor-space demands of larger central sterilization units.
Operating at a rated 134°C and 0.22 MPa, the KL-ST001 achieves effective sterilization across the full 116–134°C range with adjustable cycle times from 4 to 120 min, giving users the flexibility to select flash, standard or porous load cycles as the instrument set requires. The intuitive touch panel with separate controls for temperature, time, program selection, water level and drying simplifies operation and reduces the risk of setup errors in busy clinical environments.
A built-in drying system — with a 0–240 min adjustable drying phase — ensures that sterilized instruments emerge from the cycle completely dry and ready for immediate packaging or use, eliminating the secondary drying step needed with simpler autoclaves. The compact footprint (590 × 505 × 450 mm for the 18 L version) allows placement on standard clinic countertops, and dual-voltage compatibility (110 V / 220 V) supports use in multiple countries.
Key Features

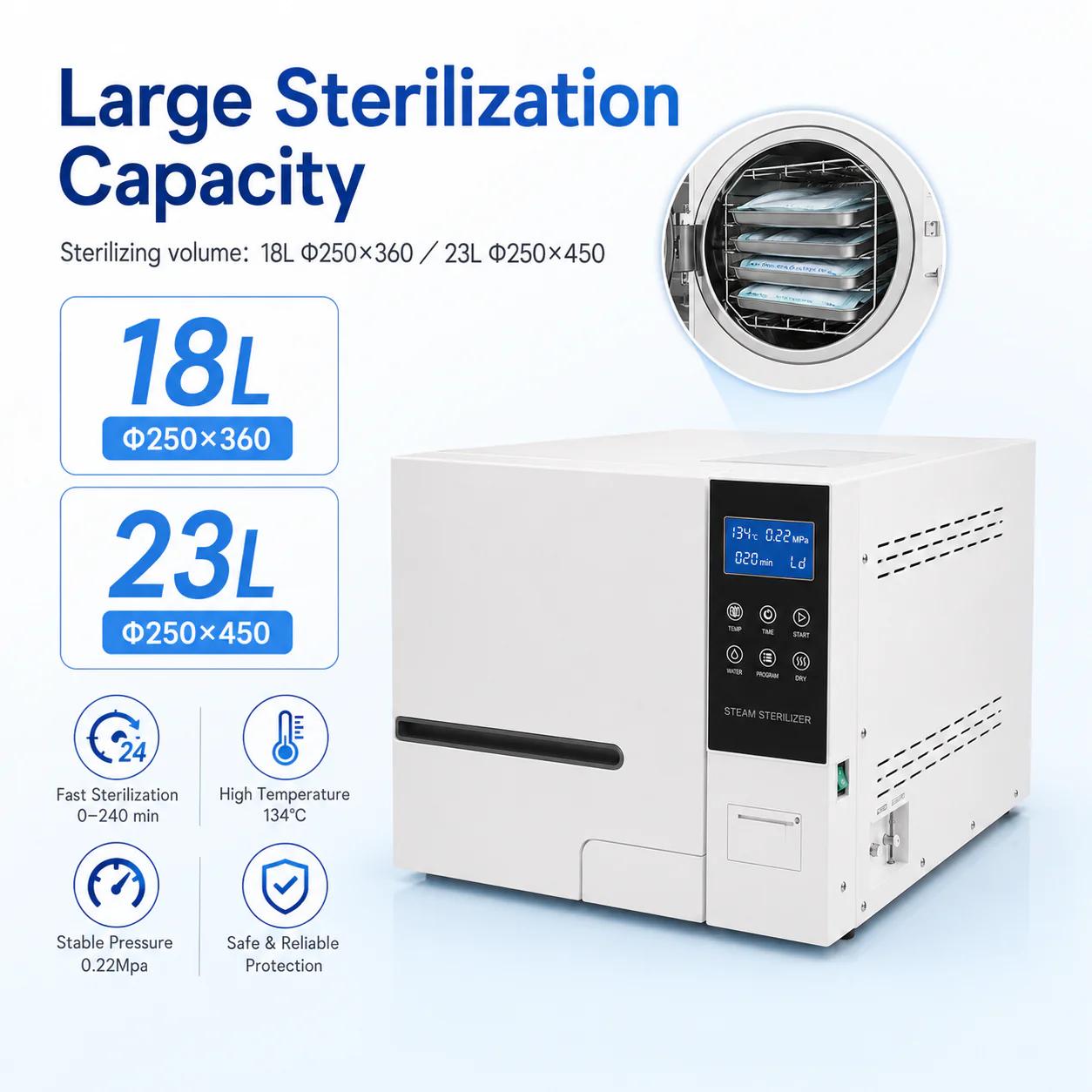

- Two chamber sizes — 18 L (Φ250 × 360 mm) and 23 L (Φ250 × 450 mm) to match different instrument volumes and clinical requirements.
- 134°C steam sterilization — rated 0.22 MPa working pressure and 134°C temperature deliver fast, effective sterilization of wrapped and unwrapped loads.
- Flexible sterilization range — 116–134°C / 4–120 min covers flash, standard and porous cycles in a single programmable unit.
- Built-in drying function — 0–240 min drying phase produces fully dry instruments at cycle end, ready for use without secondary handling.

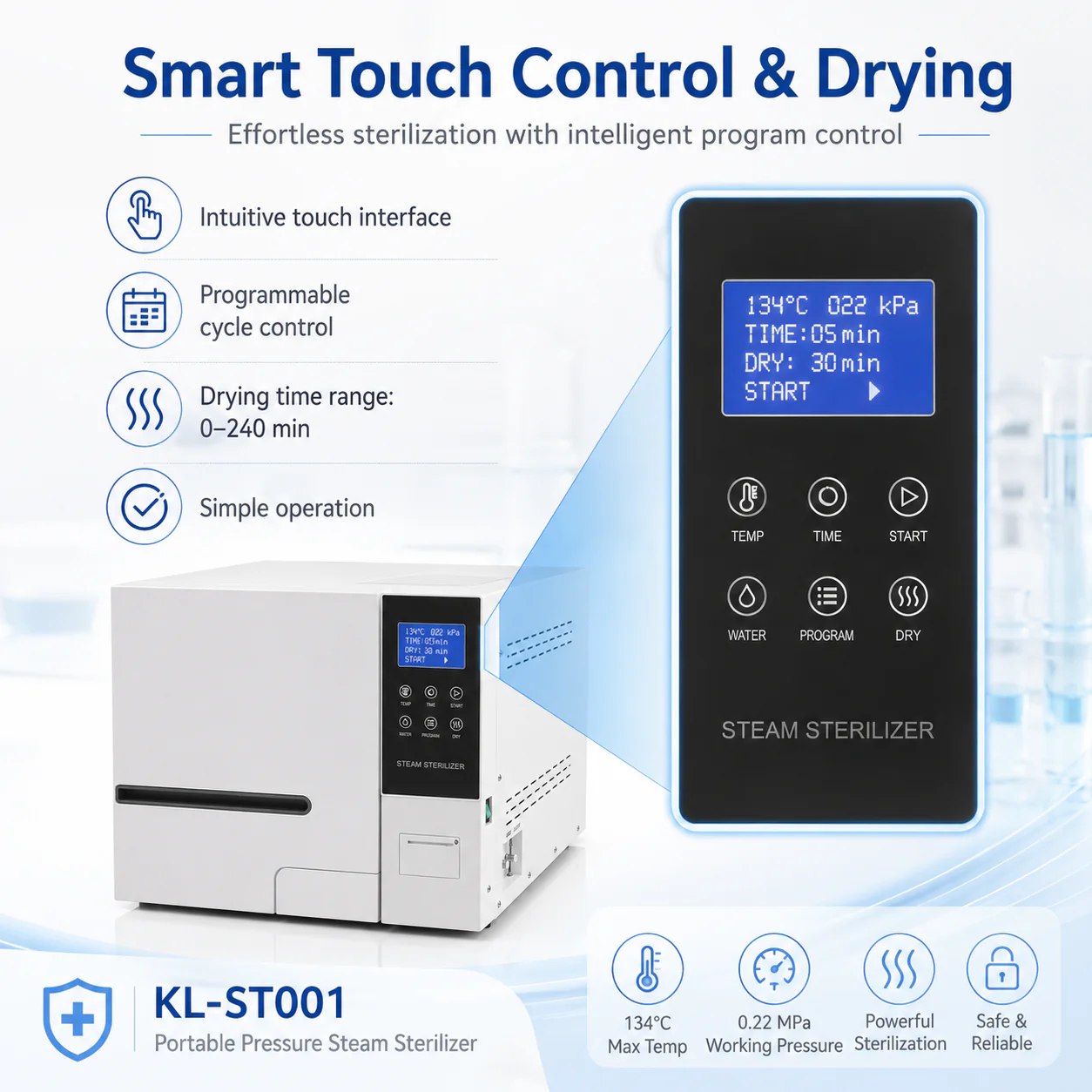

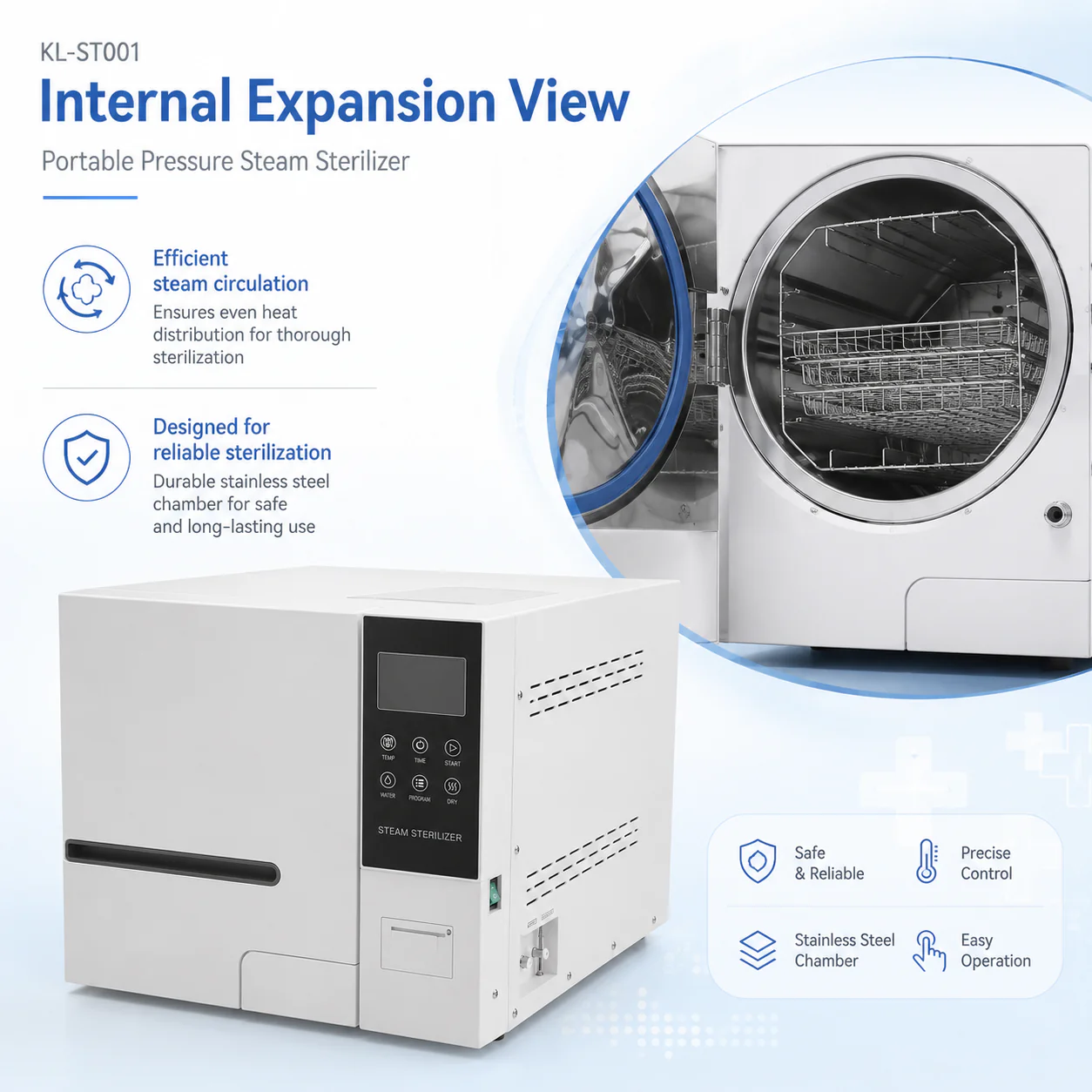

- Touch-panel control — individual buttons for TEMP, TIME, START, WATER, PROGRAM and DRY provide clear, straightforward cycle management.
- Dual-voltage supply — 110 V / 220 V, 60 Hz / 50 Hz supports deployment in hospitals and export markets worldwide.
- Compact benchtop design — space-saving form factor fits standard clinic and lab countertops without dedicated floor installation.

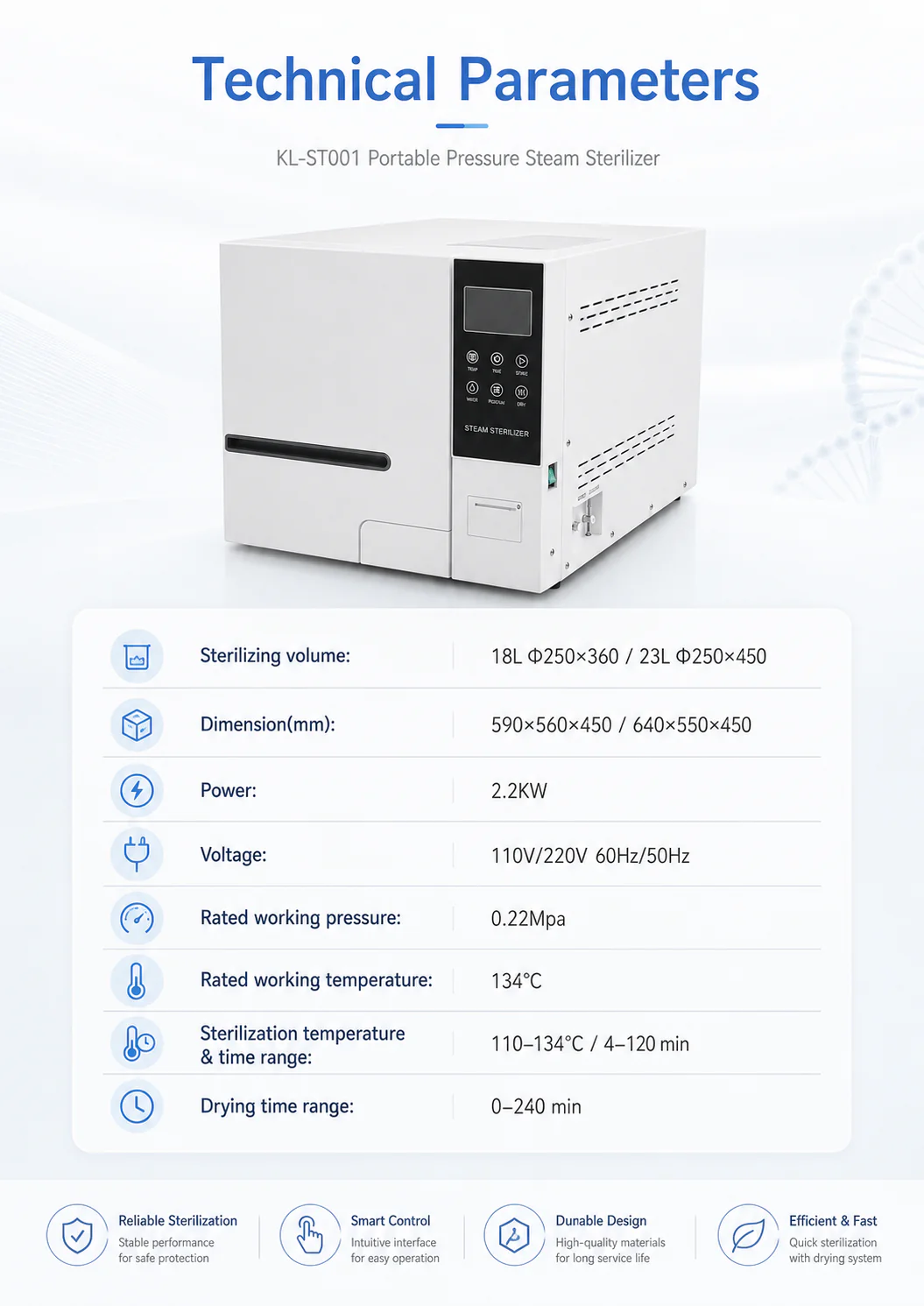

Technical Specifications
| Parameter | Value |
|---|---|
| Model | KL-ST001 |
| Product type | Portable pressure steam sterilizer |
| Sterilizing volume — 18 L | 18 L / Φ250 × 360 mm |
| Sterilizing volume — 23 L | 23 L / Φ250 × 450 mm |
| Dimension — 18 L (mm) | 590 × 505 × 450 |
| Dimension — 23 L (mm) | 640 × 505 × 450 |
| Power | 2.2 kW |
| Voltage | 110 V/220 V, 60 Hz/50 Hz |
| Rated working pressure | 0.22 MPa |
| Rated working temperature | 134°C |
| Sterilization temperature & time range | 116–134°C / 4–120 min |
| Drying time range | 0–240 min |
Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.
Applications
The KL-ST001 portable steam sterilizer is used in dental clinics, outpatient surgical clinics, cosmetic and beauty centers, veterinary practices, small hospital departments, clinical laboratories and research facilities requiring compact, on-site steam sterilization of instruments, glassware and medical devices.
