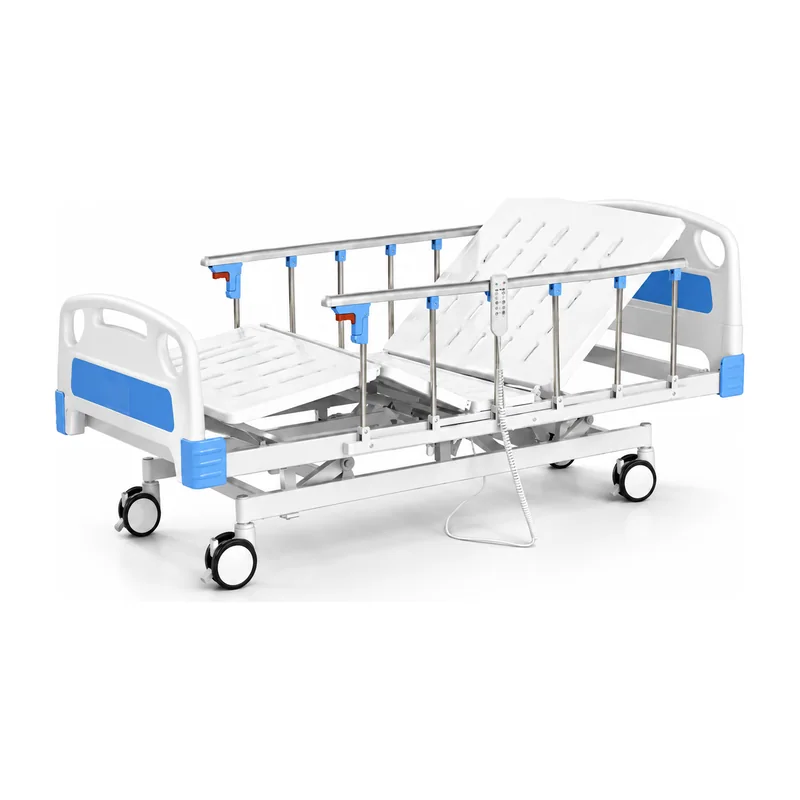

KL-BC104 Electric Hospital Bed — 3-Function Electric Bed with Height Adjustment

Quick answer. The Keling KL-BC104 is a 3-function electric hospital bed with electrically controlled backrest (70±10°), knee-rest (30±10°) and height adjustment (450–760 mm), rated to 200 kg safe working load. It measures 2150 × 1035 × (450–760) mm overall with a 1930 × 900 mm bed surface. Manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for general hospital wards and clinics.

Backrest adjustment: 70±10°
Height adjustment: 450–760 mm
Safe working load: 200 kg
External size (L × W × H): 2150 × 1035 × (450–760) mm

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The KL-BC104 electric hospital bed provides the three most commonly required electric adjustment functions — backrest elevation, knee-rest elevation and overall bed height — in a straightforward configuration suited to general surgical and medical wards, clinics and community hospitals. By concentrating electric actuation on the three adjustments used most frequently in daily nursing practice, the KL-BC104 offers reliable clinical function with a practical specification that suits facilities seeking cost-effective large-scale bed procurement.

The 70±10° backrest range covers the full span needed for respiratory positioning, feeding, semi-recumbent rest and therapeutic seating positions. The 30±10° knee-rest elevation reduces patient sliding when the backrest is raised and relieves lower-back pressure, supporting comfort during extended inpatient stays. Height adjustment from 450 mm eases low-entry patient transfers, reducing fall risk, while 760 mm provides a working height suitable for nursing care procedures.

With a 200 kg rated load and a standard 1930 × 900 mm bed surface, the KL-BC104 is a dependable inpatient bed for the full range of adult patient sizes. The 1035 mm external width provides additional clearance for side-rail accessories and infusion pole mounting compared to narrower ward bed formats.

Quick facts

The Keling KL-BC104 is a 3-function electric hospital bed offering motorized backrest, knee-rest and height adjustment.
Backrest adjusts electrically to 70±10° and knee-rest to 30±10°.
Height adjustment spans 450–760 mm, giving a 310 mm electric travel range.
Safe working load is 200 kg; external dimensions are 2150 × 1035 × (450–760) mm; bed surface is 1930 × 900 mm.
The three-function configuration provides essential clinical adjustability at a practical cost point for general ward deployment.
The KL-BC104 is manufactured by Keling Medical, a Chinese medical equipment producer with more than 20 years of industry experience.

Key features

3-Function electric actuation
motorized backrest, knee-rest and height adjustment via handheld controller.
Backrest to 70±10°
electrically adjustable for respiratory support, feeding and patient comfort positioning.
Knee-rest to 30±10°
independent knee elevation prevents patient sliding and reduces lumbar pressure.
Height range 450–760 mm
wide electric height travel for transfer safety and nursing ergonomics.
200 kg safe working load
solid structural rating for standard adult inpatient use.
1030 mm external width
wider external clearance for side rails and accessories.
1930 × 900 mm bed surface
standard adult sleeping surface with adequate width.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

9 parameters for KL-BC104

KL-BC104 technical specifications
Model	KL-BC104
Product type	Electric hospital bed (3-function)
Backrest adjustment	70±10°
Knee-rest adjustment	30±10°
Height adjustment	450–760 mm
Safe working load	200 kg
External size (L × W × H)	2150 × 1035 × (450–760) mm
Bed surface size (L × W)	1930 × 900 mm
Dimensional tolerance	±20 mm

Applications

The KL-BC104 is suited to general medical wards, surgical inpatient wards, outpatient observation bays, community hospitals, clinics and long-term care facilities. Its three-function electric configuration provides the clinical essentials for daily ward nursing without the added complexity or cost of full 5-function systems.

Questions buyers ask

What is the Keling KL-BC104 electric hospital bed used for?

The KL-BC104 is a 3-function electric hospital bed intended for general ward inpatient care. It provides electric control of backrest, knee-rest and bed height, covering the most frequently used positioning adjustments in daily nursing for medical, surgical and general inpatient populations.

What functions does the KL-BC104 have compared to the 5-function models?

The KL-BC104 includes three electric functions: backrest elevation (70±10°), knee-rest elevation (30±10°) and bed height adjustment (450–760 mm). Unlike the KL-BC101, KL-BC102 or KL-BC103, it does not include Trendelenburg or reverse Trendelenburg tilt, CPR release or a nurse lock as standard, making it suited to general wards with lower acute-care positioning requirements.

What are the external dimensions and load rating of the KL-BC104?

The KL-BC104 has an external size of 2150 × 1035 × (450–760) mm and a bed surface of 1930 × 900 mm. The safe working load is 200 kg. The 1035 mm external width provides extra clearance for side accessories compared to narrower ward bed formats.

Can the KL-BC104 be ordered in large quantities for hospital projects?

Yes. Keling Medical supports bulk procurement for hospital infrastructure projects and exports to distributors and health systems worldwide. Contact Keling Medical via https://www.kelingmed.com for project pricing, delivery timelines and configuration options.
