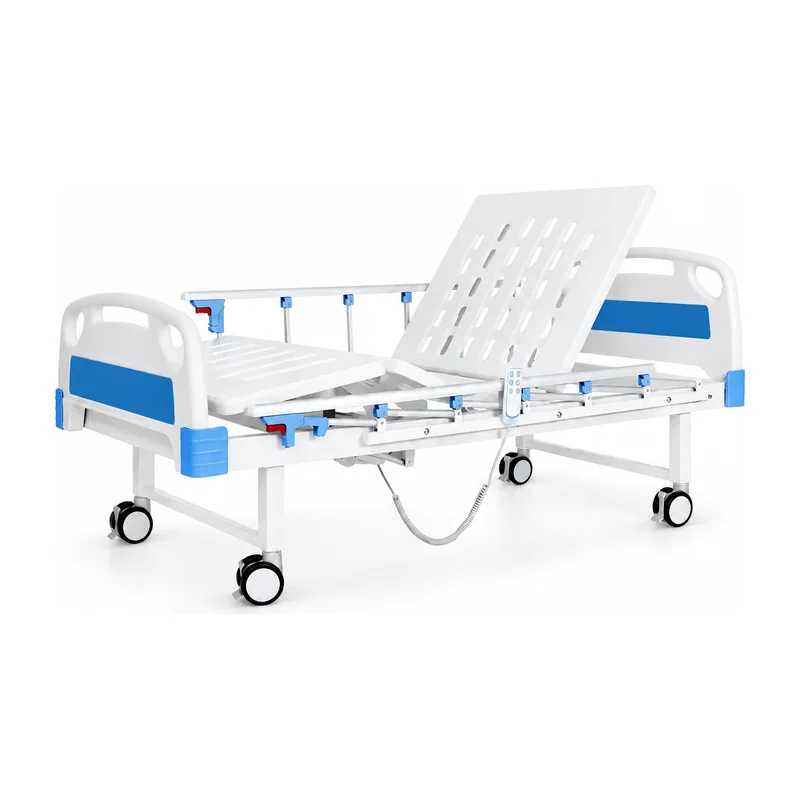

KL-BC105 Electric Hospital Bed — 2-Function Electric Bed with Backrest and Knee-Rest

Quick answer. The Keling KL-BC105 is a 2-function electric hospital bed with motorized backrest adjustment to 70±10° and knee-rest adjustment to 30±10°, a fixed bed height of 450 mm, 200 kg safe working load and external dimensions of 2150 × 1035 × 450 mm. Manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for general hospital wards and clinics seeking reliable, straightforward electric positioning.

Backrest adjustment: 70±10°
Bed height (fixed): 450 mm
Safe working load: 200 kg
External size (L × W × H): 2150 × 1035 × 450 mm

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The KL-BC105 electric hospital bed focuses on the two adjustment functions that nursing staff use most frequently in general ward care: backrest elevation and knee-rest elevation. By providing electric actuation for both of these axes — while maintaining a fixed bed height for structural simplicity — the KL-BC105 offers reliable core positioning capability at an accessible specification, making it a suitable choice for general medical wards, post-acute care facilities, community hospitals and long-term care settings where full 3- or 5-function electric beds are not required.

Electric backrest adjustment to 70±10° gives the KL-BC105 the full clinical positioning range needed for respiratory management, enteral feeding, medication administration and patient comfort. Independent knee-rest elevation to 30±10° works in conjunction with backrest adjustment to maintain the patient's position in the bed, preventing downward sliding that can cause skin shear and discomfort during prolonged elevation.

The fixed 450 mm bed height provides a stable, consistent platform suited to standard-height ward mattresses and average-height nursing staff. The 1030 mm external width offers useful clearance for side rails and monitoring equipment mounting. With a 200 kg safe load rating and a 1930 × 900 mm usable bed surface, the KL-BC105 covers the full range of standard adult inpatient requirements.

Quick facts

The Keling KL-BC105 is a 2-function electric hospital bed providing motorized backrest and knee-rest adjustment.
Backrest adjusts electrically to 70±10° for respiratory, feeding and therapeutic positioning.
Knee-rest adjusts independently to 30±10°, reducing patient sliding and lumbar pressure.
Bed height is fixed at 450 mm; external size is 2150 × 1035 × 450 mm; bed surface is 1930 × 900 mm.
Safe working load is 200 kg, accommodating standard adult inpatient populations.
The KL-BC105 is manufactured by Keling Medical, a Chinese medical equipment producer with more than 20 years of industry experience.

Key features

2-Function electric actuation
independent motorized backrest and knee-rest adjustment via handheld controller.
Backrest to 70±10°
full-range electric adjustment from flat to near-upright for all standard clinical positions.
Knee-rest to 30±10°
independent elevation reduces patient sliding and lumbar pressure when backrest is raised.
Fixed height 450 mm
consistent working platform suitable for standard ward settings.
200 kg safe working load
rated for standard adult inpatient use.
1930 × 900 mm bed surface
standard adult sleeping and care surface dimensions.
Simplified specification
core electric positioning without the additional cost and complexity of height or tilt drive systems.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

9 parameters for KL-BC105

KL-BC105 technical specifications
Model	KL-BC105
Product type	Electric hospital bed (2-function)
Backrest adjustment	70±10°
Knee-rest adjustment	30±10°
Bed height (fixed)	450 mm
Safe working load	200 kg
External size (L × W × H)	2150 × 1035 × 450 mm
Bed surface size (L × W)	1930 × 900 mm
Dimensional tolerance	±20 mm

Applications

The KL-BC105 is intended for general medical and surgical wards, community hospitals, long-term care and post-acute rehabilitation facilities, and outpatient observation bays. Its simplified 2-function electric specification suits settings where height adjustment is less critical and where procurement budget favors essential electric positioning at competitive cost.

Questions buyers ask

What is the Keling KL-BC105 electric hospital bed used for?

The KL-BC105 is a 2-function electric hospital bed for general ward and outpatient inpatient care. It provides electric backrest and knee-rest adjustment, enabling nursing staff to position patients for respiratory care, feeding, comfort and therapeutic positioning without manual crank operation.

Does the KL-BC105 have electric height adjustment?

No. The KL-BC105 has a fixed bed height of 450 mm. Electric actuation covers only the backrest (70±10°) and knee-rest (30±10°). For electric height adjustment, Keling Medical offers the 3-function KL-BC104 and KL-BC104-A, or the 5-function KL-BC103 and KL-BC101 series.

What are the dimensions and weight capacity of the KL-BC105?

The KL-BC105 has an external size of 2150 × 1035 × 450 mm and a bed surface of 1930 × 900 mm. The safe working load is 200 kg, suitable for standard adult inpatient populations.

Is the KL-BC105 available for export and wholesale ordering?

Yes. Keling Medical is an export-oriented manufacturer supplying hospitals, clinics and distributors worldwide and supports wholesale and project-volume orders via its Shanghai export center. Submit inquiries through https://www.kelingmed.com for pricing and availability.
