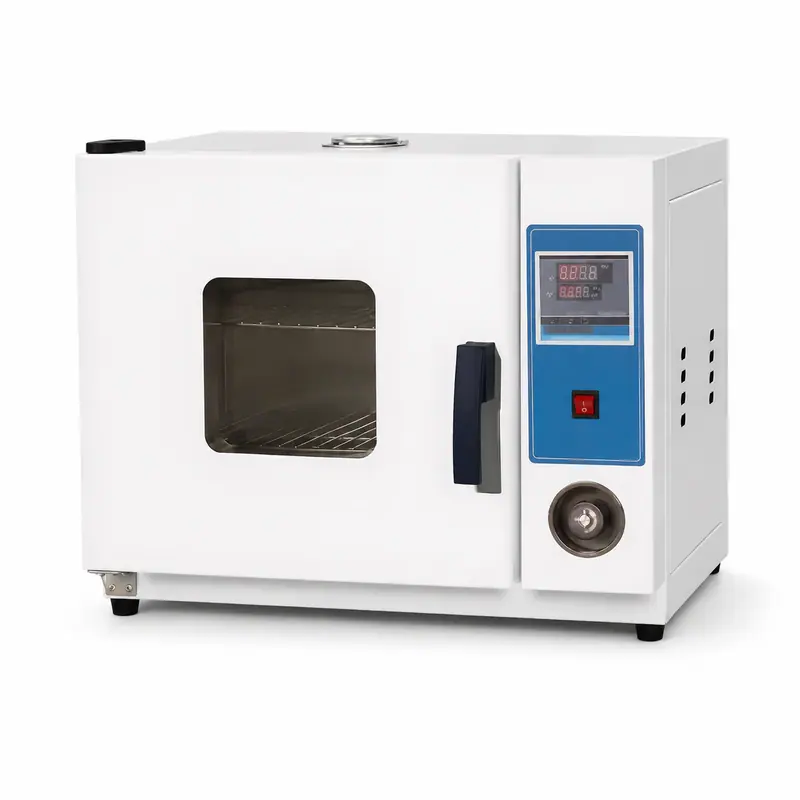

KL-DT001 Electrothermal Constant-Temperature Drying Oven — Precise Heating for Laboratory and Industrial Drying Tasks

Quick answer. The Keling KL-DT001 is an electrothermal constant-temperature drying oven available in 40 L, 70 L and 136 L chamber volumes, with a temperature range of +10°C to 250°C, a 0–999 min timer and a galvanized inner chamber with two separator shelves as standard. It is manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for laboratories, hospitals and industrial facilities.

Chamber volume options: 40 L / 70 L / 136 L
Inner size — 40 L: 350 × 350 × 350 mm
Inner size — 70 L: 450 × 350 × 450 mm
Inner size — 136 L: 550 × 450 × 550 mm

Request a quote Email sales WhatsApp

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The KL-DT001 electrothermal constant-temperature drying oven is engineered for laboratories and light-industrial environments that require reliable, uniform temperature maintenance across extended drying or sterilization cycles. Available in 40 L, 70 L and 136 L configurations, it scales from compact bench-top use to full-capacity production drying while maintaining the same control precision across all sizes. The +10°C to 250°C temperature range covers common tasks from gentle drying of moisture-sensitive materials through to high-temperature sterilization of glassware and metal instruments.

The galvanized inner chamber resists corrosion and facilitates cleaning after demanding drying cycles. Two galvanize separator shelves are included as standard, organizing multiple batches of samples or materials within the chamber simultaneously. An observation window on the front door allows operators to monitor progress without opening the chamber and disrupting the temperature environment. Intuitive digital controls with a 0–999 min timer give operators fine-grained cycle management and automatic shutoff.

Keling Medical's manufacturing process brings consistent build quality to the KL-DT001, with 220 V power supply across all three capacity variants. The compact design of the 40 L model suits benchtop use in clinics and smaller labs, while the 136 L variant serves central sterilization departments and quality-control facilities with higher throughput requirements.

Quick facts

The Keling KL-DT001 is an electrothermal constant-temperature drying oven for stable, uniform heating in laboratory and light-industrial applications.
Chamber volumes are available in three sizes: 40 L (inner 350 × 350 × 350 mm), 70 L (inner 450 × 350 × 450 mm) and 136 L (inner 550 × 450 × 550 mm).
Power is 220 V/0.8 kW (40 L), 220 V/1.5 kW (70 L) and 220 V/2 kW (136 L) respectively.
Temperature range spans +10°C to 250°C with adjustable digital control for precise, stable heating.
Programmable timer covers 0–999 min, enabling flexible drying cycles for a wide range of protocols.
The KL-DT001 features a galvanized inner liner and two galvanize separator shelves as standard, with a front observation window for in-process monitoring.

Key features

Three capacity options
40 L, 70 L and 136 L chamber volumes to match different throughput requirements, all with the same temperature performance.
+10°C to 250°C temperature range
covers gentle drying, reagent desiccation and high-temperature glassware sterilization in a single instrument.
0–999 min programmable timer
wide timing range allows short drying sprints and extended overnight cycles with automatic stop.
Galvanized inner chamber
corrosion-resistant liner ensures durability and simple post-cycle cleaning.
Two standard separator shelves
galvanize shelves organize samples in layers for efficient use of chamber volume.
Front observation window
transparent window enables monitoring of contents without opening the door and disturbing the set temperature.
Precise digital control
digital display and electronic controller maintain stable temperature throughout the working cycle.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

13 parameters for KL-DT001

KL-DT001 technical specifications
Model	KL-DT001
Product type	Electrothermal constant-temperature drying oven
Chamber volume options	40 L / 70 L / 136 L
Inner size — 40 L	350 × 350 × 350 mm
Inner size — 70 L	450 × 350 × 450 mm
Inner size — 136 L	550 × 450 × 550 mm
Power — 40 L	220 V / 0.8 kW
Power — 70 L	220 V / 1.5 kW
Power — 136 L	220 V / 2 kW
Temperature range	+10°C–250°C
Timing time	0–999 min
Liner material	Galvanize
Standard partition	Galvanize separator × 2

Applications

The KL-DT001 drying oven is used across hospital central sterilization supply departments, clinical and research laboratories, pharmaceutical manufacturing quality control, university chemistry and biology departments, and industrial materials testing. Typical tasks include drying glassware and plastic consumables, sterilizing instruments, removing moisture from chemical reagents, and heat-treating small batches of materials.

Questions buyers ask

What is the Keling KL-DT001 drying oven used for?

The KL-DT001 is an electrothermal constant-temperature drying oven for drying, sterilizing and heat-treating laboratory and medical materials. Its +10°C to 250°C range handles everything from gentle moisture removal of heat-sensitive samples to high-temperature glassware sterilization.

What chamber sizes are available for the KL-DT001?

The KL-DT001 comes in three chamber volumes: 40 L (inner 350 × 350 × 350 mm, 0.8 kW), 70 L (inner 450 × 350 × 450 mm, 1.5 kW) and 136 L (inner 550 × 450 × 550 mm, 2 kW). All run on 220 V power. Two galvanize separator shelves are standard across all sizes.

What is the timer range and how does the temperature control work?

The KL-DT001 provides a 0–999 min programmable timer for flexible cycle management, and the digital controller maintains the set temperature with precision throughout the working period. The observation window allows in-process monitoring without opening the door.

Can the KL-DT001 be supplied for export or wholesale orders?

Yes. Keling Medical's Shanghai export center supports bulk orders and international distribution. Contact Keling Medical at https://www.kelingmed.com for quotations, capacity options and delivery terms.
