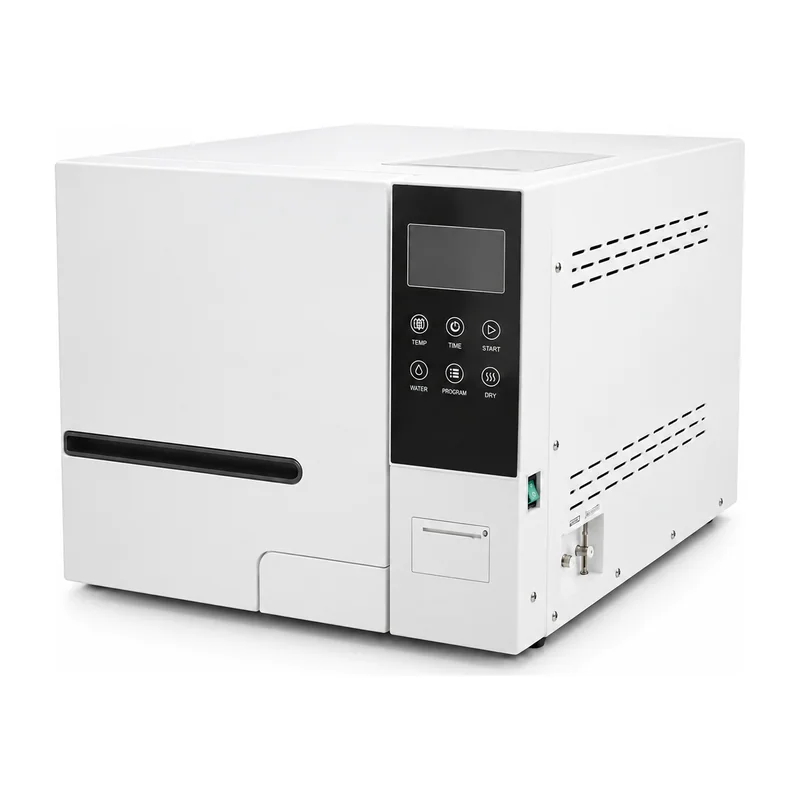

KL-ST001 Portable Pressure Steam Sterilizer — Compact Benchtop Sterilization with Precise Control and Built-In Drying

Quick answer. The Keling KL-ST001 is a portable pressure steam sterilizer (benchtop autoclave) available in 18 L and 23 L chamber sizes, rated at 134°C working temperature and 0.22 MPa working pressure, with 2.2 kW power and a drying time range of 0–240 min. It is manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for clinics, dental practices, laboratories and beauty centers.

Dimension — 18 L (mm): 590 × 505 × 450
Dimension — 23 L (mm): 640 × 505 × 450
Power: 2.2 kW
Drying time range: 0–240 min

Request a quote Email sales WhatsApp

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The KL-ST001 portable pressure steam sterilizer delivers reliable, validated steam sterilization in a benchtop format suited to clinics, dental offices, cosmetic centers and small laboratories where space and simplicity are priorities. Available in 18 L and 23 L chamber configurations, it handles standard instrument loads — surgical tools, dental handpieces, laboratory glassware and beauty instruments — without the floor-space demands of larger central sterilization units.

Operating at a rated 134°C and 0.22 MPa, the KL-ST001 achieves effective sterilization across the full 116–134°C range with adjustable cycle times from 4 to 120 min, giving users the flexibility to select flash, standard or porous load cycles as the instrument set requires. The intuitive touch panel with separate controls for temperature, time, program selection, water level and drying simplifies operation and reduces the risk of setup errors in busy clinical environments.

A built-in drying system — with a 0–240 min adjustable drying phase — ensures that sterilized instruments emerge from the cycle completely dry and ready for immediate packaging or use, eliminating the secondary drying step needed with simpler autoclaves. The compact footprint (590 × 505 × 450 mm for the 18 L version) allows placement on standard clinic countertops, and dual-voltage compatibility (110 V / 220 V) supports use in multiple countries.

Quick facts

The Keling KL-ST001 is a portable pressure steam sterilizer designed for compact, space-saving benchtop sterilization.
Chamber volumes are 18 L (Φ250 × 360 mm) and 23 L (Φ250 × 450 mm); external dimensions are 590 × 505 × 450 mm and 640 × 505 × 450 mm respectively.
Rated working pressure is 0.22 MPa and rated working temperature is 134°C, achieving effective steam sterilization.
Sterilization temperature and time range is 116–134°C / 4–120 min, covering both flash and standard sterilization cycles.
Built-in drying function with a 0–240 min drying time range ensures instruments come out clean and dry, ready for immediate use.
Power supply is 110 V/220 V at 60 Hz/50 Hz, with 2.2 kW power output and intuitive touch-panel control.

Key features

Two chamber sizes
18 L (Φ250 × 360 mm) and 23 L (Φ250 × 450 mm) to match different instrument volumes and clinical requirements.
134°C steam sterilization
rated 0.22 MPa working pressure and 134°C temperature deliver fast, effective sterilization of wrapped and unwrapped loads.
Flexible sterilization range
116–134°C / 4–120 min covers flash, standard and porous cycles in a single programmable unit.
Built-in drying function
0–240 min drying phase produces fully dry instruments at cycle end, ready for use without secondary handling.
Touch-panel control
individual buttons for TEMP, TIME, START, WATER, PROGRAM and DRY provide clear, straightforward cycle management.
Dual-voltage supply
110 V / 220 V, 60 Hz / 50 Hz supports deployment in hospitals and export markets worldwide.
Compact benchtop design
space-saving form factor fits standard clinic and lab countertops without dedicated floor installation.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

12 parameters for KL-ST001

KL-ST001 technical specifications
Model	KL-ST001
Product type	Portable pressure steam sterilizer
Sterilizing volume — 18 L	18 L / Φ250 × 360 mm
Sterilizing volume — 23 L	23 L / Φ250 × 450 mm
Dimension — 18 L (mm)	590 × 505 × 450
Dimension — 23 L (mm)	640 × 505 × 450
Power	2.2 kW
Voltage	110 V/220 V, 60 Hz/50 Hz
Rated working pressure	0.22 MPa
Rated working temperature	134°C
Sterilization temperature & time range	116–134°C / 4–120 min
Drying time range	0–240 min

Applications

The KL-ST001 portable steam sterilizer is used in dental clinics, outpatient surgical clinics, cosmetic and beauty centers, veterinary practices, small hospital departments, clinical laboratories and research facilities requiring compact, on-site steam sterilization of instruments, glassware and medical devices.

Questions buyers ask

What is the Keling KL-ST001 portable steam sterilizer used for?

The KL-ST001 is a benchtop autoclave for steam sterilization of surgical instruments, dental tools, laboratory glassware and beauty equipment. Its 116–134°C sterilization range and built-in 0–240 min drying function make it suitable for clinics, dental offices and small laboratories requiring reliable on-site sterilization.

What chamber sizes and dimensions does the KL-ST001 offer?

The KL-ST001 is available in an 18 L chamber (Φ250 × 360 mm inner, 590 × 505 × 450 mm external) and a 23 L chamber (Φ250 × 450 mm inner, 640 × 505 × 450 mm external). Both sizes use 2.2 kW power and support dual-voltage (110 V / 220 V) operation.

Does the KL-ST001 have a drying function?

Yes. The KL-ST001 includes a built-in drying system with an adjustable range of 0–240 min. This ensures instruments emerge from the sterilization cycle completely dry and ready for immediate use or packaging, without needing a separate drying step.

Is the KL-ST001 available for international distributors?

Yes. Keling Medical exports to hospitals and distributors worldwide through its Shanghai sales and export center. Contact Keling Medical at https://www.kelingmed.com for bulk pricing, country-specific voltage configurations and shipping terms.
