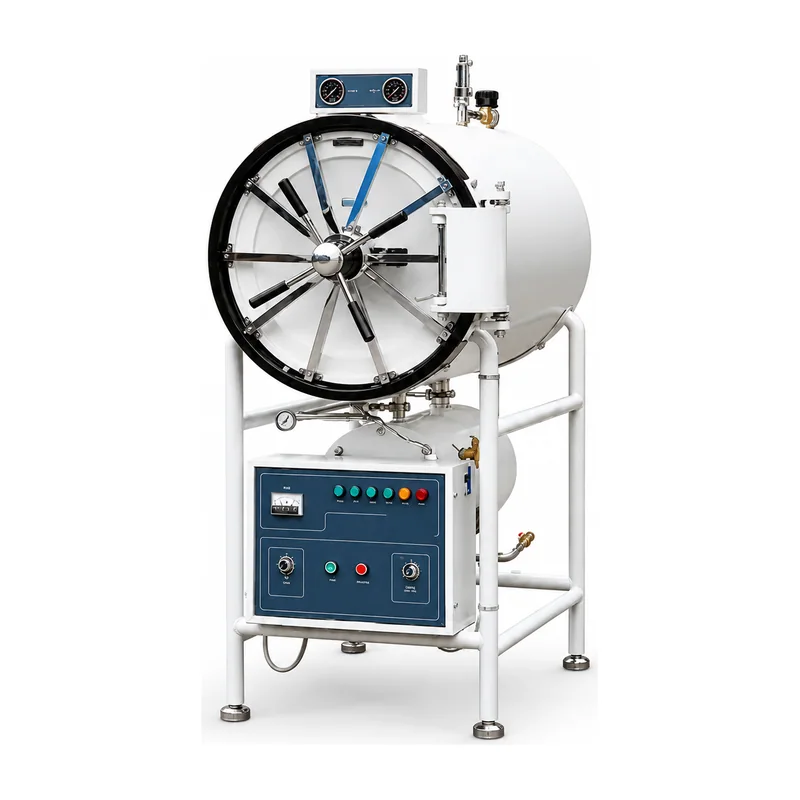

KL-ST004 Horizontal Pressure Steam Sterilizer — High-Capacity Hospital and Laboratory Autoclave for Demanding Daily Use

Quick answer. The Keling KL-ST004 is a horizontal pressure steam sterilizer available in 150 L, 200 L, 280 L and 400 L chamber capacities, operating at 0.25 MPa working pressure and up to 138°C, with a combined sterilization and drying time of 0–60 min and heat distribution uniformity of ≤±2°C. It is manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for hospital central sterilization departments, pharmaceutical facilities and large-scale laboratories.

Chamber — 150 L: Φ440 × 1000 mm, 9 kW, 380 V/50 Hz
Chamber — 200 L: Φ450 × 1000 mm, 9 kW, 380 V/50 Hz
Chamber — 280 L: Φ600 × 1000 mm, 12 kW, 380 V/50 Hz
Chamber — 400 L: Φ700 × 1000 mm, 13 kW, 380 V/50 Hz

Request a quote Email sales WhatsApp

Markdown

ISO 13485:2016 CE (EU MDR) Global export OEM available

Overview

The KL-ST004 horizontal pressure steam sterilizer is engineered for central sterilization supply departments, hospital operating theaters and large pharmaceutical or research facilities where instrument volumes demand a high-capacity, fast-cycle autoclave. The horizontal front-loading chamber design allows trolley-mounted cassettes and instrument baskets to be rolled in and out efficiently, minimizing manual handling and supporting the high throughput of a busy surgical schedule.

Four chamber capacities — 150 L, 200 L, 280 L and 400 L — let facilities select the unit that matches their daily sterilization load without over-investing in excess capacity. All sizes operate at the same validated conditions of 0.25 MPa and a maximum of 138°C, with heat distribution uniformity held within ≤±2°C across the entire chamber to confirm that every item in the load receives the required thermal treatment. The integrated sterilization and drying cycle of 0–60 min allows rapid instrument turnaround, particularly important in high-volume surgical environments.

A hand-wheel door lock and clear instrument panel — with pressure gauges and status indicators — give operators direct feedback on cycle status throughout the process. The three-phase 380 V power supply at 9–13 kW (depending on size) provides the thermal energy needed for fast heat-up and consistent holding temperature at scale.

Quick facts

The Keling KL-ST004 is a horizontal pressure steam sterilizer designed for high-throughput sterilization in medical and laboratory environments.
Chamber volume options are 150 L, 200 L, 280 L and 400 L; dimensions range from 630 × 600 × 1320 mm (150 L) to Φ700 × 1000 mm (400 L) with external footprints from 1350 × 670 × 1520 mm up to 880 × 1530 mm.
Maximum working pressure is 0.25 MPa and maximum working temperature is 138°C.
Combined sterilization and drying cycle time is 0–60 min, supporting rapid turnaround for busy sterilization departments.
Heat average distribution uniformity is ≤±2°C across the full chamber volume.
Power options are 9 kW (150 L / 200 L), 12 kW (280 L) and 13 kW (400 L), running on 380 V / 50 Hz three-phase supply.

Key features

Four large-capacity chamber sizes
150 L, 200 L, 280 L and 400 L options to match the throughput requirements of different hospital or industrial sterilization programs.
0.25 MPa working pressure and 138°C maximum temperature
validated high-temperature steam sterilization conditions for challenging loads.
0–60 min combined sterilization and drying
rapid cycle times support continuous instrument turnover in high-volume surgical departments.
≤±2°C heat distribution uniformity
consistent thermal exposure across the full chamber volume ensures reliable sterilization of all load items.
Hand-wheel door lock
secure, positive-locking door mechanism for safety during pressurized cycles.
Front-loading horizontal chamber
allows trolley or cassette loading for efficient high-volume handling with minimal manual lifting.
Three-phase 380 V power
9–13 kW power rating (by size) provides fast heat-up and stable temperature maintenance at high capacity.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

14 parameters for KL-ST004

KL-ST004 technical specifications
Model	KL-ST004
Product type	Horizontal pressure steam sterilizer
Chamber — 150 L	Φ440 × 1000 mm, 9 kW, 380 V/50 Hz
Chamber — 200 L	Φ450 × 1000 mm, 9 kW, 380 V/50 Hz
Chamber — 280 L	Φ600 × 1000 mm, 12 kW, 380 V/50 Hz
Chamber — 400 L	Φ700 × 1000 mm, 13 kW, 380 V/50 Hz
External dim. — 150 L	630 × 600 × 1320 mm
External dim. — 200 L	670 × 1650 mm
External dim. — 280 L	770 × 1100 mm
External dim. — 400 L	880 × 1530 mm
Maximum working pressure	0.25 MPa
Maximum working temperature	138°C
Sterilization & drying time	0–60 min
Heat average distribution	≤±2°C

Applications

The KL-ST004 horizontal steam sterilizer is used in hospital central sterilization supply departments (CSSD), operating theater instrument services, pharmaceutical manufacturing sterilization suites, biomedical research facilities and large clinical laboratories. It handles bulk instrument packs, surgical kits, drapes, dressings, culture media and heat-stable medical devices requiring validated high-temperature steam sterilization.

Questions buyers ask

What is the Keling KL-ST004 horizontal steam sterilizer used for?

The KL-ST004 is a high-capacity front-loading horizontal autoclave designed for central sterilization supply departments and large laboratories. It sterilizes surgical instrument packs, drapes, dressings and culture media at up to 138°C / 0.25 MPa, with an integrated 0–60 min sterilization and drying cycle.

What chamber sizes and power requirements does the KL-ST004 offer?

The KL-ST004 comes in four chamber volumes: 150 L (9 kW), 200 L (9 kW), 280 L (12 kW) and 400 L (13 kW). All sizes operate on three-phase 380 V / 50 Hz power and share the same 0.25 MPa / 138°C performance specifications with ≤±2°C heat uniformity.

How quickly can the KL-ST004 complete a sterilization cycle?

The KL-ST004 supports a combined sterilization and drying cycle time of 0–60 min, enabling rapid instrument turnaround and supporting continuous sterilization throughput in high-volume surgical and hospital environments.

Can the KL-ST004 be supplied for hospital projects or exported?

Yes. Keling Medical supplies hospital equipment projects and distributors worldwide from its Shanghai export center. Contact Keling Medical at https://www.kelingmed.com for project quotations, installation specifications and export terms.
