# KL-T7103 Manual Medical Pendant — Dual-Tray Ceiling Supply Unit for ORs and ICU

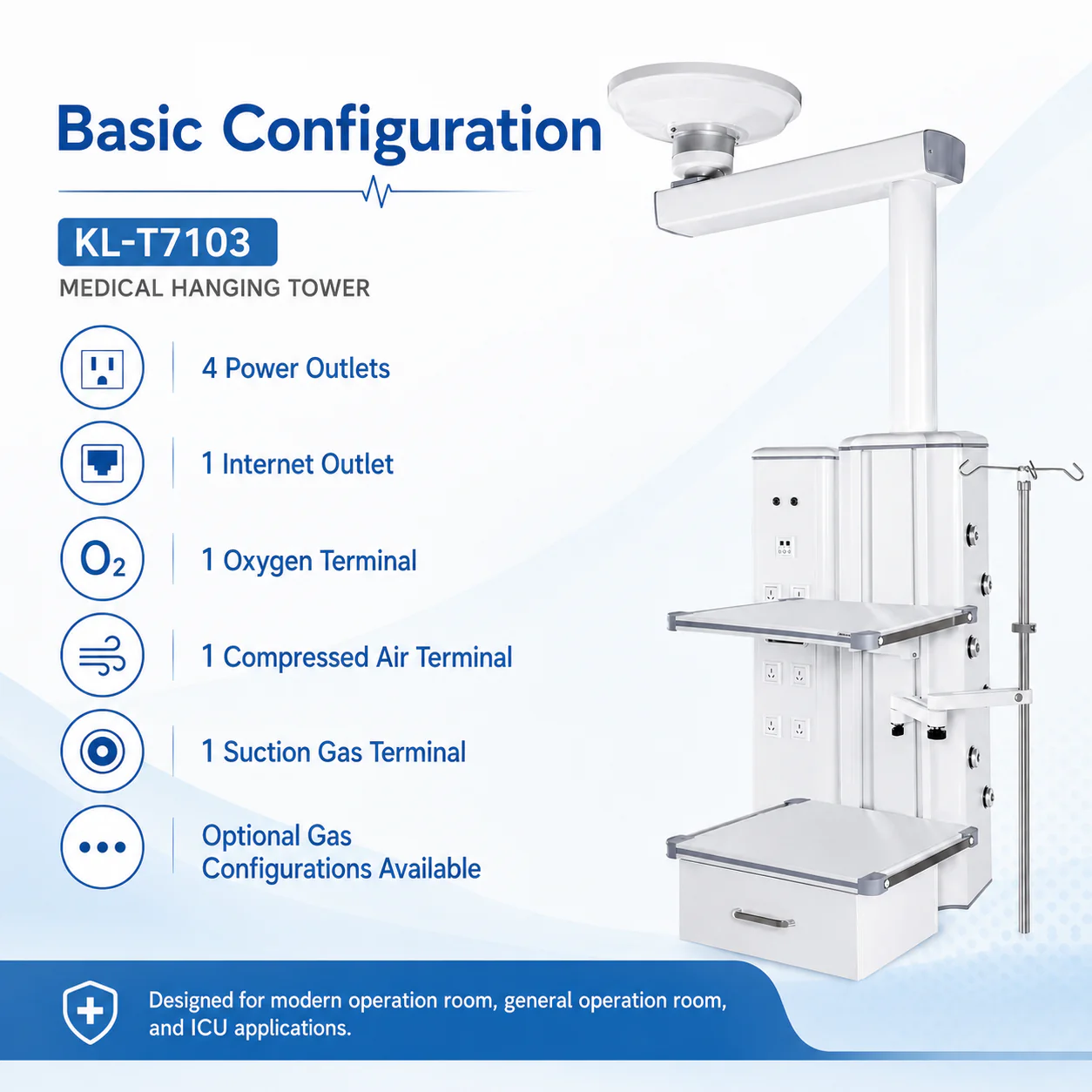

Quick answer: The Keling KL-T7103 is a manual medical pendant (medical hanging tower) designed for modern clean operating rooms, general operating rooms and ICU rooms. It features dual working trays, an integrated storage drawer, IV pole support and horizontal rotation with precise, drift-free positioning. Standard utility configuration includes four power outlets, one internet outlet, one oxygen outlet, one compressed air outlet and one suction gas outlet (German style terminals). It is manufactured by Keling Medical (Keling Medical).
Quick Facts
- The Keling KL-T7103 is a manual medical pendant for clean ORs, general ORs and ICU environments.
- Two spacious adjustable trays on the KL-T7103 provide convenient access to instruments and lightweight medical equipment.
- A built-in storage drawer offers secure, organized storage for medical supplies and consumables.
- The KL-T7103 includes an integrated IV pole support for enhanced patient care and infusion management.
- Gas pipelines, electrical supply and computer communication lines are routed without mutual interference in independent channels.
- German standard gas terminals are rated for over 20,000 insertion and pull-out cycles.
Overview

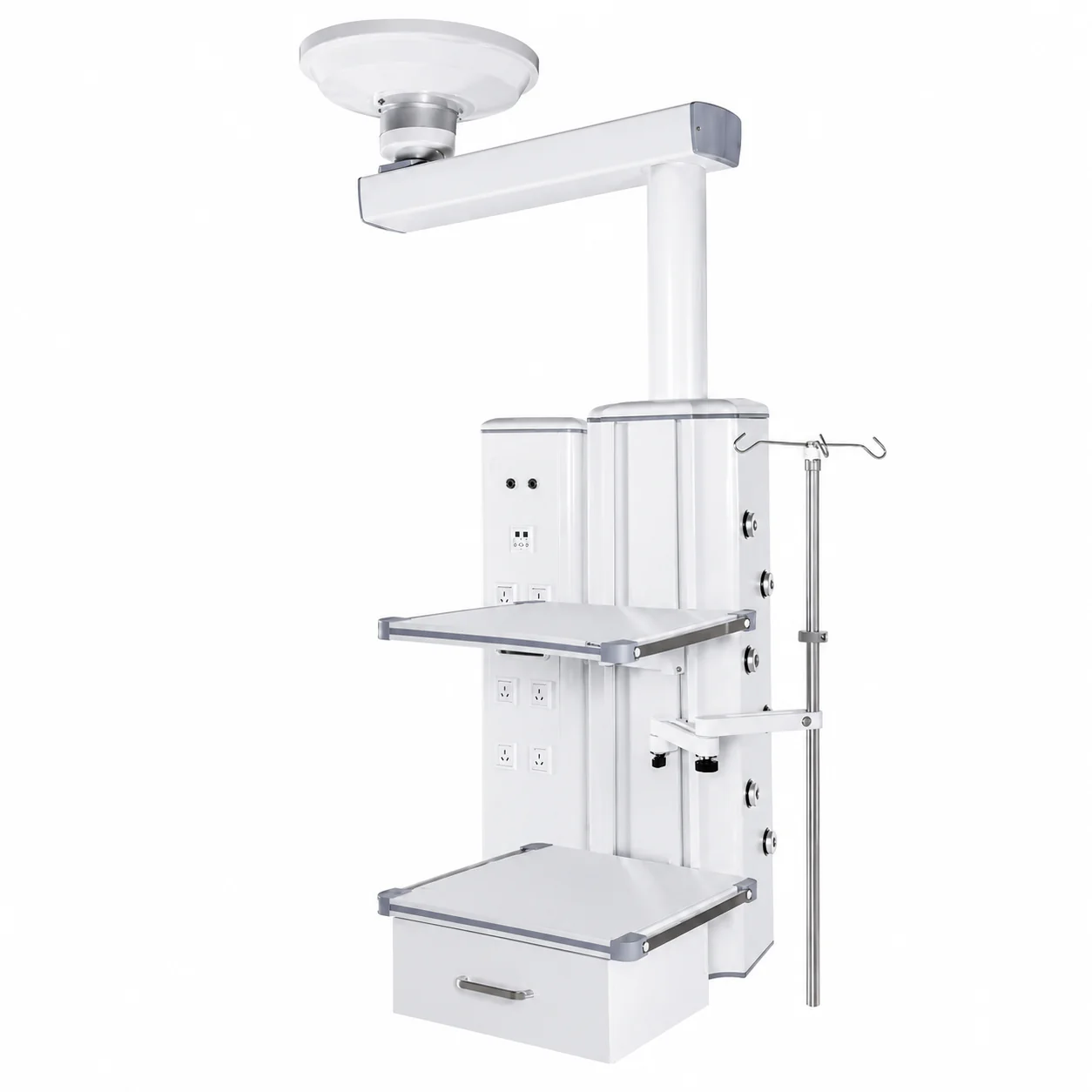

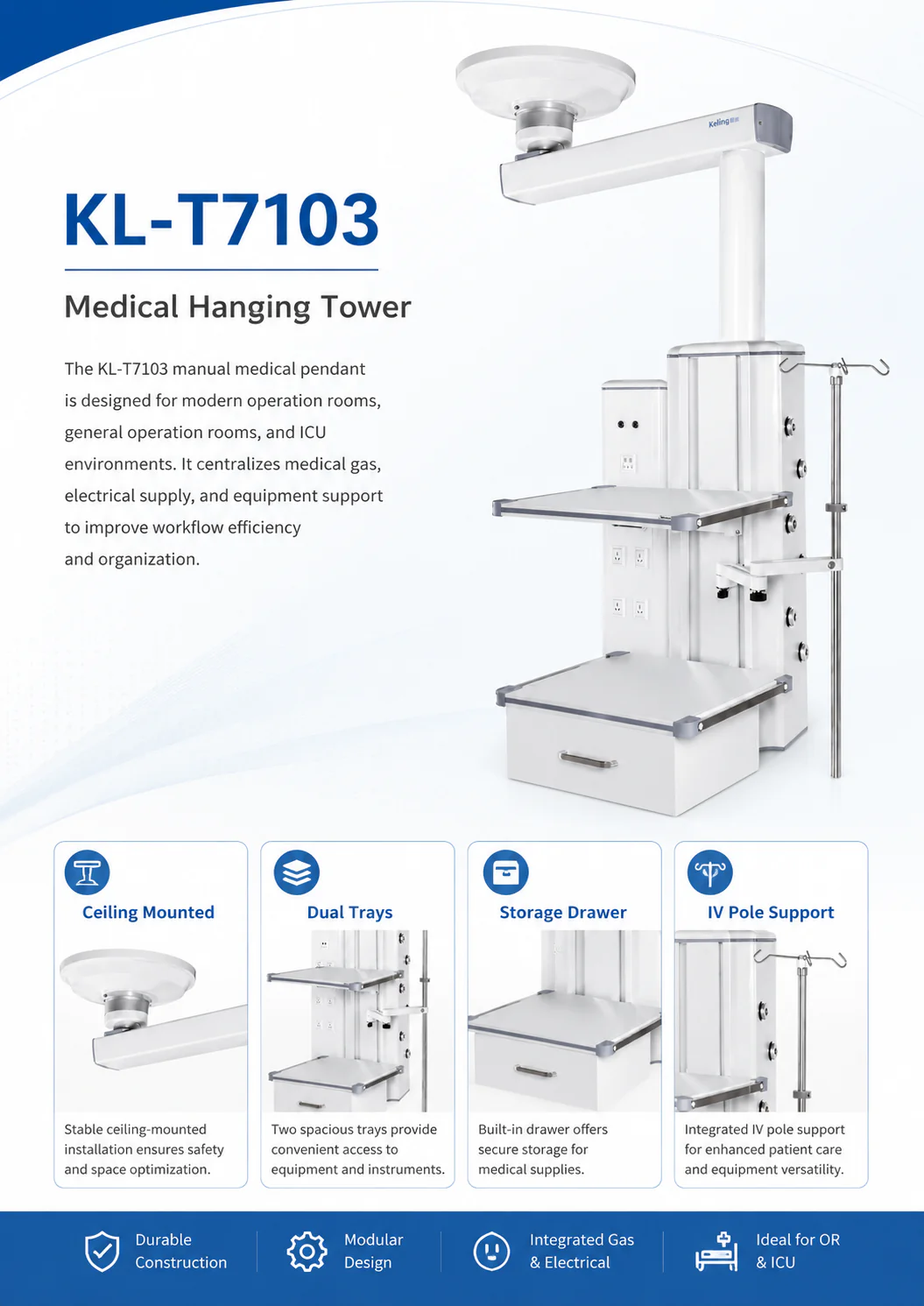

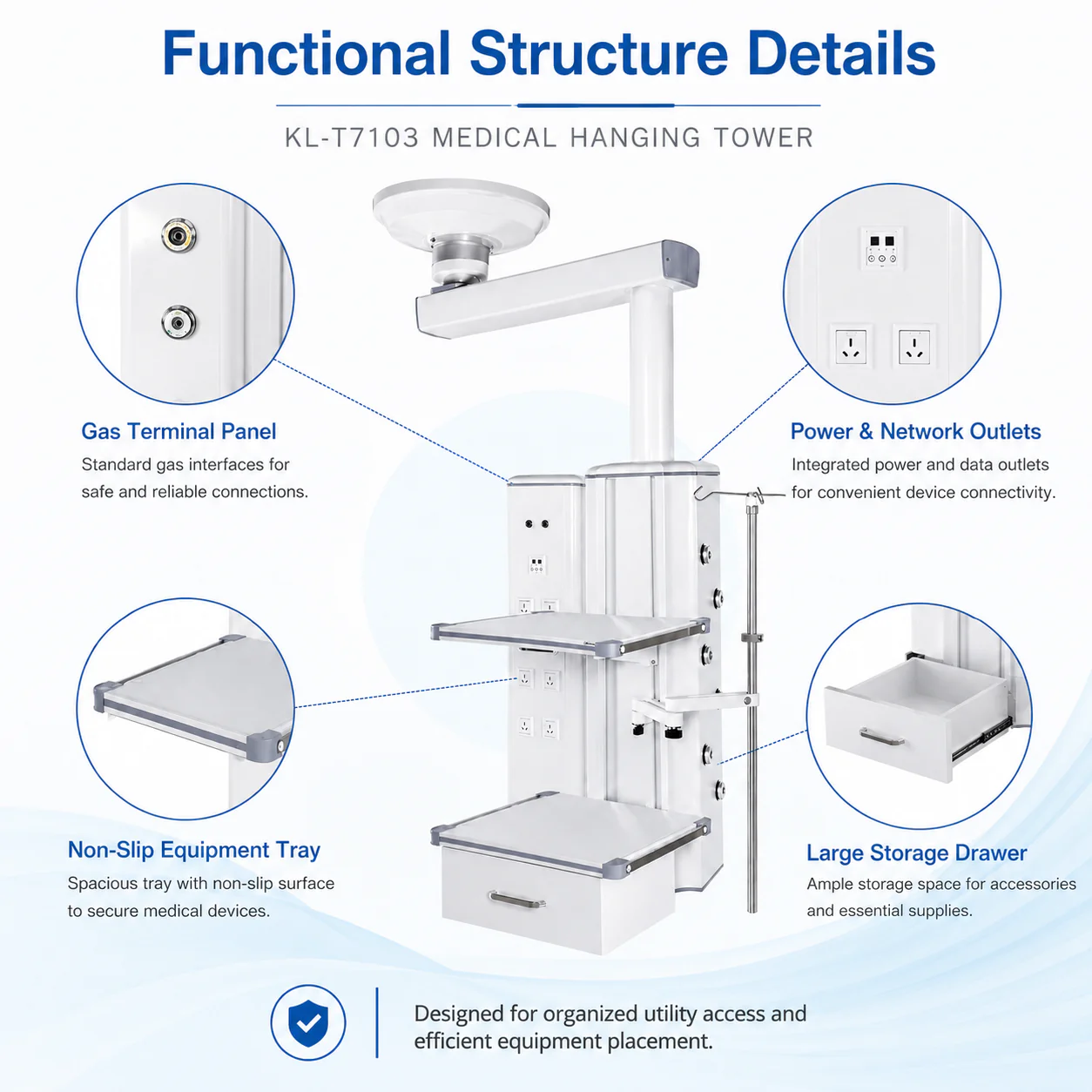

The KL-T7103 manual medical pendant is a versatile ceiling-mounted supply system tailored for settings that demand both utility density and practical working surfaces — clean operating rooms, general ORs and ICU rooms. Its dual-tray configuration sets it apart from single-tray models: two independently positioned horizontal platforms give the surgical or nursing team separate areas for sterile instruments, monitoring equipment and procedure accessories. A dedicated IV pole support bracket is integrated into the pendant column to manage infusion lines without requiring a floor-standing stand.
Structurally, the KL-T7103 shares the KL-T7100 series' high-strength aluminium alloy cabinet, formed by one-piece extrusion molding with primary oxidation surface finishing. The smooth, rounded profiles resist contamination and tolerate daily chemical cleaning without degradation. The aluminum non-slip tray surfaces keep equipment stable during repositioning. A single storage drawer below the lower tray provides a close-at-hand compartment for consumables, labels or small instruments.

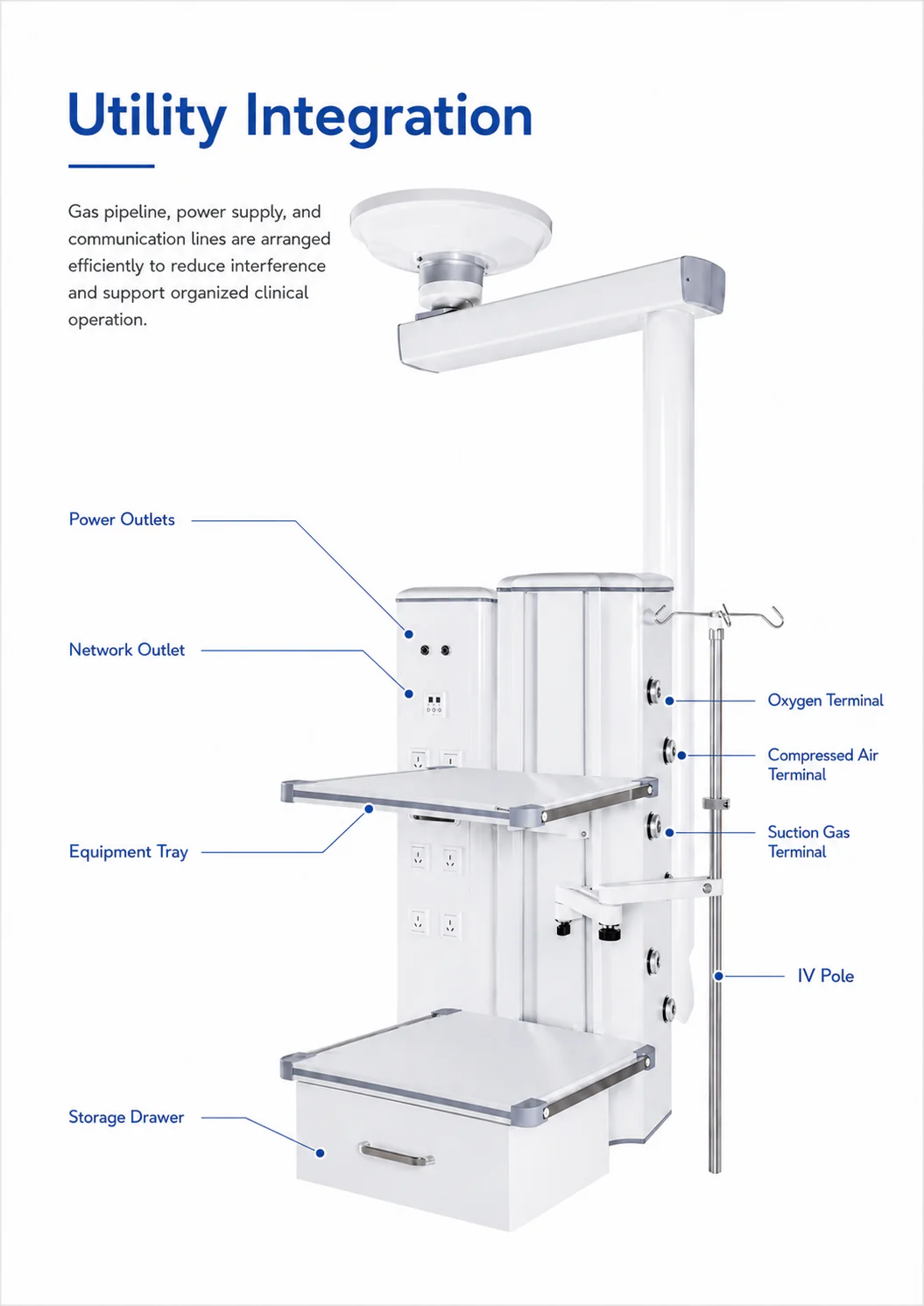

Horizontal rotation uses a mechanical friction damping brake that locks the arm angle precisely with no observable drift. All utility lines — gas pipelines, power cables and computer communication wiring — are separated into independent routing channels within the column, a design that prevents electromagnetic interference with sensitive patient monitoring equipment. The German standard gas terminal connectors are tested to over 20,000 cycles, ensuring reliable gas delivery throughout years of heavy clinical use.
Key Features

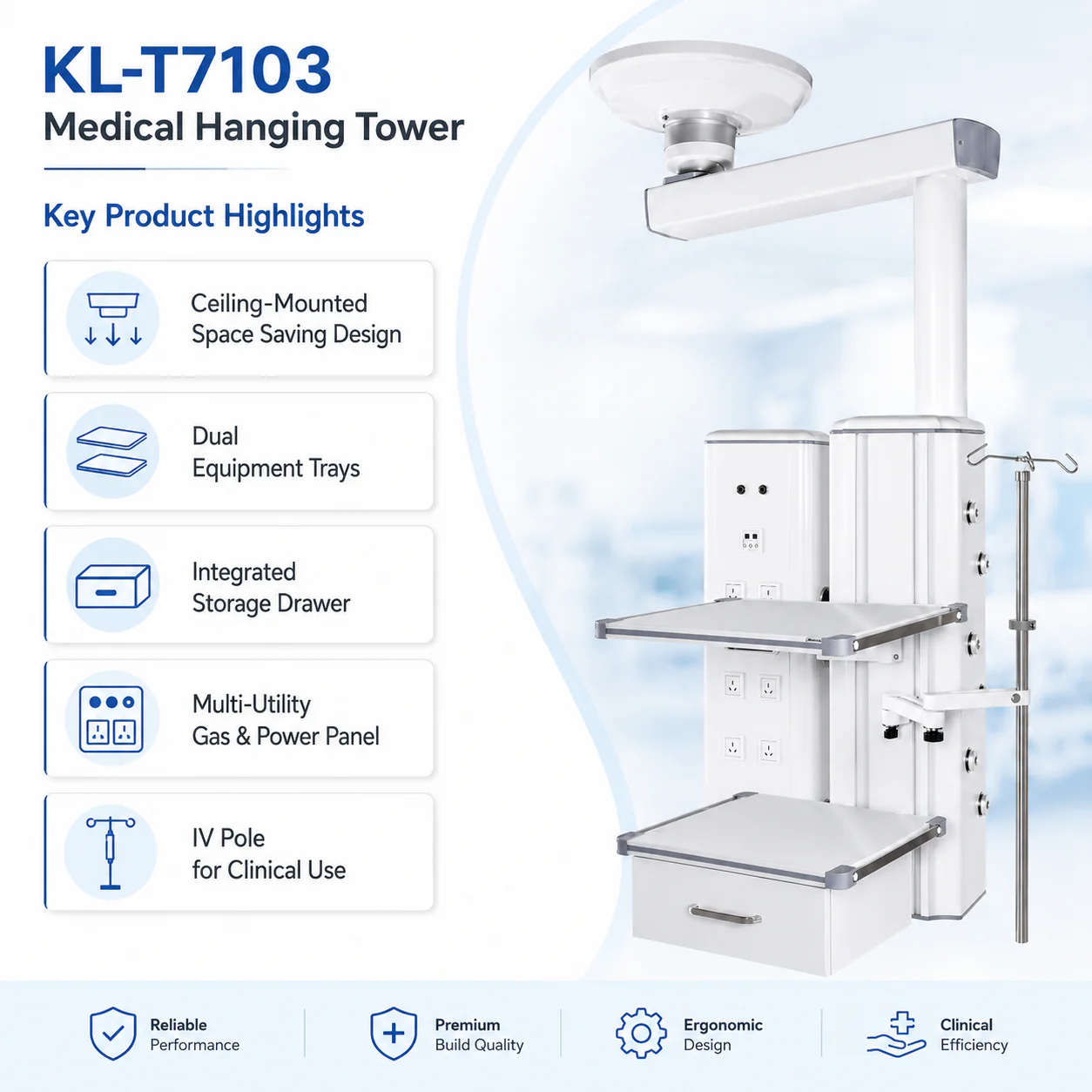

- Dual adjustable trays — two independent working surfaces provide dedicated space for instruments, monitors and lightweight equipment; easy to access from either side of the patient.
- Integrated IV pole support — built-in IV pole bracket for organized infusion line management without an additional floor stand.
- Storage drawer — built-in drawer below the lower tray for secure, accessible storage of supplies and consumables.

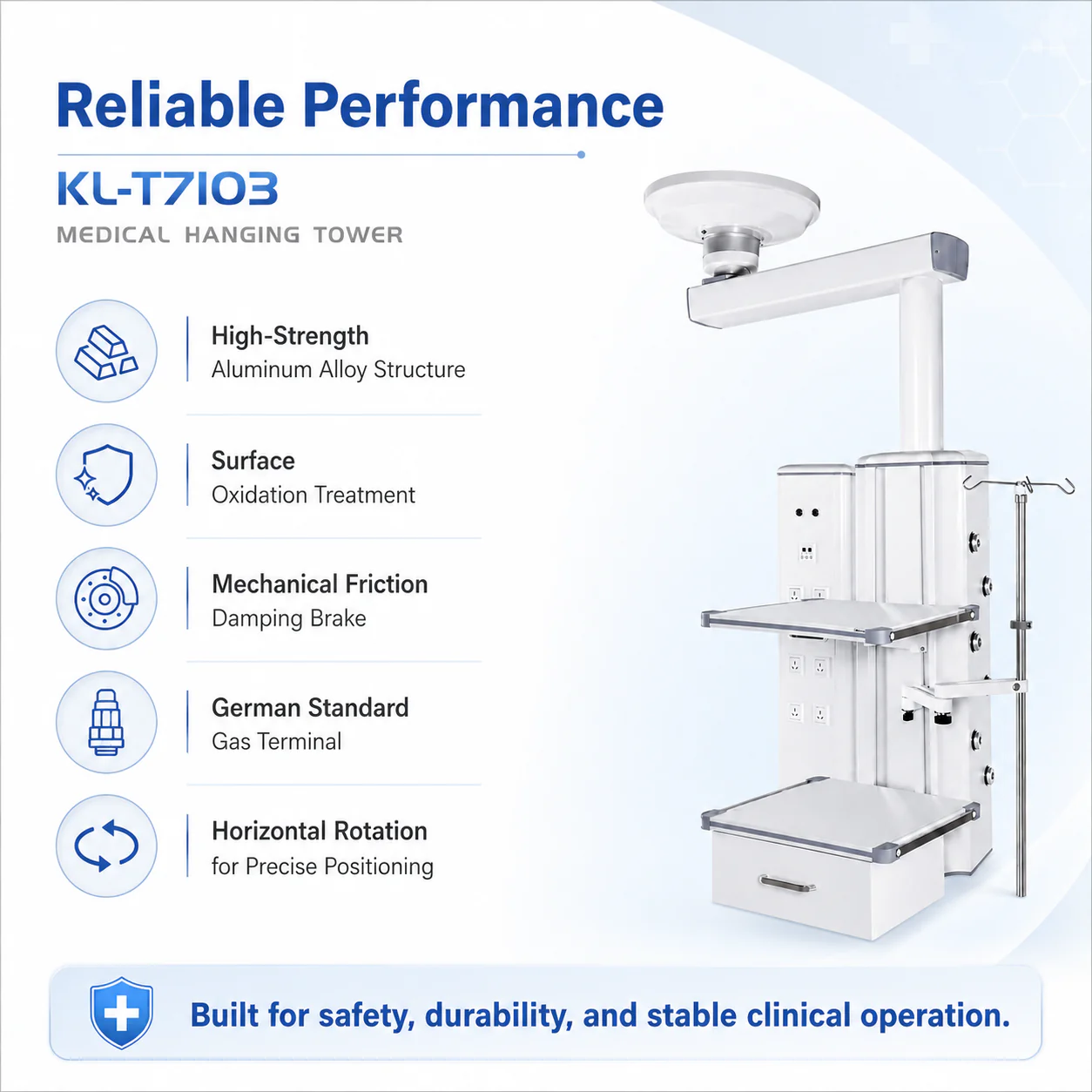

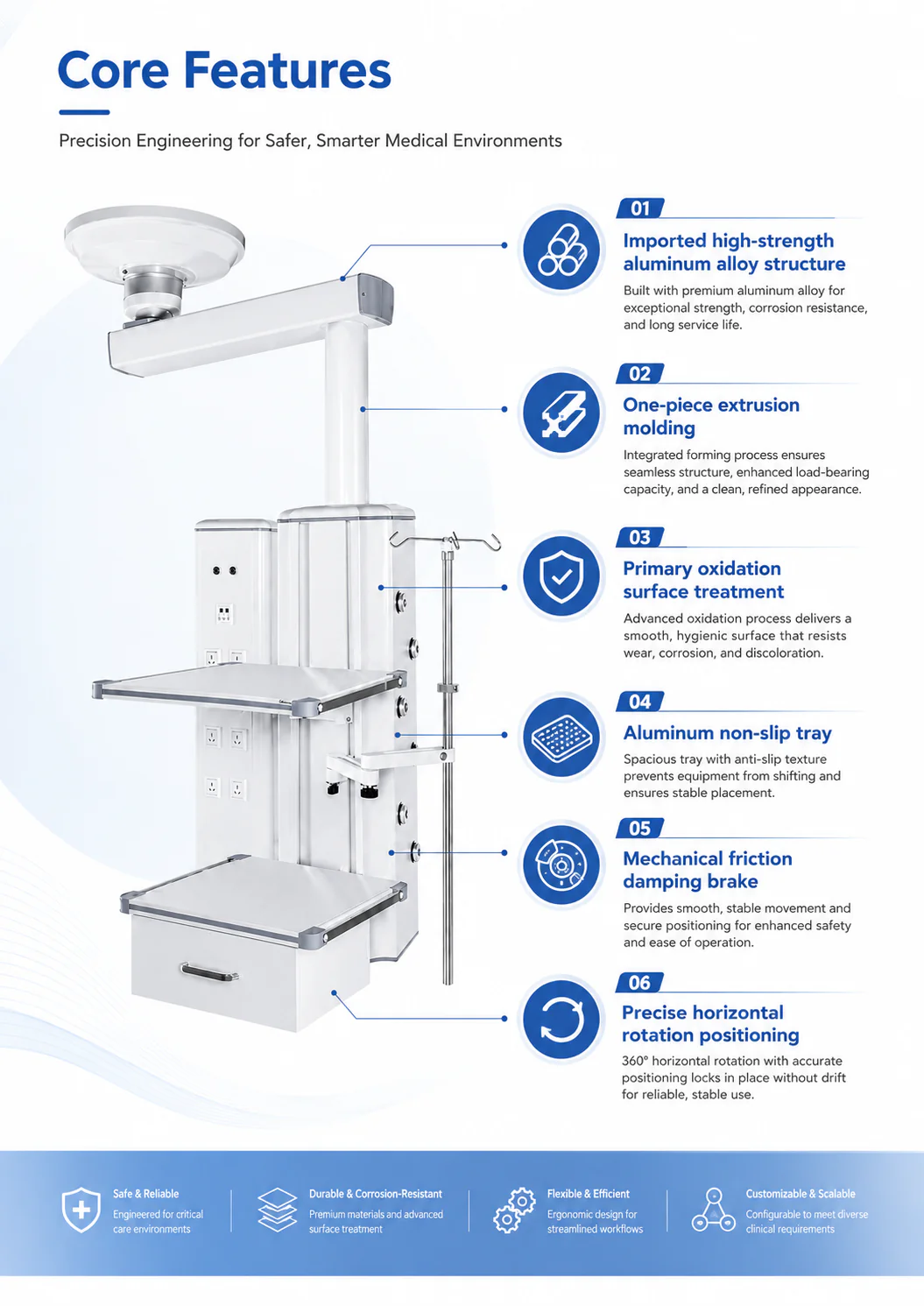

- High-strength aluminium alloy cabinet — one-piece extrusion-molded housing with primary oxidation treatment; resistant to clinical disinfectants.
- Non-slip aluminum tray surfaces — molded texture prevents equipment movement during arm rotation or tray height adjustment.
- Horizontal rotation with friction damping brake — precise positioning without drift; arm locks securely at any angle.
- Separated utility routing — gas, power and data lines run in independent channels to prevent interference with monitoring equipment.
- German standard gas terminals — rated for over 20,000 insertion/pull-out cycles for dependable gas supply.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | KL-T7103 |
| Product type | Manual medical pendant (medical hanging tower) |
| Application | Clean OR, general OR, ICU room |
| Cabinet material | Imported high-strength aluminium alloy, one-piece extrusion molding, primary oxidation treatment |
| Trays | Dual adjustable aluminum trays, non-slip texture |
| Storage | Built-in drawer |
| IV pole | Integrated IV pole support |
| Brake | Mechanical friction damping brake |
| Rotation | Horizontal, precise positioning without drift |
| Gas terminals | German standard (over 20,000 insertion/pull-out cycles) |
| Power outlets | 4 |
| Data outlets | 1 internet outlet |
| Gas outlets | 1 oxygen, 1 compressed air, 1 suction gas (German style terminal; optional gases) |
Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.
Applications

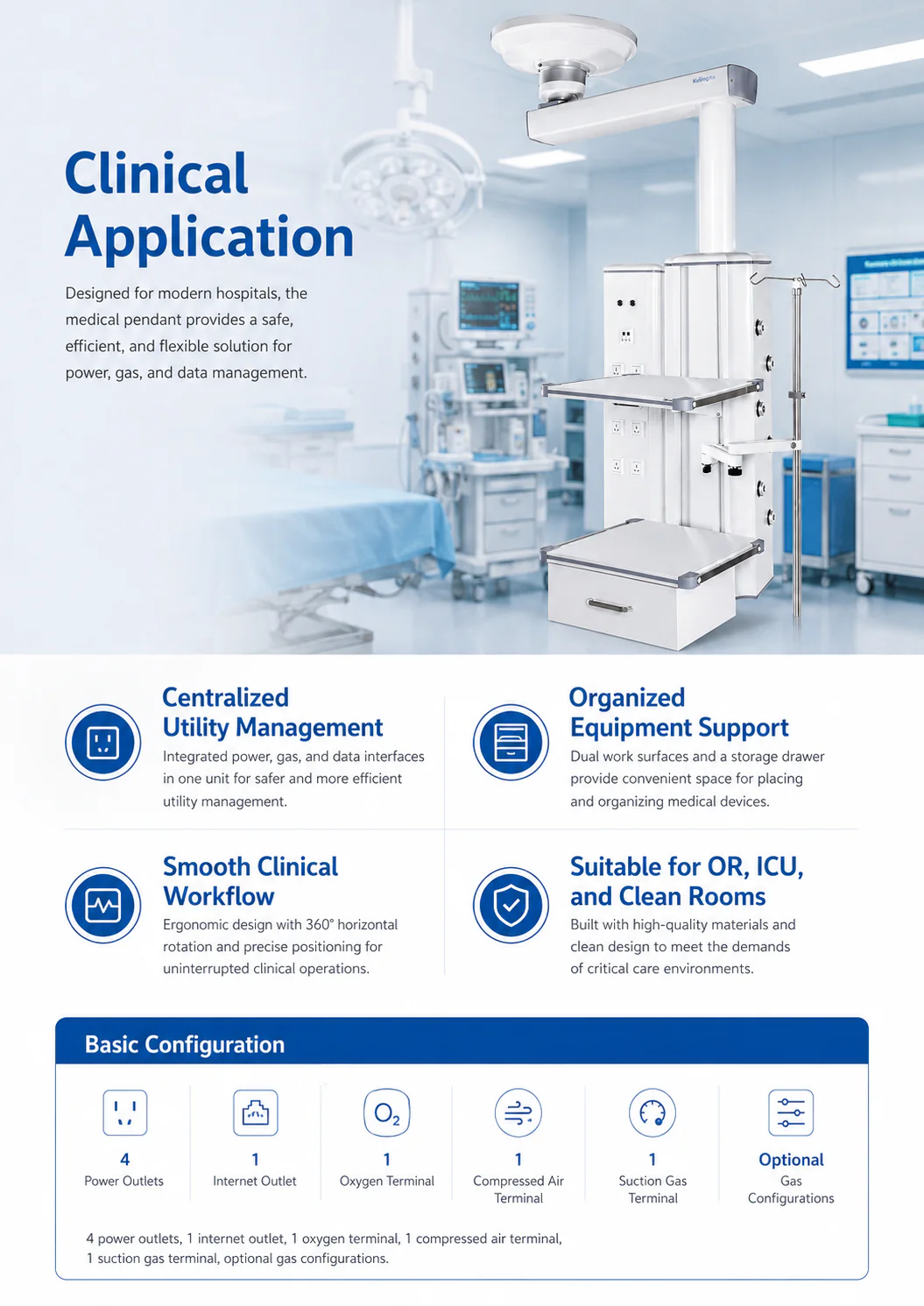

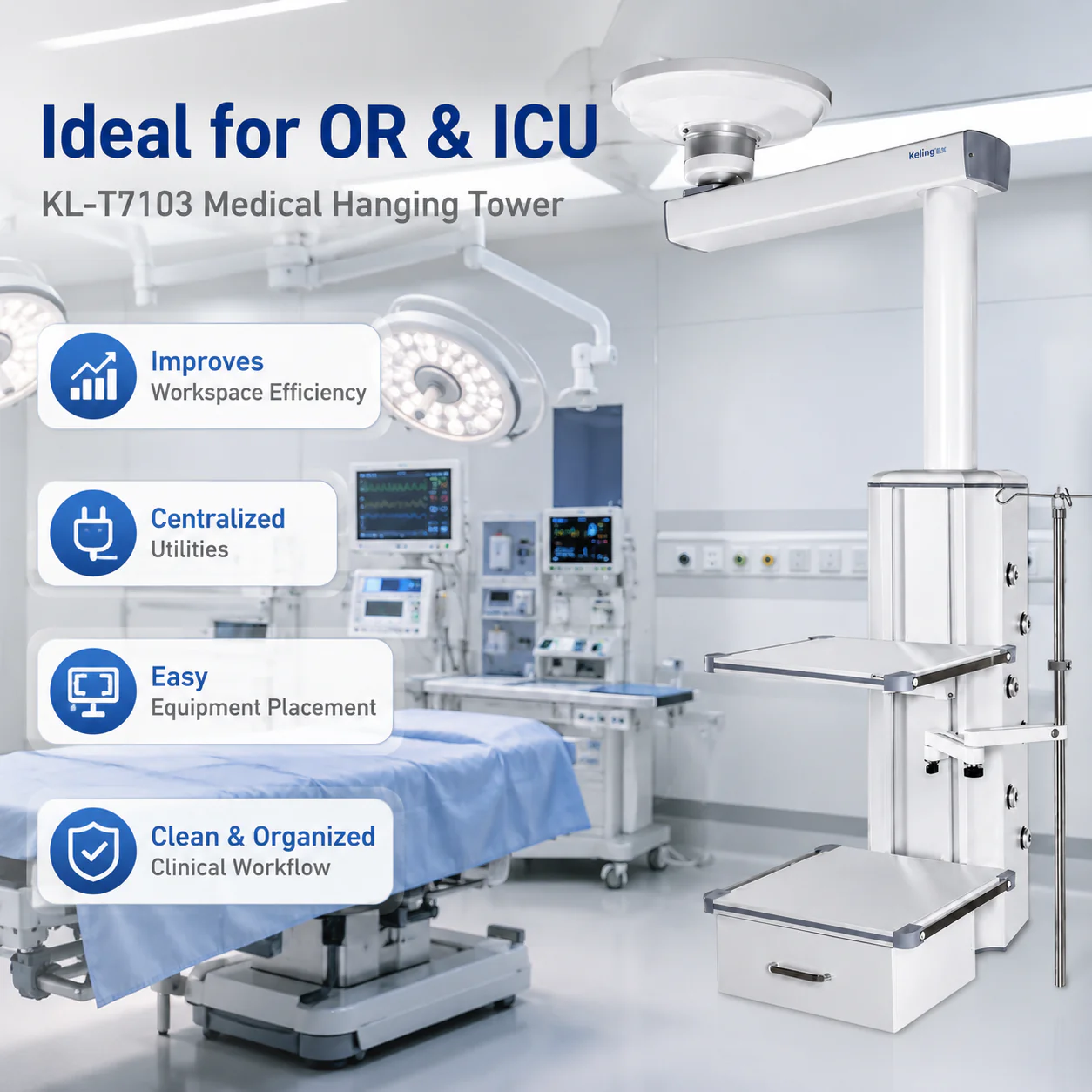

The KL-T7103 is suited to clean and general operating rooms where two working surfaces improve instrument access during complex procedures, and to ICU rooms where simultaneous infusion, monitoring and gas supply are managed from a single pendant. It is also appropriate for procedure rooms, recovery rooms and hybrid ORs needing a high-density ceiling supply column with practical storage.
