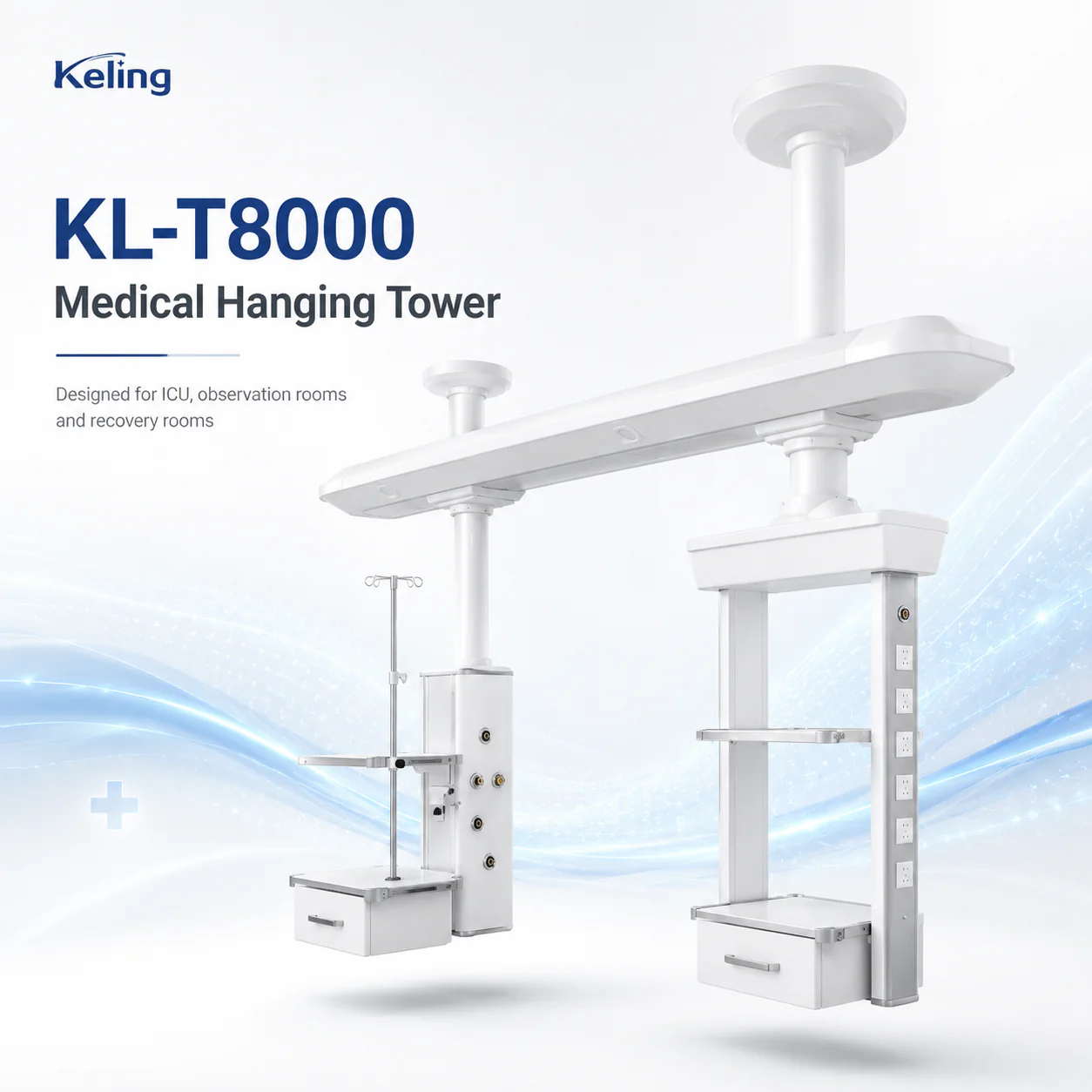

# KL-T8000 Medical Bridge Suspension Unit — Ceiling Bridge Pendant for ICU, Observation and Recovery Rooms
Quick answer: The Keling KL-T8000 is a medical bridge suspension unit (medical hanging tower, series code KL-T·IIBQ) specially designed for ICU rooms, observing rooms and recovering rooms. It features an overhead bridge structure connecting two ceiling-mounted columns, with dry-and-wet-zone separation, a built-in bridge light and optional communication equipment including monitors, video phones and background music systems. It is manufactured by Keling Medical (Keling Medical).
Quick Facts
- The Keling KL-T8000 is a medical bridge suspension unit with an overhead bridge span connecting two pendant columns, designed for ICU, observation and recovery rooms.
- The KL-T8000 features independent dry and wet zone areas on the pendant columns, each equipped with a gas cabinet body for organized, separate supply management.
- Transverse translation in dry and wet areas meets various care requirements at a single patient bay.
- A built-in light is positioned in the middle of the bridge for clinical visibility during observation and care.
- Optional features include communication machine, monitor, video phone, background music, teaching and distance consultation systems.

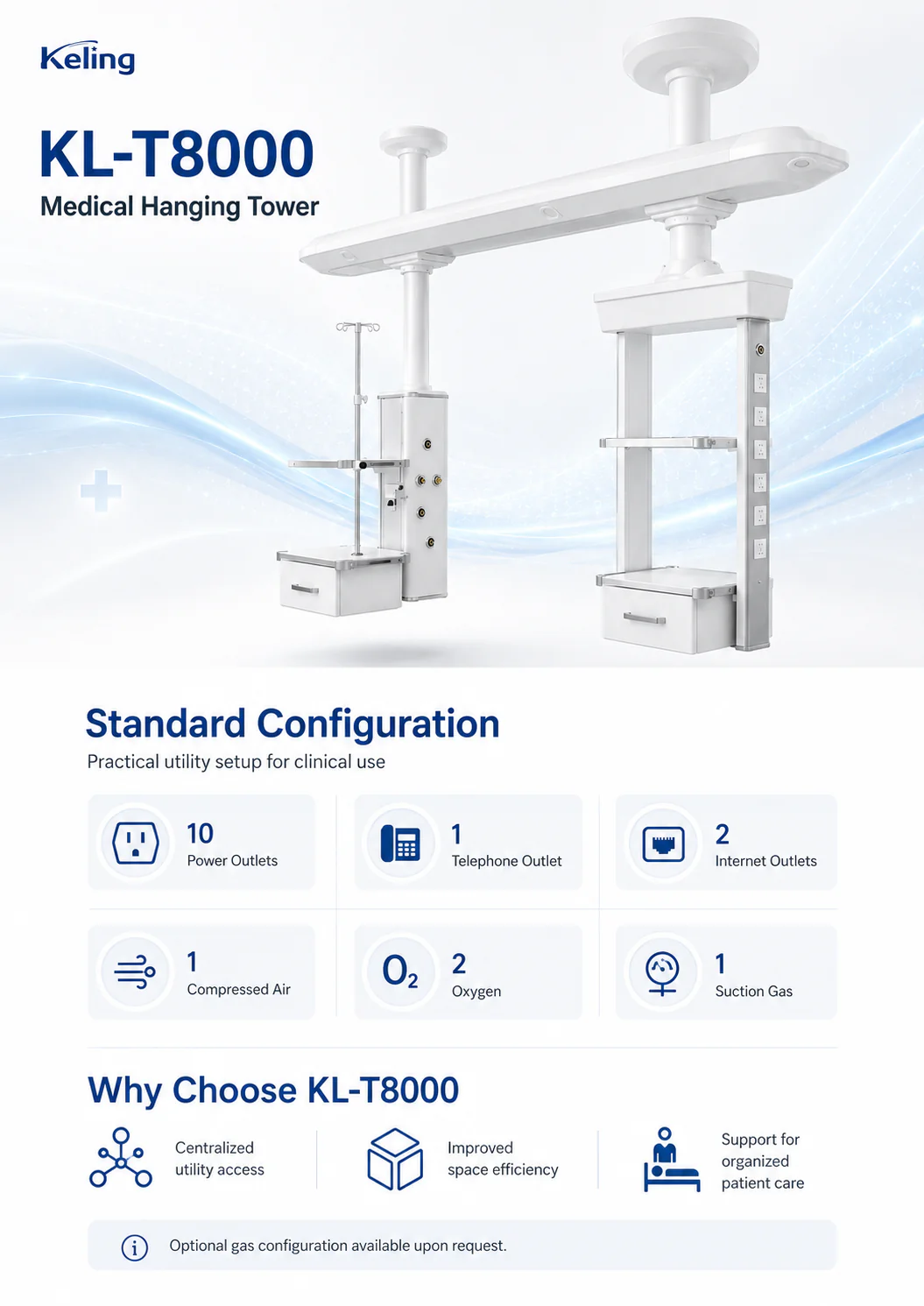

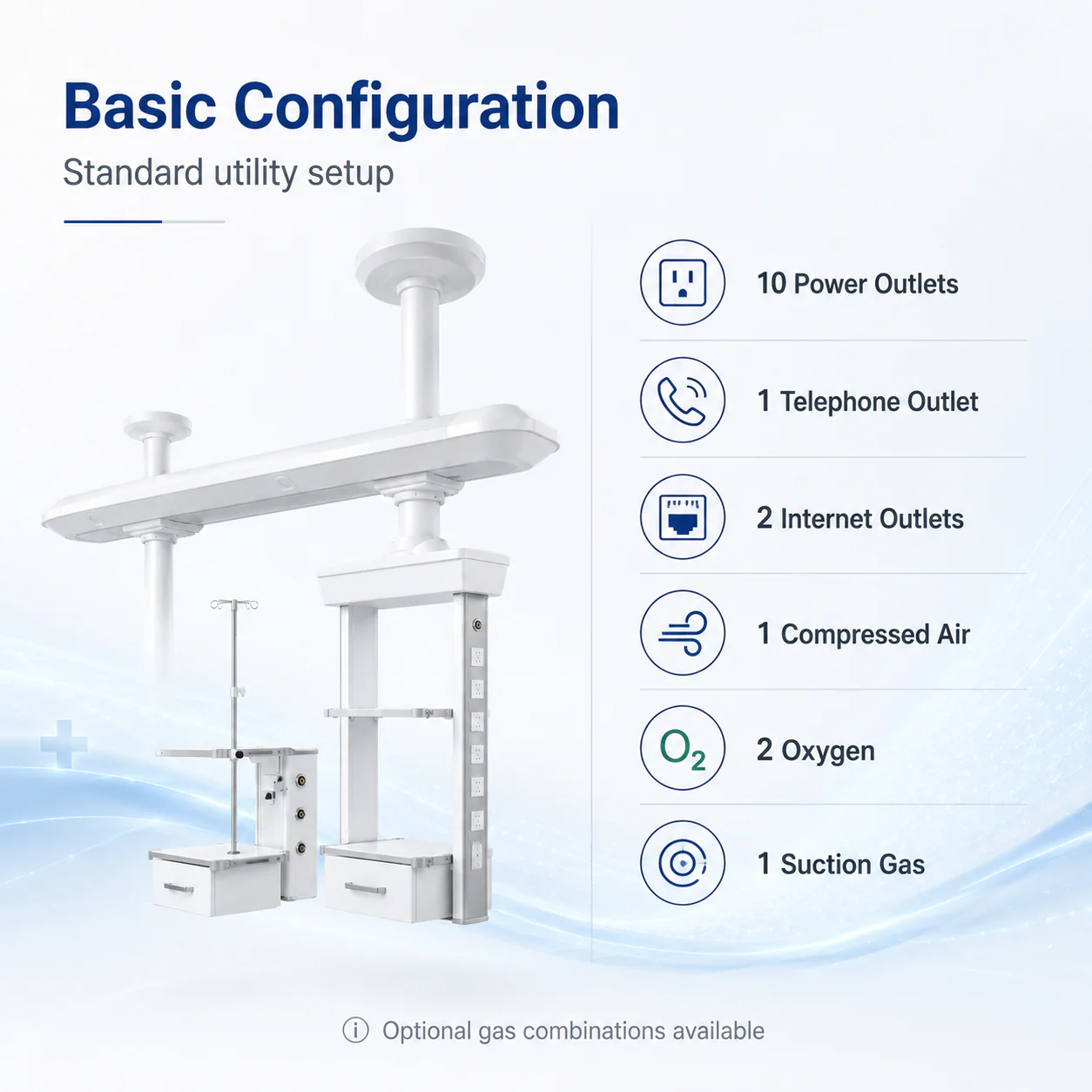

- Standard utility includes ten power outlets, one telephone outlet, two internet outlets, one compressed air, two oxygen outlets and one suction gas (German standard terminals; optional gases).
Overview
The KL-T8000 medical bridge suspension unit is a ceiling infrastructure system designed for critical care environments where a single patient bay demands the highest density of utilities, monitoring systems and clinical accessories. Unlike single-column pendants, the KL-T8000 spans across the patient bay with an overhead bridge structure — two ceiling-mounted columns linked by a horizontal cross bridge — allowing all utilities to be distributed from both sides of the bed simultaneously. This symmetrical access model is ideal for ICU bays, post-operative observation wards and recovery rooms where nurses work on both sides of the patient continuously.
The KL-T8000's independent dry and wet zone design separates electrical and electronic systems from fluid-carrying gas lines into distinct column areas, each with its own gas cabinet body. This separation reduces contamination risk between zones and simplifies clinical maintenance: gas lines can be serviced without disturbing the electrical panel, and vice versa. Transverse translation within the dry and wet areas allows the pendant column bodies to slide horizontally, letting staff access the exact position needed for patient care without repositioning the entire bridge.
A built-in light integrated into the bridge structure provides background illumination in the patient bay without requiring a separate overhead light — useful in observation rooms and recovery areas where softer general lighting is preferred over task-specific surgical illumination. The cross beam and control cabinet are manufactured from imported high-strength aluminium alloy by one-piece extrusion molding with primary oxidation treatment. Optional communication packages — including monitors, video phones, background music systems, teaching inputs and remote consultation connectivity — can be integrated into the bridge at specification stage.

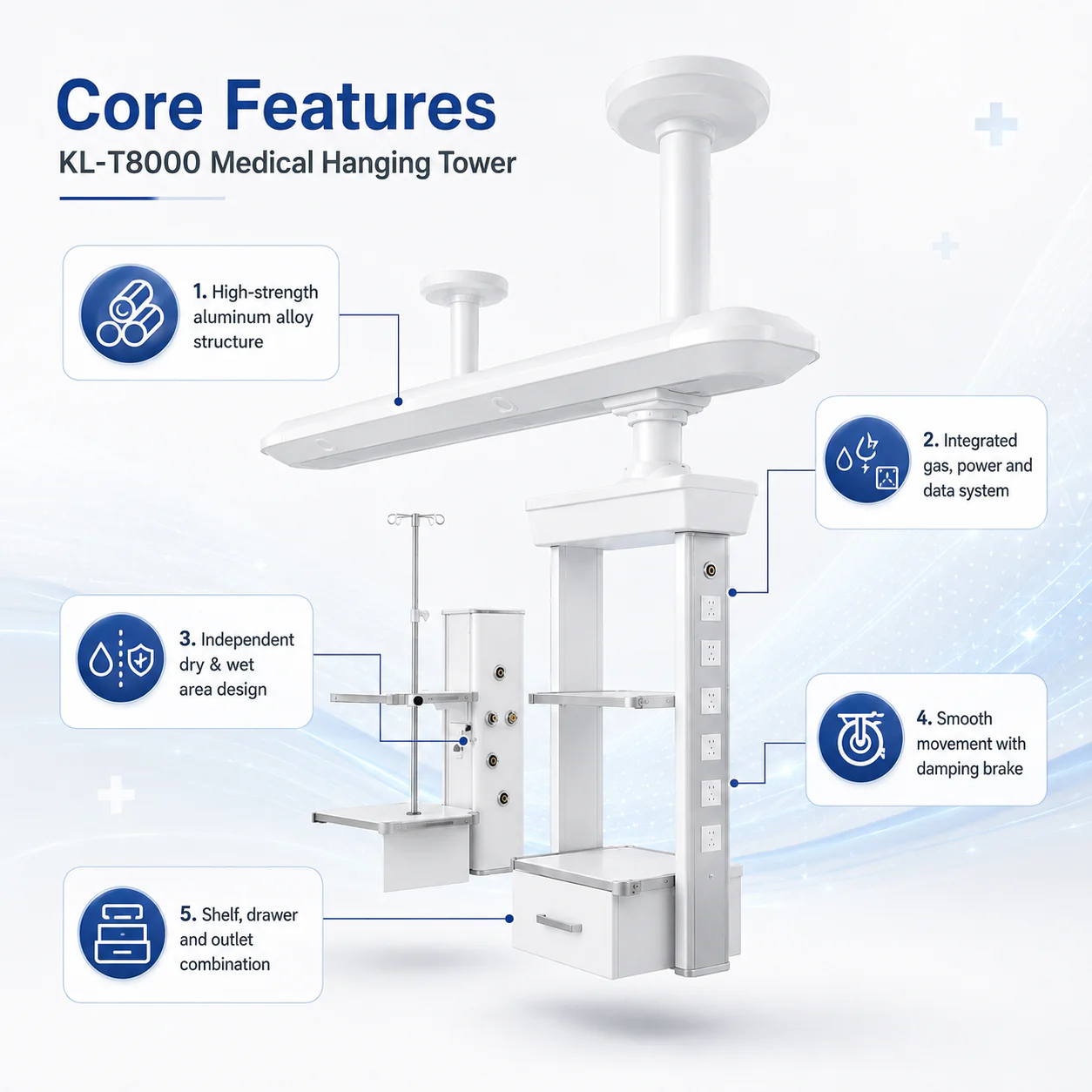

Key Features
- Overhead bridge structure — two ceiling columns connected by a horizontal bridge span; simultaneous dual-side access to utilities at each patient bay.
- Dry and wet zone separation — independent areas with separate gas cabinet bodies on each column; reduces cross-contamination and simplifies maintenance.
- Transverse translation — column bodies slide horizontally within their zones to meet varied care positioning requirements.
- Built-in bridge light — integrated lighting in the middle of the bridge span for observation and care visibility.
- Optional communication systems — monitor, video phone, background music, teaching connection and distance consultation integration available.
- One-piece aluminium alloy cross beam and cabinet — imported high-strength alloy, extrusion molding and primary oxidation treatment for strength and hygiene.

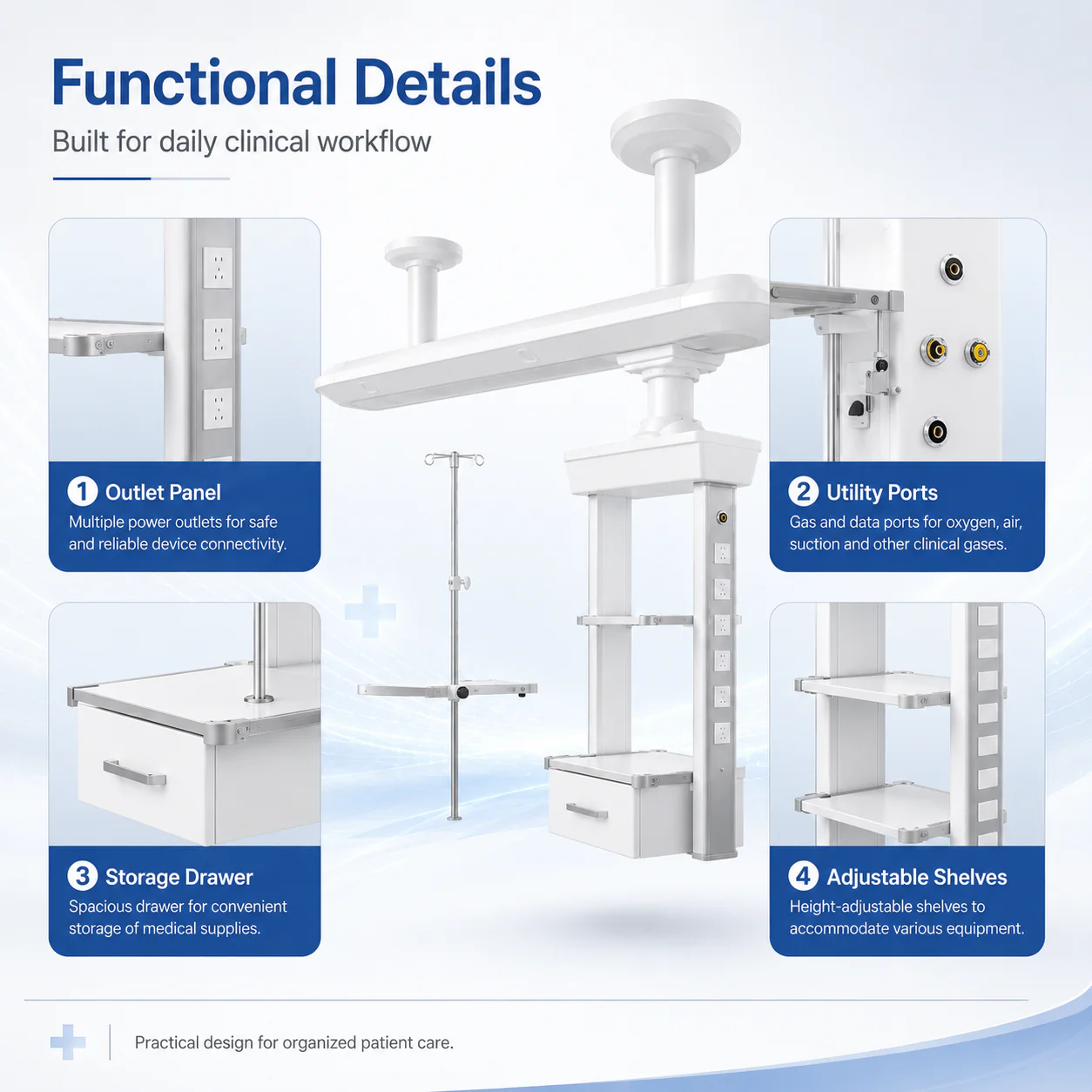

- Non-slip aluminum tray — molded tray surface keeps clinical devices stable on pendant shelves.
- Expanded utility configuration — 10 power outlets, 1 telephone outlet, 2 internet outlets; compressed air, 2 oxygen and suction gas (German standard terminals; optional gases).
Technical Specifications
| Parameter | Value |
|---|---|
| Model | KL-T8000 |
| Series code | KL-T·IIBQ |
| Product type | Medical bridge suspension unit (medical hanging tower) |
| Application | ICU room, observing room, recovering room |
| Structure | Overhead bridge connecting two ceiling-mounted columns |
| Zone design | Independent dry and wet areas with separate gas cabinet bodies |
| Translation | Transverse in dry and wet areas |
| Bridge light | Built-in, middle of bridge |
| Cabinet material | Imported high-strength aluminium alloy, one-piece extrusion molding, primary oxidation treatment |
| Gas terminals | German standard |
| Power outlets | 10 |
| Data/communication outlets | 1 telephone outlet, 2 internet outlets |
| Gas outlets | 1 compressed air, 2 oxygen, 1 suction gas (optional gases) |
Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

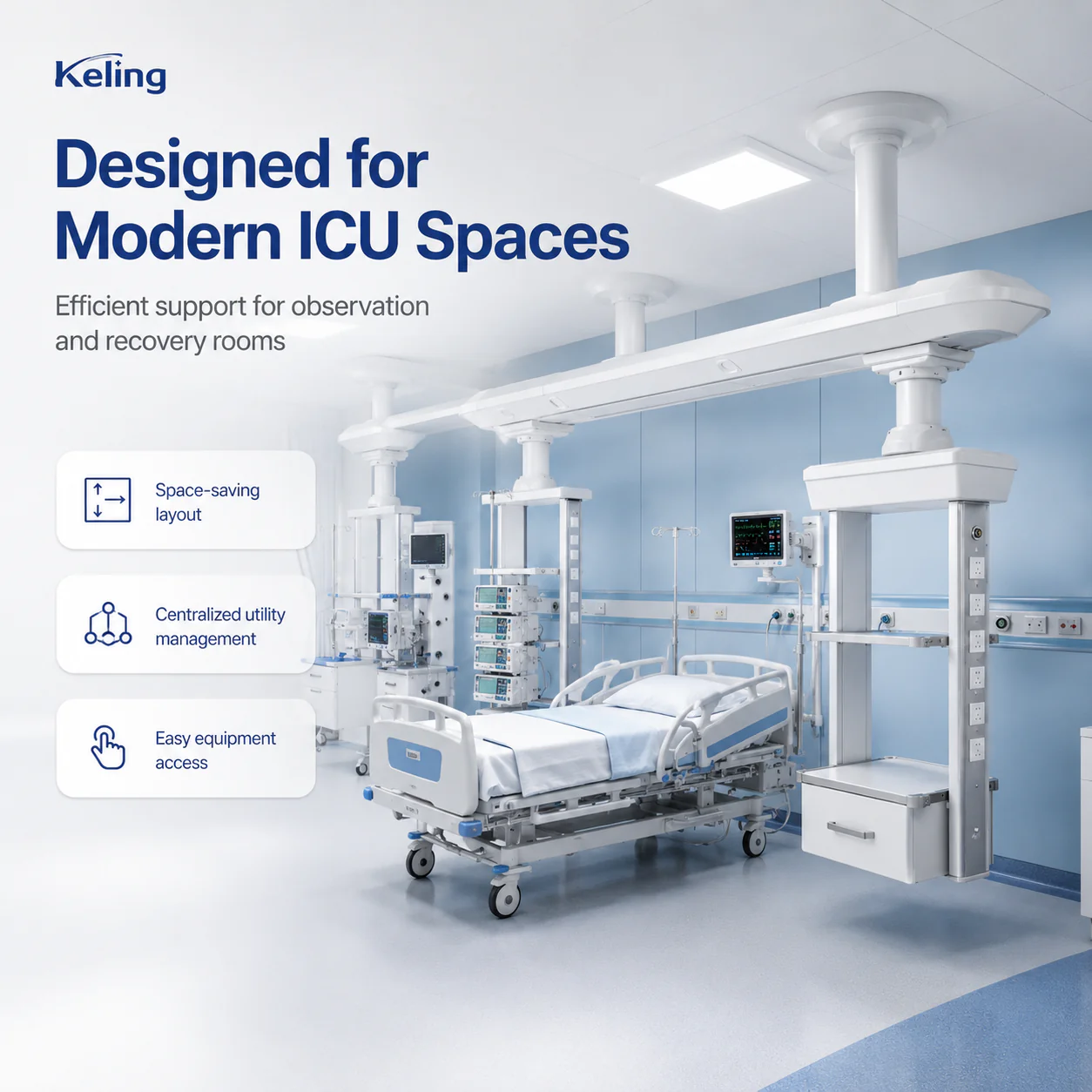

Applications
The KL-T8000 is designed for ICU rooms, post-operative observation wards and recovery rooms — environments where bilateral patient access, high utility density and optional monitoring or communication integration are required from one ceiling installation. It suits new ICU construction projects and renovation programs seeking a modern, fully integrated ceiling infrastructure system.
