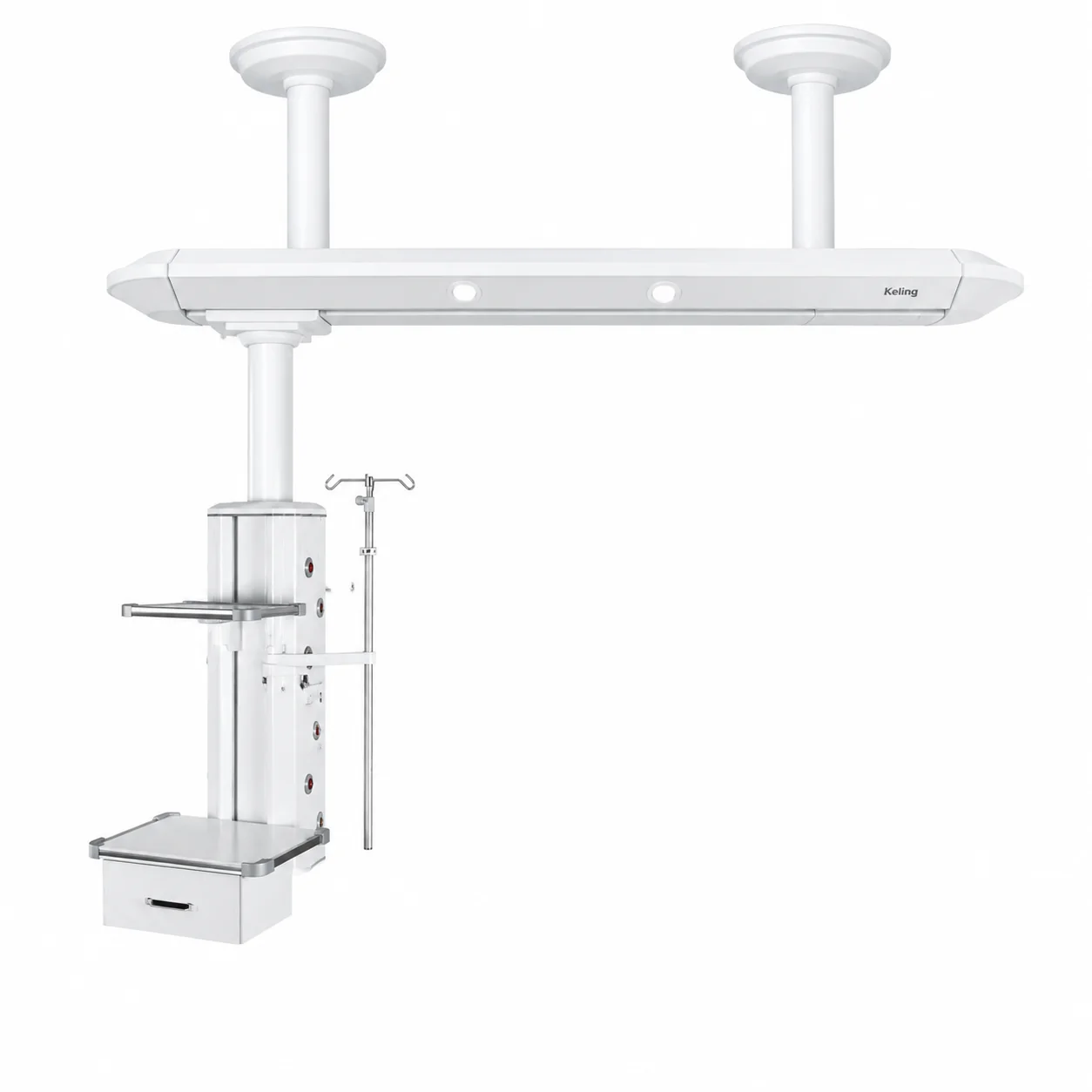

# KL-T8003 Medical Bridge Suspension Unit — Lightweight Minimalist Bridge Pendant for ICU and Care Rooms
Quick answer: The Keling KL-T8003 is a lightweight medical bridge suspension unit adopting a minimalist aluminum alloy bridge design for ICU rooms, observation rooms and recovery rooms. It features an LED light built into the middle of the bridge, independent dry and wet zone column design with separate gas cabinet bodies, anti-slip aluminum trays, and transverse column translation. Standard utility includes ten power outlets, one telephone outlet, two internet outlets, one compressed air, two oxygen and one suction gas (German standard terminals). It is manufactured by Keling Medical (Keling Medical).
Quick Facts

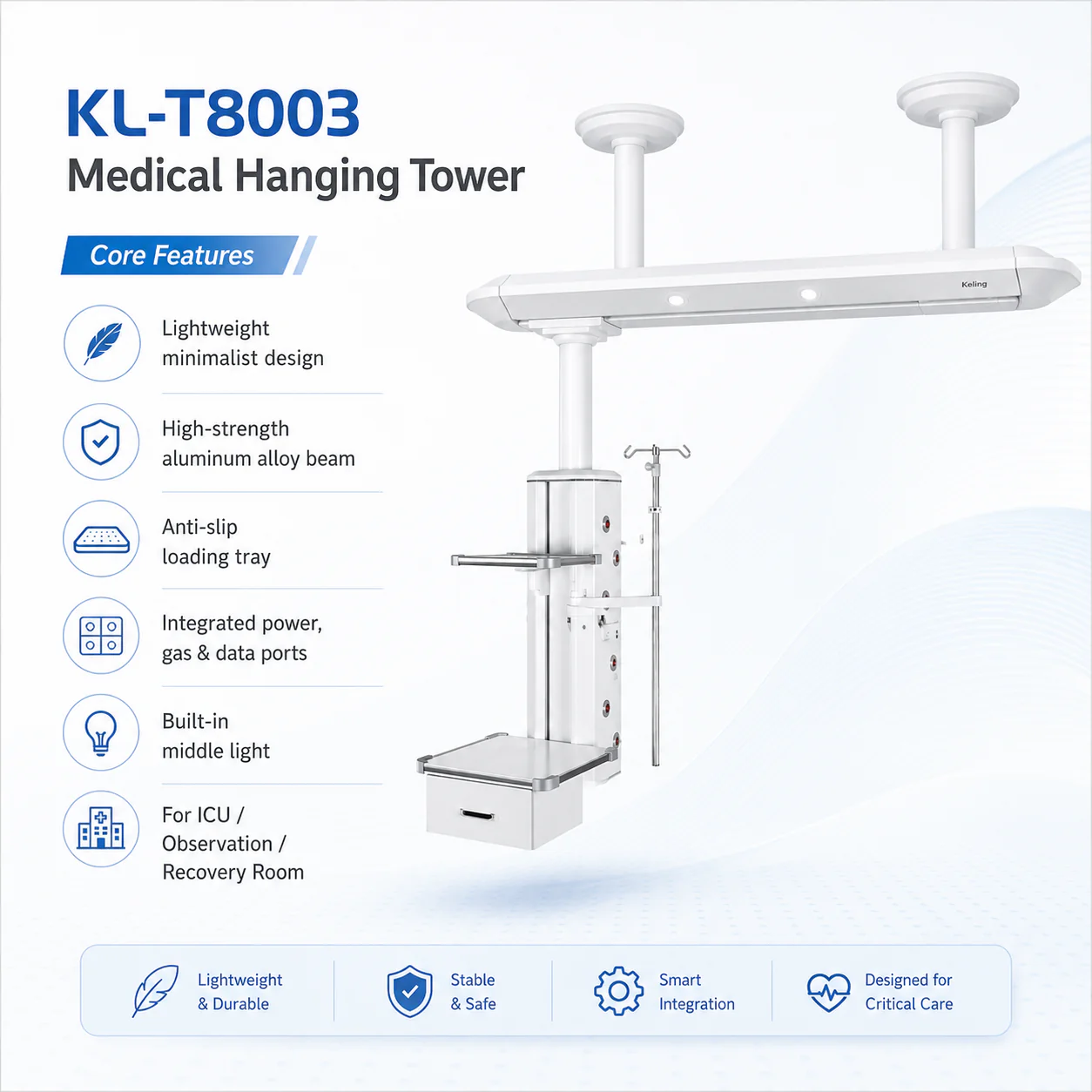

- The Keling KL-T8003 is a lightweight minimalist bridge suspension unit designed for ICU, observation and recovery rooms.
- The bridge structure uses aluminum alloy construction with a reduced visual footprint, delivering high strength without the bulk of heavier pendant frameworks.
- An energy-efficient LED light built into the bridge's middle section provides clear visibility during bedside care and observation without a separate overhead fixture.
- Independent dry and wet zone columns with separate gas cabinet bodies keep electrical and gas supply organized and separately maintained.

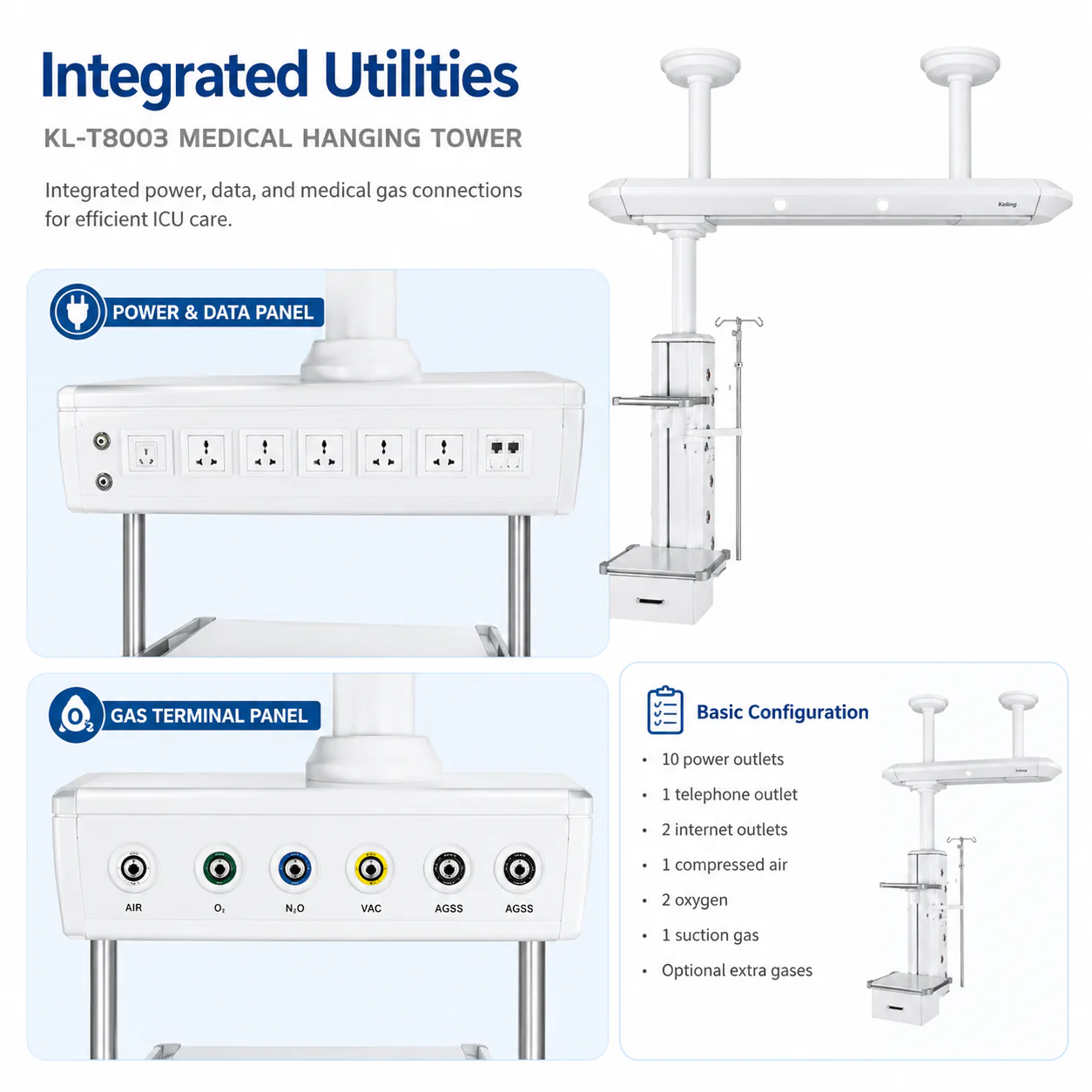

- Standard utility includes ten power outlets, one telephone outlet and two internet outlets for electrical/data needs, plus compressed air, two oxygen outlets and suction gas via German standard terminals.
- The KL-T8003 is produced by Keling Medical, a Chinese medical equipment manufacturer with more than 20 years of industry experience.
Overview

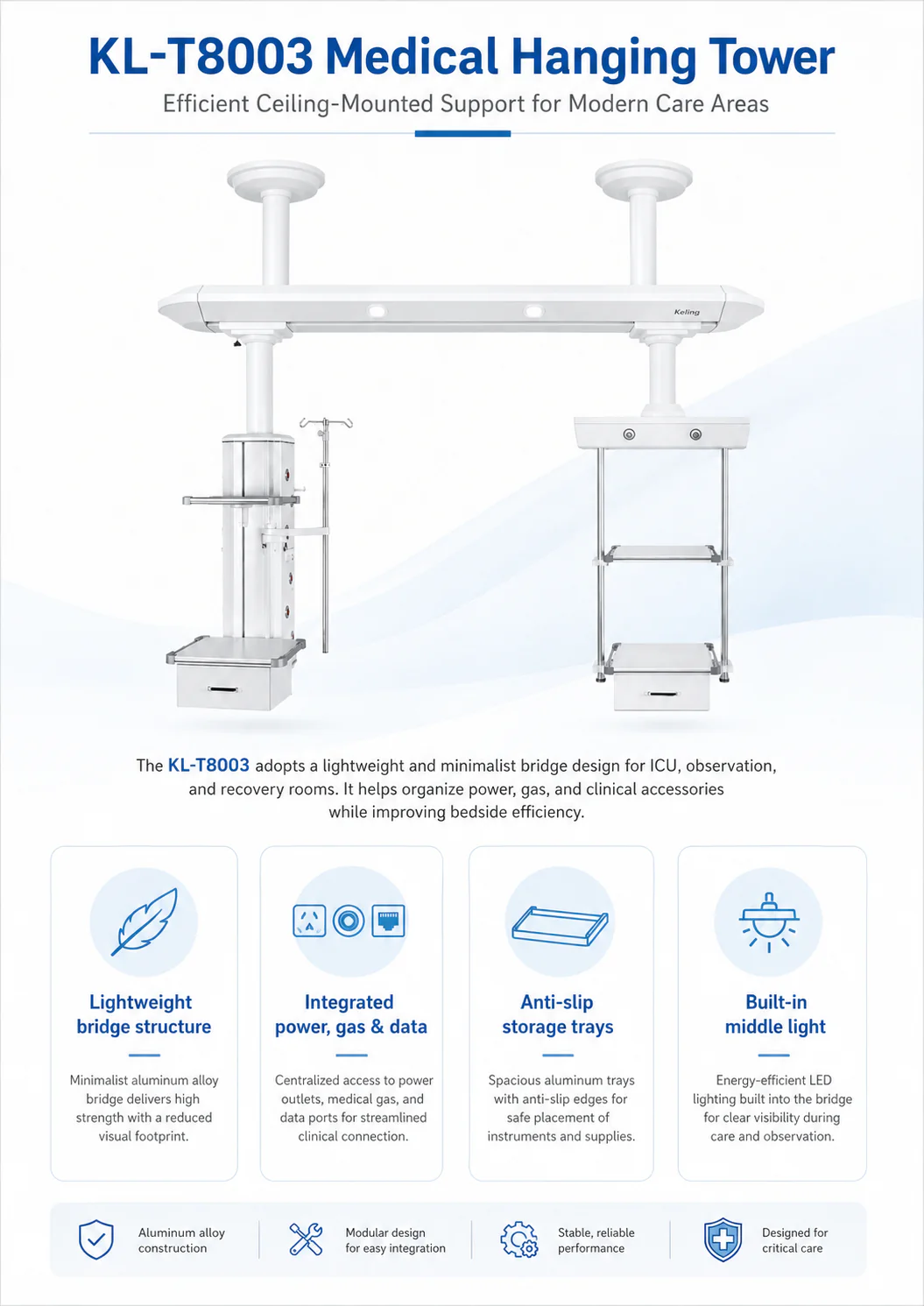

The KL-T8003 medical bridge suspension unit brings a lightweight, minimalist engineering philosophy to the ICU bridge pendant category. Where the KL-T8000 provides a robust, feature-rich bridge for high-dependency ICU bays, the KL-T8003 is optimized for observation rooms and recovery areas where a visually lighter, space-efficient structure is preferred without sacrificing utility capacity or infection-control standards. The minimalist aluminum alloy bridge spans two ceiling columns and houses a built-in LED light at its center — a detail that serves the ambient care environment of a recovery or observation ward while reducing the need for additional ceiling light fittings.

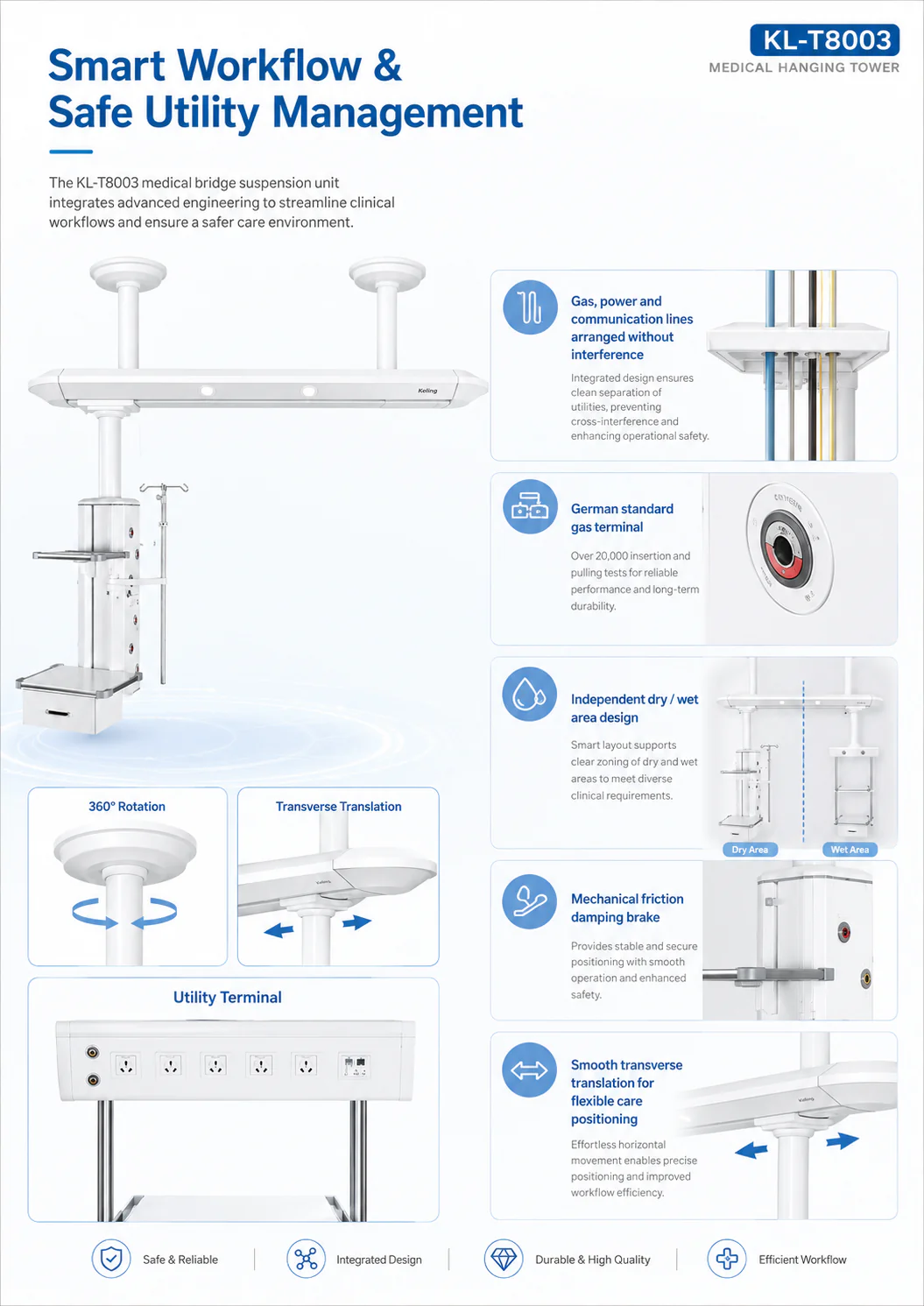

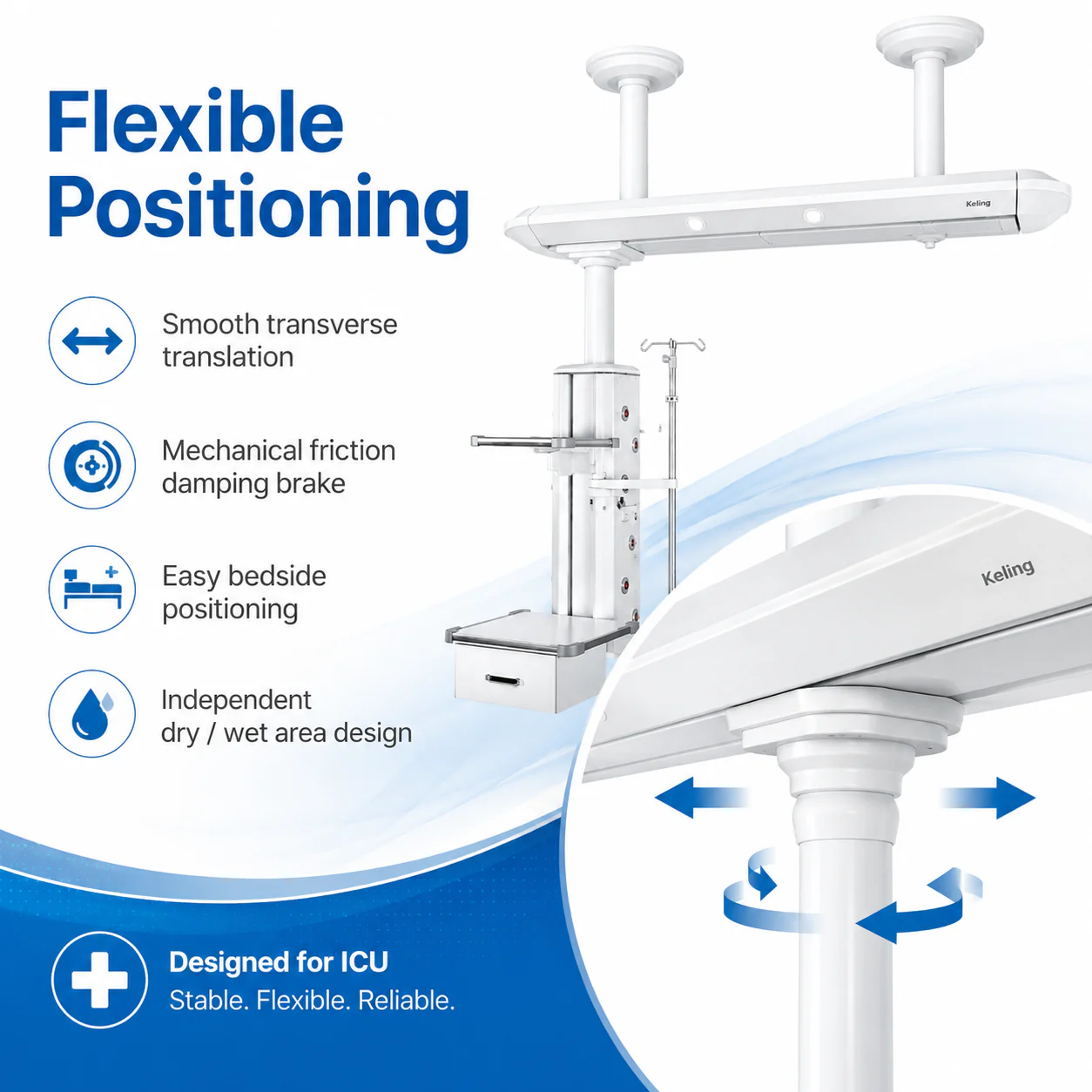

The dual-column structure maintains the dry/wet zone separation principle from the KL-T8000 series. Each column has an independent area for electrical and gas supply, each equipped with its own gas cabinet body. This separation keeps clinical workflows organized: nurses managing infusions and electrical monitoring work from the dry zone while gas connections and oxygen delivery are organized at the wet zone column, minimizing cross-access and simplifying routine checks. Transverse translation within each area allows the column bodies to slide horizontally, enabling staff to position utilities precisely where needed along the patient bay without relocating the entire bridge.

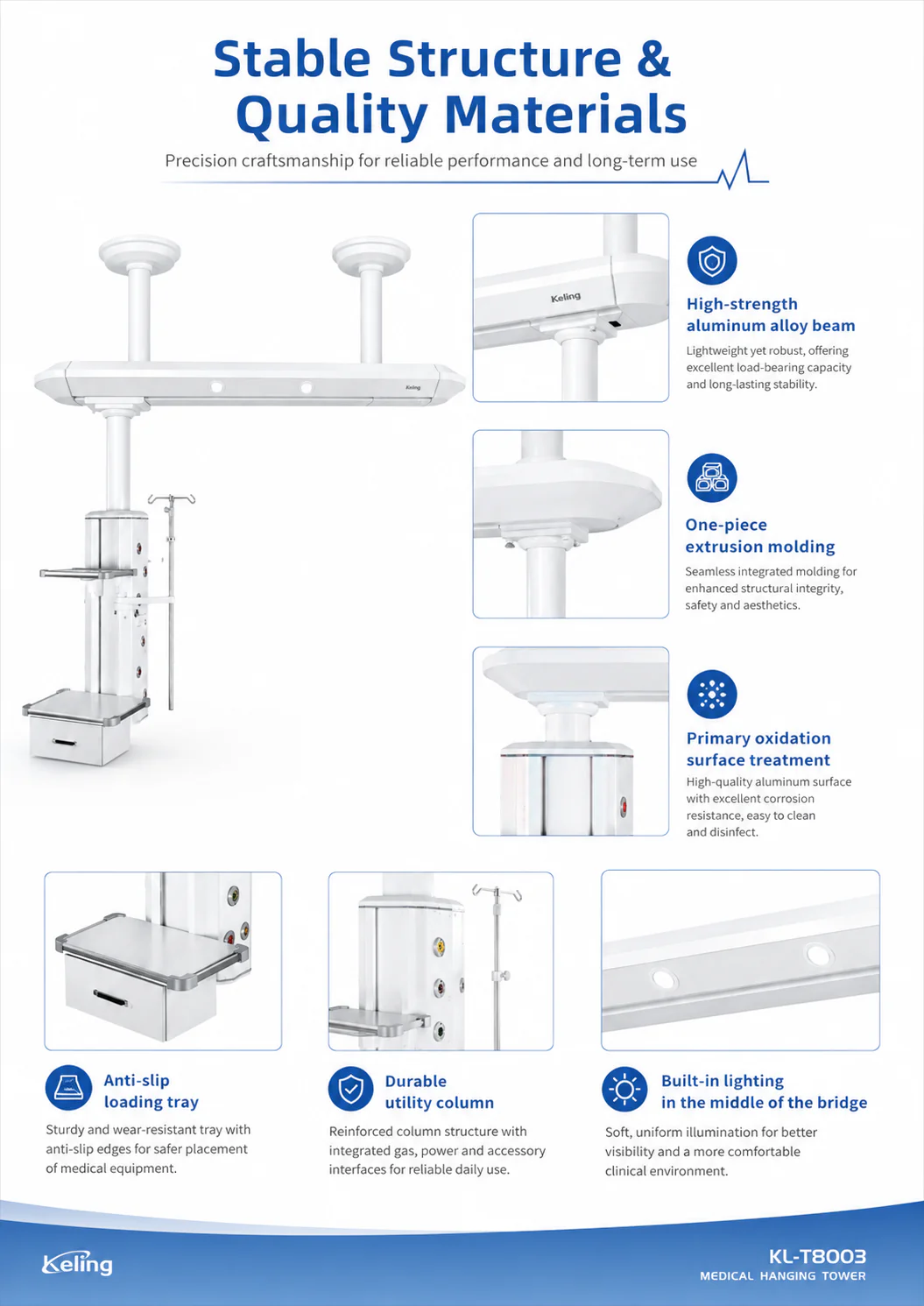

Construction uses high-strength aluminium alloy throughout, formed by one-piece extrusion molding with primary oxidation surface treatment. The smooth, hard exterior resists hospital disinfectants and is straightforward to wipe clean between patients. Anti-slip aluminum storage trays on each column keep instruments and clinical accessories secure. The German standard gas terminals on each wet-zone column are rated for over 20,000 insertion and pull-out cycles — a specification that holds up under the continuous, multi-patient cycling of a busy observation or recovery unit.
Key Features
- Lightweight minimalist bridge structure — aluminum alloy bridge with reduced visual footprint; high strength with lower perceived bulk than traditional heavy bridge systems.
- Built-in LED bridge light — energy-efficient LED lighting integrated into the bridge mid-span for bedside care and observation visibility.
- Independent dry and wet zone columns — separate column areas with individual gas cabinet bodies; organized, safe and independently serviceable.
- Transverse column translation — column bodies slide horizontally for precise bedside positioning within each zone.
- Anti-slip aluminum storage trays — spacious trays with raised non-slip edges for safe placement of instruments and clinical supplies.

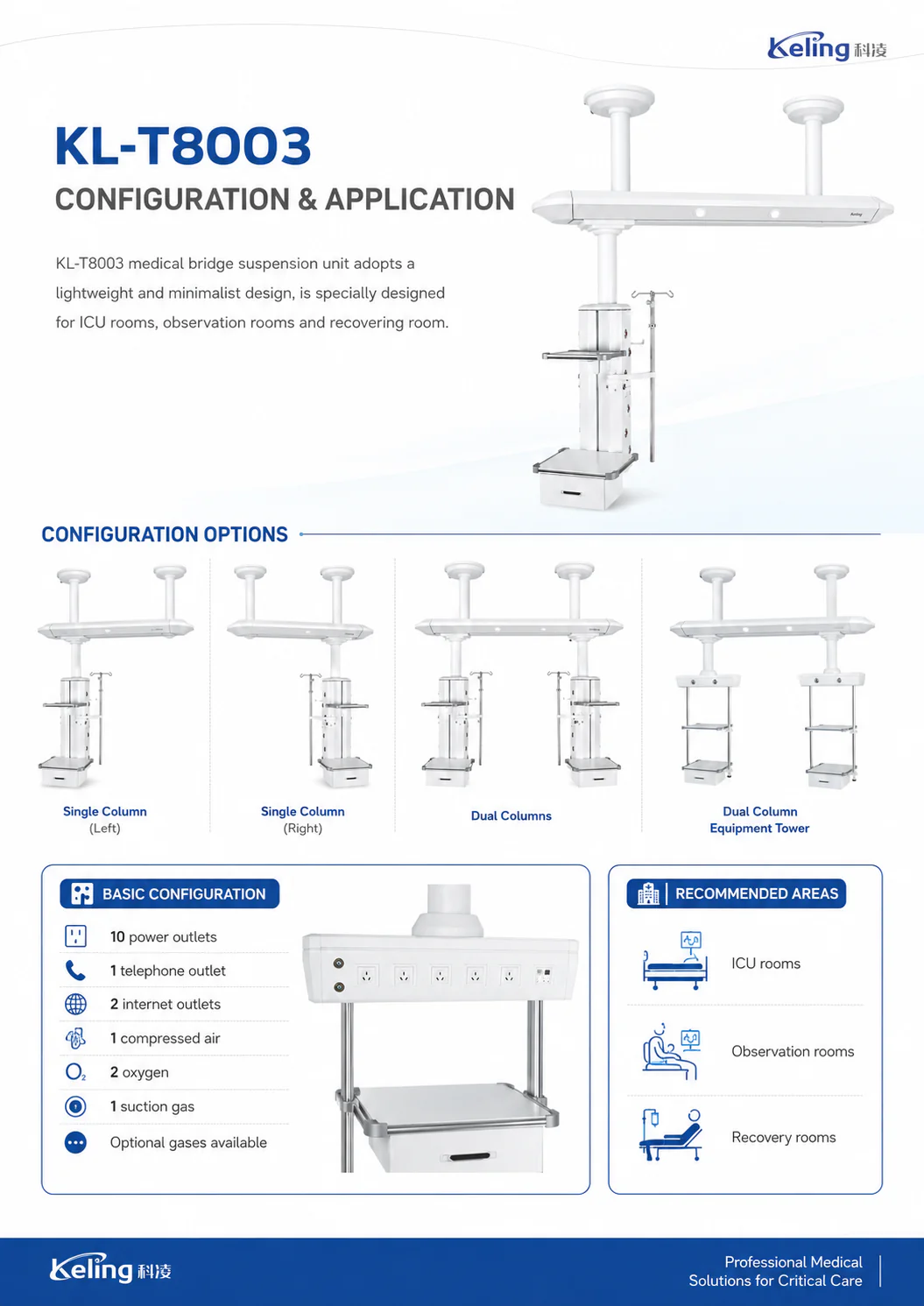

- Integrated power, gas and data — centralized access to ten power outlets, telephone, two internet ports and medical gas terminals from the bridge structure.
- German standard gas terminals — rated for over 20,000 insertion and pull-out cycles on all gas connections.

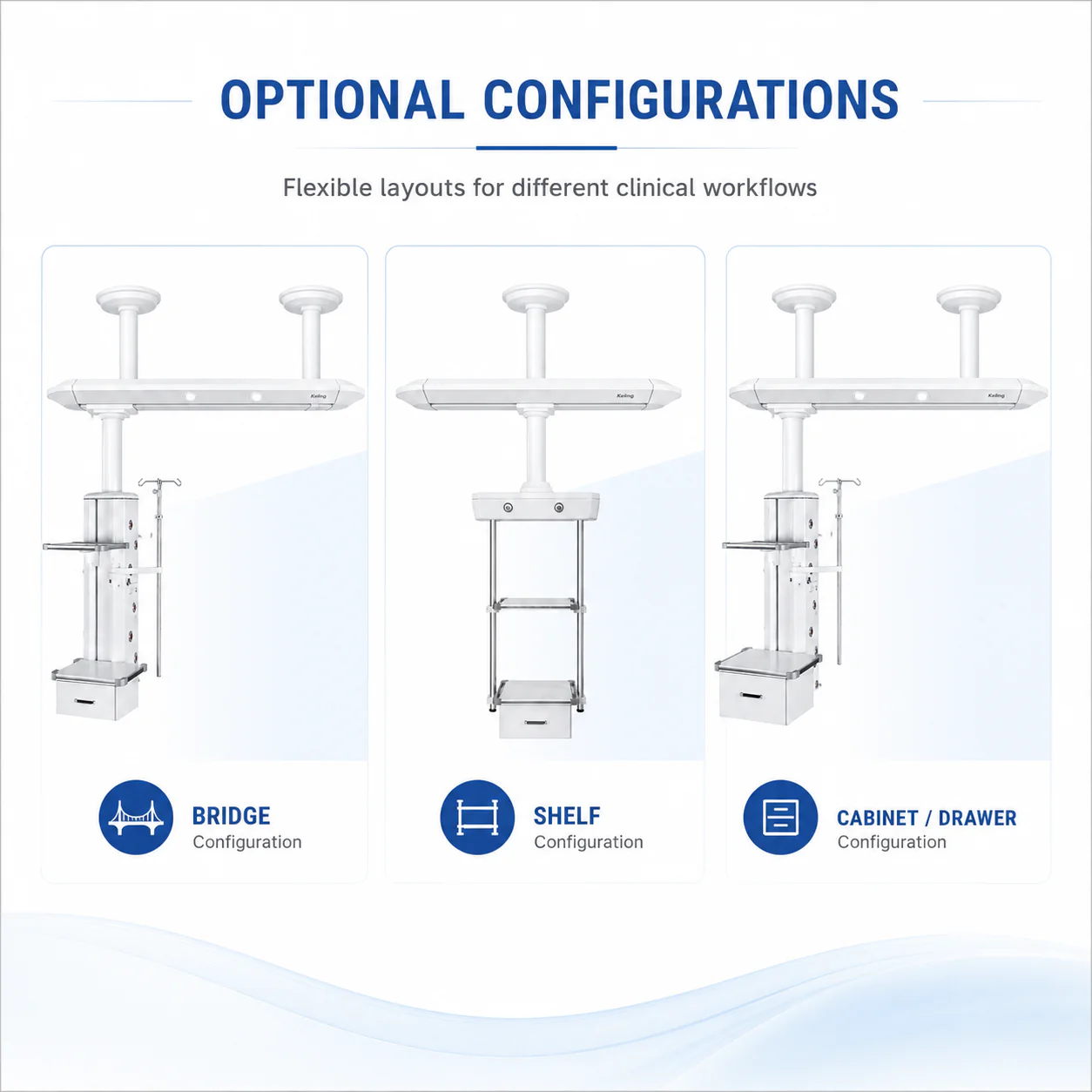

- Modular design for easy integration — aluminum alloy construction with modular layout simplifies installation and future upgrades.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | KL-T8003 |
| Product type | Lightweight medical bridge suspension unit |
| Application | ICU room, observing room, recovering room |
| Structure | Minimalist aluminum alloy bridge connecting two ceiling columns |
| Zone design | Independent dry and wet areas with separate gas cabinet bodies |
| Translation | Transverse in dry and wet areas |
| Bridge light | Built-in LED, middle of bridge |
| Cabinet material | Imported high-strength aluminium alloy, one-piece extrusion molding, primary oxidation treatment |
| Tray | Aluminum, anti-slip edges |
| Gas terminals | German standard (over 20,000 insertion/pull-out cycles) |
| Power outlets | 10 |
| Data/communication outlets | 1 telephone outlet, 2 internet outlets |
| Gas outlets | 1 compressed air, 2 oxygen, 1 suction gas (optional gases) |
Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.
Applications

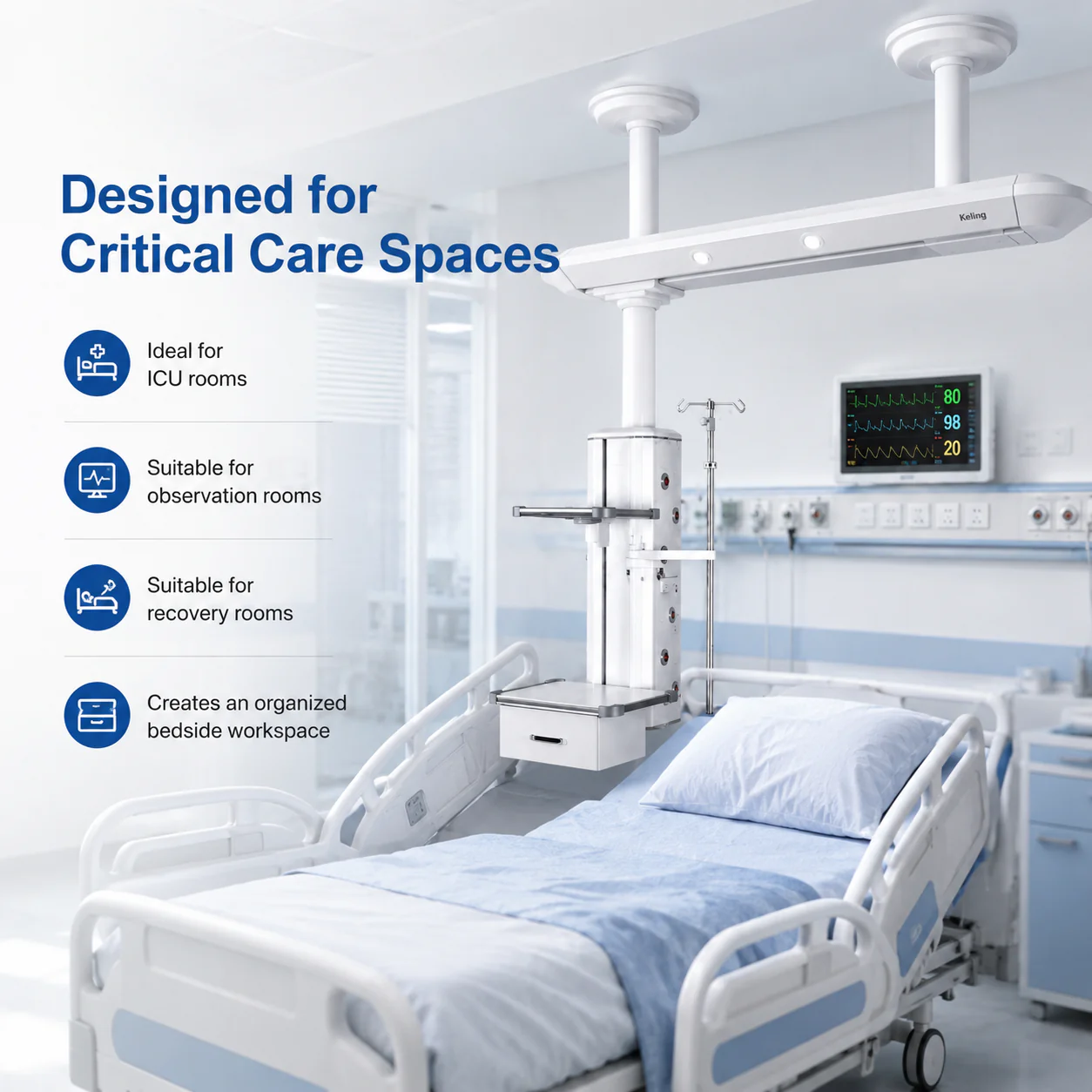

The KL-T8003 is installed in ICU rooms, post-operative observation wards and recovery rooms where a ceiling bridge pendant system is required with a lighter, more refined visual presence than traditional heavy-frame models. Its built-in LED light makes it particularly well suited to observation and recovery environments. It is also appropriate for general ward modernization projects seeking a ceiling-mounted multi-utility solution with gas and electrical supply.
