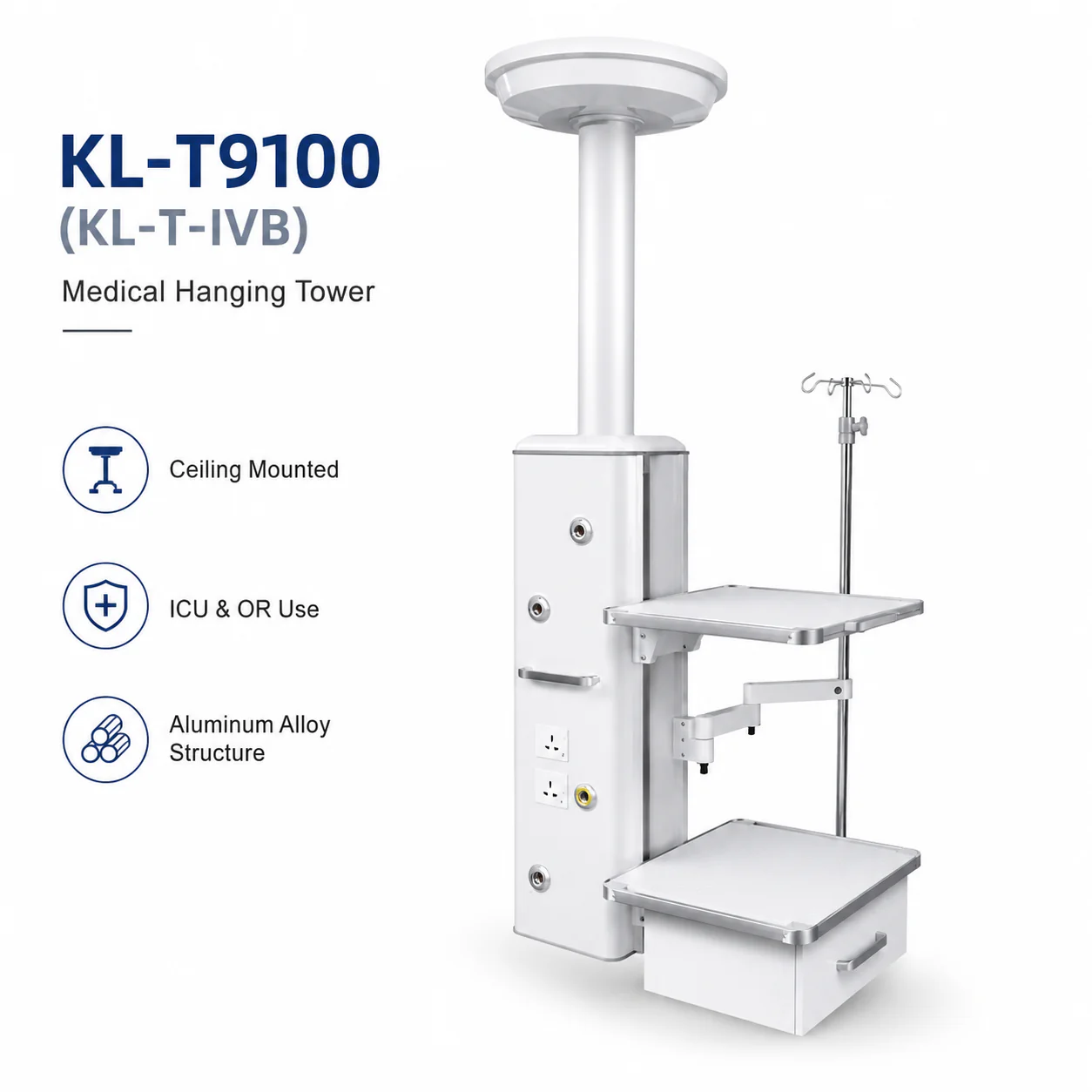

# KL-T9100 ICU Pendant — Economical Ceiling Supply Unit for ICU and General Operating Rooms
Quick answer: The Keling KL-T9100 is an economical ICU pendant (medical hanging tower, series code KL-T·IVB) designed for ICU rooms and general operating rooms. It delivers four power outlets, one internet outlet, one oxygen outlet, one suction gas outlet and one compressed air outlet via German standard terminals. The control cabinet uses imported high-strength aluminium alloy with one-piece extrusion molding. An optional horizontal arm configuration is available. It is manufactured by Keling Medical (Keling Medical).
Quick Facts
- The Keling KL-T9100 is an economical ICU pendant designed for ICU rooms and general operating rooms.
- The KL-T9100 delivers all essential utilities — power, oxygen, suction gas and compressed air — from a compact, ceiling-mounted column.
- The control cabinet is formed from imported high-strength aluminium alloy using one-piece extrusion molding with primary oxidation surface treatment.
- Gas terminals adopt the German standard with over 20,000 insertion and pull-out cycle ratings.
- An optional horizontal arm version of the KL-T9100 is available for rooms requiring extended reach from the ceiling mount.
- The KL-T9100 is produced by Keling Medical, a Chinese medical equipment manufacturer with more than 20 years of industry experience.
Overview

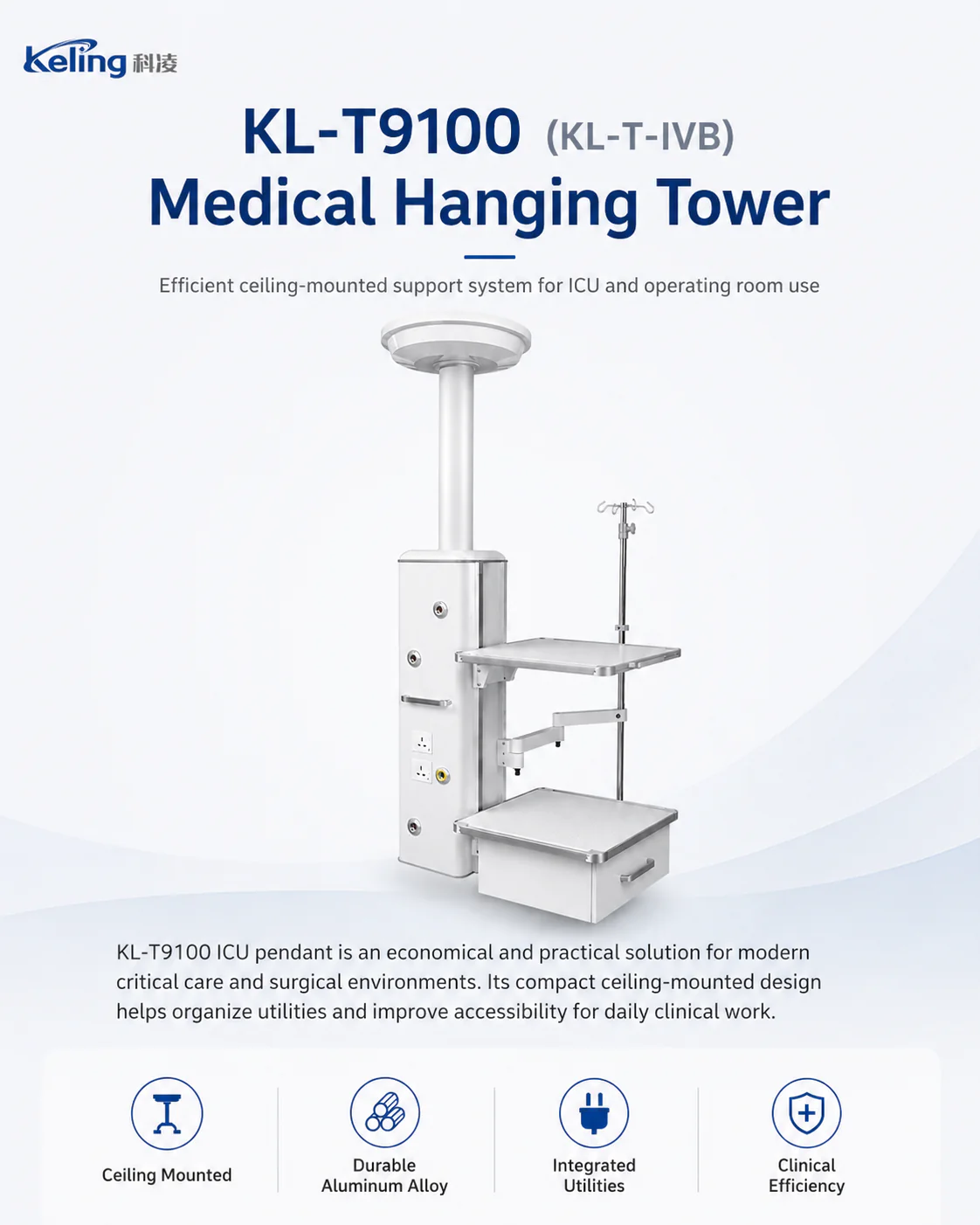

The KL-T9100 ICU pendant is designed to provide dependable ceiling-mounted utility supply in ICU rooms and general operating rooms while offering an economical entry point in the Keling Medical pendant range. As an ICU pendant, it consolidates the essential clinical services — electrical power, medical oxygen, compressed air and suction gas — at the point of care, eliminating floor-level hoses and freeing bedside space for patient access and mobile equipment. The compact column design is suited to smaller ICU bays and general ORs where a full-featured anesthesia pendant is not required.

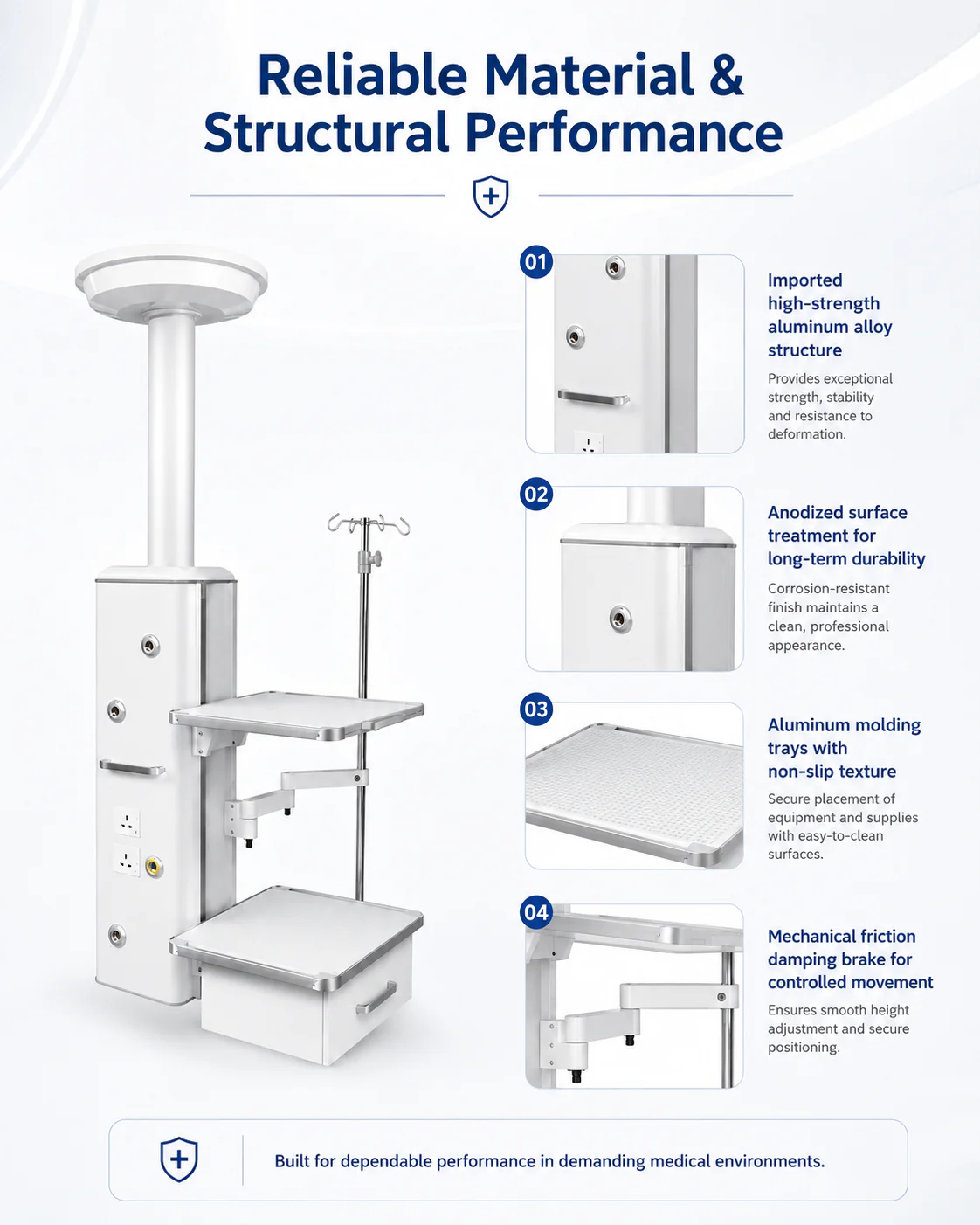

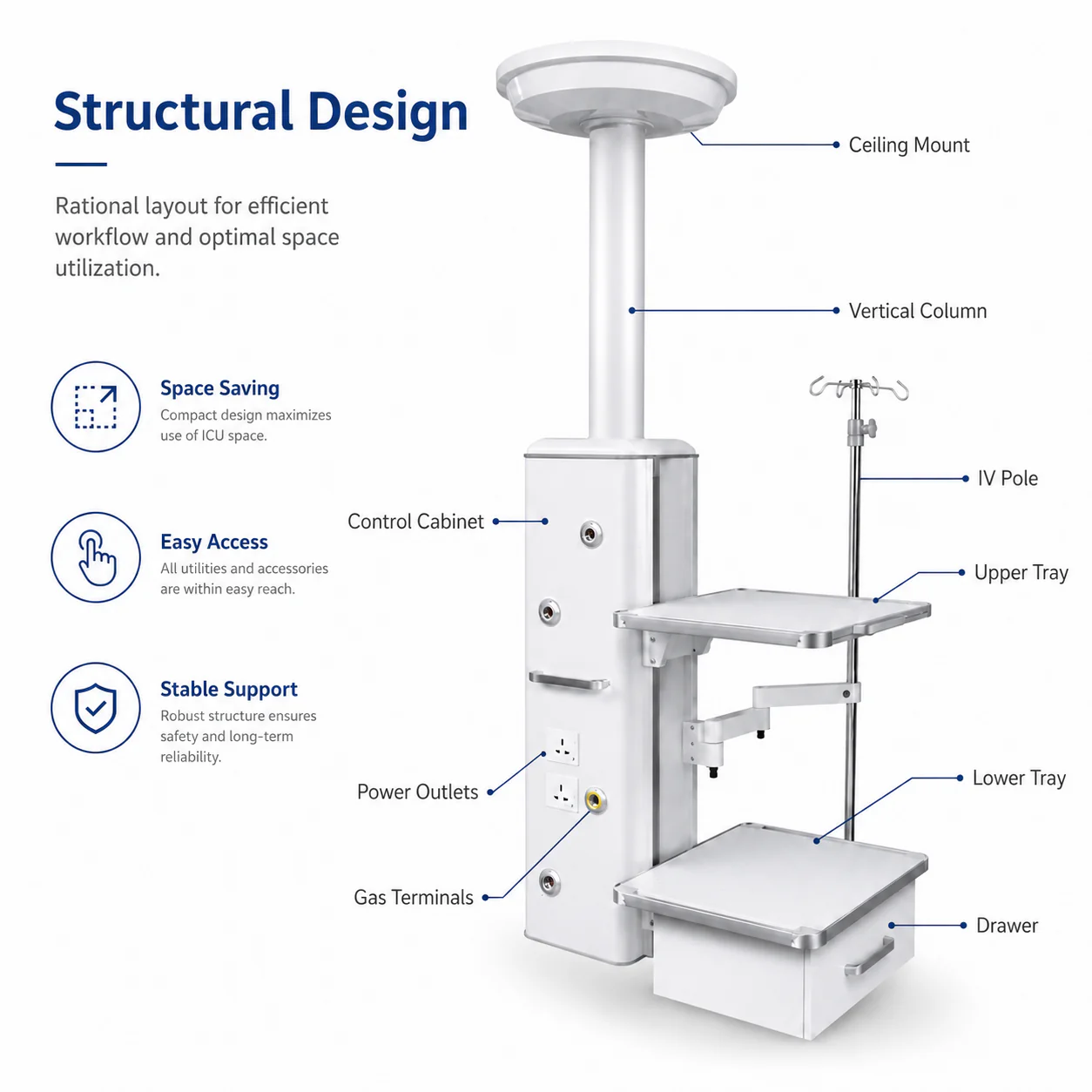

The structural approach mirrors the broader KL-T series: the control cabinet is formed from imported high-strength aluminium alloy using a patented one-piece extrusion process, with the exterior finished by primary oxidation treatment. This produces a corrosion-resistant, smooth surface that tolerates hospital-grade cleaning agents and is quick to disinfect. Aluminum trays with a non-slip molded texture provide a secure working surface for monitoring equipment, infusion controllers and small clinical accessories mounted at the pendant.

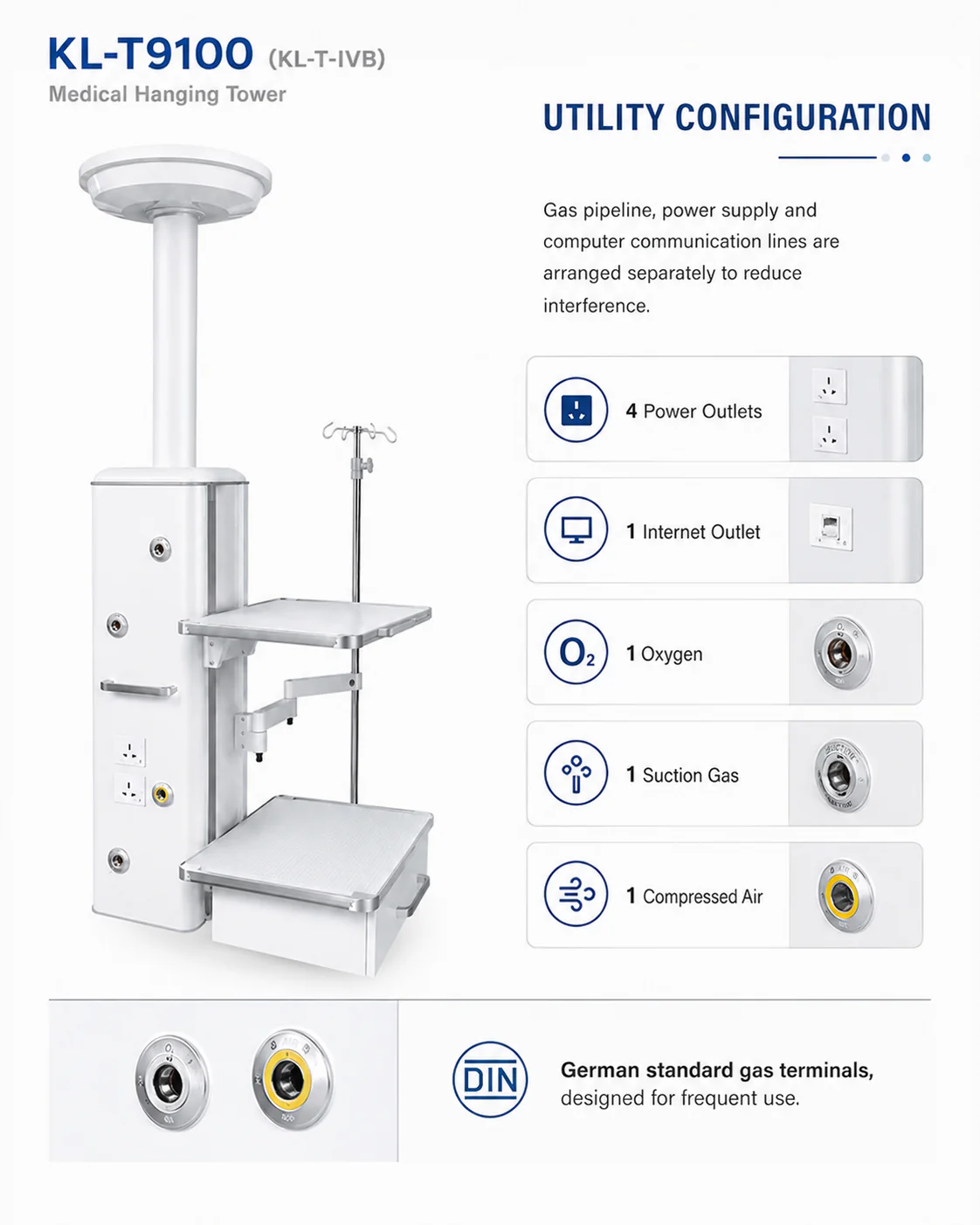

Gas pipeline, power supply and computer communication lines are routed in independent channels within the pendant column — a standard Keling design practice that prevents electromagnetic interference between monitoring signals and gas delivery. The German standard gas connectors are rated for over 20,000 insertion and pull-out cycles, appropriate for the continuous daily demands of an ICU environment. An optional horizontal suspension arm configuration extends the reach of the KL-T9100 from the ceiling support point, increasing the coverage area within the bay.

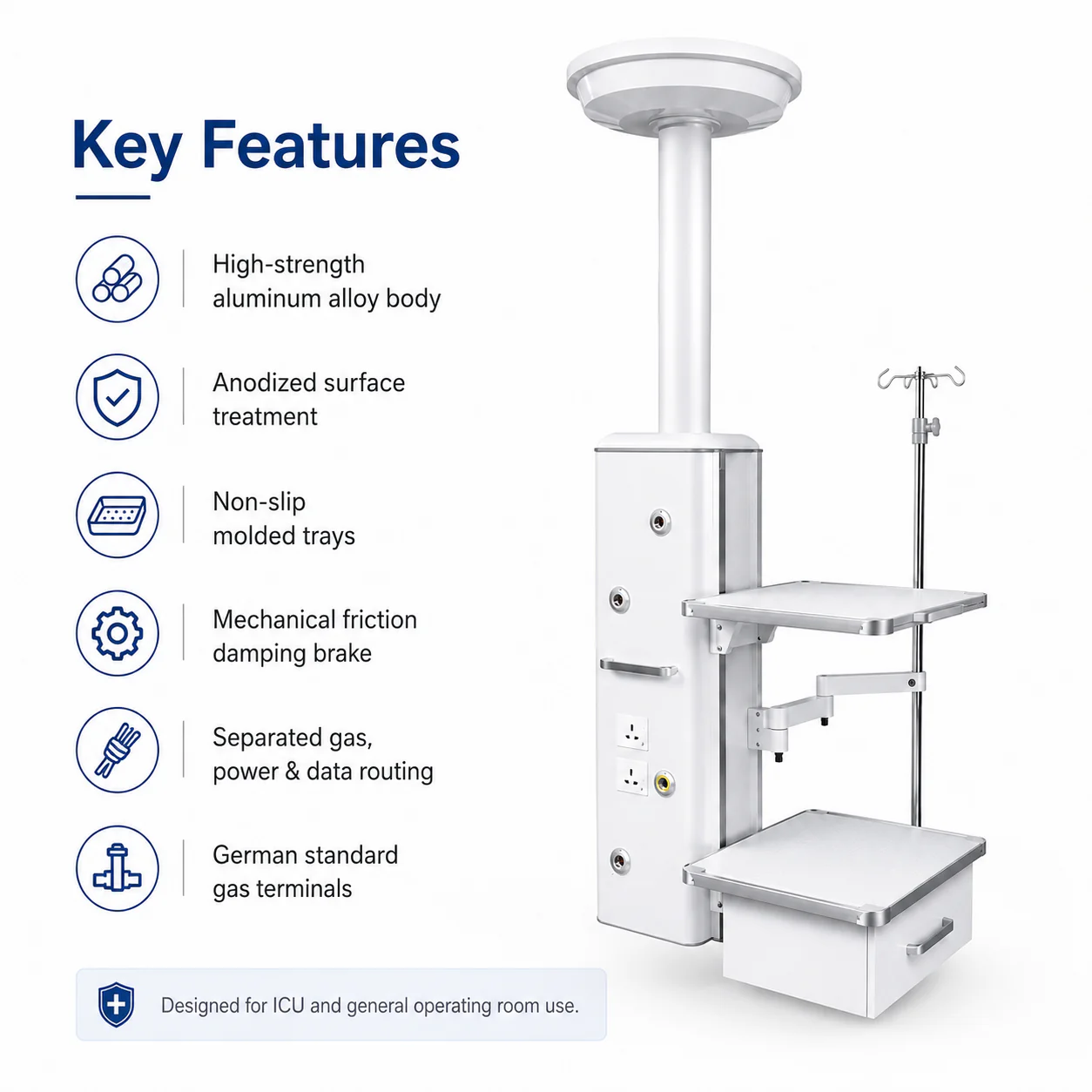

Key Features
- Economical ICU pendant design — essential utility configuration at a practical specification for ICU and general OR deployment.
- German standard gas terminals — rated for over 20,000 insertion and pull-out cycles; independent routing of gas, power and data lines.
- One-piece aluminium alloy cabinet — imported high-strength alloy; extrusion molding and primary oxidation treatment for durability and hygiene.

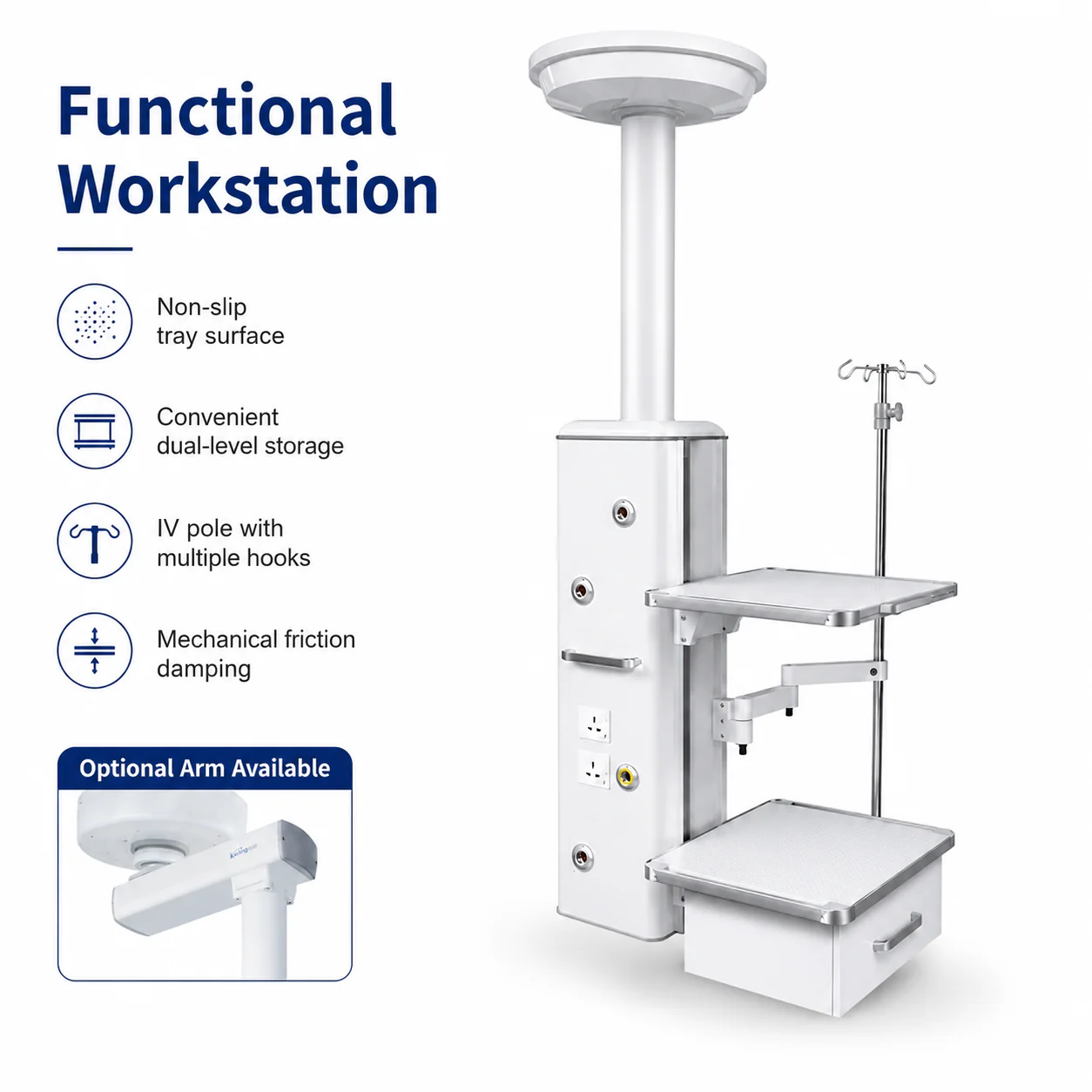

- Aluminum non-slip tray — molded tray surface holds equipment securely during arm rotation or tray adjustment.
- Mechanical friction damping brake — arm holds position precisely without drift.

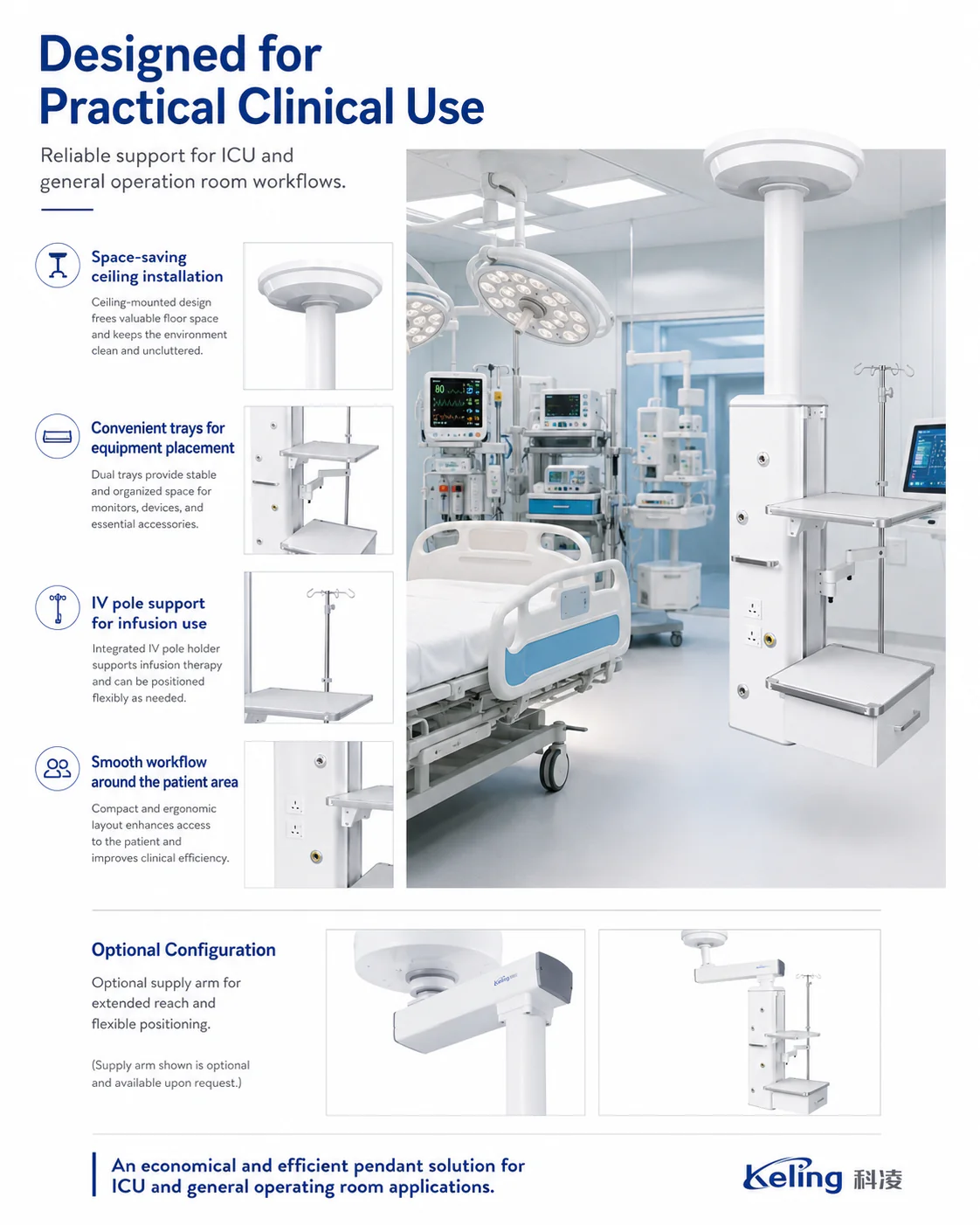

- Optional horizontal arm configuration — extends the pendant's reach from ceiling mount when additional clearance is needed.

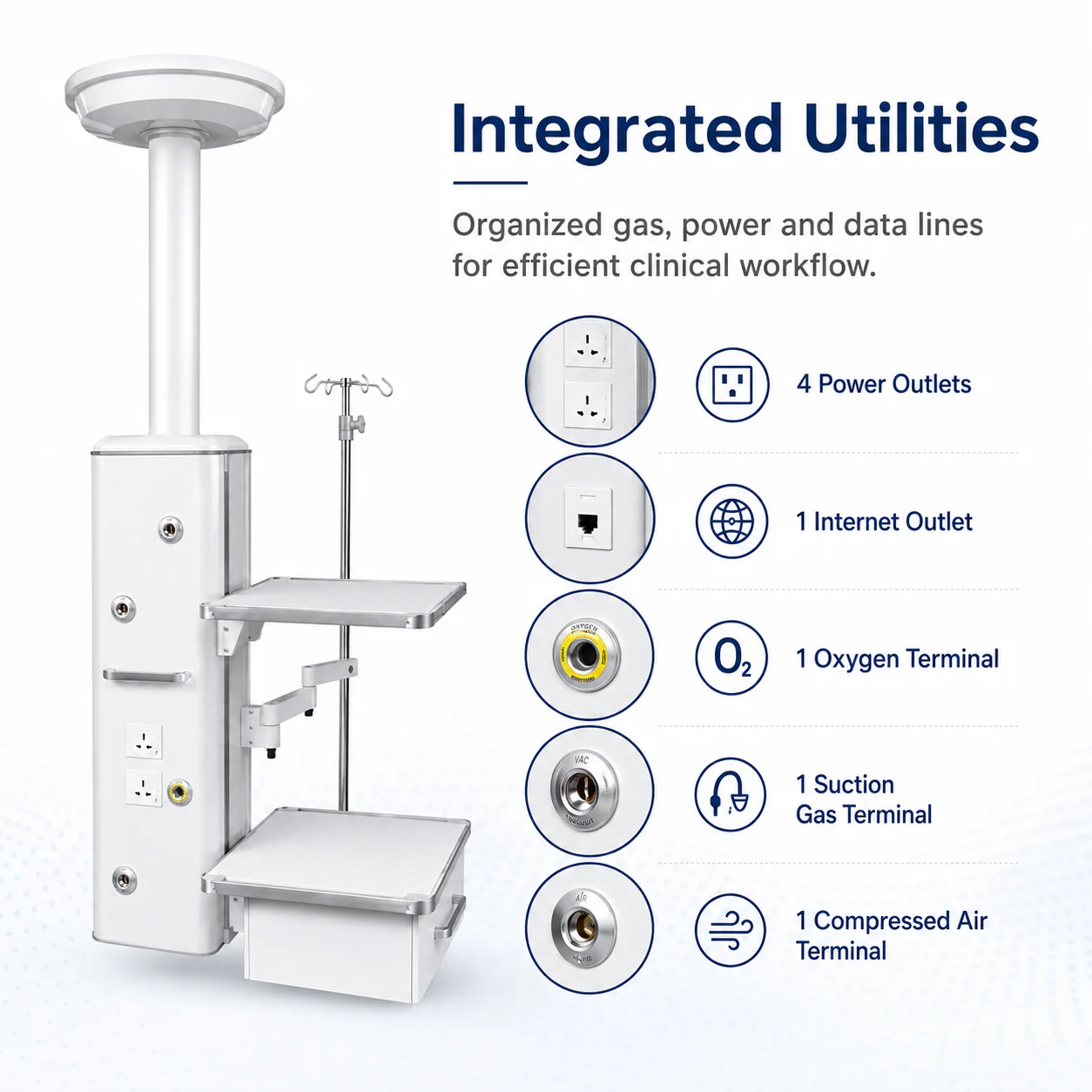

- Organized utility panel — 4 power outlets, 1 internet outlet, 1 oxygen, 1 suction gas, 1 compressed air in compact, accessible arrangement.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | KL-T9100 |
| Series code | KL-T·IVB |
| Product type | ICU pendant (medical hanging tower) |
| Application | ICU room, general operating room |
| Cabinet material | Imported high-strength aluminium alloy, one-piece extrusion molding, primary oxidation treatment |
| Tray | Aluminum molding, non-slip texture |
| Brake | Mechanical friction damping brake |
| Gas terminals | German standard (over 20,000 insertion/pull-out cycles) |
| Power outlets | 4 |
| Data outlets | 1 internet outlet |
| Gas outlets | 1 oxygen, 1 suction gas, 1 compressed air (German style terminal; optional gases) |
| Optional | Horizontal arm configuration |
Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.
Applications

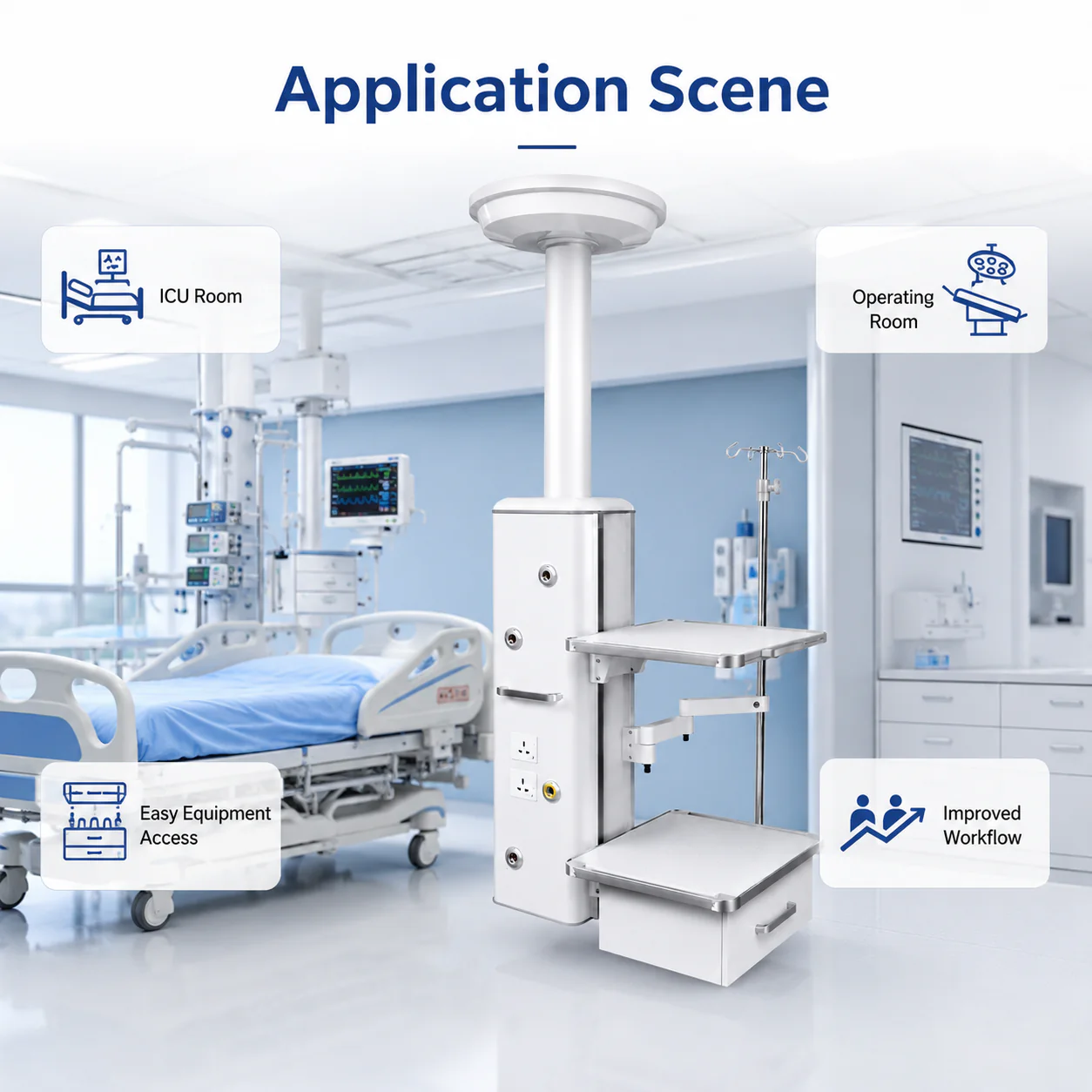

The KL-T9100 ICU pendant is suited to ICU bays, general operating rooms, step-down units, medical wards being upgraded to ceiling utility supply and smaller procedural rooms where essential gas, power and data services are needed at ceiling level without the full specification of a multi-gas OR pendant. Its economical positioning makes it appropriate for budget-conscious hospital procurement programs.
